Maxcess MAGPOWR TS Load Cell User manual

MAGPOWR TS Load Cell
User Manual
EN
EC-12 connector type
MI 850A342 A
MAGPOWR TENSION CONTROL

CONTENTS
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
INTRODUCTION 1-1
About these operating instructions ...................................................................... 1-1
Product overview .................................................................................................. 1-2
Mounting and coupling options ........................................................................... 1-3
SAFETY INSTRUCTIONS 2-1
Instructions for use .............................................................................................. 2-1
Symbols used ....................................................................................................... 2-2
Proper use............................................................................................................ 2-3
Installation and commissioning............................................................................ 2-3
Maintenance and repair........................................................................................ 2-3
Decommissioning................................................................................................. 2-3
INSTALLATION 3-1
General ................................................................................................................ 3-1
Stud mount .......................................................................................................... 3-1
Flange mount ....................................................................................................... 3-1
Pillow block mount............................................................................................... 3-1
Shaft and roll assembly ........................................................................................ 3-2
Split coupling models........................................................................................... 3-2
In-roll coupling models........................................................................................ 3-2
MAINTENANCE 4-1
Lubrication........................................................................................................... 4-1
SENSOR MODELS AND DIMENSIONS 5-1
Model number key ............................................................................................... 5-1
Available models .................................................................................................. 5-2
Split coupling sensors ..................................................................................... 5-3
In-roll coupling sensors .................................................................................. 5-5
Wire pulley coupling sensors ........................................................................... 5-7
PRODUCT SPECIFICATIONS 6-1
SERVICE AND PARTS 7-1

1-1
INTRODUCTION
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
About these
operating
instructions
All of the information herein is the exclusive proprietary property
of Maxcess International, and is disclosed with the
understanding that it will be retained in confidence and will
neither be duplicated nor copied in whole or in part nor be used
for any purpose other than for which disclosed.
Copyright 2011, all rights reserved.
Periodically there will be updates to this manual. The latest
version is available at www.magpowr.com or by calling
800.MAGPOWR (800.624.7697) or 405.755.1600.
These load cell devices must not be installed or used in a
machine or system which does not comply with the machinery
directive 2006/42/EC.
These load cell devices were designed and manufactured to be
installed as Partly Completed Machinery into a machine or partly
completed machine.
The instructions must be read and used by all persons who have
the responsibility of installing and maintaining these load cell
devices.
These instructions must be retained and incorporated in the
technical documentation for the machine or partly completed
machinery into which the load cell device is installed.
CE marking
Only the 2006/42/EC Machinery directive applies to these
devices and they are not marked with the CE sign.
Electromagnetic Compatibility (EMC)
The load cell device is inherently benign in terms of
electromagnetic compatibility and the EMC directive has not
been applied. The electromagnetic compatibility of the load cell
device can only be assessed in connection with the entire
electrical installation including the control. The machine builder
who installs this partly completed machinery into a machine is
responsible for compliance with the EMC directive.
Language
These are the original instructions, written in English.

1-2
INTRODUCTION
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Product overview
The MAGPOWR TS web tension sensors are extremely accurate
devices used to measure tension in any unwind, rewind, or
intermediate web processing application. The unique low profile
design minimizes space requirements inside the machine frames,
thus maximizing the potential for web width. The TS model
sensors also offer the flexibility of a variety of mounting styles
and coupling options.
MAGPOWR web tension sensors are ruggedly constructed with
mechanical overload stops in both force directions to eliminate
sensor damage and the need to recalibrate even after extreme
overloads. A full Wheatstone bridge arrangement of four foil
strain gages is used in each sensor for the most accurate means
of measuring web tension. In addition, all sensors incorporate a
dual beam construction design to insure linear output under all
loading conditions.
The TS style tension sensors can be mounted to the machine side
frame in one of several ways. They can be mounted on a vertical
surface using the Stud mount model, or the Flange mount model,
or to a horizontal surface using the Pillow Block model.
The TS style tension sensors allow three methods of coupling to
the customer’s application. The coupling types are Split
couplings, In-Roll coupling and Wire Pulley.
The TS style tension sensors allow any combination of mounting
and coupling types.

1-3
INTRODUCTION
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Mounting and coupling options
The Split Coupling configuration supports the customer’s dead or live shaft on each side of the
machine.
The In-Roll configuration supports the customer’s roll assembly (hollow tube) on each side of
the machine.
The Wire Pulley coupling configuration supports the single strand or wire, and measures tension
in the wire or strand as it passes over the pulley.

2-1
SAFETY INSTRUCTIONS
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Instructions for
use
To ensure safe and problem free installation of the load cell
device, the load cell must be properly transported and stored,
professionally installed and placed in operation. Proper operation
and maintenance will ensure a long service life of the device.
Only persons who are acquainted with the installation,
commissioning, operation and maintenance of the system and
who possess the necessary qualifications for their activities may
work on the load cell. Note: The safety information may not be
comprehensive.
Please note the following:
The content of these operating instructions
Any safety instructions on the device
The machine manufacturer’s specifications
All national, state, and local requirements for installation,
accident prevention and environmental protection
Information about
safety instructions
The safety instructions and symbols described in this section are
used in these operating instructions. They are used to avoid
possible dangers for users and to prevent material damage.
SIGNAL WORD
Source of danger and its results
Avoiding dangers
The signal word DANGER refers to the danger of death or serious
bodily injuries.
The signal word WARNING refers to the danger of moderate to
severe bodily injuries.
The signal word CAUTION refers to the danger of slight to
moderate bodily injuries or material damage.
The signal word NOTICE refers to the possibility of damage to
equipment.

2-2
SAFETY INSTRUCTIONS
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Symbols used
The following safety identification symbols are used in these
operating instructions.
WARNING/CAUTION –General danger or important note
Reference to general hazards that may result in bodily injuries or
damage to device or material.
WARNING/CAUTION –Danger due to crushing
Reference to danger of injury caused by crushing.
WARNING/CAUTION –Danger due to cutting
Reference to danger of injury caused by cutting.
WARNING/CAUTION –Danger due to voltage, electric shock
Reference to danger of injury caused by electric shock due to
voltage.
WARNING/CAUTION –Danger due to hot surfaces
Reference to risk of injury caused by burning.

2-3
SAFETY INSTRUCTIONS
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Basic safety
information
Proper use
The load cell devices are intended to be used on machines or
systems to monitor the tension in a web.
Indoor operation.
Improper use
Operation outside the technical specifications
Operation in an Ex-area or intrinsically safe area without a
proper barrier.
Any other use than the proper use shall be deemed inappropriate
Installation and commissioning
Any load cell device that is damaged must not be installed or put
into operation.
Only perform installation, maintenance or repair tasks on the
load cell device when the machine has been stopped and is
secured from being turned on.
Only perform installation, maintenance or repair tasks on the
load cell device when there is no electrical power in the system.
The load cell device must be securely mounted before being
placed in operation.
No modifications may be made to the load cell device.
Do not place electrical cables under mechanical strain.
Maintenance and repair
Warning –Danger of injury from crushing
Maintenance and repair tasks on the load cell device must be
performed only when the machine has been stopped and has
been secured from being turned on again.
Decommissioning
The load cell must be disposed of in accordance with all the
applicable national, state and local regulations.

3-1
INSTALLATION
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Mechanical and electrical
installation
CAUTION –Possible damage to load cell.
Do not hammer on the load cell.
CAUTION –Possible damage to load cell.
Do not disassemble the load cell –there are no serviceable
parts inside the unit.
WARNING –Danger of injury from crushing.
Maintenance and repair tasks on the load cell device must
be performed only when the machine has been stopped and
has been secured from being turned on again.
General
Select a clean flat surface where the wrap angle of the web
does not change. Position the vertical centerline of the
sensor so that it bisects the wrap angle of the web.
If the orientation of the sensor requires the force direction
arrow to be pointed opposite the resultant tension force
direction, then the black (-S) and the white (+S) sensor
leads to the MAGPOWR readout or control terminal block
must be reversed.

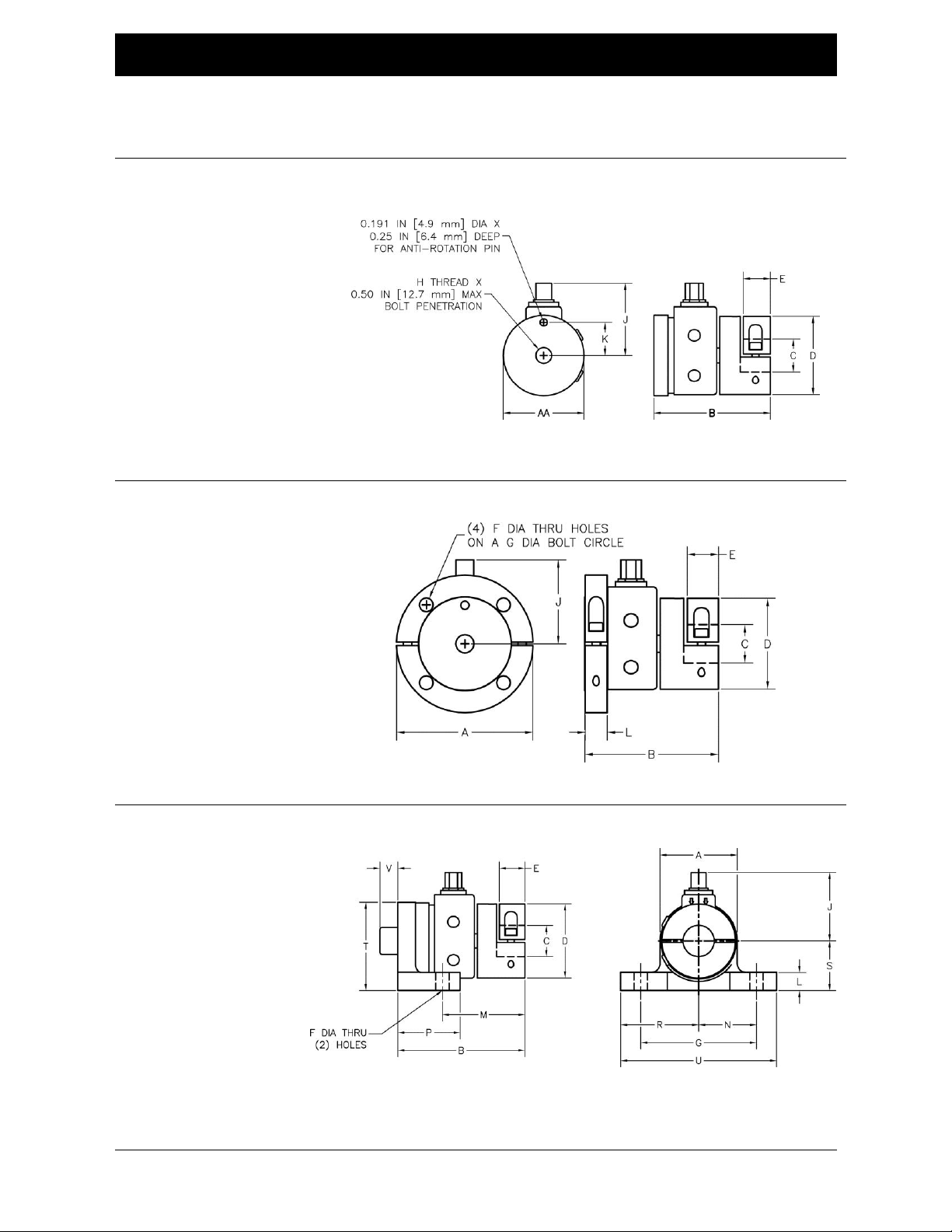

Stud mount
Fasten to the machine frame with a bolt making sure that
the bolt penetration does not exceed 12.7 mm [0.50 in]. A
small hole is provided in the rear of the sensor to accept a
pin to aid in alignment.
Flange mount
For the flange mounted version, fasten to the machine
frame with 4 bolts.
Pillow block mount
For the pillow block style, mount the pillow block adapter
with two bolts. A series of holes is provided in the pillow
block adapter to allow alignment of the sensor with the
resultant force.

3-2
INSTALLATION
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Mechanical and electrical
installation
(continued)
Shaft and roll assembly (supplied by customer)
The sensor split coupling or in-roll coupling can accommodate
shaft misalignment of 0.001 mm/mm [0.001 in/in].
Example: For 600 mm between machine side frames, the sensor
must be aligned within .600 mm.
Split coupling models
Split coupling sensors can be used for both live and dead shaft
applications. All split coupling sensors are shipped with the
coupling locked in place for use with a dead shaft. For live shaft
applications remove the anti-rotation screw located behind the
removable part of the split coupling.
Remove the coupling screws and top half of the couplings. Gently
lower the shaft/roller assembly into the couplings. The couplings
have some misalignment capability to facilitate shaft mounting.
Replace one coupling top half and screws. Tighten screws
securely. Push this coupling toward the machine frame, and hold
it in position while securing the coupling on the other end of the
shaft. This will divide the thermal expansion capability between
the two sensors.
In-roll coupling models
Insert one sensor into each end of a machined tube and install between machine frames
accordingly.
52.0 +.05/-.00 mm diameter; 0.53 in. (13.5 mm) maximum depth for 5 lb, 50 lb, 2 kg, and 25 kg sensors
62.0 +.05/-.00 mm diameter; 0.76 in. (13.9 mm) maximum depth for 150, 330 and 500 lb, 75 kg, 150 and 250 kg sensors

4-1
MAINTENANCE
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Maintenance
No maintenance is required for the model TS sensors other than
periodic lubrication of the bearing on the live shaft (rotating
coupling) and in-roll applications.
A grease fitting is located on the top of the coupling for the split
coupling models, and under the o-ring on in-roll coupling
models. The grease fitting accepts a needle type grease gun.
Lubricate the bearing with 1.0 gram Chevron SRI 2 or equivalent.

5-1
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Model number key
Series –Load rating –Mounting type –Coupling type –Connector type –Units type –Sxx
Series
TS –Tension sensor
Load rating
in pounds = English units models
in kilograms = Metric units models
Mounting type
S –Stud
F –Flange
P –Pillow block
Coupling type
C –Split coupling
R –In-roll
W –Wire pulley
Connector type
EC12
Units type
Blank –English units
M –Metric units
Sxx
Specials –other variations

5-2
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Available models
Mounting Type and Rating
Split Coupling
Models
In-Roll Coupling
Models
Wire Pulley
Models
Stud Mount 5 lb Sensor
TS5SC-EC12
TS5SR-EC12
TS5SW-EC12
Stud Mount 25 lb Sensor
TS25SC-EC12
TS25SR-EC12
TS25SW-EC12
Stud Mount 50 lb Sensor
TS50SC-EC12
TS50SR- EC12
TS50SW-EC12
Stud Mount 150 lb Sensor
TS150SC-EC12
TS150SR-EC12
TS150SW-EC12
Stud Mount 330 lb Sensor
TS330SC-EC12
TS330SR-EC12
TS330SW-EC12
Stud Mount 500 lb Sensor
TS500SC-EC12
TS500SR-EC12
TS500SW-EC12
Flange Mount 5 lb Sensor
TS5FC-EC12
TS5FR-EC12
TS5FW-EC12
Flange Mount 25 lb Sensor
TS25FC-EC12
TS25FR-EC12
TS25FW-EC12
Flange Mount 50 lb Sensor
TS50FC-EC12
TS50FR-EC12
TS50FW-EC12
Flange Mount 150 lb Sensor
TS150FC-EC12
TS150FR-EC12
TS150FW-EC12
Flange Mount 330 lb Sensor
TS330FC-EC12
TS330FR-EC12
TS330FW-EC12
Flange Mount 500 lb Sensor
TS500FC-EC12
TS500FR-EC12
TS500FW-EC12
Pillow Block Mount 5 lb Sensor
TS5PC-EC12
TS5PR-EC12
TS5PW-EC12
Pillow Block Mount 25 lb Sensor
TS25PC-EC12
TS25PR-EC12
TS25PW-EC12
Pillow Block Mount 50 lb Sensor
TS50PC-EC12
TS50PR-EC12
TS50PW-EC12
Pillow Block Mount 150 lb Sensor
TS150PC-EC12
TS150PR-EC12
TS150PW-EC12
Pillow Block Mount 330 lb Sensor
TS330PC-EC12
TS330PR-EC12
TS330PW-EC12
Pillow Block Mount 500 lb Sensor
TS500PC-EC12
TS500PR-EC12
TS500PW-EC12
Metric Stud Mount 2 Kg Sensor
TS2SC-EC12M
TS2SR-EC12M
TS2SW-EC12M
Metric Stud Mount 10 Kg Sensor
TS10SC-EC12M
TS10SR-EC12M
TS10SW-EC12M
Metric Stud Mount 25 Kg Sensor
TS25SC-EC12M
TS25SR-EC12M
TS25SW-EC12M
Metric Stud Mount 75 Kg Sensor
TS75SC-EC12M
TS75SR-EC12M
TS75SW-EC12M
Metric Stud Mount 150 Kg Sensor
TS150SC-EC12M
TS150SR-EC12M
TS150SW-EC12M
Metric Stud Mount 250 Kg Sensor
TS250SC-EC12M
TS250SR-EC12M
TS250SW-EC12M
Metric Flange Mount 2 Kg Sensor
TS2FC-EC12M
TS2FR-EC12M
TS2FW-EC12M
Metric Flange Mount 10 Kg Sensor
TS10FC-EC12M
TS10FR-EC12M
TS10FW-EC12M
Metric Flange Mount 25 Kg Sensor
TS25FC-EC12M
TS25FR-EC12M
TS25FW-EC12M
Metric Flange Mount 75 Kg Sensor
TS75FC-EC12M
TS75FR-EC12M
TS75FW-EC12M
Metric Flange Mount 150 Kg Sensor
TS150FC-EC12M
TS150FR-EC12M
TS150FW-EC12M
Metric Flange Mount 250 Kg Sensor
TS250FC-EC12M
TS250FR-EC12M
TS250FW-EC12M
Metric Pillow Block Mount 2 Kg Sensor
TS2PC-EC12M
TS2PR-EC12M
TS2PW-EC12M
Metric Pillow Block Mount 10 Kg Sensor
TS10PC-EC12M
TS10PR-EC12M
TS10PW-EC12M
Metric Pillow Block Mount 25 Kg Sensor
TS25PC-EC12M
TS25PR-EC12M
TS25PW-EC12M
Metric Pillow Block Mount 75 Kg Sensor
TS75PC-EC12M
TS75PR-EC12M
TS75PW-EC12M
Metric Pillow Block Mount 150 Kg Sensor
TS150PC-EC12M
TS150PR-EC12M
TS150PW-EC12M
Metric Pillow Block Mount 250 Kg Sensor
TS250PC-EC12M
TS250PR-EC12M
TS250PW-EC12M

5-3
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Split coupling sensors
Stud mount models
TS5SC-EC12,
TS25SC-EC12
TS50SC-EC12
TS150SC-EC12
TS330SC-EC12
TS500SC-EC12
TS2SC-EC12M
TS10SC-EC12M
TS25SC-EC12M
TS75SC-EC12M
TS150SC-EC12M
TS250SC-EC12M
Flange mount models
TS5FC-EC12
TS25FC-EC12
TS50FC-EC12
TS150FC-EC12
TS330FC-EC12
TS500FC-EC12
TS2FC-EC12
TS10FC-EC12
TS25FC-EC12
TS75FC-EC12
TS150FC-EC12
TS250FC-EC12
Pillow block models
TS5PC-EC12
TS25PC-EC12
TS50PC-EC12
TS150PC-EC12
TS330PC-EC12
TS500PC-EC12
TS2PC-EC12M
TS10PC-EC12M
TS25PC-EC12M
TS75PC-EC12M
TS150PC-EC12M
TS250PC-EC12M

5-4
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
English split coupling models (units are in inches, weight in pounds)
MODEL
A
AA
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
WEIGHT
TS5SC-EC12
2.13
3.04
0.875
2.07
0.71
1/2-13
1.9
0.88
0.93
TS25SC-EC12
2.13
3.04
0.875
2.07
0.71
1/2-13
1.9
0.88
0.93
TS50SC-EC12
2.13
3.04
0.875
2.07
0.71
1/2-13
1.9
0.88
0.93
TS150SC-EC12
2.60
3.61
1.250
2.50
1.05
1/2-13
2.2
1.00
1.56
TS330SC-EC12
2.60
3.61
1.250
2.50
1.05
1/2-13
2.2
1.00
1.56
TS500SC-EC12
2.60
3.61
1.250
2.50
1.05
1/2-13
2.2
1.00
1.56
TS5FC-EC12
3.13
3.04
0.875
2.07
0.71
0.313
2.50
1.9
0.50
1.09
TS25FC-EC12
3.13
3.04
0.875
2.07
0.71
0.313
2.50
1.9
0.50
1.09
TS50FC-EC12
3.13
3.04
0.875
2.07
0.71
0.313
2.50
1.9
0.50
1.09
TS150FC-EC12
4.00
3.61
1.250
2.50
1.05
0.375
3.25
2.2
0.50
1.87
TS330FC-EC12
4.00
3.61
1.250
2.50
1.05
0.375
3.25
2.2
0.50
1.87
TS500FC-EC12
4.00
3.61
1.250
2.50
1.05
0.375
3.25
2.2
0.50
1.87
TS5PC-EC12
2.16
3.54
0.875
2.07
0.71
0.375
3.25
1.9
0.50
2.29
1.63
1.75
2.13
1.38
2.46
4.25
0.50
1.36
TS25PC-EC12
2.16
3.54
0.875
2.07
0.71
0.375
3.25
1.9
0.50
2.29
1.63
1.75
2.13
1.38
2.46
4.25
0.50
1.36
TS50PC-EC12
2.16
3.54
0.875
2.07
0.71
0.500
3.25
1.9
0.50
2.29
1.63
1.75
2.13
1.38
2.46
4.25
0.50
1.36
TS150PC-EC12
2.60
4.11
1.250
2.50
1.05
0.500
4.00
2.2
0.50
2.73
2.00
2.00
2.63
1.63
2.93
5.25
0.50
3.18
TS330PC-EC12
2.60
4.11
1.250
2.50
1.05
0.500
4.00
2.2
0.50
2.73
2.00
2.00
2.63
1.63
2.93
5.25
0.50
3.18
TS500PC-EC12
2.60
4.11
1.250
2.50
1.05
0.500
4.00
2.2
0.50
2.73
2.00
2.00
2.63
1.63
2.93
5.25
0.50
3.18
Metric stud mount split coupling models (units are in millimeters, weight in kilograms)
MODEL
A
AA
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
WEIGHT
TS2SC-EC12M
54.0
77.2
30.0
52.5
18.1
M12 X 1.75
48
22.4
0.42
TS10SC-EC12M
54.0
77.2
30.0
52.5
18.1
M12 X 1.75
48
22.4
0.42
TS25SC-EC12M
54.0
77.2
30.0
52.5
18.1
M12 X 1.75
48
22.4
0.42
TS75SC-EC12M
66.0
91.7
30.0
63.5
26.5
M12 X 1.75
56
25.4
0.71
TS150SC-EC12M
66.0
91.7
30.0
63.5
26.5
M12 X 1.75
56
25.4
0.71
TS250SC-EC12M
66.0
91.7
30.0
63.5
26.5
M12 X 1.75
56
25.4
0.71
TS2FC-EC12M
79.4
77.2
30.0
52.5
18.1
7.94
63.5
48
12.7
0.49
TS10FC-EC12M
79.4
77.2
30.0
52.5
18.1
7.94
63.5
48
12.7
0.49
TS25FC-EC12M
79.4
77.2
30.0
52.5
18.1
7.94
63.5
48
12.7
0.49
TS75FC-EC12M
101.6
91.7
30.0
63.5
26.5
9.53
82.6
56
12.7
0.85
TS150FC-EC12M
101.6
91.7
30.0
63.5
26.5
9.53
82.6
56
12.7
0.85
TS250FC-EC12M
101.6
91.7
30.0
63.5
26.5
9.53
82.6
56
12.7
0.85
TS2PC-EC12M
54.9
90.0
30.0
52.5
18.1
9.5
82.6
48
12.7
58.2
41.3
44.5
54.0
34.9
62.5
108.0
12.7
0.62
TS10PC-EC12M
54.9
90.0
30.0
52.5
18.1
9.5
82.6
48
12.7
58.2
41.3
44.5
54.0
34.9
62.5
108.0
12.7
0.62
TS25PC-EC12M
54.9
90.0
30.0
52.5
18.1
9.5
82.6
48
12.7
58.2
41.3
44.5
54.0
34.9
62.5
108.0
12.7
0.62
TS75PC-EC12M
66.0
104.3
30.0
63.5
26.5
12.7
101.6
56
12.7
69.3
50.8
50.8
66.7
41.3
74.4
133.4
12.7
1.44
TS150PC-EC12M
66.0
104.3
30.0
63.5
26.5
12.7
101.6
56
12.7
69.3
50.8
50.8
66.7
41.3
74.4
133.4
12.7
1.44
TS25-PC-EC12M
66.0
104.3
30.0
63.5
26.5
12.7
101.6
56
12.7
69.3
50.8
50.8
66.7
41.3
74.4
133.4
12.7
1.44

5-5
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
In-roll coupling sensors
Stud mount models
TS5SR-EC12
TS25SR-EC12
TS50SR-EC12
TS150SR-EC12
TS330SR-EC12
TS500SR-EC12
TS2SC-EC12M
TS10SC-EC12M
TS25SR-EC12M
TS75SR-EC12M
TS150SR-EC12M
TS250SR-EC12M
Flange mount models
TS5FR-EC12
TS25FR-EC12
TS50FR-EC12
TS150FR-EC12
TS330FR-EC12
TS500FR-EC12
TS2FR-EC12M
TS10FR-EC12M
TS25FR-EC12M
TS75FR-EC12M
TS150FR-EC12M
TS250FR-EC12M
Pillow block models
TS5PR-EC12
TS25PR-EC12
TS50PR-EC12
TS150PR-EC12
TS330PR-EC12
TS500PR-EC12
TS2PR-EC12M
TS10PR-EC12M
TS25PR-EC12M
TS75PR-EC12M
TS150PR-EC12M
TS250PR-EC12M

5-6
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
English in-roll models (units are in inches, weight in pounds)
MODEL
A
AA
B
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
X
WEIGHT
TS5SR-EC12
2.13
2.23
2.05
0.53
1/2-13
1.9
0.88
1.65
0.93
TS25SR-EC12
2.13
2.23
2.05
0.53
1/2-13
1.9
0.88
1.65
0.93
TS50SR-EC12
2.13
2.23
2.05
0.53
1/2-13
1.9
0.88
1.65
0.93
TS150SR-EC12
2.60
2.47
2.44
0.76
1/2-13
2.2
1.00
1.66
1.56
TS330SR-EC12
2.60
2.47
2.44
0.76
1/2-13
2.2
1.00
1.66
1.56
TS500SR-EC12
2.60
2.47
2.44
0.76
1/2-13
2.2
1.00
1.66
1.56
TS5FR-EC12
3.13
2.23
2.05
0.53
0.313
2.50
1.9
0.50
1.65
1.09
TS25FR-EC12
3.13
2.23
2.05
0.53
0.313
2.50
1.9
0.50
1.65
1.09
TS50FR-EC12
3.13
2.23
2.05
0.53
0.313
2.50
1.9
0.50
1.65
1.09
TS150FR-EC12
4.00
2.47
2.44
0.76
0.375
3.25
2.2
0.50
1.66
1.87
TS330FR-EC12
4.00
2.47
2.44
0.76
0.375
3.25
2.2
0.50
1.66
1.87
TS500FR-EC12
4.00
2.47
2.44
0.76
0.375
3.25
2.2
0.50
1.66
1.87
TS5PR-EC12
2.16
2.73
2.05
0.53
0.375
3.25
1.9
0.50
1.48
1.63
1.75
2.13
1.38
2.46
4.25
0.50
0.91
1.36
TS25PR-EC12
2.16
2.73
2.05
0.53
0.375
3.25
1.9
0.50
1.48
1.63
1.75
2.13
1.38
2.46
4.25
0.50
0.91
1.36
TS50PR-EC12
2.16
2.73
2.05
0.53
0.375
3.25
1.9
0.50
1.48
1.63
1.75
2.13
1.38
2.46
4.25
0.50
0.91
1.36
TS150PR-EC12
2.60
2.97
2.44
0.76
0.500
4.00
2.2
0.50
1.59
2.00
2.00
2.63
1.63
2.93
5.25
0.50
0.79
3.18
TS330PR-EC12
2.60
2.97
2.44
0.76
0.500
4.00
2.2
0.50
1.59
2.00
2.00
2.63
1.63
2.93
5.25
0.50
0.79
3.18
TS500PR-EC12
2.60
2.97
2.44
0.76
0.500
4.00
2.2
0.50
1.59
2.00
2.00
2.63
1.63
2.93
5.25
0.50
0.79
3.18
Metric stud mount in-roll models (units are in millimeters, weight in kilograms)
MODEL
A
AA
B
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
X
WEIGHT
TS2SR-EC12M
54.0
56.6
52.0
13.3
M12 X 1.75
48
22.2
42.0
0.42
TS10SR-EC12M
54.0
56.6
52.0
13.3
M12 X 1.75
48
22.2
42.0
0.42
TS25SR-EC12M
54.0
56.6
52.0
13.3
M12 X 1.75
48
22.2
42.0
0.42
TS75SR-EC12M
66.0
62.7
61.8
19.4
M12 X 1.75
56
25.4
42.2
0.71
TS150SR-EC12M
66.0
62.7
61.8
19.4
M12 X 1.75
56
25.4
42.2
0.71
TS250SR-EC12M
66.0
62.7
61.8
19.4
M12 X 1.75
56
25.4
42.2
0.71
TS2FR-EC12M
79.4
56.6
52.0
13.3
7.94
63.5
48
12.7
42.0
0.49
TS10FR-EC12M
79.4
56.6
52.0
13.3
7.94
63.5
48
12.7
42.0
0.49
TS25FR-EC12M
79.4
56.6
52.0
13.3
7.94
63.5
48
12.7
42.0
0.49
TS75FR-EC12M
101.6
62.7
61.8
19.4
9.53
82.6
56
12.7
42.2
0.85
TS150FR-EC12M
101.6
62.7
61.8
19.4
9.53
82.6
56
12.7
42.2
0.85
TS250FR-EC12M
101.6
62.7
61.8
19.4
9.53
82.6
56
12.7
42.2
0.85
TS2PR-EC12M
54.9
69.3
52.0
13.3
9.53
82.6
48
12.7
37.6
41.3
44.5
54.0
34.9
62.5
108.0
12.7
23.1
0.62
TS10PR-EC12M
54.9
69.3
52.0
13.3
9.53
82.6
48
12.7
37.6
41.3
44.5
54.0
34.9
62.5
108.0
12.7
23.1
0.62
TS25PR-EC12M
54.9
69.3
52.0
13.3
9.53
82.6
48
12.7
37.6
41.3
44.5
54.0
34.9
62.5
108.0
12.7
23.1
0.62
TS75PR-EC12M
66.0
75.4
61.8
19.4
12.70
101.6
56
12.7
40.4
50.8
50.8
66.7
41.3
74.4
133.4
12.7
19.9
1.44
TS150PR-EC12M
66.0
75.4
61.8
19.4
12.70
101.6
56
12.7
40.4
50.8
50.8
66.7
41.3
74.4
133.4
12.7
19.9
1.44
TS250PR-EC12M
66.0
75.4
61.8
19.4
12.70
101.6
56
12.7
40.4
50.8
50.8
66.7
41.3
74.4
133.4
12.7
19.9
1.44

5-7
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Wire pulley coupling sensors
Stud mount models
TS5SW-EC12
TS25SW-EC12
TS50SW-EC12
TS150SW-EC12
TS330SW-EC12
TS500SW-EC12
TS2SW-EC12M
TS10SW-EC12M
TS25SW-EC12M
TS75SW-EC12M
TS150SW-EC12M
TS250SW-EC12M
Flange mount models
TS5FW-EC12
TS25FW-EC12
TS50FW-EC12
TS150FW-EC12
TS330FW-EC12
TS500FW-EC12
TS2FW-EC12M
TS10FW-EC12M
TS25FW-EC12M
TS75FW-EC12M
TS150FW-EC12M
TS250FW-EC12M
Pillow block models
TS5PW-EC12
TS25PW-EC12
TS50PW-EC12
TS150PW-EC12
TS330PW-EC12
TS500PW-EC12
TS2PW-EC12M
TS10PW-EC12M
TS25PW-EC12M
TS75PW-EC12M
TS150PW-EC12M
TS250PW-EC12M

5-8
Sensor Models and Dimensions
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
English wire pulley models (units are in inches, weight in pounds)
MODEL
A
AA
B
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
Y
WEIGHT
TS5SW-EC12
2.13
2.25
2.05
0.45
1/2-13
1.9
0.88
1.97
0.68
TS25SW-EC12
2.13
2.25
2.05
0.45
1/2-13
1.9
0.88
1.97
0.68
TS50SW-EC12
2.13
2.25
2.05
0.45
1/2-13
1.9
0.88
1.97
0.68
TS150SW-EC12
2.60
2.43
2.70
0.57
1/2-13
2.2
1.00
2.07
1.08
TS330SW-EC12
2.60
2.43
2.70
0.57
1/2-13
2.2
1.00
2.07
1.08
TS500SW-EC12
2.60
2.43
2.70
0.57
1/2-13
2.2
1.00
2.07
1.08
TS5FW-EC12
3.13
2.25
2.05
0.45
0.313
2.50
1.9
0.50
1.97
0.84
TS25FW-EC12
3.13
2.25
2.05
0.45
0.313
2.50
1.9
0.50
1.97
0.84
TS50FW-EC12
3.13
2.25
2.05
0.45
0.313
2.50
1.9
0.50
1.97
0.84
TS150FW-EC12
4.00
2.43
2.70
0.57
0.375
3.25
2.2
0.50
2.07
1.39
TS330FW-EC12
4.00
2.43
2.70
0.57
0.375
3.25
2.2
0.50
2.07
1.39
TS500FW-EC12
4.00
2.43
2.70
0.57
0.375
3.25
2.2
0.50
2.07
1.39
TS5PW-EC12
2.16
2.75
2.05
0.45
0.375
3.25
1.9
0.50
1.50
1.63
1.75
2.13
1.38
2.46
4.25
0.50
1.23
1.11
TS25PW-EC12
2.16
2.75
2.05
0.45
0.375
3.25
1.9
0.50
1.50
1.63
1.75
2.13
1.38
2.46
4.25
0.50
1.23
1.11
TS50PW-EC12
2.16
2.75
2.05
0.45
0.375
3.25
1.9
0.50
1.50
1.63
1.75
2.13
1.38
2.46
4.25
0.50
1.23
1.11
TS150PW-EC12
2.60
2.93
2.70
0.57
0.500
4.00
2.2
0.50
1.55
2.00
2.00
2.63
1.63
2.93
5.25
0.50
1.19
2.70
TS330PW-EC12
2.60
2.93
2.70
0.57
0.500
4.00
2.2
0.50
1.55
2.00
2.00
2.63
1.63
2.93
5.25
0.50
1.19
2.70
TS500PW-EC12
2.60
2.93
2.70
0.57
0.500
4.00
2.2
0.50
1.55
2.00
2.00
2.63
1.63
2.93
5.25
0.50
1.19
2.70
Metric stud mount wire pulley models (units are in millimeters, weight in kilograms)
MODEL
A
AA
B
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
Y
WEIGHT
TS2SW-EC12M
54.0
57.1
52.0
11.4
M12 X 1.75
48
22.2
50.0
0.31
TS10SW-EC12M
54.0
57.1
52.0
11.4
M12 X 1.75
48
22.2
50.0
0.31
TS25SW-EC12M
54.0
57.1
52.0
11.4
M12 X 1.75
48
22.2
50.0
0.31
TS75SW-EC12M
66.0
61.6
68.6
14.4
M12 X 1.75
56
25.4
52.5
0.49
TS150SW-EC12M
66.0
61.6
68.6
14.4
M12 X 1.75
56
25.4
52.5
0.49
TS250SW-EC12M
66.0
61.6
68.6
14.4
M12 X 1.75
56
25.4
52.5
0.49
TS2FW-EC12M
79.4
57.1
52.0
11.4
7.94
63.5
48
12.7
50.0
0.38
TS10FW-EC12M
79.4
57.1
52.0
11.4
7.94
63.5
48
12.7
50.0
0.38
TS25FW-EC12M
79.4
57.1
52.0
11.4
7.94
63.5
48
12.7
50.0
0.38
TS75FW-EC12M
101.6
61.6
68.6
14.4
9.53
82.6
56
12.7
52.5
0.63
TS150FW-EC12M
101.6
61.6
68.6
14.4
9.53
82.6
56
12.7
52.5
0.63
TS250FW-EC12M
101.6
61.6
68.6
14.4
9.53
82.6
56
12.7
52.5
0.63
TS2PW-EC12M
54.9
69.9
52.0
11.4
9.53
82.6
48
12.7
38.2
41.3
44.5
54.0
34.9
62.5
108.0
12.7
31.1
0.50
TS10PW-EC12M
54.9
69.9
52.0
11.4
9.53
82.6
48
12.7
38.2
41.3
44.5
54.0
34.9
62.5
108.0
12.7
31.1
0.50
TS25PW-EC12M
54.9
69.9
52.0
11.4
9.53
82.6
48
12.7
38.2
41.3
44.5
54.0
34.9
62.5
108.0
12.7
31.1
0.50
TS75PW-EC12M
66.0
74.3
68.6
14.4
12.70
101.6
56
12.7
39.3
50.8
50.8
66.7
41.3
74.4
133.4
12.7
30.2
1.22
TS150PW-EC12M
66.0
74.3
68.6
14.4
12.70
101.6
56
12.7
39.3
50.8
50.8
66.7
41.3
74.4
133.4
12.7
30.2
1.22
TS250PW-EC12M
66.0
74.3
68.6
14.4
12.70
101.6
56
12.7
39.3
50.8
50.8
66.7
41.3
74.4
133.4
12.7
30.2
1.22

6-1
SPECIFICATIONS
www.maxcessintl.com
MAGPOWR TS Load Cell
MI 850A342 1 A
Product
specifications
Warning –Do not use the devices outside of their rated
specifications
Gage Resistance
350 ohm
Gage Type
Metal foil, full bridge
Excitation Voltage
10 VDC nominal
Output Signal
21 mVDC nominal at full load
rating
Operating Temperature
-30° C to 80° C [-22° F to 176° F]
Temperature effect on zero
0.02% of rating per ºC [.01¯ % of ºF]
Combined non-linearity and
hysteresis
0.5% of full scale maximum
Repeatability
0.2% of full scale maximum
Overload stops
105% to 150% of full load rating
Deflection at full load
0.41 mm [0.016 in.]
Cable Connector
12B221-1; MAGPOWR mating cable
assembly Part #LCC5M, or mating
connector Part #12B220-1
(pin 1, +power; pin 2, +signal;
pin 3, -signal; pin 4, -power)
Climate Class
3K3 (EN60721)
Wiring diagram
+P
Pin 1
Red
+S
Pin 2
White
-S
Pin 3
Black
-P
Pin 4
Green
