Maxview MXL003/65 User manual

Installation & operating instructions
MXL003/65 & 85 Seeker Wireless
UK contact:
Helpline: [phone]
Email: [e-mail]
Web: www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111403 Iss 6

Visit: www.seekerwireless.co.uk for potential software updates
Contents:
Introduction 2
Proper use & operation 2
Safety precautions 3
Application example 4
Connections & features 5
Product contents 5
Required tools and equipment
Selecting an installation location 6
Positioning Control Box & Panel 6
Attaching Antenna Mount Plate 7
and LNB Park Plate
Electrical installation 8
Attaching Antenna Unit to 9
Mount Plate

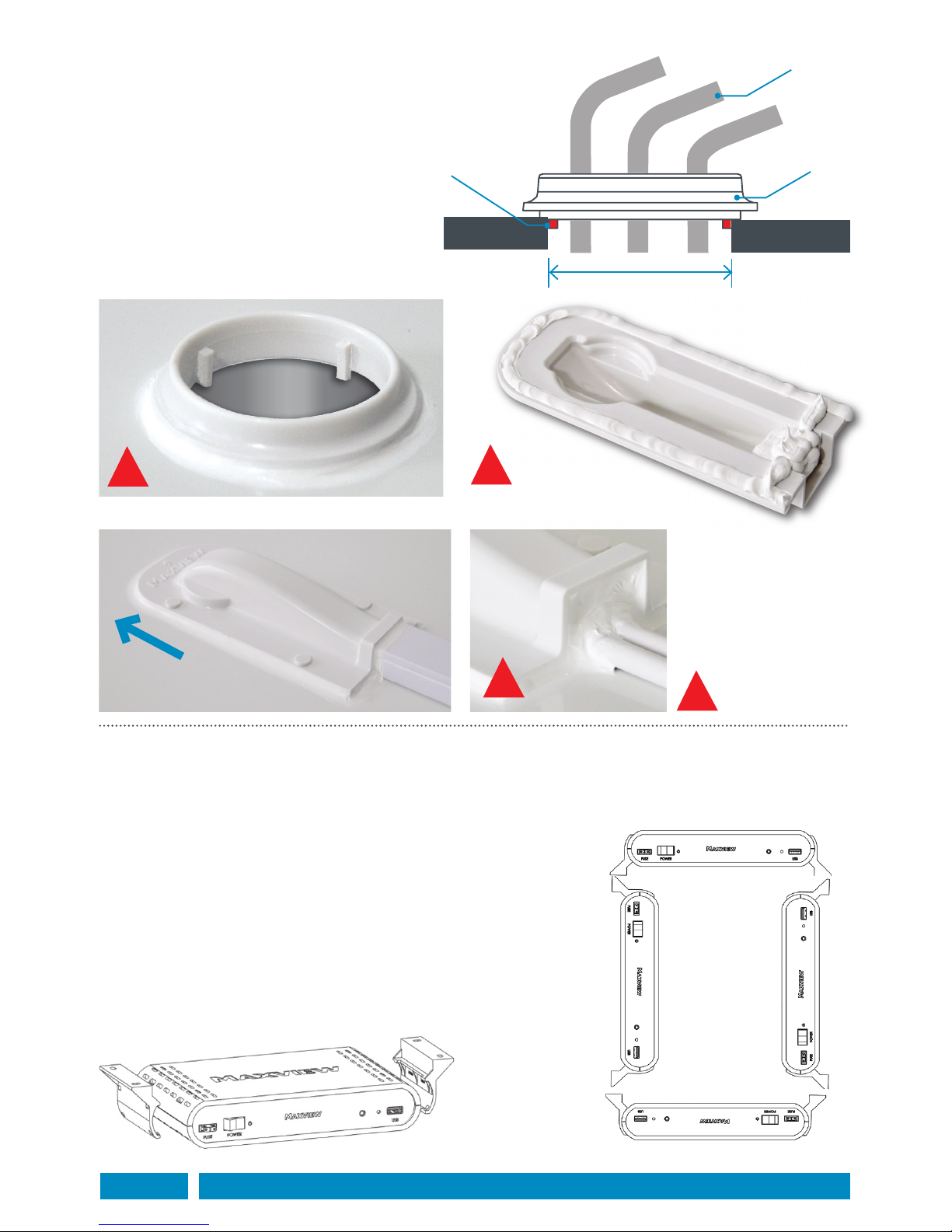

Installing cables 9
Installing Control Box 10
Installing Control Panel 10
Connection diagram 11
Introduction:
Please read these instructions fully before using the antenna for the first time. The operation of the antenna has
been designed to be as simple as possible however should you require any technical assistance please contact
Maxview customer service on [phone] or visit www.maxview.co.uk.
Proper use & operation:
The Seeker Wireless is designed to be installed in a motorhome, caravan or horsebox to automatically locate a
television broadcast satellite when the vehicle is stationary. The system comprises of 3 main components.
1. The Antenna which is to be permanently mounted externally to the roof structure of a motorhome/caravan
horsebox. The construction of the roof structure should be suitably robust and have no protruding obstacles
2. The Control Box is designed to be mounted internally in a cupboard it controls the antenna unit through a
cable connection and is powered by 12v DC only.
3. The Control Panel is the user interface allowing commands to be sent to the Control Box and the feedback
to be displayed on an integral screen. It is designed for internal use only. It communicates with the Control
Box either by radio or cable connection.
Use of the equipment for any other purpose than the one specified is not permitted and will invalidate the
Guarantee.
All instructions and models are subject to change. In accordance with policy of progressive product, the company
reserve the right to alter specifications.
Copyright© these instructions are the sole property of Maxview Ltd and may not be reproduced.
Please keep these instructions safe for future reference.
Recycle packaging where facilities exist.
Page 2
Attaching Satellite Dish to Unit 11
Installing Batteries 12

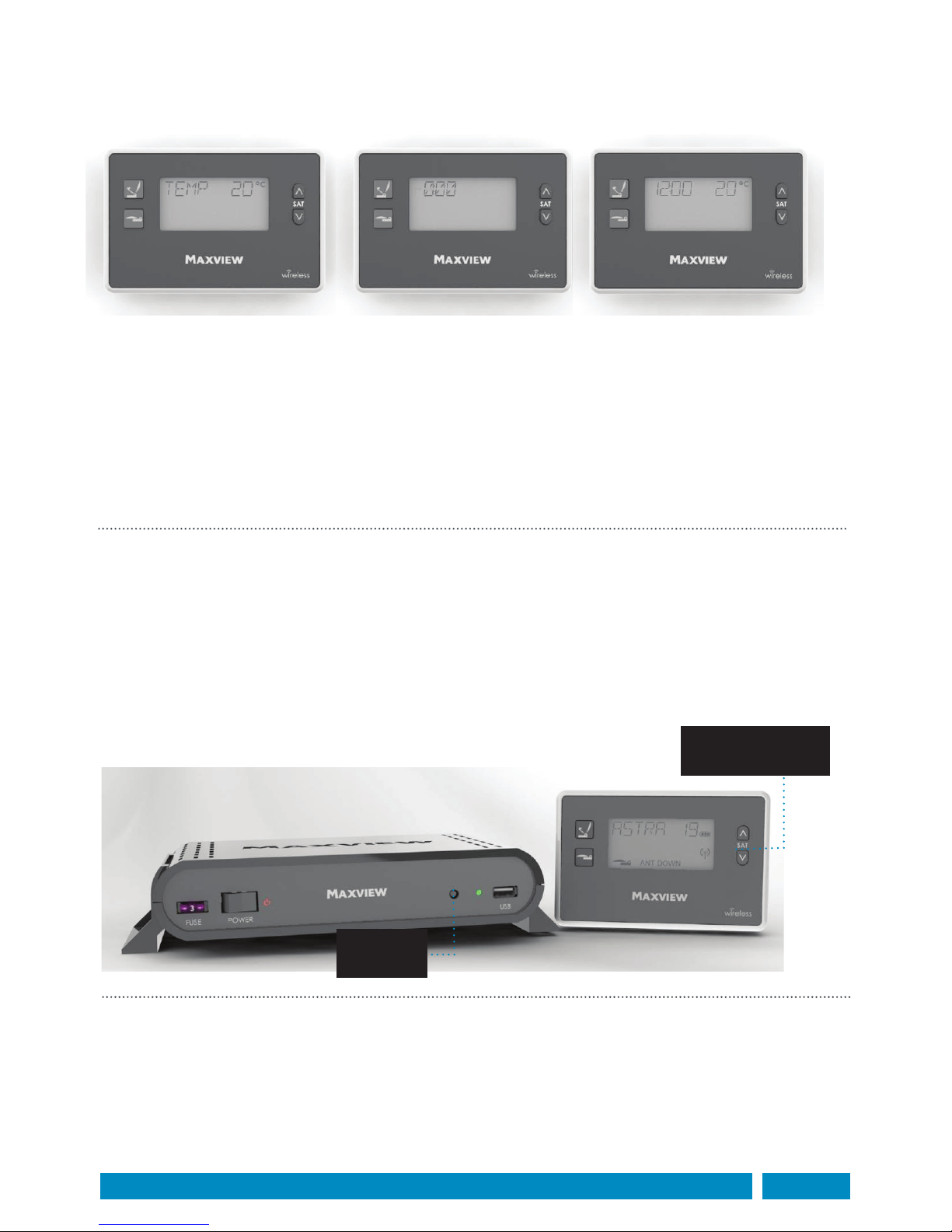

Time and temperature display 12
Pairing Control Panel and
Control Box 13
Cable mode 13

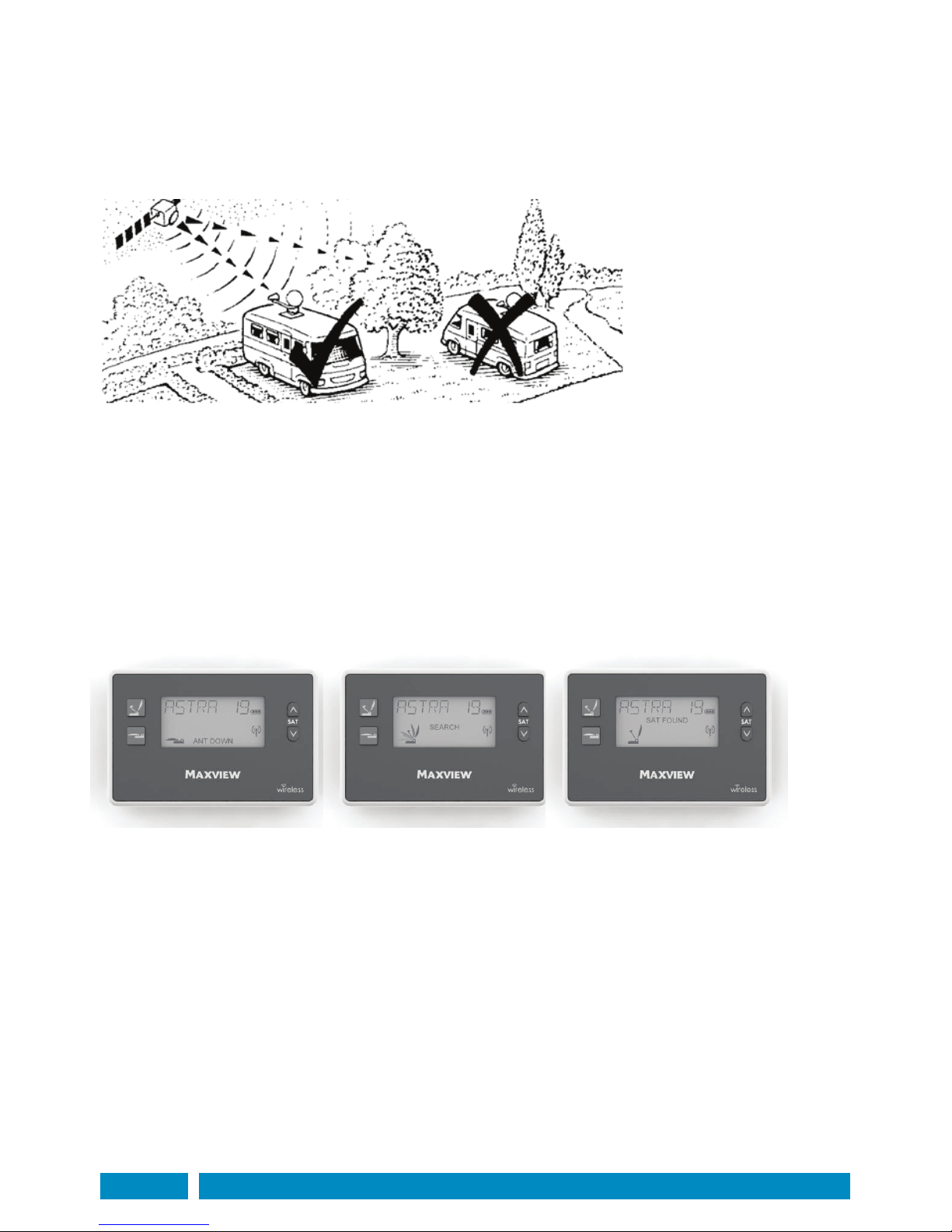

Finding a satellite 13
Starting search mode 14
Pause function 14
Lowering the antenna 14
Ignition mode 15
Connecting to a Satellite Receiver 15
Power consumption 15

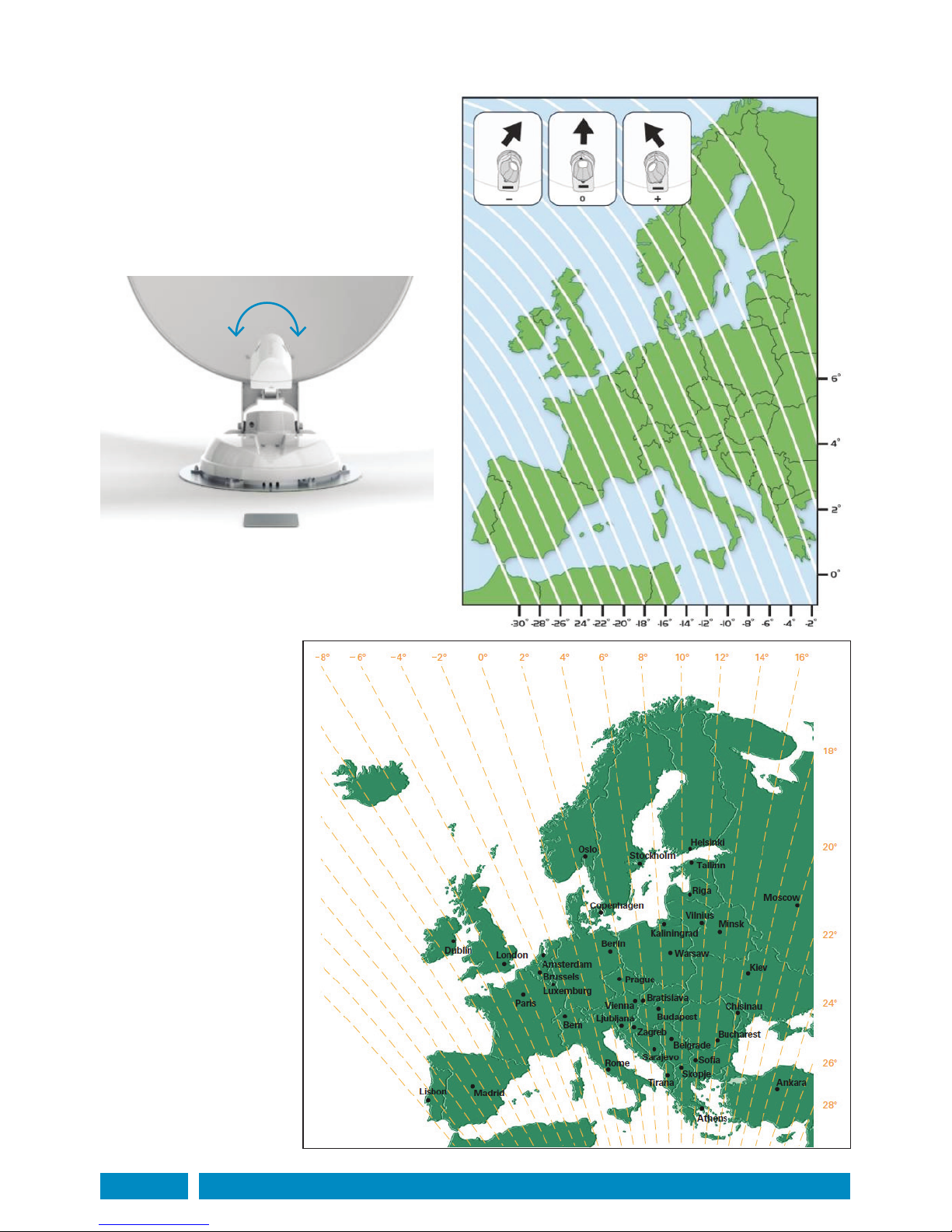

Skew adjustment 16
Software update 17
Fault finding 18
Guarantee 19
Specifications 20

Visit: www.seekerwireless.co.uk for potential software updates
Safety precautions:
Read this manual carefully and become familiar with your satellite antenna. Understand its applications, its
limitations and any hazards involved. Failure to follow all instructions listed below may result in electric shock,
fire and/or serious injury. Maxview declines all responsibility in the event of incident or accident if they are due
to a non observation of the installation instructions or the way the product is used.
No modifications are permissible to the Antenna Unit, Control Box or Control Panel.
Installation
• Installation should be carried out by a competent person.
• Take care when working at heights keeping work area clean and tidy to avoid trip hazards
• Use creeper boards where necessary to ensure roof construction can support your weight
• Use a recommended adhesive from page 10 to bond the antenna unit to vehicle roof and follow the
manufacturer’s instructions during application
• Do not travel until adhesive has cured noting that curing times vary with weather conditions
• Power tools should be used in accordance with manufacturer’s instructions
• All electrical work should be carried out by a competent person. If in doubt seek advice from a qualied
electrician
• The Control Box and Control Panel are for internal use only and are not waterproof
Operation
• Before starting your journey check that antenna is in the park position
• The maximum speed of vehicle with antenna mounted on roof is 81mph (130km/h)
• Never operate the antenna if someone is in close proximity of the antenna
• Disconnect power to the antenna before installation or adjusting LNB skew angle
• If high winds or electrical storms are anticipated lower antenna to park position
• Maintain adequate ventilation around the Control Box to avoid overheating
• Do not allow children to operate the antenna unit
• Dispose batteries responsibly
• Remove Control Box fuse before accessing the roof space around the antenna unit
• Do not operate the Seeker Wireless with snow or ice on the antenna
Servicing
• If in the event that you do experience a problem with the system call Maxview Customer Service
[phone] with your model & serial number to hand
• Any inspection or repair must be carried out by Maxview or an appointed representative of the manufacturer
• No regular maintenance required on the system
• Do not remove cover on Antenna, Control Box or Control Panel
• Do not use solvent or abrasive cleaning agents on the system
• Use a soft damp cloth to clean the Control Box and Control Panel
• Use a suitable mild detergent to clean the Antenna Unit
• Do not pressure wash the Antenna Unit
• Check the Antenna Unit xings for mechanical integrity at least once a year
Page 3

Visit: www.seekerwireless.co.uk for potential software updates
Page 4

A. Antenna
The Antenna is mounted to the roof. It uses electric motors to scan for satellite signals. It has 3 cable
connections; 1 for controlling the motors and 2 satellites signal cables from the Twin LNB.
B. Control Box
The Control Box requires wired connections for power, antenna control and satellite signal. It can be mounted
discretely in a cupboard and can be fixed vertically and horizontally.
C. Wireless/wired Control Panel
Wireless technology allows the Seeker Control Panel to be mounted in a convenient position without
unsightly wires. When not in use the panel displays a 24 hour clock and internal ambient temperature.
Application example:
A
B
C

Visit: www.seekerwireless.co.uk for potential software updates
Page 5

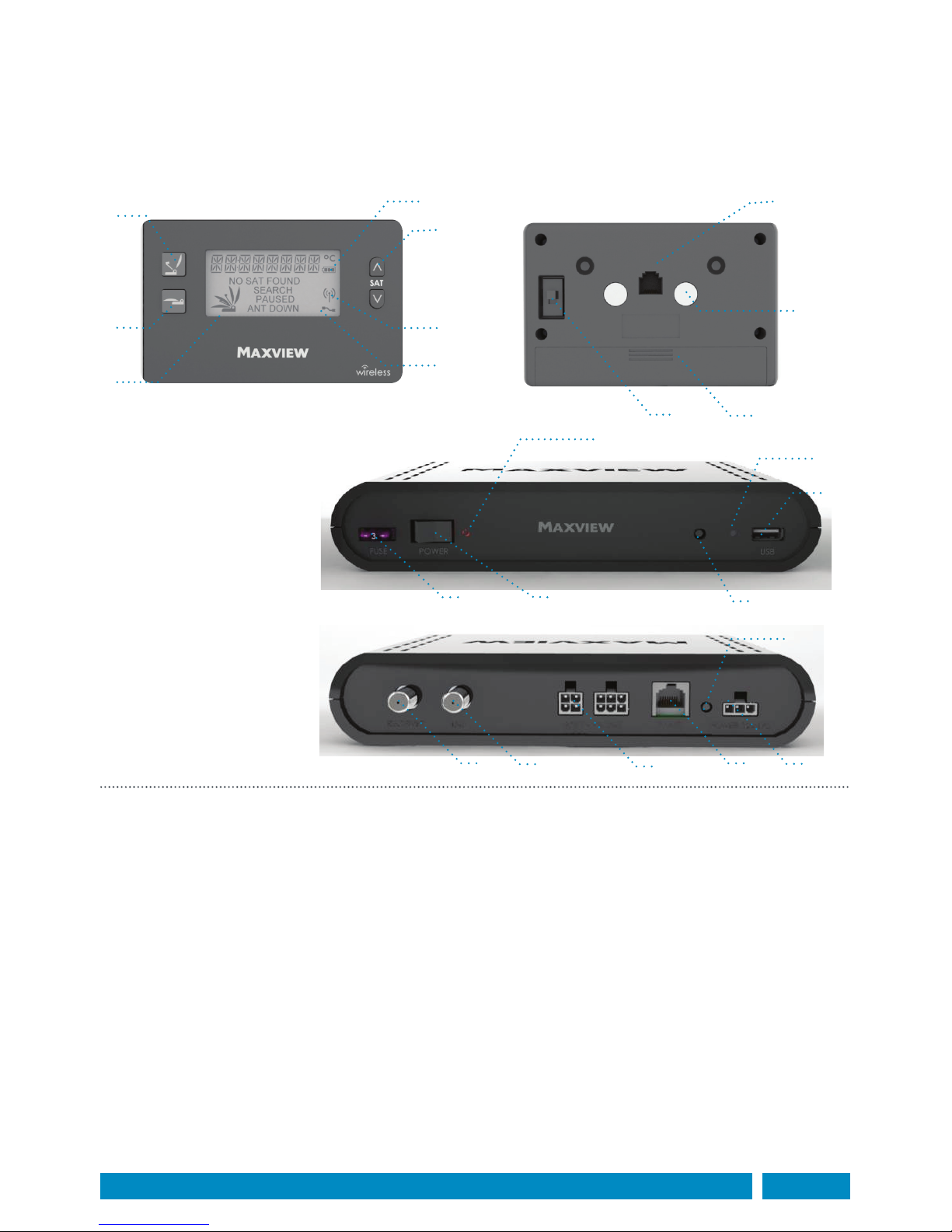

Connections and features:
Control Box:
11. Fuse
12. Power Switch
13. Power LED
14. Sync Button
15. Status LED
16. USB update port
17. RECEIVER
18. LNB IN
19. Antenna Connectors
20. RJ25 Panel Connector
21. Installation Button
22. Power Input
Wireless Control Panel
1. Antenna Search button
2. Antenna Park button
3. Antenna position icon
4. Battery status icon
5. Change Satellite Up. Down buttons
6. Wireless mode icon
7. Cable mode icon
8. ON/OFF switch
9. Battery door
10. RJ25 Socket
11. Magnets



1
2
5
4
6
7
3
10
11 12
13
14
16
15
8 9
11

17 18 19 20 22
21
Product contents:
> Antenna Unit / Control Box / Control Panel
> 65/85cm Antenna (separate carton)
> Accessory Pack
> LNB Park Plate x 1
> Control Box bracket x 2
> Control Panel mount x 1
> RJ25 Cable x 1
> Battery 1.5v AA x 2
> Power Cable x 1
> No.10 Screws x 6
> No.6 Screws x 6
> Cable Clips x 6
> M6 Button Head Screw x 4
> M6 Locking Nut x 4
> 6mm Plastic Washer x 4
> Cable Entry Plate x1
Required tools and equipment (not supplied):
> 32mm hole saw
> 2.5mm twist drill
> Power Drill
> No.2 Phillips screwdriver
> Weather Resistant Elastic Adhesive* and Applicator gun
> Surface Cleaner
> 10mm spanner
> Hexagonal socket key 4mm
> Deburrer/Round File/Emery paper
> Conduit (recommend method for securing cables)
> Automotive 2.5mm² cable
> Electrical connector block
> Flylead (for connection to satellite receiver)
*Maxview recommends the following adhesives:
> Sikaflex®-512 Caravan
> Geocel® Geobond HM
> Sikaflex®-252

Visit: www.seekerwireless.co.uk for potential software updates
Page 6
Selecting an installation location:
Positioning the Antenna Unit
> Check for obstructions such as roof lights and vents.
> Check for electrical cables beneath screw fixing points.
> Check Antenna Unit cables will reach Control Box
(Maxview can supply extended cables).
> Do not allow the dish to overhang the edge of the vehicle
> Clearance around antenna system when in use is shown with reference I

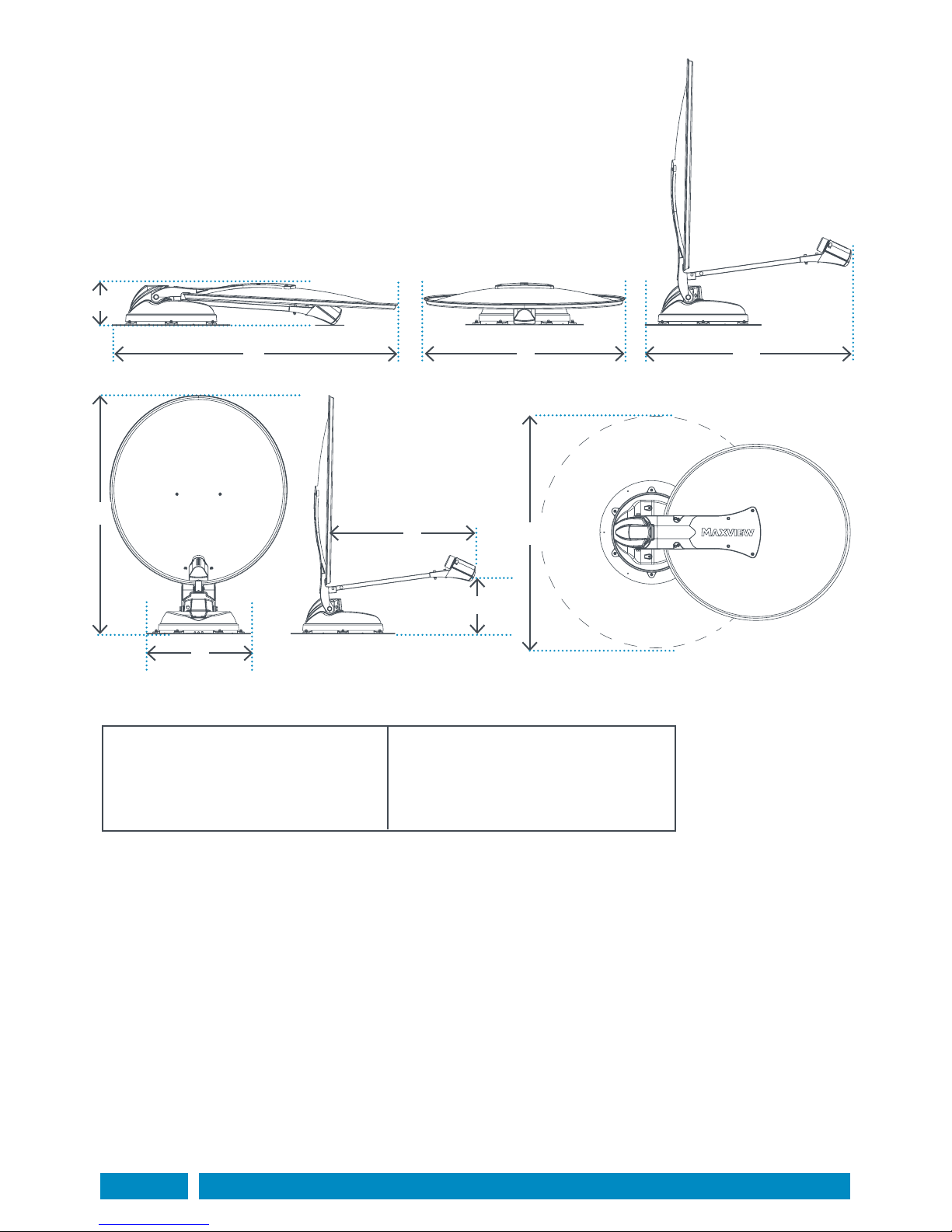

Key dimensions (cm) and weights
65cm Seeker: System weight 10kg
A: 17
B: 100
C: 67
D: 65
E: 96
F: ø43*
85cm Seeker: System weight 11kg
A: 17
B: 117
C: 85
D: 87
E: 113
F: ø43*
E
A
D
B C
H
G
F
I
G: 52
H: 15
I: 110
G: 64
H: 14
I: 125 *Mounting plate
Positioning Control Box:
Site the Control Box in a convenient location where:
> Front and rear connections are accessible.
> Cables can be routed and concealed neatly.
> There is an electrical supply of 12V dc permanent and ignition.
> There is adequate ventilation.
> The Control Box is not encased with metal (if using wireless mode).
> Material construction and thickness is suitable for fixings.
Positioning Control Panel:
The Control Panel is designed to be easily visible in the living area as it displays a clock and thermometer when
in sleep mode.
> Do not place near wet hazard areas such as near sinks or bathroom.
> Do not place near heat sources or in direct sunlight.
> Avoid placing Control Panel next to walk ways where it could easily be knocked.

Visit: www.seekerwireless.co.uk for potential software updates

Attaching Antenna Mount Plate & LNB Park Plate:
1. Remove antenna unit from wooden transit packaging
2. Remove mounting plate from Antenna Unit by removing 6 x M6 nuts using 10mm spanner
3. Clean roof, Mounting Plate and LNB Park Plate in accordance with adhesive manufacturer’s guidelines
4. Mark a centre line for the antenna making sure dish will not overhang vehicle
5. Align notches on plate with centre line
6. Mark the position of 6 screw fixing holes
7. Mark position of LNB Park Plate
8. Drill 6 x 2.5mm pilot holes into the roof
Note:
• Follow manufacturer’s instructions when applying adhesive. Do not travel until adhesive has
cured noting that curing times vary with weather conditions.
• Take care when working at heights. Always follow ladder manufacturer’s safety advice.
• Use creeper boards where necessary to ensure roof construction can support your weight.
• Power tools should be used in accordance with manufacturer’s instructions
255mm 65cm (MXL003/65)
385mm 85cm (MXL003/85)
Direction of travel
Central Line
Antenna Mount Plate
LNB Park
Plate
Page 7
9. Apply adhesive to entire surface of Antenna
Mounting Plate and LNB Park Plate and firmly
place them into position
10. Place a small amount of adhesive into each hole
before screwing plate to roof
11. Wipe off excess adhesive with a cloth
6 x No. 10
screws

Visit: www.seekerwireless.co.uk for potential software updates
Caravans
Power can be taken directly from the leisure battery on the caravan. The ignition cable should be connected to
the ignition key circuit which can be traced using the charts below. The caravan will either be fitted with the
13 Pin Euro Connector or have two 7/8 Pin connectors.
Caution: All electrical work should be carried out by a competent person.
If in doubt seek advice from a qualified electrician.
Electrical installation:
Whilst the adhesive is curing prepare the electrical connections for the Control Box. The Control Box
requires a permanent 12V supply and a secondary 12V supply that provides power when the engine of the
vehicle is running. Note: the brake light circuit is not suitable.
It is recommended to create a new circuit direct to the battery using a minimum cable cross sectional area
of 2.5mm2 and an inline fuse of 5A. Do not connect to existing circuits that supply high power devices such
as water pumps, air conditioning units or sources of interference such as electric igniters for gas stoves.
Route cables carefully avoiding areas of excessive heat such exhaust systems and any moving parts in the
engine compartment or drive shafts.

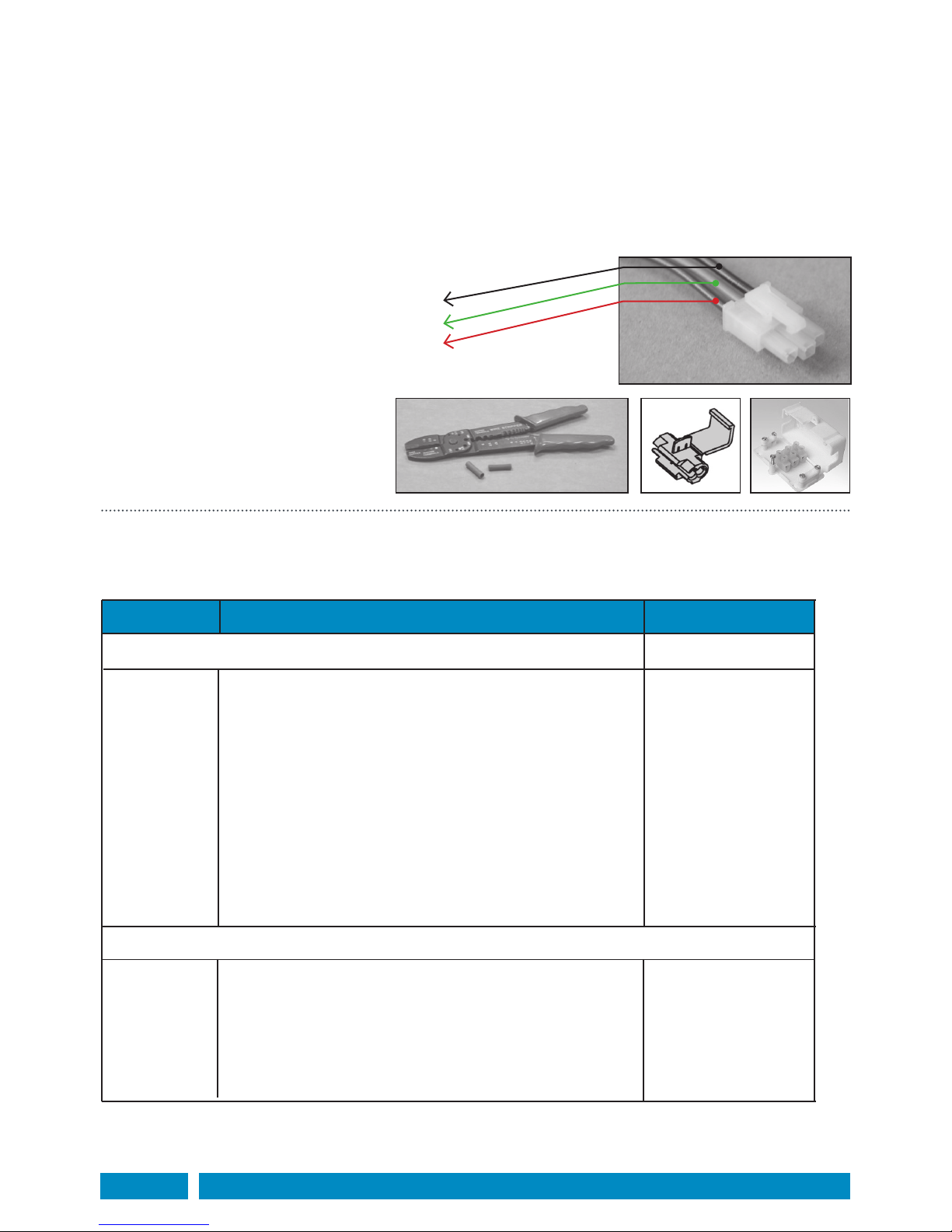

Power Cable colours:
Black Negative Earth
Green Ignition (+12V)
Red +12V
Join Power Cable to new circuit using a
robust connection method such as...
• Crimp connectors
• Screw terminal connector block
• Snap t automotive tap connectors




13 Pin Euro Connector
1
2
3
4
5
6
7
8
9
10
11
12
13
12S 7 Pin Connector
1
2
3
4
5
6
7
Left Hand Indicator
Rear fog light(s)
Earth for contacts 1 to 8
Right Hand Indicator
Right Hand Side lights, marker lights & number plate light.
Brake lights
Left Hand Side lights, marker lights & number plate light.
Reversing light(s)
Positive direct from battery (Power)
Positive ignition key on (Fridge)
Earth return for contact 10
Signalling connection to trailer
Earth return for contact 9
Reversing light(s)
Positive ignition key on (Battery Charging)
Earth
Positive direct from battery (Power)
Reverse Sensor (Optional)
Positive ignition key on (Fridge)
Earth return for contact 6
Yellow
Blue
White
Green
Brown
Red
Black
Pink
Orange
Grey
White/Black
White/Blue
White/Red
Yellow
Blue
White
Green
Brown
Red
Black
Page 8
Terminal No. Function 13 core wire colour

Visit: www.seekerwireless.co.uk for potential software updates


Page 9
Attach antenna unit to mounting plate:
Carefully lower the antenna unit onto the Mounting Plate and re-attach the M6 Nuts and Washers that
were previously removed.
Caution:
Replace Nylon locking nuts if they have been removed more than twice. The locking action of the Nylon
becomes less effective if repeatedly assembled and disassembled.
Installing cables:
1. Check there are no hidden cables in the roof structure and that the hole location is clear of obstructions both
internally and externally.
2. Turn over for Cable Entry Cover installation instructions
Application example:
Note: To prevent trip hazards it is recommended that cables are concealed in PVCu conduit (not supplied)
where access is required to the roof of the vehicle.
Use extra Cable Entry Plate
to route 2nd Sat feed to a
different location.
Available to order from
Maxview MXL018
Direction of travel
(front of vehicle)

Visit: www.seekerwireless.co.uk for potential software updates





Page 10
Installing Cable Entry Cover
1. Plan your installation carefully
2. Drill a 32mmø hole in roof
3. Prepare surface for adhesion
4. Apply sealant as shown in A,B,C
(we recommend Sikaflex-512 Caravan)*
5. Position top hat
6. Position cable entry cover
7. Wipe excess sealant with a dry cloth
Applying sealant example:
Installing Control Box
Having previously chosen a suitable location
1. Clip the mounting brackets onto the Control Box.
2. Place Control Box on the horizontal or vertical surface and mark the 4 holes.
3. Depending on material drill a pilot hole or use a bradawl.
4. Attach cables to Control Box refer to page 11 for details.
5. Screw control box into position using 4 x No. 6 Screws.
Mounting positions:
Position the Control Box in one of the 4 ways shown left.
Make sure that the front is easily accessible.
Fitting the Control Box Brackets:
The brackets snap fit to the Control Box casing
!!
!= Generously apply
wet seal adhesive
!
Vehicle roof
Top hat
Hole location
tabs
Cable
32mm ø
A B
C
Direction of travel
(front of vehicle)

Visit: www.seekerwireless.co.uk for potential software updates
Installing Control Panel
Choose most suitable method of communication between Control Panel and Control Box.
Wireless mode:
1. Install batteries into Control Panel in accordance with instructions on page 12.
2. Turn Control Box and Control Panel on.
3. Pair Control Box and Panel together see page 13.
4. Choose suitable location for Control Panel – press change sat button periodically to check wireless reception.
5. When satisfied with the location of the Control Panel mark the position of the fixing holes on the
magnetic mount then attach to wall with 2 No.6 screws.
Cable mode:
1. Choose a location to mount the Control Panel.
2. Mark the fixing holes then make a pilot hole with a drill or bradawl.
3. If required remove one of the knock outs with a pair of pliers.
4. Pass cable through hole in Magnetic Mount.
5. Screw the Magnetic mount to the wall with the RJ25 cable laying flat and un-twisted in the channel.
6. Connect the Control Panel to the RJ25 cable and place onto Magnetic Mount whilst pulling through the cable.
Knock-outs
for vertical
cable routing
- +
Satellite Receiver/s
Optional cable for Control Panel (also use as wireless)
5A Fuse
Key:
A: Satellite Cable B: Satellite Cable C: Antenna Cable D: Cable for PVR or additional Satellite Receiver
D B
Page 11
Knock-outs
for vertical
cable routing
Connection diagram:
TV
A
C
Ignition

Visit: www.seekerwireless.co.uk for potential software updates
Page 12
Installing batteries:
Remove the battery door and insert 2 AA (LR6) batteries as shown.
Take care to observe the correct polarity and to use good quality
sealed alkaline batteries.
Caution:
• Incorrect installation may cause battery leakage and
corrosion, resulting in damage to the Control Panel.
• Do not mix old and new batteries.
• Do not mix different battery types
(such as alkaline and manganese batteries).
• Do not use rechargeable (Ni-Cd) batteries.
• Do not burn or breakup batteries.
• Batteries must not be exposed to excessive heat such as direct sunlight or re.


Attach Satellite Dish to Antenna Unit
1. Ensure Antenna Unit is free from obstacles.
2. Press installation button on reverse of Control Box to elevate
antenna. Once elevated turn off power to Control Box and
remove fuse.
3. Fix satellite dish to Antenna Arm using M6 Button
Head Screws, M6 Nuts and 6mm Plastic Washers.
The 65cm and 85cm satellite dishes have different fixing hole
positions. Therefore 4 of the holes will be unused.
4. Remove all tools, packaging and obstructions from roof.
5. Replace fuse and turn power switch on. Antenna will
automatically retract into the park position.
Caution:
Replace Nylon locking nuts if they have been removed more
than twice. The locking action of the Nylon becomes less
effective if repeatedly assembled and disassembled.
Testing Antenna Unit:
Position the vehicle so that there is an unobstructed view of the southern sky. Connect a TV and Satellite
Receiver and follow instructions on page 14 to search for a satellite.
Caution:
Before driving vehicle on a highway ensure adhesive has cured. Check all fasteners are secure.

Visit: www.seekerwireless.co.uk for potential software updates
Page 13




Pairing Control Panel and Control Box:
Every Control Panel made by Maxview contains a unique electronic identification number to prevent
interference between neighbouring Seeker satellite systems. When the Control Panel and Control Box are not
paired the Control Panel displays RF ERROR.
To pair the Control Box and Panel together press and release the Sync Button on the front of the Control Box.
The Status LED will illuminate green. Then press Satellite UP or Down button on the panel to synchronise.
This operation is only required during installation and after any software updates.
Cable mode:
The Control Panel and Box can also be connected through the included RJ25 cable.
In this mode no batteries are required.
Note: If a different cable to the one supplied is to be used ensure that it is an RJ25 6 Pin 6 Connector cable.
RJ11 and RJ14 cables use the same connector but contain 2 and 4 wires respectively and will not function with
the Control Panel.
Time and temperature display:
The Control Panel will automatically display the ambient temperature when the antenna is not in use.
To enable the clock function:
1. Press and hold Satellite UP and Down buttons for 3 seconds
2. The clock will be shown with the Hour digits flashing. Press Up or Down buttons to adjust the hours.
3. Press the Satellite Search button to select the minutes. Press Up or Down buttons to adjust minutes.
4. Press Antenna Park button to Exit.
The clock will be displayed when the panel has been inactive for 10 seconds.
Note: The clock requires power from the batteries. Turning the panel off via the switch or changing the
batteries will disable the clock function. The clock is 24 hour display only.
Press Satellite UP/
DOWN Button
Press Sync
Button

Visit: www.seekerwireless.co.uk for potential software updates
Page 14
Starting search mode:
1. Turn on Control Box and Control Panel
2. If Control Panel is in sleep mode displaying clock/temp press any button to wake panel
3. Using the Change Satellite UP/DOWN Buttons select a satellite
4. Press Antenna Search button
Note: If the search button is not pressed within 3 seconds of selecting a new satellite the seeker will
revert back to the last acquired satellite.
The antenna icon will animate and SEARCH will be displayed whilst the Seeker Wireless is searching for
the chosen satellite.



When SAT FOUND is displayed the satellite has been located. After 10 seconds the Control Panel will enter
Sleep Mode and display the time and temperature.
Note: Search time is dependent on the change in elevation from last location. The Seeker will start the
search routine from the last known elevation angle of the antenna. This greatly reduces the search time
which will typically be less than 1 minute.
The first search from the factory set position may take as much as 15 minutes.
If the Seeker cannot find the desired satellite it will automatically return to the Park position and display
NO SAT FOUND on the Control Panel. If this occurs please check the following:
• Antenna has clear line of sight to satellite
• Your location is within range of satellite – as shown on zone map
• All cables are correctly installed
Finding a satellite:
Before starting check there is a clear line of sight to the southern sky. All television broadcasting satellites have
a geostationary orbit which means their location is fixed above the earth’s equator. Satellites also have a limited
range of transmission so use the Zone maps included in the appendix to check your location is suitable for
reception. If your location is near the limit of reception it is recommended to adjust the skew angle of the LNB
to maximise signal quality and strength (see page 16 for details)
Note: The Seeker Wireless works independently from a Satellite Receiver. Therefore, any satellite receiver can
be used. Ensure the TV and Satellite Receiver are connected in accordance to the manufacturer’s instructions.


Visit: www.seekerwireless.co.uk for potential software updates
Page 15
Ignition mode:
The ignition mode is a safety feature that automatically
lowers the antenna and prevents accidental operation whilst
travelling.
When the Seeker has detected an active ignition circuit in the
vehicle the Control Panel will display ‘IGNITION’. In this mode
the antenna is automatically lowered and the Control Panel
function is disabled.
Note: The Control Box must be wired to a 12V DC electrical
circuit that is live when the vehicle’s ignition is on. This not only provides a safety benefit but also refreshes
the Control Box memory which allows the Seeker Wireless to perform correctly.
Connecting to a Satellite Receiver:
The Seeker Wireless satellite system features a twin LNB for connection to a PVR or 2 separate receivers.
One of the satellite cables must connect to the Control Box. The Control Box will then output this signal
through the F connector marked ‘RECEIVER’.
In order for the satellite signal to pass through the Control Box the power must be on.
Power consumption:
The Seeker Wireless has been designed to minimise power consumption.
When not in use the system enters a sleep mode where wireless communication between the Control Panel
and Box is suspended. This is where time and temperature are displayed on the Control Panel.
When the Seeker is not used for long periods of time it is recommended to switch off the Control Panel and
Box. The Ignition Mode will still activate even with the Control Box power switch in the off position.
When power is restored to the system the antenna will automatically lower into the park position.

Pause function:
This function allows the user to change the desired satellite mid-way through a search operation without
the need to lower the antenna. Whilst the seeker is in SEARCH mode press the Antenna Search Button
to PAUSE the antenna. Select a new satellite using the Change Satellite UP/DOWN Buttons. Press the
Antenna Search Button again to continue with the search.
Lowering the antenna:
Press the Antenna Down button to lower the antenna.
The display will show the animated icon lowering and text
ANT DOWN flashing. When the ANT DOWN text stops
flashing the antenna is lowered and safe for travelling.


Visit: www.seekerwireless.co.uk for potential software updates
Page 16
Skew adjustment:
Skew adjustment is required when signal strength
is weak at the limit of a given satellites’ reception
area. It involves adjusting the angle of the LNB
on the roof mounted antenna unit.
Caution:
Follow general safety advice on page 3
when adjusting Antenna Unit.



+ -
Astra 2 - 28.2°
Astra 1 - 19.2°

Visit: www.seekerwireless.co.uk for potential software updates
Page 17
Software update:
To keep your Seeker up to date with the latest satellites Maxview has
incorporated a USB port on the front of the Control Box. The Seeker has
the ability to update its satellite data and its operational software from
a simple USB flash memory stick.
Please visit www.seekerwireless.co.uk for latest software and a guide
to installation.
Preparing a USB Flash Memory Stick:
1. Use a blank USB flash memory stick formatted to FAT or FAT32
2. Format USB stick:
3. In Windows XP, Vista or Windows 7
4. Insert USB key in PC, find device in ‘My Computer’, right click and
5. Select ‘Format...’
6. Select options as shown below press start.
Update Control Box software:
1. Obtain a update-xxxx.hex file from Maxview and copy onto a
formatted USB flash memory stick.
2. Turn on Control Box.
3. Press and hold the SYNC button on the front of the Control Box for 7 seconds until SYNC LED illuminates RED.
4. Insert the USB flash memory stick. The SYNC LED will flash GREEN whilst data is been transferred.
5. When the SYNC LED goes out turn off the Control Box power and remove the USB flash memory stick.
6. Turn power on, SYNC LED will flash RED and GREEN whilst data is written to Control Box memory.
7. When SYNC LED goes out update is complete.
8. Pair Control Panel to Control Box (see page 13)
Note: If Status LED does not flash RED and GREEN when power is restored after update then the software has
not been loaded successfully. Check the readme file created by the Control Box on the USB flash memory stick
for details. An update will not be successful if the file to be loaded is the same as the one already stored in the
Control Box.
If you experience difficulties please contact Maxview customer service.


Visit: www.seekerwireless.co.uk for potential software updates
Page 18
Problem
RF ERROR
AZ ERROR
EL ERROR
NO SAT FOUND
IGNITION
No clock displayed
Control Panel
screen blank
Lost Control Panel
Pressing buttons
gives no response
No power
Fuse blows
repeatedly
USB update failed
Antenna stuck
in elevated position
Actions
Move Control Panel closer to Control Box.
Check Control Box power is on.
The Control Panel is not paired with the Control Box (see page 13)
Movement of motor not detected therefore check cable
connections and reset power
If problem is not resolved contact Maxview customer service.
Check antenna has no obstructions to the southern sky
Check LNB cable connection
Weak signal area – adjust skew angle (see page 16)
Software update required (see page 17)
Safety feature to prevent antenna operating whilst engine is running.
Turn off vehicle ignition before operating antenna.
Battery power has been interrupted. Reset clock (see page 12)
Batteries exhausted. Replace batteries or use cable connection
Check Control Panel power switch is on
Contact your local dealer or Maxview customer service
Reset power to Control Panel
and Control Box
Check Fuse
Check Power cable connection
Leisure battery voltage is low
Check Fuse rating is 3A
Check antenna unit is not obstructed
Contact Maxview Customer Service
Check file was added to a blank FAT formatted USB memory stick
After update check text file added to USB memory stick
Contact Maxview Customer Service
DO NOT TRAVEL UNITIL ANTENNA UNIT IS REMOVED
Remove antenna unit from roof by releasing 6 x M6 Nuts. position
Carefully lift and place antenna unit on its side so that the
underneath is accessible. Remove plastic connector covers with a
pozi no2 screwdriver. Disconnect cables so that antenna
unit can be removed from roof. Make sure cables are secured to roof
before travelling.
Antenna Control Box Control Panel
Fault finding:

Visit: www.seekerwireless.co.uk for potential software updates
Page 19
3 year guarantee:
Every new Target System is thoroughly inspected and tested before leaving the factory and is covered by our
three years guarantee from the date of original purchase.
Maxview is responsible for the cost of a replacement part if the original part is determined to be defective
under the terms of guarantee. The customer is responsible for the cost of replacement parts after three years.
This guarantee does not cover installation or external wiring.
Should any trouble develop during the guarantee period please contact Maxview before the expiry date
.If you do experience a problem with the product contact Maxview Customer Services on
[phone] or email [e-mail]
Please make sure you have the following ready when you call:
• Model number • Serial number • Date of purchase • Clear and concise details of the fault
• Details of who installed the product
The guarantee does not apply where:
• If the ignition cable is not installed
• The product has been abused, misused, improperly installed or improperly maintained.
• The product has been installed without the use of Maxview mounting brackets
• Repairs have been made or attempted by a third party other then Maxview
• Repairs are required due to normal wear and tear
• Modications have been made to the product
• The antenna unit or control box has been opened
• Damaged caused by abrasive cleaning or power washing
• Circumstances beyond the control of Maxview that have caused the product to no longer operate correctly
• Customer is not the original owner or cannot provide proof of purchase
In no event shall Maxview be liable for any indirect, incidental, or consequential damages from the sale or use
of the product. This disclaimer applies both during and after the term of the guarantee. This does not affect your
statutory rights
Environment:
Information for Users on Collection and Disposal of Old Equipment and Used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact
your local authority, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information. [Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local
authority or dealer and ask for the correct method of disposal.
Note: for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a
chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.


Operating:
Average search time 30-60 seconds typical
Future proof with free software updates via a USB stick - see page 17
Low stream line profile, only 17cm in park position
Stores up to 15 satellites
Pre-programmed with 10 satellites including:
Astra variants 1-4
Hotbird 6/8/9
Power:
Powering: 12V operation
Power Consumption: Maximum 2A consumption during search
Standby Current: 0.2A
Battery Type: 2 x AA LR6 Alkaline Sealed (In Wireless Control Panel)
Fuse Type: 3A Mini Blade Automotive (In Control Box)
System:
Elevation Range: 10º to 70º
Azimuth Range: 380º
Skew Angle: ±45º
Operating Temp: -15º to 40º C
Safety System: Automatic lowering ignition
Cable Type: CAI approved 100 coaxial cable
UV Protection: All external plastic parts are UV stabilised
Testing: Fully weatherproof and watertight construction
System has passed extensive water ingress test
LNB:
Type: High Quality 0.2dB Universal Twin LNB
Output: Twin
Typical Gain: 65cm - 36dB 85cm - 38.1dB
Frequency Range: 10.7-12.75GHz
Arm Cable: RG179
Antenna:
Material: Aluminium
Reflector Thickness: 1mm
Finish: Powder coated with U.V. inhibited polyester-based
Outside Dims: 65cm dish: 67.0 x 71.5 cm 85cm dish: 85.0 x 90.5 cm
Reflecting Dims: 65cm dish: 63.0 x 67.5 cm 85cm dish: 81.5 x 87 cm
Mounting:
Plate Material: Aluminium
Fixing Method: Recommended adhesive(Sikaflex, Geocel or equivalent)
Fixing Studs: 6 x M5 studs for system removal
Cable Entry: Coaxial cable joining cover under antenna system
Wireless Control Panel:
Wireless Frequency: 868.3MHz
Wireless Range: 10m
Specifications:
Hellas Sat 2
Eurobird 9A
Thor 5-6Atlantic Bird 3
Hispat 1C/D
CE Declaration of Conformity
The Seeker Wireless Satellite Antenna has been designed, constructed and marketed in compliance
with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC
Directive 2004/108/EEC.
The wireless operation has been designed in accordance with CEPT-70.03.
