May Wes QD2 Instruction Manual

2.8
1.1
1.3 1.2
2.6
2.7
2.2
2.4
2.11
2.12
2.5
2.10
2.9
2.1
2.3
CASE IH 2600/4200/4400 SERIES - NEW HOLLAND 99C/980 SERIES
QD2 STALK STOMPER PARTS LISTING/ASSEMBLY INSTRUCTIONS
PAGE 1 OF 2
1
2
NOTES:
1
43016 - 14" Stalk Stomper Shoe Assy
2
41748 - 14" Stalk Stomper Shoe W/Poly
3
Install Self-Tapping Grease Fitting into end of Pivot Bolt
Torque grease fitting to 65-70 inch pounds. DO NOT OVERTIGHTEN!
3
ITEM # PART # DESCRIPTION QTY
1 43006 QD2 HEADER BRACKET ASSY 1
1.1 43007 QD2 HEADER BRACKET 1
1.2 00965 U-BOLT 1/2-13 2
1.3 00216 NUT, 1/2"-13 TOP LOCK 4
2 43003 STALK STOMPER ASSY 9" 1
2.1 43004 SHOE BRACKET ASSY 1
2.2 41825 STALK STOMPER SHOE W/POLY 9" 1
2.3 01040 SPRING 1
2.4 00691 PIN, 1/4" X 3" COTTER 1
ITEM # PART # DESCRIPTION QTY
2.5 00931 CHAIN 1
2.6 01001 BOLT, CUSTOM (GREASEABLE) 1
2.7 01009
GREASE FITTING, 1/4"-28 STRAIGHT
1
2.8 00213 NUT, 7/16"-14 HEX TOP LOCK 1
2.9 00249 WASHER, 3/8" FLAT 2
2.10 00104 BOLT, 3/8"-16 X 1" HEX 2
2.11 00209 NUT, 3/8"-16 HEX 2
2.12 01046 CHAIN SLEEVE 1
120 Eastgate Drive SE
PO Box 7
Hutchinson, MN 55350
1-800-788-6483
1-320-587-2322
1-320-587-6112 (Fax)
WWW.MAYWES.COM
Doc #: 10198_A

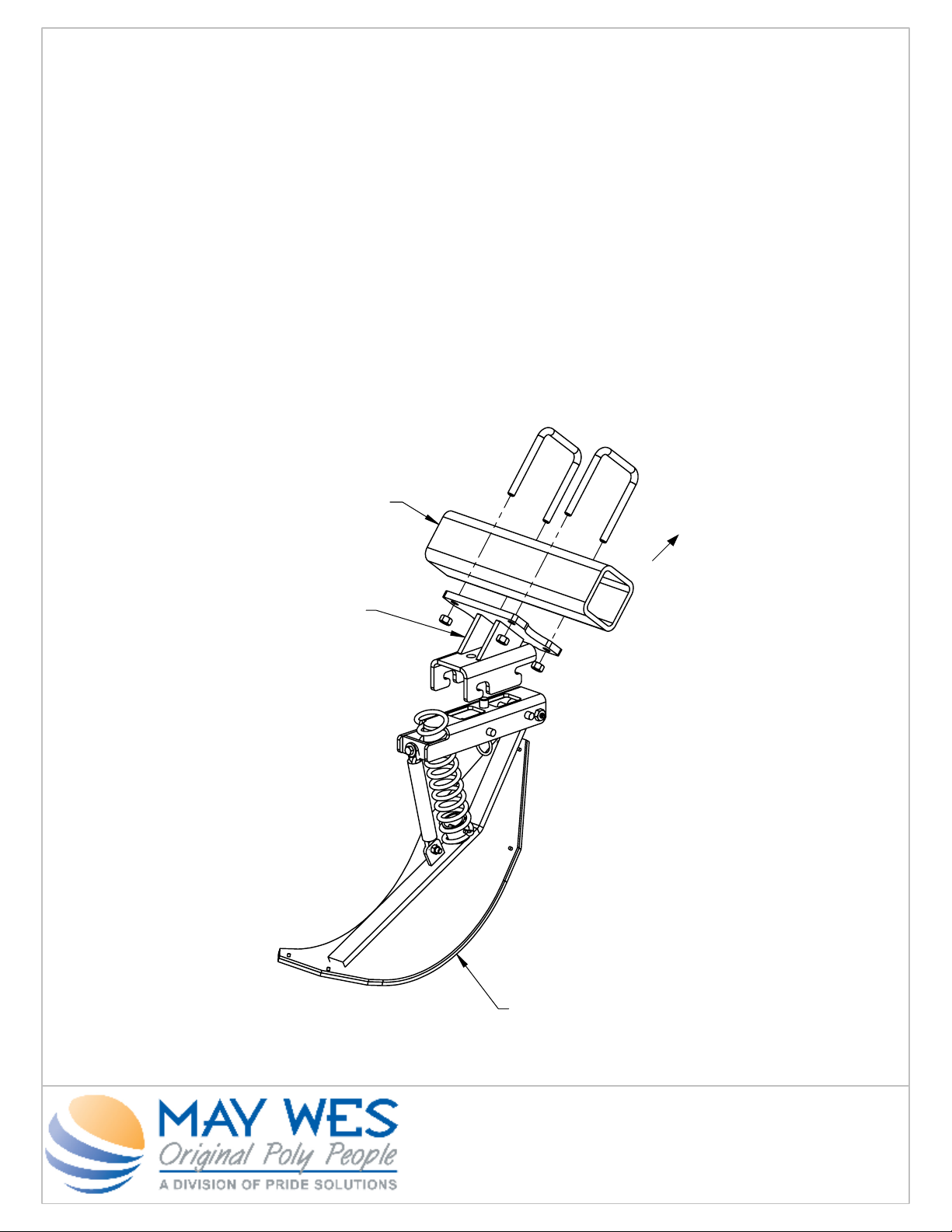

Frame Beam
(4 X 4)
Header
Bracket
Stalk Stomper
Assy
Front of Corn Head
CASE IH 2600/4200/4400 SERIES - NEW HOLLAND 99C/980 SERIES
STALK STOMPER INSTALLATION
Safety Procedure:
- Park combine on level ground and lock the brakes.
- Raise the head and lock in the upright position.
Installation Procedure:
- Remove the factory metal shield above the 4X4 frame beam on rows that stalk stompers are being installed.
- Place U-Bolts over the top of the 4X4 frame beam (as shown).
- Place the Header Bracket (43007) below the 4X4 frame beam on center with the row unit positioning the
"hook slots" toward the rear of the head. Align the U-Bolts with Header Bracket and secure in place with
the 1/2" top lock nuts, clamping the frame beam.
- Lift the Stalk Stomper Assy (43003) into mating features in the Header Bracket (43007).
Pull Stalk Stomper Assy back until lock pin snaps into place.
- Replace the factory metal shield.
PAGE 2 OF 2
120 Eastgate Drive SE
PO Box 7
Hutchinson, MN 55350
1-800-788-6483
1-320-587-2322
1-320-587-6112 (Fax)
WWW.MAYWES.COM
Doc #: 10198_A
