QD2 TOOLBAR MOUNT STALK STOMPER
ASSEMBLY INSTRUCTIONS / PARTS LISTING
Notes:
1
43016 - 14" Stalk Stomper Shoe Assy
2
41748 - 14" Stalk Stomper Shoe W/Poly
3
Install Self-Tapping Grease Fitting into end of Pivot Bolt
Torque grease fitting to 65-70 inch pounds. DO NOT OVERTIGHTEN!
43000
QD2 TOOLBAR MOUNT
STALK STOMPER ASSEMBLY
PAGE 1 OF 5
ITEM # PART # DESCRIPTION QTY
1 43001 TOOLBAR MOUNT BRACKET ASSY 1
1.1 43002 TOOLBAR MOUNT BRACKET 1
1.1.3 24022 LOCK PLATE 1
1.2 00986 U-BOLT 1/2"-13 2
1.3 00255 WASHER, 1/2" SPRING LOCK 4
1.4 00214 NUT, 1/2"-13 HEX 4
2 43003 STALK STOMPER ASSY 9" 1
2.1 43004 SHOE BRACKET ASSY 1
2.2 41825 STALK STOMPER SHOE W/POLY 9" 1
2.3 01040 SPRING 1
2.4 00691 PIN, 1/4" X 3" COTTER 1
2.5 00931 CHAIN 1
2.6 01001 BOLT, CUSTOM (GREASEABLE) 1
2.7 00213 NUT, 7/16"-14 HEX TOP LOCK 1
2.8 00249 WASHER, 3/8" FLAT 2
2.9 00104 BOLT, 3/8"-16 X 1" HEX 2
2.10 00209 NUT, 3/8"-16 HEX 2
2.11 01009 GREASE FITTING, 1/4"-28 STRAIGHT 1
2.12 01046 CHAIN SLEEVE 1
120 Eastgate Drive SE
PO Box 7
Hutchinson, MN 55350
1-800-788-6483
1-320-587-2322
1-320-587-6112 (Fax)
WWW.MAYWES.COM
Doc #: 10213_B

5
7
6
8
41827
TOOLBAR SPLICE
41834
VERTICAL BRACKET
ASSEMBLY
1
4
3
2
TOOLBAR MOUNT STALK STOMPER
ASSEMBLY INSTRUCTIONS / PARTS LISTING
Items 9 and 10 listed below (but not shown) are not
included in all kits, please order individually if needed.
PAGE 2 OF 5
ITEM # PART # DESCRIPTION QTY
9 41672 72" TOOLBAR (2" X 2") VARIES
10 41673 102" TOOLBAR (2" X 2") VARIES
ITEM # PART # DESCRIPTION QTY
1 41783 VERTICAL BRACKET 1
2 00986 U-BOLT 1/2"-13 2
3 00255 WASHER, 1/2" SPRING LOCK 4
4 00214 NUT, 1/2"-13 HEX 4
ITEM # PART # DESCRIPTION QTY
5 22341 SPLICE PLATE 1
6 00986 U-BOLT 1/2"-13 4
7 00255 WASHER, 1/2" SPRING LOCK 8
8 00214 NUT, 1/2"-13 HEX 8
120 Eastgate Drive SE
PO Box 7
Hutchinson, MN 55350
1-800-788-6483
1-320-587-2322
1-320-587-6112 (Fax)
WWW.MAYWES.COM
Doc #: 10213_B

QD2 TOOLBAR MOUNT STALK STOMPER
ASSEMBLY/INSTALLATION INSTRUCTIONS
Vertical Bracket
Toolbar
Toolbar Splice
Mount Bracket
Stalk Stomper Assy
Assembly/Installation Procedure:
- Insert Vertical Brackets into Header Brackets and secure with Hitch Pin.
- Fasten Toolbar to Vertical Brackets using supplied U-Bolts, Lock Washers
and Nuts.
Note: If kit was purchased with Toolbar included, Toolbar may need to
be trimmed to fit.
- Fasten Mount Brackets to Toolbar using supplied U-Bolts,
Lock Washers and Nuts on center of the rows to be stomped.
- Install Stalk Stomper Assy into mating features in the Mount Bracket.
Pull Stalk Stomper Assy back until lock pin assembly snaps into place.
- When applicable
Fasten Toolbars together using the Toolbar Splice (not included in all kits).
PAGE 3 OF 5
120 Eastgate Drive SE
PO Box 7
Hutchinson, MN 55350
1-800-788-6483
1-320-587-2322
1-320-587-6112 (Fax)
WWW.MAYWES.COM
Doc #: 10213_B

Flip-Up Transport Position
QD2 TOOLBAR MOUNT STALK STOMPER
TRANSPORT POSITION
Flip-Up Transport Position (Toolbar Mount Only):
1) Pull down on Lock Pin Assembly to release Stalk Stomper Shoe
2) Place front mounting pin in upright position
3) Pull up until Lock Pin Assembly snaps into place
PAGE 4 OF 5
120 Eastgate Drive SE
PO Box 7
Hutchinson, MN 55350
1-800-788-6483
1-320-587-2322
1-320-587-6112 (Fax)
WWW.MAYWES.COM
Doc #: 10213_B

Overlapping Brackets
If necessary, Mount Brackets and
Vertical Brackets can be overlapped
in multiple positions to allow the Stalk
Stomper Assy to be positioned on center
of the row. Replace U-Bolts with
1/2"-13 x 4" Hex Bolts (not supplied)
as shown on the left.

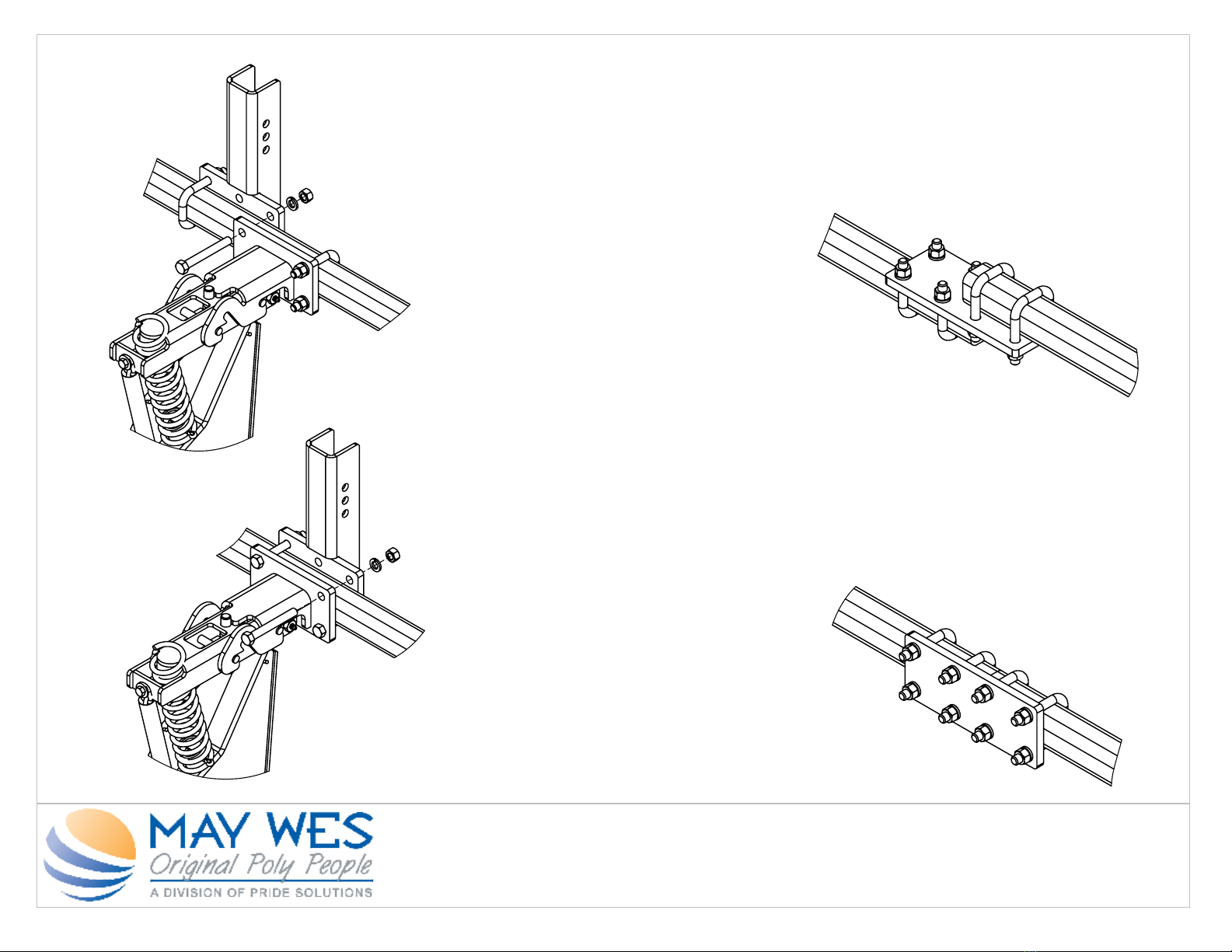

QD2 TOOLBAR MOUNT STALK STOMPER
