Maytronics Dolphin WAVE 300 XL User manual

Dolphin WAVE 300 XL
Pool Cleaner
User Manual
EN
8151452 Rev. 02

1
Dolphin WAVE 300 XL Pool Cleaner |User Manual
Dolphin WAVE 300 XL Pool Cleaner
User Manual
EN
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS..................................................................2
FCC STATEMENT..........................................................................................................3
1. INTRODUCTION ...................................................................................................4
1.1 Specifications ................................................................................................4
1.2 Water conditions ........................................................................................4
2. UNPACKING YOUR POOL CLEANER .............................................................4
3. ASSEMBLING THE POOL CLEANER ..............................................................5
4. WORKING WITH THE MMI CONSOLE ...........................................................6
4.1 MMI console overview ............................................................................6
4.2 MMI alerts ....................................................................................................7
4.3 MMI functions.............................................................................................7
4.4 WAVE 300 XL parameters..................................................................... 7
4.5 Choosing additional pool profiles ......................................................9
5. SETTINGS .............................................................................................................10
6. DAILY OPERATION............................................................................................. 11
6.1 Operating the WAVE 300 XL................................................................. 11
6.2 Using the remote control unit........................................................... 12
6.3 Cleaning the filter ................................................................................... 13
7. TROUBLESHOOTING ........................................................................................14

2
Dolphin WAVE 300 XL Pool Cleaner |User Manual
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Take the Robot Pool Cleaner out of the pool before allowing people to enter the pool.
WARNING
When examining the Robot Pool Cleaner, disconnect the main power supply.
WARNING
Ensure that children do not attempt to access Robot Pool Cleaner while it is operating.
WARNING
Keep the Robot Pool Cleaner out of the reach of children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction.
WARNING
Only an original power cable must be used, at all times. Replaced by a Robot Pool Cleaner
certified technician, in case of need to avoid hazard.
WARNING
The unit must be connected only to a supply circuit that is protected by a ground-fault
circuit interrupter (GFCI). This GFCI should be tested on a routine basis.
To test the GFCI, push the test button. The GFCI should interrupt power.
Push the reset button. Power should be restored. If the GFCI fails to operate in this manner,
the GFCI is defective. If the GFCI interrupts power to the power unit without the test button
being pushed, a ground current may be flowing, indicating the possibility of an electric
shock. Do not use the power unit. Disconnect the power unit and contact the manufacturer
for assistance.
WARNING
To reduce the risk of electric shock replace damaged cord immediately. Do not use
extension cord to connect unit to electric supply; provide a properly located outlet.
Please ensure that the following PRECAUTIONS are implemented:
CAUTION
Only a trained operator should operate the Robot Pool Cleaner.
CAUTION
Operator should keep hands away from driving belt mechanism.
CAUTION
Position the Caddy and power supply at least 3.5 m / 12 ft from pool’s edge – during
operation.
CAUTION
For continued protection against possible electric shock, the power supply unit should be
placed at least 11cm / 4’’ above ground.
READ AND FOLLOW ALL INSTRUCTIONS.
Please adhere strictly to the following WARNINGS:

3
Dolphin WAVE 300 XL Pool Cleaner |User Manual
FCC STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance (Maytronics Ltd.) could void the user’s authority to operate the equipment.
CAUTION
When lifting the Robot Pool Cleaner, take care to prevent back injury.
CAUTION
Do not bury cord – locate cord to minimize abuse from lawn mowers, hedge trimmers and
other equipment.
CAUTION
This Robot is for use with permanently installed pools. Do not use with storable pools.
A permanently installed pool is constructed in or on the ground or in building such that it
cannot be readily disassembled for storage and reassembled to its original integrity.
SAVE THESE INSTRUCTIONS

4
Dolphin WAVE 300 XL Pool Cleaner |User Manual
1. INTRODUCTION
This user guide describes how to operate your WAVE 300 XL Robot Pool Cleaner and how to use
the pool cleaner’s Maytronics Machine Interactive (MMI) console. The interactive, state-of-the-art
MMI control console Provides full control of the robot and enables you to configure the cycle time,
operation delay, and cleaning scan. It also enables you to diagnose various technical functions and
parameters. The console houses a remote control unit for manual operation and for temporarily
overriding the automatic cleaning operations.
The WAVE 300 XL is designed to handle four dierent swimming pool configurations that are set by
your Maytronics dealer, and stored in the MMI’s memory.
The robot is preset at the factory with specific default pool settings that can be reset.
1.1 Specifications
• Motor protection: IP 68
• Minimum depth: 0.40 m / 1.3 ft
• Maximum depth: 7 m / 22.96 ft
1.2 Water Conditions
Use the Pool Cleaner in the following water conditions only:
• Chlorine: Max 4 ppm
• pH: 7.0 - 7.8
• Temperature: 6°-35°C / 43°-95°F
• NaCl: Maximum = 5000 ppm
2. UNPACKING YOUR POOL CLEANER
Before you start the assembly process, carefully remove all the items from the shipping box and check
them against the packing list.
The box should contain:
• Documentation and accessories
• Un-assembled Caddy for storing and carrying the WAVE 300 XL
• MMI console (includes remote control unit) assembled to the Caddy's handle
• WAVE 300 XL and floating cable rolled on the Cable roller
• Power supply unit assembled to the Caddy base
• Filter Bags:
2 fine porosity filter bags assembled in the Dolphin WAVE 300 XL robot for day-to-day cleaning
2 ultra-fine filter bags for fine dust particles
2 loose weave filter bags for rough debris
Power supply
• Input: 100-250 AC Volts
• 50-60 Hertz
• Output: <43 VDC
• IP 54

5
Dolphin WAVE 300 XL Pool Cleaner |User Manual
3. ASSEMBLING THE POOL CLEANER
This section describes how to assemble your pool cleaner.
To assemble the Dolphin WAVE 300 XL Pool Cleaner:
1. Attach the Caddy handle to the Caddy base and fasten with the four screws and four nuts provided.
2. Attach the cable roller in its designated place, and fasten with two screws.
3. Connect the MMI communications cable to the power supply unit.
4. Connect the connection cable between the power supply and the cable roller.
Figure 1: Assembling the Dolphin WAVE 300 XL - 1
Figure 2: Assembling the Dolphin WAVE 300 XL - 2
MMI
MMI remote control unit
Cable
roller handle
MMI
communication
cable
Power supply
Main power supply cable
Four screws
MMI
Cable roller
Floating cable
Caddy handle
Top cover
Caddy base
Connection cable
between power supply
and cable roller
Two screws

6
Dolphin WAVE 300 XL Pool Cleaner |User Manual
4. WORKING WITH THE MMI CONSOLE
This chapter describes how to work with the MMI console and includes the following sections:
• MMI Console Overview, page 6
• MMI Alerts, page 7
• MMI Functions, page 7
• WAVE 300 XL Parameters, page 7
• Choosing Additional Pool Profiles, page 9
4.1 MMI Console Overview
The interactive MMI control console provides easy access to the robot’s settings, functionality,
and LED indicators.
• In this user manual, the term Press Start means to simultaneously press both green buttons on
the MMI console (marked 2and 3in the Figure 4).
• The MMI is equipped with a screensaver that is displayed after 5 minutes of idle time. Press the
POOL and HOME buttons (marked 5and 6in Figure 4) to exit the screensaver mode.
• Some options in the MMI (pool profile setup) menus are blocked with a code to prevent changing
the setting accidentally. The code sequence for unblocking these options is: 3, 2, and 1(Figure 4).

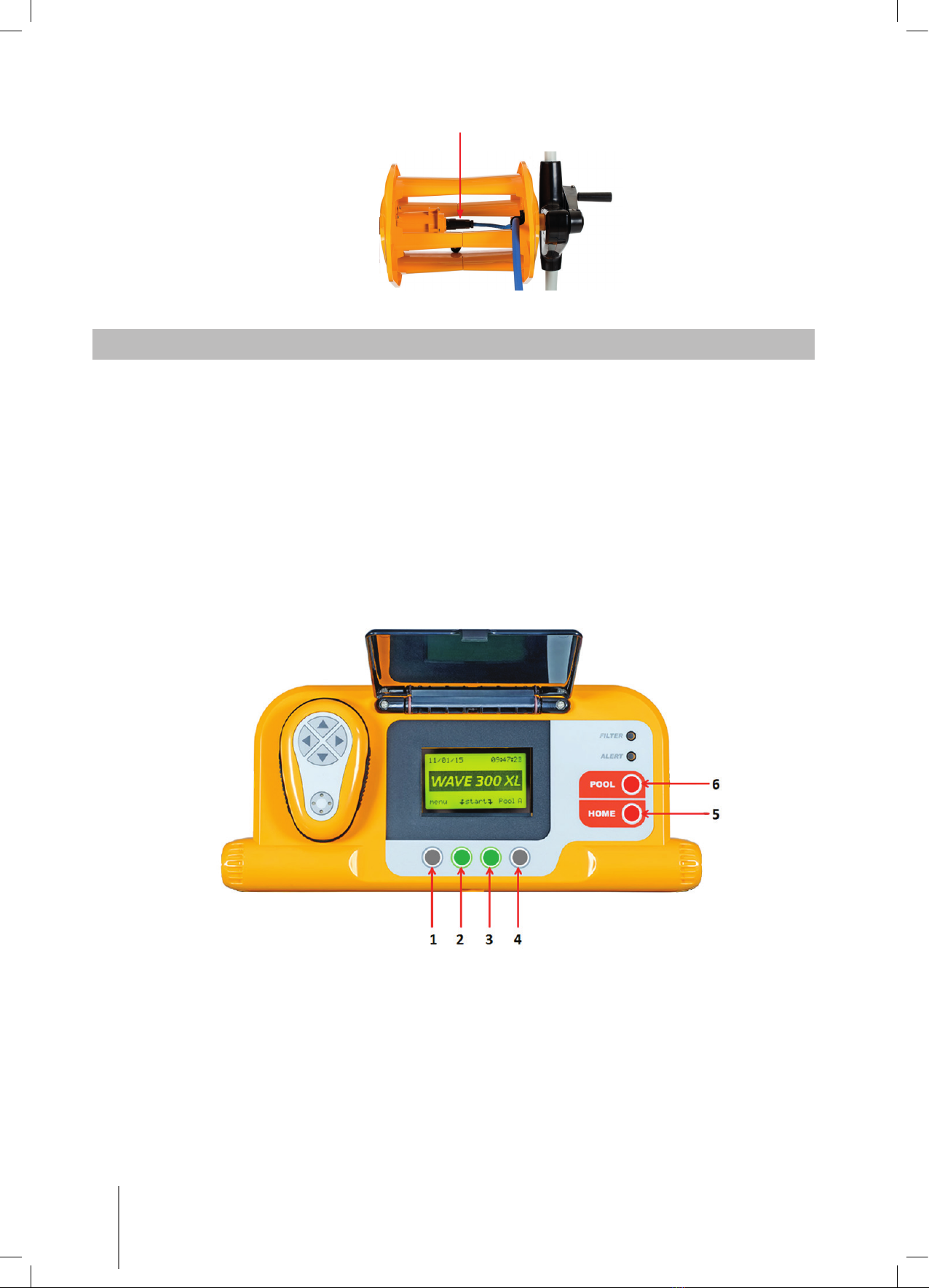

Figure 4: MMI Console
Roller inner connection
Figure 3: Roller Inner Connection

7
Dolphin WAVE 300 XL Pool Cleaner |User Manual
4.2 MMI Alerts
The WAVE 300 XL has the following alert LEDs:
• Filter: This Filter LED lights up when the filter is full and needs to be cleaned at the end of the
cleaning cycle. If this LED lights up mid-cycle, you do not need to immediately stop the operation;
you can wait until the cycle is completed. This LED indicator automatically resets when the robot
starts a new cycle with a clean filter.
• Alert: This Alert LED lights up to indicate an error that stops the robot from functioning. In such
cases, inspect the robot to locate the problem and if it can be fixed, start the robot again. If the
error repeats itself, then details of the specific error are displayed on the MMI screen (Figure 4).
If this occurs, contact your Maytronics dealer immediately.
4.3 MMI Functions
The following functions are available on the MMI console.
Command Description
Menu From the Wave 300 XL screen, press Menu to access the Main Menu screen

Scroll up

Scroll down
Start 
Press both green buttons simultaneously to start pool cleaning
Select Press Select to confirm your selection after using the scrolling buttons
Modify Press Modify to change settings after making a selection
Back Press Back to return to the previous screen
Exit Press Exit to return to the Wave 300 XL screen
4.4 WAVE 300 XL Parameters
You can view and edit many of the WAVE 300 XL parameters from the MMI Main Menu screen.
To view the WAVE 300 XL parameters:
1. Switch on the power supply. The Wave 300 XL screen is displayed in the MMI.
2. Press Menu to access the Main Menu screen.
Select Exit
Main Menu
Pool Profile
Filter State Clean
Technician Mode
Statistics

8
Dolphin WAVE 300 XL Pool Cleaner |User Manual
The following parameters are available on the first Main Menu screen:
Parameter Description
Pool Profile Press the down arrow  or up arrow  , to highlight Pool Profile, and press
Select to access the Pool Profile screen. The Pool Profile screen displays the four
dierent configured Pool Profiles.
Note: The WAVE 300 XL is delivered with a default pool profile parameter.
To change the pool profile parameter, see Choosing Additional Pool Profiles on
page 9.
Filter State Reports on the filter’s condition:
• Clean: Filter is ready for use.
• Full: Clean filter.
The filter warning light on the console also indicates when the filter needs
cleaning.
Technician
Mode
Press the down arrow  or up arrow  , to highlight Technician Mode, and press
Select to enter the technician screen with restricted access.
Statistics Press the down arrow  or up arrow  , to highlight Statistics, and press Select
to review data on usage.
3. There are two Main Menu screens. To access the second screen, press the scroll down arrow  .
The following additional parameters are available on the second Main Menu screen:
Parameter Description
Clock Setup Press the down arrow
 or up arrow  , to highlight Clock Setup, and press
Select to access the Clock Setup screen and 12/24-hour mode.
Date Setup Press the down arrow
 or up arrow  , to highlight Date Setup, and press
Select to access the Date setup screen.
Error Report Press the down arrow
 or up arrow  , to highlight Error Report, and press
Select to display information for service technicians.
Language Press the down arrow
 or up arrow  , to highlight Language, and press
Select to enter the Language interface mode.
Note: To return to English from any other language, press and hold the Menu button on the
Wave 300 XL screen for 3-4 seconds.
Select Exit
Main Menu
Clock Setup
Date Setup
Error Report
Language English

9
Dolphin WAVE 300 XL Pool Cleaner |User Manual
4.5 Choosing Additional Pool Profiles
The WAVE 300 XL can be configured for four dierent pool profiles by your dealer. The configured
settings are stored in the MMI’s memory. This section describes how to choose additional pool
settings.
To add a new pool configuration:
1. Go to the Wave 300 XL screen. Pool A is displayed as the currently defined setting.
2. Press Pool A to access the Pool Profile screen. The Pool Profile screen is displayed.
3. Choose a dierent pool profile (Pool B, Pool C, or Pool D) and press Select. The selected pool profile
appears.
Menu Start Pool A
Select Exit
Pool A
Pool B
Pool C
Pool D
Select Pool

10
Dolphin WAVE 300 XL Pool Cleaner |User Manual
5. SETTINGS
The WAVE 300 XL is controlled from the MMI console. Four different swimming pool configurations can
be defined and stored in the MMI's memory. You can customize the settings to match the specific type
of swimming pool (A, B, C, or D) to be cleaned.
Note: Additional pool profiles can only be configured by an official Maytronics WAVE technician. In the
event that permission for configuration is granted, select the pool you want to program (A, B, C, D).
Refer to the diagram below for details.
Set Back
Delay time
1 2 3 4 5 6 7 8
Set Back
Lines to left
Lines to right
Crisscross scanning
Cycle time
1 2 3 4 5 6 7 8
Set Back
Set Back
Fine
Medium
Coarse
Lines spacing
Set Back
Lines to scanning
Lines to left
Lines to right
Pool A profile menu
Set Back
Pool A profile menu
Set Back
Pool length 25m
Cycle time 4h
Pool type Rect
Scan mode Crisscross R
Display time No
Lines spacing Medium
Reset pool A profile
Pool length
Meters
Ft
25 30 35 40 50 60
Set Back
Set Back
Rectangular
Shaped
Pool type
Set Back
Pool with obstacles
Lines to left
Lines to right
Set Back
Scanning mode
Crisscross
Lines to scan
Pool with obstacles
Maze

11
Dolphin WAVE 300 XL Pool Cleaner |User Manual
6. DAILY OPERATION
This chapter describes how to perform daily operational tasks with the WAVE 300 XL Pool Cleaner,
and includes the following sections:
• Operating the WAVE 300 XL, page 11
• Using the Remote Control Unit , page 12
• Cleaning the Filter, page 13
6.1 Operating the WAVE 300 XL
To operate the WAVE 300 XL:
1. On the MMI, press the POOL button. The robot starts moves towards the pool, while pulling the
floating cable, enters the pool, and positions itself on the pool floor. Make sure it aligns itself
vertically to the wall of the starting point and that the angle from the wall is less than 45°.
2. Wait for the Wave 300 XL screens to appear. Press Start (press both green buttons, marked 2and
3, in Figure 4, simultaneously). The cleaning session begins.
3. To stop the cleaning session at any time, press the right grey button, marked 4, in Figure 4.
4. Press the HOME button. The robot moves in the direction of the floating cable. Roll the floating
cable neatly on the cable roller using the cable roller handle. Holding the floating cable, gently pull
the robot upwards and towards the Caddy. As it reaches the side of the pool, pull the cable gently
until the floating cable handle emerges. Grasp the handle and pull the robot out of the water. The
robot shuts down automatically.
5. Use the remote control to drive the WAVE 300 XL to the Caddy outside the pool. Do not pull the
robot towards the Caddy by rolling up the floating cable with the cable roller handle.
6. Clean the filter as needed. If the MMI displays Filter Full, you should clean it before the next
operating cycle.
Note: It is not necessary to stop the WAVE 300 XL in the middle of the cycle when the Filter Full
indicator appears. Clean the filter before the next cycle.
7. Before each operating cycle, clean the robot body, brushes and driving belt area, and remove
foreign objects, rubber bands, hair, etc.
8. Once a week, clean the impeller area:
WARNING
Make sure the power supply is switched off and unplugged before service.
• Open the top cover.
• Remove the screws securing the cover of the impellers using a No. 2 Philips manual screwdriver.
• Open and remove the cover.
• Remove foreign objects from the impellers.
• Replace the cover and secure it with the four screws.
9. Make sure the floating cable is not tangled so it can be rolled up easily.
Important: Every two or three cleaning sessions, disconnect the floating cable from the roller inner
connection (Figure 3), unroll the entire cable and re-arrange it on the roller as required.
10. A warning message to perform Preventive Maintenance appears on the MMI screen, when
applicable. Preventive Maintenance service must be performed in a timely manner. Contact your
dealer to arrange this service. Failure to perform the Preventive Maintenance service will void the
warranty.

12
Dolphin WAVE 300 XL Pool Cleaner |User Manual
6.2 Using the Remote Control Unit
The remote control unit enables you to manually control the WAVE 300 XL to clean those hard-to-
reach spots or places skipped during the standard cleaning cycle.
Use the remote control unit only with non-rechargeable alkaline LR03 batteries 1.5V AAA.
Do not mix old and new batteries. Insert batteries in the correct direction with the correct polarity.
Exhausted batteries must be removed from the appliance and safely disposed of.
Remove the batteries if the appliance is to be stored unused for a long period. Do not short-circuit the
supply terminals.
To use the remote control unit
1. Press Start on the MMI console to start
the automatic operations of the
WAVE 300 XL.
2. Press the On/Off button to activate the
remote control.
3. Press the Forward or Backward buttons
to maneuver the WAVE 300 XL forward
or backward at a faster speed.
4. Press the Forward or Backward
buttons again to maneuver the
WAVE 300 XL forward or backward at
the standard cleaning speed.
5. To stop the WAVE 300 XL,
press the button for the opposite
direction to the direction in which the
robot is currently moving (meaning that
if the WAVE 300 XL is moving forward, you must press the Backward button to stop it).
6. When the robot is idle (standing still) and you press the Turn Left or Turn Right buttons, the robot
turns left or right by moving one belt forward and one belt backward.
7. If you press the Turn Left or Turn Right buttons while the robot is driving forward or backward, the
robot turns left or right by turning one belt and stopping the opposite belt.
Forward
Turn Right
Backward
Touch pad
On/Off switch
Turn Left

13
Dolphin WAVE 300 XL Pool Cleaner |User Manual
6.3 Cleaning the Filters
Clean the WAVE 300 XL filters after every cleaning cycle as follows:
1. Turn the lever on the top cover, and open the top cover.
2. Remove the 2 filter bags from the robot.
3. Open the zippers on each filter bag and empty the contents.
4. Rinse the 2 bags.
5. Insert the 2 filter bags into the robot and close the top cover.
The robot is ready for a new cleaning cycle.

14
Dolphin WAVE 300 XL Pool Cleaner |User Manual
7. TROUBLESHOOTING
A technician may request log files to aid in troubleshooting. To save a log file to a USB memory stick,
from the main Wave 300 XL screen, press the green buttons in sequence – right-left-right-left, and
follow the instructions displayed on the screen.
Error message Possible Cause Action
Imp overload Is there dirt or other
foreign matter in the
impeller?
Disconnect the robot from the mains
electricity, remove the screws and
remove the impeller cover.
Remove any dirt from around the
impeller.
Replace the impeller cover.
Imp overload Does the problem reoccur
with every operation?
Contact your Maytronics dealer.
Imp underload Does the problem reoccur
with every operation?
Contact your Maytronics dealer.
Right or left
drive overload
Is there any interfering
dirt in the driving belts,
brushes, or drive axles?
Remove any dirt or foreign bodies that
might have become entangled with the
driving belts, brushes or drive axles.
Right or left
drive overload
Does the problem reoccur
with every operation?
Contact your Maytronics dealer.
Right or left
drive underload
Does the problem reoccur
with every operation?
Contact your Maytronics dealer.
Robot stuck on
wall
Has the robot stopped in
a vertical position of more
than 45º?
Is the robot stuck on an
obstacle?
Move the robot from its position and
remove the obstacle, then reactivate.
If the problem persists, contact your
Maytronics dealer.
Out of water Was the robot operated
out of the water for an
extended time?
Check that the impeller is in order and
that its blades are not broken, then
reactivate.
If the problem persists, contact your
Maytronics dealer.
Robot is stuck Is the robot stuck on an
obstacle?
Is there an obstruction in
the water channel or in
the robot’s driving belts?
Move the robot from its position and
remove the obstacle, then reactivate.
If the problem persists, contact your
Maytronics dealer.
Navigation
System
Does the problem reoccur
every operation?
Contact your Maytronics dealer.

15
Dolphin WAVE 300 XL Pool Cleaner |User Manual
The following errors may appear on the screen when the robot has stopped and the red error light on
the MMI is on.
Error message Possible Cause Action
No
Communication
Does the problem occur
when pressing POOL or
HOME on the MMI?
Contact your Maytronics dealer.
Step 1: Disconnect the floating cable from
the roller inner connection and connect
the cable directly to the power supply.
If the problem persists, go to Step 2.
Step 2: You can work temporarily without
using the MMI. Disconnect it from the
power supply, thus disabling the
POOL/HOME function, and use the
remote control.
Over Current Does the problem occur
when pressing POOL or
HOME on the MMI?
Contact your Maytronics dealer.
Disconnect the floating cable from the
roller inner connection and connect the
cable directly to the power supply.
DC input Is there an electrical short,
or a partial or complete
disconnection?
Contact your Maytronics dealer.

8151452 Rev. 02
www.maytronics.com
User Manual
Dolphin WAVE 300 XL
Pool Cleaner
