mbj HDF-05 User manual
Horizontal Ringlights
Operating Manual
Technical Data
Model Sizes in Series
The lightis available in the following sizes 1)
HDF-05 HDF-07 HDF-10
1) Size definition: HDF-10 refers to an inner light diameter of 100 mm.
Possible LED Colors
LED Abbr.1) Peak Wavelength2)
White -WT 5000 K, CRI80
Red -RD near 625 nm
Infrared -IR near 850 nm
Green -GN near 525 nm
Blue -BE near 465 nm
Yellow -YE near 580 nm
refers to a horizontal ringlight with 625nm red light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current.
MBJ Imaging GmbH
Jochim-Klindt-Straße 7 +49 4102 778 90 31
www.mbj-imaging.com
Mechanical Integration
The lights are equipped with 4 combined mounting positions of
threaded or through holes. It can be used to fix the lighting to the
specified position. To secure a long lifetime additional heat transfer
measurements at the holding positions is highly recommended.
03203.04 Manual MBJ Horizontal Ringlight HDF-Series, August 2023
Safety Notes
Before working with this unit, read the warning and application instruc-
tions carefully and completely before operating the device.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recommended
to look directly into the light source. The lighting must be switched
off before installation and/or maintenance. The device must not be
used when a failure may cause a personal injury.
3. Heat - In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may exceed 60 °C. Keep off flammable materials at any time.
4. Electricity - The housing is electrically isolated from the ground of
the power supply. Exceeding the permissible input voltage Uin or
ULED(+) can lead to the destruction of the device or to a significant
shortening of the lifetime of the LEDs in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to a inhomogenious light emission.
6. Cleaning - The light emission surface has to be cleaned with a stan-
dard glass cleaner and a soft cleaning cloth. Do not use other material
for cleaning as it will damage the device.
Example: Model HDF-07
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification Horizontal Ringlight Series
Operating temperature 10°C to 30°C
Certifications CE, RoHS
Degree of protection IP54
Humidity 30 % to 70 %
Specification HDF-05 HDF-07 HDF-10
Optical parameter
Luminous area (ID) 50 mm 75 mm 100 mm
Light emission
Recommended use used mainly for darkfield applications
Recommended light working distance 1 mm - 30 mm
Electrical parameter
Available interfaces -s with integrated LED Controller and 4 operation modes; -x with direct LED access (external LED control is required)
Uin for -s Version 24 VDC +/- 5 %
U range for -x version2) WT / BE / YE: 17 … 20 VDC; GN: 20 ... 23 VDC; RD: 12 … 15 VDC; IR: 9 … 12 VDC
Typical Power (-s version)
Steady light operation 6 W / 3 W / 2 W
During ON time at flashed light operation 16 W
Recommended LED current (-x version)
Steady light (100% duty cycle) 300 mA
(450 mA for IR)
Flash light (50 % duty cycle, < 500 ms pulse) 600 mA
(450 mA for IR)
Flash light (25 % duty cycle, < 50 ms pulse) 900 mA
(450 mA for IR)
Flash light (10 % duty cycle, < 5 ms pulse) 1200 mA
(900 mA for IR)
General parameter
Dimension (H x W x D) 130 mm x 141 mm x 12 mm 130 mm x 141 mm x 12 mm 130 mm x 141 mm x 12 mm
Weight 360 g 330 g 300 g
Material Black anodized aluminum housing with PMMA light guide
Connector M8x1 socket, 4 pin, male (for pinning details refer to chart “Electrical Connection”)
Accessories For cable and external LED controller: please check www.mbj-imaging.com
1) Values are approximate with +/- 7% tolerance
2) Lower voltage value refers to steady light, higher voltage value refers to flash light, please see max. allowed current in the rows below.
3) Power for Blue / Yellow is comparable to White, Power for Green is approx. 1,2 times higher.
4) Triggered flash light with max. 20ms and up to 100 % more light intensity, calculated for White.

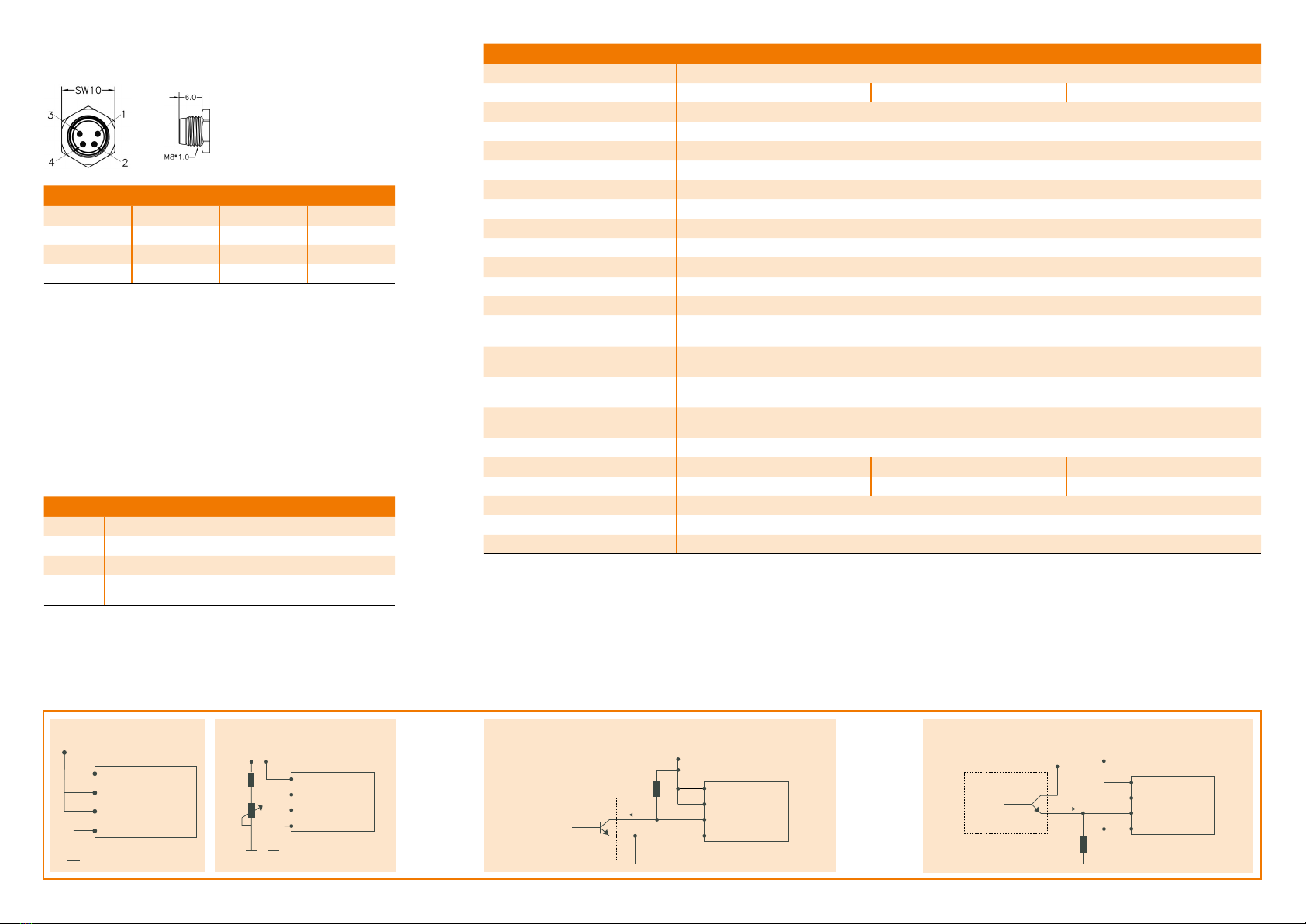

Electrical Connection
The lighting is equipped with an 4 pin M8x1 connector.
Pin Color 1) Standard (-s) Direct (-x) 2)
1 brown 24 VDC LED (+)
2 white Dim LED (+)
3 blue Trigger LED (-)
4 black Ground LED (-)
1) wire color of MBJ lighting cable
2) connection to 24VDC without external LED controller may destroy the unit
Additional Information:
Pin3 (Trigger) is an ‘active high’ input signal with 5…24 V=ON and 0...1V=OFF,
it is a high resistance current sink with 0.2mA for 5V and 5 mA for 24 V
Pin2 (DIM) is used as brightness control and operation mode switch, it is a
high resistance current sink with 0.2mA for 5V and 1 mA for 24 V.
For the connection it is recommended to use the MBJ lighting cable with a
maximum length of 10 m.
Integrated Controller (-s)
Supported operation modes with the integrated LED controller
Pin 2 (Dim) Operation mode
24 V steady light 1)
1...10 V steady light with brightness control 2)
24 V triggered light
GND triggered flash light with max. 20ms and
up-to 100 % more light intensity 3)
1) Pin 3 (Trigger) needs permanent 24V to activate steady light mode
2) PWM with 3.8kHz clock is used, recommended minimal camera exposure is 5ms
3) Latency between trigger and LED light ON is about max. 30µs, the maximum recom-
mended clock speed is 1 kHz, the maximum recommended duty cycle is 25% and the
minimum recommended flash time is 100µs
Triggered light with NPN sinking output
(inverted strobe signal, open collector)
Flashed light with PNP sourcingSteady light Steady light with brightness control
Application Samples for (-s) controller
1 Power
2 Dim
3 Trigger
4 GND
24 VDC
MBJ
LED light
MBJ
LED light
1 Power
2 Dim
3 Trigger
4 GND
24 VDC
24 VDC
3k9
10k
24 VDC
2k2
11 mA
from Camera/ PLC etc MBJ
LED light
1 Power
2 Dim
3 Trigger
4 GND
2k2
MBJ
LED light
1 Power
2 Dim
3 Trigger
4 GND
24 VDC 24 VDC
15 mA
from Camera/ PLC etc
