2007-2017 Jeep JK Hi Lift Jack Mount
NOTE:
This kit requires the installation of Off Camber Fabrications Roof
Rack Kit # 130717 or # 130927 prior to installation of this Hi Lift
Jack Mount Kit # 130872. If you have installed or are installing
the Cargo Basket Kit # 130822, please refer to step 5.

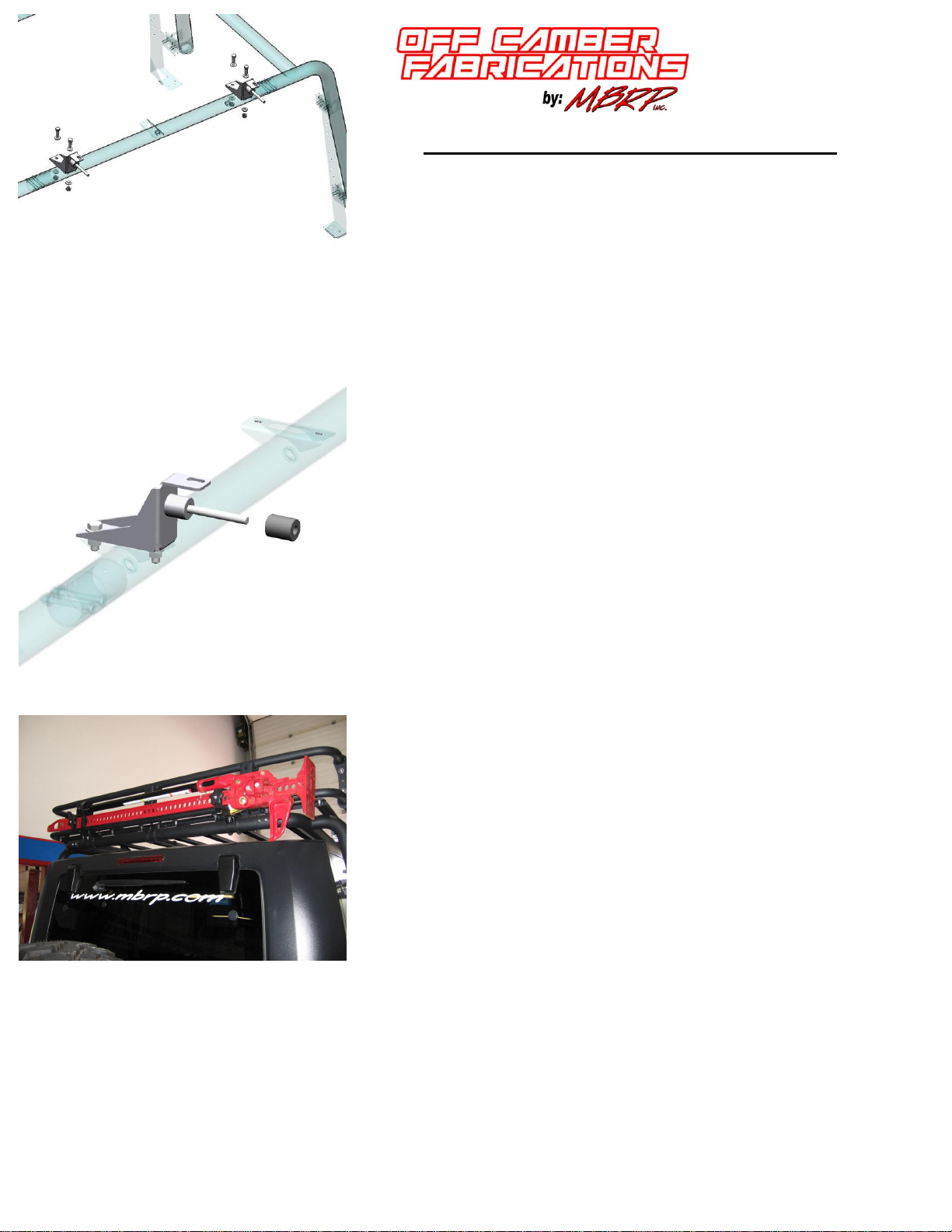

1. Mount the Hi Lift Jack Mounting Bracket Assemblies onto the
Rear Crossmember of your Roof Rack and secure with the supplied
3/8” Bolts, 3/8” Flat Washers, and 3/8” Nyloc Nuts. Be sure the
studs face the rear of the Jeep.
Refer to Figure 1.
2. Slide the Rubber Sleeves over the studs on the Hi Lift Jack
Mounting Bracket Assemblies.
Refer to Figure 2.
3. Install your Hi Lift Jack onto the Jeep by sliding the studs on the
Hi Lift Jack Mounting Bracket Assemblies through the holes on
the beam of the Hi Lift Jack. Check for clearance between the
hardtop and the Lifting Pad of the Hi Lift Jack. It may be necessary
to mount the Hi Lift Jack with the Lifting Pad facing up.
Refer to Figure 3.
Figure 1
Figure 2
Figure 3

130872 © 12/16PAGE 3 OF 3
4. Install the Retainers over the studs on the Hi Lift Jack
Mounting Bracket Assemblies followed by the supplied Hand
Knobs and tighten.
Refer to Figure 4.
5. Installation of this kit with the Cargo Basket Kit # 130822
requires installation as shown.
Refer to Figure 5.
Congratulations! You are finished. We are sure that you will enjoy this
Off Camber Fabrications product by MBRP Inc.
Figure 4
Figure 5
