MEDAP MEDAP-BORA UP 2080 User manual

OPERATING INSTRUCTIONS
UNIVERSAL ASPIRATOR
MEDAP-BORA UP 2080
MEDAP-BORA UP 2080 OP
GA 5752 2300 GB 26

GA 5752 2300 GB 26
2
Subject to technical modification!
Illustrations and technical specifications may vary slightly from those in these Operating
Instructions as a result of ongoing product development.
V26 2020-02
4

GA 5752 2300 GB 26 3
Table of contents
Table of contents
1 Introduction ..............................................................................................................................................6
1.1 Foreword ....................................................................................................................................................6
1.2 How to use these operating instructions ....................................................................................................6
1.2.1 Abbreviations ...............................................................................................................................6
1.2.2 Symbols .......................................................................................................................................6
1.2.2.1 Cross-references .......................................................................................................6
1.2.2.2 Actions and responses .............................................................................................. 6
1.2.3 Definitions ....................................................................................................................................7
1.2.3.1 Design of safety notes ............................................................................................... 7
1.2.3.2 Structure of notes ......................................................................................................7
1.2.4 Symbols used ..............................................................................................................................7
1.3 Disposal......................................................................................................................................................9
1.3.1 Packing ........................................................................................................................................9
1.3.2 ATMOS products..........................................................................................................................9
1.3.3 Used electrical devices ................................................................................................................9
1.4 Übersicht ..................................................................................................................................................10

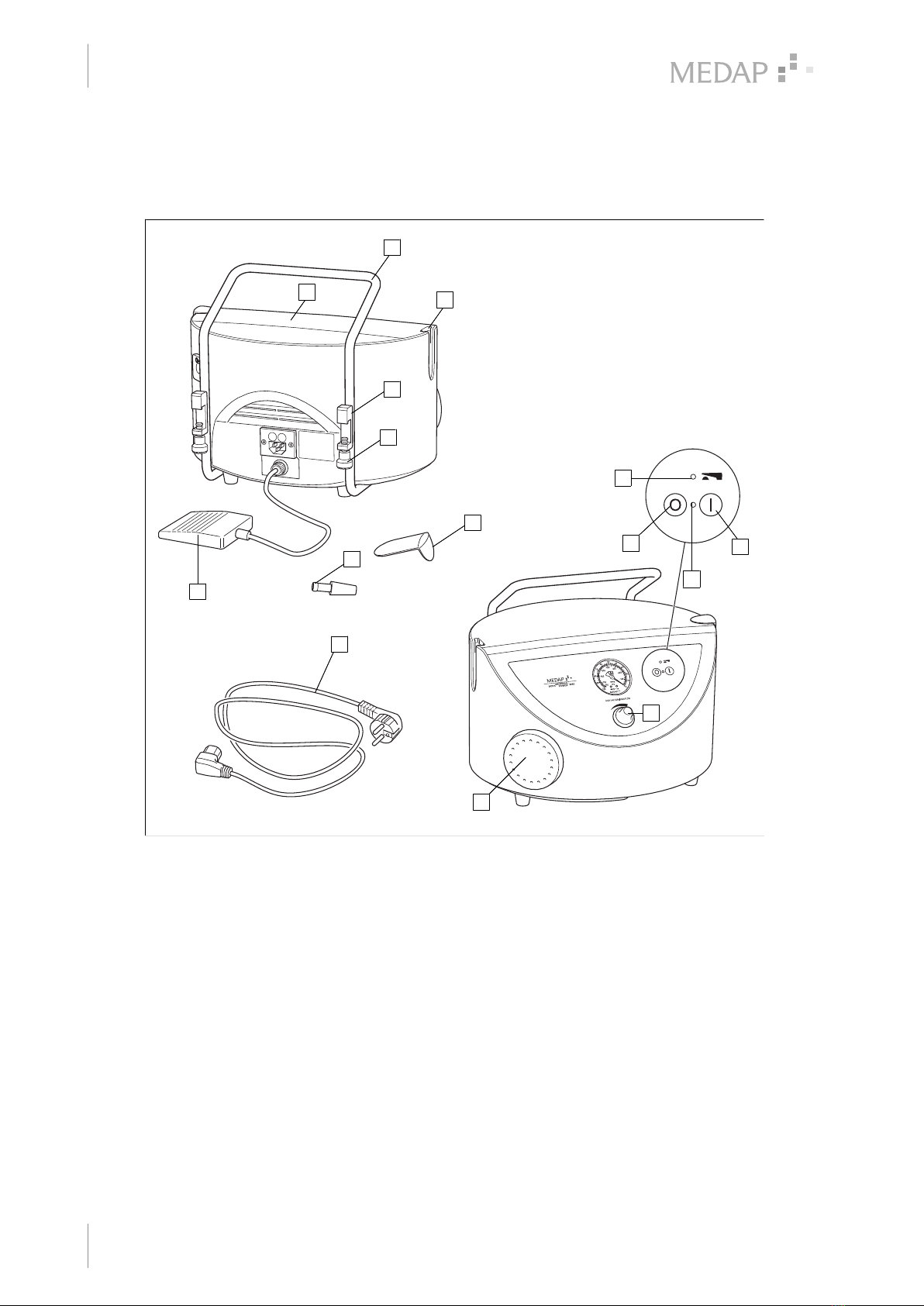

1.4.1 BORA UP 2080 OP....................................................................................................................10

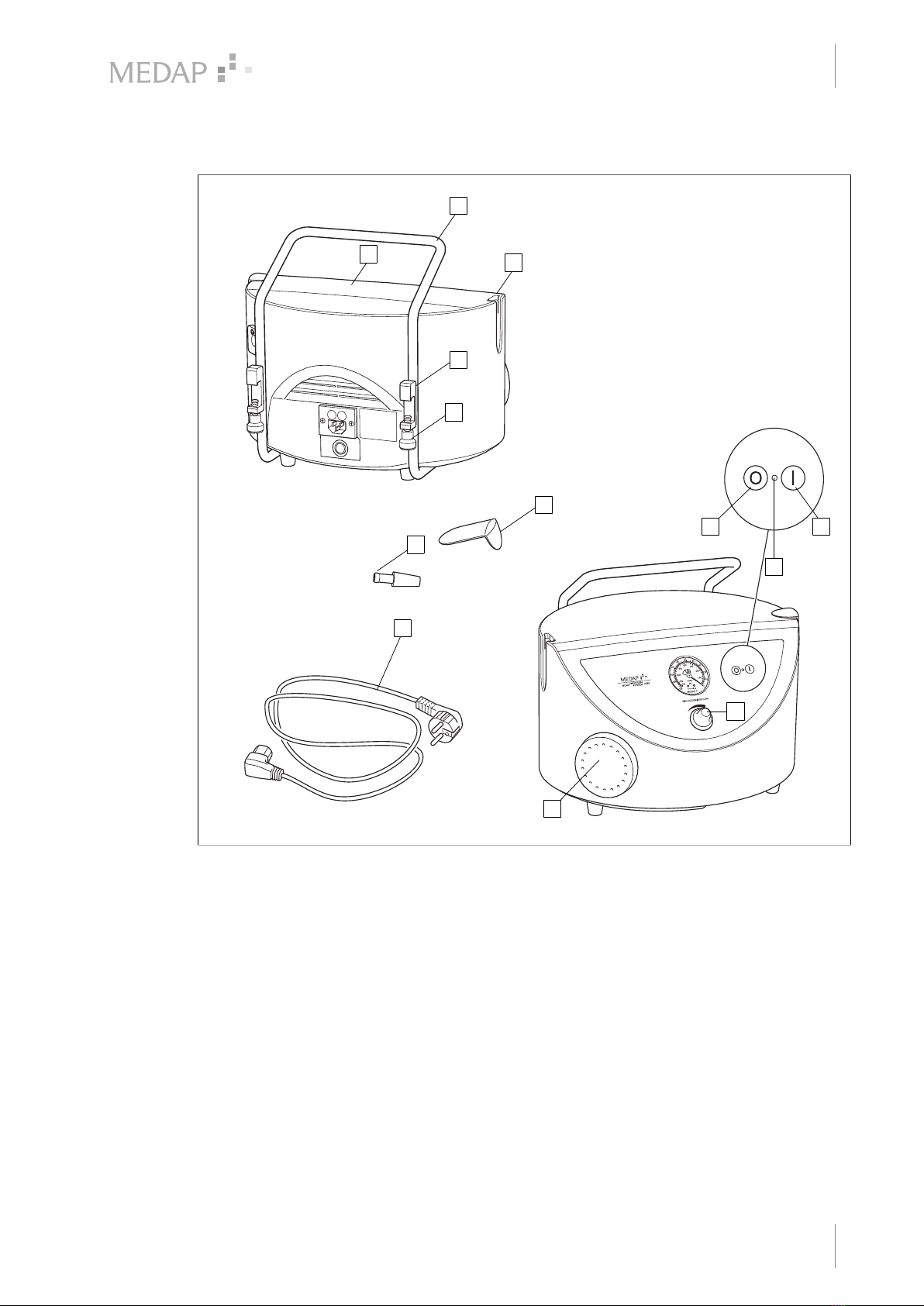

1.4.2 BORA UP 2080 .......................................................................................................................... 11

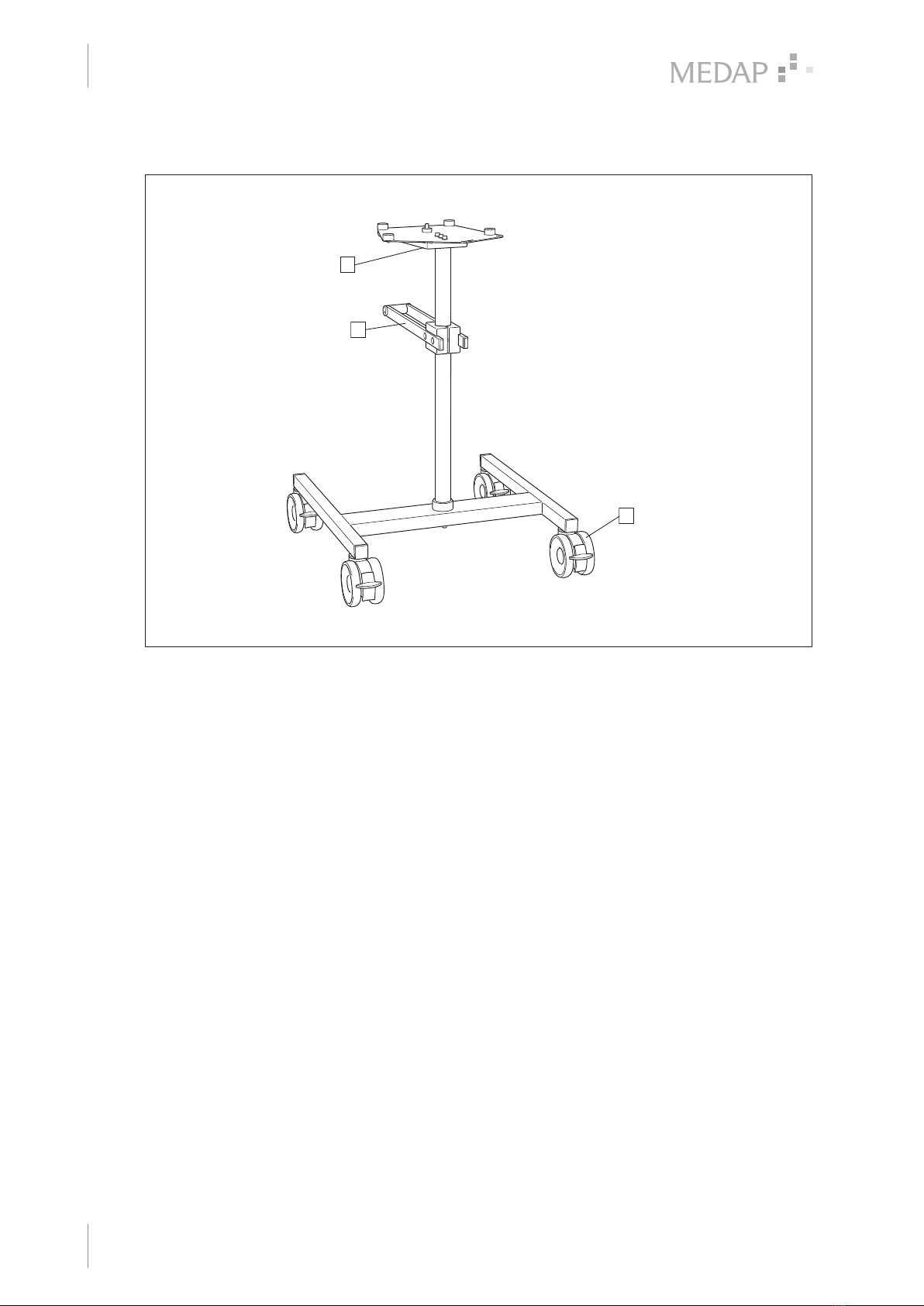

1.4.3 Trolley ........................................................................................................................................12
1.5 Basic requirements...................................................................................................................................12
1.5.1 Use in accordance with the intended purpose ...........................................................................12
1.5.2 Applicable standards..................................................................................................................12
1.5.3 Intended purpose .......................................................................................................................13
1.5.3.1 For use in cardiac surgery and surgery of the central nervous system (CNS) ........14
1.5.3.2 BORA variants .........................................................................................................14
1.5.4 Interface description...................................................................................................................15
1.5.4.1 Hydrophobic bacterial and viral filter .......................................................................15
1.5.4.2 Vacuum connection tube ......................................................................................... 15
1.5.4.3 Septic fluid jar including septic fluid jar cap .............................................................15
1.5.4.4 Suction tube.............................................................................................................16
1.5.4.5 Utensil......................................................................................................................16
1.5.4.6 Connection of equipment mount..............................................................................16
1.5.4.7 Bacterial filter paper.................................................................................................16
1.5.4.8 Rinsing fluid jar ........................................................................................................16
1.5.4.9 Application sets .......................................................................................................17
1.5.4.10 Trolley ......................................................................................................................17
1.5.4.11 Switch valve.............................................................................................................17
2 Safety notes............................................................................................................................................18
2.1 General safety notes ................................................................................................................................18

GA 5752 2300 GB 26
4
Table of contents
2.2 Product safety notes.................................................................................................................................19
3 Initial operation.......................................................................................................................................22
3.1 General.....................................................................................................................................................22
3.2 Variations in use....................................................................................................................................... 22
3.2.1 Portable variation .......................................................................................................................22
3.2.2 Aspirator on trolley .....................................................................................................................23
3.2.2.1 Inserting the catheter holder (REF 5750 8002) .......................................................24
3.2.3 Aspirator on equipment rail ........................................................................................................24
3.3 Overflow protection device.......................................................................................................................25
3.3.1 Mounting the universal overflow protection................................................................................25
3.3.1.1 Mounting the hydrophobic bacterial and viral filter ..................................................26
3.3.2 Mounting the surgical overflow protection..................................................................................26
3.3.3 Mounting septic fluid jar caps with integrated overflow protection .............................................27
3.4 Rail clamp mounting point........................................................................................................................27
3.4.1 Mounting the vacuum shift to the rail clamp...............................................................................27
3.5 Equipment mount interface ......................................................................................................................28
3.5.1 Mounting the septic fluid jar .......................................................................................................29
3.6 Mounting the tubes...................................................................................................................................29
3.6.1 Tube connections of universal overflow protection .................................................................... 30
3.6.2 Tube connections of surgical overflow protection ...................................................................... 30
3.6.3 Tube connection of overflow protection device with septic fluid jar cap (REF 5750 0390) ........ 31
3.6.4 Tube connection of overflow protection device with septic fluid jar cap (REF 5752 5432) ........ 31
3.6.5 Tube connection for vacuum shift (REF 5752 2049)..................................................................32
3.7 Foot switch (only for BORA UP 2080 OP)................................................................................................ 33
3.8 Mains cable ..............................................................................................................................................33
4 Operation ................................................................................................................................................34
4.1 Functional test..........................................................................................................................................34
4.2 Suction .....................................................................................................................................................34
4.2.1 Switching on the aspirator..........................................................................................................35
4.2.2 Setting the vacuum level............................................................................................................35
4.2.3 Operating the foot switch (only for BORA UP 2080 OP)............................................................36
4.2.4 Setting the vacuum shift.............................................................................................................37
4.3 Utensil ......................................................................................................................................................37
4.4 Replacing the bacterial filter paper...........................................................................................................38
5 Taking the unit out of operation............................................................................................................39
5.1 Completing the aspiration process...........................................................................................................39
5.2 Emptying the septic fluid jar .....................................................................................................................39
5.3 Disassembly.............................................................................................................................................40
5.3.1 Detaching tubes .........................................................................................................................40
5.3.2 Removing the overflow protection device ..................................................................................40

GA 5752 2300 GB 26 5
Table of contents
6 Cleaning and disinfection......................................................................................................................42
6.1 General.....................................................................................................................................................42
6.2 Cleaning ...................................................................................................................................................43
6.2.1 General ......................................................................................................................................43
6.2.2 Cleaning procedure....................................................................................................................44
6.3 Disinfection...............................................................................................................................................44
6.3.1 General ......................................................................................................................................44
6.3.2 Suitable disinfectants .................................................................................................................44
6.3.3 Disinfection procedure ...............................................................................................................45
6.3.4 Disinfection procedures ............................................................................................................. 45
7 Maintenance............................................................................................................................................47
7.1 General.....................................................................................................................................................47
7.2 Period tests ..............................................................................................................................................47
7.3 Malfunctions and troubleshooting.............................................................................................................47
7.3.1 Replace mains fuse ...................................................................................................................49
7.4 Repairs.....................................................................................................................................................50
7.5 Type plate position ...................................................................................................................................51
7.6 Service hotline:.........................................................................................................................................51
7.7 Spare parts...............................................................................................................................................51
7.8 Sending in the device...............................................................................................................................51
8 Technical specifications........................................................................................................................52
8.1 General.....................................................................................................................................................52
8.2 Technical specifications............................................................................................................................52
8.3 Ambient conditions...................................................................................................................................52
8.4 Dimensions...............................................................................................................................................52
8.5 Weight ......................................................................................................................................................53
8.6 Vacuum depending on altitude.................................................................................................................53
8.7 Electromagnetic compatibility (EMC) ....................................................................................................... 53
8.7.1 Electromagnetic emissions ........................................................................................................53
8.7.2 Resistance to electromagnetic interference...............................................................................54
8.7.3 Resistance to electromagnetic interference, non-life-sustaining equipment..............................55
8.7.4 Recommended separation distances.........................................................................................56
9 Approved accessories...........................................................................................................................57
9.1 Accessories..............................................................................................................................................57
9.2 BORA UP 2080 ........................................................................................................................................58
9.3 Application sets ........................................................................................................................................58
9.3.1 Application sets..........................................................................................................................58
9.4 Consumables ...........................................................................................................................................58

Introduction
Foreword
6GA 5752 2300 GB 26
1
1 Introduction
1.1 Foreword
Your facility has selected the leading-edge medical technology made by ATMOS. We sincerely
appreciate the trust you have placed in us.
1.2 How to use these operating instructions
These operating instructions are provided to familiarise you with the features of this ATMOS
product. They are subdivided into several chapters.
Please note:
• Please read these operating instructions carefully and completely before using the product for
the first time.
• Always proceed in accordance with the information contained herein.
• Store these operating instructions in a location near the product.
1.2.1 Abbreviations
EN European standard
EEC European Economic Community
VDE Verband der Elektrotechnik Elektronik Informationstechnik (Association for
Electrical, Electronic & Information Technology)
1.2.2 Symbols
1.2.2.1 Cross-references
References to other pages in these operating instructions are identified with a double arrow
symbol ‘’.
1.2.2.2 Actions and responses
Das Symbol „“ kennzeichnet eine Aktion des Bedieners, während das Symbol „“ die
ausgelöste Reaktion des Systems kennzeichnet.
Example:
Turn on the light switch.
Lamp lights up.

Introduction
How to use these operating instructions
GA 5752 2300 GB 26 7
1
1.2.3 Definitions
1.2.3.1 Design of safety notes
Pictogram Descriptor Text
DANGER!
Indicates a direct and immediate risk to
persons which may be fatal or result in
most serious injury.
The text for the safety note
describes the type of risk and
how to avert it.
WARNING!
Indicates a potential risk to persons or
property which may result in health hazard
or grave property damage.
CAUTION!
Indicates a potential risk to property which
may result in property damage.
Tab. 1: Design of safety notes
1.2.3.2 Structure of notes
Notes not referring to personal injury or property damage are structured as follows:
Pictogram Descriptor Reference to
NOTE Supplementary assistance or further useful information
without potential injury to persons or property damage is
described in the text of the note.
ENVIRONMENT Information regarding proper disposal.
Tab. 2: Structure of notes
1.2.4 Symbols used
Symbols are attached to products, type plates and packaging.
Symbols Identification
4
Labelling for products which were developed and are marketed in
compliance with the Medical Devices Directive 93/42/EEC. Class Is, Im, IIa,
IIb and III products are also marked with the identifying number for the
notified body.
Identification of devices incorporating a Type BF applied part as defined in
the IEC 60601-1 standard.
Degree of protection against electrical shock.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Serial number’.

Introduction
How to use these operating instructions
8GA 5752 2300 GB 26
1

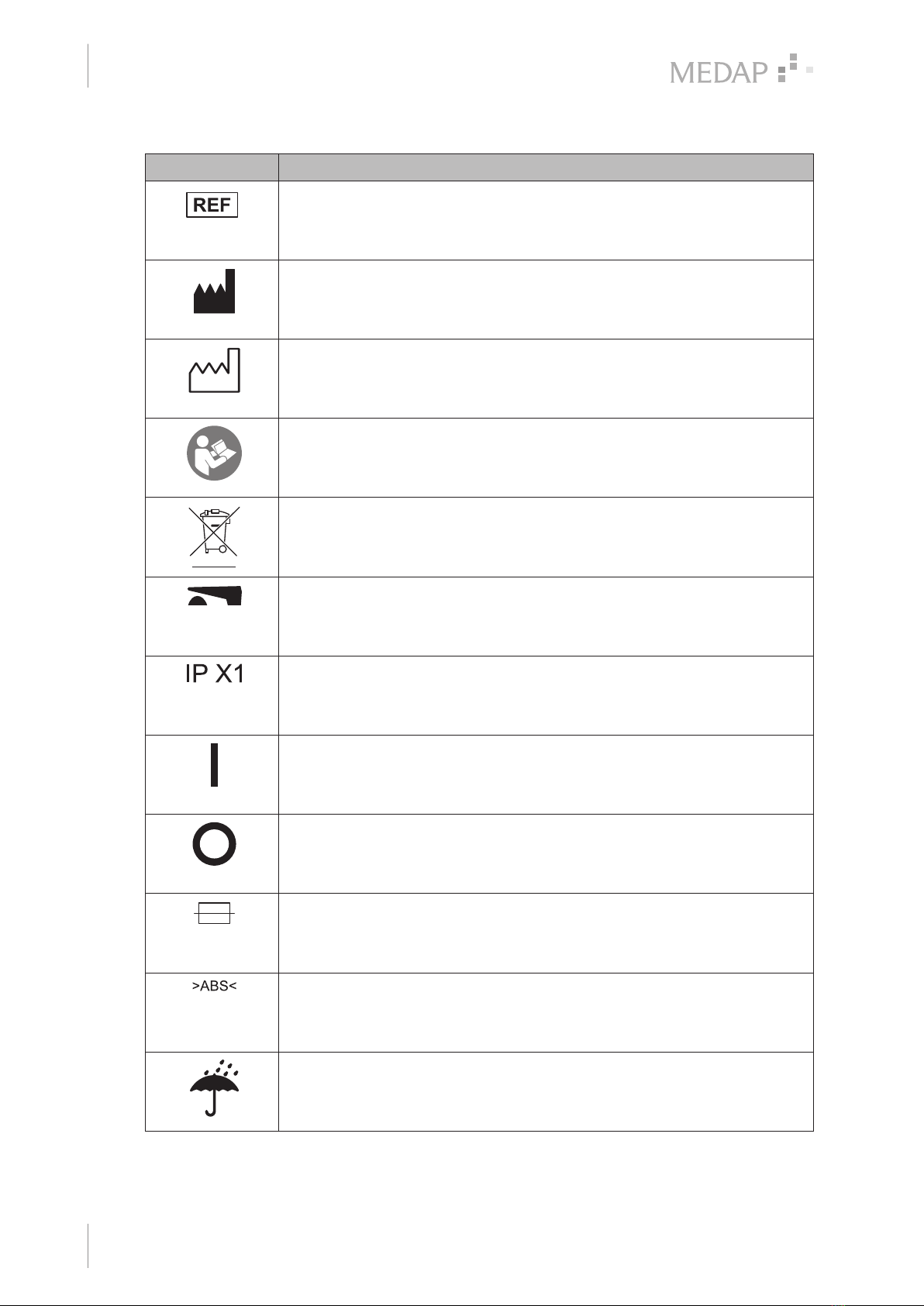

Symbols Identification
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Product number’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Name and address of the manufacturer as well as date of
manufacture’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Date of manufacture’.
Symbol for ‘Follow Operating Instructions’.
Labelling as per EC Directive 2002/96/EC (Directive on Waste Electrical and
Electronic Equipment).
Symbol for ‘Do not dispose of at the municipal collection points for used
electrical equipment’.
Symbol for foot switch --> Stand-by operation.
The appliance can be transferred to standby mode using the foot switch.
Labelling as per IEC 60529 standard.
Symbol for ‘Protection against dripping water’.
Labelling in compliance with the IEC 60601-1 standard.
Symbol for ‘On’.
Labelling in compliance with the IEC 60601-1 standard.
Symbol for ‘Off’.
Labelling in compliance with the IEC 60417-1 standard.
Symbol for ‘Microfuse’.
Material designation for ABS plastic (acrylonitrile-butadiene-styrene
copolymer).
Packaging label.
Symbol for ‘Keep dry’.

Introduction
Disposal
GA 5752 2300 GB 26 9
1
Symbols Identification
Packaging label.
Symbol for ‘Fragile! Handle with care’.
Packaging label.
Symbol for ‘Top’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Temperature limitations’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Relative humidity’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Atmospheric pressure’.
Tab. 3: Symbols
1.3 Disposal
WARNING!
Infection hazard!
The product or some of its components may be contaminated after use.
Clean and disinfect the product before disposal.
1.3.1 Packing
The packing is made of materials compatible with the environment. ATMOS will dispose of the
packing materials upon request.
1.3.2 ATMOS products
ATMOS will take back used products or those which are no longer in service. Please contact your
ATMOS representative for more detailed information.
1.3.3 Used electrical devices
Within the European Economic Community
This product is governed by EC Directive 2002/96/EC (Directive on Waste Electrical and
Electronic Equipment). This product has not been registered for use in private households.
Disposal at municipal collection points for used electrical equipment is not authorised. Please
contact your ATMOS representative for more detailed information on correct and legal disposal.
Outside the European Economic Community
When disposing of this product, ensure compliance with the applicable national regulations on
the handling and disposal of used electrical equipment.

Introduction
Übersicht
10 GA 5752 2300 GB 26
1
1.4 Übersicht
1.4.1 BORA UP 2080 OP
1
1
4
4
1
1
3
3
1
1
2
2
1
1
0
0
1
1
5
5
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
8
8
9
9
7
7
1
1
4
4
1
1
3
3
1
1
2
2
1
1
5
5
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
8
8
9
9
7
7
1
1
0
0
Fig. 1: Overview of BORA UP 2080 OP
1 Aspirator 9 Mains cable
2 Handle 10 Control light foot switch
3 Equipment mount interface 11 ON switch
4 Rail clamp 12 Power control light
5 Locking screw 13 OFF switch
6 Cap to cover the equipment mount interface 14 Regulating knob
7 Tube adapter 15 Bacterial filter cap
8 Pneumatic foot switch

Introduction
Übersicht
GA 5752 2300 GB 26 11
1
1.4.2 BORA UP 2080
1133
1122
1100
1111
11
22
33
44
55
66
88
99
77
Fig. 2: Overview BORA UP 2080
1 Aspirator 8 Mains cable
2 Handle 9 ON switch
3 Equipment mount interface 10 Power control light
4 Rail clamp 11 OFF switch
5 Locking screw 12 Regulating knob
6 Cap to cover the equipment mount interface 13 Bacterial filter cap
7 Tube adapter

Introduction
Basic requirements
12 GA 5752 2300 GB 26
1
1.4.3 Trolley
1
2
3
Fig. 3: Overview of trolley (REF 5752 5320)
1 Handle screw 3 Double castors with locking brake
2 Equipment rail
1.5 Basic requirements
1.5.1 Use in accordance with the intended purpose
Product
As per Annex IX to the Medical Devices Directive 93/42/EEC, this product belongs to class IIa.
Gemäß dieser Richtlinie darf nur medizinisches Fachpersonal dieses Produkt benutzen, welches
von einer autorisierten Person in den Gebrauch des Produkts eingewiesen wurde.
This product is to be used exclusively for human medicine.
When employed in a commercial or business use, this product must be entered in the inventory.
Accessories
Accessories or combinations of accessories may be utilised only as and when indicated in these
operating instructions.
Other accessories, combinations of accessories and consumable items may be used only if they
have a valid certification, are intended expressly for the particular use and will not adversely
affect performance, the prescribed ambient conditions or safety requirements.
1.5.2 Applicable standards
The product satisfies the basic requirements set forth in Annex I to Council Directive 93/42/EEC
concerning medical devices (Medical Devices Directive) as well as the applicable national
(German) codes and the Medical Devices Act in Germany. This has also been demonstrated

Introduction
Basic requirements
GA 5752 2300 GB 26 13
1
through the application of the corresponding standards which have been harmonised with
Directive 93/42/EEC.
1.5.3 Intended purpose
Name: BORA UP 2080
BORA UP 2080 OP
Main function: Aspiration of secretion, blood, serous fluids, vomiting and rinsing
fluids along with any contained particles and temporary collection of
these fluids
Medical indications /
application:
For all applications which require aspiration, such as general
surgeries (e.g. aspiration of wound cavities, abscesses), aspiration
of the nasopharyngeal cavity, bronchial aspiration, during
endoscopy for aspiration of secretions or rinsing fluids and in
neurosurgery
Specification of the main
function:
Drainage and temporarily collection of body fluids. By means of an
electrical aspiration pump, a negative pressure will be created. A
septic fluid jar which has to be used, allows a temporary collection
of the derived body fluids.
User profile: Doctor, medically trained staff
Patient groups: Patients of all ages with and without restrictions
Application organ: Natural and artificial body orifices
Application time: For continuous operation; in practice short-term use on the patient
(< 30 days)
Application site: The application site is the clinical environment and doctor’s
practices. The application of the product may only be performed by
medically trained and instructed staff.
Contraindications: The BORA UP 2080 may not be used for the following purposes:
• Outside the medical sector
• In the home care sector
• Being operated directly by the patient
• For vacuum extraction
• For smoke evacuation
• Without smoke evacuation filter, when aggressive vapours are
also generated during the suction of liquids due to easily volatile
components (e.g. when using iodine as disinfectant)
• For the aspiration of flammable or explosive liquids
• In areas prone to explosion risks (AP-M, APG areas)
• For drainages in the low vacuum range (e.g. thoracic and wound
drainage)
• In the standard equipment version in heart surgery and in
operations on the central nervous system. This requires
separate equipment providing reliable protection against
equipotential bonding between the patient and contacting, fluid-
filled metal parts.
The product is: Active

Introduction
Basic requirements
14 GA 5752 2300 GB 26
1
Sterility: No sterile product
Single-use product /
reprocessing:
The device and parts of the accessories are reusable. For
information on reprocessing, cleaning and disinfection, please see
the operating instructions.
1.5.3.1 For use in cardiac surgery and surgery of the central nervous system (CNS)
The basic version of the product is a BF protection class device. The unit must be configured to
be CF-proof in order to be used for cardiac or CNS applications.
The following guidelines are therefore imperative:
• A hydrophobic bacterial filter must be fitted between the septic fluid jar and the pump inlet
(REF 5752 1783 or REF 5752 4514).
• All touchable components of the septic fluid jar must be made of non-conductive material
(plastic), for example, cap plug (REF 5752 0184), Serres®disposable suction liner 3 litre (REF
310.0401.0 or 310.0411.0) and Serres®outer container 3 litre (REF 310.0403 0).
• Only CF-proof suction lances made of a plastic that do not conduct electricity may be used.
• All other equipment parts and accessories must also be CF-proof.
1.5.3.2 BORA variants
These operating instructions apply to the versions listed below:
BORA UP 2080 basic equipment 230 V AC (REF 5752 2296)
• Mains cable 4 m
• Tube adapter
• Filter papers (10 pieces)
• Two caps for covering the mechanical connections
BORA UP 2080 basic equipment 115 V AC (REF 5752 2302)
• Mains cable 4 m
• Tube adapter
• Filter papers (10 pieces)
• Two caps for covering the mechanical connections
BORA UP 2080 OP basic equipment 230 V AC (REF 5752 2301)
• Mains cable 4 m
• Tube adapter
• Filter papers (10 pieces)
• Two caps for covering the mechanical connections
• Pneumatic foot switch
BORA UP 2080 OP basic equipment 115 V AC (REF 5752 2303)
• Mains cable 4 m
• Tube adapter
• Filter papers (10 pieces)
• Two caps for covering the mechanical connections
• Pneumatic foot switch

Introduction
Basic requirements
GA 5752 2300 GB 26 15
1
1.5.4 Interface description
1.5.4.1 Hydrophobic bacterial and viral filter
NOTE
The use of a hydrophobic bacterial and viral filter is not necessary if a suitable
hydrophobic bacterial and viral filter is integrated for a specific purpose in the septic
fluid jar of a disposal aspiration system.
The hydrophobic bacterial and viral filter protects against contaminants which could be present in
the form of particles or aerosols in the gas drawn in. Moreover, the hydrophobic bacterial filter
serves as protection against oversuction; the filter closes off the flow of gas to the product in the
event of oversuction. The products sold by ATMOS (REF 5752 1783) and (REF 5752 4514) are
hydrophobic bacterial and viral filters.
Prerequisites
• Pore size ≤ 1.0 μm
• Conical tube connector with an outer diameter of 8 to 11 mm
• The tube connector must match the tube being used.
• The conical connector must match the septic fluid jar cap being used.
• Hydrophobic filter must close tightly against water passage at an absolute pressure of up to 10
kPa.
• Observe the direction of flow, if applicable (see note on hydrophobic filter).
1.5.4.2 Vacuum connection tube
The vacuum connection tube is used to connect the aspirator and the septic fluid jar.
Technical specifications
• Shore hardness of 60
• Inner diameter of 6–8 mm
• Tube length between aspirator and filter is max. 60 cm ±10 cm
• Vacuum resistant down to −95 kPa (may not collapse).
Prerequisites
• The vacuum connection tube must comply with the hospital's standards for hygiene.
• The vacuum connection tube must be connected using a hydrophobic bacterial filter.
• The inner diameter of the vacuum connection tube should match the outer diameter of the
tube connector on the septic fluid jar cap of the pump.
The vacuum connection tube will be referred to only as ‘connection tube’ below.
1.5.4.3 Septic fluid jar including septic fluid jar cap
The septic fluid jar is used to collect the septic fluids extracted. Septic fluid jars with mounted
septic fluid jar cap will be referred to as suction set in the following.
Technical specifications
• Vacuum resistant down to −95 kPa (may not collapse)

Introduction
Basic requirements
16 GA 5752 2300 GB 26
1
Prerequisites
• Must be equipped with an overflow protection device or must be connected to an external
overflow protection system.
• Low leakage
• Capacity of 1 l to 5 l.
• Always fasten the septic fluid jar securely.
• The tube connector for connection to the vacuum source must be compatible with the
connection tube.
1.5.4.4 Suction tube
The suction tube is used to connect the tube connector on the patient side and the fingertip or the
utensil.
Technical specifications
• Shore hardness of 60
• Internal diameter 6 to 8 mm (for curettage aspiration, internal diameter 13 mm)
• Length of 1.3 m to 3.0 m
• Vacuum resistant down to −95 kPa
Prerequisites
• The suction tube must comply with the hospital's standards for hygiene.
• The suction tube may not collapse.
• The outer diameter of the tube connector on the patient side of the septic fluid jar cap must
match the inner diameter of the suction tube.
1.5.4.5 Utensil
The suction catheter, lance, etc. are referred to as utensils. The utensils are used to extract
septic fluids.
Prerequisites
• The inner diameter of the utensil's connector must match the outer diameter of the fingertip.
• The utensil must be sterilisable or a sterile single-use item.
• Biocompatibility
• For endobronchial extraction, a utensil with side openings must be used.
1.5.4.6 Connection of equipment mount
The equipment mount interface is used to mount a rinsing fluid jar or septic fluid jar, or a holder
for rinsing fluid jars or septic fluid jars.
Prerequisites
• Maximum load on the equipment carrier interface is 1 kg.
• The connection of the rinsing fluid jar or septic fluid jar or that of the holder for the rinsing fluid
jar or septic fluid jar must match the equipment carrier as per DIN EN ISO 19054.
1.5.4.7 Bacterial filter paper
The bacterial filter paper prevents the ambient air from contamination. Only bacterial filter papers
(REF 5750 5045) must be used.
1.5.4.8 Rinsing fluid jar
Any container may be used as rinsing fluid jar.

Introduction
Basic requirements
GA 5752 2300 GB 26 17
1
Prerequisites
• Der Spülbehälter muss ein Fassungsvolumen von mindestens 250 ml haben.
• The rinsing fluid jar shall be easy to clean and disinfect.
1.5.4.9 Application sets
Application sets augment the basic unit. Application sets can be configured as required, using
individual accessories.
Prerequisites
• Suitable connection tubes must be selected.
• The interface descriptions for the aspirator must be observed.
1.5.4.10 Trolley
In Verbindung mit der Absaugpumpe darf nur das Fahrgestell (REF 5752 5320) verwendet
werden.
Prerequisites
• A maximum of two ATMOS 4-litre septic fluid jars may be attached to the equipment rails of
the trolley.
1.5.4.11 Switch valve
The switch valve is used to switch between two septic fluid jars.
Prerequisites
• The tube connector must match the tube being used.

Safety notes
General safety notes
18 GA 5752 2300 GB 26
2
2 Safety notes
2.1 General safety notes
DANGER!
Danger to life!
For open heart operations and those to the central nervous system, there may be
equipotential bonding between the user and the patient.
The product may not be used with components for aspiration that are metal and
conductive. For use on open hearts and the central nervous system, CF protective
class equipment is necessary.
DANGER!
Danger to life! Danger due to unauthorised modifications.
The product may not be modified.
DANGER!
Explosion hazard!
The product does not have explosion protection and is not approved for use in
Class AP-M hazardous locations.
Do not use the product in the AP-M area.
DANGER!
Incorrect use can result in fatalities!
Instructions for using components made by other manufacturers are not part of
these operating instructions.
Ensure that the manufacturer's instructions are followed.
DANGER!
Danger to life!
Electric shock!
Check to ensure that the available mains voltage corresponds with the
specifications on the type plate before connecting the mains plug. Product can only
be separated from the power supply by unplugging at the socket.
DANGER!
Potentially fatal due to electrical shock!
The product may only be connected to voltage supplies with protected earth
connections.
DANGER!
Danger to life!
Electric shock resulting from an object being inserted from the outside into the case
and its making contact with live components.
Never insert any objects into the case.
DANGER!
Danger to life!
Hazard resulting from incorrect use.
Follow the operating instructions for all accessories.

Safety notes
Product safety notes
GA 5752 2300 GB 26 19
2
DANGER!
Infection hazard!
The bacterial filter paper provides additional protection against contamination of the
ambient air.
Do not operate the aspirator without a bacterial filter paper.
WARNING!
Risk of injury!
ATMOS-Produkte dürfen nur in voll funktionsfähigem Zustand eingesetzt werden.
Check to ensure that the ATMOS product is fully functional and in good working
order prior to use.
WARNING!
Risk of injury!
Electrical devices (e.g. mobile phones, radios, magnetic resonance tomography
scanners) may interfere with the functioning of the equipment when used in the
vicinity of the equipment.
Please observe the specifications regarding electromagnetic compatibility (EMC)
(emission and resistance to interference).
Adhere to these specifications when using electrical devices and react if you see
your equipment being affected in any way.
WARNING!
Risk of infection due to improper handling
Applicable rules for hygiene have to be observed in order to avoid infection or
bacterial contamination when suctioning off and disposing of secretions. Observe
the intended purpose of the bacterial filter. Use only sterile catheters during
extraction and ensure that the patient is not injured during the procedure. Always
wear gloves while working.
WARNING!
Risk of infection due to using no or a defective hydrophobic bacterial and virus
filter.
Secretions enter the aspirator during aspiration.
Stop using the aspirator. Clean and disinfect the aspirator and have it repaired by a
service technician authorised by ATMOS to do so.
2.2 Product safety notes
DANGER!
Infection hazard!
Risk of bacteria and viruses entering the aspirator.
A bacterial and virus filter protects the inside of the aspirator against contamination
by bacteria and viruses.
Use a bacterial and virus filter which also provides protection against oversuction.

Safety notes
Product safety notes
20 GA 5752 2300 GB 26
2
WARNING!
Risk of injury!
Aggressive vapours may be generated during the aspiration of liquids.
Use appropriate smoke filter for the aspiration of liquids with highly volatile agents
(e.g. when using iodine as disinfectant).
CAUTION!
Property damage due to oversuction!
The product may only be operated with the overflow protection in place as
otherwise oversuction could occur. A hydrophobic filter offers an additional
protection against oversuction. It closes off the flow of gas to the product. Particles
in the gaseous phase may clog the hydrophobic filter.
Use a bacterial and virus filter which also protects the inside of the aspiration from
bacterial and viruses.
CAUTION!
Observe ambient conditions!
If the ambient conditions are undercut or exceeded during transportation, storage
or operation, functionality may be affected.
Conduct a functional check and rectify any deficiencies.
CAUTION!
Property damage due to foaming!
Foam may be created when extracting secretion. Foam is detrimental to the
functioning of the mechanical overflow protection. This gives rise to the risk of
secretions entering and damaging the aspirator.
Always use a hydrophobic bacterial and viral filter and a commercially available
foam inhibitor.
CAUTION!
Property damage!
Proper functioning of the mechanical overflow protection is only assured with the
product in upright position.
Place the product in upright position during operation. When using a trolley, the
castors must be locked during operation.
CAUTION!
Property damage due to overheating!
If placed on a soft surface (such as pillows or a mattress), the ventilation slots may
be covered and the product will overheat.
The product should be upright and placed on a solid surface during operation.
CAUTION!
Property damage!
Excessive exposure of plastic housing components to ultraviolet radiation leads to
premature material fatigue, resulting in breakage.
Protect the product against direct sunlight.
