MEDIX Actineb User manual

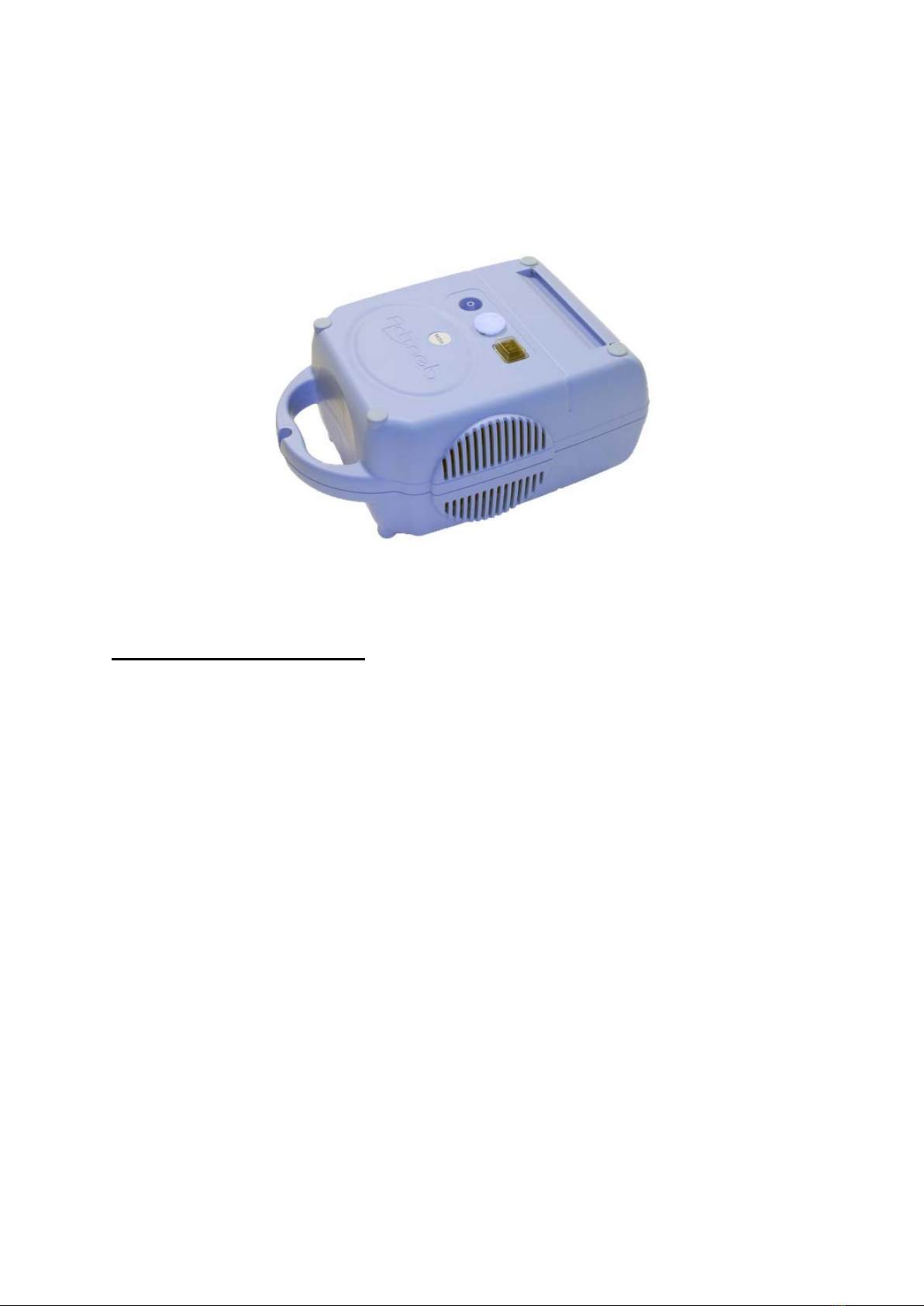

THE MEDIX Actineb
Technical Specifications
Operating Requirements
230v +/- 10%; 50Hz
Dimensions & Weight
282 x 200 x 125; 2.3 Kg
Particle Size
3.0 microns
% Particles < 5 um
75% *
Nebulisation Rate
0.3ml per minute*
Nominal Flow
7 L/min @ 1.00 bar
Type Rating
Class II BF. Intermittent (use for 60
mins; do not reuse within 60 mins).
CE 0120 Class IIa MDD 93/42/EEC
Noise
64.2db
* Using Microneb III

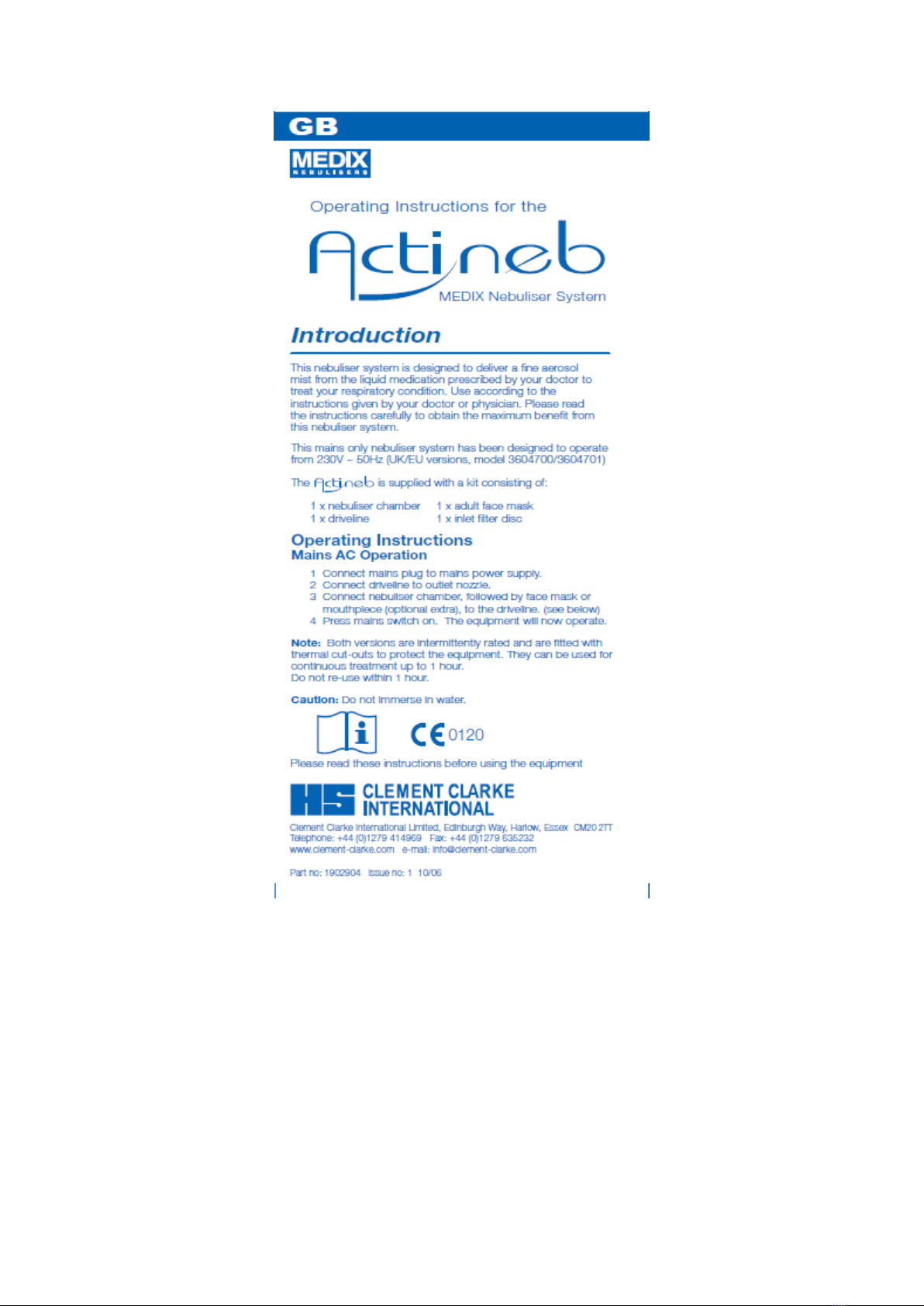

Operating Instructions for the Actineb MEDIX Nebuliser System
Introduction
This nebuliser system is designed to deliver a fine aerosol mist from the liquid medication prescribed
by your doctor to treat your respiratory condition. Use according to the instructions given by your
doctor or physician. Please read the instructions carefully to obtain the maximum benefit from this
nebuliser system. Please read these instructions before using the equipment
Page 1:
This mains only nebuliser system has been designed to operate from 230V ~ 50Hz (UK/EU versions,
model 3604700/3604701)
The Actineb is supplied with a kit consisting of:
1 x nebuliser chamber 1 x adult face mask
1 x driveline 1 x inlet filter disc
Operating Instructions
Mains AC Operation
1 Connect mains plug to mains power supply.
2 Connect driveline to outlet nozzle.
3 Connect nebuliser chamber, followed by face mask or
mouthpiece (optional extra), to the driveline. (see below)
4 Press mains switch on. The equipment will now operate.
Note: Both versions are intermittently rated and are fitted with thermal cut-outs to protect the
equipment. They can be used for continuous treatment up to 1 hour. Do not re-use within 1 hour.
Caution: Do not immerse in water.
Filling the Nebuliser Chamber -For Single Patient Use
1 Connect one end of the driveline to the outlet nozzle on your compressor.
2 Connect the other end of the driveline to the bottom of the nebuliser cup.
3 Remove the nebuliser chamber top from the cup and pour medication into the cup (max 10ml.)
4 Screw the top back onto the cup.
5 Connect either the face mask or mouthpiece to the nebuliser top.

Page 2:
Administering the Medication
Switch the compressor unit on. Sitting in an upright relaxed position, place face mask over the nose
and mouth or mouthpiece into the mouth, and start breathing slowly and deeply. Do not try to breathe
quickly. If you have any problems, seek instruction from your physician. Switch off the compressor
when the misting has stopped. Unplug the mains lead.

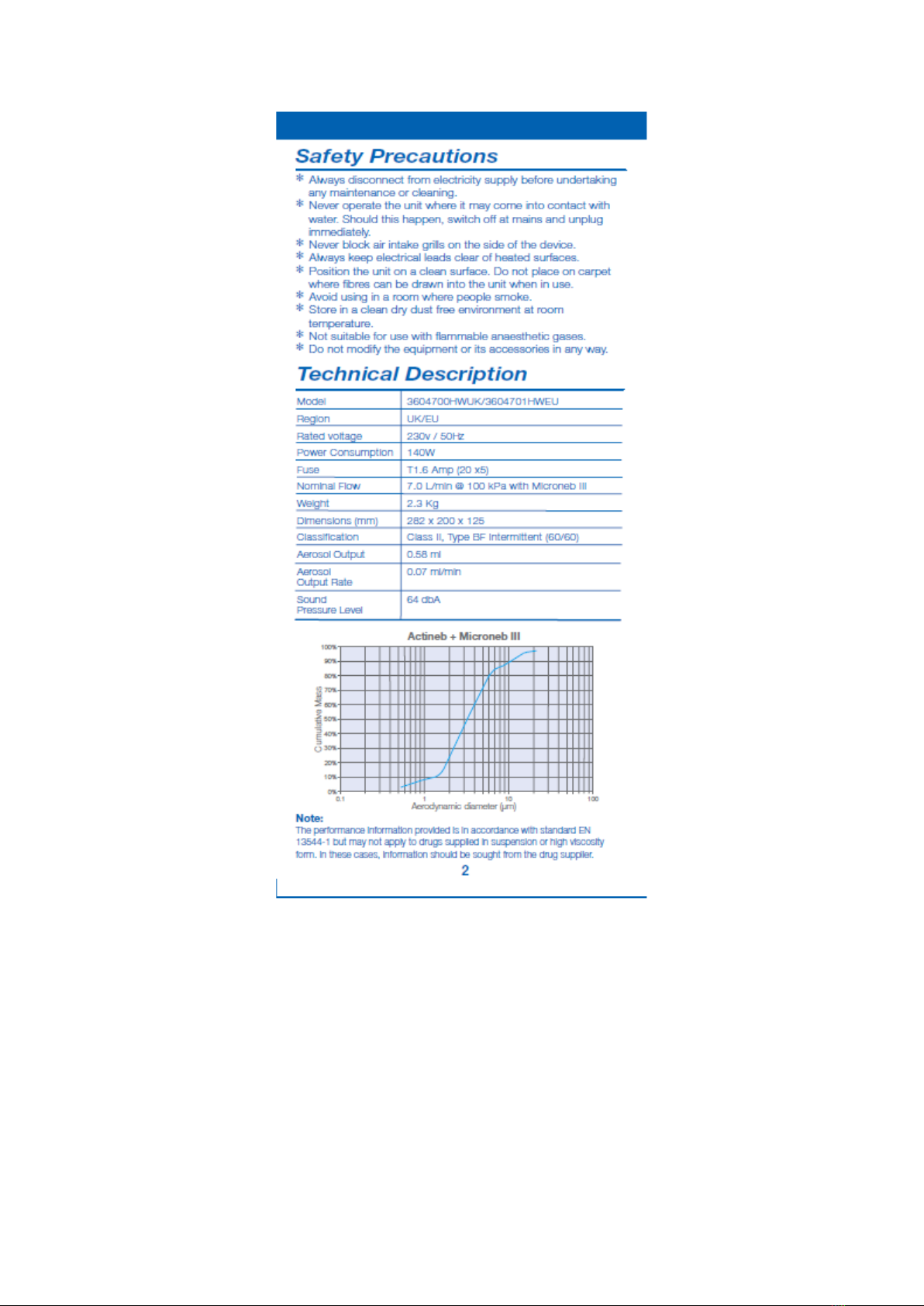

Safety Precautions
* Always disconnect from electricity supply before undertaking any maintenance or cleaning.
* Never operate the unit where it may come into contact with water. Should this happen, switch off at
mains and unplug immediately.
* Never block air intake grills on the side of the device.
* Always keep electrical leads clear of heated surfaces.
* Position the unit on a clean surface. Do not place on carpetwhere fibres can be drawn into the unit
when in use.
* Avoid using in a room where people smoke.
* Store in a clean dry dust free environment at room temperature.
* Not suitable for use with flammable anaesthetic gases.
* Do not modify the equipment or its accessories in any way.
Diagram Labels:
outlet nozzle
inlet filter
mains switch
Technical Description
Model 3604700/3604701
Region UK/EU
Rated voltage 230V
Frequency 50Hz
Power Consumption 140W
Fuse T1.6 Amp (20 x5)

Nominal Flow 7.0L/min @ 100 kPa with Microneb III
Weight 2.3 Kg
Dimensions (mm) 282 x 200 x 125
Classification Class II, Type BF Intermittent (60/60)
Page 3:

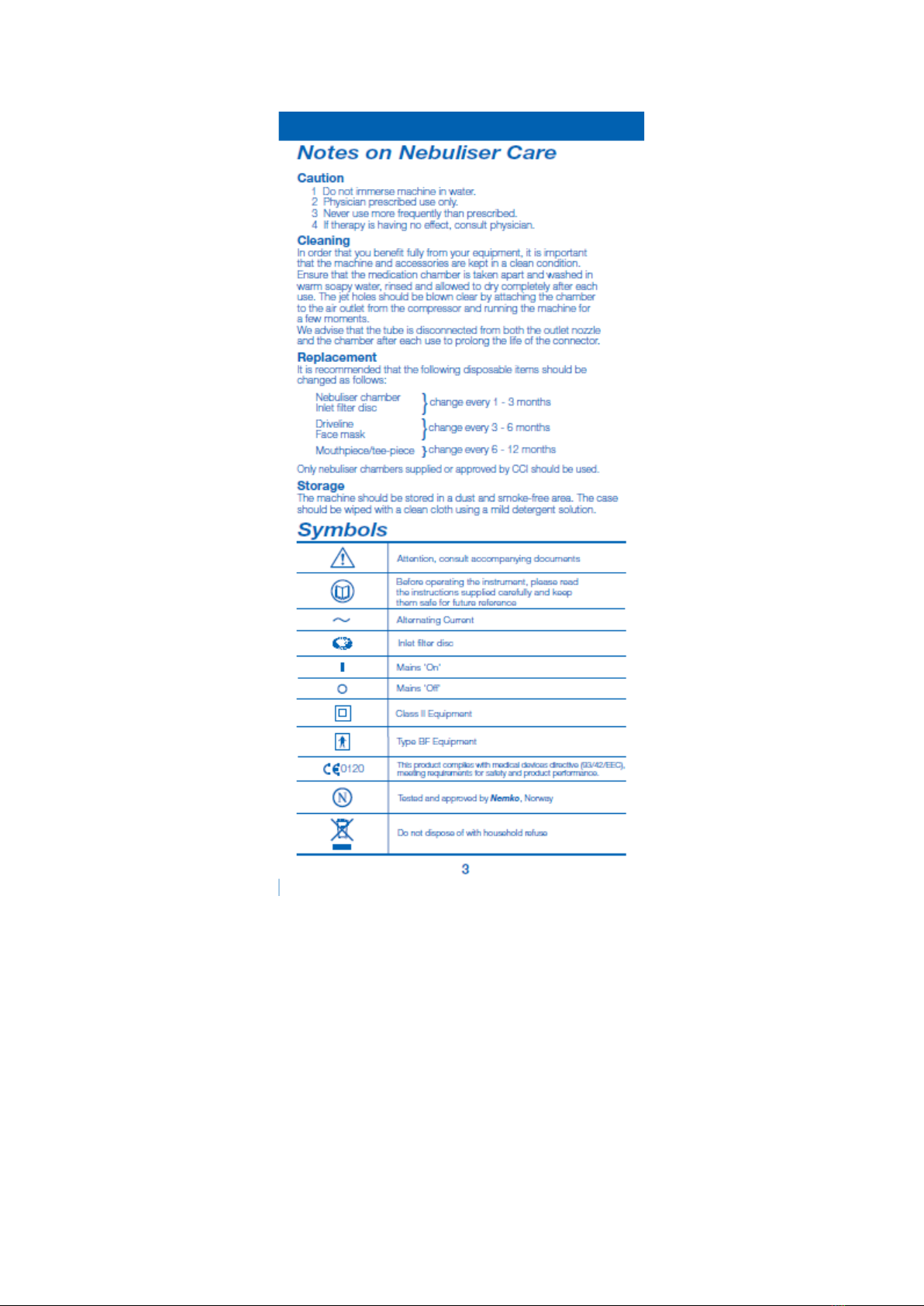

Notes on Nebuliser Care
Caution
1 Do not immerse machine in water.
2 Physician prescribed use only.
3 Never use more frequently than prescribed.
4 If therapy is having no effect, consult physician.
Cleaning
In order that you benefit fully from your equipment, it is important that the machine and accessories
are kept in a clean condition.
Ensure that the medication chamber is taken apart and washed in warm soapy water, rinsed and
allowed to dry completely after each use. The jet holes should be blown clear by attaching the
chamber to the air outlet from the compressor and running the machine for a few moments.
We advise that the tube is disconnected from both the outlet nozzle and the chamber after each use
to prolong the life of the connector.
Replacement
It is recommended that the following disposable items should be changed as follows:
Nebuliser chamber change every 1 - 3 months
Inlet filter disc
Driveline change every 3 - 6 months
Face mask
Mouthpiece/tee-piece change every 6 - 12 months
Only nebuliser chambers supplied or approved by CCI should be used.

Storage
The machine should be stored in a dust and smoke-free area. The case should be wiped with a clean
cloth using a mild detergent solution.
Symbols
Attention, consult accompanying documents Before operating the instrument, please read the
instructions supplied carefully and keep them safe for future reference
Alternating Current
Inlet filter disc
Mains 'On'
Mains 'Off'
Class II Equipment
Type BF Equipment
This product complies with medical devices directive (93/42/EEC), meeting requirements for safety
and product performance.
Tested and approved by Nemko, Norway
Page 4:

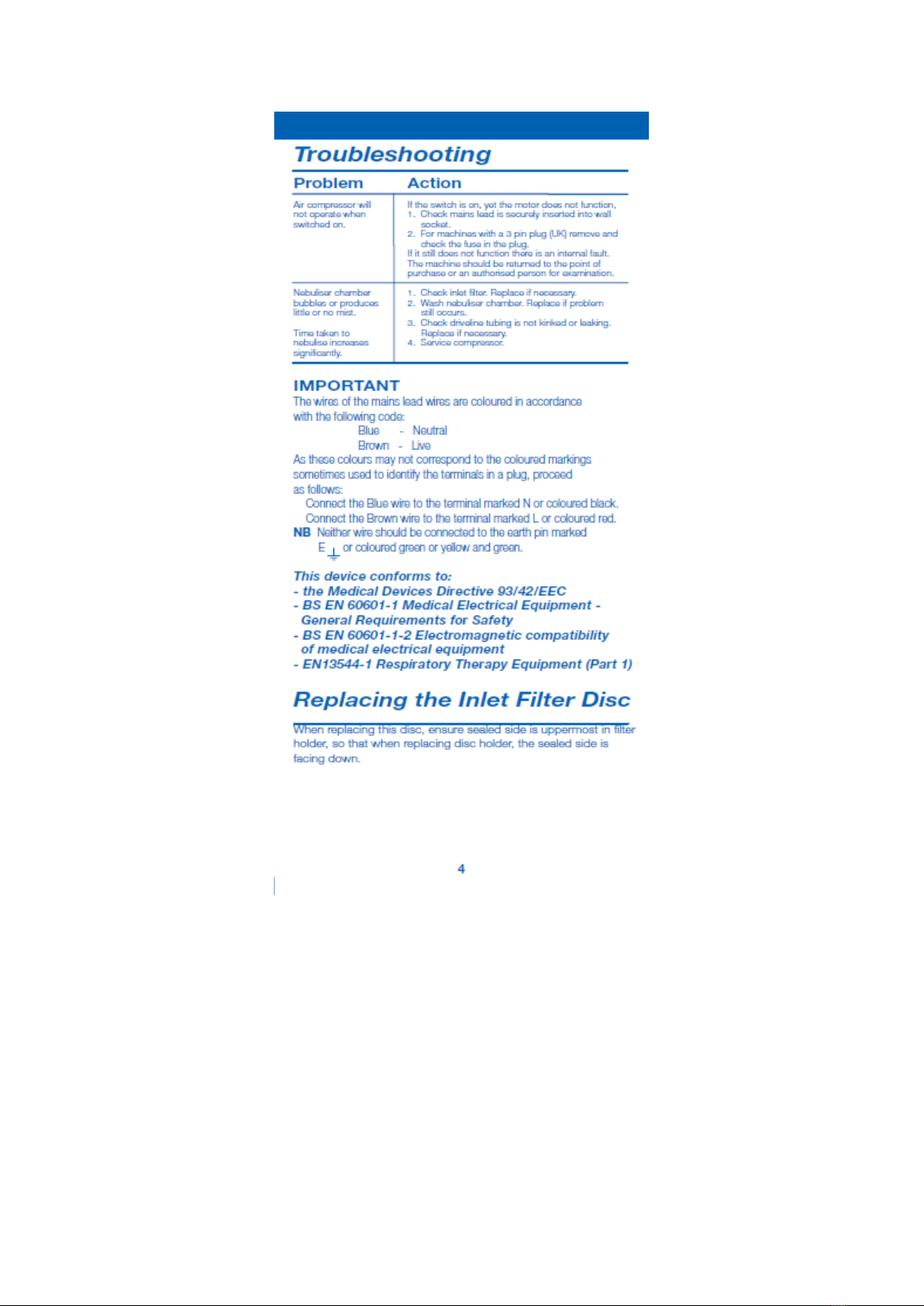

Troubleshooting
Problem Action
Air compressor will If the switch is on, yet the motor does not function, not operate when 1. Check
mains lead is securely inserted into wall switched on. socket.
2. For machines with a 3 pin plug (UK) remove and check the fuse in the plug.
If it still does not function there is an internal fault.  The machine should be returned to the point of 
purchase or an authorised person for examination.
Nebuliser chamber
1. Check inlet filter. Replace if necessary.
bubbles or produces
2. Wash nebuliser chamber. Replace if problem little or no mist. still occurs.
3. Check driveline tubing is not kinked or leaking. Time taken to Replace if necessary. nebulise
increases
4. Service compressor. significantly.

IMPORTANT
The wires of the mains lead wires are coloured in accordance
with the following code:
Blue - Neutral
Brown - Live
As these colours may not correspond to the coloured markings sometimes used to identify the
terminals in a plug, proceed as follows:
Connect the Blue wire to the terminal marked N or coloured black.
Connect the Brown wire to the terminal marked L or coloured red.
NB Neither wire should be connected to the earth pin marked
E or coloured green or yellow and green.
This device conforms to:
- the Medical Devices Directive 93/42/EEC
- BS EN 60601-1 Medical Electrical Equipment -
General Requirements for Safety
- BS EN 60601-1-2 Electromagnetic compatibility
of medical electrical equipment
- EN13544-1 Respiratory Therapy Equipment (Part 1)
Servicing
It is recommended that your unit is serviced every 12 months. It is possible there may be an
authorised service agent in your area who can service your unit. The details may be available from
the manufacturer or distributor.
Warning: Disconnect power supply before servicing. When servicing,
use only identical replacement parts.
Replacing the Inlet Filter Disc
When replacing this disc, ensure sealed side is uppermost in filter holder, so that when replacing disc
holder, the sealed side is facing down.

Page 5:

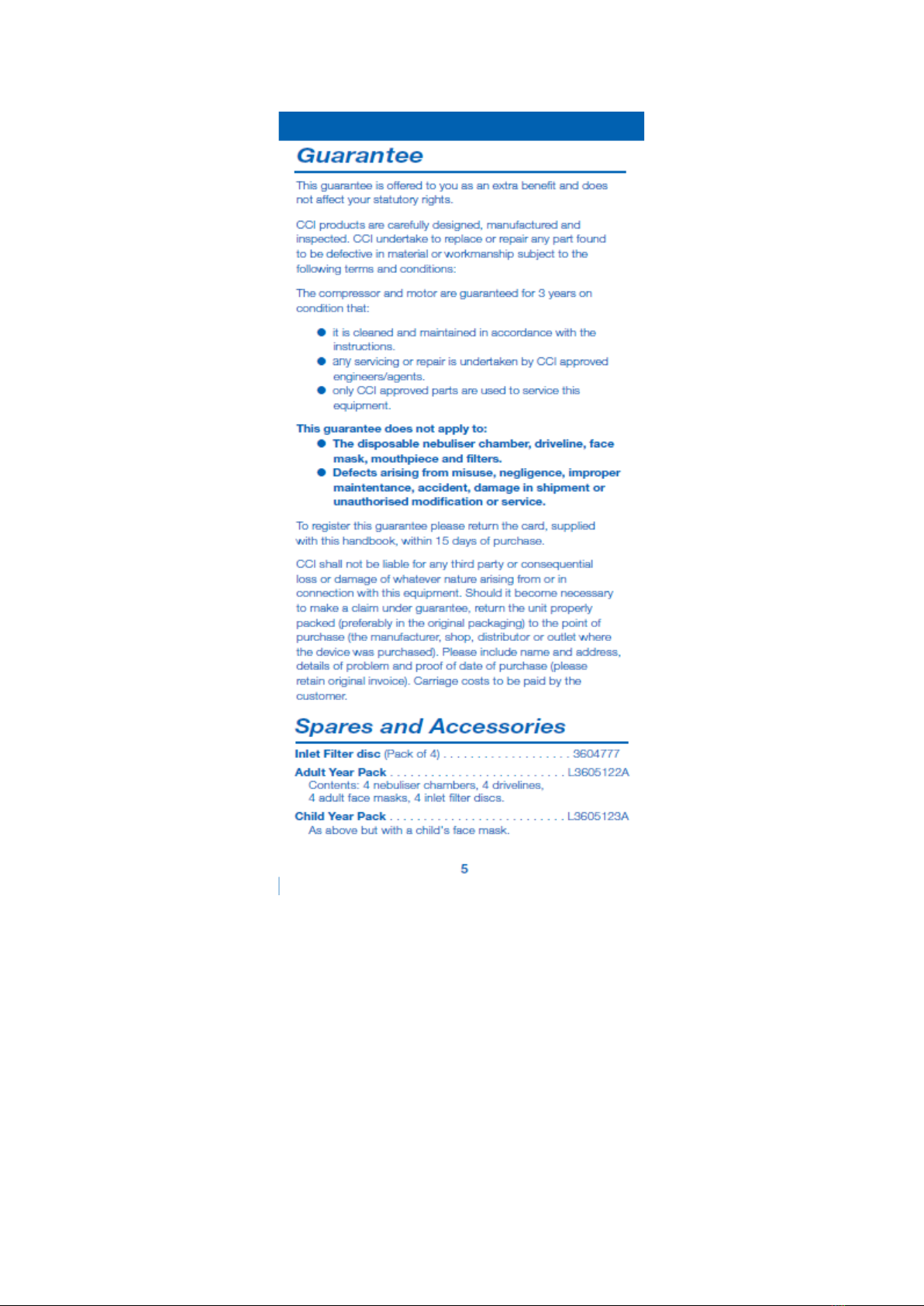

Guarantee
This guarantee is offered to you as an extra benefit and does not affect your statutory rights.
CCI products are carefully designed, manufactured and inspected.
CCI undertake to replace or repair any part found to be defective in
material or workmanship subject to the following terms and conditions:
The compressor and motor are guaranteed for 3 years on condition
that:
l it is cleaned and maintained in accordance with the instructions.
l any servicing or repair is undertaken by CCI approved engineers/agents.
l only CCI approved parts are used to service this equipment.
This guarantee does not apply to:
l The disposable nebuliser chamber, driveline, face mask,
mouthpiece and filters.
l Defects arising from misuse, negligence, improper
maintentance, accident, damage in shipment or
unauthorised modification or service.
To register this guarantee please return the card, supplied with this handbook, within 15 days of
purchase.
CCI shall not be liable for any third party or consequential loss or damage of whatever nature arising
from or in connection with this equipment. Should it become necessary to make a claim under
guarantee, return the unit properly packed (preferably in the original packaging) to the point of
purchase (the manufacturer, shop, distributor or outlet where the device was purchased). Please
include name and address, details of problem and proof of date of purchase (please retain original
invoice). Carriage costs to be paid by the customer.
