Baker AWA-IV
Static Motor Analyzer
Quick Reference Guide
Part number: 71-050 EN V3

Baker AWA-IV Static Motor Analyzer
Quick Reference Guide
Part number: 71-050 EN
Revision: V3
Publication date: December 2018
Copyright Megger.
All rights reserved. No part of this handbook may be copied by photographic or other means
unless Megger have before-hand declared their consent in writing. The content of this handbook is
subject to change without notice.
Megger cannot be made liable for technical or printing errors or shortcomings of this handbook.
Megger also disclaims all responsibility for damage resulting directly or indirectly from the delivery,
supply, or use of this matter.
Baker AWA -IV Static Motor Analyzer www.megger.comi

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference with the equipment is operated in its
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the product manual, could cause harmful
interference to radio communications. If this equipment does cause harmful interference,
the user will be required to correct the interference.
Due to the phenomena being observed and the material properties being measured, this
equipment radiates radio frequency energy while in the active test mode. Care should be
taken to ensure this radio frequency energy causes no harm to individuals or other nearby
equipment.
Never exceed maximum operating capabilities of the Baker AWA-IV tester, power packs,
or the Baker ZTX accessory. If using the equipment in any manner not specified by
Megger, the protection provided by the equipment may be impaired.
Be sure to comply with all safety procedures prescribed by your organization, industry,
and governing standards. Failure to heedsafety precautions can result in injury or death
from severe electrical shock.
Additional information reference
The Baker AWA-IV Quick Reference Guide is intended to introduce users to the analyzer and its
basic operating procedures.
For complete safety information anddetailed information on the device, end-user license agreement,
and CE conformity refer to the Baker AWA-IV User Manual.
WARNING
CAUTION
NOTICES
www.megger.com ii

1. INSTRUMENT DESCRIPTIONS...............................................................................................
Baker AWA-IV 2 kV/4 kV model front panel................................................................................
Baker AWA-IV 6 kV/12 kV model front panel..............................................................................
2. PREPARING FOR TESTING....................................................................................................
Process overview........................................................................................................................
Creating or opening a database.................................................................................................
Selecting a motor to test............................................................................................................
Creating a new Motor ID............................................................................................................
Creating a new Test ID................................................................................................................
Selecting tests and setting up test parameters.............................................................................
3. BASIC TESTING PROCEDURES.............................................................................................
Using the Explore, Motor ID, and Route tabs to find motors.......................................................
Running tests automatically, semi-automatically, or manually......................................................
Test sequence.............................................................................................................................
Reviewing test results/data.........................................................................................................
Printing reports..........................................................................................................................
1
1
3
4
4
4
5
5
7
10
16
16
18
20
23
26
Table Of Contents
Baker AWA -IV Static Motor Analyzer www.megger.comiii

1. Instrument Descriptions
Baker AWA-IV 2 kV/4 kV Model Front Panel
All Baker AWA-IV series analyzers feature an eight-inch touch screen with a graphical user interface.
The interface features a logical layout of touch icons that improve ease of use.
Each tester’s voltage capacity is identified by the markings found just below the touch screen.
Figure 1. Front panel controls for AWA-IV 2 kV and 4 kV models.
VGA port
The VGA port is used to connect the tester to a larger monitor (not included) foreasier viewing of
test results.
USB ports
Industry standard USB ports are accessible from the front panel for connections to aprinting device,
and data storage and retrieval devices.
Ethernet connector
The tester can be connected to a network via the ethernet connector.
Equipment stop button
This large, highly visible red button is easily pressed for immediate termination of high-voltage
testing. It disconnects all high voltages from the test leads.
Instrument Descriptions
www.megger.com 1

Instrument Descriptions
Low-voltage resistance test leads
Both sides of the connection clips must be in contact with the terminal of the motor being
measured. Most recent AWA-IV 2/4kV testers have two low-voltage resistance test leads. Ensure
that the leads are connected as shown in the example below.

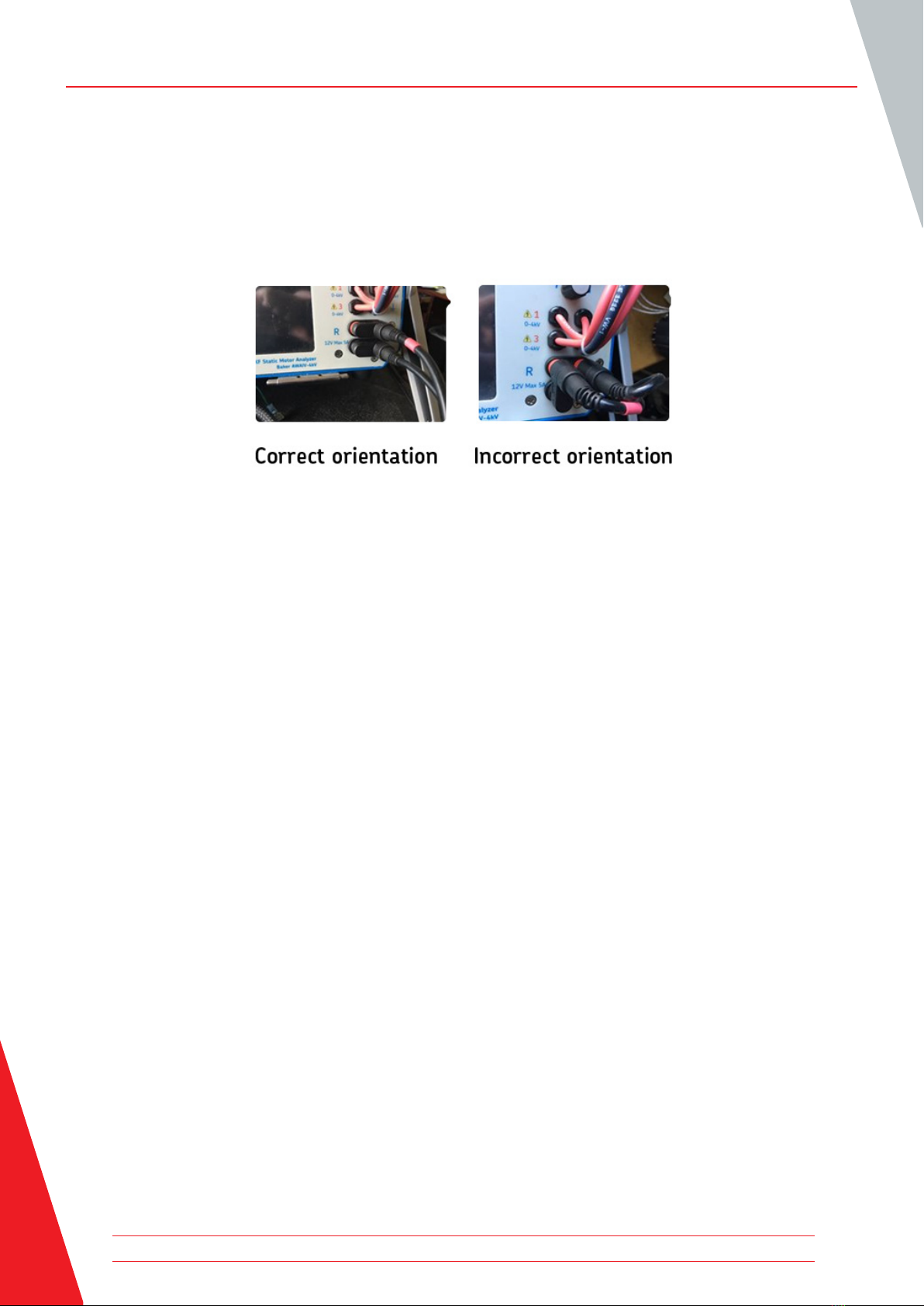

Figure 2. Proper orientation of AWA-IV 2/4 kV 2-lead connectors.
AWA-IV6 analyzers use the high-voltage leads for low-voltage resistance testing (no additional set
of leads).
AWA-IV 12kV analyzers have three red test leads for low-voltage resistance testing (no black lead).
High-voltage test leads
The Baker AWA-IV uses high-voltage test leads for surge, Baker ZTX, and DC testing. You must
keep the leads clean and dry for best measurement performance.
The AWA-IV 6 KV model differs from the AWA-IV 12 kV with respect to test leads and procedures
for use.
The AWA-IV 6 kV analyzer uses only one set of leads for both high- and low-voltage testing; it does
not include a separate set of low-voltage test leads (shown as “low voltage resistance test leads” in
the image).
Voltage output control knob
Turn the knob clockwise to increase the applied voltage or counterclockwise to decrease the
voltage.
The rate of voltage increase or decrease is set via the touch screen interface.
Do not force the knob; turning the knob harder does not cause voltage to ramp any quicker and
may damage the instrument.
Baker AWA -IV Static Motor Analyzer www.megger.com2

BAKER AWA-IV 6 KV/12 KV MODEL FRONT PANEL
Figure 3. Front panel controls for Baker AWA-IV 6 kV and 12 kV models.
It is important to note that test lead clips have exposed metal areas.
Do not touch the clips while tests are running. Always exercise care
to ensure the clips are not placed in proximity to the frame or ground
potential.
Instrument Descriptions
CAUTION
www.megger.com 3

2. Preparing For Testing
PROCESS OVERVIEW
The basic process for testing a motor on the AWA-IV includes the following steps:
1. Open an existing database or create a new one.
2. Select an existing motor to test, or create a new motor (motor ID and test ID)
3. Select tests to run.
4. View and confirm test parameters, or modify test parameters.
5. Run tests automatically, semi-automatically, or manually.
Each step is described in more detail in this chapter.
CREATING OR OPENING A DATABASE
1. Start the Baker AWA-IV application by clicking on the icon on the tester screen or the MS
Windows Start button.
2. Click on the appropriate radio button for creating a new database or opening an existing one.
Figure 4. Dialog box for creating or opening a database.
3. When creating a new database, a dialog box will open so you can name the new database.
Enter the database name in the field then click OK.
4. When opening an existing database, highlight the database needed from the list and click OK.
Preparing For Testing
Baker AWA -IV Static Motor Analyzer www.megger.com4

Preparing For Testing
SELECTING A MOTOR TO TEST
1. Click on the Data tab to select existing motors, or to create and store information for new
motors. Each motor will be listed in the Explore tab’s Motor Tree on the left side of the screen.
The Motor Tree provides a complete listing of all motors stored in a particular database.
2. To select the Motor ID for an existing motor, locate it within the Explore tab then click on the
Motor ID to highlight it and to load its information in the Data tab.

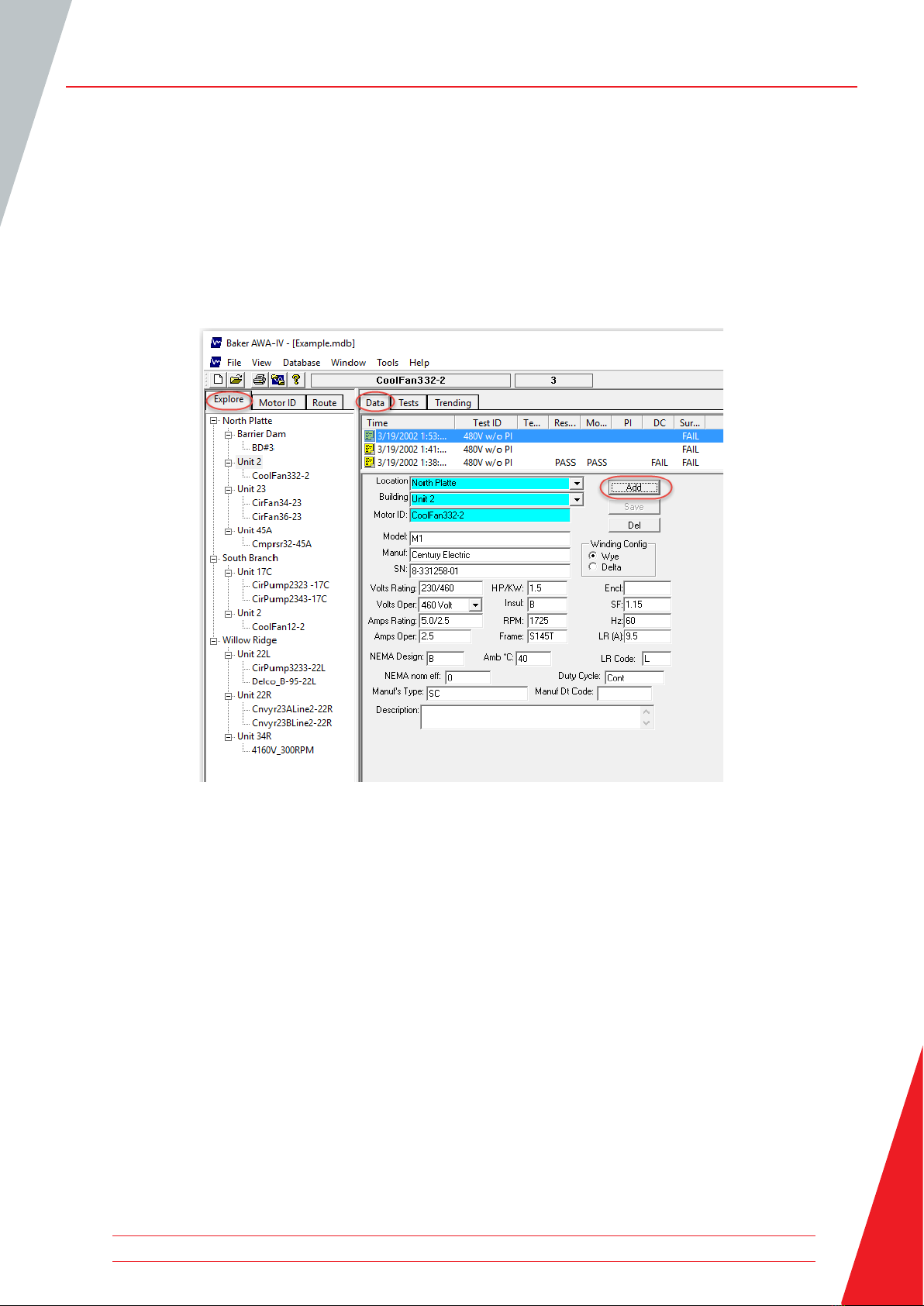

Figure 5. Using the Data tab to create a new motor.
CREATING A NEW MOTOR ID
1. If the motor you are testing does not yet have a Motor ID in the system, you will need to create
a new Motor ID. To add a new Motor ID to the selected database, click on the Add button.
2. Click on the Clear button to remove all information currently entered in the fields.
3. Type the Motor ID, Location, Building, and name plate information in the appropriate fields.
www.megger.com 5

NOTE
The labels for the Location and Building fields can be changed as desired
by using the Options >Changeable Labels items in the View tab.
4. Best practices suggest adding all information pertinent to the motor to facilitate testing. This
information can be useful during the testing and troubleshooting processes.
5. Click on the Save button to add the motor information to the database.
6. The Select Test ID dialog box will appear so you can assign the most appropriate Test ID to the
motor. Test IDs contain the testing parameters (for example, tests performed, voltages, and pass/
fail criteria) along with a basic motor description.
For example, a Test ID named 480Vw/Rotor>100HP StepV includes tests for a 480-volt motor
that has the rotor installed during testing, is less than 100 horsepower and will feature step
voltage testing.
7. Click OK after selecting the best available Test ID for the motor you will be testing.
Figure 6. New motor added to Motor Tree. Information entry and Test ID selection.
Preparing For Testing
8. The new motor will appear in the motor tree on the left side of screen.
9. You can then view the tests selected for the motor along with the test parameters then make
adjustments if needed to better suit your testing objectives.
Baker AWA -IV Static Motor Analyzer www.megger.com6

CREATING A NEW TEST ID
If a Test ID does not exist for the motor you want to test, you can create a new one for current and
future use.
1. Click on the Tests tab.
2. Click on the Edit Test ID checkbox to enter edit mode.
3. Test IDs can be password protected if desired. If a password has not been set up and you want
to use one, enter a new one in the Password field. To change a password, click on Change
Password, type in the current password (if applicable), enter the new password and confirm
then click on Set Password.
4. Click OK to close the password dialog box.

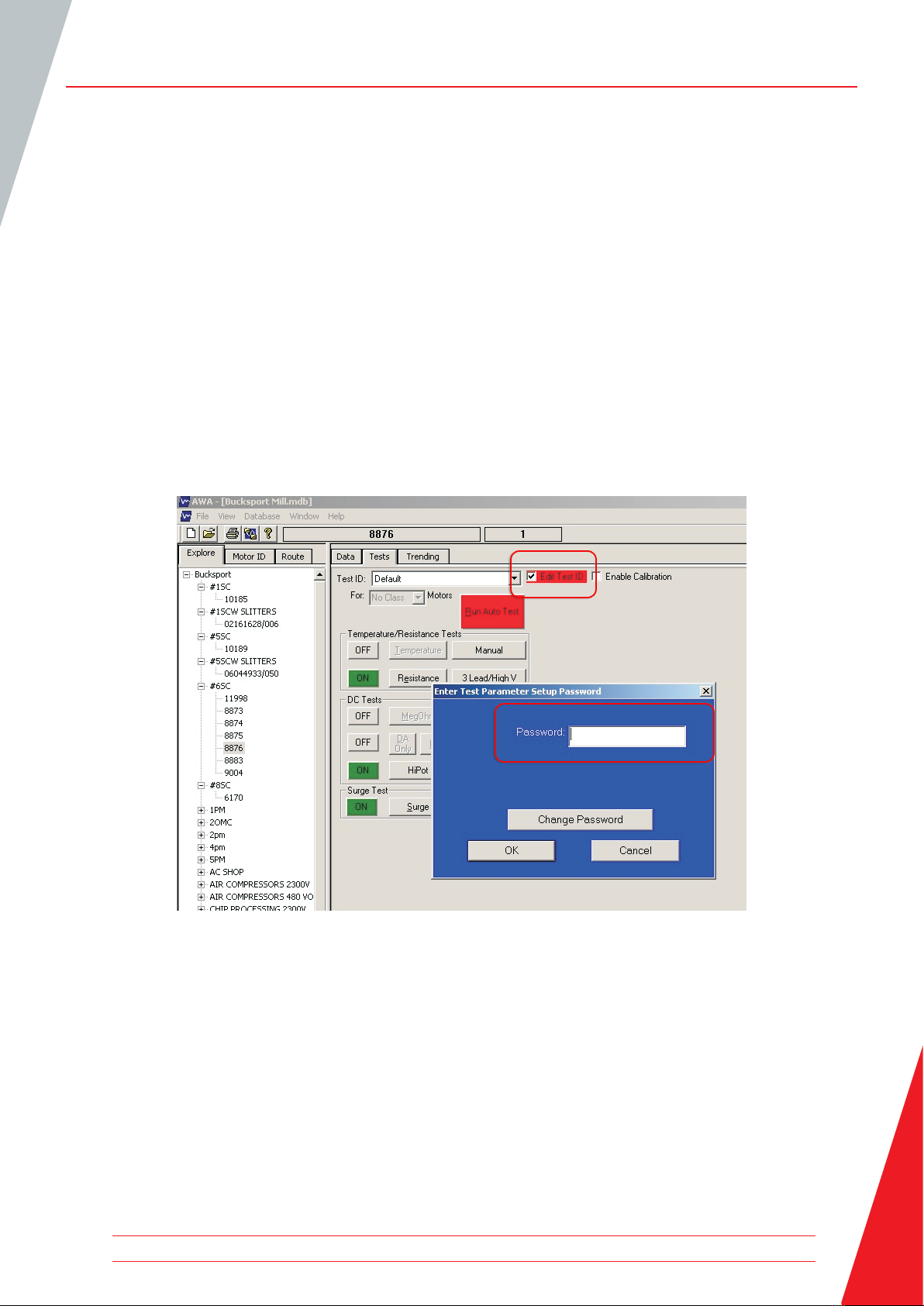

Figure 7. Setting a password within the Tests tab.
Preparing For Testing
www.megger.com 7

5. Click the Add button. The Create New Test ID dialog box appears.
6. If an existing Test ID is close to what you will need, ensure that it is selected in the Test ID field
then click on the Copy Current Test ID radio button. Otherwise, click on the Add Blank Test
ID radio button to start from scratch.
7. Give the new Test ID a descriptive name and choose a target motor voltage class from the drop
down list then click on OK
Figure 8. Create New Test ID dialog box.
8. You can further modify the Test ID by selecting the desired tests to be performed via the On/
Off buttons

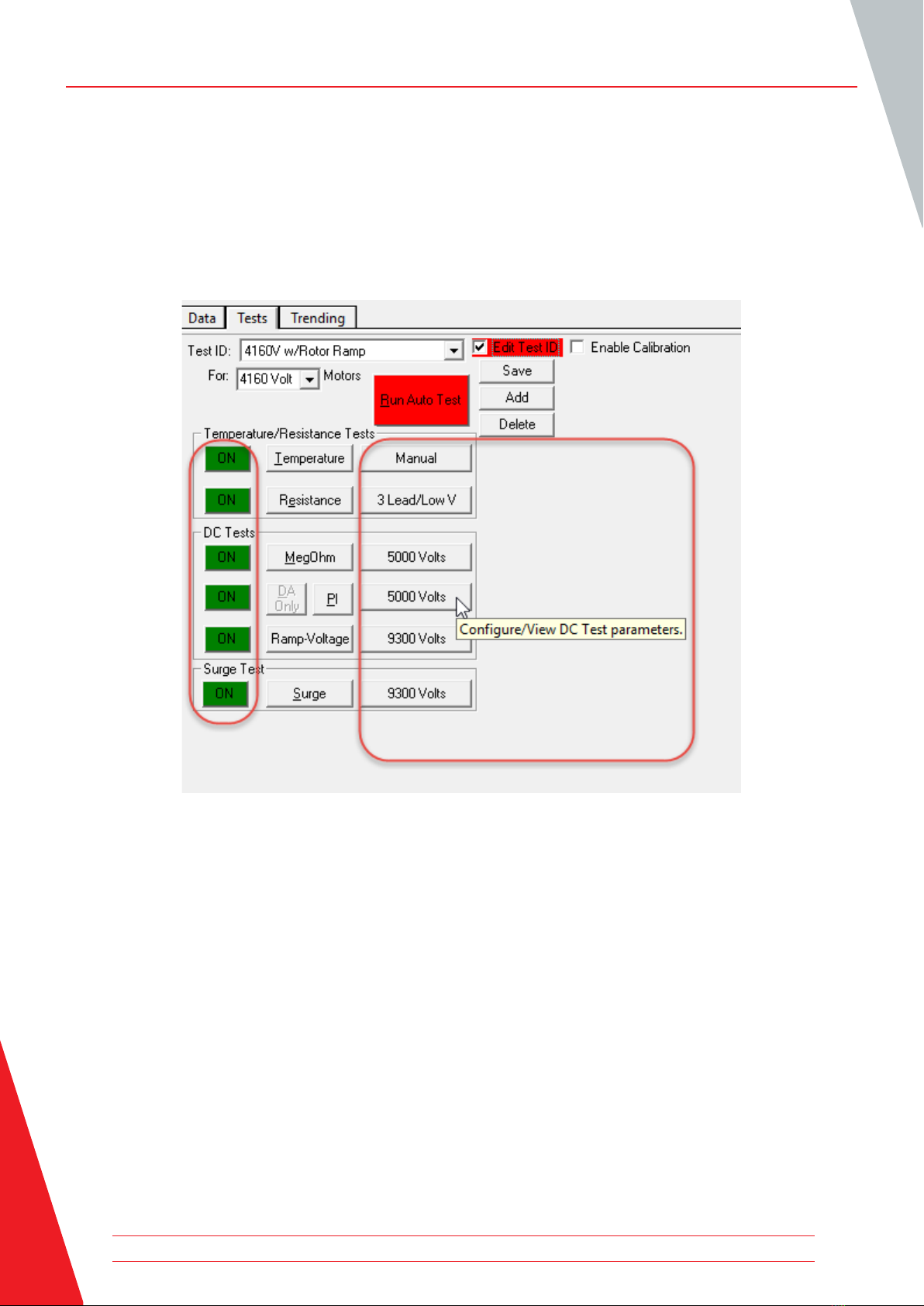

Figure 9. Selecting tests to perform, and controls for configuring or viewing test parameters.
Preparing For Testing
Baker AWA -IV Static Motor Analyzer www.megger.com8

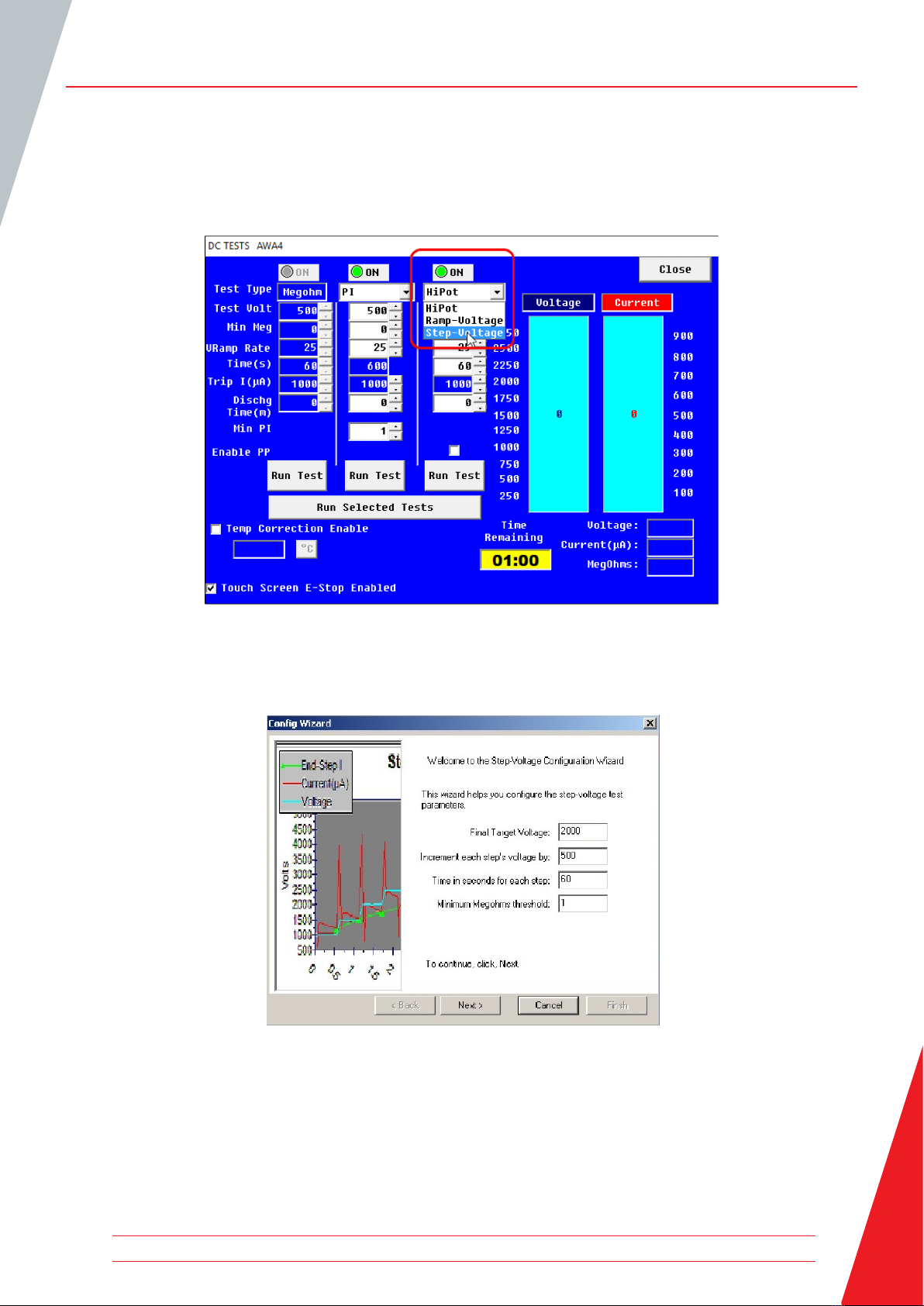

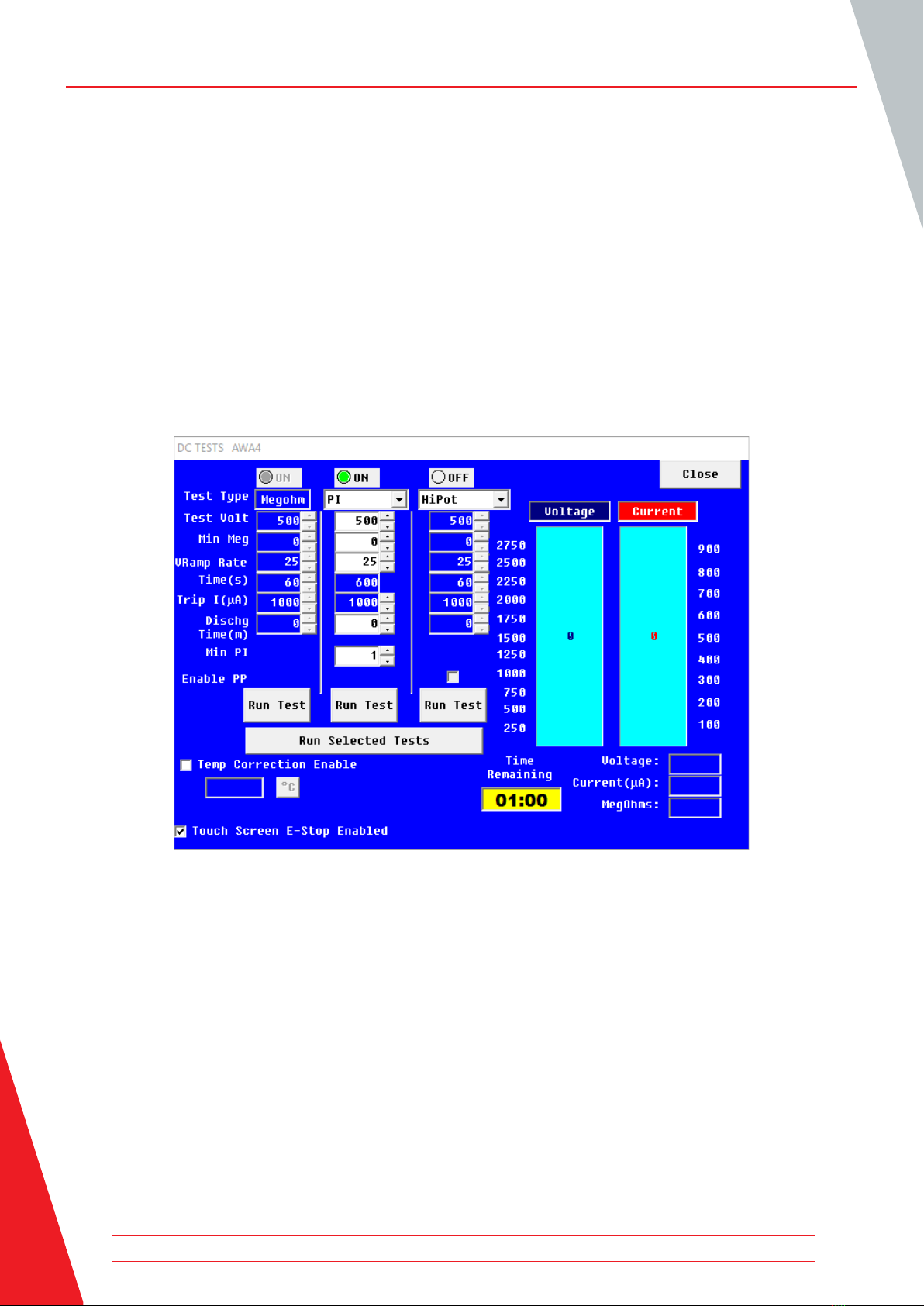

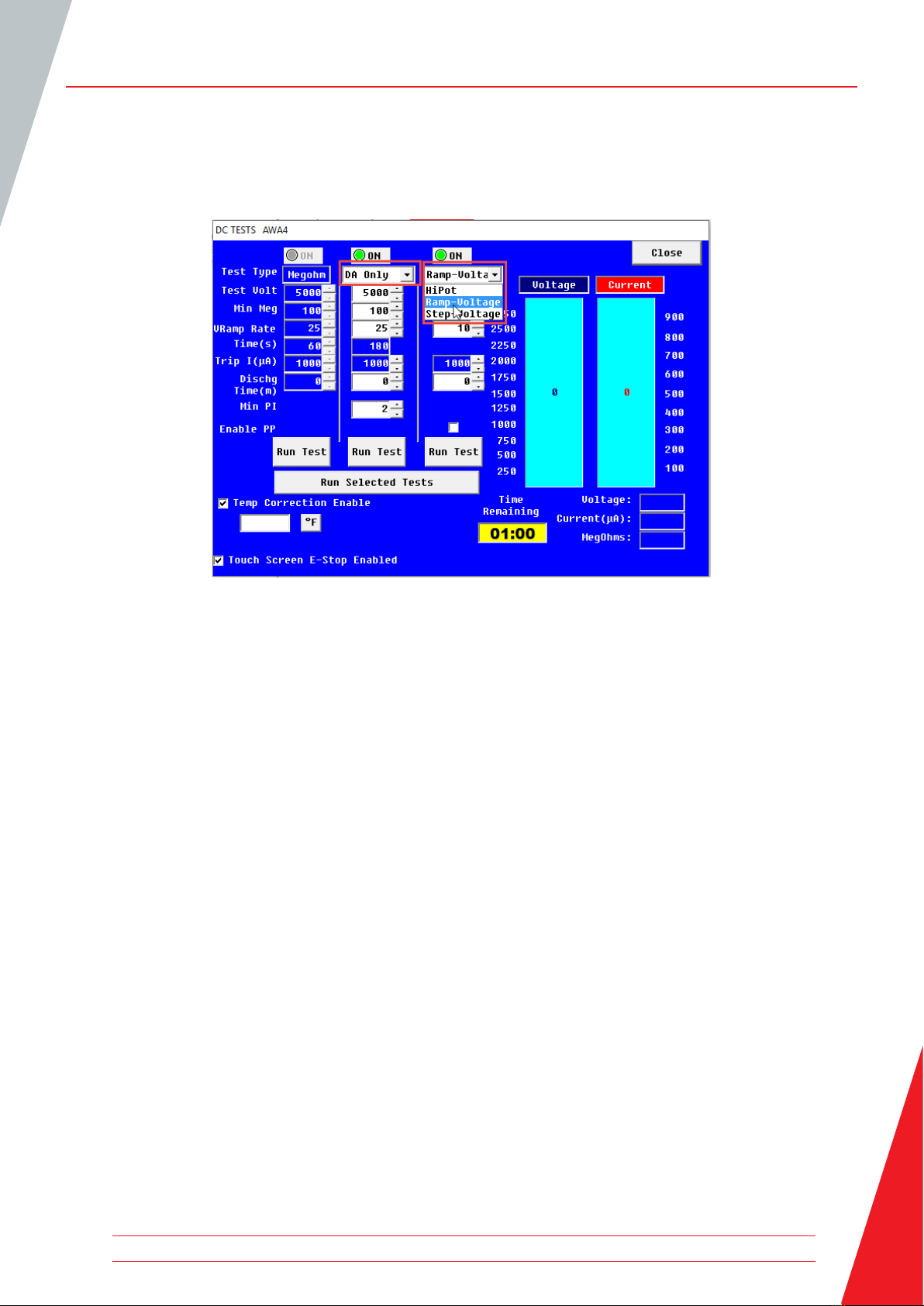

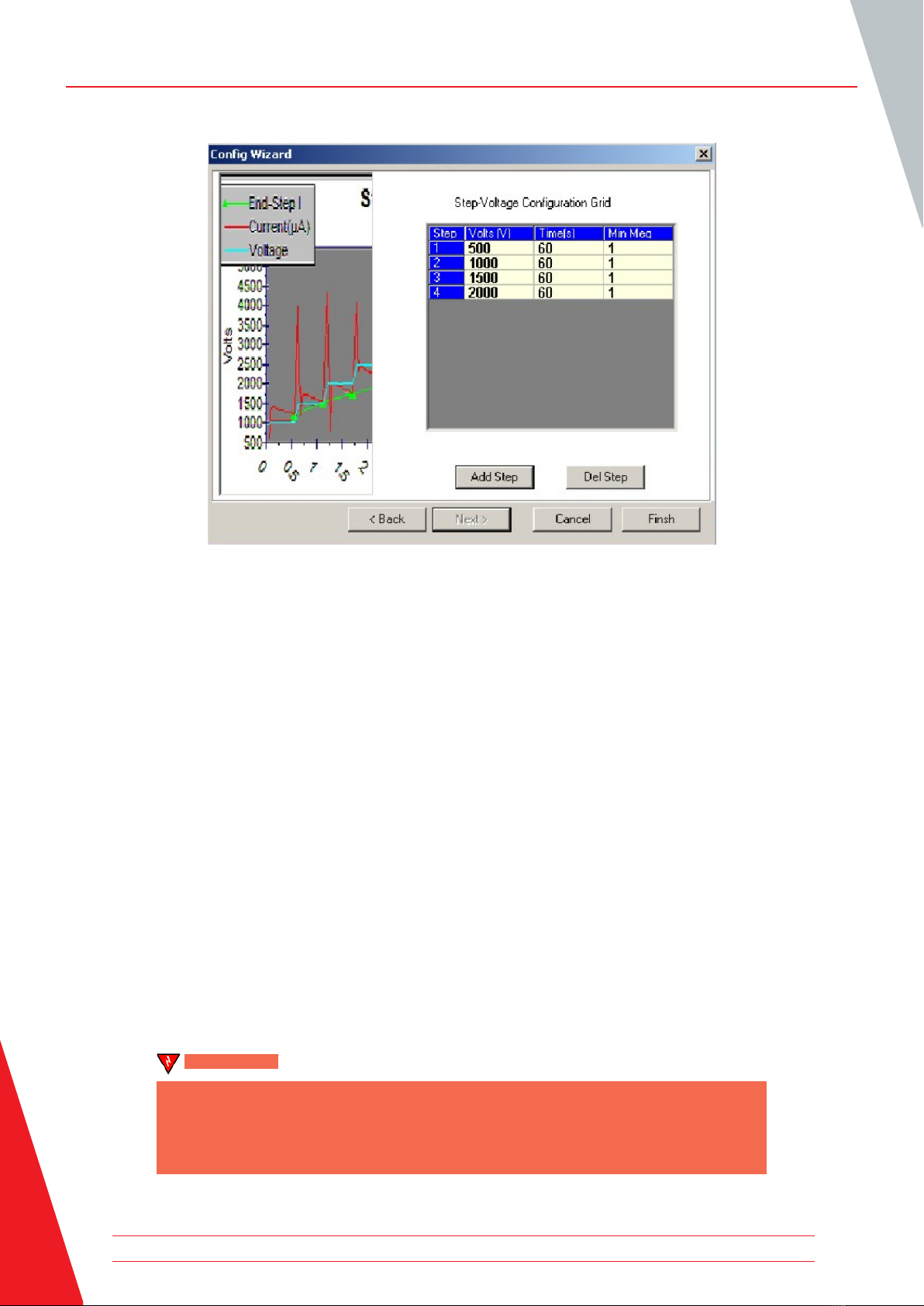

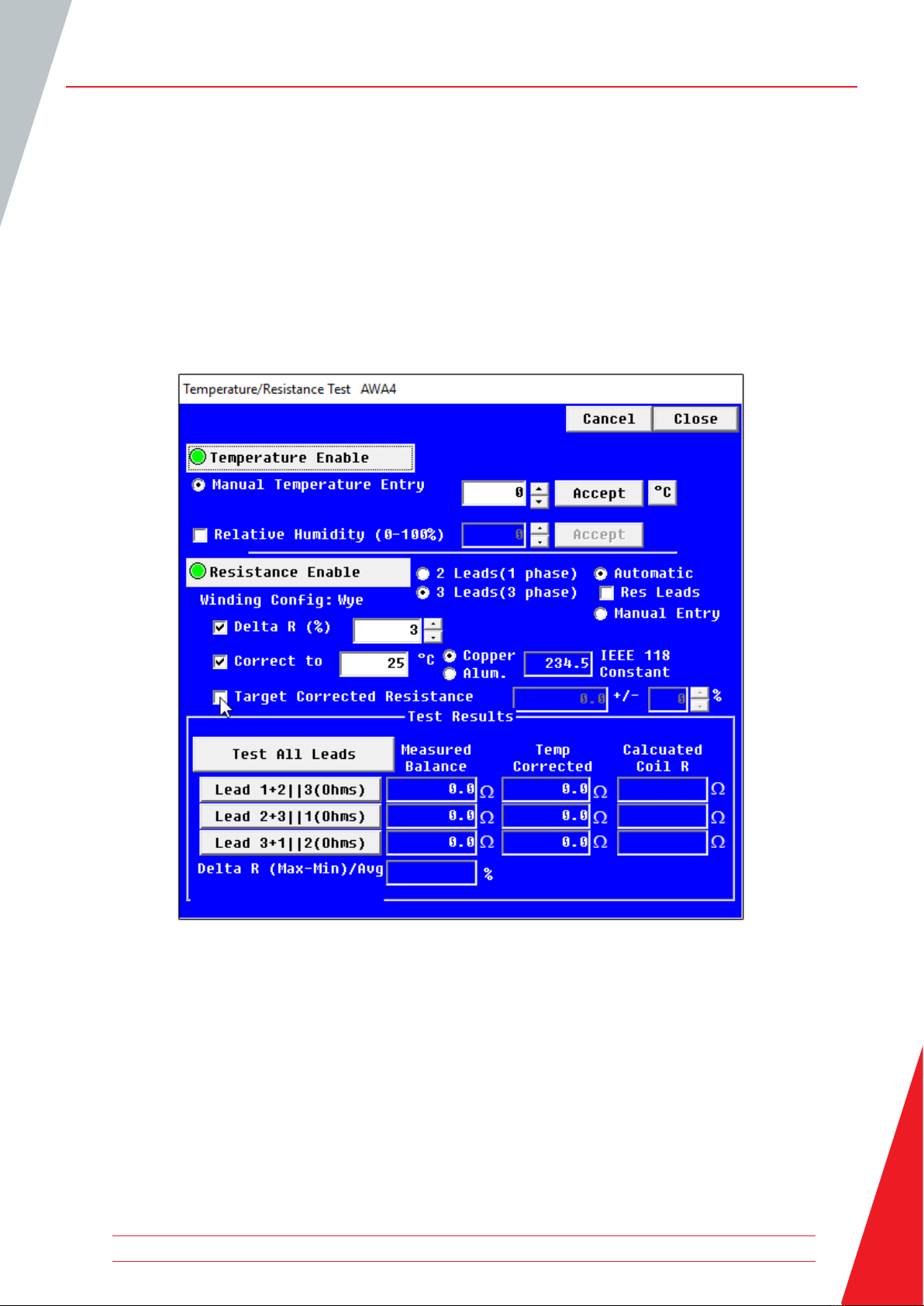

9. You can also provide specific values and parameters for each test as needed by clicking on the
Configure/View buttons. In the following example, DA Only is selected from the DA/PI tests
drop down list and Ramp Voltage is selected from the HiPot/Step Voltage test list.
Figure 10. Selecting test parameters from the DC Tests Setup screen.
10.Click Save to save the changes made to the new Test ID or click OK in response to a
confirmation dialog appearing after making parameter changes. The new Test ID will be added
to the list.
Preparing For Testing
www.megger.com 9

SELECTING TESTS AND SETTING UP TEST PARAMETERS
As noted in the process for creating a new Test ID, you can select which tests you want to run for
a selected motor by clicking on the ON/OFF buttons for each test type. You can also view and
configure parameters for each test type by clicking on the buttons in the right column for each test
type.
Figure 11. Selecting tests to perform, and controls for configuring or viewing test parameters.
The following sections provide brief introductions to each test setup screen.
For details on the screens and the parameters set within, refer to the AWA-
IV user manual.
NOTE
Preparing For Testing
Baker AWA -IV Static Motor Analyzer www.megger.com10

SETTING UP TEMPERATURE AND RESISTANCE TESTS
1. To enter the temperature value and set up resistance tests, click on either the Manual or 3
Lead High V button.
2. The Temperature/Resistance Test screen appears so you can provide the information needed for
your test.
3. Using this screen, you can enable or disable temperature entry or resistance testing, select
specific parameters to include in your testing, or adjust testing parameters to fit your needs.
Preparing For Testing
Figure 12. Temperature/Resistance Test setup screen.
4. The Test Results section shown at the bottom of the screen provides a view of the results
collected when the test runs automatically or semiautomatically. You can also use this section
directly during manual testing.
5. When you have completed your setup, close the screen.
www.megger.com 11

SETTING UP DC TESTS
1. Enter into the DC Tests setup screen by clicking on any of the voltage buttons next to the DC
tests listed.
2. Using this screen, you can enable or disable test types, select DC test types to include in your
testing, select specific parameters to include in your testing, or adjust testing parameters to fit
your needs.
3. You can use the default values provided, or you can modify parameters based on IEEE, EPRI,
EASA, IEC, or company standards.
4. Depending on the test types selected, other controls may appear within the screen.
Preparing For Testing
Figure 13. DC Tests setup screen.
5. If you want to use temperature correction for your DC tests, check the Temp Correction Enable
box (even if you have checked this option in the resistance test setup screen.
6. The “Run Tests” buttons near the bottom left of the screen are used to control testing during
manual testing. The Voltage and Current displays to the right show you value being measured
during testing.
7. When you have completed your setup, close the screen.
Baker AWA -IV Static Motor Analyzer www.megger.com12

Preparing For Testing
SETTING UP A STEP-VOLTAGE TEST
1. From the DC TESTS screen, click on the drop-down list for HiPot/Step Voltage then click on
Step Voltage as shown in the image below. This will open the Config Wizard.
Figure 14. Setting up Step-Voltage test parameters.
2. Set each value to a desired level and click Next.
Figure 15. Step-Voltage Configuration Wizard; setting voltage parameters.
3. Add or delete steps within this screen as needed, then click Finish to save the setup.
4. When you have completed your setup, close the screen.
www.megger.com 13

Figure 16. Step-Voltage Configuration Wizard; adding steps.
SETTING UP A SURGE TEST
1. Click on the voltage button in the Surge Test section to enter the setup screen.
2. Using this screen, you can select options to use during testing, select parameters to include in
testing, and specify test parameter values.
3. Enter parameters based on IEEE, EPRI, EASA, IEC, or company standards.
4. Set Pass/Fail tolerances as needed for the motor under test.
5. You can also check the ZS Override button if you want the tester to automatically start at the
Surge Voltage level, removing the need to ramp up and allowing the tester to reach the target
voltage faster. This feature is available only for semi- automatic or manual testing. Additionally,
the feature cannot be saved as part of a Test ID.
Preparing For Testing
6. The large graph area plots the surge waveform during testing.
7. The Run Surge controls are used during manual testing.
When using ZS (Zero Start) Override, test voltage will not start at
zero. Because the tester will immediately apply higher test voltages
to the motor, take all precautions to avoid injury or death from
severe electrical shock.
WARNING
Baker AWA -IV Static Motor Analyzer www.megger.com14

Figure 17. Setting up Surge test parameters.
8. When you are satisfied with your specifications, close the Surge Test setup screen.
When you have completed the processes for selecting an existing motor ID, creating a new motor
ID (and Test ID), selecting tests to run, and confirming or modifying test parameters, you will be
ready to run the tests on your motor. Details for running tests automatically, semi-automatically, or
manually are provided in the next section along with other operating procedure information.
Surge testing through capacitors
The surge test is load dependent. Anything that adds capacitance to the motor or system under test
will create more load on the tester.
When surge testing a motor, all capacitors should be removed or the ground should be lifted.
Otherwise, the capacitors will absorb the surge pulse, preventing it from entering the coils.
Rotor effect on testing
When possible, remove or secure the rotor before testing. Rotors can affect testing results,
particularly if they move (even slightly) during testing.
Some issues can be erroneous high resistance imbalance in coil testing due to increased inductance,
inability to polarize for DA/PI testing,or frequency shift in one or more waveform values during
surge testing.
An erratic PP EAR will often result, and the shift could even trip the EAR limits.
Preparing For Testing
www.megger.com 15
