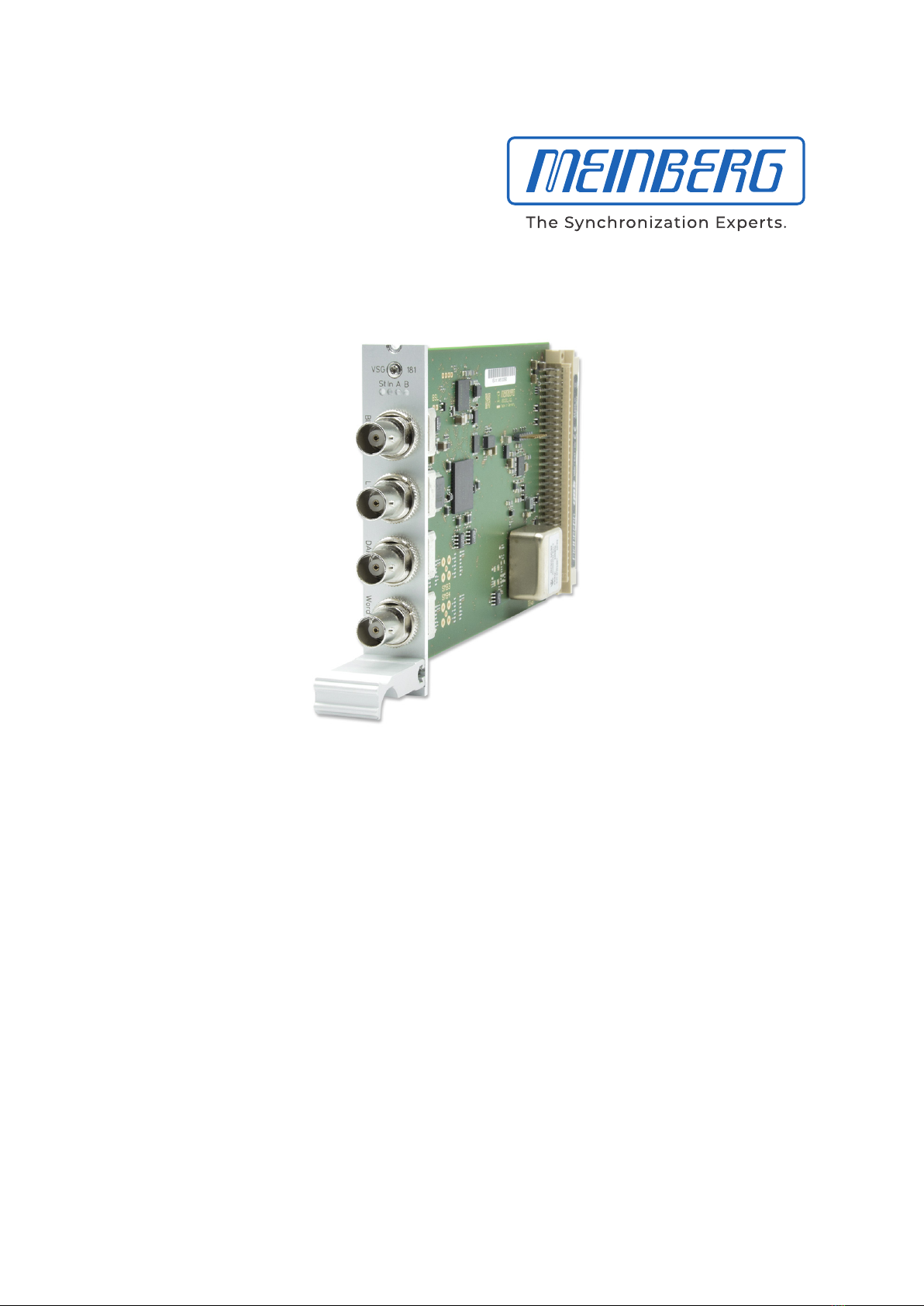

Meinberg IMS-VSG181 User manual

SETUP GUIDE
IMS-VSG181
Hot-Plug Module
25th January 2021
Meinberg Funkuhren GmbH & Co. KG

Table of Contents
1 Imprint 1
2 Introduction 2
3 Important Safety Hints 3
3.1 AdditionalSafetyHints ........................................... 4
3.2 PreventionofESDDamage......................................... 5
3.3 SupplyVoltage ................................................ 6
3.4 Cabling..................................................... 6
4 Front Connectors IMS-VSG181 7
4.1 IMS-VSG181-StatusLEDs ........................................ 8
4.2 BlackBurstOutput.............................................. 9
4.3 LTCOutput .................................................. 9
4.4 DARSOutput................................................. 9
4.5 WordClockOutput.............................................. 10
5 Before you start 11
5.1 ScopeofDelivery............................................... 11
5.2 DisposalofPackagingMaterials...................................... 11
6 System Installation 12
6.1 Important Hints for hot-pluggable IMS Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2 Installation of hot-pluggable IMS modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Configuration of the IMS-VSG181 14
7.1 Configuration ................................................. 14
8 RoHS and WEEE 17
Date: 25th January 2021 IMS-VSG181

1 Imprint
1 Imprint
Meinberg Funkuhren GmbH & Co. KG
Lange Wand 9, 31812 Bad Pyrmont / Germany
Phone: + 49 (0) 52 81 / 93 09 - 0
Fax: + 49 (0) 52 81 / 93 09 - 230
Internet: https://www.meinbergglobal.com
Mail: [email protected]
Date: 25.01.2021
IMS-VSG181 Date: 25th January 2021 1

2 Introduction
This Setup Guide is a systematically structured guideline which supports you during the set-up of your Mein-
berg product.
The IMS-VSG181 is used as a video signal reference for studio equipment and provides the generated sig-
nals at four BNC outputs. These are 1x Bi-Level Sync (Black Burst)/Tri-Level-Sync, 1x Longitudinal Time and
Control Code (LTC), 1x Digital Audio Out (DARS), and 1x Word Clock
In order to be able to provide high-precision output signals during the switchover of the RSC (IMS systems
with redundant receivers), the IMS-VSG181 has its own oscillator.
Features.
The IMS-VSG181 is synchronized with an external reference frequency (10 MHz), a pulse per second (1PPS)
and a time telegram of the preconnected reference. These signals significantly determine the accuracy of the
output signals. All output signals can be configured extensively and individually via the web interface. The
generated signals have a phase reference to the 1PPS.
The LANTIME firmware manual provides a complete description of all configurations and status monitoring
options of your Meinberg product.
Download LTOS7 Firmware manual:
https://www.meinbergglobal.com/download/docs/manuals/english/ltos_7-00.pdf
Compatibility
The IMS-VSG181 is an IMS module which is compatible with all systems of the IMS family. It can also
be used on any slot (MRI, ESI, I/O).
2 Date: 25th January 2021 IMS-VSG181

3 Important Safety Hints
3 Important Safety Hints
Please make sure that IMS modules that can be exchanged during operation are always handled with utmost
care.
Before any maintenance work on the system:
•Backup of stored configurations is recommended (e.g. via USB stick or Web UI)
•Please note the chapter "Prevention of ESD damage".
•Please note the chapter "Supply voltage".
IMS-VSG181 Date: 25th January 2021 3

3.1 Additional Safety Hints
This manual contains important information for the installation and operation of this device as well as for your
safety. Make sure to read carefully before installing and commissioning the device.
Certain operating conditions may require the observance of additional safety regulations not covered by this
manual. Nonobservance of this manual will lead to a significant abatement of the security provided by this
device. Security of the facility where this product is integrated lies in the responsibility of the installer.
The device must be used only for purpose named in this manual, any other use especially opteration above the
limits specified in this document is considered as improper use.
Keep all documents provided with the device for later reference.
This manual is exclusively for qualified electricians or by a qualified electrician trained personnel who are
familiar with the applicable national standards and specifications, in particular for the construction of high
voltage devices.
4 Date: 25th January 2021 IMS-VSG181

3 Important Safety Hints
3.2 Prevention of ESD Damage
ATTENTION!
The designation ESD (Electrostatic Sensitive Devices) refers to measures which are used
to protect electrostatically endangered components from electrostatic discharge and thus
to prevent destruction. Systems and assemblies with electrostatically endangered components
usually have the following characteristics:
Indicator for assemblies with electrostatic endangered components
The following measures protect electrostatically endangered components from destruction:
Prepare removal and installation of assemblies
Unload yourself (for example, by touching a grounded object) before touching assemblies.
Ensure that you wear a grounding strap on the wrist when working with such assemblies, which
you attach to an unpainted, non-conductive metal part of the system.
Use only tools and devices that are free from static electricity.
Transporting Assemblies
Assemblies may only be touched at the edge. Do not touch any pins or conductors on assemblies.
Installing and Removing Assemblies
Do not touch persons who are not grounded while removing or installing components. This could
result in a loss of grounding protection from your electrostatic discharge.
Storing Assemblies
Always keep assemblies in ESD protective covers. These protective covers must be undamaged.
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against
electrostatic discharge.
ESD protective covers must not be low-resistance and metallically conductive if a lithium battery
is installed on the assembly.
IMS-VSG181 Date: 25th January 2021 5

3.3 Supply Voltage
WARNING!
The IMS system in which the module is used operates at a dangerous voltage. The specific safety instruc-
tions can be found in the manual of the respective IMS System.
If the module is a hot-pluggable power supply unit, disconnect its power cable before removing it from the
IMS System.
Never open a power supply unit cause dangerous voltages can even exist after it has been disconnected from
the electrical supply. If a power supply is not working anymore, e.g. due to a defect, please send it back to
Meinberg for necessary repairs.
Non-observance of these safety instructions can cause serious personal injury and material damage. Installation,
initial start-up and operation of the IMS System may only be performed by qualified technical experts.
3.4 Cabling
WARNING!
Danger to life through electric shock! Never work with voltage applied! When working on the plugs and
terminals of connected cables, always disconnect both sides of the cables from the respective devices!
6 Date: 25th January 2021 IMS-VSG181

4 Front Connectors IMS-VSG181
4 Front Connectors IMS-VSG181
1
2
3
4
5
IMS-VSG181 Date: 25th January 2021 7

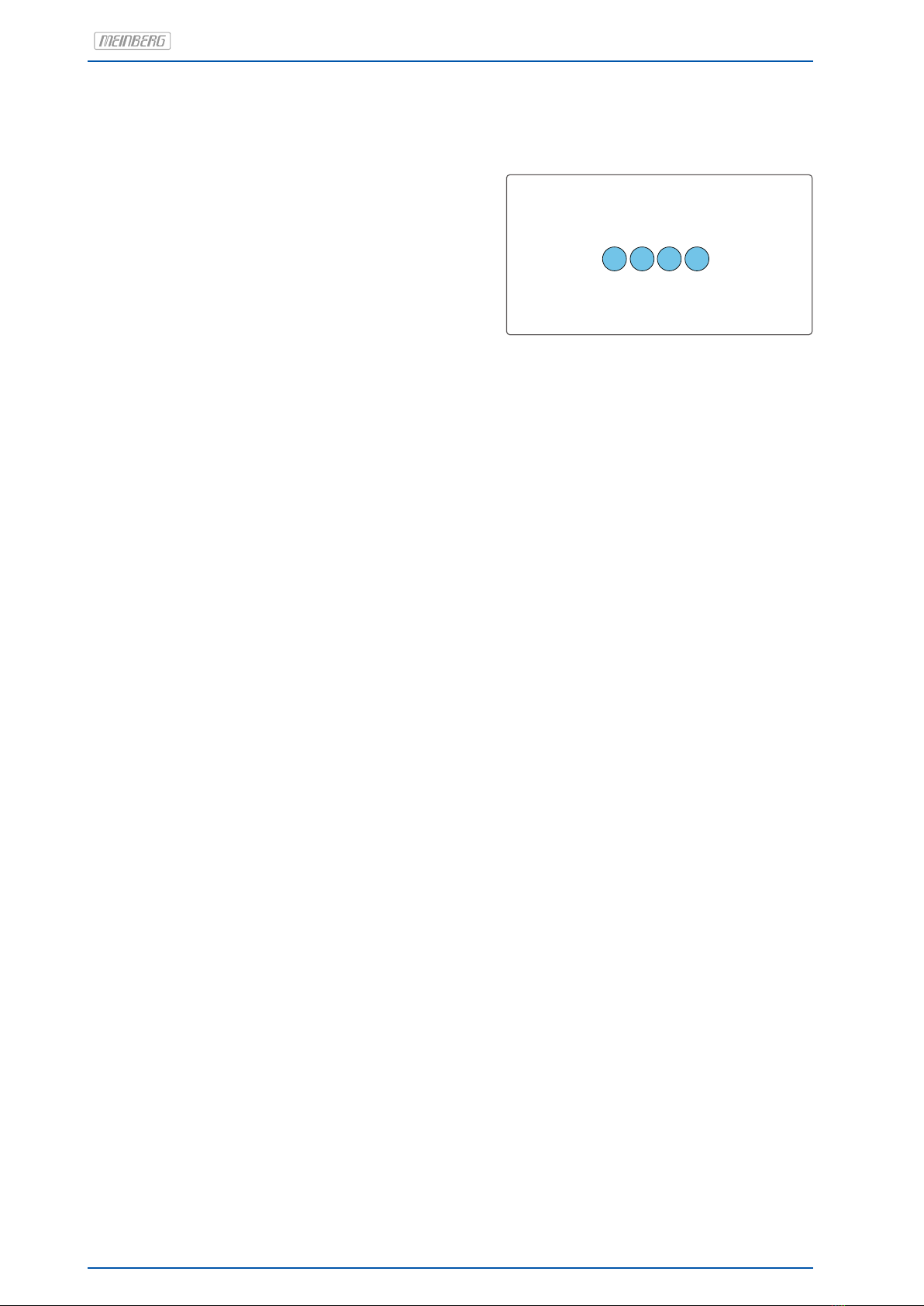

4.1 IMS-VSG181 - Status LEDs
Status display
LED St: Status of the VSG181
LED In: Synchronization status
LED A: Status of the Blackburst output
LED B: Status of the LTC output
St In A B
The status messages of the LED’s are as follows:
LED St:
Blue During initialization
Green During operation
LED In.
Shows the state after initialisation
Green Accurate (accuracy of ≤200 ns to reference)
Flashing green Timesync
Yellow Insufficient quality of the reference signal
Red Reference signal not available / VSG181 is not synchronous
LED A - Status Black Out
1 sec red -> 1 sec yellow -> 1 sec green -> 1 sec off
Off Output switched off
Green flashing Timing pattern of the signal is being corrected
Yellow flashing Timing pattern of the signal is being corrected
Green light Output on, control is in ’warmed up’ state (fine control)
Yellow light Output on, control not yet in ’warmed up’ state (coarse control)
LED B - Status LTC Out
1 sec Red -> 1 sec Yellow -> 1 sec Green -> 1 sec Off
Off Output switched off
Green flashing Timing pattern of the signal is being corrected
Yellow flashing Timing pattern of the signal is being corrected
Green light Output on, control is in ’warmed up’ state (fine control)
Yellow light Output on, control not yet in ’warmed up’ state (coarse control)
8 Date: 25th January 2021 IMS-VSG181

4 Front Connectors IMS-VSG181
4.2 Black Burst Output
Output Signal: PAL, NTSC Black Burst
with VITC Support or
Tri-Level-Sync
Signal level: 300 mVpp
into 75 ohms (unbalanced)
Formats: Black Burst:
PAL (SMPTE259M/ITU-R BT.470-6)
NTSC (SMPTE170M/ITU-R BT.470-7)
VITC (SMPTE12M-1/SMPTE ST309M)
Tri-Level-Sync:
720p50 Hz (SMPTE296M3)
1080i25 Hz (SMPTE274M6)
720p59.94 Hz (SMPTE296M1)
1080i29.97 Hz (SMPTE274M7)
Connection type: BNC female connector
Cable: Coaxial, shielded
4.3 LTC Output
Signal: LTC
Signal level: TTL, 2.5 Vpp (MARK/SPACE)
into 75 ohm
Formats: 25 fps, 23,98 fps, 29,97 fps,
29,97 fps Drop Frame
Connection type: BNC female
Cable: shielded coax line
4.4 DARS Output
Output signal: DARS
Signal level: TTL, 2.5 Vpp
into 75 ohm
Signal type: Base frequencies: 44.1 kHz and 48 kHz
Connection type: BNC female connector
Cable: Coaxial, shielded
IMS-VSG181 Date: 25th January 2021 9

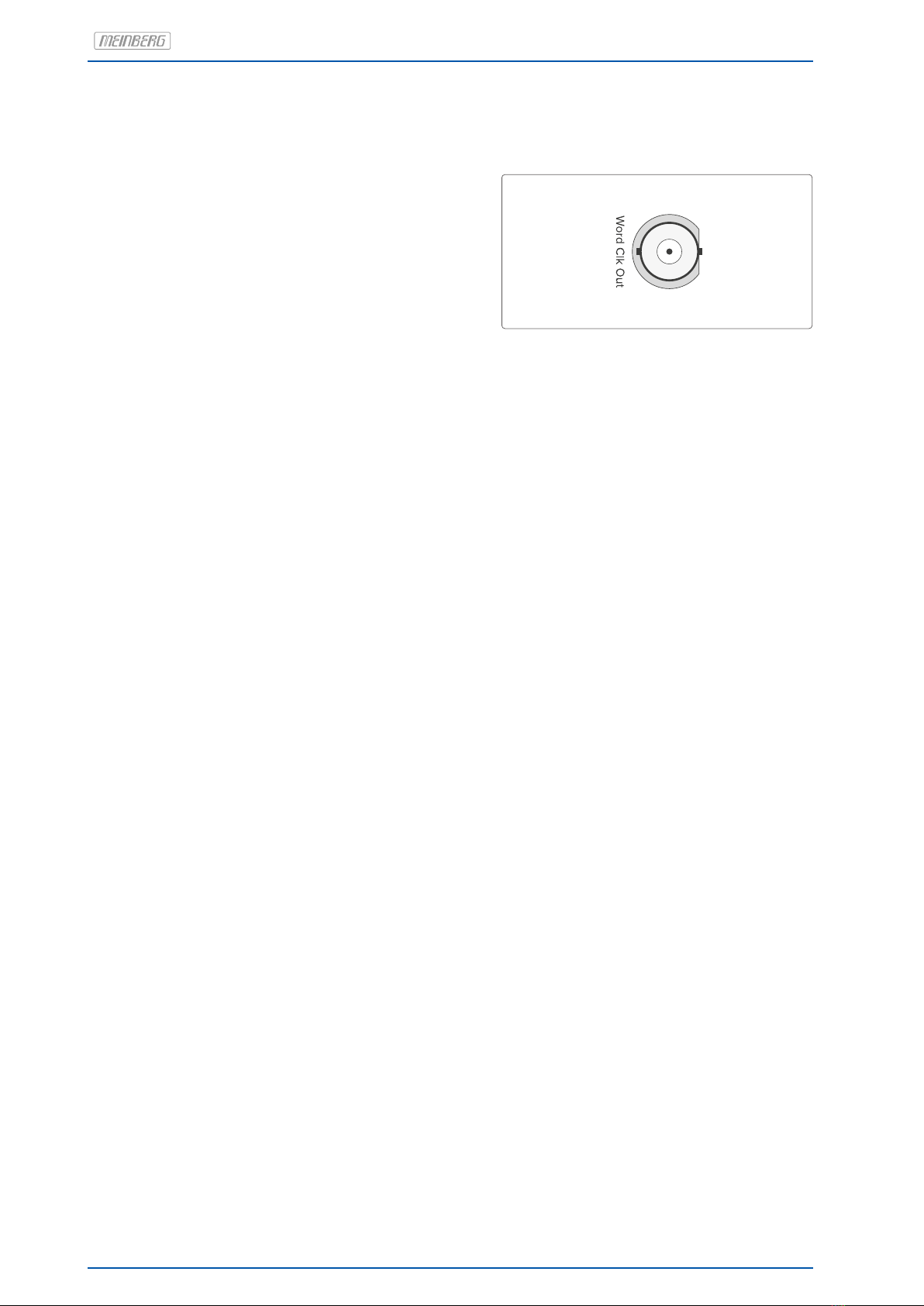

4.5 Word Clock Output
Output signal: Word Clock
Signal level: TTL, 2.5 Vpp
into 75 ohm
Frequency range: 24 Hz - 12,288 MHz
Base frequencies: 44.1 kHz and 48 kHz
Scaling factor: 0.125, 0.25, 0.5, 1, 2, 4,
8, 16, 32, 64, 128, 256
Connection type: BNC female connector.
Cable: coaxial, shielded
10 Date: 25th January 2021 IMS-VSG181

5 Before you start
5 Before you start
5.1 Scope of Delivery
Unpack the IMS-VSG181 carefully and check the scope of delivery against the enclosed packing list to en-
sure that no parts are missing. If any of the listed items are missing, please contact our sales department:
[email protected]
Check the system for shipping damage. If the system is damaged or cannot be put into operation, contact
Meinberg immediately. Only the recipient (the person or company receiving the system) can assert a claim
against freight forwarder for shipping damage.
Meinberg recommends that you keep the original packaging materials for possible future transport.
5.2 Disposal of Packaging Materials
The packaging materials we use are fully recyclable:
Material Use for Disposal
————————————————————————————————————————
Cardboard Shipping packaging, Paper recycling
accessories packaging
Foil Shipping packaging, Household waste or recycling depot
accessories packaging
————————————————————————————————————————
IMS-VSG181 Date: 25th January 2021 11

6 System Installation
6.1 Important Hints for hot-pluggable IMS Modules
The following points should be strictly observed when replacing IMS modules during operation. Not all IMS
modules are fully hot-pluggable. Of course, it is not possible to replace a power supply unit of a non-redundant
system without first having installed a second power source in operational mode.
The following applies to the individual IMS slots:
PWR: "hot swappable" If you operate your system with only one
power supply, a second power supply must
be installed before removing/replacing it
to keep your system functioning.
I/O, ESI and MRI Slots: "hot plugable".
CLK1, CLK2: "hot plugable" Afer the exchange or the installation of a
clock module a rescan of the reference clocks
(Rescan Refclocks) must be executed in the web
interface menu "System".
CPU: "hot plugable" The NTP service and access to the web interface
are interrupted while the CPU is disconnected.
Also the management and monitoring functions are
no longer available.
RSC/SPT: "hot plugable" The switching function or the distribution of
generated signals is interrupted while the RSC/SPT
is disconnected.
12 Date: 25th January 2021 IMS-VSG181

6 System Installation
6.2 Installation of hot-pluggable IMS modules.
If the system is supplied with an antenna and antenna cable, it is advisable to first mount the antenna in a
suitable location (see chapter Antenna Mounting) and lay the antenna cable.
Please use a Torx screwdriver (T8 x 60) for removal and installation of the module.
1. Follow the safety instructions at the beginning
of this manual!
2. Remove the two marked Torx screws from the
module holder plate or the cover plate of
the empty slot.
3. Note when removing!
Pull the module carefully out of the guide
rail. Note that the module is firmly anchored
in the connector block of the housing. You need
a certain amount of force to release the module
from this link. Once the connection to the
connector block of the system’s backplane is
loosened, the module can be easily pulled out.
4. Note during installation!
Please ensure that the module is correctly inserted into the
two guide rails of the system housing as otherwise damage to the module and the housing could be caused.
Make sure that the module is securely locked into the connector block before you fasten the two screws.
5. Now you can put the installed module into operation.
Attachment points of an 1U IMS system
IMS-VSG181 Date: 25th January 2021 13

7 Configuration of the IMS-VSG181
This chapter explains how to put a IMS-VSG181 into operation via the web interface.
7.1 Configuration
To configure the IMS-VSG181, select the I/O Config –> Configuration of Outputs menu in the web interface.
Black Burst
———————————————————————-
Output: Video Out
Epoch: Start epoch of the video signal.
TAI D1970-01-01 T00:00:00
Format: Bi-Level-Sync
NTSC (525i) Blackburst
PAL (625i) Blackburst
Tri-Level-Sync
720p/50 Hz (SMPTE296M3)(HD)
1080i/50 Hz (SMPTE274M6)(HD)
720p/59.94 Hz (SMPTE296M1)(HD)
1080i/59.94 Hz Hz (SMPTE274M7)(HD)
Vertical offset: Coarse configuration of the phase offset in lines
Horizontal offset: Fine configuration of the phase offset in 10 ns steps
14 Date: 25th January 2021 IMS-VSG181

7 Configuration of the IMS-VSG181
Timecode: The following timecodes can be selected:
VITC
VITC w. daily jam (only NTSC)
VITC w. daily jam and drop frame (only NTSC)
Time zone: Select the desired time zone.
1st time code line: Select the 1st line, in which the
time code is to be transmitted (6-22)
2nd time code line: Select the 2nd line, in which the
time code is to be transmitted (6-22)
Daily Jam Time: Set a time for the Daily Jam event
Label: You have the possibility to enter an individual label for the output
or leave the field empty.
———————————————————————-

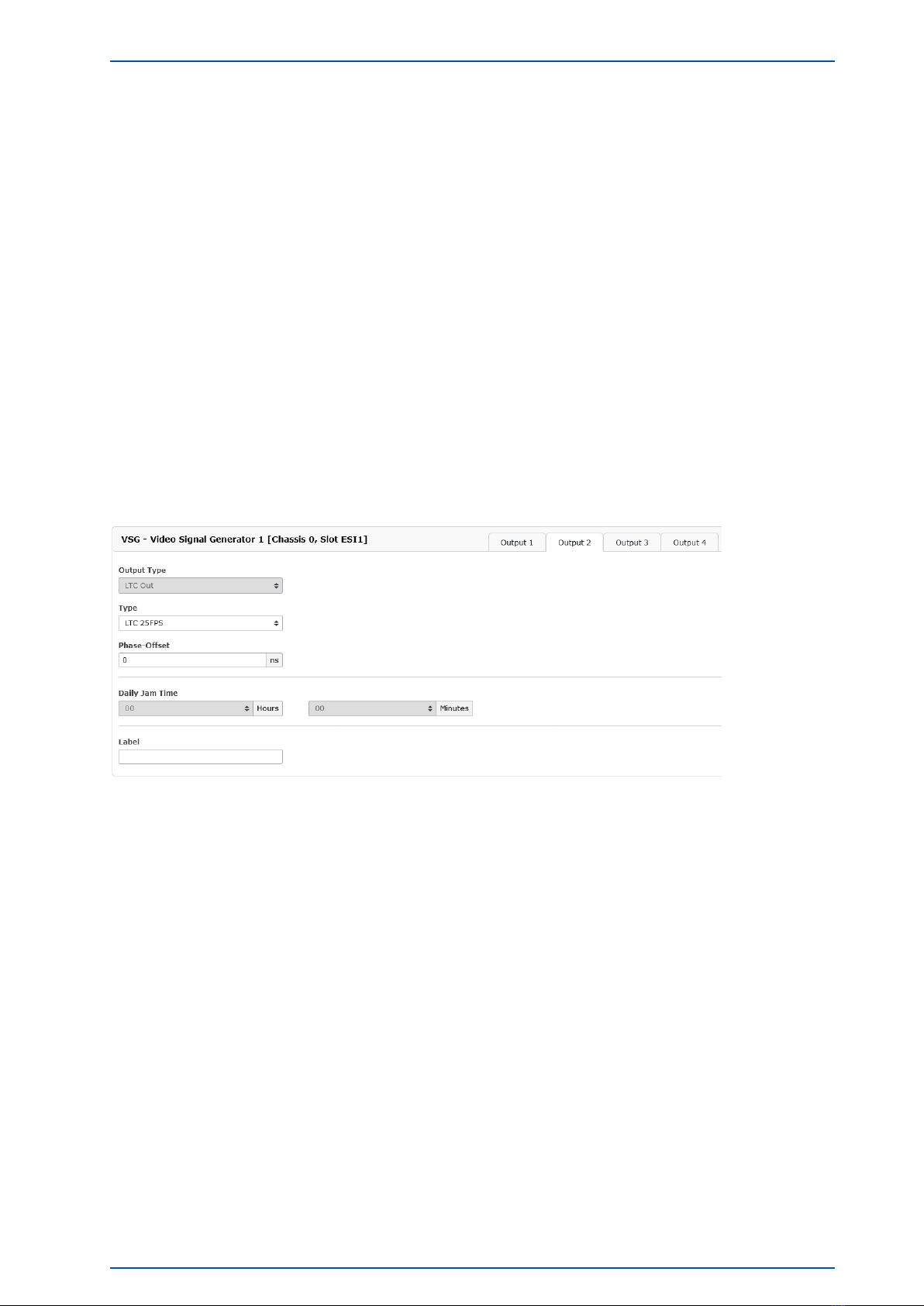

LTC:
———————————————————————-
Output: LTC Out
Type: LTC 24FPS / 23.976 Hz
LTC 24FPS
LTC 25FPS
LTC 30FPS
LTC 30FPS Drop Frame
Phase Offset: You have the option to enter a phase offset to compensate runtime delays.
Daily Jam Time: Set a time for the Daily Jam event
Label: You have the possibility to enter an individual label for the output
or leave the field empty.
———————————————————————-
IMS-VSG181 Date: 25th January 2021 15

DARS:
———————————————————————-
Output: Digital Audio Out
Signal type: OFF
DARS 48 kHz
DARS 44.1 kHz
Label: You have the possibility to enter an individual label for the output
or leave the field empty.
———————————————————————-
Word Clock:
———————————————————————-
Output: Studio Clock Out
Status: Locked
Enabled
Base frequency: 44.1 kHz
48 kHz
Multiplier: Select a multiplier by which the base frequency is to be multiplied.
The result is the frequency of the output signal.
Label: You have the possibility to enter an individual label for the output
or leave the field empty.
———————————————————————-
16 Date: 25th January 2021 IMS-VSG181

8 RoHS and WEEE
8 RoHS and WEEE
Compliance with EU Directive 2011/65/EU (RoHS)
We hereby declare that this product is conform to the
European Directive 2011/65/EU and its delegated di-
rective 2015/863/EU “Restrictions of Hazardous Sub-
stances in Electrical and Electronic Equipment”. We
ensure that electrical and electronic products sold in
the EU do not contain lead, cadmium, mercury, hex-
avalent chromium, polybrominated biphenyls (PBBs),
and polybrominated diphenyl ethers (PBDEs), Bis
(2-ethylhexyl)phthalat (DEHP), Benzylbutylphthalat
(BBP), Dibutylphthalat (DBP), Diisobutylphthalat
(DIBP), above the legal threshold.
WEEE status of the product
This product is handled as a B2B (Business to Busi-
ness) category product. In order to secure a WEEE
compliant waste disposal it has to be returned to the
manufacturer. Any transportation expenses for return-
ing this product (at its end of life) have to be incurred
by the end user, whereas Meinberg will bear the costs
for the waste disposal itself.
IMS-VSG181 Date: 25th January 2021 17
