Meinberg IMS-FDM User manual

MANUAL
IMS-FDM Setup Guide
Hot-Plug Module
4th November 2020
Meinberg Funkuhren GmbH & Co. KG

Table of Contents
1 Imprint 1
2 Important Safety Hints 2
2.1 Additional Safety Hints ........................................... 3
2.2 Prevention of ESD Damage ......................................... 4
2.3 Supply Voltage ................................................ 5
2.4 Cabling ..................................................... 5
3 Replacement or Installation of a Hot-pluggable IMS Module 6
3.1 Important Hints for hot-pluggable IMS Modules ............................. 7
4 FDM - Frequency Deviation Monitoring 8
4.1 FDM Configuration via Web Interface ................................... 10
4.1.1 FDM Status ............................................. 10
4.1.2 FDM Configuration ......................................... 11
4.1.3 FDM Information .......................................... 17
4.1.4 Serial FDM Telegrams ....................................... 18
4.1.5 Error-Bits ............................................... 23
Date: 4th November 2020 IMS-FDM Setup Guide

1 Imprint
1 Imprint
Meinberg Funkuhren GmbH & Co. KG
Lange Wand 9, 31812 Bad Pyrmont / Germany
Phone: + 49 (0) 52 81 / 93 09 - 0
Fax: + 49 (0) 52 81 / 93 09 - 230
Internet: https://www.meinbergglobal.com
Mail: [email protected]
Date: 04.11.2020
IMS-FDM Setup Guide Date: 4th November 2020 1

2 Important Safety Hints
Please make sure that IMS modules that can be exchanged during operation are always handled with utmost
care.
Before any maintenance work on the system:
•Backup of stored configurations is recommended (e.g. via USB stick or Web UI)
•Please note the chapter "Prevention of ESD damage".
•Please note the chapter "Supply voltage".
2 Date: 4th November 2020 IMS-FDM Setup Guide

2 Important Safety Hints
2.1 Additional Safety Hints
This manual contains important information for the installation and operation of this device as well as for your
safety. Make sure to read carefully before installing and commissioning the device.
Certain operating conditions may require the observance of additional safety regulations not covered by this
manual. Nonobservance of this manual will lead to a significant abatement of the security provided by this
device. Security of the facility where this product is integrated lies in the responsibility of the installer.
The device must be used only for purpose named in this manual, any other use especially opteration above the
limits specified in this document is considered as improper use.
Keep all documents provided with the device for later reference.
This manual is exclusively for qualified electricians or by a qualified electrician trained personnel who are
familiar with the applicable national standards and specifications, in particular for the construction of high
voltage devices.
IMS-FDM Setup Guide Date: 4th November 2020 3

2.2 Prevention of ESD Damage
ATTENTION!
The designation ESD (Electrostatic Sensitive Devices) refers to measures which are used
to protect electrostatically endangered components from electrostatic discharge and thus
to prevent destruction. Systems and assemblies with electrostatically endangered components
usually have the following characteristics:
Indicator for assemblies with electrostatic endangered components
The following measures protect electrostatically endangered components from destruction:
Prepare removal and installation of assemblies
Unload yourself (for example, by touching a grounded object) before touching assemblies.
Ensure that you wear a grounding strap on the wrist when working with such assemblies, which
you attach to an unpainted, non-conductive metal part of the system.
Use only tools and devices that are free from static electricity.
Transporting Assemblies
Assemblies may only be touched at the edge. Do not touch any pins or conductors on assemblies.
Installing and Removing Assemblies
Do not touch persons who are not grounded while removing or installing components. This could
result in a loss of grounding protection from your electrostatic discharge.
Storing Assemblies
Always keep assemblies in ESD protective covers. These protective covers must be undamaged.
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against
electrostatic discharge.
ESD protective covers must not be low-resistance and metallically conductive if a lithium battery
is installed on the assembly.
4 Date: 4th November 2020 IMS-FDM Setup Guide

2 Important Safety Hints
2.3 Supply Voltage
WARNING!
The IMS system in which the module is used operates at a dangerous voltage. The specific safety instruc-
tions can be found in the manual of the respective IMS System.
If the module is a hot-pluggable power supply unit, disconnect its power cable before removing it from the
IMS System.
Never open a power supply unit cause dangerous voltages can even exist after it has been disconnected from
the electrical supply. If a power supply is not working anymore, e.g. due to a defect, please send it back to
Meinberg for necessary repairs.
Non-observance of these safety instructions can cause serious personal injury and material damage. Installation,
initial start-up and operation of the IMS System may only be performed by qualified technical experts.
2.4 Cabling
WARNING!
DANGER TO LIFE BY ELECTRICAL SHOCK! NO LIVE WORKING!
Wiring or any other work done the connectors particularly when connectors are opened may never be carried out
when the installation is energized. All connectors must be covered to prevent from accidental contact to life parts.
ALWAYS ENSURE A PROPER INSTALLATION!
IMS-FDM Setup Guide Date: 4th November 2020 5

3 Replacement or Installation of a Hot-pluggable
IMS Module
If the system is supplied with an antenna and antenna cable, it is advisable to first mount the antenna in a
suitable location (see chapter Antenna Mounting) and lay the antenna cable.
Please use a Torx screwdriver (T8 x 60) for removal and installation of the module.
1. Follow the safety instructions at the beginning
of this manual!
2. Remove the two marked Torx screws from the
module holder plate or the cover plate of
the empty slot.
3. Note when removing!
Pull the module carefully out of the guide
rail. Note that the module is firmly anchored
in the connector block of the housing. You need
a certain amount of force to release the module
from this link. Once the connection to the
connector block of the system’s backplane is
loosened, the module can be easily pulled out.
4. Note during installation!
Please ensure that the module is correctly inserted into the
two guide rails of the system housing as otherwise damage to the module and the housing could be caused.
Make sure that the module is securely locked into the connector block before you fasten the two screws.
5. Now you can put the installed module into operation.
Attachment points of an 1U IMS system
6 Date: 4th November 2020 IMS-FDM Setup Guide

3 Replacement or Installation of a Hot-pluggable IMS Module
3.1 Important Hints for hot-pluggable IMS Modules
The following points should be strictly observed when replacing IMS modules during operation. Not all IMS
modules are fully hot-pluggable. Of course, it is not possible to replace a power supply unit of a non-redundant
system without first having installed a second power source in operational mode.
The following applies to the individual IMS slots:
PWR: "hot swappable" If you operate your system with only one
power supply, a second power supply must
be installed before removing/replacing it
to keep your system functioning.
I/O, ESI and MRI Slots: "hot swappable".
CLK1, CLK2: "hot swappable" Afer the exchange or the installation of a
clock module a rescan of the reference clocks
(Rescan Refclocks) must be executed in the web
interface menu "System".
CPU: "hot swappable" The NTP service and access to the web interface
are interrupted while the CPU is disconnected.
Also the management and monitoring functions are
no longer available.
RSC/SPT: "hot swappable" The switching function or the distribution of
generated signals is interrupted while the RSC/SPT
is disconnected.
IMS-FDM Setup Guide Date: 4th November 2020 7

4 FDM - Frequency Deviation Monitoring
The module FDM180 was designed to calculate and
monitor the frequency and its deviation in 50/60Hz
power line networks.
A preconnected reference is necessary that provides a
serial time string and a PPS (pulse per second). The
accuracy of the measurements is derived from these
signals. The module calculates the frequency as well
as the time, based on the mains frequency. The time
deviation (TD) is the difference of this calculated time
(PLT) to the reference time (REF). This time deviation
as well as the frequency itself is sent out via serial
interface or is beeing converted to an analog voltage
output provided by a DAC.
Pin Assignement: 16-pin DMC Phoenix Connector
Pin Signal
——————————————————-
Pin 1 A0
Pin 2 A1
Pin 3 GND
Pin 4 n.c.
Pin 5 n.c.
Pin 6 GND
Pin 7 COM 0 RxD in
Pin 8 COM 0 TxD out
Pin 9 - Pin 14 GND
Pin 15 COM 1 RxD in
Pin 16 COM 1 TxD out
——————————————————-
LED Indicator
LED St: Init blue during inintialisation
green - normal operation
LED In: shows the state after initialisation
red ref not connected / FDM not sync
yellow ref. signal not useable
green blinking Timesync
green Accurate (≤200 ns to reference)
LED A: green FD (Frequency Deviation) within the configured limits
red FD Overflow
LED B: green TD (Time Deviation) within the configured limits
red TD Overflow
8 Date: 4th November 2020 IMS-FDM Setup Guide

4 FDM - Frequency Deviation Monitoring
Input signal: Serial time string, PPS
mains frequency, 70 - 270 V AC, 50 Hz or 60 Hz
Interface: Two asynchronous serial RS-232 ports, COM0 and COM1
Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Baud
Framing: 7N2, 7E1, 7E2, 8N1, 8N2, 8E1, 7O2
output and average: once per second or 100ms
Output string: The frequency, frequency deviation, reference time, power line time
and the time deviation are send out in different available formats.
The formats are:
STANDARD FDM String:
F:49.984 FD:-00.016 REF:15:03:30 PLT:15:03:30.368 TD:+00.368[CR][LF]
SHORT FDM String:
FD:-00.016 TD:+00.368[CR][LF]
AREVA FDM String:
[STX]
02049.984[CR][LF]
021-00.016[CR][LF]
022+00.378[CR][LF]
02315 03 30.368[CR][LF]
024068 15 03 30 [CR][LF]
[ETX]
Resolution of
Measurement: frequency: accuracy the oscillator (10 MHz) +-100 µHz
time deviation: accuracy of reference (PPS) +- 1 ms
Analog outputs: 2 analog outputs for longtime-recording (time deviation and/or frequency deviation),
range: -2.5 V ... +2.5 V, resolution: 16 Bit
Electrical connectors: 96-pin VG-rail DIN 41612
Power supply: +5 V DC
Current consumption: 0.4A-1A
Ambient temperature: 0 ... 50 ◦C / 32 ... 122 ◦F
Humidity: Max. 85%
IMS-FDM Setup Guide Date: 4th November 2020 9

4.1 FDM Configuration via Web Interface
4.1.1 FDM Status
This menu shows the following values:
Current Frequency: the current frequency of the monitored power network
Reference Time: REF - the time of the reference clock (i.e. GPS)
Power Line Time: PLT - the time of the monitored power line
Line Frequency: mains frequency (50Hz or 60Hz)
Flags: transmitted Flags by FDM (Error Bits)
Receiver State
The "Receiver" tab displays all connected and configured receivers.
10 Date: 4th November 2020 IMS-FDM Setup Guide

4 FDM - Frequency Deviation Monitoring
4.1.2 FDM Configuration
Automatic Monitoring of Powerline Frequency
It is possible to define an upper and lower limit for the powerline frequency and receive alarm messages (email,
syslog, SNMP traps) when a LANTIME device detects that the frequency measurement value is outside the
acceptable range.

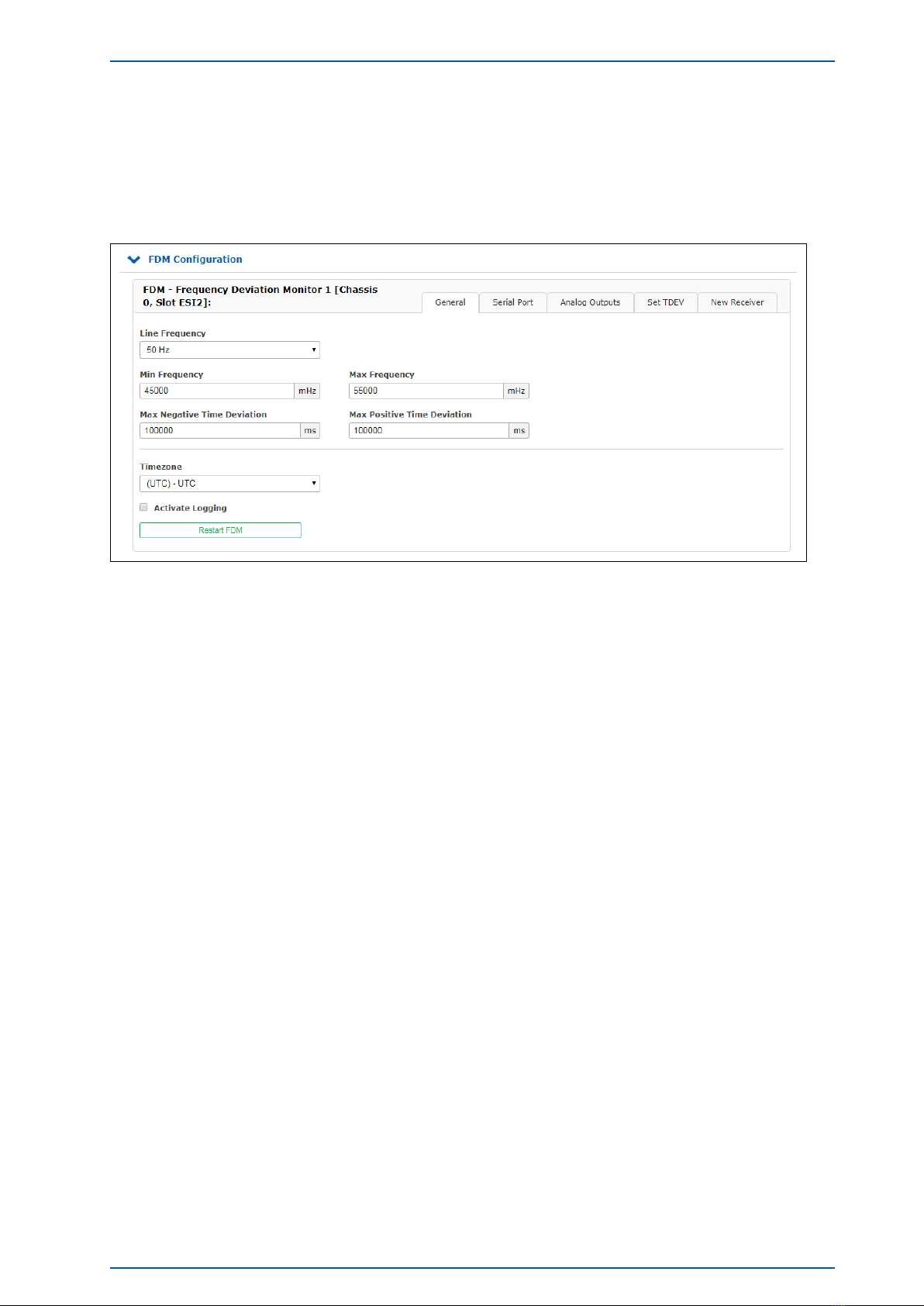

With the FDM configuration menu the following parameters can be set:
Line Frequency: configure frequency of the observed power line
Min Frequency: an error occurs if the frequency reaches the min constraint
Max Frequency: an error occurs if the frequency reaches the max constraint
Max Negative Time Deviation: an error occurs if the frequency reaches the max negative constraint
Max Positive Time Deviation: an error occurs if the frequency reaches the max positive constraint
Timezone: used local timezone for reference time and powerline time
Activate Logging: activate logging for FDM in XtraStats
Reset FDM to restart the device
IMS-FDM Setup Guide Date: 4th November 2020 11

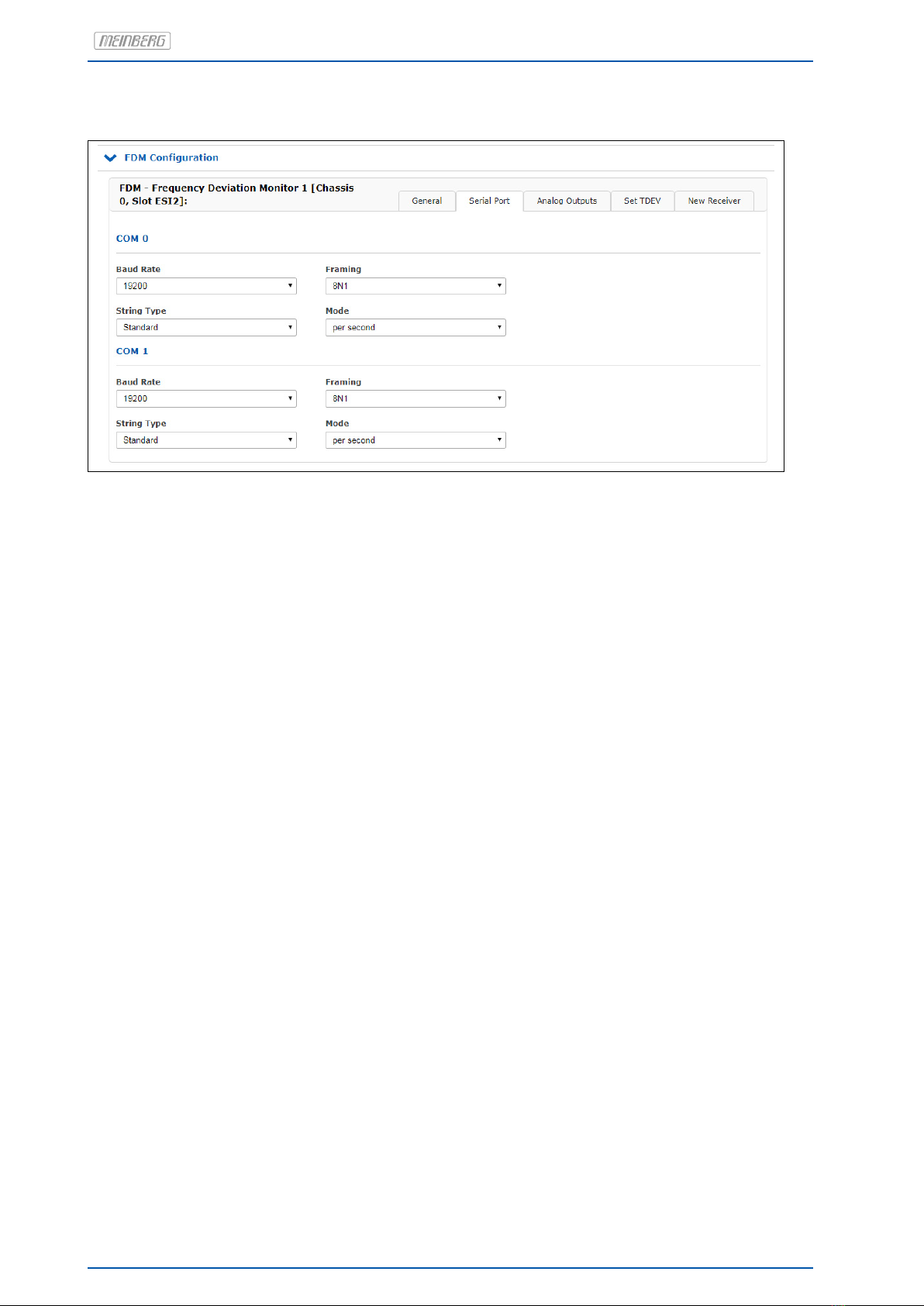

Configuration of serial ports
Baud Rate for the transmission of serial time telegrams
600, 1200, 2400, 4800, 9600, 19200
Framing 7N2,7E1,7E2,8N1,8N2,8E1,7O2,8O1
String Type type of generated serial time telegram
FDM Standard, FDM Short, FDM Areva, FDM TPC,
Fingrid, FDM Standard 2, FDM 3 and FDM Computime
The standard FDM telegram format contains the following values:
mains frequency (FF.xxx Hz)
frequency deviation (+-FF.xxx Hz)
reference time (HH:MM:SS)
power line time (HH:MM:SS.mmm)
time deviation (+-MM:SS.mmm)
Mode per second, per minute and on request
12 Date: 4th November 2020 IMS-FDM Setup Guide

4 FDM - Frequency Deviation Monitoring
Analog Outputs

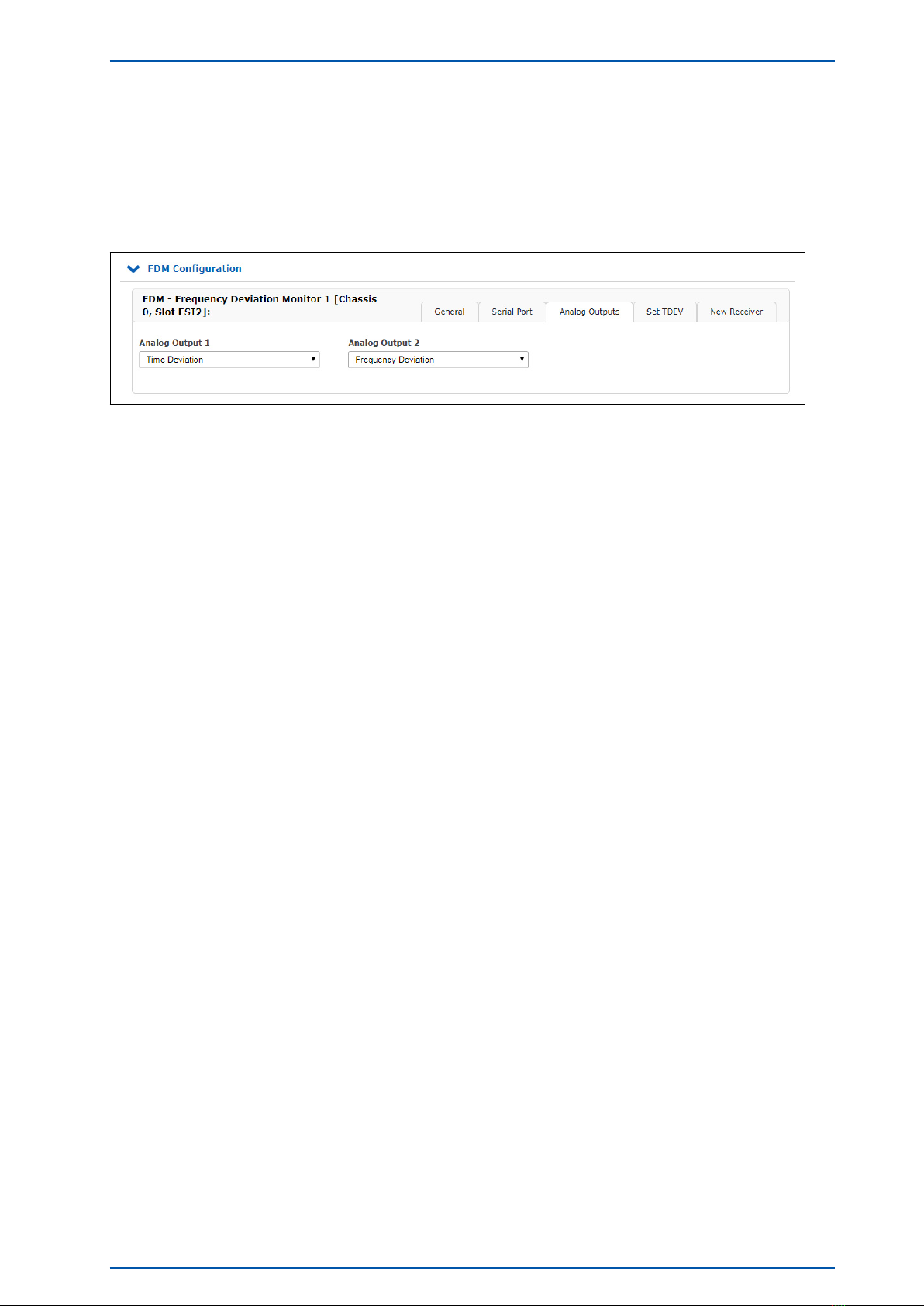

Depending on the features of your system, the FDM180 provides two analog outputs (A1/A2). These out-
puts have a voltage range of -2.5V ... + 2.5V, divided into 65,536 steps (16-bit resolution).
Either the frequency deviation or the difference time of each analog output can be selected as display-value.
Mode:
Time Deviation: Depends on the defined constraints for Min Time Deviation and Max Time Deviation
Example: min:-100s and max:+100s if the time deviaton reach -100s the analog output
is at -2.5 V and if +100s then at +2.5 V with a resolution of 16bit DAC
Frequency Deviation: Depends on the defined constraints for Min Frequency Deviation and
Max Frequency Deviation
Example: min: 45Hz and max: 55Hz @ 50Hz line frequency if the frequency deviation
reach 45Hz the analog output is at -2.5 V and if 55Hz then at +2.5V with a resolution
of 16bit DAC
IMS-FDM Setup Guide Date: 4th November 2020 13

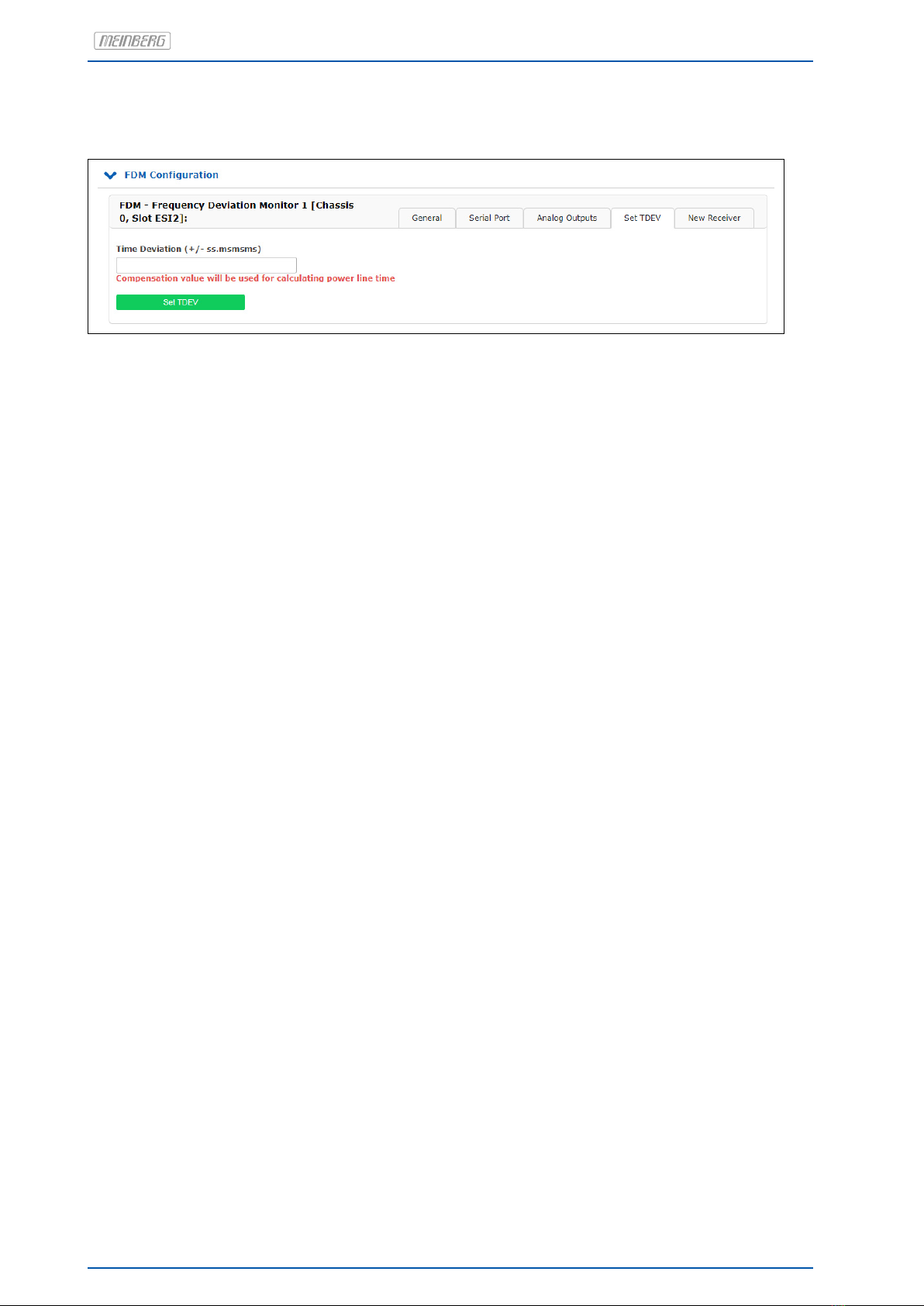

Submenu Set TDEV
Time Deviation set a value to preconfigure the time deviation 0 for reset
(example: if you already had one FDM an get another one and want that both FDM
have the same time deviation value).
14 Date: 4th November 2020 IMS-FDM Setup Guide

4 FDM - Frequency Deviation Monitoring
Submenu New Receiver
In this section, the user can add a new receiver for FDM telegrams. Any number of receivers (network displays
and/or PCs for analysis and display of status messages or frequencies), which are connected to the same net-
work, can be configured here.
Receiver Type Type of telegram for the network transmission
Standard: Standard FDM time telegram
Sent once per second
i.e. "F:50.016 FD:+00.016 REF:15:17:57 PLT:15:17:57.056 TD:+00.056"
Extended: Extended FDM time telegram with intermediate measurements and sequence ID
Sent once per second
i.e. "F:50.006 F:50.004 F:50.013 F:50.012 F:50.010 F:50.010 F:50.006 F:50.012 F:50.020"
or "F:50.013 FD:+00.013 REF:15:19:10 PLT:15:19:10.071 TD:+00.071 SEQ:0000000004"
Intermediate: Truncated FDM time telegram with intermediate measurements
Sent once per 100ms
M1:49.997 SEQ:0000000053
M2:49.996 SEQ:0000000054
M3:50.000 SEQ:0000000055
M4:49.999 SEQ:0000000056
M5:49.996 SEQ:0000000057
M6:49.996 SEQ:0000000058
M7:49.997 SEQ:0000000059
M8:49.995 SEQ:0000000060
M9:49.996 SEQ:0000000061
M9:49.996 SEQ:0000000062
Custom: Customized FDM time telegram, which consists of prefix, string and suffix
Sent once per second
Address: Address or host name of the message recipient (display or computer)
Port: Used TCP/UDP port for telegram transmission
Transport
Protocol: Used protocol for telegram transmission (TCP/UDP)
IMS-FDM Setup Guide Date: 4th November 2020 15

Only if receiver type "Custom" is selected
Prefix: Prefix of customized strings, control characters can be specified
by their hex value (ASCII), for example:
"\x01" for SOH (Start of Header) or "\x02" for SOT (Start of Text)
String: Customized time telegram, which can be composed of arbitrary text
and the following variables (identified by the prefix ’%’):
PLFRQ Power Line Frequency (i.e. 50.023)
FRQDEV Frequency Deviation (i.e. +00.023)
REFTIME Referenc Time (i.e. 15:17:23)
POWERLNTIME Power Line Time (i.e.. 15:17:22.550)
PLTDEV Power Line Time Deviation (i.e. -00.450)
IDX Intermediate Measurement Index (i.e. 1)
IMMFRQ1 Intermediate Measurement Frequency with Index 1 (i.e. 50.034)
IMMFRQ2 Intermediate Measurement Frequency with Index 2 (i.e. 50.034)
...
SEQID Sequence ID (i.e. 0000000061)
SYSTIME System Time (i.e. 15:17:23)
SYNCSTATE Synchronization Status (’ ’ = synchronized, ’*’ = unsynchronized)
SYNCTEXT Synchronization Text („OK“ = synchronized, „NO“ = unsynchronized)
TIMESTAMP Current Timestamp (i.e. 2016-03-15 16:03:10.042)
TIMESTRING Time string to set the display time (i.e. S16:04:37;15.03.16S)
An auto-toggle feature allows to define a sequence of formats by setting up comma-
separated format strings. Additionally, the duration of a format string can be defined
using the FORMATSTR@DURATION format.
The following example will show the Powerline Frequency for 20 seconds, then the
Reference Time for 30 seconds, then the Frequency Deviation for 10 seconds. Afterwards,
it will start over with the PLF display:
PLF %PLFRQ Hz@20,REF %REFTIME@30,FDV %FRQDEV@10
Suffix: Suffix of customized strings, control characters can be specified
by their hex value (ASCII), for example:
"\x0A" for LF (Line Feed) or "\x0D" for CR (Carriage Return)
Append
Timestamps: Indicates, whether a timestamp shall be appended to the message
16 Date: 4th November 2020 IMS-FDM Setup Guide

4 FDM - Frequency Deviation Monitoring

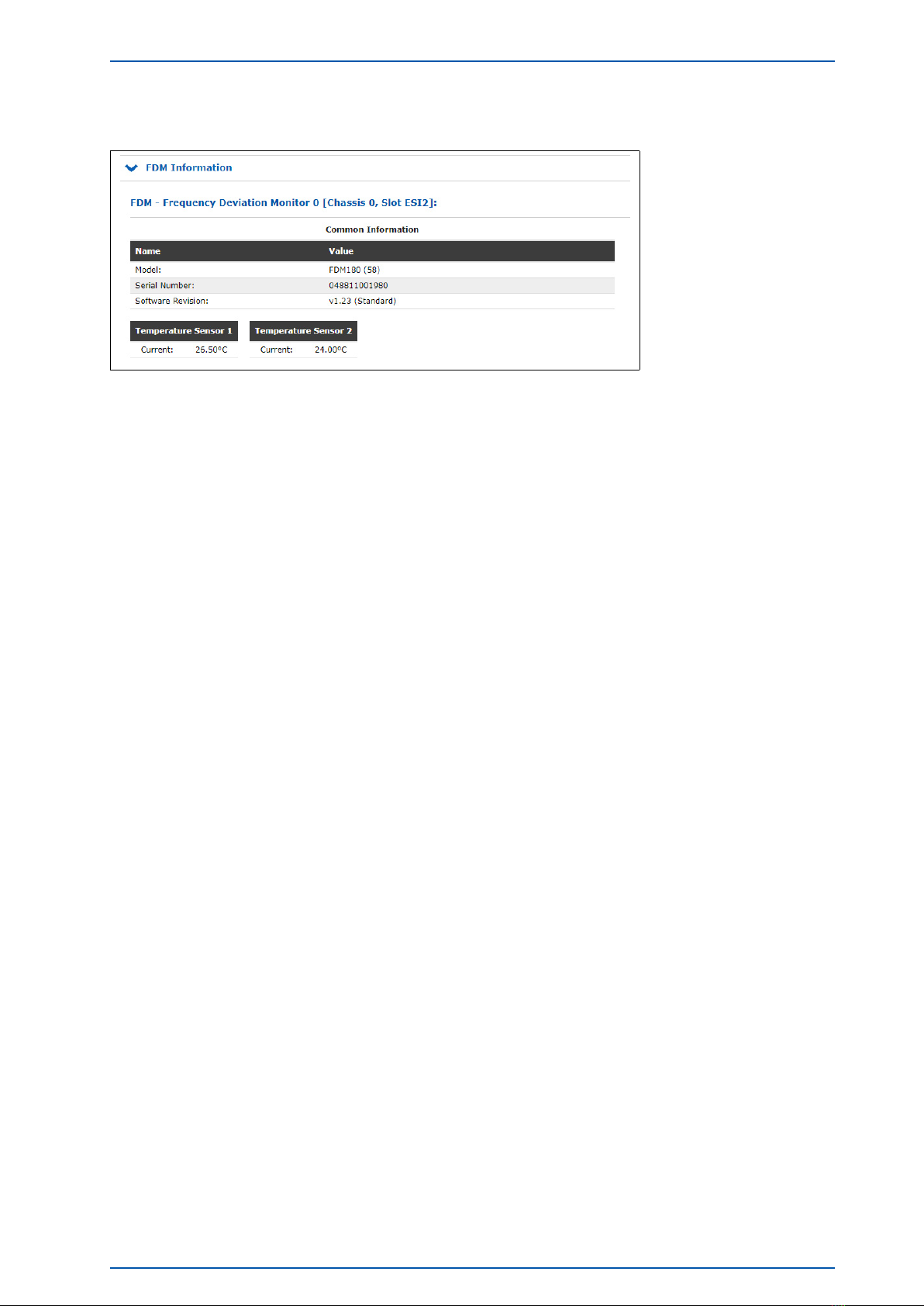

4.1.3 FDM Information
IMS-FDM Setup Guide Date: 4th November 2020 17
