**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTPRMSHPN1008DDOP-V2
DIP TREATED PREMIUM SHIPLAP PENT 10X8 DOUBLE DOOR OPENING WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
01DTPRMSHPN1008DDOP-V2
Overall Dimensions:
Width = 2973mm
Depth = 2484mm
Height = 2167mm
Base Dimensions:
Width = 2912mm
Depth = 2350mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
30
27
29
25
33
31
26
28
32
5 6 7
Roof QTY 4
AI-S21MBPR1235X1475-V1
Back Panel QTY 2
AI-S21SHPP1418X1774-V1
Right Gable Height: 2085mm QTY 1
AI-01S21SHPGR1180X2085-V1
234
1
Window Panel QTY 1
AI-01S21SH1LFW1418X2079-V1
Door Panel QTY 1
AI-01S21SHDD1418X2079-V1
Door QTY 2
AI-S21FBMBZBD551X1742-V1
Floor QTY 4
AI-R11MBF1175X1456-V1
109
Framed Window QTY 1
AI-FW1000X540-V1
24
Fascias 12x90x1235mm QTY 4
S1290-1235MM
11
Door Block 27x44x160mm QTY 4
F2744-160MM
13
Ridge Bar 27x70x1418mm QTY 6
F2770-1418MM
14 Floor Blocks 28x28x400mm QTY 8
F2828-400MM
15 Eaves Framing 28x28x1475mm QTY 4
FS2828-1475MM
16 Door Beading Strips 12x40x1686mm QTY 2
S1240-1686MM
17 Door Cover Trims 12x56x860mm QTY 1
S1256-860MM
19 Window Cover Trim 12x56x1038mm QTY 1
S1256-1038MM
20 Cover Trims 12x56x1770mm QTY 3
S1256-1770MM
22
Cover Trims 12x56x2072mm QTY 3
S1256-2072MM
23
Fascias 12x90x1487mm QTY 4
S1290-1487MM
U-Channel QTY 3
PI-07-0013
Corner Brace QTY 6
PI-07-0012
Green Felt QTY 1
PI-01-0003
Butt Hinge QTY 2
PI-07-0066
T-Hinge QTY 6
PI-07-0021
Lock Hasp QTY 1
PI-07-0221
Turn Button QTY 4
PI-07-0034
Casement Stay QTY 1
PI-07-0007
Padlock QTY 1
PI-07-0222
18 Door Cover Trims 12x56x820mm QTY 1
S1256-820MM
Right Gable Height: 1931mm QTY 1
AI-01S21SHPGR1180X1931-V1
Left Gable Height: 2085mm QTY 1
AI-01S21SHPGL1180X2085-V1
Left Gable Height: 1931mm QTY 1
AI-01S21SHPGL1180X1931-V1
21
Cover Trims 12x56x1925mm QTY 2
S1256-1925MM
8
12
Contents:

50mm Screw x 92
40mm Screw x 32
Felt Tacks x 170
20mm Screw x 10
30mm Screw x 173
60mm Bolt x 8
70mm Screw x 28
100mm Screw x 18
16mm Screw x 6
P 3
Please retain product label and instructions for future reference
Nail Bag
There may be extra screws present in the nail bag
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.

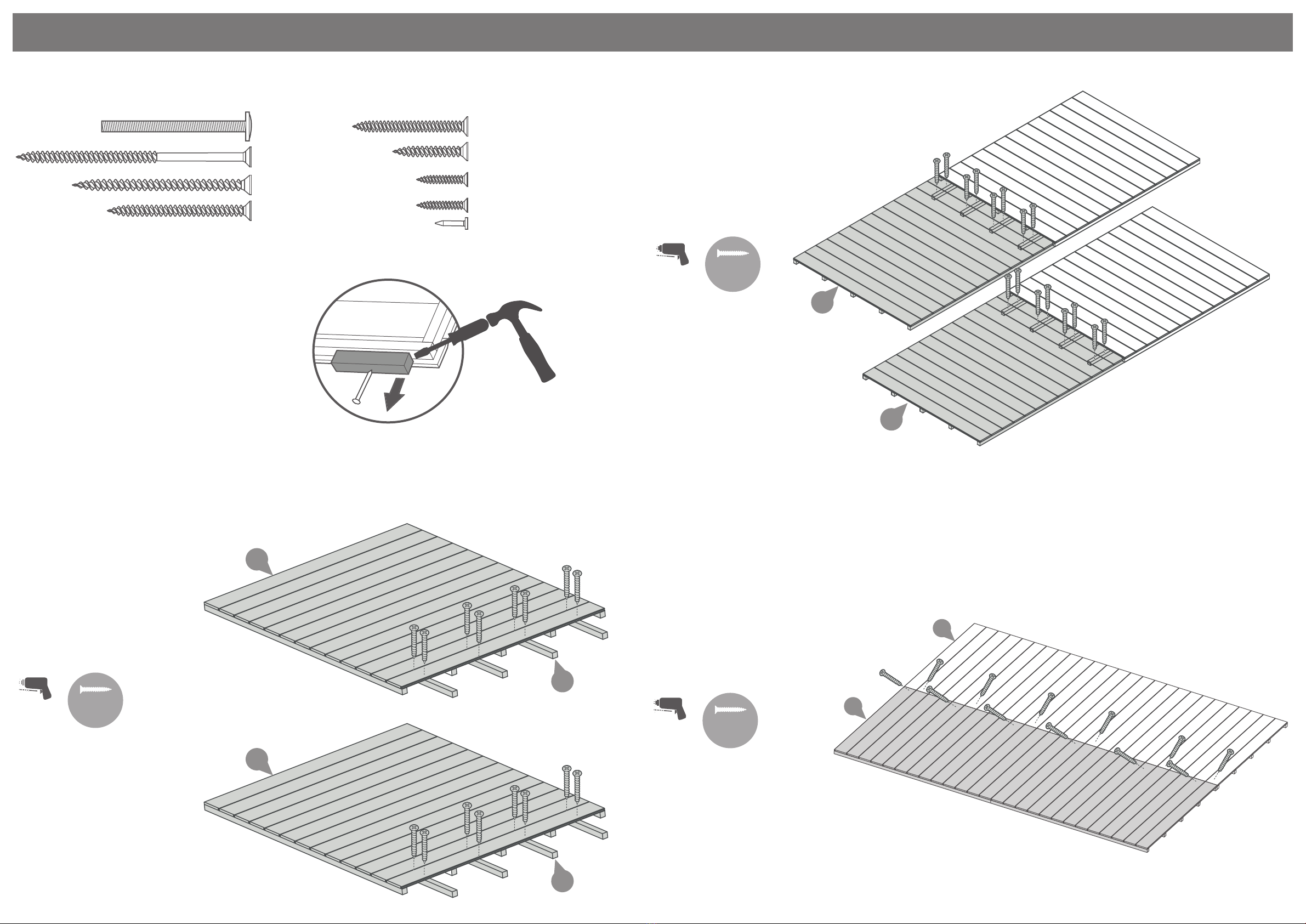

Step 1
Parts needed - No.1 QTY 2
No.14 QTY 8
Pre drill
hole
30mm
screw
14
1
Secure the Floor (No. 1) to the
oor Blocks (No. 14) using
8x30mm screws per oor.
Repeat this for one other oor
panel.
16x30mm Screws
14
1
Step 2
Parts needed- No.1 QTY 2
Pre drill
hole
30mm
screw
1
1
Secure the remaining two Floors (No.1)
to each of the assemblies from Step 1,
using 8x30mm screws per oor.
Repeat this to create two assembled
oors
16x30mm Screws
Pre drill
hole
50mm
screw
1
1
Place the assembled oor panels
(No. 1) onto a rm and level base.
Ensure the base has suitable
drainage, free from areas where
standing water can collect.
Secure the oors together using
12x50mm screws through the oor
bearers in an alternating pattern.
12x50mm Screws
Step 3

P 4
Please retain product label and instructions for future reference
Place the Back panel (No.5) and the
Left Gable 1931mm (No.9) onto the
oor. Fix the panels together at the
corner using 3x50mm Screws as
shown.
Do not secure the building to the
oor until the roof has been
tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
3x50mm Screws
Pre drill
hole
50mm
screw
SECONDARY PRIMARY
a
28
*Inside View*
Fix the T Hinges (No.28)onto the
doors (No.4) and Door Panel (No.3)
as shown using 7x30mm screws per
t-hinge
Ensure that the screws go through
the cladding and into the framing
behind.
42x30mm Screws
Step 4
Parts needed- No.3 QTY 1
No.4 QTY 2
No.28 QTY 6
3
4
4
28
28
28
28
28
28
Pre drill
hole
30mm
screw
5
9
Step 5
Parts needed - No.5 QTY 1
No.9 QTY 1
a
a
a
Place the Back panel (No.5) and the
Left Gable 2085mm (No.8) onto the
oor.
Fix the panels at the ends of the stand-
ing panels using 3x50mm Screws
Do not secure the building to the
oor until the roof has been tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
6x50mm Screws
Pre drill
hole
50mm
screw
Step 6
Parts needed - No.5 QTY 1
No.8 QTY 1 5
8
Place the Window panel (No.2) and
the Right Gable 1931mm (No.7) onto
the oor. Fix the panels at the corners
using 3x50mm Screws
Do not secure the building to the
oor until the roof has been tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
6x50mm Screws
Pre drill
hole
50mm
screw
Step 7
Parts needed - No.2 QTY 1
No.7 QTY 1
a
a
a
a
a
a
a
7
2

P 5
Please retain product label and instructions for future reference
Place the assembled Door panel (No.3)
and the Right Gable 2085mm (No.5)
onto the oor. Fix the panels at the
corner using 3x50mm Screws
Do not secure the building to the
oor until the roof has been tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
9x50mm Screws
Pre drill
hole
50mm
screw
a
Step 8
Parts needed - No.3 QTY 1
No.6 QTY 1
5
3
a
a
a
a
a
a
a
a
a
6
Connect two Ridge Bars (No.13)
together with the metal “U”
channel (No.25), using 10x30mm
screws. Ensure the ridge bar sits
into the U-channel with equal
spacing on each side.
Attach the “L” shaped corner
braces (No.29) to each end of the
Ridge bar with 2x30mm screws
per bracket.
*Ensure the bracket are ush
with the ends of the ridge bar.
Repeat this method so you have
three assembled ridge bars.
42x30mm Screws
Step 9
Pre drill
hole
30mm
screw
Parts Needed - No.13 QTY 6
No.25 QTY 3
No.29 QTY 6
13
13
29
29
25
13
13
29
29
25
13
13
29
29
25
Step 10 IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Align the assembled Ridge Bars
(No.13) with the framing of the
Gables as shown.
Secure the brackets to the central
uprights using 2x30mm screws per
bracket (No.29), as shown in the
illustration.
*Ensure the ridge bar is ush with
the top framing of the Gable
panels.
12x30mm Screws
Step 11
Parts needed - No.10 QTY 4
No.15 QTY 4
50mm
screw
Pre drill
hole
Fix one Eaves frame (No.15) to one end
of the Roof Panel (No.10) using 3x50mm
screws.
Ensure to screw through the eaves
framing and into the roof framing and
that the eaves framing is ush to the
edges of the roof framing before
securing.
Repeat this method for each Roof
panel. Each Roof Panel should have
one eaves frame attached.
12x50mm Screws
15 10
15 10
15 10
15 10

P 6
Please retain product label and instructions for future reference
Parts needed- No.10 QTY 4
Place the assembled roof panels
(No.10) onto the top of the building.
Ensure the Eaves frames (No.15) are
on the outside of the building, the
side edges are ush with the building
and there is equal spacing at the front
and back.
Step 12
15
10 10
10
10
15
15
15
Step 13
Once the roofs are level and ush with the
building. Fix the Roofs together internally,
using 16x50mm screws through the framing.
Ensure to screw in alternating sides as shown
in the diagram.
16x50mm Screws
50mm
screw
Pre drill
hole
*internal view*
Step 14
Fix the Roofs (No.10) to the top of
the building, ensuring the side edges
are ush with the building and there
is equal spacing at the front and
back.
Using 28x70mm Screws, x the Roofs
(No.10) around each edge, ensuring
the screws go through to the panels
framing below, follow the nailing
lines for accuracy.
28x70mm Screws
70mm
screw
Pre drill
hole
10
10
10
10
Step 15
Using 18x100mm screws, x the
Roof (No.10) onto the ridge bars
(No.13), ensuring to go through the
roof framing and into the ridge
bars.
18x100mm Screws
100mm
screw
Pre drill
hole 10
13
10
10
10
10

P 7
Please retain product label and instructions for future reference
b
Step 16
bb
bbb
b
b
bb
b
b
b
b
b
50mm
screw
Pre drill
hole
Once the roof is xed, attach the
building to the oor with 50mm
screws.
Ensure the screws go through the
panel into the oor framing
28x50mm Screws
b
b
Step 17
Parts needed - No.17 QTY 1
No.18 QTY 1
No.27 QTY 2
Fix the Door Cover trims (No.17
and No.18) to the Primary door
(Left side), Ensure the cover trims
are ush to the top and bottom of
the door.
Secure using 2x20mm screws per
cover trim.
Locate the Turn buttons (No.27)
above each door and secure using
2x30mm screws, Ensure the turn
buttons hold the door.
4x20mm Screws
2x30mm Screws
Pre drill
hole
20mm
screw
30mm
screw
27
27
27 27
18
17
Step 18
Parts needed - No.11 QTY 1
No.19 QTY 1
No.26 QTY 2
19
11

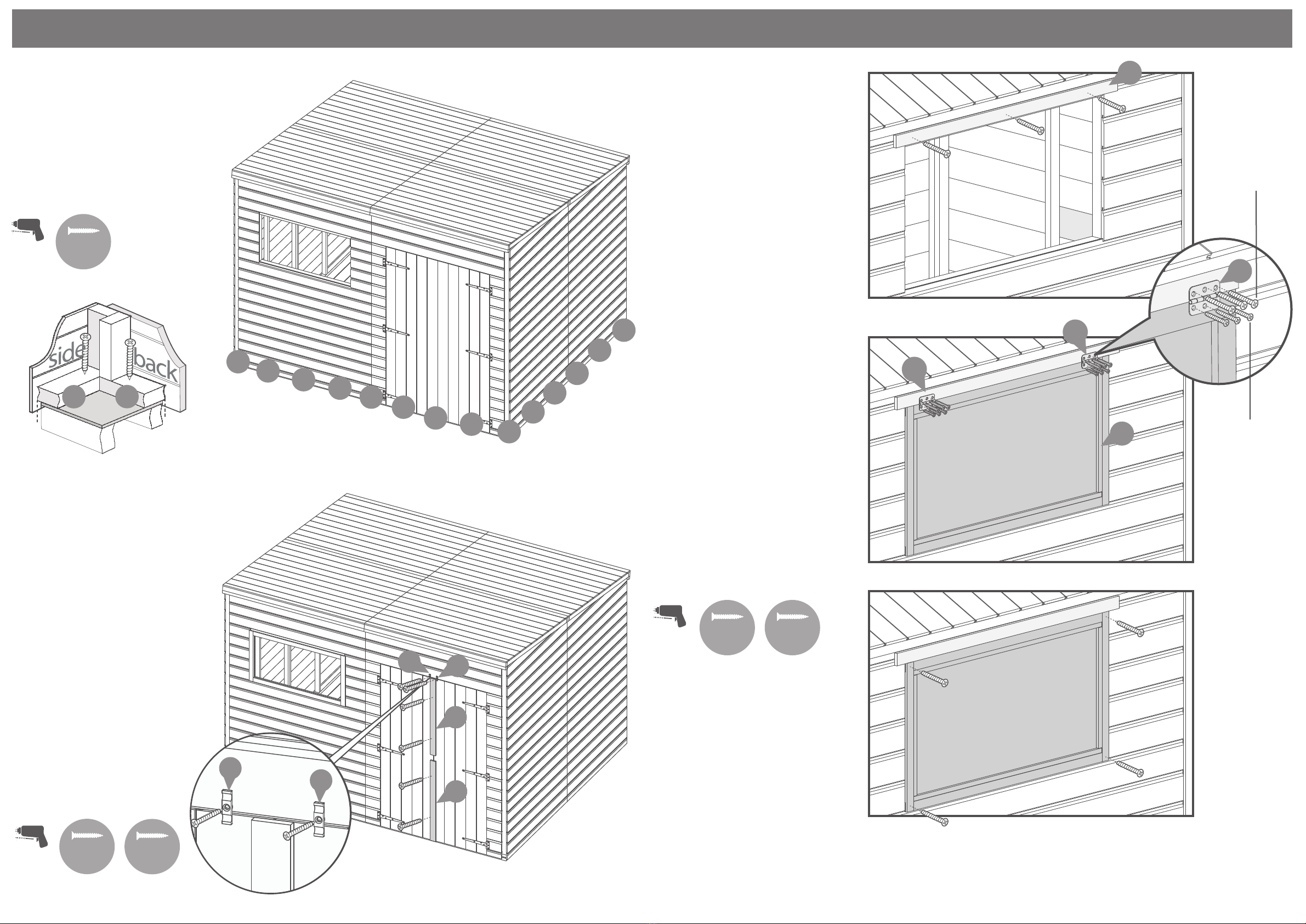

Opening Window
Fixed Window
26
Pre drill
hole
16mm
screw
30mm
screw
30mm
Screws
16mm
screws
Opening Window
Place the Window Cover Trim
(No.19) 11mm over the window
opening and x in place with
3x30mm screws per strip.
3x30mm Screws
If you would like the window
(No.11) to be opening use the
butt hinges (No.26) to attach the
window to the Window cover
trim. Fix the hinges to the
window cover trim using 30mm
screws and 16mm to t the
hinges to the
window frame.
6x16mm Screws
6x30mm Screws
Fixed Window
If you would like the window
(No.11) to be xed instead of
opening, secure the window
to panel using 4x30mm screws
per window.
4x30mm Screws
26
26

P 7
Please retain product label and instructions for future reference
P 8
Step 19
Parts needed - No.33 QTY 1
Pre drill
hole
20mm
screw
Fix the casement stay (No.33) to the window
and then align the xings to the window
panel framing.
Ensure the casement stay ts onto the xings
when closed before securing in place.
6x20mm Screws
33
Step 20
Parts needed - No.12 QTY 4
No.16 QTY 2
No.27 QTY 2
b
c
b
a
c
Fix the Door blocks (No.12) onto
the inside of the door, secure using
2x40mm screws going through the
front of the door boards and into
the block. Secure the turn button
(No.27) onto the door block
(No.12) using 1x30mm screw.
Fix the Door blocks (No.13) along
the central framing on the inside of
each door as shown in the diagram,
using 2x40mm screws through the
door cladding and into the block.
Fix the Door Beading strips (No.16)
to the door framing and secure
using 4x30mm screws per strip.
10x30mm Screws
8x40mm Screws
Pre drill
hole
30mm
screw
40mm
screw
a
27
12
27
12
16
16
12 12 12
16
27
12
Felt
tacks
Step 21
Parts needed- No.31 QTY 1
Cut the Felt (No.31) into 3 sheets at
3050mm(L) X 1000mm(W).
Lay onto roof as shown in diagram
ensuring there is a 50mm overhang
around the sides.
Apply the felt tacks with a 100mm
space per tack.
170 x Felt tacks
HANDLE
WITH CARE
2
3
4
1
2
3
31

P 9
Please retain product label and instructions for future reference
P 8
60mm
Bolts
Pre drill
hole

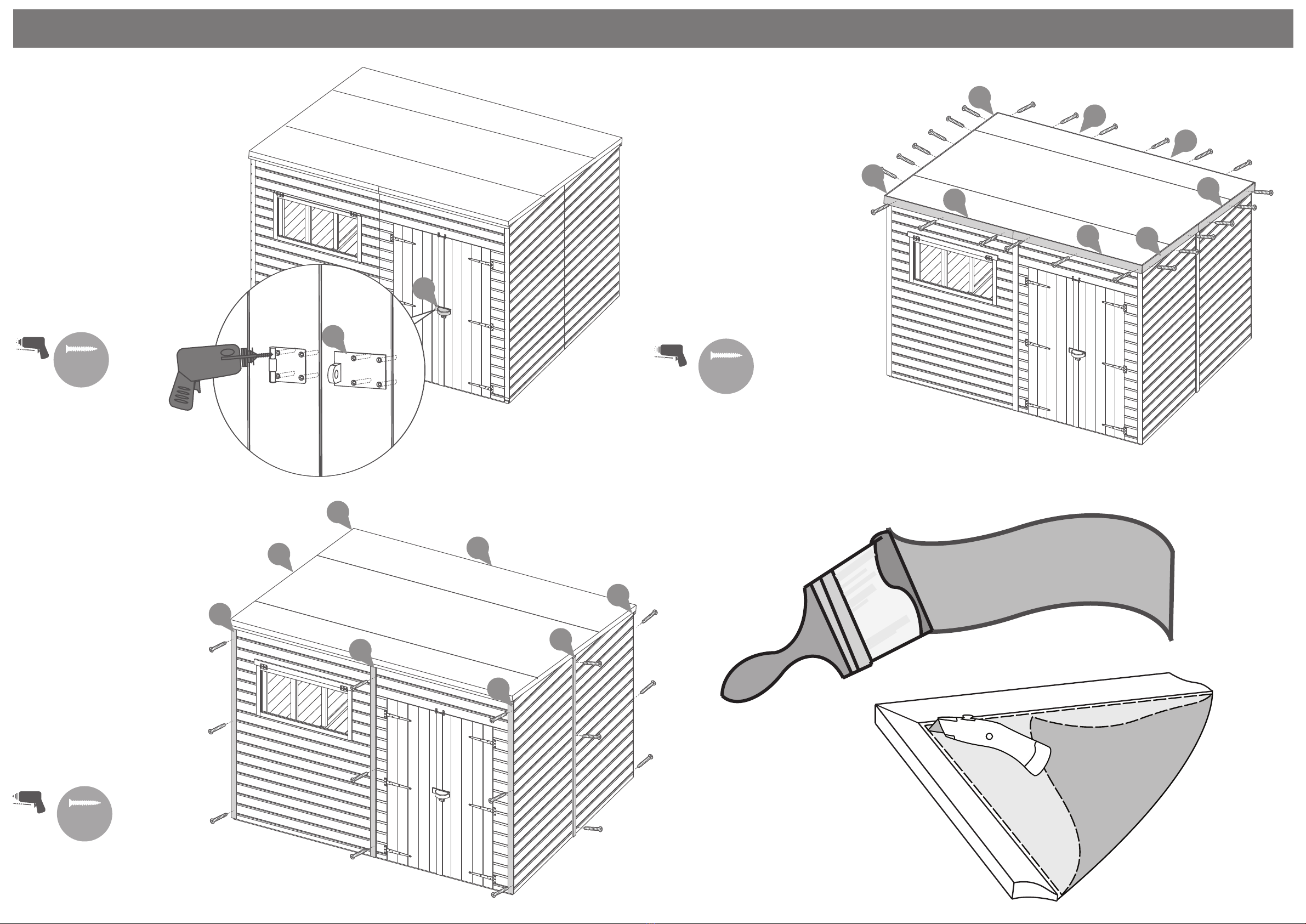

Step 22
Parts needed- No.32 QTY 1
Align the lock (No.32) to the door,
ensuring equal spacing between
the cover trims and across the
doors.
Measure and mark the holes of the
lock (No.32) and drill through the
boards and through the framing
and door blocks
Fix the lock onto the door using
8x60mm Carriage Bolts and Nuts
8x60mm Carriage Bolts and Nuts
32
32
Step 23
Parts needed -No.20 QTY 3
No.21QTY 2
No.22 QTY 3
Fix the Cover trims to the corners
and across each join of the building
as shown.
Cover trims (No.22) to the front
corners of the building, (No.21) to
the sides and (No.20) to the back
corners of the building as shown.
Secure to the buiding using
3x30mm screws per cover trim.
24x30mm Screws
Pre drill
hole
30mm
screw
20
22
22
22
21
21
20
20
Step 24
Parts needed- No.23 QTY 4
No.24 QTY 4
Fix the Fascias (No.23) to the front
and back of the building and secure
using 3x40mm screws per fascia.
Fix the Fascias (No.22) to the sides
of the building, secure using
3x40mm screws per fasica.
Ensure the Fascias are ush to the

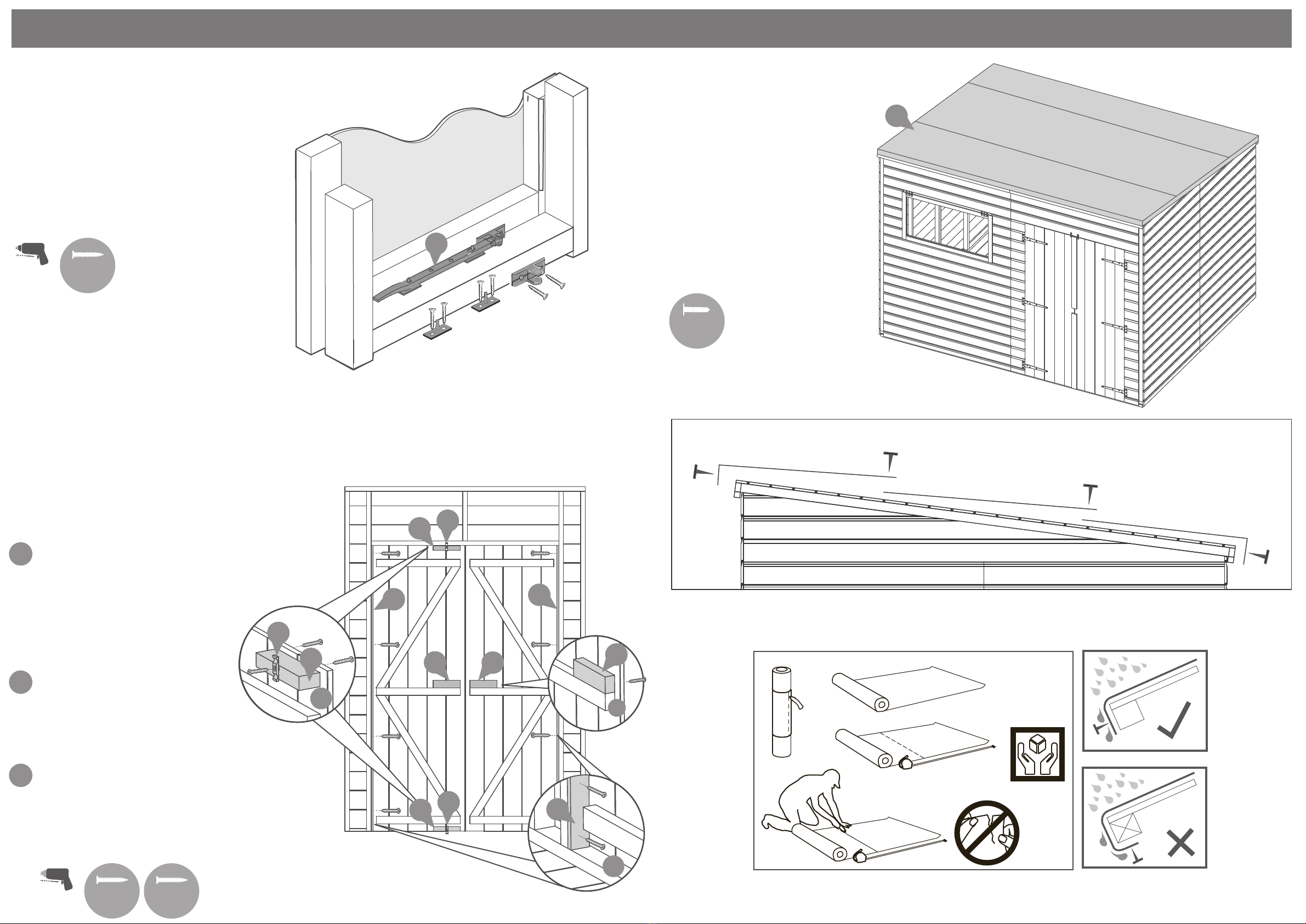

top of the building and trap the felt
between before securing.
24x40mm Screws
Pre drill
hole
40mm
screw
23
23
23
23
24
24
24
24
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back





















































2





1












3
4

































¡




1




2























¡



