Mercia Garden Products 01DTOVAX1006DDFW-V1 User manual



 
















  



2mm Drill bit
x2 


































     






















                










 
















































¡



ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:


 

8

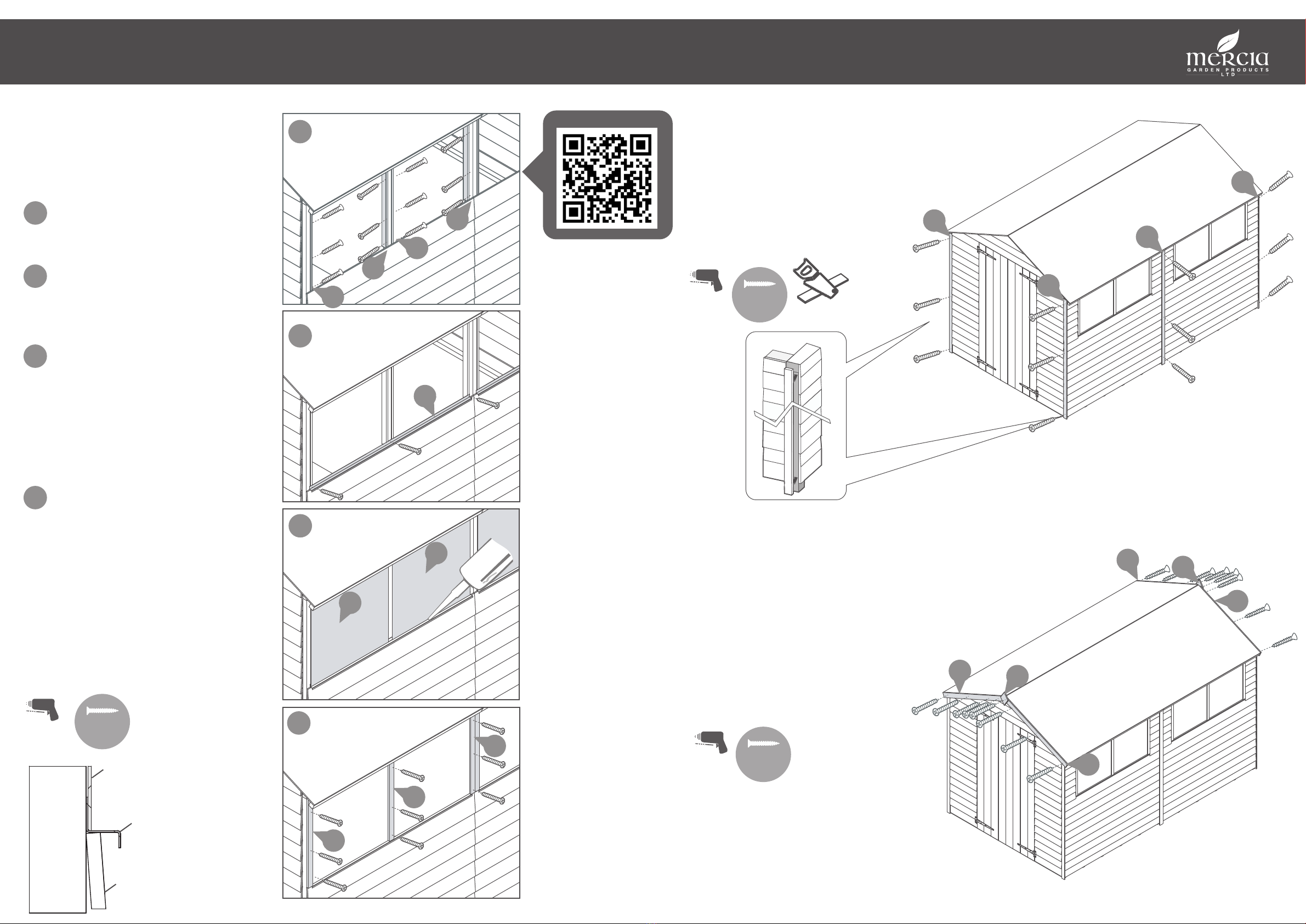

Some steps within this set of instructions come with an added video guide for your
convenience. These can be accessed via the QR code and used to aid you in constructing that
step. See below for how to use.
You can also nd all the videos on our youtube channel:
https://www.youtube.com/@merciagardenproducts8716/videos

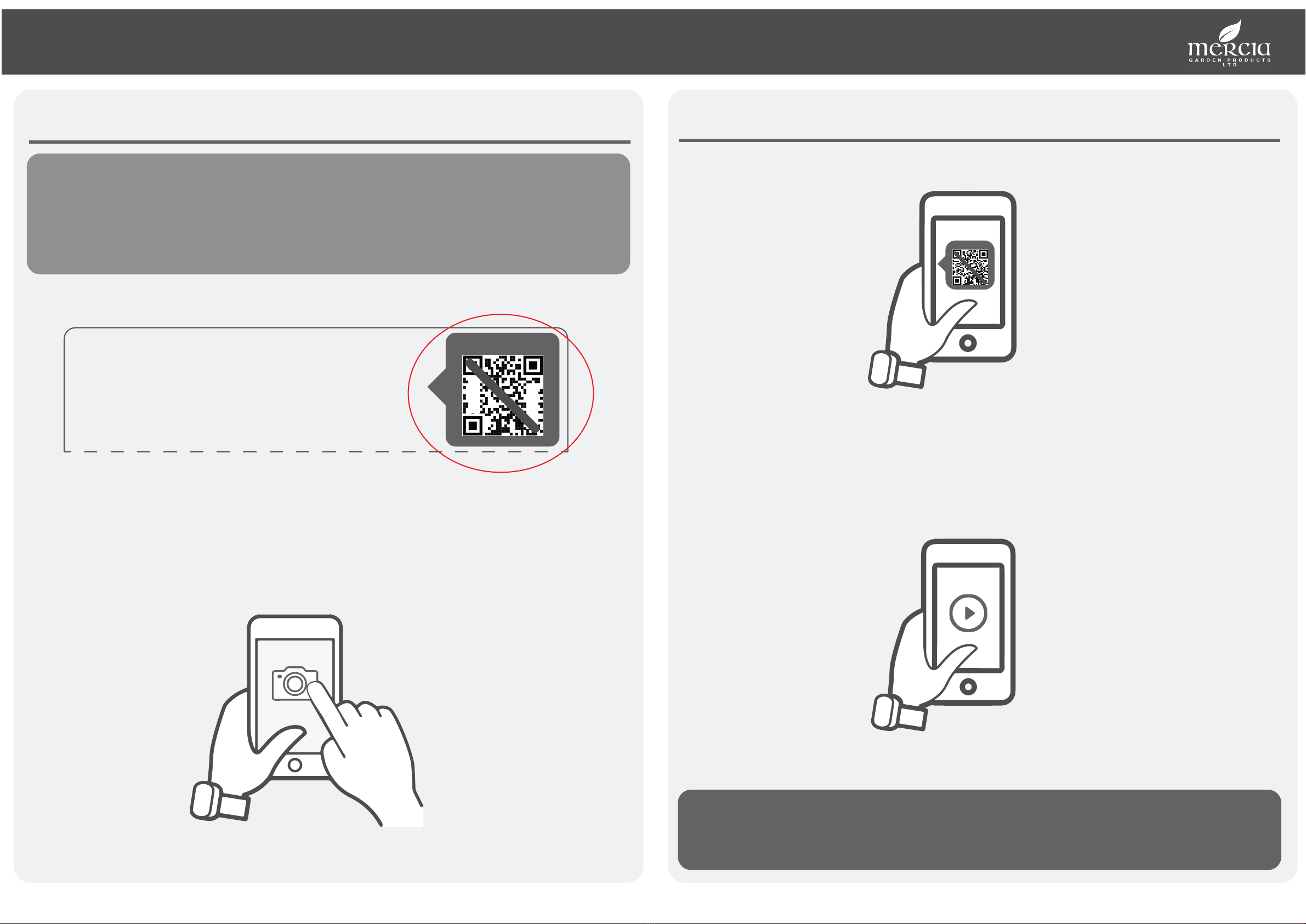

ACCESSING VIDEO GUIDES...
1.Find the QR code within the instruction step...
2. Open camera app...
3. Scan QR code...
4. Watch the video...
On your personal smart device (phone, tablet etc), open your camera app or QR code scanner
app.
To scan the QR code, hold the camera over the QR code so that it can be seen on the screen.
Once the QR code has been registered, follow the prompts on your device to open the video.
(This will vary depending on your device.)
Please note: Ensure to use the back camera of your smart device as this will scan the QR code more
accurately.

The video guide will now be displayed on your smart device.
Parts Needed- No. QTY 1
No. QTY 1
No. QTY 1
Step..... 
Within the instruction step, there will be an icon in the top right that has a QR code in. This
is where the video can be accessed from.
Please note: not every step has a video guide.
Disclaimer: The garden building constructed in the video guides may be
constructed dierently to your building. Please ensure to read your instructions
carefully to avoid error.
ACCESSING VIDEO GUIDES...

 

Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 29947mm
Depth = 1904mm
Height = 1987mm
Base Dimensions:
Width = 2912mm
Depth = 1753mm
01DTOVAX1006DDFW-V1
01DTOVAX1006DDNW-V1

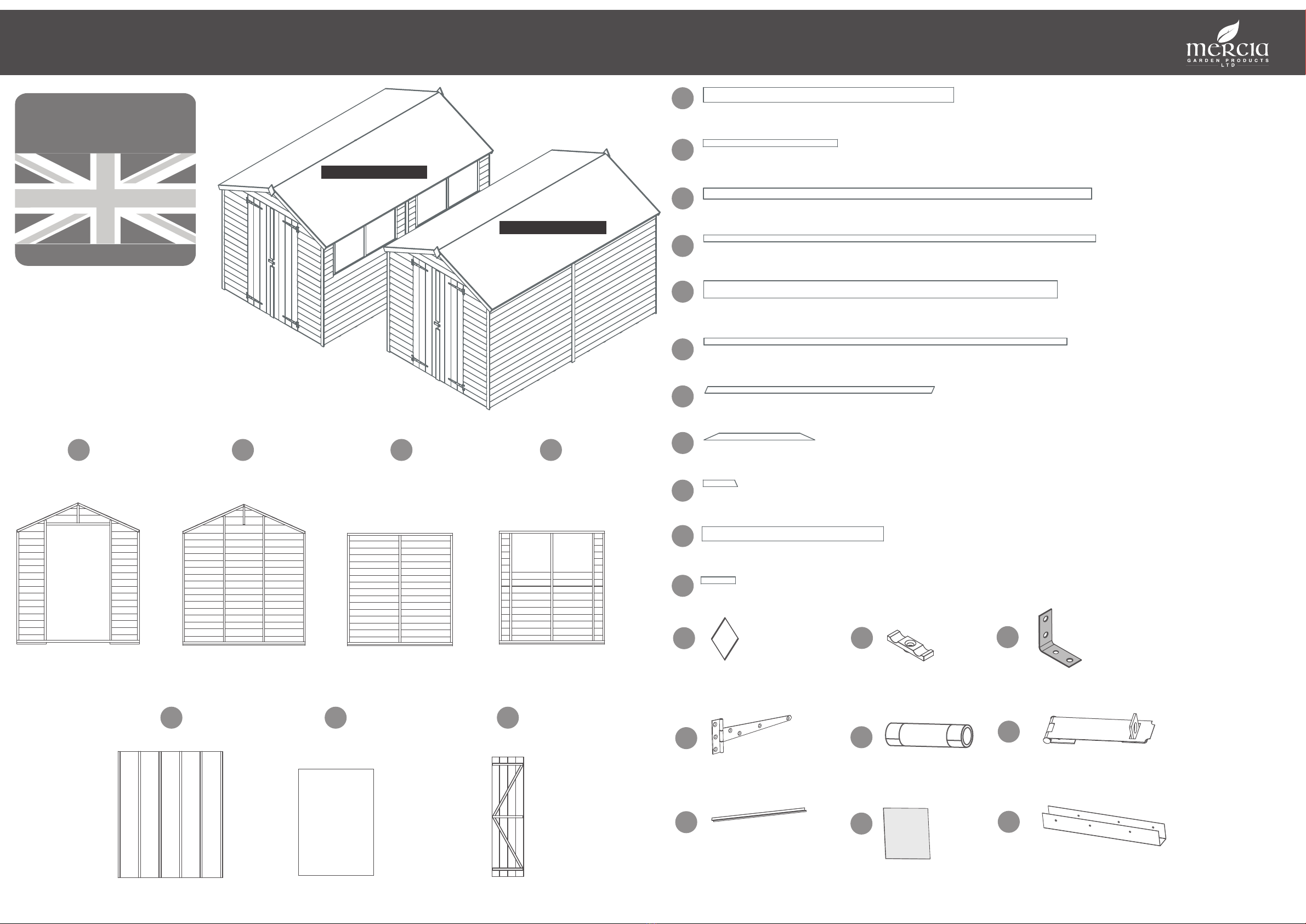

Building Content:
Door Gable QTY 1
AI-01R11OVAGSD1707X1961-V1
Back Gable QTY 1
AI-01R11OVAGP1707X1961-V1
Plain Panel QTY 2
(QTY 4 WINDOWLESS ONLY)
AI-R11OVPP1461X1567-V1
Window Panel QTY 2
(WITH WINDOW ONLY)
AI-01R11OV2CW1461X1567-V1
1 2 3 4
Floor QTY 2
AI-R11OSBF1753X1456-V1
Roof Sheet QTY 4
PI-03-0380
(1473MM X 1039MM)
5 6 7
Door QTY 2
AI-R11FBMBZBD437X1660-V1
10
11
12
13
14
Fascia 12x60x1016mm QTY 4
S1260-1016mm
Fixed Window Strip 12x30x546mm QTY 10 (WITH WINDOW ONLY)
S1230-546mm
Cover Trims 12x45x1575mm QTY 6
S1245-1575mm
Ridge Bar 27x70x1433mm QTY 2
F2770-1433mm
Finial QTY 2
SHED DIAMOND FINIAL
8
9
19
18
17
Door Beading Strip 7x28x1590mm QTY 2
OVLPR28-1590mm
T Hinge QTY 4
PI-02-1043
Plastic Window Cill QTY 2
(WITH WINDOW ONLY)
PI-08-0013 Styrene QTY 4
(WITH WINDOW ONLY)
PI-05-0114
20
22
23
24
25
26
27
L-Bracket QTY 2
PI-07-0012
16
Turn Button QTY 2
PI-07-0034
21
15
Eaves Frame 28x28x1473mm QTY 4
F2828-1473mm
Hasp and Staple QTY 1
PI-07-0207
U Channel QTY 1
PI-07-0013
Truss Frame - 27x44x931mm QTY 2
F2744-G-971mm
Truss Support Brace - 27x44x450mm QTY 1
F2744-G-490mm
Truss Block - 27x44x140mm QTY 2
F2744-G-160mm
Door Strip - 12x60x770mm QTY 2
S1260-770mm
Door Block - 28x28x140mm QTY 2
F2828-140mm
Felt

 

Nail Bag
There may be extra screws present in the nail bag
Felt Tacks x 130
30mm Screw x 141
50mm Screw x 52
40mm Screw x 68
20mm Screw x 6

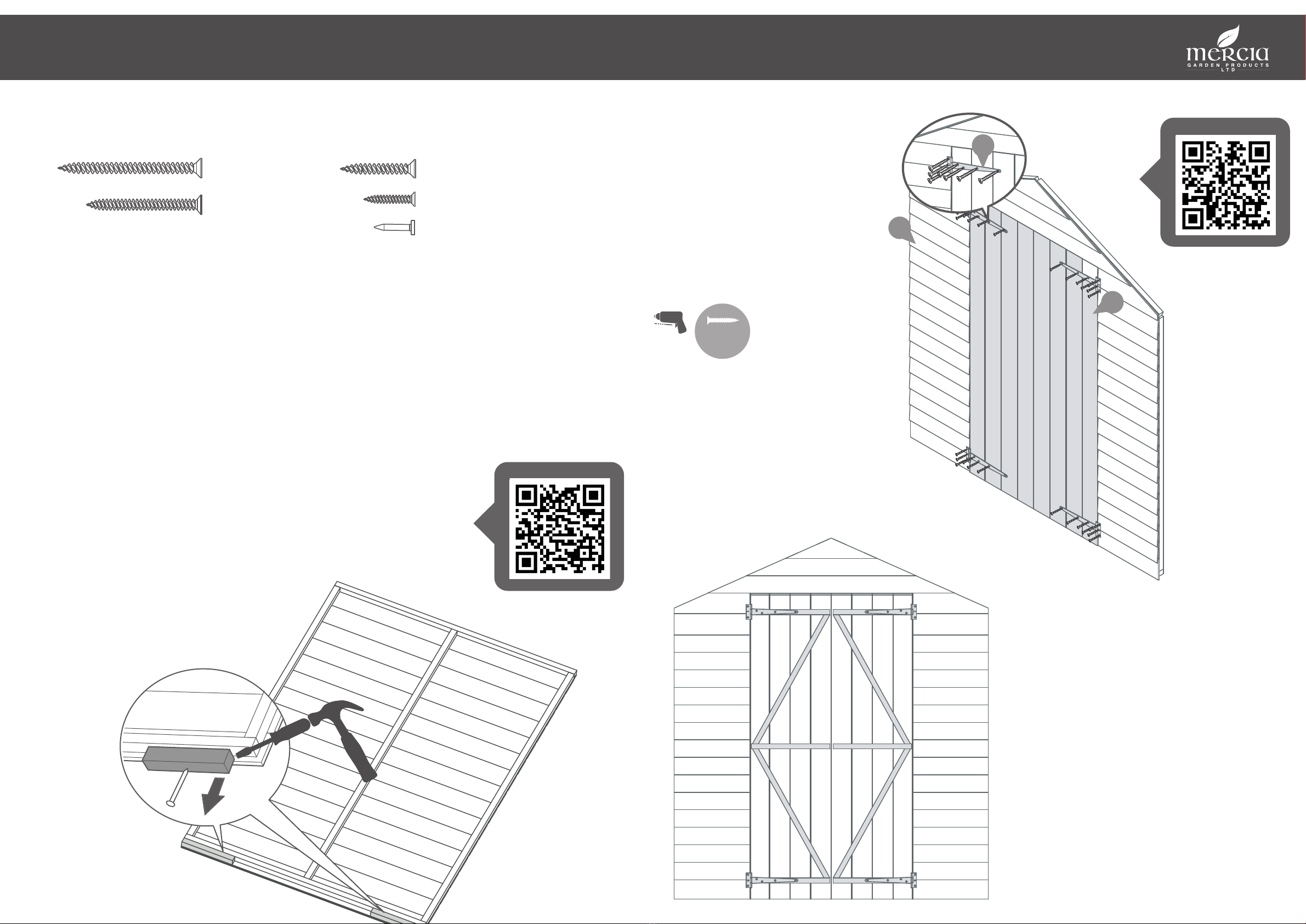

Pre Assembly
Before assembling remove the transportation blocks from the bottom of each
panel.
Take care removing the blocks as to not damage the panels. Tap with a at
headed screwdriver and hammer.
Dispose of the blocks once removed.
PLEASE SCAN HERE:

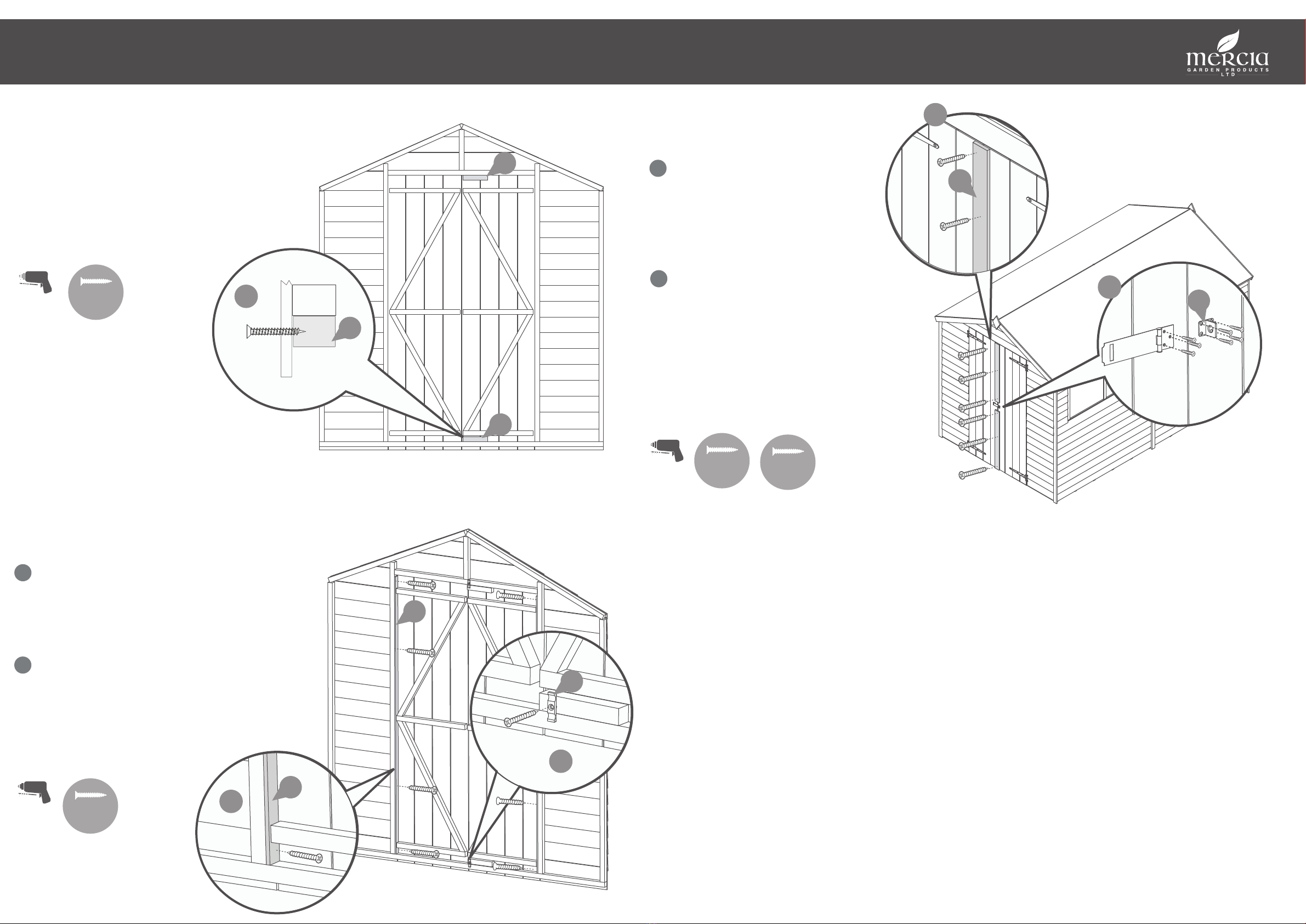

Step 1
Parts needed - No. 1 QTY 1
No. 7 QTY 2
No. 20 QTY 4
Place the doors (No. 7) within the door
gable opening. Fix the T Hinges (No.20)
onto the door and Door Gable as shown.
Ensure that the screws go through the
cladding and into the framing behind.
28x30mm screws
30mm
screw
Pre drill
hole
**PLEASE NOTE** Before tting the
hinges, ensure the inner door framing
is the correct way round as shown in
the illustration below.
IMPORTANT: Pre-drill before xing screws.
20
1
7
The Correct positioning of the Double Doors
PLEASE SCAN HERE:

 


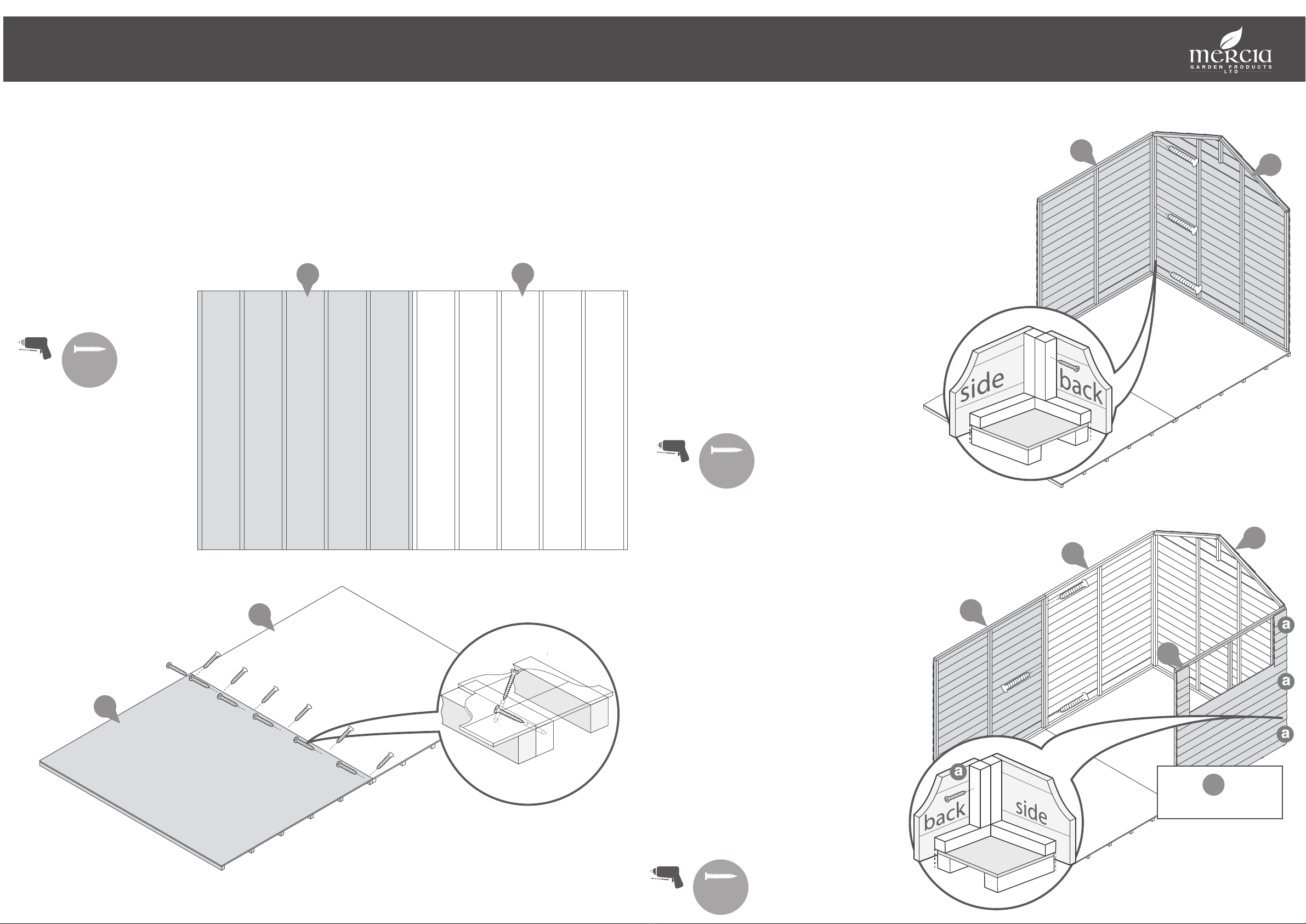

Step 2
Parts needed - No. 5 QTY 2
Place the oors (No.5) on a rm and level
base, ensure the base has suitable drain-
age free from areas where standing water
can collect.
See the front page for base requirements.
Attach the oors together using
12x40mm screws.
12x40mm Screws
5
5
40mm
screw
Pre drill
hole
55
IMPORTANT: Pre-drill before xing screws. Step 3
Parts needed - No. 2 QTY 1
No. 3, (or 4) QTY 1
**Please note: Whether you have purchased
the with windows building or no windows
building, the panels are interchangeable.
Decide which works best before assembly.**
Fix the corners of the Back Gable (No.2) and the
Plain Panel (No.3) (or Window Panel) with
3x50mm screws as shown in the illustration.
Do not secure the building to the oor until the
roof is tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
3x50mm Screws
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
3
2
Step 4
Parts needed - No. 3, (or 4) QTY 1
No. 4, (or 3) QTY 1
Fix the corners of the Back Gable (No.2) and
the Window Panel (No.4) (or Plain Panel)
with 3x50mm screws as shown in the
illustration.
Fix the ends of the Plain Panel (No.3) (or
Window Panel) to the already standing Plain
Panel (No.3) (or Window Panel) with
3x50mm screws as shown in the illustration.
Do not secure the building to the oor until
the roof is tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
6x50mm Screws
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
3
3
2
Use for no
window buildings
3
4

 

Use for no
window buildings
3

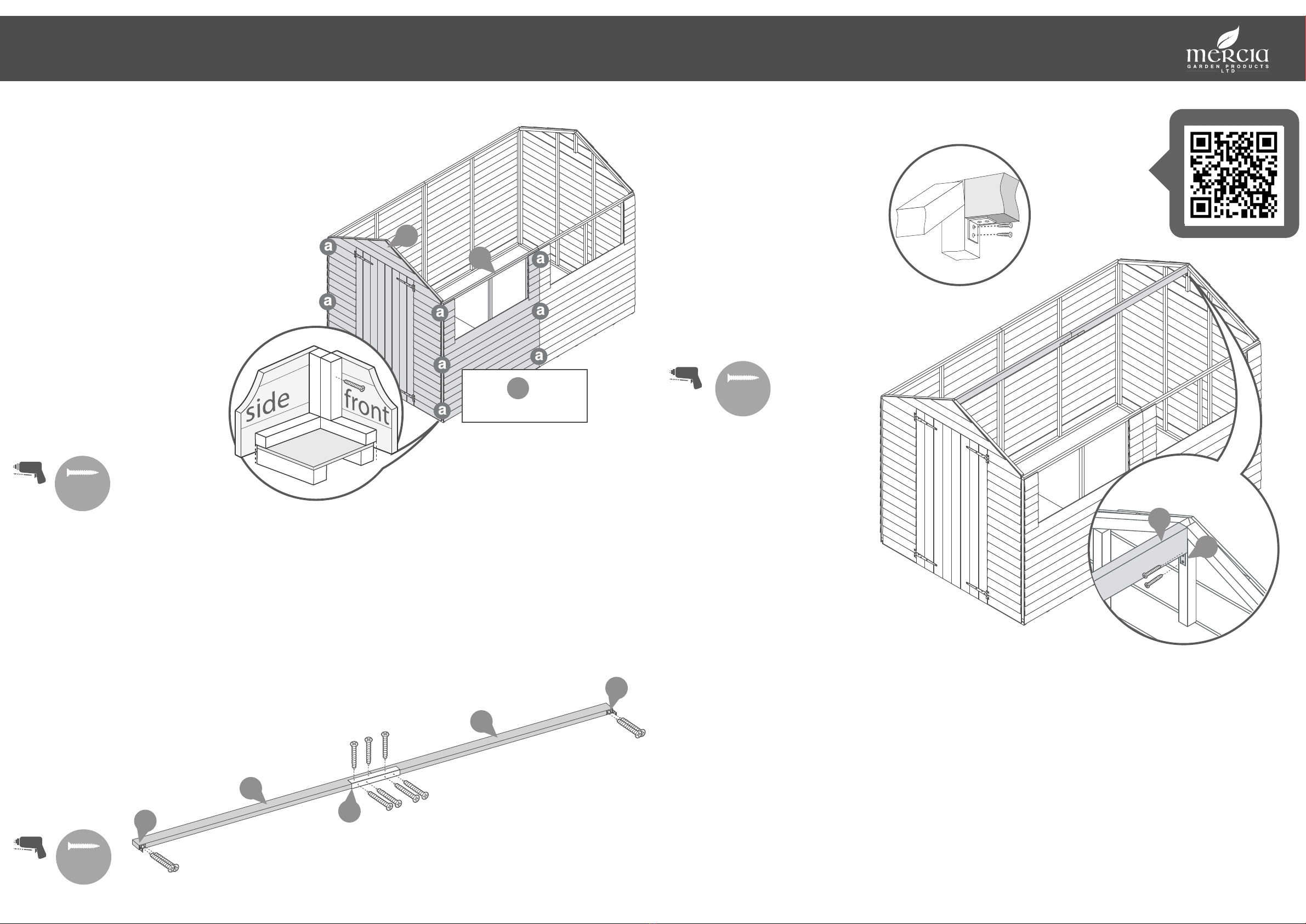

Step 5
Parts needed - No. 1 QTY 1
No. 4, (or 3) QTY 1
Fix the end of the Window Panel (No.4)
(or Plain Panel) to the already standing
panel with 3x50mm screws as shown
in the illustration.
Fix the corners of the Door Gable
(No.1) to the ends of the Side Panels
with 6x50mm screws as shown in the
illustration.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
9x50mm Screws
1
4
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 6
Parts needed - No. 12 QTY 2
No. 25 QTY 2
No. 27 QTY 1
Connect the Ridge Bars (No. 12) together
with the metal U-Channel (No. 27), using
10x30mm screws.
Attach the L-Brackets (No. 25) to each end
of the Ridge Bars (No. 12) with 2x30mm
screws per L-Bracket.
*Ensure the L-Brackets are ush with the
ends of the ridge bars.
14x30mm Screws
Pre drill
hole
30mm
screw
27
25
25
12
12
IMPORTANT: Pre-drill before xing screws.
Step 7
Place the assembled ridge bar in
between the Gables (No. 1&2) in line
with the central uprights within the
gables.
If you have not yet assembled your
ridge bar please refer to step 6.
Secure the ridge bar (No. 12) to the
central uprights with 2x30mm
screws per L-Brackets (No. 25), as
shown in the illustration.
4x30mm Screws
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
25
12
PLEASE SCAN HERE:

 

6
6
12
12
12
6
6
13
30mm
screw
40mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.

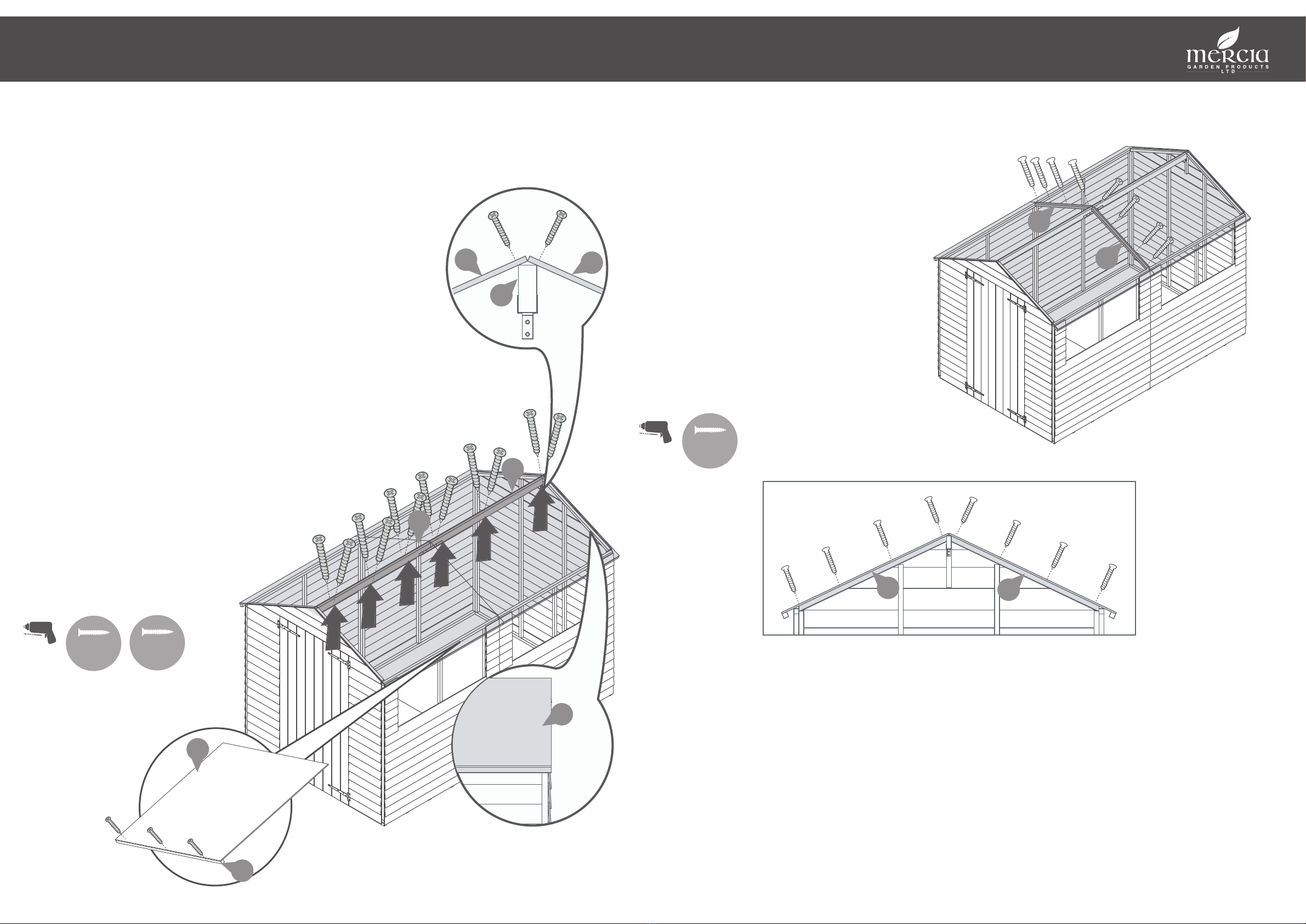

Step 8
Parts needed - No. 6 QTY 4
No. 13 QTY 4
Fix the eaves frames (No.13) to each roof
sheet (No.6) using 3x30mm screws per
eave.
12x30mm Screws
Place the Roof Sheets (No. 6) on top of the
building making sure the roof sheet meets
the pointed edge of the Gables (No. 1&2)
and it sits well on the top of the Ridge Bar
(No. 12).
**The edges of the roof sheets must be
ush with the outer cladding of the
Gables (No. 1&2).**
From the top, x directly through the roof
sheets (No. 6) and into the ridge bar
(No.12) below using 3x40mm screws per
roof sheet.
It is essential that the ridge bar (No. 12)
and the roof sheet (No. 6) pull together
when xed with 40mm screws. You may
require another person pushing the ridge
bar (No. 12) up from below to achieve this.
12x40mm Screws
30mm
screw
Pre drill
hole

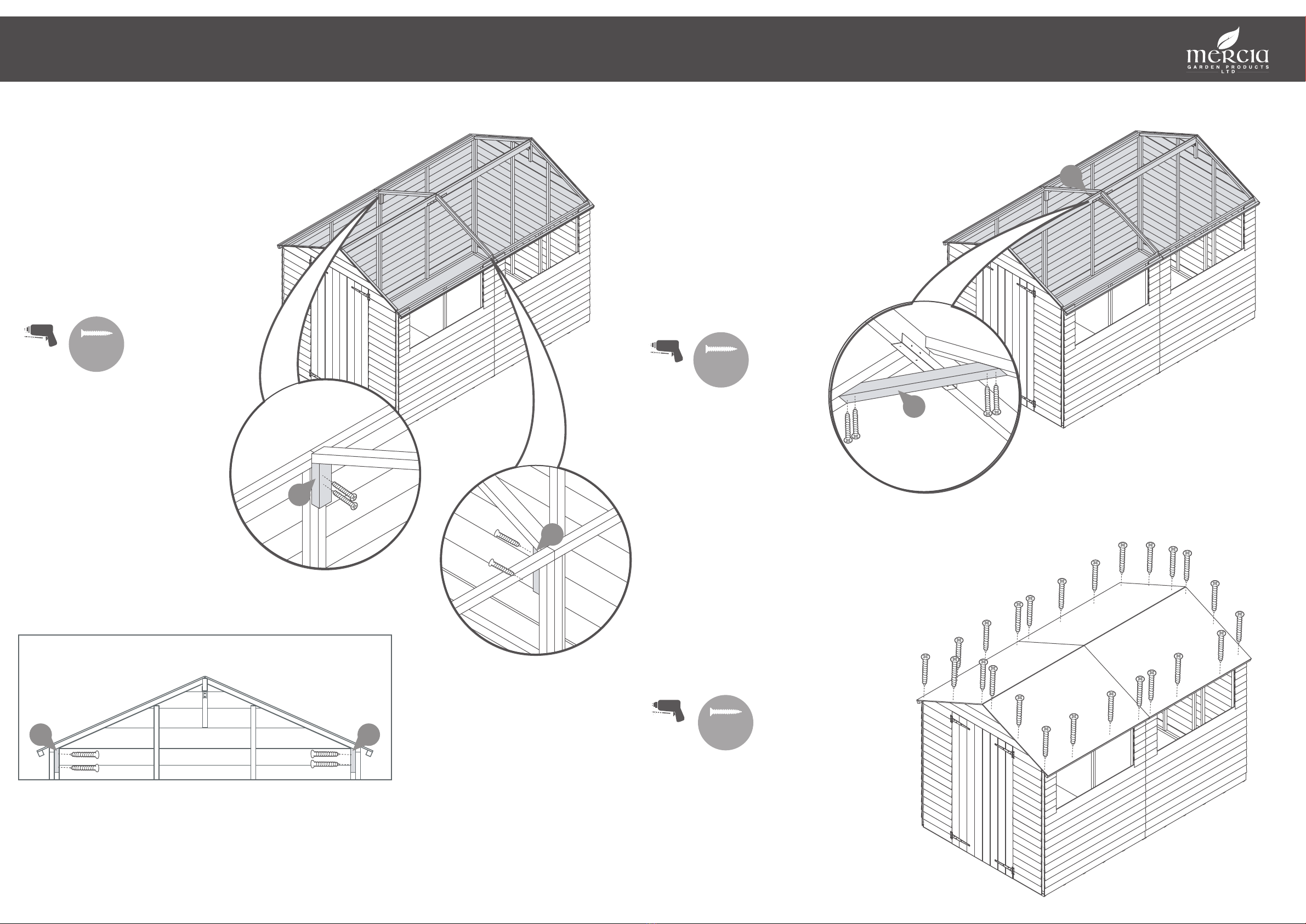

Step 9
Parts needed - No. 14 QTY 2
Position a Truss Frame (No. 14), centrally
underneath the join of the two roof sheets
(No. 6) internally. Ensure the Truss Frame
(No. 14) sits ush to the underside of the
roof sheets and ush at the top as shown
in the illustration.
Fix the Truss Frame (No. 14) in place
using 30mm screws xing through the
roof sheet (No. 6) into the Truss Frame
(No. 14) from the outside of the building.
*Alternate screwing through each roof
sheet for a more secure hold.
8x30mm Screws
14
14
14 14
IMPORTANT: Pre-drill before xing screws.

 
¡
Step 10
Parts needed - No. 16 QTY 2
Place Truss Block (No. 16) directly below
the Truss Frame (No. 14). Fix the Truss
Block to the framing within where the side
panels meet in the centre. Fix in place
with 2x50mm screws.
Repeat the above two actions on either
side of the building.
4x50mm Screws
Pre drill
hole
50mm
screw
16
16
16
16
IMPORTANT: Pre-drill before xing screws.
15
Step 11
Parts needed - No. 15 QTY 1
Place the Truss Support Brace (No. 15)
underneath the two Truss Frames (No. 14)
ensuring they sit ush to one another. The
Truss Support Brace (No. 15) should sit
horizontal - parallel to the oor.
Once in position x the Truss Support
Brace (No. 15) in place with 2x40mm
screws at each end of the brace.
4x40mm Screws
40mm
screw
Pre drill
hole
15
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 12
Use 40mm screws to x the roof sheets
(No. 6) down the sides and at the bottom
being sure that the screws attach into the
framing below.
Esnure there is no more than 300mm
between each screw.
24x40mm Screws

 


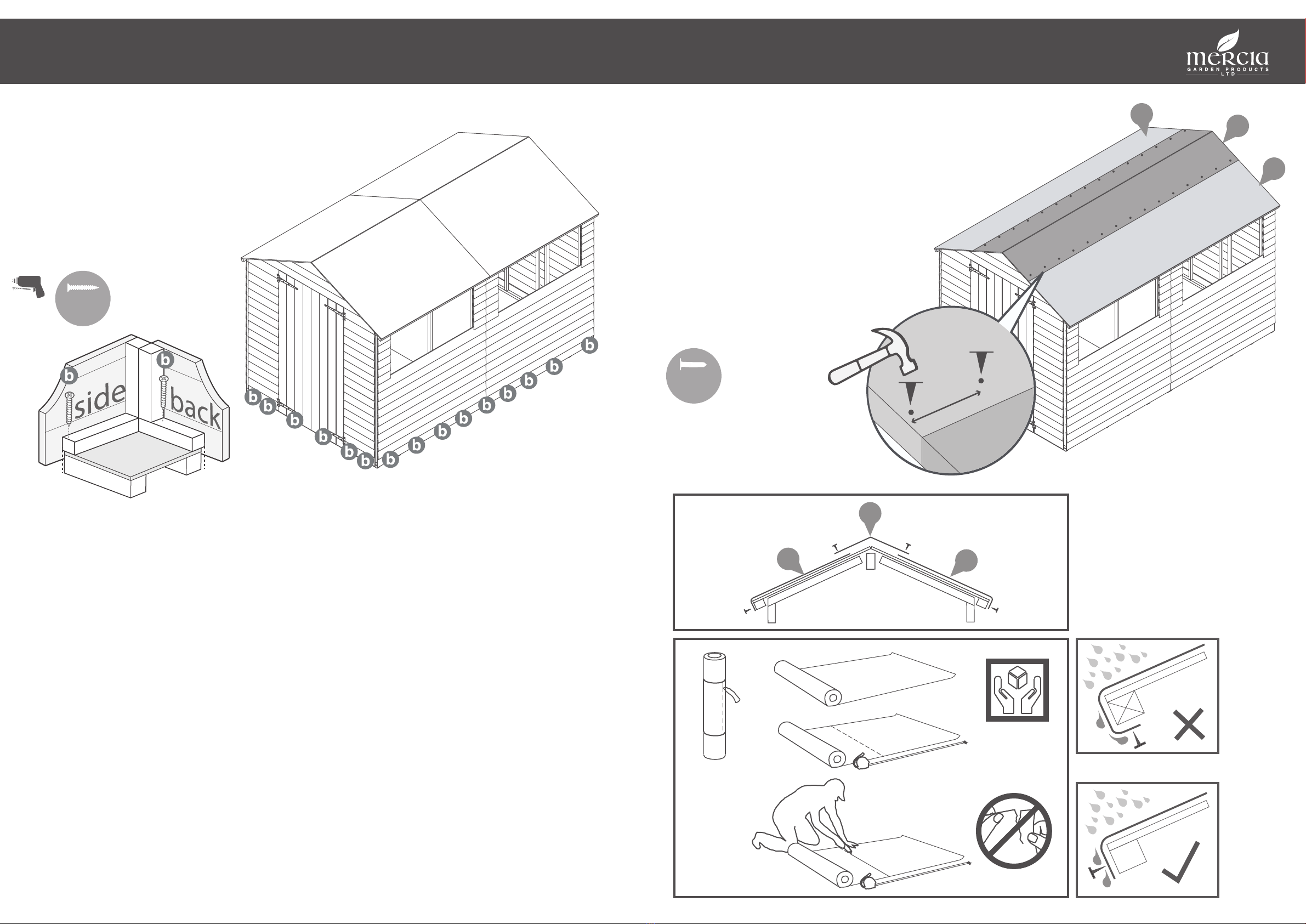

Step 13
Once the roof is xed,
attach the building to the oor
with 50mm screws.
Ensure the screws go through
the panel into the oor faming.
30x50mm Screws
50mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws. Step 14
Parts needed - No. 23 QTY 1
Cut the felt (No. 23) into three sheets
measuring 3050mm (L) x 1000mm (W).
Lay the sheets onto roof as shown in diagram,
ensuring there is a 50mm overhang around
the sides and that the sheets overlap by
100mm.
Secure in place using felt tacks with a 100mm
space per tack.
130 x Felt Tacks
Felt
tacks
23 23
23
23 23
23
100mm

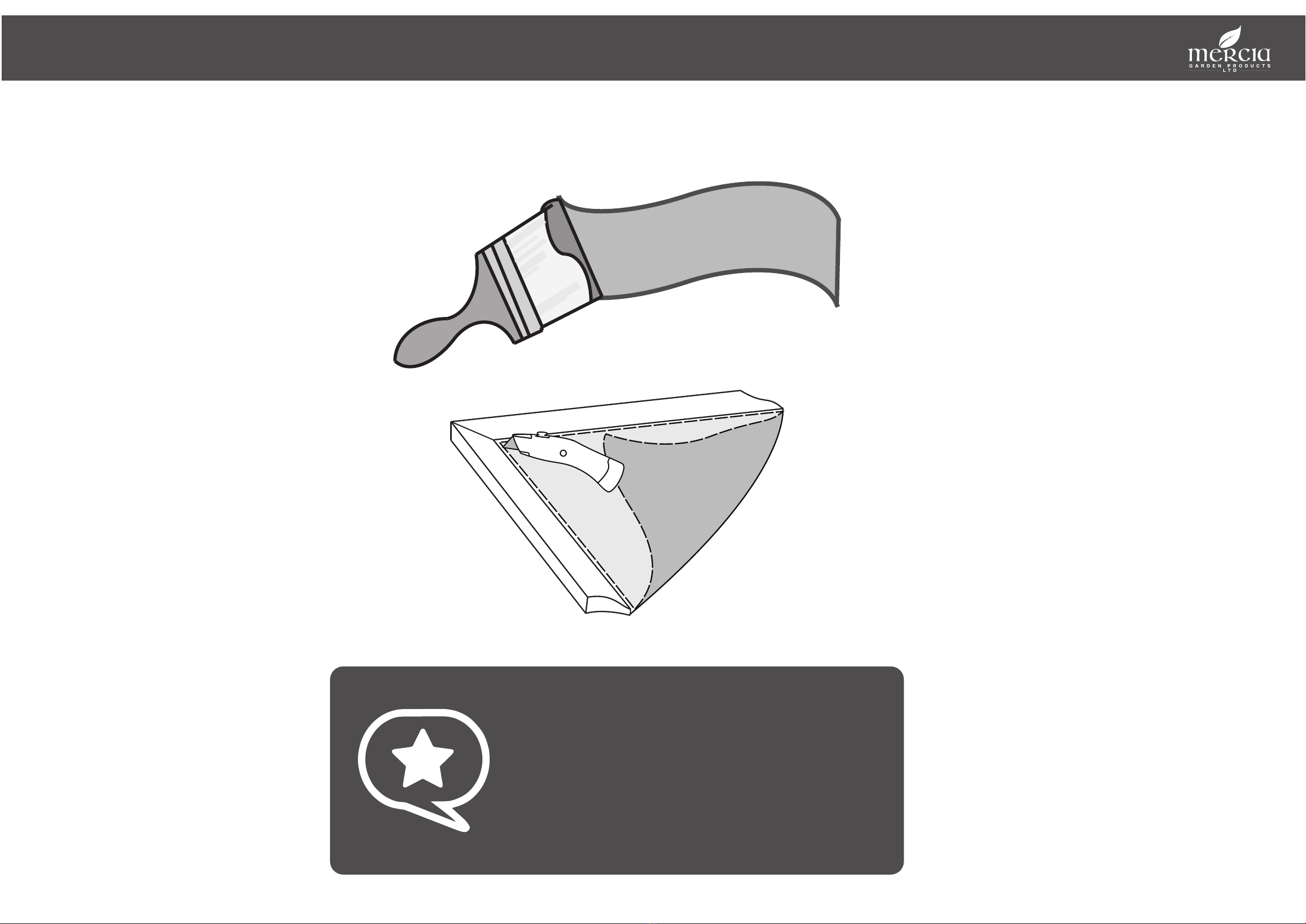

HANDLE
WITH CARE
1 2
3
4
