Mercia Garden Products 0644CVNE0403HGDD3SW-V1 User manual
2mm Drill bit
x2
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 4064mm
Depth = 3486mm
Height = 2600mm
Base Dimensions:
Width = 3818mm
Depth = 2817mm

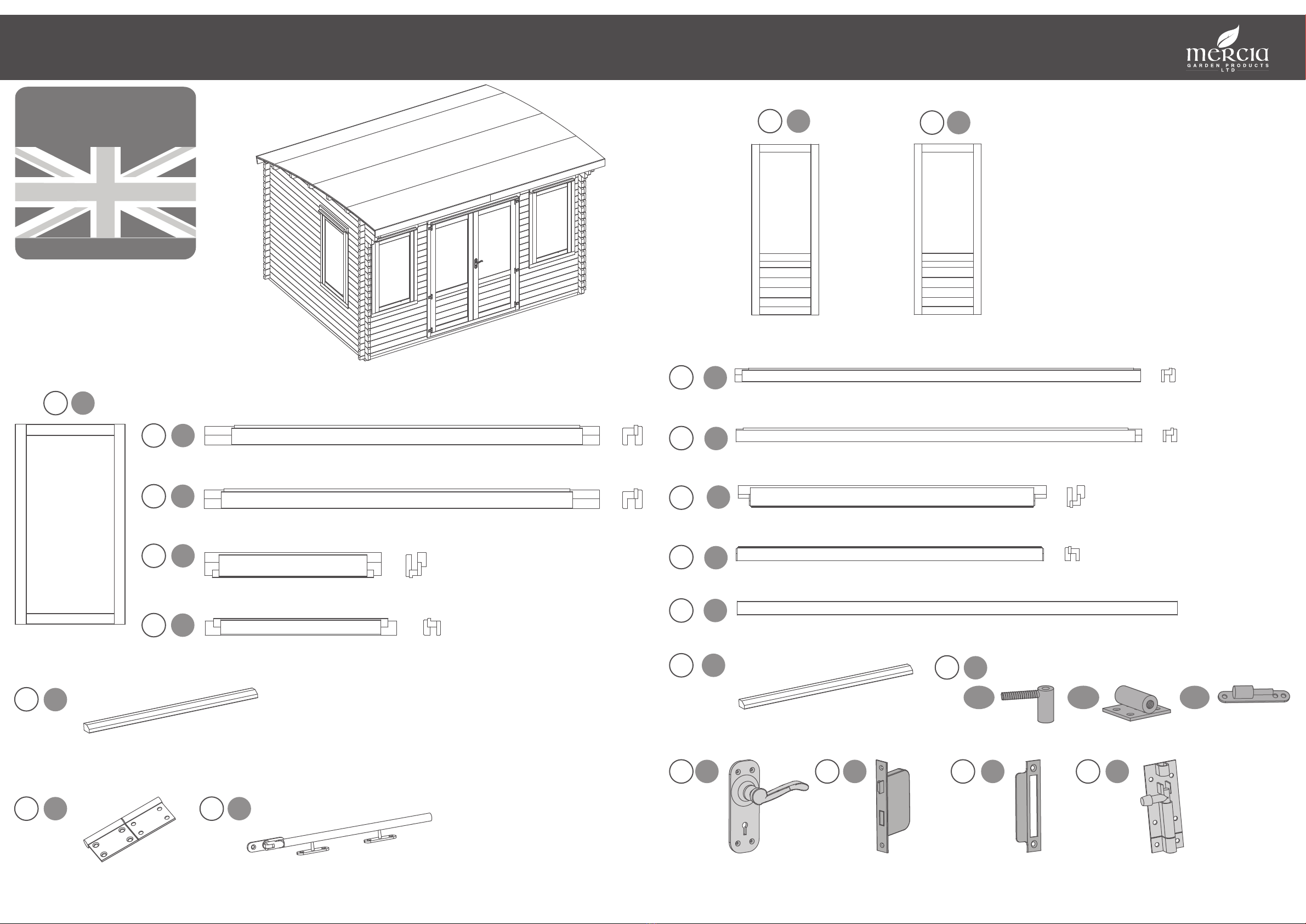

Window Content:
6
Rain Guard QTY 3
RG2844-710MM (28x44x710mm)
2
1
3
4
Window QTY 3
AI-06LOGDGW684X1244-V3
5
Window Frame Left Upright - 71x70x1412mm QTY 3
AI-0644LOGWUFL-V3
Window Frame Right Upright - 71x70x1412mm QTY 3
AI-0644LOGWUFR-V3
Window Frame Top - 84x125x805mm QTY 3
AI-0644LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 3
AI-0644LOGWBF-V3
7 8
Casement Stay QTY 3
PI-07-0187
Flag Hinge QTY 6
PI-07-0211
Double Door Contents:
10
9
11
12
Mortice Lock QTY 1
PI-07-0017
Key Plate QTY 1
PI-07-0017
Handles (Pair) QTY 1
PI-07-0188
Adjustable Hinge QTY 6 PI-07-0209
Tower Bolt QTY 2
PI-07-0114
Master Door QTY 1
(Morticed for lock)
AI-06LOGDGMD750X1900-V3
13
14
15
17
17a 17c
18 19 20 21
Secondary DoorQTY 1
AI-06LOGDGSD750X1900-V3
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0644LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0644LOGDUFR-V3
Door Frame Top - 84x125x1632mm QTY 1
AI-0644LOGDDTF-V3
Door Frame Bottom - 71x70x1508mm QTY 1
AI-0644LOGDDBF-V3
Door Strip - 16x60x1880mm QTY 1
S1660-1880mm
16
Rain Guard QTY 1
RG2844-1520MM (28x44x1520mm)
17b

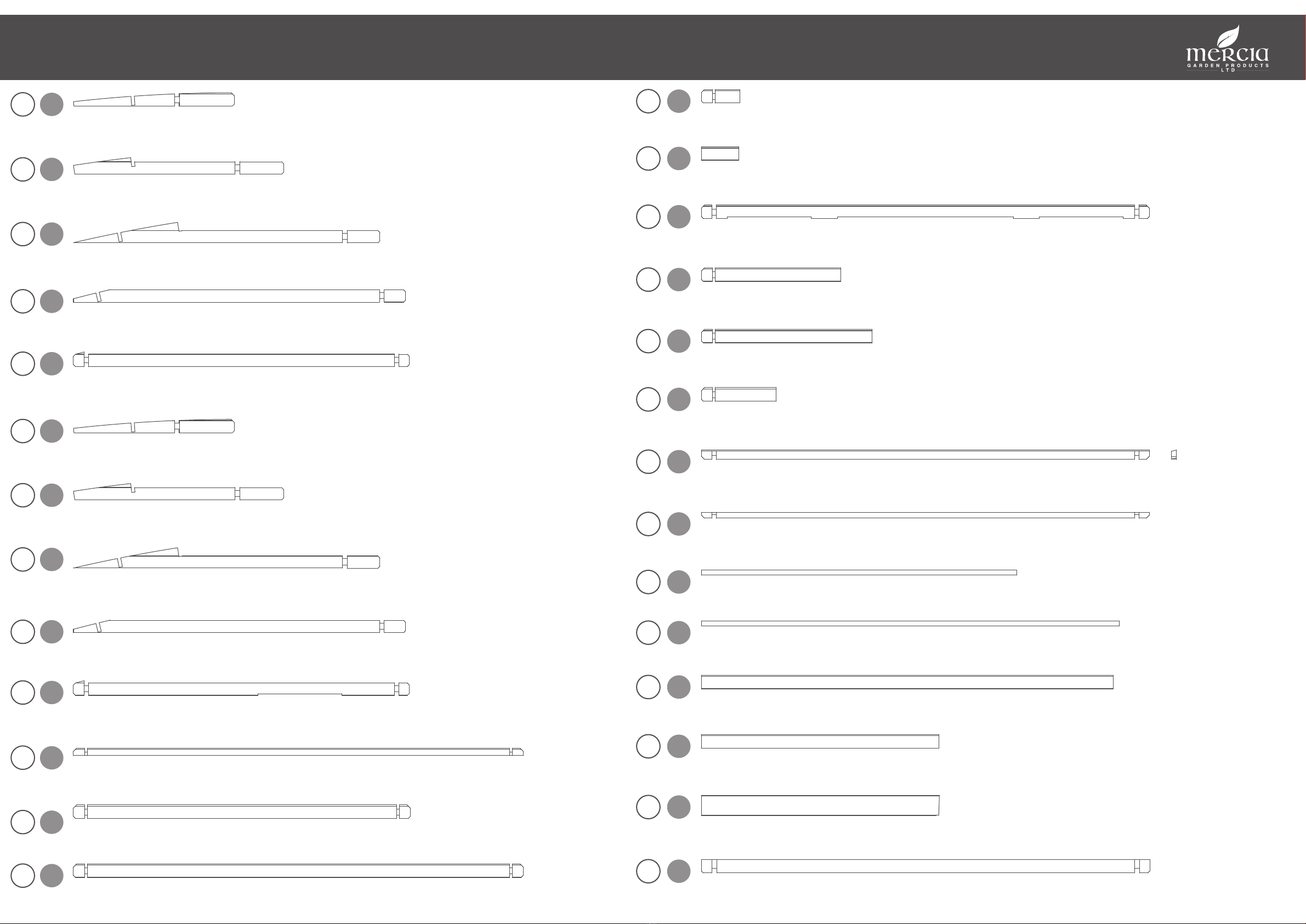

Gable A QTY 1
AI-0644CV3-G-V1
Starter Board - 44x66x4000mm QTY 2
LB44RT66-A-4000mm
Log Board - 44x120x232mm QTY 24
LB44-B-232mm
Log Board - 44x120x232mm QTY 24
LB44-C-232mm
Log Board - 44x120x1215mm QTY 12
LB44-B-1215mm
29
Log Board - 44x120x2996mm QTY 24
LB44-A-2996mm
Log Board - 44x120x4000mm QTY 21
LB44-A-4000mm
30
31
34
Bearer - 44x58x2814mm QTY 2
F4458-2814mm-PT
35
Bearer - 44x58x3702mm QTY 10
F4458-3702mm-PT
36
Roof Purlin - 45x120x4004mm QTY 5
F45120-A-4004mm
37
39
Log Board - 44x120x4000mm QTY 1
LB44-AD-4000mm
33
32
38
Fascia - 16x120x2032mm QTY 4
S16120-2032mm
40
Floor Board - 16x121x2725mm QTY 36
MB16-2725mm
41
Roof Board - 16x121x3496mm QTY 39
MB16-3496mm
44
42
43
45
22
24
25
26
28
27
23
Window Gable A TY 1
AI-0644CV3-WG-V1
Log Board - 44x120x1646mm QTY 12
LB44-B-1646mm
Log Board - 44x120x600mm QTY 12
LB44-B-600mm
Finisher Board - 44x84x4000mm QTY 1
LB44RG84-AG-4000mm (Angled cut along length)
Finisher Board - 44x53x4000mm QTY 1
LB44RG53-A-4000mm (Angled cut along length)
Gable E QTY 1
AI-0644CV3-G-V1
Gable B QTY 1
AI-0644CV3-G-V1
Gable D QTY 1
AI-0644CV3-G-V1
Gable C QTY 1
AI-0644CV3-G-V1
Window Gable B QTY 1
AI-0644CV3-WG-V1
Window Gable E QTY 1
AI-0644CV3-WG-V1
Window Gable D QTY 1
AI-0644CV3-WG-V1
Window Gable C QTY 1
AI-0644CV3-WG-V1
46
47
48
Back Eaves Frame - 27x44x4004mm QTY 1
F2744-4004mm
Felt
Storm Brace - 27x44x2000mm QTY 8
F2744-2000mm
Closure Trim - 16x28x2400mm (approx length) QTY 12
S1628-2400mm
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
Nail Bag
There may be extra screws present in the nail bag
Felt Tacks x 250
70mm Screw x 84
40mm Screw x 705
30mm Screw x 202
90mm Bolt Set x 16
80mm Screw x 32
Front Eaves Frame - 44x58x3730mm QTY 1
F4458-3730mm
Roof Trim - 16x30x3492mm QTY 2
S1630-3.492mm
49
50
51
52
53
54
55
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly in their respective
tongues and grooves.

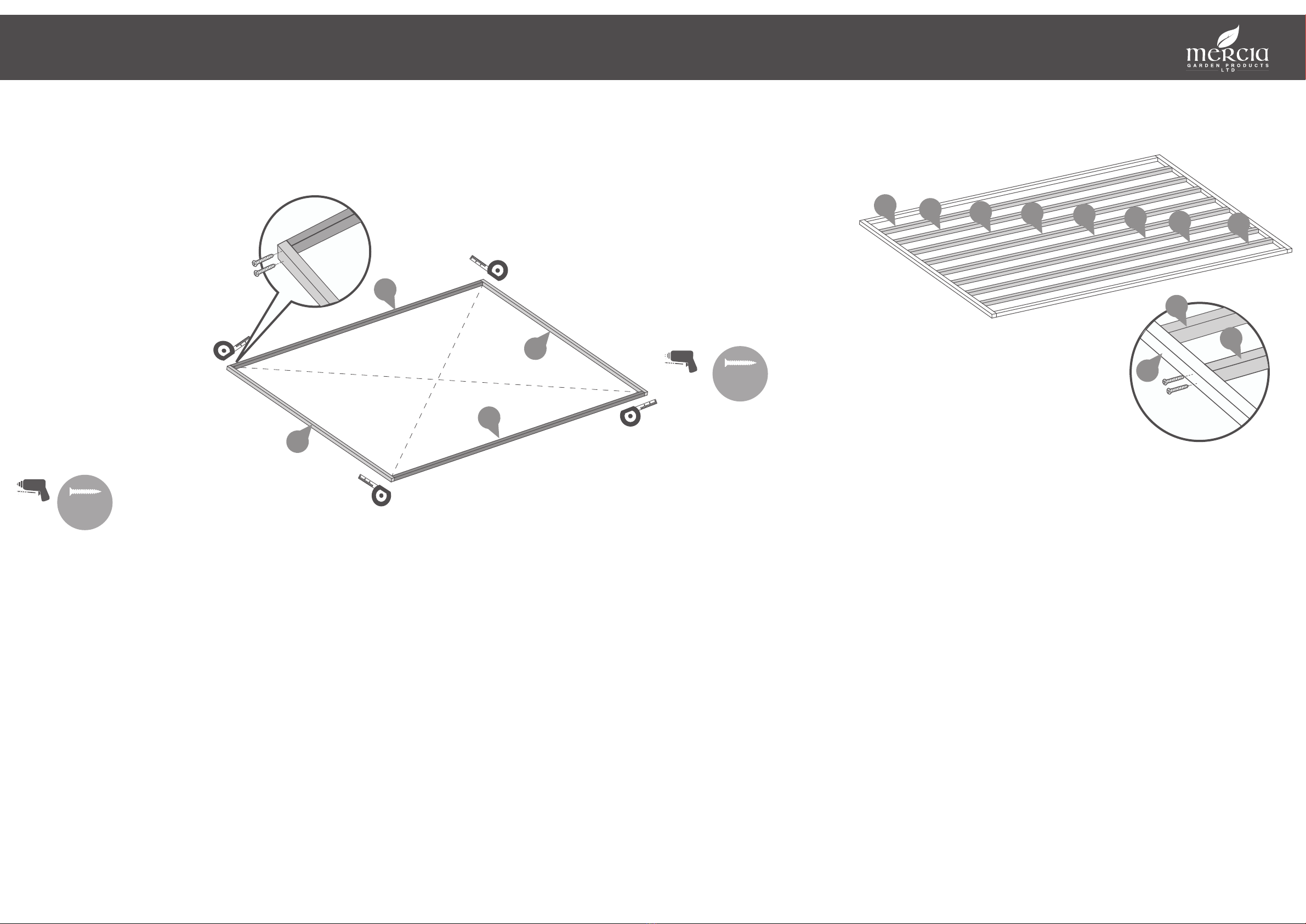

Step 1
Parts Needed - No. 43 QTY 2
No. 44 QTY 2
Lay the bearers (No. 43 & 44) onto
a rm and level surface (free from
areas where standing water can
collect) as shown in the illustration.
Fix the bearers together at each
corner using 2x70mm screws,
ensuring the bearers are ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as illustrated,
making sure the measurements are
equal.
If the bearers are not aligned
equally, unscrew, adjust and
re-align accordingly.
8x70mm Screws
Pre drill
hole
70mm
screw
44
43
44
43
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
70mm
screw
Step 2
Parts Needed - No. 44 QTY 8
Arrange the remaining bearers
(No.44) inside the assembled
frame, as shown.
*Ensure there is an equal amount
of space between each bearer.
Secure each end of the bearers in
place using 2x70mm screws per
end, ensuring the bearers remain
level.
32x70mm Screws
44 44 44 44 44 44 44
44
44
43
IMPORTANT: Pre-drill before xing screws.
44
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.

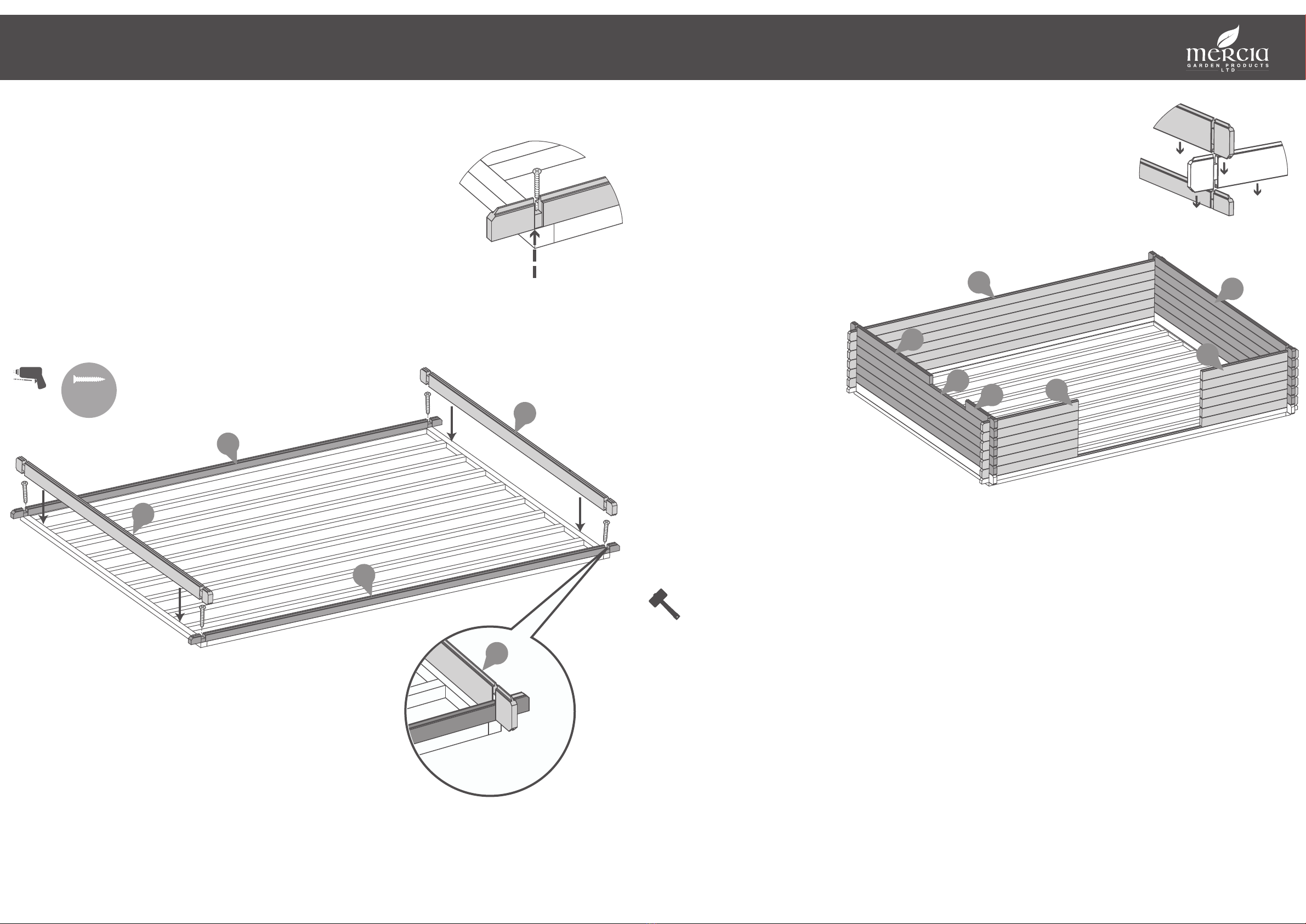

Step 3
Parts Needed - No. 32 QTY 2
No. 33 QTY 2
Place the starter boards (No. 32) on to assembled base frame along the longest
sides and place the rst two log boards (No. 33) in the notches as shown.
Ensure the boards sit square on the base using the same method used in Step 1.
Measure corner to corner, making sure the measurements are equal.
Once the boards are square, lift up the log board (No.33) and x the starter
boards in place.
Fix each of the starter boards to the frame by screwing through the notch into the
frame as shown in the illustration.
4x70mm Screws
32
32
33
33
33
Step 4
Parts needed - No. 33 QTY 11
No. 34 QTY 6
No. 38 QTY 12
No. 39 QTY 1
No. 40 QTY 1
Following the method shown in the
illustration, lay the rst 6 boards
(No. 33, 34, 38, 39 & 40)
Start by placing the front and back
boards, interlocking them with the
side boards. Then place the next side
boards, interlocking with the front
and back boards. Continue this
method until you have placed 6
boards o of the starter boards on
each side, as shown in the
illustration.
This will create your rst level.
*Ensure that the boards are level
and ush with each other as you lay
each one.
Please Note: The short boards at the
front of the building (either side of the
door opening) can be placed either
side depending on your needs.
Rubber Mallet
may be required
to t parts.
38
34 33
38
40
39
33

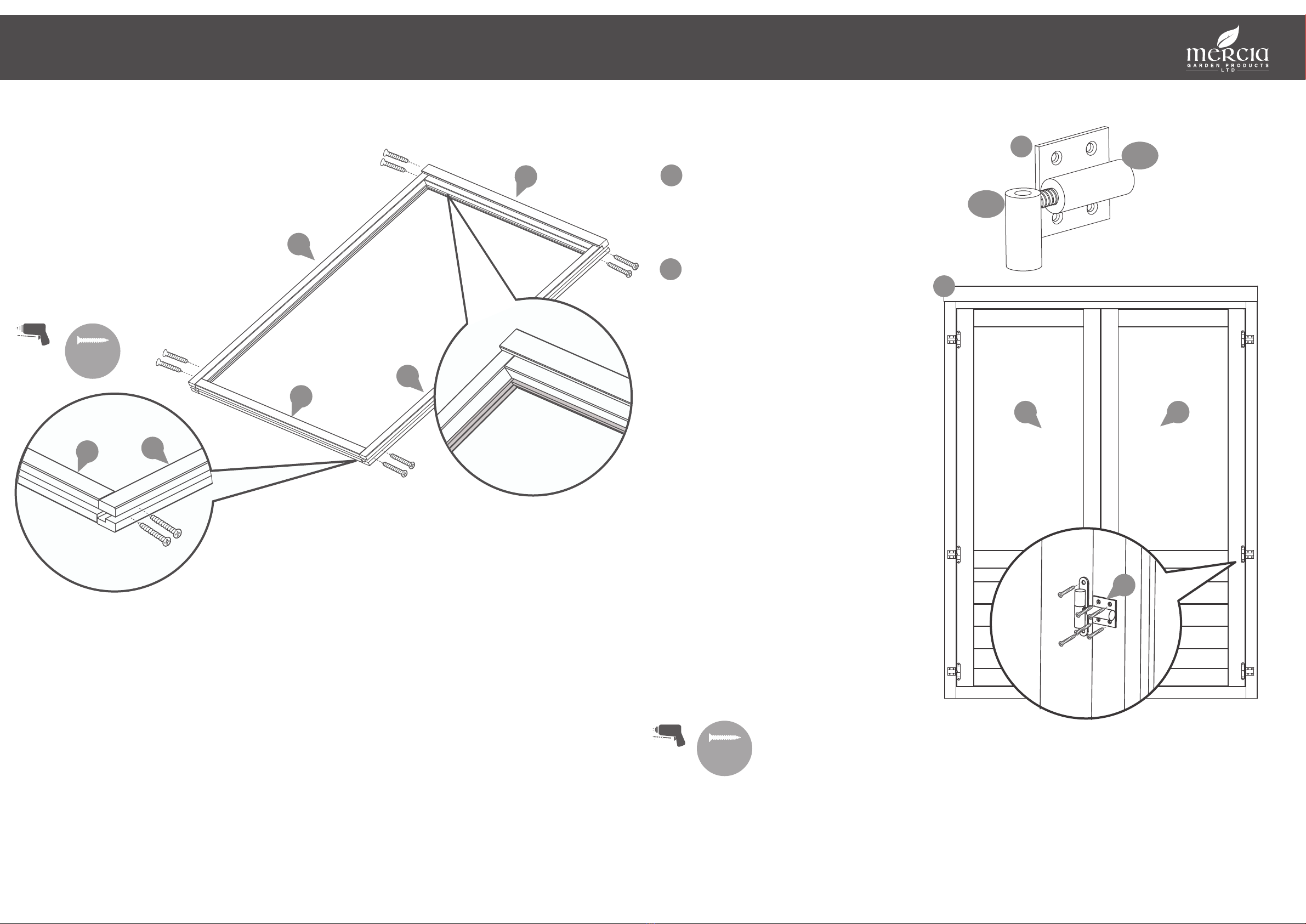

Step 5
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1
Arrange the left, right, top & bottom door
frames (No. 11, 12, 13 & 14) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The internal lip of the door
frame should be positioned on
the inside of the building.
14 12
17a
17
17b
a
b
IMPORTANT : Pre-drill before xing screws.
Secondary Door Master Door
Step 6
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 6
The Adjustable Door Hinge (No.17)
comes in three parts.
Fasten No. 17a into 17b as shown in the
illustration.
Place the master and secondary doors
(No. 9 & 10) onto a at surface and x the
Adjustable door hinge (No.17c) to the doors
using 3x30mm screws per hinge.
Fix 3 x Adjustable Door Hinges (No. 17a & b)
into position onto the door frame using
4x30mm screws per hinge.
*Ensure the hinges are tted to the external
of the door frame so the doors open
outwards from the log cabin.
Locate the doors into the hinges ensuring
there is equal spacing on each side between
the doors and door frame, and that the doors
open & close freely without restriction.
It is important to t the doors within the
frames at this stage so that you can establish
the position of the hinges. The hinges come
in three parts. Remove the doors from the
frame after tting.
**Ensure to screw into the framing and not
into the channel.
42x30mm Screws
Pre drill
hole
30mm
screw
a
b
9
10
17

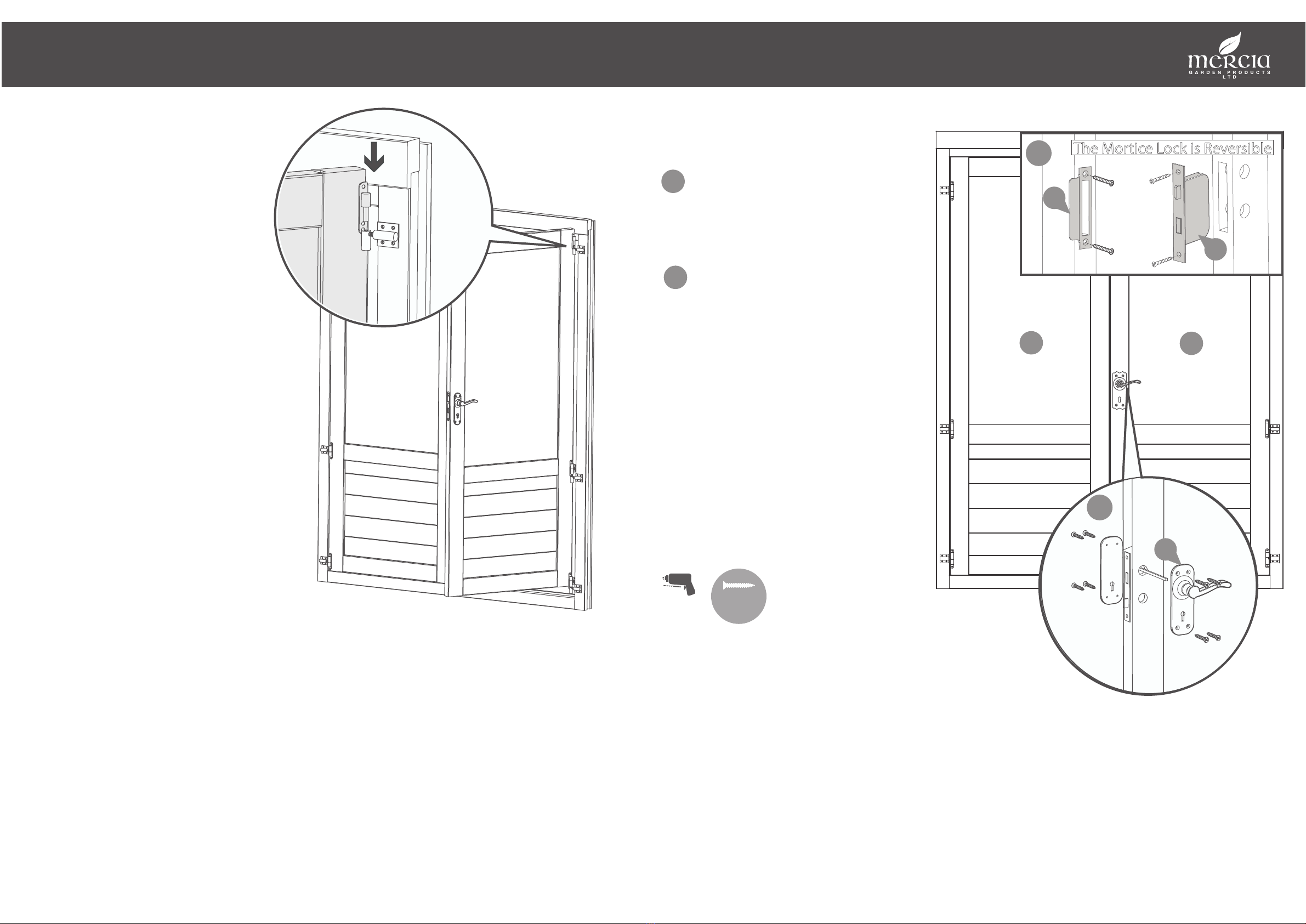

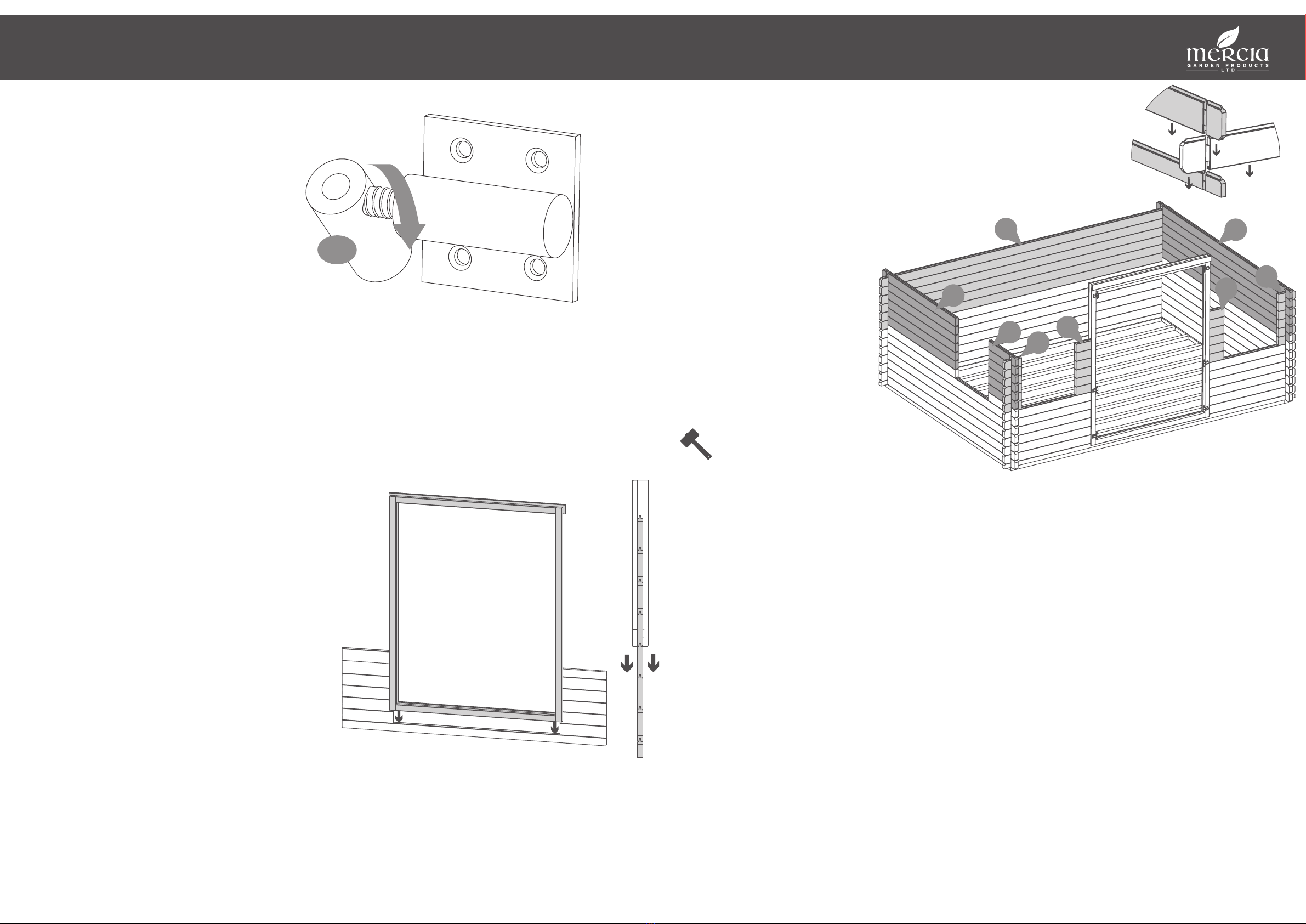

Step 7
To adjust and align your doors:
1. Lift up the doors to separate the two parts of
the hinge.
2. Turn the rotating barrel (No.17a) in / out to
move the postion of the doors either in or away
from each other.
3. You can then place the door(s) back on to the
hinge and check whether they require more /
less adjustments, if further adjustments are
required repeat number 2.
17a
Step 8
Once you have laid 6 log boards (o of the starter)
up the door section, slide the assembled door
frame over the boards, resting the frame on top of
the starter board (if you have not yet assembled
the door frame refer to step 5).
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(Regarding door position). Nevertheless the
process of tting the door frame is the same.
**Please Note: The short boards at the front of the
building (either side of the door and window
opening’s) can be placed either side depending on
your needs.
Step 9
Parts needed - No. 33 QTY 6
No. 34 QTY 6
No. 35 QTY 12
No. 36 QTY 12
No. 39 QTY 6
No. 40 QTY 6
Following the method shown in the
illustration, lay the next 6 boards
(No.33, 34, 35, 36, 39 & 40) onto the
log cabin to create your second level.
*Ensure that the boards are level and
ush with each other as you lay each
one.
*Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
Rubber Mallet
may be required
to t parts.
35
34 33
40
39
35
36
36
2
4
IMPORTANT : Pre-drill before xing screws.

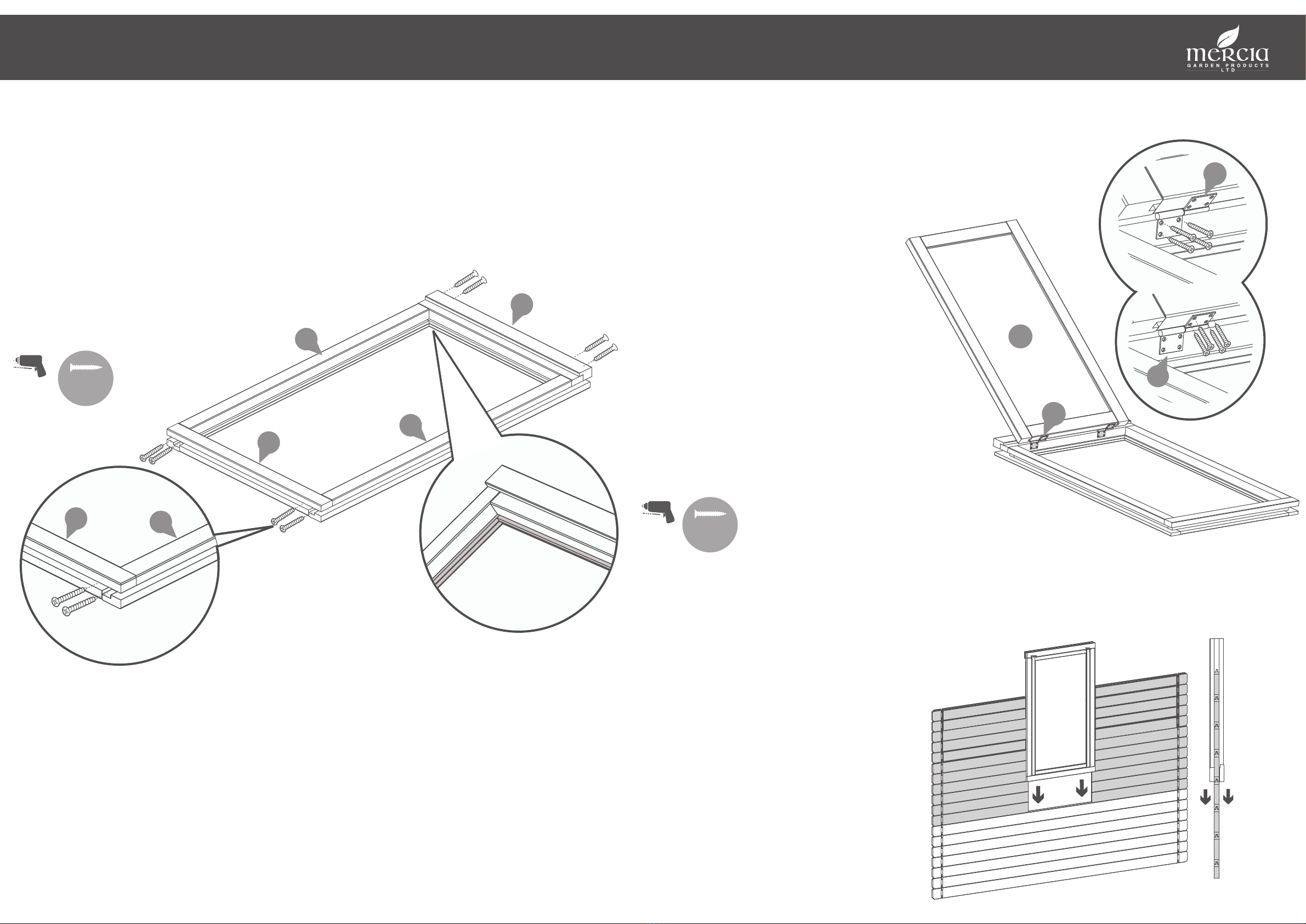

Step 10
Parts Needed - No. 2 QTY 3
No. 3 QTY 3
No. 4 QTY 3
No. 5 QTY 3
Arrange the left, right, top & bottom window
frames (No. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
Repeat to construct three window frames.
24x80mm Screws
Pre drill
hole
80mm
screw
5
3
53
The internal lip of the window
frame should be positioned on
the inside of the building.
Pre drill
hole
30mm
screw
IMPORTANT : Pre-drill before xing screws.
1
7
7
7
Step 11
Parts Needed - No. 1 QTY 3
No. 7 QTY 6
Position the window (No. 1) so that it sits
centrally within the window frame. Fix the
female part of the ag hinge (No. 7) to the
window using 4x30mm screws, attach the
male part of the ag hinge (No. 7) to the
window frame using 4x30mm screws
ensuring that the window can open and close
freely.
*Ensure to attach the hinge to the
horizontal frame of the window*
Repeat this method for all three windows
**It is important to t the windows within
the frame at this stage so that you can
establish the position of the hinges. The
hinges come in two parts. Remove the
window from the frame after tting.
48x30mm Screws
Step 12
Once you have laid the second level of
boards onto the log cabin slide the
windows between the smaller boards
and rest on to the longer board (if you
have not yet assembled the window
frames refer to step 10)
*Ensure the boards are level with each
end.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding window position).
Nevertheless the process of tting the
window is the same
36
34
36
39 31
35
Rubber Mallet
may be required
to t parts.
Step 13
Part needed - No. 26 QTY 1
No. 31 QTY 1
No. 33 QTY 5
No. 34 QTY 6

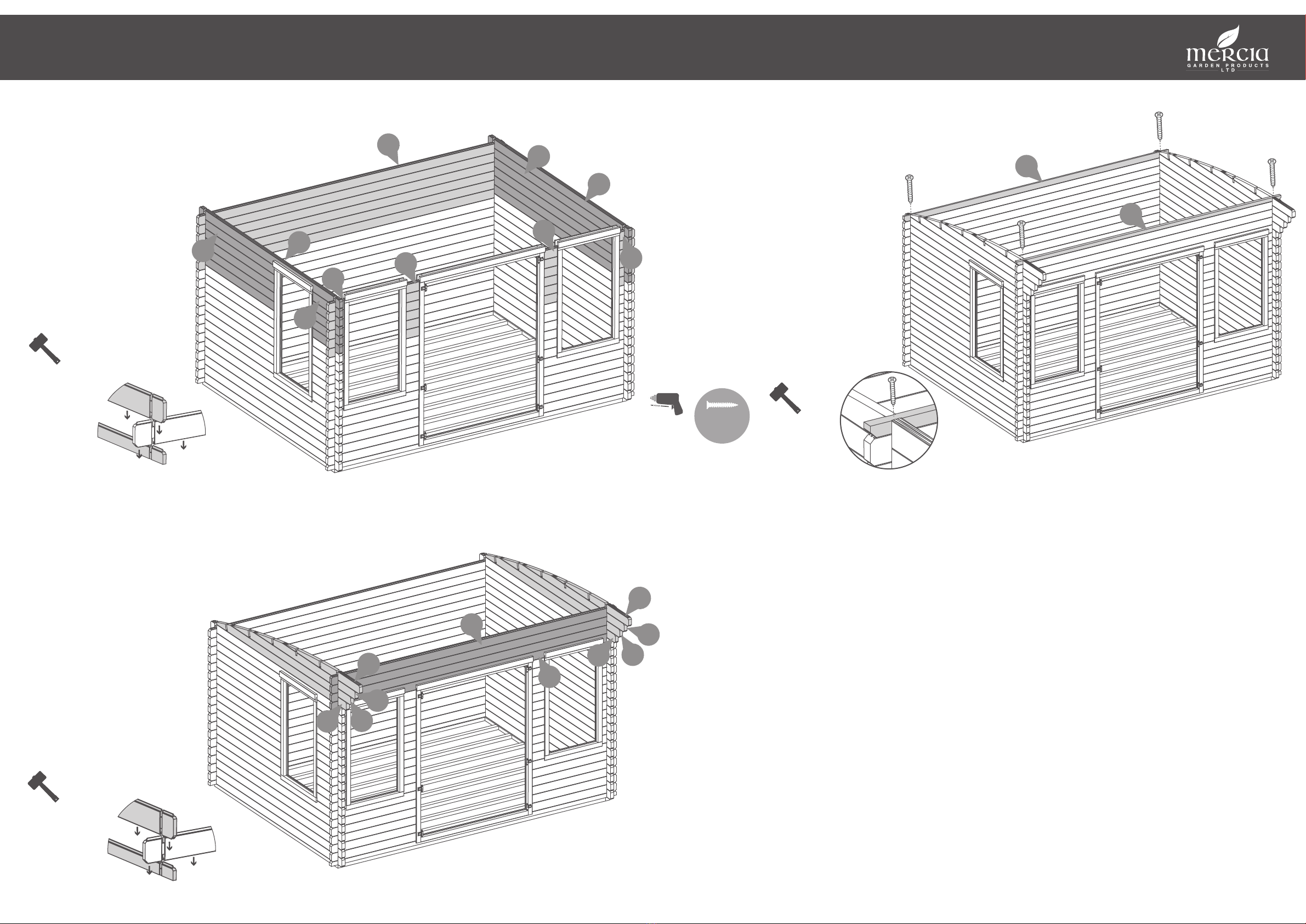

Following the method shown
in the illustration, lay the next
layer of boards (No. 26, 31, 33,
34, 35, 36, 39 & 40) onto the
log cabin.
*Ensure that the boards are
level and ush with each
other as you lay each one. 40
35
26
33
No. 35 QTY 12
No. 36 QTY 12
No. 39 QTY 5
No. 40 QTY 5
Rubber Mallet
may be required
to t parts.
Step 14
Part needed - No. 22 QTY 1
No. 23 QTY 1
No. 24 QTY 1
No. 25 QTY 1
No. 27 QTY 1
Following the same method,
lay the nal layer of boards
(No. 22, 23, 24, 25, 27, 28, 29,
30 ,34 & 37) onto the log
cabin, ensuring to create a
staggered overhang at the
front of the log cabin.
*Ensure that the boards are
level and ush with each
other as you lay each one.
37
22
23
25
34
No. 28 QTY 1
No. 29 QTY 1
No. 30 QTY 1
No. 34 QTY 3
No. 37 QTY 1
24
27
28
30 29
Step 15
Parts needed - No. 41 QTY 1
No. 42 QTY 2
Lay the nisher boards (No. 41 & 42)
onto the front and back of the log
cabin.
Secure the boards into position by
screwing through the notches as
shown in the illustration, using
1x70mm screw per end.
*Ensure that the boards are level
and ush with each other as you lay
each one.
4x70mm Screws
70mm
screw
IMPORTANT : Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
Pre drill
hole
41
42
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
Step 16
Parts needed - No. 48 QTY 5
70mm
screw
a
b
Rubber Mallet
may be required
to t parts.

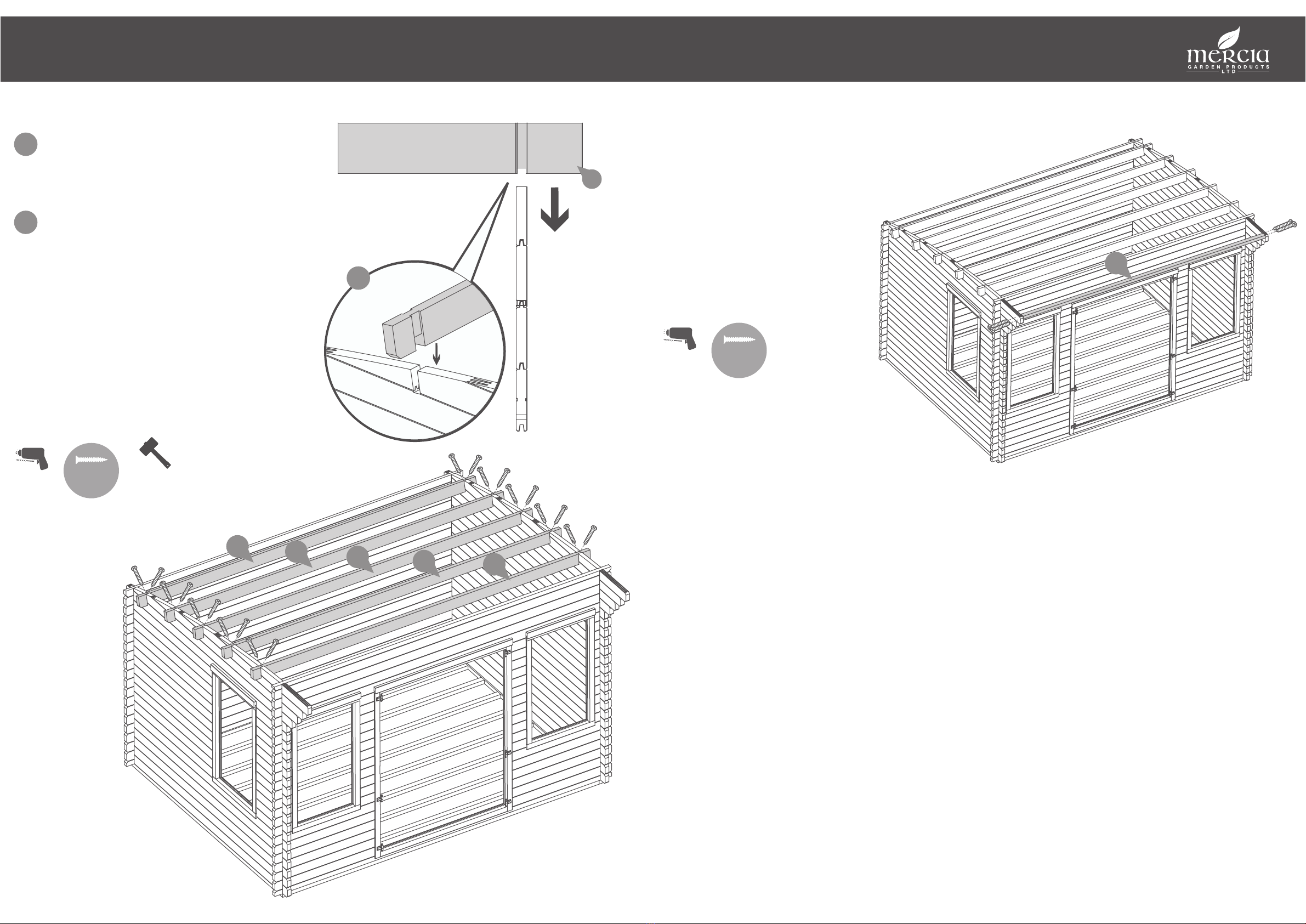

Align the Roof Purlin(s) (No. 48) into
the cut out slots on each gable,
ensuring each purlin interlocks the
boards.
Secure the purlins at each end by
screwing through the bars into the
boards (ensure to pre-drill to avoid
the boards splitting) using 4x70mm
screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier in
width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins is the
same.
20x70mm Screws
48
a
48 48 48 48 48
Step 17
Parts needed - No. 50 QTY 1
Locate the Front Eaves Frame (No.50)
between the top most Gable boards,
as shown. Ensure the Framing is ush
to the front and top of the boards.
Secure the framing into position by
screwing through the Log Boards and
into the framing using 2x70mm
screws per end.
4x70mm Screws
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
70mm
screw
50
IMPORTANT : Pre-drill before xing screws.
Step 18
Parts needed - No. 45 QTY 39
40mm
screw
Pre drill
hole
*Cut to t
a
b
c
a
b
c

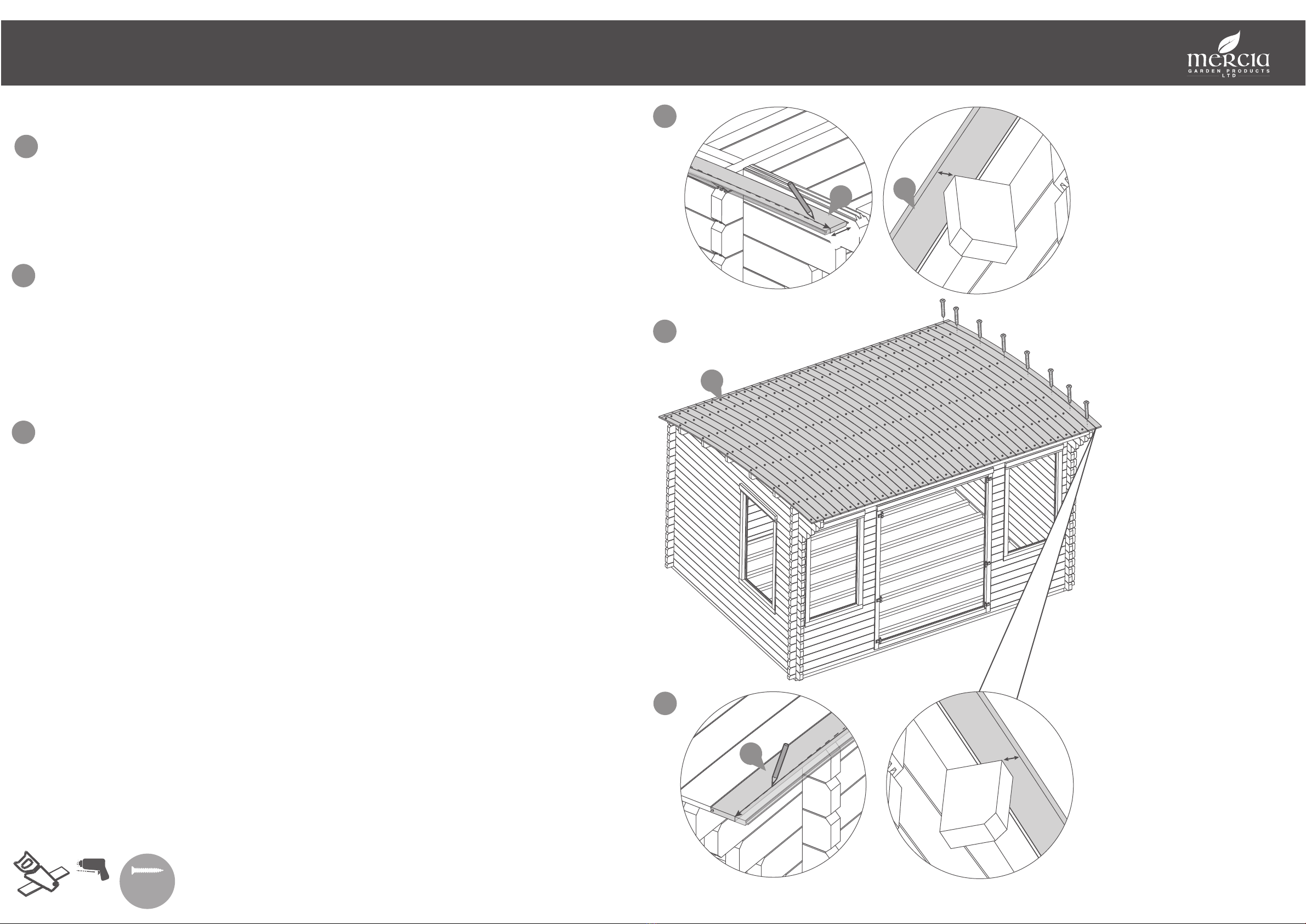

30mm
30mm
45
45
76mm
45
45
Using a straight edge and a pencil, measure 76mm from the tongue edge of one Roof board (No.45).
Cut along the pencil mark, ensuring that the 76mm side has the tongue remaining and remove the
excess.
Place the cut down Roof Board (No.45) onto the log cabin, making sure the straight edge of the board
is 30mm away from the end of the roof purlin, as shown. Once in position, x to each purlin, the front
and back log boards and the front eaves frame using 8x40mm screws.
Continue to add the roof boards along the roof, xing each one into position using 8x40mm screws,
making sure that each board is interlocked.
To ensure the roof boards are not laid too close together, use the spacers (No.55) provided to create a
2mm gap. Adjusting the spacing between the boards allows the wood to swell in damp weather.
You have been issued with 39 roof boards, however you may only need to use 38.
*Please note the boards will need bending to t the curve of the roof.
The last board will overhang past the end of the purlins. Using a straight edge and a pencil, mark out a
line on the board 30mm away from the end of the purlin as a guide.
Cut along the pencil mark, ensuring the groove is remaining and remove the excess. Place the cut
down board back onto the roof, ensuring there is at least 30mm overhanging past the end of the purlin
and secure into place using 8x40mm screws per board.
Important note:
The last Roof Board is required to overhang the edge of the purlin by 30mm and x into the purlin. If
the gap from the last full Roof Board to the end of the purlin is less than 10mm, then adjustment is
required to increase this space.
To do this, please take note of the moisture content of the roof boards. If the boards are wet or damp,
then unscrew the boards and push them closer together until the nal ts correctly. A rubber mallet
may be required to do so.
If the roof boards are dry, then unscrew the boards and space them further apart until the nal board
ts correctly.
Taking into account the moisture contents is important to ensure the longevity of your log cabin roof. The
moisture content of the timber will change throughout the year and the boards will move. Adjusting them
accordingly allows the boards to shrink and swell without hindering the structural integrity of the building.
If unscrewing and adjusting the boards positions doesn’t work, the rst and nal board may need
re-measuring and cutting.
312x40mm Screws
IMPORTANT : Pre-drill before xing screws.
40mm
screw
Pre drill
hole

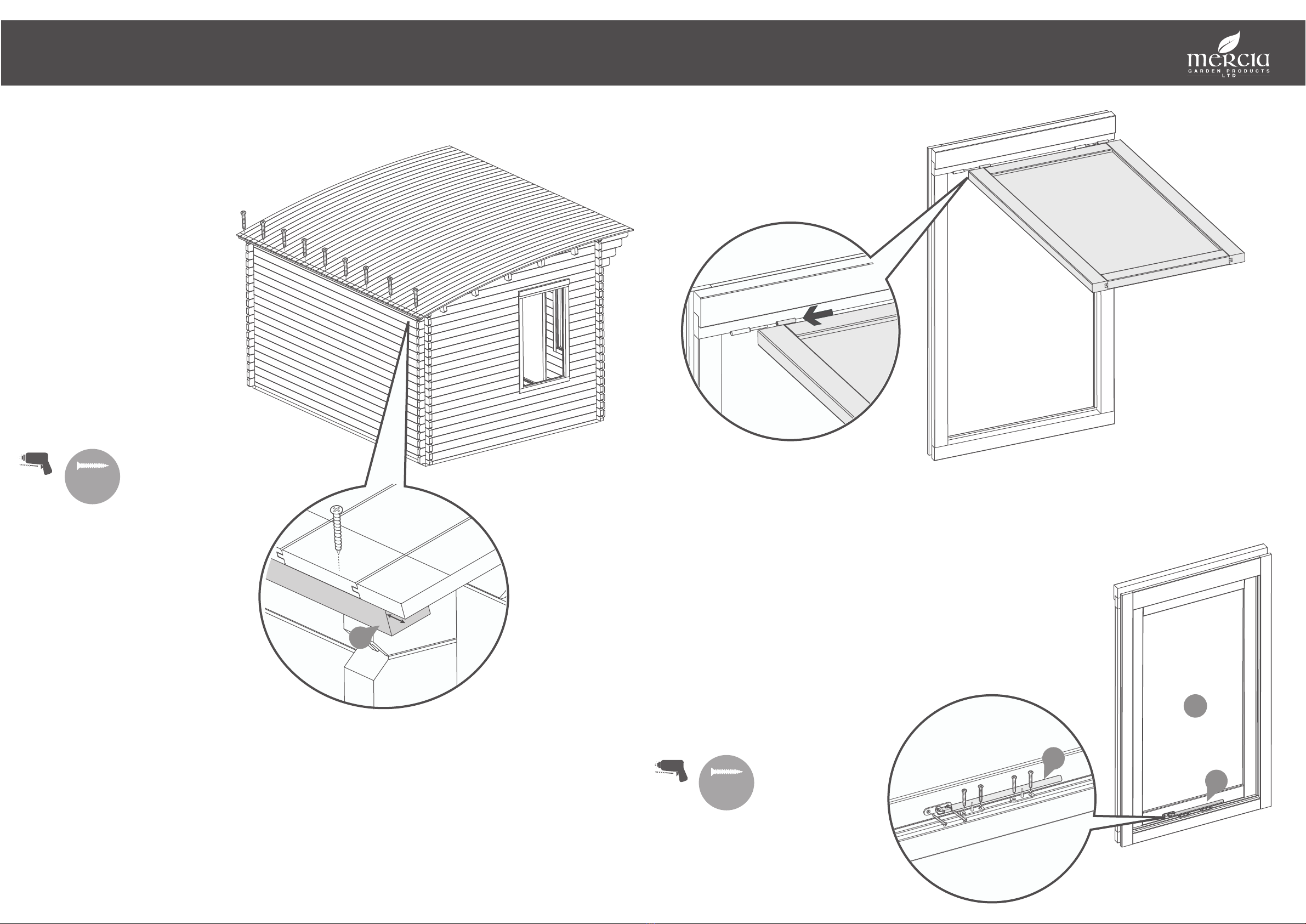

Step 19
Parts needed - No. 49 QTY 1
Ensuring the roof boards are ush at
the front and back of the building,
locate the Back Eaves Frame (No.49)
to the underside of the roof boards
at the back of the building. Ensure
the eaves frame is positioned
centrally to the building and that
there is a 30mm gap on each side.
Secure in place using 9x40mm
screws, as shown in the illustration
*Please Note: This image is for
illustrative purposes and may dier
from your choice in product.
Nevertheless the process of xing the
eaves frames is the same.
9x40mm Screws
49
30mm
Step 20
Lift each window onto the already existing
hooks on the window frame, ensuring the
hook and bands connect.
*Some adjustment may be required to
align properly.
Pre drill
hole
IMPORTANT : Pre-drill before xing screws.
30mm
screw
8
1
8
Step 21
Parts Needed - No. 8 QTY 3
Fix the casement stay (No. 8) onto the
window (No. 1) and the casement stay
pins to the window framing using
6x30mm screws.
*Ensure the casement stay is centralised
on the window and the pins are in line
with the pin receivers before xing in
place.
Repeat this process to x a casement stay
to each window.
18x30mm Screws
Step 22
Lift each door onto the already existing
hooks on the door frame, ensuring the
hook and bands connect.
*Some adjustment may be required
to align properly.
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
Step 23
Parts Needed - No. 18 QTY 1
No. 19 QTY 1
No. 20 QTY 1
Fit the Mortice lock (No. 19) into the
recess in the master door (No. 9)and secure
using the screws provided. Attach the Key
plate (No. 20)to the secondary door (No.
10) with 4x30mm screws.
Fit the door handles (No. 18)and
connect with the metalbar to the mortice
lock using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove
the lock and turn the catch around using the
small grub screw.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery).
Nevertheless the process of xing is the same.
Once components have been tted, try closing
doors to ensure the doors can be closed and
the lock works.
If your doors do need adjusting please refer to
step 7.
12x30mm Screws
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
10 9
18
20
19
c
Pre drill
hole
40mm
screw
IMPORTANT : Pre-drill before xing screws.
b
a
c
b
aOnce xed, place the Tower
Bolts (No. 21) roughly into
position and with a pencil
mark the around the bolt.
After marking the bolt onto
the frame, drill a hole for the
barrel bolt to locate into.
Following the hole being
drilled, place the tower bolts
into position and secure using
the screws provided.
12x40mm Screws
Step 24
Parts Needed - No. 15 QTY 1
No. 21 QTY 2
Attach the Door Strip (No. 15) to the
back of the secondary door using
4x40mm screws as shown.
21 15
IMPORTANT: Pre-drill before xing screws.
40mm
screw
Pre drill
hole
Step 25
Parts needed - No. 46 QTY 36
Place the rst oor board (No. 46) inside
the building ush to the log board on the
wall. Continue adding the oor boards
(internally) making sure to interlock each
individual board.
You have been issued with 36 oor boards,
however you may only need to use 35.
*Do NOT secure the boards until the last
board has been measured and cut.
Measure the gap between the bottom of
the tongue (on the last board placed)
and the log board.
Using a straight edge mark out the
measurement onto the last oor board
(No.46) and cut along the length
removing the excess.
**Please note: Mark the nal board 2mm
under the measurement; This will allow the
timber to expand and contract correctly.
Once all the oor boards are in position
secure each board into position using
10x40mm screws.
***Please Note: Ensure to screw through
each of the oor boards into the oor
bearers.
360x40mm Screw
46
IMPORTANT: Pre-drill before xing screws.
Roof
Closure Trim
Internal
*Measure and cut the
closure trims to
t the internal space.
Roof
Closure Trim
Internal
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 26
Parts needed - No. 53 QTY 6
Inside the building place the closure
trim (No. 53) against the boarding
and align with the roof as shown in
the illustration.
*Measure and cut the closure trims to
t the internal space.
Once in position x each trim into
place by pre drilling a pilot hole and
using 6x30mm screws per trim,
equally spacing them along the face
of the board.
36x30mm Screws
53
30mm
screw
Pre drill
hole
*Cut to t
Step 27
Parts needed - No. 53 QTY 6
Once the oor has been laid arrange the
closure trim (No. 53)around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
36x30mm Screws
IMPORTANT: Pre-drill before xing screws.
53
53
Felt
tacks
Step 28
Parts needed - No. 54

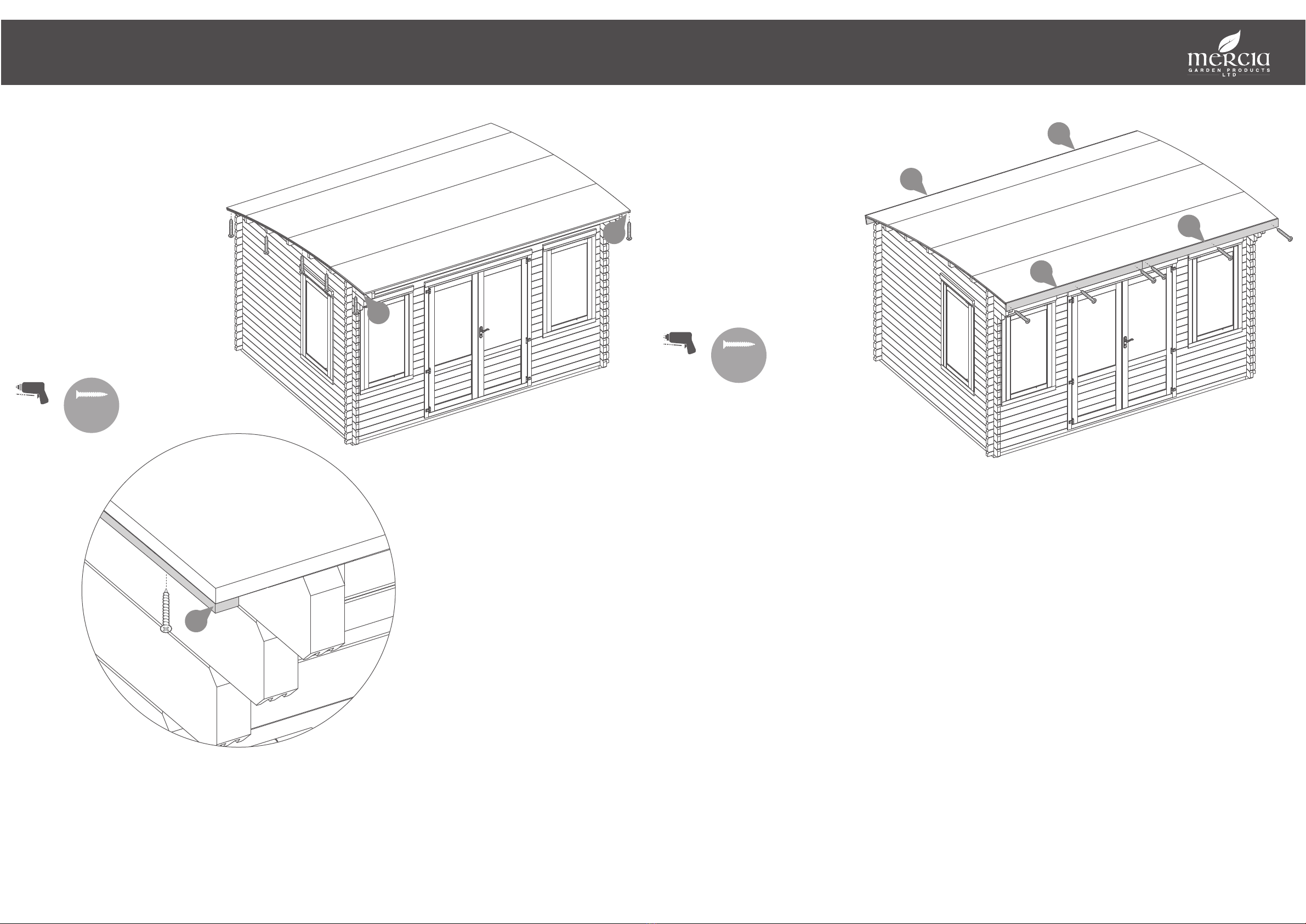

Cut the Felt (No. 54) into four strips
measuring: 4170mm (L) X 1000mm (W).
Lay the sheet onto the roof in the order
shown in the illustration.
*Ensure there is approximately 50mm
of overhanging felt each side and that
each sheets overlaps by 100mm.
Once the felt is laid out, x to the roof
using felt tacks at 100mm intervals.
250 x Felt Tacks
HANDLE
WITH CARE
1 2
3
4
100mm
1.
2.
3.
4.
54
Pre drill
hole
40mm
screw
Step 29
Parts needed - No. 51 QTY 2
Locate the Roof Trims (No. 51) on
the underside of the Roof at the
sides, ensuring the trim is ush to
the end of the purlins.
Make sure to trap the felt between
the roof and the trim.
Secure the Roof Trims (No. 51) in
place using 5x30mm screws per
trim, ensuring to screw through the
trim into the roof boards.
10x30mm Screws
IMPORTANT : Pre-drill before xing screws.
51
51
51
Pre drill
hole
40mm
screw
Step 30
Parts needed - No. 47 QTY 4
Locate the Fascias (No.47) onto the
front and back of the building as
shown, ensuring they are ush with
the top and sides of the roof.
Secure in place using 3x40mm
screws per Fascia, making sure to
screw through the fascia into the
eaves frames.
12x40mm Screws
IMPORTANT : Pre-drill before xing screws.
47
47
47
47
Pre drill
hole
90mm
bolt
IMPORTANT : Pre-drill before xing screws.
Step 31
Parts needed - No. 52 QTY 8
Arrange the storm braces (No.52) around
the building (internally). Place 2 Storm
Braces per side, ensuring they are placed on
the highest full log board on each side.
Fix into place using 2x90mm bolts per brace,
making sure the washer & nut are tightened
from the outside of the building.
*Ensure the storm braces are secured at the
highest point possible on each side.
The storm braces will need to be altered
during the buildings life as the moisture
content within the log boards changes. The
boards will expand during periods of high
moisture (Winter) and shrink during periods
of low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***It is important that each bolt is
tightened using a washer so as not to
damage the log boards.
16x90mm Bolt Sets
52
52
Step 32
Parts Needed: No. 6 QTY 3
No. 16 QTY 1
Attach the Rain Guards (No.6) to
each window frame, xing in place
onto the framing above each
window using 3x70mm screws per
rain guard.
Attach the Rain Guard (No.16) to the
door frame, xing in place onto the
framing above the Door using
3x70mm screws.
12x70mm Screws.
70mm
screw
Pre drill
hole
IMPORTANT : Pre-drill before xing screws.
16
6
6
6
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
¡
¡
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 03HEL0808DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01JER0806-V1 User manual
Mercia Garden Products
Mercia Garden Products 0634RANE4535FGDD2TW1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634RARE0302ND1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN1008FGC31TWSA-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03WES1008-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619LOG015-V4 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806DDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 06LOG016-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTGRO0705-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644LOG213-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 03COR0707-V2 User manual
Mercia Garden Products
Mercia Garden Products 03VER0808-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 02DTSHDB0606SFD5W-V1-PEFC User manual
Mercia Garden Products
Mercia Garden Products 0634LOG209-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHHP0806HGD4MW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0806PA-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634RANE0504FGDD2TW1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 06LOG125SG-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03TGCOR0707-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619PNNE0324HGDD2SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products Wessex 03WES1208-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1208DDOP-V1 Instruction manual
Popular Garden House manuals by other brands
Tiger
Tiger Caspian General assembly instructions
Décor et Jardin
Décor et Jardin 62406S941 Assembly Notice
Project Timber
Project Timber Corner Shed Windowless Building instructions
Solid
Solid S8509 Accessories assembly
Lemeks
Lemeks Palmako FR28-3232-9 Assembly, installation and maintenance manual
Backyard
Backyard Yardline 16574-SB manual
Lemeks
Lemeks Palmako Element house EL18-5658 installation manual
Lemeks
Lemeks ELF16-3535 installation manual
Bear County
Bear County CA1911 Assembly instructions
Polhus
Polhus Adam Assembly guide
Grosfillex
Grosfillex ABRI DECO H7 Assembly instructions
telluria
telluria ELEGANTO 3024 PHR Assembly instructions
Outdoor Life Products
Outdoor Life Products Mosel 1 Assembly instructions
Dunster House
Dunster House PADDINGTON GROOVE EFFECT GARDEN OFFICE installation manual
OLT
OLT GC42-FJ-CEDAR Assembly manual
Holz-Blech
Holz-Blech AIDA 40 manual
Luoman
Luoman Lillevilla 100 C-3 manual
wendi toys
wendi toys Nordic WE-703 Installation and operating instructions
