Mercia Garden Products 04DTSTRDAX0406HGS-V1 User manual
2mm Drill bit
x2
¡
¡
Overall Dimensions:
Width = 1215mm
Depth = 1887mm
Height = 2066mm
Base Dimensions:
Width =1191mm
Depth = 1862mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Contents:
Door Side QTY 2
AI-04S21PCGP1W610X1543-V1
Small Window Side QTY 2
AI-04S21PCGP2W1193X1543-V1
Large Window Side
AI-04S21PCGP3W1776X1543-V1
Door Gable Top
AI-S21SHASDGT1864X425-V1
Roof (Opening Window)
AI-04S21GROPW3W1218X1037-V1
Plain Gable Top
AI-S21SHAGT1864X425-V1
23
45
1
6
Roof
AI-04S21GR2W1218X1037-V1
8
Door
AI-BSCHGPD550X1720-V1
9
Opening Window
AI-FW560X460-V1
7 8 9
10
11
Fascia - 12x56x1075mm QTY 4
S1256-1075mm
Base Frame A - 44x44x1864mm QTY 2
F4444-1864mm
Base Frame B - 44x44x1105mm QTY 2
F4444-1105mm
10
11
12
13 Roof Support Bar 27x44x1242mm QTY 1
F2744-1242mm (8mm lip, 2 x angled cuts)
19
Buttery Hinges QTY 4
PI-07-0004
Window Casement Stay QTY 1
PI-07-0008
Window Glazing Bead QTY 8
PI-07-0063
20
Finial QTY 2
SHED DIAMOND FINIAL
22
Door Knob QTY 1
PI-04-0024
23
Turn Button QTY 2
PI-07-0182
15
16
Door Strip - 12x27x1717mm QTY 2
S1227-1717mm
Roof Trim - 12x56x1242mm QTY 1
S1256-1242mm
17 Short Door Strip - 12x27x556mm QTY 1
S1227-556mm
Door Frame - 27x44x556mm QTY 1
F2744-556mm
13
14
18
21
Window Strip - 12x27x1776mm QTY 1
S1227-1776mm
Window Strip - 12x27x926mm QTY 14
S1227-926mm
Window Cill 610mm QTY 2
PI-08-0021
Window Cill 1193mm QTY 2
PI-08-0019
Window Cill 1776mm QTY1
PI-08-0020
Window Strip -12x27x1193mm QTY 2
S1227-1193mm
Window Strip - 12x27x610mm QTY 2
S1227- 610mm
Strip - 12x44x543mm QTY 1
S1244- 543mm
Strip - 12x21x560mm QTY 1
S1221-560mm
Corner Trims - 12x56x1576mm QTY 4
S1256-1576mm
Strip - 12x44x993mm QTY 6
S1244- 993mm
Styrene 942x570x2mm QTY 9
PI-05-0151
Styrene 503x570mm QTY 1
PI-05-0158
Styrene 985x570mm QTY 3
PI-05-0157
Strip - 12x44x1218mm QTY 2
S1244- 1218mm
28
27
26
25
24
29
33
34
35
36
37
38
30
31
32
30mm Screw x 147
20mm Screw x 6
50mm Screw x 61
70mm Screw x 8
40mm Screw x 8
16mm Screws x 16
30mm Black Screw x 26
Nail Bag
There may be extra screws present in the nail bag
16mm Black Screws x 8

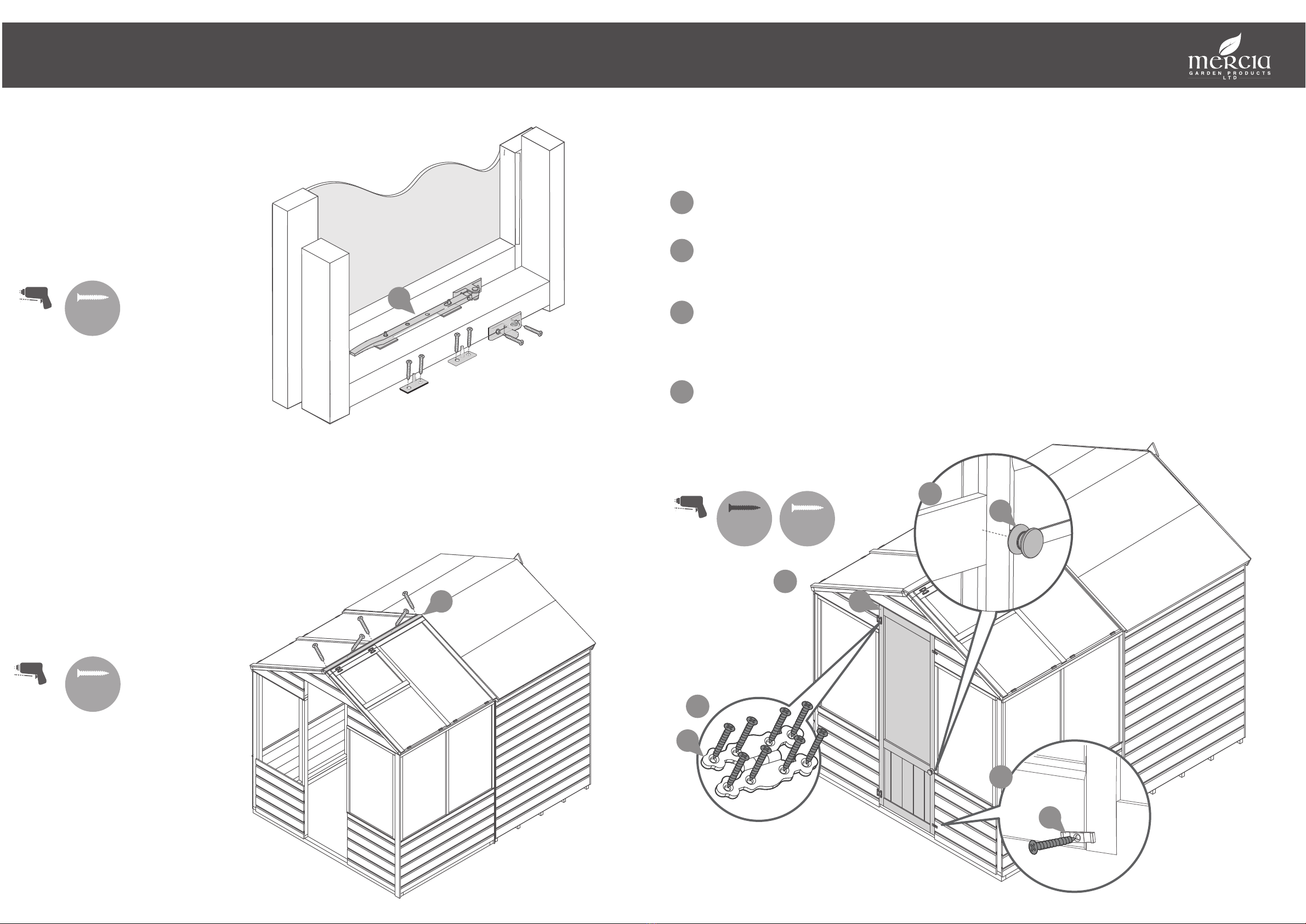

This greenhouse can be assembled along side the 4x6 apex shed (01DTSHAX0406SDFW-V1)
If you have purchased both these buildings, please follow the greenhouse assembly instructions
from Step 1a on Page 13.
8x6 Greenhouse with shed
Overall Dimensions:
Width = 1972mm
Depth = 2447mm
Height = 2039mm
Base Dimensions:
Width: 1860mm
Depth: 2397mm
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Side
Back
Front
Pre drill
hole
70mm
screw
11
11
12
12
Step 1
Parts needed - No. 11 QTY 2
No. 12 QTY 2
Lay the Base Frames (No.11 & 12) down on
a at and level base. Ensure the framing is
ush and level and that Base Frame B, sits
on the inside of Base frame A, as shown.
Fix the base framing (No.11 & 12) together
using 2x70mm screws per corner.
8x70mm screws.
IMPORTANT: Pre-drill before xing screws.
11
12

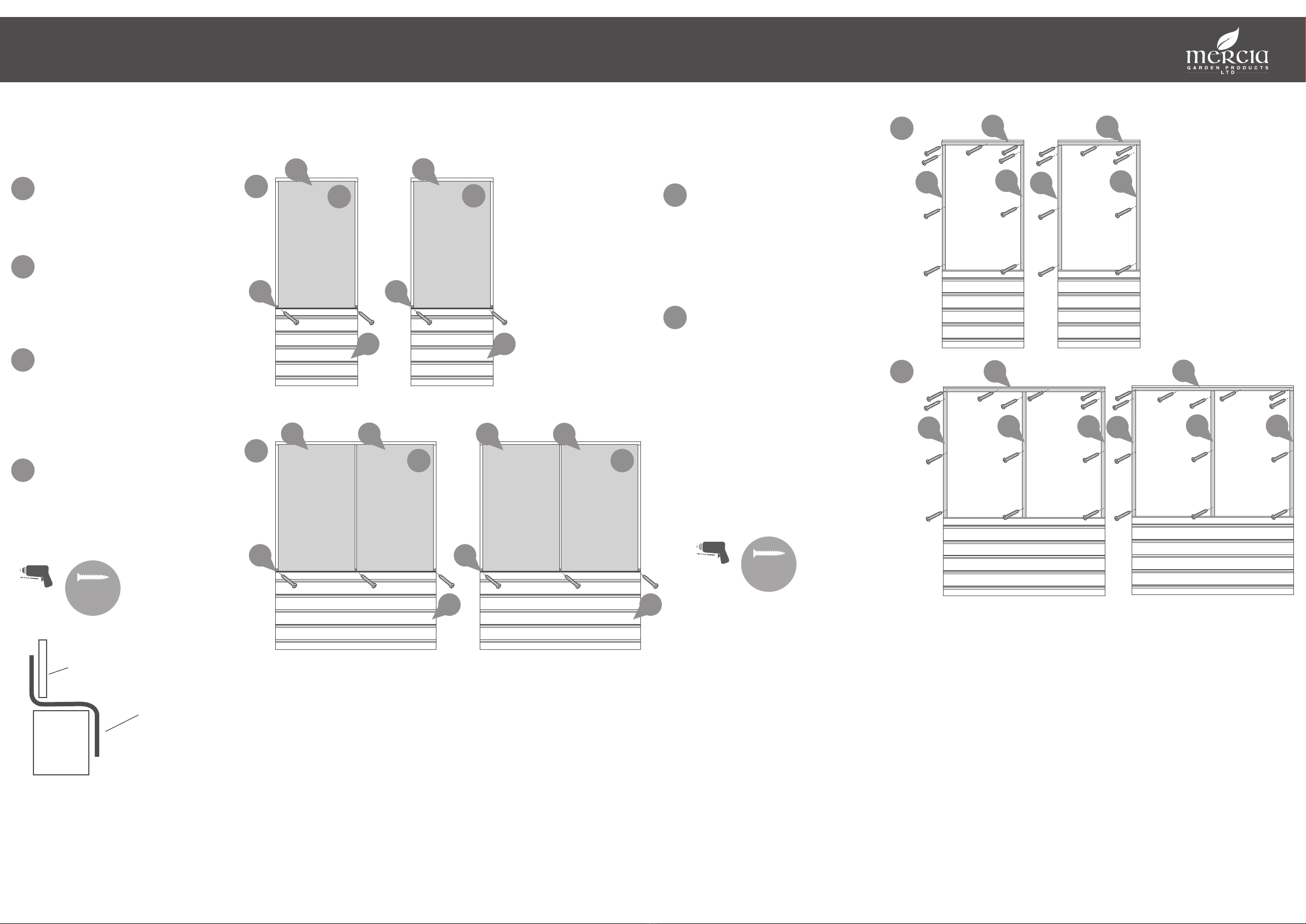

Step 2
Parts needed - No. 1 QTY 2
No. 2 QTY 2
No. 3 QTY 1
No. 30 QTY 9
No. 34 QTY 2
No. 35 QTY 2
No. 36 QTY 1
Lay the Door Sides (No.1), Small
Window Sides (No.2) and Large
Window Side (No.3) down on a at
and level base.
Place the Window Cills 610mm
(No.34) onto the lip of the external
window opening of the Door sides
(No.1). Secure the Cill to the
framing using 3x30mm screws.
Place the Window Cills 1193mm
(No.35) onto the lip of the external
window opening of the Small
Window Sides (No.1). Secure the
Cill to the framing using 3x30mm
screws.
Place the Window Cill 1776mm
(No.36) onto the lip of the external
window opening of the Large
Window Sides (No.3). Secure the
Cill to the framing using 4x30mm
screws.
Place the styrene (No.30) on top of
the cills, ensuring there is equal
spacing on all sides, as shown.
14x30mm screws.
a
b
e
d
c
b
c
d
Pre drill
hole
30mm
screw
Styrene
Window Cill
1
Styrene
e
34
1
Styrene
e
34
2
35
Styrene Styrene
e
2
35
Styrene Styrene
e
IMPORTANT: Pre-drill before xing screws.
3
36
Styrene Styrene Styrene
e
30 30
30 30 30 30
30 30 30
Step 3
Parts needed - No. 24 QTY 14
No. 25 QTY 1
No. 26 QTY 2
No. 27 QTY 2
Pre drill
hole
30mm
screw
a
b
c
On the Door sides (No.1) locate
Window strips (No.24) onto either
side of the panel, and Window
Strip (No.27) along the top of the
panel, ensuring to trap the styrene.
Fix in place using 3x30mm screw
per strip.
On the Small Window Side (No.2)
locate Window strips (No.24) onto
either side of the panel and where
the styrene joins and Window Strip
(No.26) along the top of the panel,
ensuring to trap the styrene. Fix in
place using 3x30mm screw per
side strip and 4x30mm screws for
the top strip.
On the Large Window Side (No.3)
locate Window strips (No.24) onto
either side of the panel and where
the styrene joins and Window Strip
(No.25) along the top of the panel,
and ensuring to trap the styrene.
Fix in place using 3x30mm screw
per side strip and 5x30mm screws
for the top strip.
Note: Ensure the window strips do
not overhang the panel framing.
59x30mm screws.
a
b
c
27
24 24
27
24 24
26
24 24 24
26
24 24 24
25
24 24 24 24
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Side
Front
Back
32
Step 4
Parts needed - No. 2 QTY 1
No. 3 QTY 1
Locate the Small Window Side (No.2) and the
Large Window Side (No.3) on top of the base
frame at the corner, ensuring there is equal spac-
ing between the panels and the base frame on
each side.
*Note: The large window side sits in between
the two side panels.*
Secure the panels together by screwing through
the corners using 3x50mm screws.
DO NOT x the panels to the oor until the roof
has been tted.
3x50mm screws.
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Side
Front
Back
2
Step 5
Parts needed - No. 2 QTY 1
Locate the remaining Small Window Side
(No.2) on top of the base frame at the corner,
ensuring there is equal spacing between the
panels and the base frame on each side.
*Note: The large window side sits inbetween
the two side panels.*
Secure the panels together by screwing
through the corners using 3x50mm screws.
DO NOT x the panels to the oor until the
roof has been tted.
3x50mm screws.
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
1
1
Step 6
Parts needed - No. 1 QTY 2
Locate the Door Side (No.1) on top of the
base frame at the front corners, between
the Small Window Sides (No.2) ensuring
there is equal spacing between the panels
and the base frame on each side.
Secure the panels together by screwing
through the corners using 3x50mm
screws.
DO NOT x the panels to the oor until
the roof has been tted.
6x50mm screws.
2
2
a
a
a
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
14
Step 7
Parts needed - No. 14 QTY 1
Locate the Door Frame (No.14) onto the
base framing between the Door Sides
(No.1).
Fix in place using 3x40mm screws.
This allows the Door Sides to be correctly
spaced.
3x40mm screws.
1
1
14
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
4
5
Step 8
Parts needed - No. 4 QTY 1
No. 5 QTY 1
Locate the Plain Gable Top (No.5) on top of
the Large Window Side and the Door Gable
top (No.4) on top of the Door Sides, as
shown.
Secure the gables in place using 4x50mm
screws per gable top, screwing through the
panel framing into the gable framing
above.
8x50mm screws.
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.

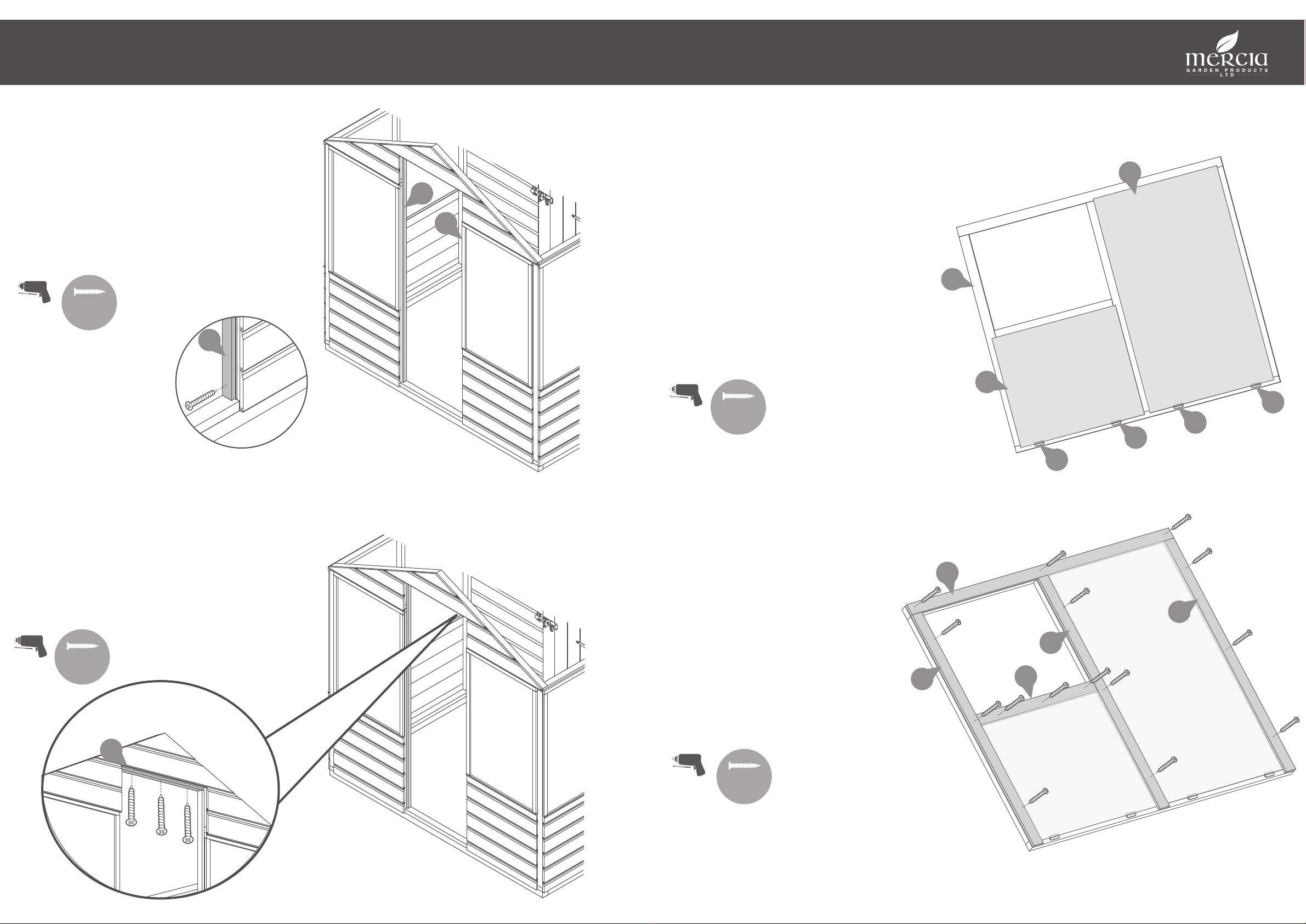

Step 9
Parts needed - No. 15 QTY 2
Locate the two Door strips (No. 15) to either
side of the door opening, ensuring the Strips
are ush with the internal framing of the
panel, as shown.
Fix in place using 3x30mm screws per strip.
6x30mm Screws.
Pre drill
hole
30mm
screw
15
15
15
IMPORTANT: Pre-drill before xing screws.
Step 10
Parts needed - No. 17 QTY 1
Locate the Short Door strip (No. 17) to the
top of the door opening.
Fix in place using 3x30mm screws.
3x30mm Screws.
Pre drill
hole
30mm
screw
17
17
IMPORTANT: Pre-drill before xing screws.
Step 11
Parts needed - No. 6 QTY 1
No. 20 QTY 4
No. 31 QTY 1
No. 32 QTY 1
Lay the roof panel (No. 6) down ensuring the
thinner edge of the frame is at the bottom. Place
the styrene sheets (No. 31 & 32) in position as
shown.
Fix in place using two Window Glazing beads
(No. 20) per Styrene sheet. Screw down though
the bead into the framing below using 2x16mm
screws per bead.
8x16mm Screws.
Pre drill
hole
16mm
screw
20
6
31
32
20
20
20
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 12
Parts needed - No. 28 QTY 1
No. 29 QTY 3
No. 33 QTY 1
Locate the strips (No 28, 29, & 33) onto
the top of the Roof panel, ensure to
trap the styrene and that the framing is
ush to the edge of the panel and each
strip, as shown.
Fix the strips in place using 3x30mm
screws per strip. Ensure you screw to
the side of the styrene not through it.
15x30mm Screws.
33
28
29
29
29
¢
IMPORTANT: Pre-drill before xing screws.
30mm
screw
16mm
screw

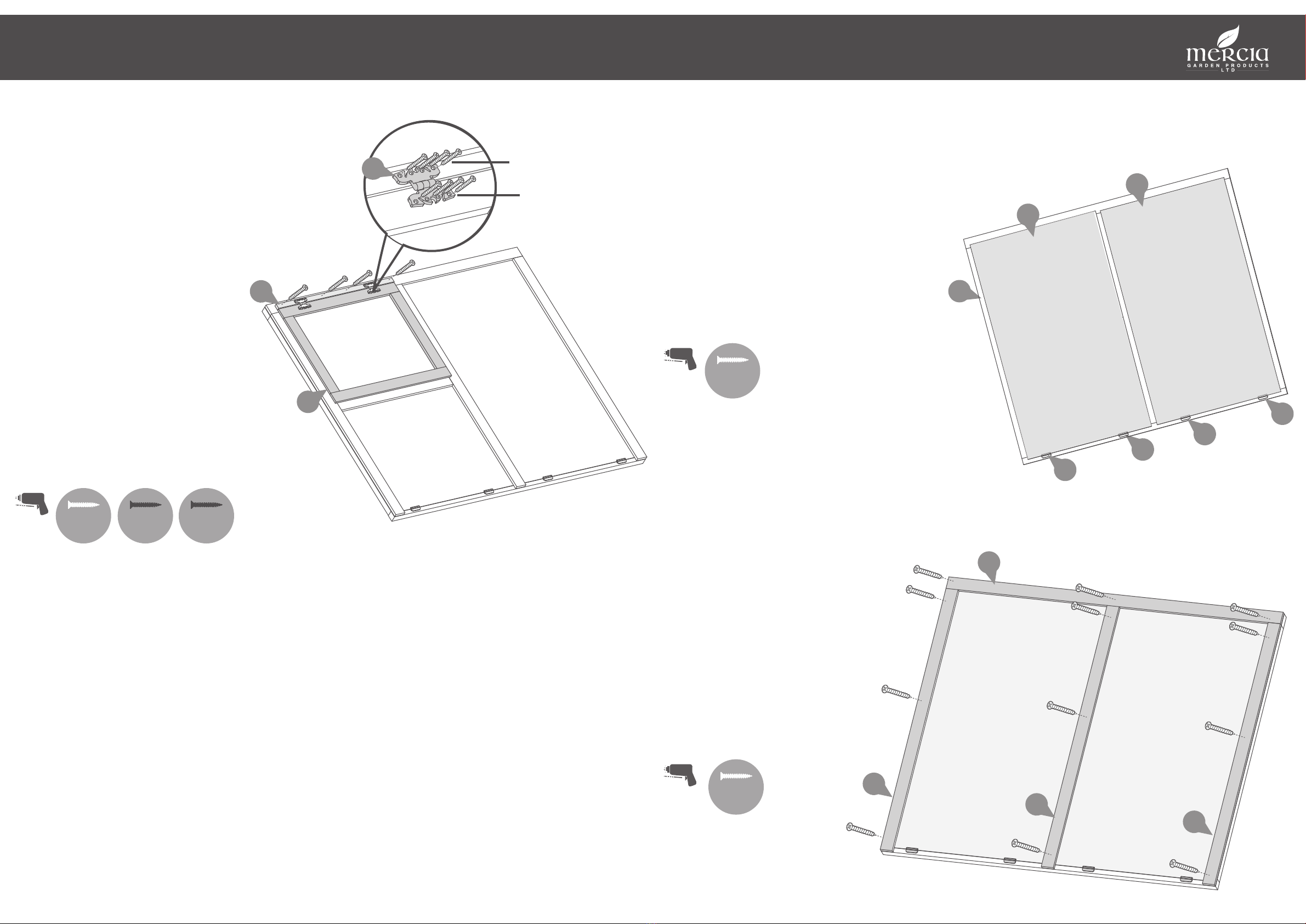

Step 13
Parts needed - No. 9 QTY 1
No. 18 QTY 2
No. 37 QTY 1
Locate the Opening Window (No.9) into
the Window aperture, ensuring equal
spacing on all sides.
Locate the strip (No.37) onto the
window panel above the Window (No.9)
and x in place with 4x30mm screws.
Locate the Hinges (No.18) onto the Strip
(No.37) and Window (No.9), as shown.
Secure the hinges to the Strip (No.37)
using 4x30mm black screws per hinge
and to the Window (No.9) using 4x16mm
screw per hinge, as shown.
4x30mm Screws.
8x30mm Black Screws.
8x16mm Black Screws.
37
9
Pre drill
hole
30mm
16mm
18
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 14
Parts needed - No. 7 QTY 1
No. 20 QTY 4
No. 32 QTY 2
Lay the Roof Panel (No. 7) down ensuring the
thinner edge of the frame is at the bottom. Place
the styrene sheets (No.32) in position as shown.
Fix in place using two Window Glazing beads
(No. 20) per Styrene sheet. Screw down though
the bead into the framing below using 2x16mm
screws per bead.
8x16mm Screws.
Pre drill
hole
16mm
screw
20
7
32
20
20
20
32
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 15
Parts needed - No. 29 QTY 3
No. 33 QTY 1
Locate the strips (No 29 & 33) onto the
top of the Roof panel, ensure to trap
the styrene and that the framing is ush
to the edge of the panel and each strip,
as shown.
Fix the strips in place using 3x30mm
screws per strip. Ensure you screw to
the side of the styrene not through it.
12x30mm Screws.
33
29
29
29
IMPORTANT: Pre-drill before xing screws.
Step 16
Parts needed - No. 6 QTY 1
No. 7 QTY 1
Place the Roof panels (No. 6 & 7) on top of
each gable, making sure the roofs are
ush to each gable and meet at the top of
the apex.
*IMPORTANT: Ensure both roof sections
meet at the top of the apex as shown in
the illustration.
Secure the roof panels to the building
using 8x50mm screws per roof panel.
16x50mm Screws.
Pre drill
hole
50mm
screw
6
7
*
76
IMPORTANT: Pre-drill before xing screws.
Step 17
Once the roof is secure, the building can
be secured to the base framing with
6x50mm screws per side.
24x50mm Screws.
b
bbbbbbbbb
bbb
IMPORTANT: Pre-drill before xing screws.
Step 18
Parts needed - No. 19 QTY 1
Fix the Casement stay (No. 19) to the
opening window then align the xings
onto the window panel frame. Ensure the
casement stay ts onto xings when
closed before screwing them down using
6x20mm screws.
6x20mm Screws.
Pre drill
hole
20mm
screw
19
Step 19
Parts needed - No. 13 QTY 1
Attach the Roof Support bar (No. 13) to the
roof panels using 5x40mm screws.
Screw diagonally through the support into
the roof panel as shown in the diagram.
5x40mm Screws.
Pre drill
hole
40mm
screw
13
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 20
Parts needed - No. 8 QTY 1
No. 18 QTY 2
No. 22 QTY 2
No. 23 QTY 2
Pre drill
hole
30mm
screw
8
18
50mm
screw
aLocate the Door (No. 8) into Door opening
ensuring there is equal spacing on all sides.
Fix the door (No. 8) to the building using
16x30mm black screws per hinge (No. 18)
as shown in the diagram.
Locate the Door Knob (No. 22) onto the
door (No.8). Secure in place by screwing
through the door, internally, and into the
door knob using 1x50mm screw.
Locate one Turn Button (No. 23) to the top
of the door and one to the bottom. Fix to
the Door Side using 2x30mm black screws.
18x30mm Black Screws.
1x50mm screw.
b
c
d
b
23
22
c
d
a
IMPORTANT: Pre-drill before xing screws.
Step 21
Parts needed - No. 38 QTY 4
Locate the Corner Trims
(No.38) onto each corner of
the building, as shown.
Fix in place using 4x30mm
screws per trim.
16x30mm Screws
Pre drill
hole
30mm
screw
38
38
38
Step 22
Parts needed - No. 10 QTY 4
No. 21 QTY 2
Locate Fascias (No. 10) to the front and
back of the building as shown. Secure
in place using 3x30mm screws per
Fascia.
Locate the nials (No. 21) on top of the
Fascias (No. 10) and x in place using
1x30mm screw per Finial.
14x30mm Screws
Pre drill
hole
30mm
screw
10 10
10
21 IMPORTANT: Pre-drill before xing screws.
10
21
Step 23
Parts needed - No. 16 QTY 1
Locate the Roof trim (No.16) to the top of
the building and secure with 4x30mm
screws as shown.
4x30mm Screws
Pre drill
hole
30mm
screw
16
IMPORTANT: Pre-drill before xing screws.
Step 24
It is ESSENTIAL to seal around all window
framing with silicone sealant (not included) to
minimise water ingress.
*Please note: This image is for illustrative
purposes and may dier from your product (in
regards to the number of windows) however
the principle is the same.
SILICONE
SEALANT
AFTER TREATMENT:
score around protective
cover on glazing and
carefully peel
covering back
Greenhouse and apex shed assembly
(04DTSTRDAX0406HGS-V1 + 01DTSHAX0406SDFW-V1)
**Please note:
This product can be installed with the shed door either inside the building (internal) or outside (external).
Before beginning assembling, decide which conguration best suits your needs and read through both
sets of instructions carefully.
Pre-assembly.
Follow the instructions for the 4x6 apex shed 01DTSHAX0406SDFW-V1 to
fully construct the building.
DO NOT x the fascias and nial on either the front or back of the building,
depending where you want to construct your greenhouse (shed door
internally or externally).
Greenhouse to be built on the front
(internal shed door ).
Greenhouse to be built on the back
(external shed door ).
Overall Dimensions:
Width = 1972mm
Depth = 2447mm
Height = 2039mm
Base Dimensions:
Width: 1860mm
Depth: 2397mm
Please note: Not all components from the greenhouse contents will be used to construct the greenhouse along
side the shed and therefore will be left over once the build is complete. Please dispose of these responsibly.
Pre drill
hole
70mm
screw
Step 1a
Parts needed - No. 11 QTY 2
No. 12 QTY 2
Lay the Base Frames (No.11 & 12)
down against the shed, ensuring
that Base Frame B, sits on the inside
of Base frame A, as shown.
Fix the base framing (No.11 & 12)
together using 2x70mm screws per
corner.
8x70mm screws.
11
12
IMPORTANT: Pre-drill before xing screws.
12
11
Internal Door:
External Door:
11
12
12
11
Step 2a
Parts needed - No. 1 QTY 2
No. 2 QTY 2
No. 30 QTY 6
No. 34 QTY 2
No. 35 QTY 2
Lay the Door Sides (No.1), Small
Window Sides (No.2) and Large
Window Side (No.3) down on a at
and level base.
Place the Window Cills 610mm
(No.34) onto the lip of the external
window opening of the Door sides
(No.1). Secure the Cill to the
framing using 3x30mm screws.
Place the Window Cills 1193mm
(No.35) onto the lip of the external
window opening of the Small
Window Sides (No.1). Secure the
Cill to the framing using 3x30mm
screws.
Place the styrene (No.30) on top of
the cills, ensuring there is equal
spacing on all sides, as shown.
10x30mm screws.
a
b
d
c
b
c
Pre drill
hole
30mm
screw
Styrene
Window Cill
1
Styrene
d
34
1
Styrene
d
34
2
35
Styrene Styrene
d
2
35
Styrene Styrene
d
IMPORTANT: Pre-drill before xing screws.
30 30
30 30 30 30
Step 3a
Parts needed - No. 24 QTY 10
No. 26 QTY 2
No. 27 QTY 2
Pre drill
hole
30mm
screw
a
b
On the Door sides (No.1) locate
Window strips (No.24) onto either
side of the panel, and Window
Strip (No.27) along the top of the
panel, ensuring to trap the styrene.
Fix in place using 3x30mm screw
per strip.
On the Small Window Side (No.2)
locate Window strips (No.24) onto
either side of the panel and where
the styrene joins and Window Strip
(No.26) along the top of the panel,
ensuring to trap the styrene. Fix in
place using 3x30mm screw per
side strip and 4x30mm screws for
the top strip.
Note: Ensure the window strips do
not overhang the panel framing.
44x30mm screws.
a
b
27
24 24
27
24 24
26
24 24 24
26
24 24 24
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Internal Door:
External Door:
Pre drill
hole
50mm
screw
a
Step 4a
Parts needed - No. 2 QTY 2
Locate two Small Window Sides
(No.2) on top of the bearers and
ush up to the shed.
Secure the panels to the shed by
screwing through the framing
using 3x50mm screws per side.
DO NOT x the panels to the oor
until the roof has been tted.
6x50mm screws.
2
2
2
2
a
a
a
a
a
a
a
a
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
Step 5a
Parts needed - No. 1 QTY 2
Locate two Door Sides (No.1) on
top of the bearers and ush to the
Small Window sides.
Please note: the Door sides will sit
inside the Window Sides.
Secure the panels to the Window
Sides by screwing through the
framing at the corners using
3x50mm screws per side.
DO NOT x the panels to the oor
until the roof has been tted.
6x50mm screws.
a
a
a
a
a
a
a
a
a
a
a
a
Internal Door:
External Door:
a
Pre drill
hole
50mm
screw
1
1
1
1
IMPORTANT: Pre-drill before xing screws.
Step 6a
Parts needed - No. 14 QTY 1
Locate the Door Frame (No.14)
onto the base framing between
the Door Sides (No.1).
Fix in place using 3x40mm screws.
This allows the Door Sides to be
correctly spaced.
3x40mm screws.
Pre drill
hole
40mm
screw
14
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Step 7a
Parts needed - No. 4 QTY 1
Locate the Door Gable top (No.4)
on top of the Door Sides, as shown.
Secure the gable in place using
4x50mm screws, screwing through
the panel framing into the gable
framing above.
4x50mm screws.
Internal Door:
External Door:
4
4
IMPORTANT: Pre-drill before xing screws.
Step 8a
Parts needed - No. 15 QTY 2
Locate the two Door strips (No. 15) to either
side of the door opening, ensuring the Strips
are ush with the internal framing of the
panel, as shown.
Fix in place using 3x30mm screws per strip.
6x30mm Screws.
Pre drill
hole
30mm
screw
15
15
15
IMPORTANT: Pre-drill before xing screws.
Step 9a
Parts needed - No. 17 QTY 1
Locate the Short Door strip (No. 17)
to the top of the door opening.
Fix in place using 3x30mm screws.
3x30mm Screws.
Pre drill
hole
30mm
screw
17
IMPORTANT: Pre-drill before xing screws.
Step 10a
Parts needed - No. 6 QTY 1
No. 20 QTY 4
No. 31 QTY 1
No. 32 QTY 1
Lay the roof panel (No. 6) down ensuring the
thinner edge of the frame is at the bottom. Place
the styrene sheets (No. 31 & 32) in position as
shown.
Fix in place using two Window Glazing beads
(No. 20) per Styrene sheet. Screw down though
the bead into the framing below using 2x16mm
screws per bead.
8x16mm Screws.
Pre drill
hole
16mm
screw
20
6
31
32
20
20
20
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 11a
Parts needed - No. 28 QTY 1
No. 29 QTY 3
No. 33 QTY 1
Locate the strips (No 28, 29, & 33) onto
the top of the Roof panel, ensure to
trap the styrene and that the framing is
ush to the edge of the panel and each
strip, as shown.
Fix the strips in place using 3x30mm
screws per strip. Ensure you screw to
the side of the styrene not through it.
15x30mm Screws.
33
28
29
29
29
IMPORTANT: Pre-drill before xing screws.
30mm
screw
16mm
screw
Step 12a
Parts needed - No. 9 QTY 1
No. 18 QTY 2
No. 37 QTY 1
Locate the Opening Window (No.9) into
the Window aperture, ensuring equal
spacing on all sides.
Locate the strip (No.37) onto the
window panel above the Window (No.9)
and x in place with 4x30mm screws.
Locate the Hinges (No.18) onto the Strip
(No.37) and Window (No.9), as shown.
Secure the hinges to the Strip (No.37)
using 4x30mm black screws per hinge
and to the Window (No.9) using 4x16mm
screw per hinge, as shown.
4x30mm Screws.
8x30mm Black Screws.
8x16mm Black Screws.
37
9
Pre drill
hole
30mm
16mm
18
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 13a
Parts needed - No. 7 QTY 1
No. 20 QTY 4
No. 32 QTY 2
Lay the Roof Panel (No. 7) down ensuring the
thinner edge of the frame is at the bottom. Place
the styrene sheets (No.32) in position as shown.
Fix in place using two Window Glazing beads
(No. 20) per Styrene sheet. Screw down though
the bead into the framing below using 2x16mm
screws per bead.
8x16mm Screws.
Pre drill
hole
16mm
screw
20
7
32
20
20
20
32
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 14a
Parts needed - No. 29 QTY 3
No. 33 QTY 1
Locate the strips (No 29 & 33) onto the
top of the Roof panel, ensure to trap
the styrene and that the framing is ush
to the edge of the panel and each strip,
as shown.
Fix the strips in place using 3x30mm
screws per strip. Ensure you screw to
the side of the styrene not through it.
12x30mm Screws.
33
29
29
29
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 15a
Parts needed - FROM SHED CONTENTS
No. 11 QTY 2
Place the greenhouse roof frames
(No.11) against each window panel,
ensuring the framing is ush to the shed
and window frame.
Secure in place using 3x50mm screws per
frame, ensuring to screw into each panel.
6x50mm Screws
11
11
Internal Door:
External Door:
11
11
11
11
Pre drill
hole
70mm
screw
Step 16a
Parts needed - FROM SHED CONTENTS
No. 12 QTY 1
Temporarily position the assembled Roofs
Panels (No. 6 & 7) onto the building,
making sure they are ush to the gables
and meet at the top of the Apex.
Using the Roof Panels as a guide, mark the
position for the roof block at the top of the
shed door gable.
Once marked, remove the Roof Panels and
secure the block to the shed gable using
1x70mm screw, making sure to secure
through the block into the central upright
on the door gable.
1x70mm Screws
Internal Door:
External Door:
12
12
12
12
IMPORTANT: Pre-drill before xing screws.
Step 17a
Parts needed - No. 6 QTY 1
No. 7 QTY 1
Place the Roof panels (No. 6 & 7) on top
of the door gable and the Roof Block,
making sure the roofs are ush to each
gable and meet at the top of the apex.
*IMPORTANT: Ensure both roof
sections meet at the top of the apex as
shown in the illustration.
Secure the roof panels to the front gable
and Roof Block using 5x50mm screws
per roof panel. Internally, secure the
Roof panels to the shed door gable
using 3x50mm screws per panel.
16x50mm Screws.
Pre drill
hole
50mm
screw
*
76
IMPORTANT: Pre-drill before xing screws.
Step 18a
Once the roof is secure, the building can
be secured to the base framing with
6x50mm screws per side.
18x50mm Screws.
b
bbb
bbbbbbbbb
¢
IMPORTANT: Pre-drill before xing screws.
Step 19a
Parts needed - No. 19 QTY 1
Fix the Casement stay (No. 19) to the
opening window then align the xings
onto the window panel frame. Ensure the
casement stay ts onto xings when
closed before screwing them down using
6x20mm screws.
6x20mm Screws.
Pre drill
hole
20mm
screw
19
Step 20a
Parts needed - No. 13 QTY 1
Attach the Roof Support bar (No. 13) to the
roof panels using 5x40mm screws.
Screw diagonally through the support into
the roof panel as shown in the diagram.
5x40mm Screws.
Pre drill
hole
40mm
screw
13
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 21a
Parts needed - No. 8 QTY 1
No. 18 QTY 2
No. 22 QTY 2
No. 23 QTY 2
Pre drill
hole
30mm
screw
8
18
50mm
screw
aLocate the Door (No. 8) into Door opening
ensuring there is equal spacing on all sides.
Fix the door (No. 8) to the building using
16x30mm black screws per hinge (No. 18)
as shown in the diagram.
Locate the Door Knob (No. 22) onto the
door (No.8). Secure in place by screwing
through the door, internally, and into the
door knob using 1x50mm screw.
Locate one Turn Button (No. 23) to the top
of the door and one to the bottom. Fix to
the Door Side using 2x30mm black screws.
18x30mm Black Screws.
1x50mm screw.
b
c
d
b
23
22
c
d
a
IMPORTANT: Pre-drill before xing screws.
Step 22a
Parts needed - No. 38 QTY 2
Locate the Corner Trims
(No.38) onto the two front
corners of the greenhouse, as
shown.
Fix in place using 4x30mm
screws per trim.
8x30mm Screws
Pre drill
hole
30mm
screw
38
38
Step 23a
Parts needed - No. 10 QTY 4
No. 21 QTY 2
Locate two Fascias (No. 10) to the
front of the Greenhouse as shown.
Secure in place using 3x30mm screws
per Fascia.
Locate the nials (No. 21) on top of
the Fascias (No. 10) and x in place
using 1x30mm screw per Finial.
Position the remaining two Fascias
(No. 10) across the joint of the two
roofs.
Fix in place using 4x30mm screws,
ensuring to screw through to both
the shed and greenhouse roofs in an
alternating pattern.
15x30mm Screws
Pre drill
hole
30mm
screw
10
21
IMPORTANT: Pre-drill before xing screws.
10
10
10
Step 24a
Parts needed - No. 16 QTY 1
Locate the Roof trim (No.16) to the top of
the building and secure with 4x30mm
screws as shown.
4x30mm Screws
Pre drill
hole
30mm
screw
16
IMPORTANT: Pre-drill before xing screws.
Step 25a
It is ESSENTIAL to seal around all window
framing with silicone sealant (not included) to
minimise water ingress.
*Please note: This image is for illustrative
purposes and may dier from your product (in
regards to the number of windows) however
the principle is the same.
SILICONE
SEALANT
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 01DTGRODB0808-V3 User manual
Mercia Garden Products
Mercia Garden Products 03BRN0705-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHAX0608FGD4MW-V2 User manual
Mercia Garden Products
Mercia Garden Products 02CHY0404-V3 User manual
Mercia Garden Products
Mercia Garden Products 0628CSNE0404HGDD2SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products Groundsman Dutch Barn 8x8 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DDPENT1008-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 03LBRO1008-V7 User manual
Mercia Garden Products
Mercia Garden Products 02DTTWRS0605-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 01RAW2010DDOW-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN1008FGC31TWSA-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTOSBRA1008SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03WES1008-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTPOT0806-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634LOG174-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644LOG186-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 02PLAY511511-V1 User manual
Mercia Garden Products
Mercia Garden Products 02RSE0505-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 8x8 Waltons Vermont Summerhouse Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVRA1006SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 10DTBARK0804-V1 User manual
Mercia Garden Products
Mercia Garden Products 01PTOSBA0806SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619PNSH1227FBSD-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03PTODB0406-V1 Instruction manual
Popular Garden House manuals by other brands
Palmako
Palmako OLAF ELT18-4633 installation manual
Décor et Jardin
Décor et Jardin MASSIF 34 Assembly Notice
Best Barns
Best Barns Millcreek Assembly Book
Lemeks
Lemeks Palmako FR44-3857-1 Assembly, installation and maintenance manual
NewGarden
NewGarden FRF28-4130FSC installation manual
Skanholz
Skanholz Arnheim 760688 Assembly instructions
tradetested
tradetested GS501-V1 manual
Luoman
Luoman Lillevilla Peukaloinen Assembly and Maintenance
Little Cottage
Little Cottage Atlanta Chicken Coop manual
Décor et Jardin
Décor et Jardin Valodeal 78457SX00 Assembly Notice
Dunster House
Dunster House PADDINGTON G1-2228NCO installation manual
STILLA
STILLA Bromley Assembly instructions
Décor et Jardin
Décor et Jardin Abri Massif 63137S044 Assembly Notice
Lemeks
Lemeks 106381 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako FR44-3723 Assembly, installation and maintenance manual
total sheds
total sheds Pent Shed 7ft x 5ft Assembly manual
G21
G21 GAH 429-ZNG-2S0 Assembly instructions
Forest garden
Forest garden OPA77DD quick start guide
