Mercia Garden Products 01OVLPA0604SDFW-V1 Instruction manual

**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
6X4 OVERLAP APEX
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:

P 2
01OVLPA0604SDFW-V1 & 01OVLPA0604SDFW-V1-NW
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
01OVLPA0604SDFW-V1
01OVLPA0604SDFW-V1-NW
Overall Dimensions:
Length = 1794mm
Width = 1199mm
Height = 1863mm
Base Dimensions:
Length = 1763mm
Width = 1180mm

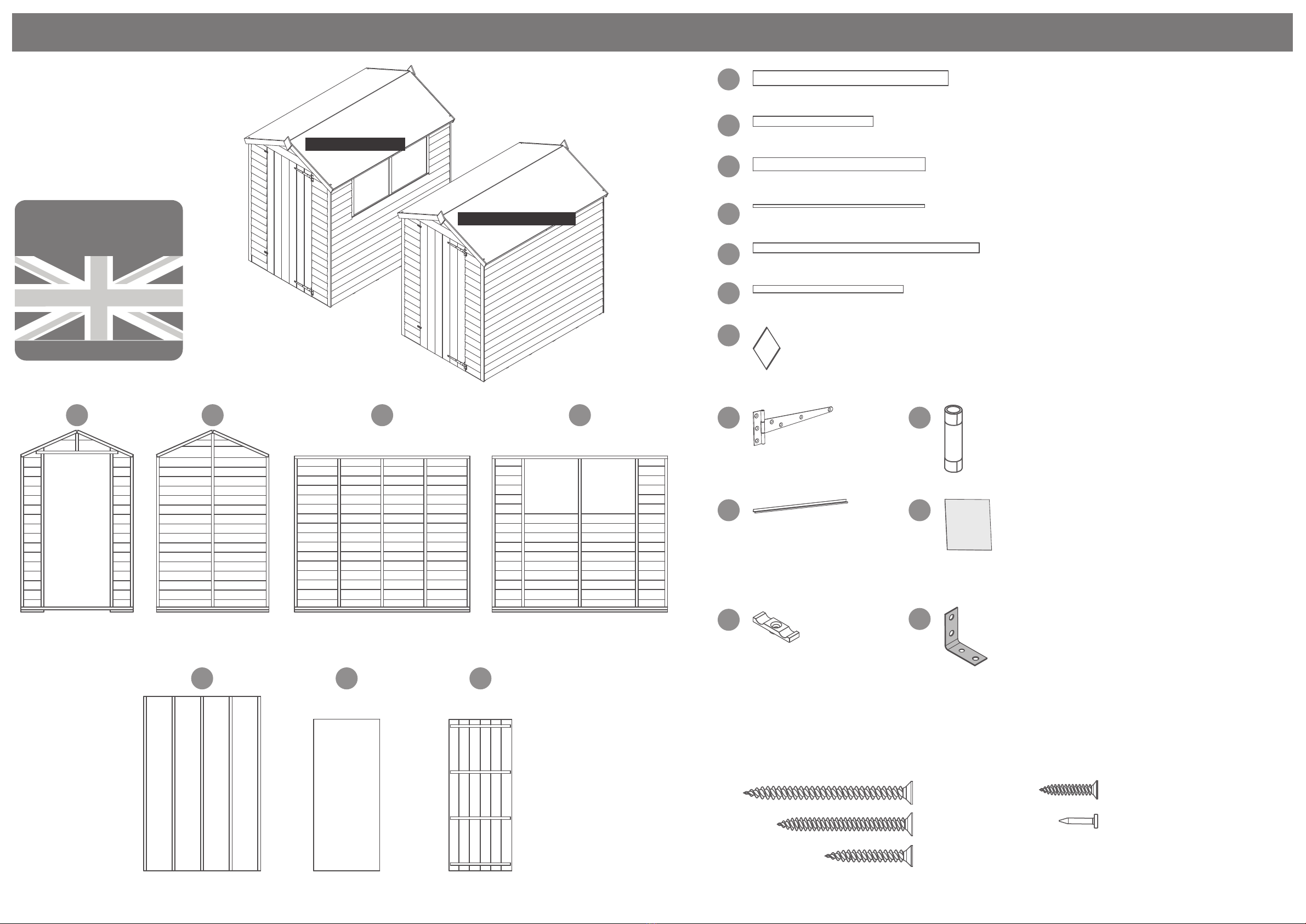

Building Content:
10
11
12
13
14
Fascia 12x60x694mm QTY 4
S1260-694mm
Fixed Window Strip 12x30x546mm QTY 5 (FW ONLY)
S1230-546mm
Cover Trims 12x45x1575mm QTY 4
S1245-1575mm
Ridge Bar 28x28x1707mm QTY 1
F2828-1707mm
Finial QTY 2
SHED DIAMOND FINIAL
Door Gable QTY 1
AI-01OVLPDG1826X1130-V1
Back Gable QTY 1
AI-01OVLPPG1826X1330-V1
Plain Side QTY 2
(NW ONLY)
AI-01OVLPPS1763X1567-V2
Window Panel QTY 1
(FW ONLY)
AI-01OVLPWS1763X1567-V2
Floor QTY 1
AI-01OVLPF1753X1175-V2
Roof QTY 2
PI-03-0222
Door QTY 1
AI-01MBDR1600X660-V1
8
1 2 3 4
5 6 7
9
17
Door Beading Strip 12x28x1530mm QTY 2
S1228-1530mm
T Hinge QTY 2
PI-02-1041
Plastic Window Cill
(FW ONLY)
PI-08-0013
Felt
Styrene QTY 2
(FW ONLY)
PI-05-0114
18
20
L-Bracket QTY 2
PI-07-0012
16
Turn Button
QTY 2
PI-07-0034
19
15
Eaves Frame 28x28x897mm QTY 4
F2828-897mm
Nail Bag
Felt Tacks x 72
20mm Screw x 8
30mm Screw x 64
50mm Screw x 41
40mm Screw x 48

P 3

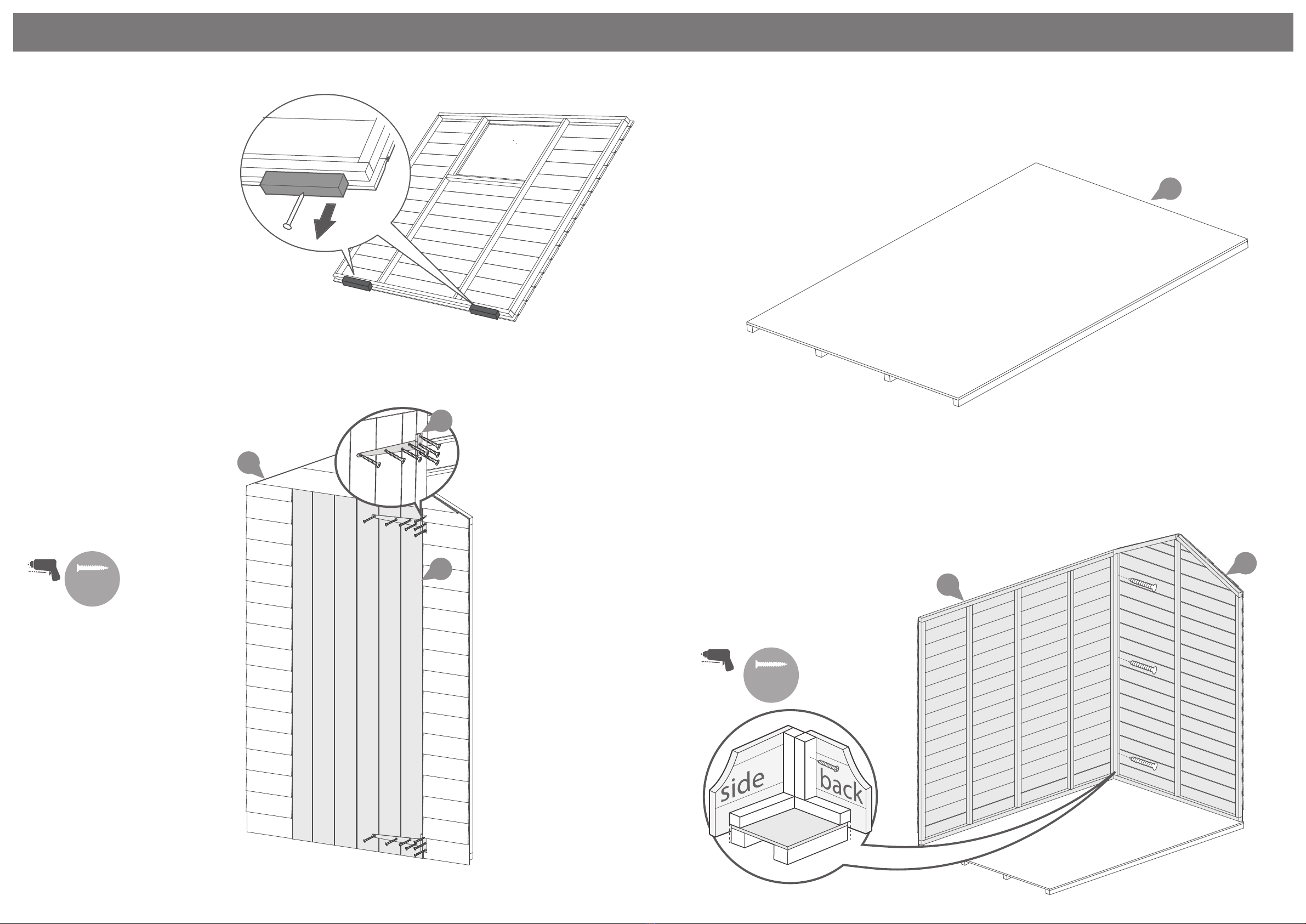

Remove transportation
blocks from the bottom of
each panel before
beginning assembly. Each
Panel should have two
blocks.
Pre Assembly
Fix the T Hinges onto the
doors and door frame as
shown. Ensure that the
screws go through the
cladding and into the
framing behind.
14x30mm screws
1
7
15
30mm
screw
Pre drill
hole
Place the oor on a rm and level base, ensure
the base has suitable drainage free from areas
where standing water can collect. See the
front page for base requirments.
Step 1
5
Do not secure the building to the
oor until the roof is tted. Fix the
panels onto the oor using 50mm
screws in alignment with the oor
joists
Fix the corners with 50mm screws
as shown in diagram.
Position the panels so there is equal spacing
between the oor and cladding on all 4 sides
Step 2
3
2
3x50mm Screws
Pre drill
hole
50mm
screw

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Step 3
9x50mm Screws
Fix the corners with 50mm
screws as shown in diagram.
1
Pre drill
hole
50mm
screw
Use part 3 for a no window
building and part 4 for a
windowed building
4 or 3
Step 4
8x20mm Screws
Place the ridge bar in between the front
and back gables. Ensure the top corners
of the ridge bar sit ush with the top
points of the door gable. Fix the ridge bar
to the gable using one L bracket for each
end.
Fix with 4x20mm screws each
12
20
20mm
screw
Pre drill
hole
Step 5
Fix two eaves frames to each roof sheet
using 3x30mm screws per eave.
Fix the roof sheets to the roof ensuring
they come together at the top using
40mm screws directly through the roof
sheet at the top. Make sure to attach the
roofs to the ridge bar.
13
6
30mm
screw
13
12x 30mm Screws
28x 40mm Screws
40mm
screw
Pre drill
hole
Step 6
bOnce the roof is xed
attach the building to
the oor with 50 mm
screws.
16x 50mm Screws
50mm
screw Pre drill
hole

P 5
72x Tacks
18
Step 7
Cut the felt into 2 sheets at
1894mm and x onto the
roof using felt tacks as
shown in diagram ensuring
there is 50mm overhang
around the sides.
HANDLE
WITH CARE
12
3
4
Felt
tacks
18
Fit the Cover Trims to the front
and back of the building as
shown in the illustration using
30mm screws. Trim the length
of the cover trims to the
required size before tting if
necessary.
Pre drill to avoid splitting.
12x30mm Screws
10
Step 8
30mm
screw
Pre drill
hole
Step 9
16x40mm Screws
Attach the faiscas to the roof
leaving a slight overhang at the
top.
Fit the fascias to the roof over
the felt and secure in place with
40mm screws as shown.
Pre drill to avoid splitting.
14
88
14
8
40mm
screw
Pre drill
hole
8

P 6
16
19

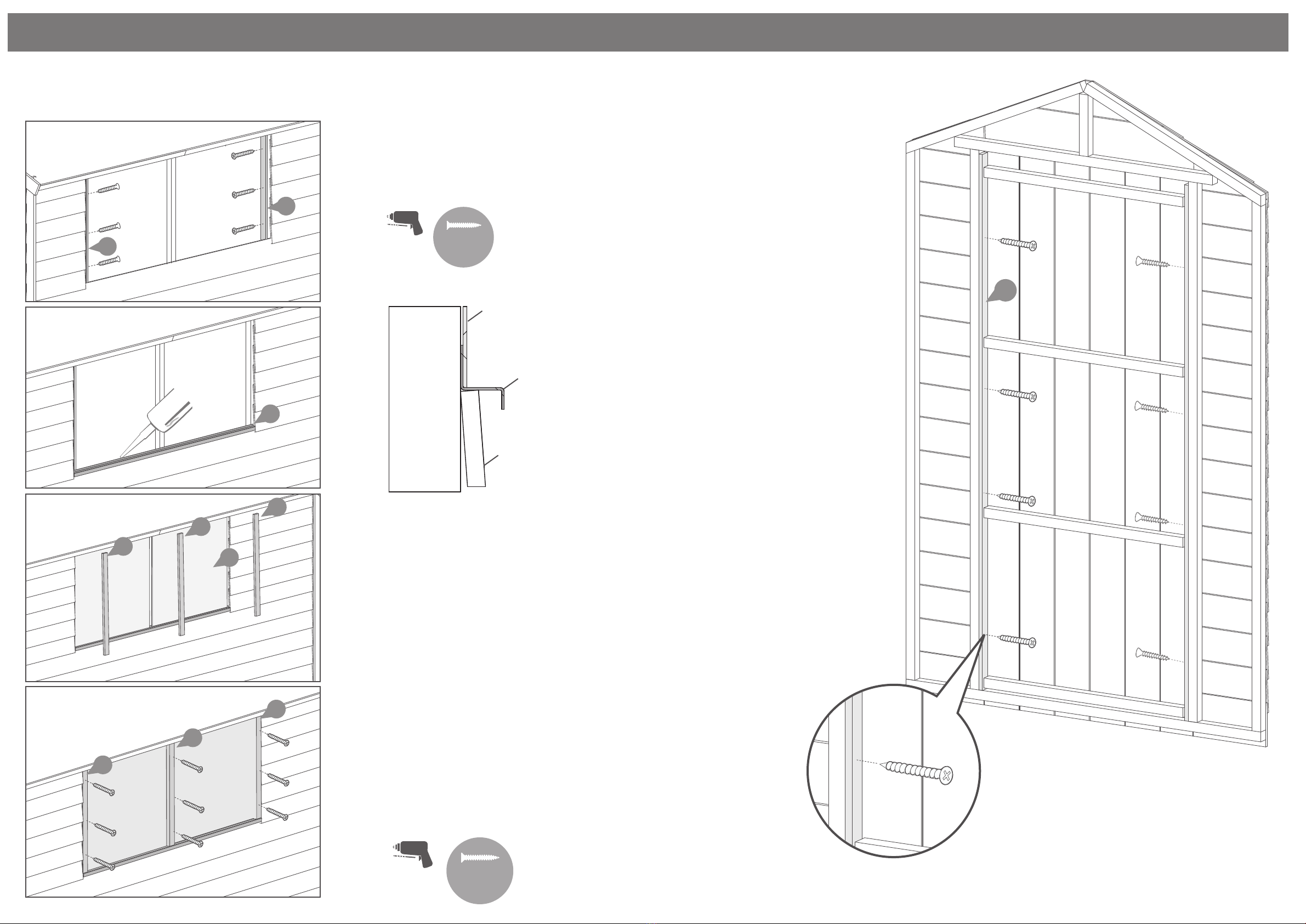

Fit the styrene sheets on top of
the window cill.
When positioning the styrene
sheets ensure there is an equal
distance between them and at
either side of the windows.
Fix the window strips to the two
pieces of framing that sit
alongside the outside edges of
the window with 3x30mm
screws for each strip.
Attach the three window strips
at either side of the windows
using 3x30mm screws each.
Make sure the screws enter the
framing in the window panel
and not the styrene.
9x30mm Screws
Step 10
For the no window version go to step 11
9
9
9
9
9
9
30mm
screw
Pre drill
hole
6x30mm Screws
30mm
screw
Pre drill
hole
9
9
Place the plastic window
cill onto the Window
Panel and silicone in
place as shown on both
diagrams to the left.
SILICONE
SEALANT
Styrene
Window Cill
Cladding
Side View
Step 11
Use 4x30mm Screws to x
each beading strip onto the
door gable. Ensure that the
screw is parallel with the
door frame when xing the
strip to the door gable as
shown in the close up view.
8x30mm Screws
11

P 7
Fix the Turn Button onto the
door gable using 1x30mm
screw for each one.
2x 30mm Screw
Step 12
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
17
30mm
screw





















































2





1












3
4














REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:



















¡




1




2























¡



