Mercia Garden Products 0628RANE0403FGDD2TW1SW-V1 Instruction manual

P 1
0628RANE0403FGDD2TW1SW-V1 (4x3m)
0628RANE0403FGDD2TW1SW-V1: 28mm Log Cabin, Reverse Apex, No Extras, 4x3, Fully Glazed Double Door, Two Tall Windows, One
Short Window.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.

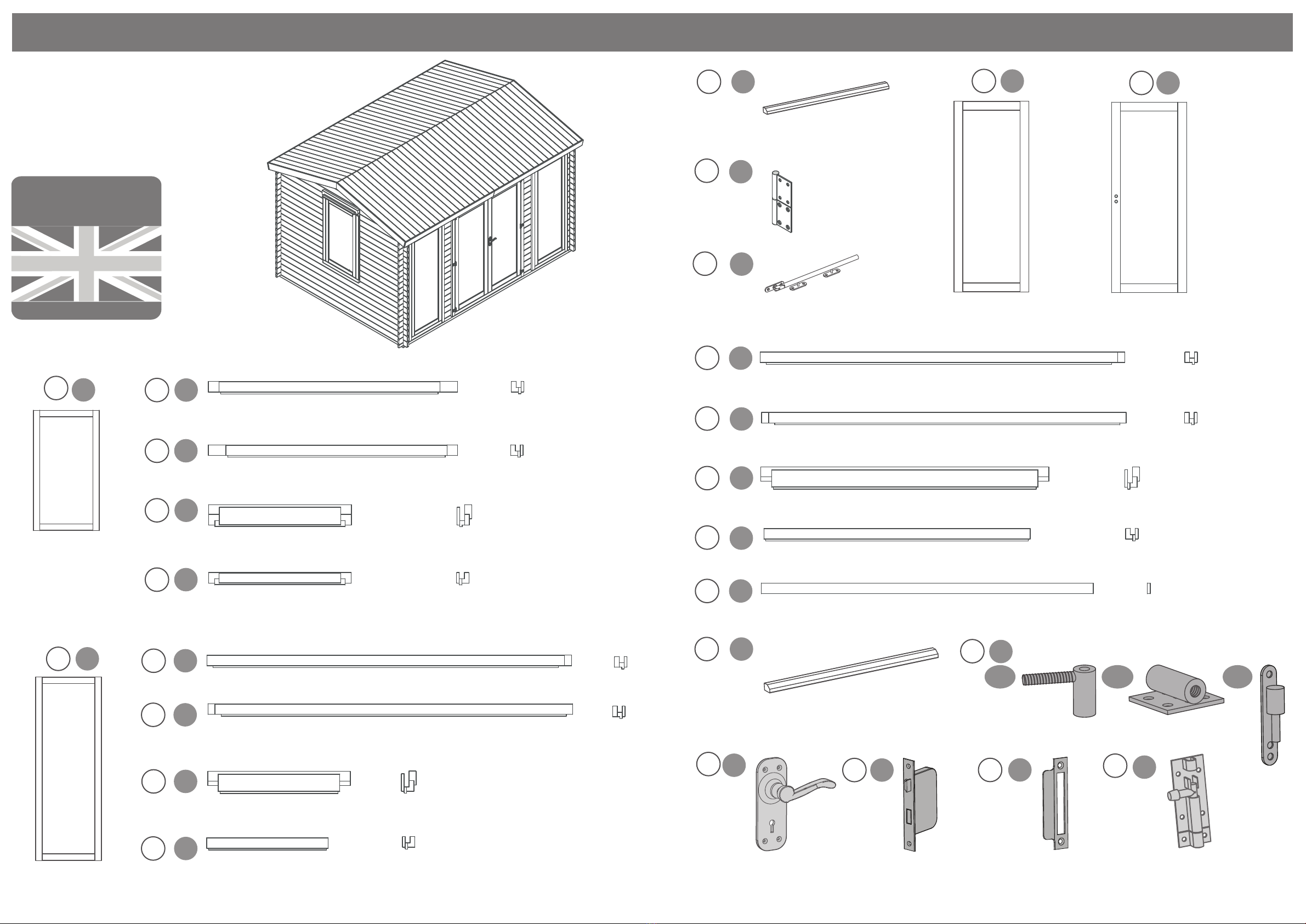

Double Door Contents
Window Contents
Short Window Contents
Tall Window Contents
P 2
0628RANE0403FGDD2TW1SW-V1
Overall Dimensions:
Width = 4036mm
Depth = 3144mm
Height = 2600mm
Base Dimensions:
Width = 3808mm
Depth = 2804mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Window QTY 1
AI-06LOGDGW684X1244-V3
2
1
3
4
5
Window Frame Left Upright - 71x70x1412mm QTY 1
AI-0628LOGWUFL-V3
Window Frame Right Upright - 71x70x1412mm QTY 1
AI-0628LOGWUFR-V3
Window Frame Top - 84x125x805mm QTY 1
AI-0628LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 1
AI-0628LOGWBF-V3
15
16
17
Mortice Lock
QTY 1
PI-07-0017
Key Plate
QTY 1
PI-07-0017
Handles (Pair)
QTY 1
PI-07-0188
Adjustable Hinge QTY 6 PI-07-0209
Tower Bolt
QTY 2
PI-07-0114
Master Door QTY 1
(Morticed for lock)
AI-06LOGDGFGMD750X1900-V3
18
19
20
22
22a 22c
23 24 25 26
Secondary Door QTY 1
AI-06LOGDGFGSD750X1900-V3
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFR-V3
Door Frame Top - 84x125x1632mm QTY 1
AI-0628LOGDDTF-V3
Door Frame Bottom - 71x70x1508mm QTY 1
AI-0628LOGDDBF-V3
Door Strip - 16x60x1880mm QTY 1
S1660-1880mm
14
21
Rain Guard QTY 1
RG2844-1520 (28x44x1520mm)
22b
11
Rain Guards QTY 3
RG2844-710 (28x44x710mm)
7
8
9
10
Window Frame Left Upright - 71x70x2065mm QTY 2
AI-0628LOGDUFL-V3
Window Frame Right Upright - 71x70x2065mm QTY 2
AI-0628LOGDUFR-V3
Window Frame Top - 81x125x808mm QTY 2
AI-0628LOGTWTF-V3
Window Frame Bottom - 71x70x688mm QTY 2
AI-0628LOGTWBF-V3
12
13
Flag Hinge QTY 2
PI-07-0211
Casement Stay Qty 1
PI-07-0187
Window QTY 2
AI-06LOGDGW684X1905-V3
6

Felt
30
29
31
32
33
Main Buildings Contents
P 3
Storm Brace - 27x44x2000mm QTY 8
F2744-2000
44
45
46
42
43
Closure Trim - 16x28x2400mm (approx length) QTY 16
SI628-2400 (Bevelled)
Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongues and grooves.
Felt Tacks x 210
70mm Screw x 76
80mm Screw x 64
Nail Bag
40mm Screw x 558
30mm Screw x 178
70mm Bolt Set x 16
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
47 48
Please retain product label and instructions for future reference
Log Board - 28x120x4000mm QTY 19
LB28-A-4000
Log Board - 28x120x1123mm QTY 24
LB28-B-1123
Log Board - 28x120x232mm QTY 36
LB28-B-232
Log Board - 28x120x232mm QTY 36
LB28-C-232
34
35
Roof Board - 16x121x1600mm QTY 74
MB16-1600
Floor Board - 16x121x2748mm QTY 35
MB16-2748
36
Bearer - 44x44x2804mm QTY 2
F4444-2804-PT
37
Bearer - 44x44x3720mm QTY 10
F4444-3720-PT
38
Purlin - 45x120x4004mm QTY 3
F45120-A-4004
39
Fascia - 16x120x1604mm QTY 4
S16120-G-1604 (angled)
40
Fascia - 16x120x2018mm QTY 4
S16120-2018
41
Eaves Frame - 27x44x4004mm QTY 2
F2744-4004
Starter Board - 28x66x4000mm QTY 2
LB28RT66-A-4000
Log Board - 28x120x2996mm QTY 26
LB28-A-2996
Log Board - 28x120x4000mm QTY 1
LB28-AD-4000
Finishing Board - 28x45x4000mm QTY 2
LB28RG45-A-4000
Window Gable - 2996mm
QTY 1
AI-0628RANE0403-WG-V1
Gable - 2996mm
QTY 1
AI-0628RANE0403-G-V1
27 28

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
70mm
screw

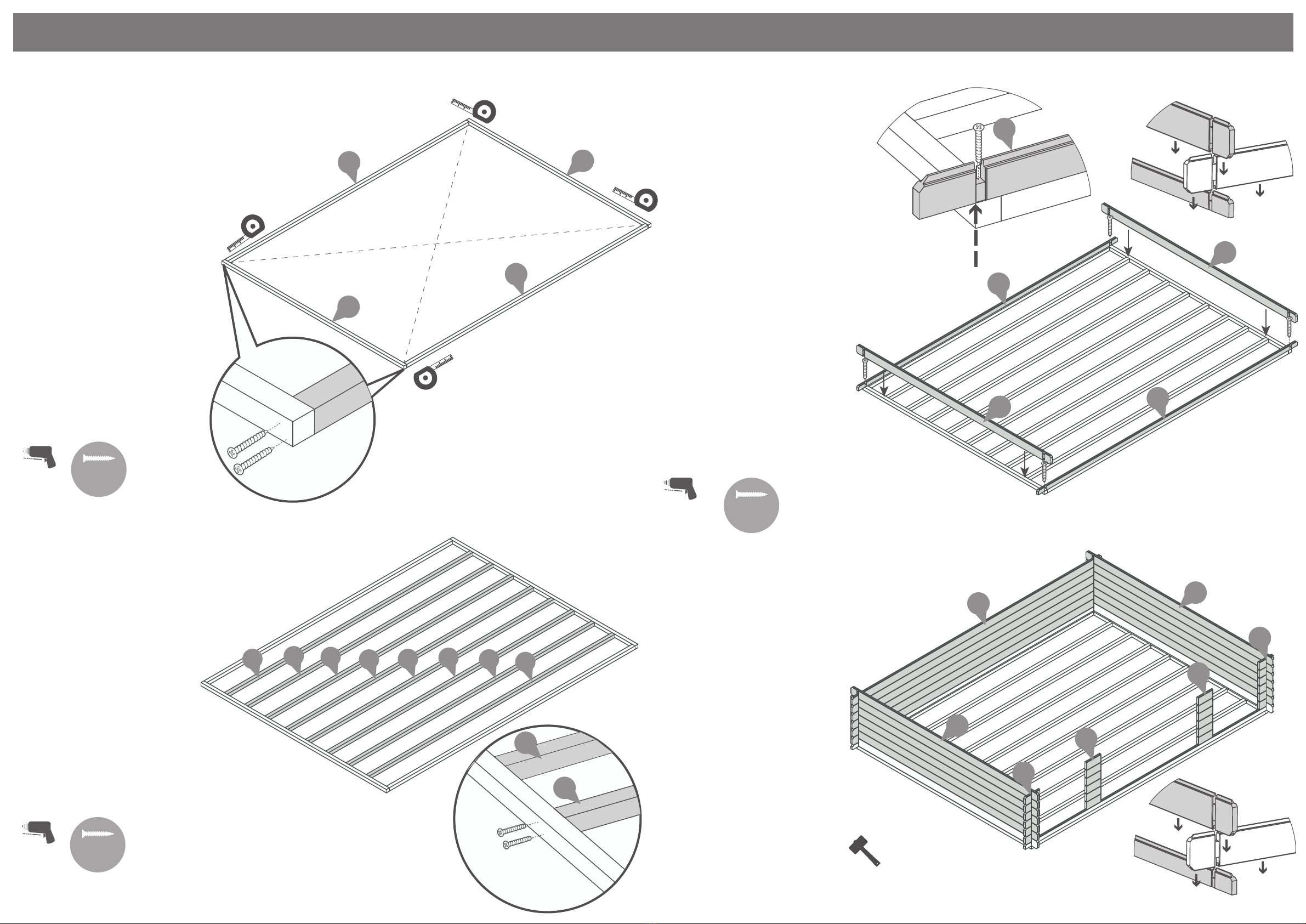

Step 1
Parts needed - No. 39 QTY 2
No. 40 QTY 2
Lay the bearers (No’s 39 & 40) onto a
rm and level surface (free from
areas where standing water can
collect) as shown in the illustration.
Fix the bearers together at each
corner using 8x70mm screws, ensur-
ing the frame is ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as illustrated,
making sure the measurements are
equal.
If the bearers are not aligned equal-
ly, unscrew, adjust and re-align
accordingly.
8x70mm Screws
Example picture
2 screws per bearer per end.
=
=
39
40
39
40
IMPORTANT: Pre-drill before xing screws.
40
40
Pre drill
hole
70mm
screw
Step 2
Parts needed- No. 40 QTY 8
Following the same method
arrange the remaining bearers
(No. 40) inside the assembled
frame.
*Ensure there is an equal
amount of space between each
frame.
Secure each of the bearers in
place using 2x70mm screws
for each side of the bearer,
ensuring the bearers remain
level.
32x70mm Screws
40 40 40
40 40 40
40
40
29
Step 3
Parts needed - No. 29 QTY 2
No. 35 QTY 2
Place the starter boards (No. 29)
and the rst two log boards (No.
35) in the notch as shown onto
the assembled base frame along
the longest sides.
Ensure the boards sit square on
the base using the same method
used in Step 1. Measure corner to
corner, making sure the measure-
ments are equal.
Once the boards are square, lift up
the log boards (No. 35) and x the
starter boards in place (No. 29).
Fix each of the starter boards to
the frame by screwing through
the notch into the frame as shown
in the illustration.
4x70mm Screws
IMPORTANT: Pre-drill before xing screws.
35
29
35
29
Pre drill
hole
70mm
screw
Step 4
Parts needed - No. 30 QTY 6
No. 33 QTY 12
No. 34 QTY 12
No. 35 QTY 12
Following the same method
outlined in the Pre-Assembly, lay
the required boards (No’s. 30,
33, 34 & 35) onto the starter
boards to create your rst level.
*Make sure that you have
seven rows of log boards in
total below the SHORT
window.
*Ensure that the boards are
level and ush with each other
as you lay each one.
35
33
34
34
33
35
30
Rubber Mallet
may be required
to t parts.
Please retain product label and instructions for future reference

P 5
IMPORTANT : Pre-drill before xing screws.
10
Step 5
Parts Needed - No. 7 QTY 2
No. 8 QTY 2
No. 9 QTY 2
No. 10 QTY 2
Arrange the left, right, top & bottom
tall window frames (No’s. 7, 8, 9, &
10) onto a rm and level surface.
Secure the top and bottom frames
to the uprights using 2x80mm
screw per corner, ensuring the
screws do NOT protrude through
the front of the door framing.
Using the method outlined above,
assemble the two window frames.
16x80mm Screws
Pre drill
hole
80mm
screw
10 8
The internal lip of the window
frame should be positioned on
the inside of the building.
9
8
7
IMPORTANT : Pre-drill before xing screws.
6
Step 6
Parts Needed - No. 6 QTY 2
Rest each window (No. 6) into the
assembled window frames as shown
in the illustration, and secure into
position by screwing through the
framing into the window.
*Place the frame & window at onto
a level surface to help x into place.
Use this method to assemble the two
windows.
32x80mm Screws
Pre drill
hole
80mm
screw

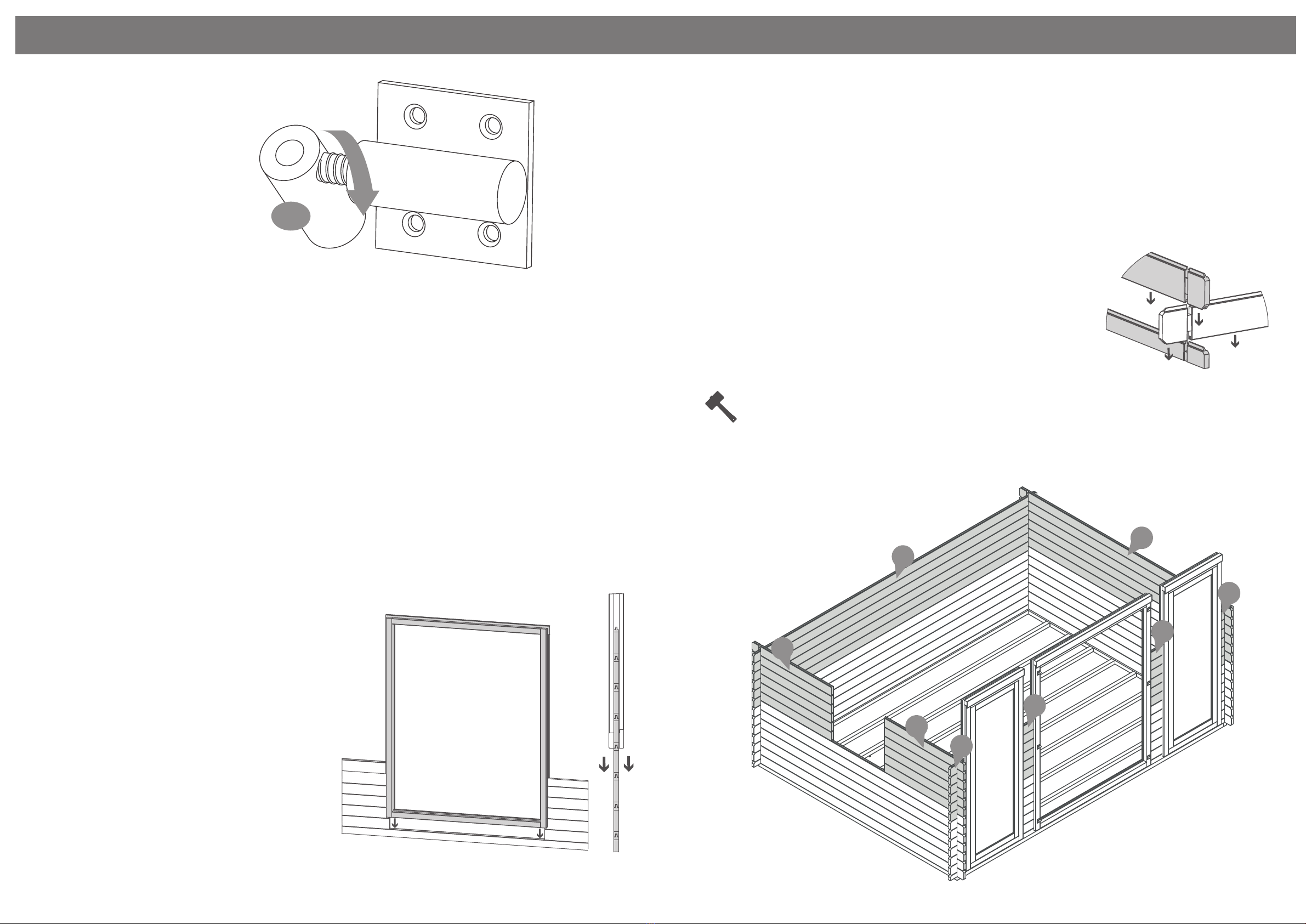

Step 7
Once you have laid the rst level of
boards onto the log cabin, slide the
tall windows between the smaller
boards and rest on to the longer
board (if you have not yet
assembled the window frames refer
to step 5 & 6)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same
Please retain product label and instructions for future reference

P 6

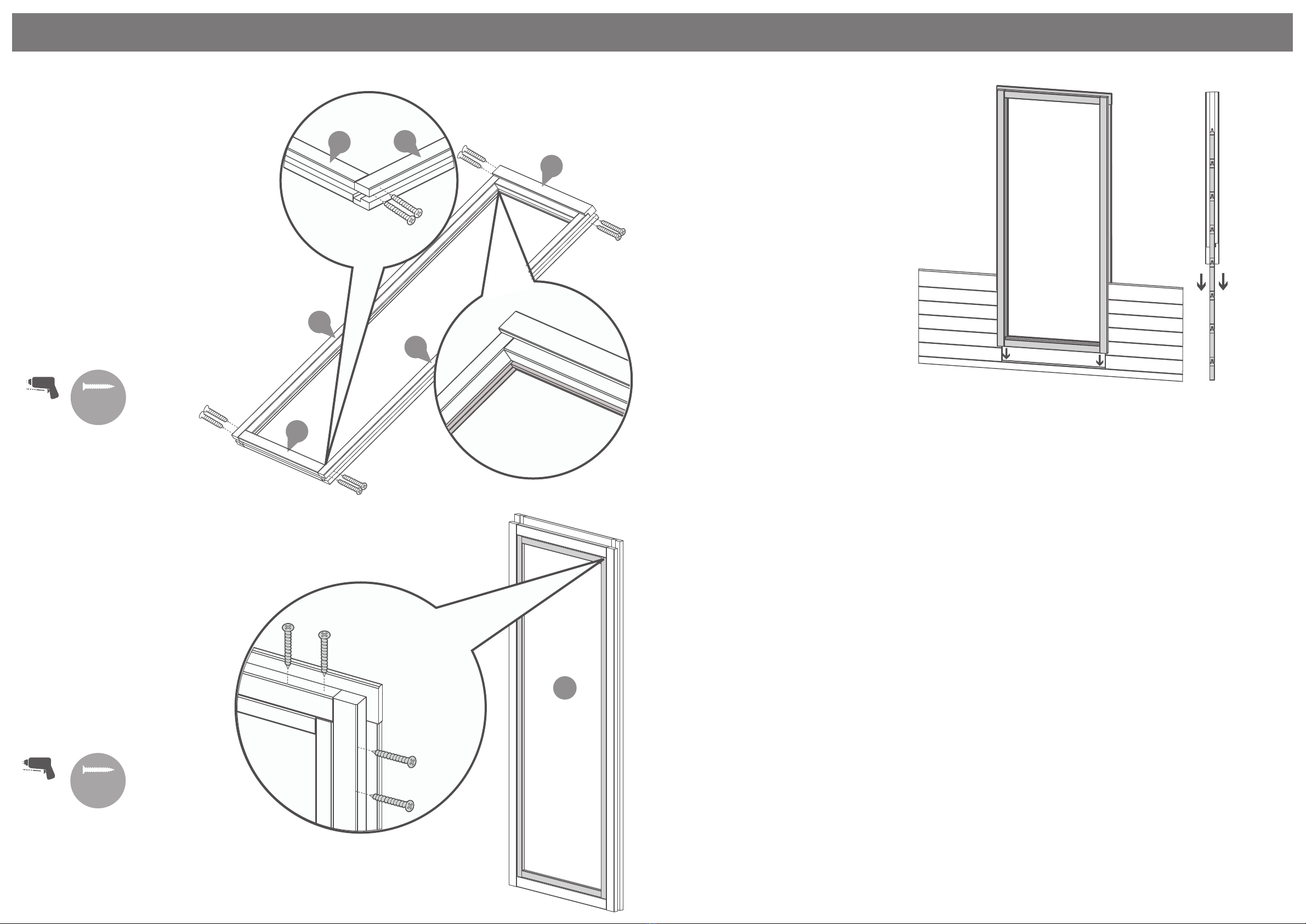

Step 8
Parts Needed - No. 16 QTY 1
No. 17 QTY 1
No. 18 QTY 1
No. 19 QTY 1
Arrange the left, right, top & bottom door
frames (No’s. 16, 17, 18 & 19) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x 80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
The internal lip of the door
frame should be positioned on
the inside of the building.
19 17
19
16
18
17
IMPORTANT : Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
22a
Pre drill
hole
30mm
screw
15
14
22
Step 9
Parts Needed - No. 14 QTY 1
No. 15 QTY 1
No. 22 QTY 6
The Adjustable Door Hinge (No.22)
comes in three parts.
Fasten No. 22a into 22b as shown in the
illustration.
Once the framing is enclosed, place
the secondary and master doors
(No. 14 & 15) into the assembled frame
Fix the Adjustable door hinge (No.22c) to
the doors using 3x30mm screws per hinge.
Fix 3 x Adjustable Door Hinges (No.
22a&b) into position onto the door frame
using 4x30mm screws per hinge.
*Ensure the hinges are tted to the exter-
nal of the door frame so the doors open
outwards from the log cabin.
Locate the doors into the hinges ensuring
there is equal spacing on each side
between the doors and door frame, and
that the doors open and close freely with-
out restriction.
It is important to t the doors within the
frames at this stage so that you can estab-
lish the position of the hinges. The hinges
come in three parts. Remove the doors
from the framing after tting.
*Ensure to screw into the framing
and not into the channel.
42x30mm Screws
a
b
22b
a
b
Secondary Door Master Door
22
Please retain product label and instructions for future reference

P 7
Step 10
To adjust and align your doors:
1. Lift up the doors to seperate the two
parts of the hinge.
2. Turn the rotating barrel (No.22a) in /
out to move the postion of the doors
either in or away from each other.
3. You can then place the door(s) back
on to the hinge and check whether they
require more / less adjustments, if
further adjustments are required repeat
number 2.
22a
Step 11
Once you have laid 6 log boards (on top of the
starter board) up the door section, slide the
assembled door frame (without main doors)
over the boards resting the frame on top of the
starter board.
Please refer to steps 8 to construct your door
frame.
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
Please retain product label and instructions for future reference
Step 12
Parts needed - No. 30 QTY 6
No. 32 QTY 12
No. 33 QTY 12
No. 34 QTY 12
No. 35 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 30, 32, 33, 34 &
35) onto the log cabin to create your
second level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Make sure that you have seven rows
of log boards in total below the SHORT
window.
30
35
33
34
34
33
32
32
Rubber Mallet
may be required
to t parts.

P 8
Please retain product label and instructions for future reference
Step 13
Parts Needed - No. 2 QTY 1
No. 3 QTY 1
No. 4 QTY 1
No. 5 QTY 1
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
8x80mm Screws
Pre drill
hole
80mm
screw
4
5
2
3
53
The internal lip of the window
frame should be postioned on
the inside of the building.
Pre drill
hole
30mm
screw
Step 14
Parts Needed - No. 1 QTY 1
No. 12 QTY 2
Position the window (No. 1) so that it
sits centrally within the window
frame. Fix the female part of the ag
hinge (No. 12) to the window using
4x30mm screws, attach the male part
of the ag hinge (No. 12) to the
window frame using 4x30mm screws
ensuring that the window can open
and close freely.
It is important to t the windows
within the frame at this stage so that
you can establish the position of the
hinges. The hinges come in two
parts. Remove the window from the
frame after tting.
*Ensure to attach the hinge to the
horizontal frame of the window*
16x30mm Screws
1
12
12
12
Step 15
Once you have laid the second level
of boards onto the log cabin slide the
windows frame (without main
window) between the boards (if you
have not yet assembled the window
frame refer to step 13.)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same.

P 9
Please retain product label and instructions for future reference
Step 18
Parts needed - No. 27 QTY 1
No. 28 QTY 1
Place the Window Gable (No. 27) and
the Gable (No. 28) onto the log cabin.
Fix into position by screwing
through the notches as shown in the
illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
27
28
Pre drill
hole
70mm
screw Rubber Mallet
may be required
to t parts.
Step 19
Parts needed - No. 36 QTY 2
Place the Finisher Boards (No. 36)
onto the log cabin. Secure into
position at either end by screwing
through the notch into the board
below.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
36
36
IMPORTANT: Pre-drill before xing screws.
36
Step 17
Parts needed - No. 30 QTY 1
No. 31 QTY 1
Following the same method
outlined in Pre-Assembly, lay
board (No. 30) and the board
that goes above the door (No.
31) onto the log cabin.
*Ensure that the boards are
level and ush with each
other as you lay each one.
30
31
Rubber Mallet
may be required
to t parts.
Step 16
Parts needed - No. 30. QTY 6
No. 32 QTY 12
No. 33 QTY 12
No. 34 QTY 12
No. 35 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 30,
32, 33, 34 & 35) onto the
log cabin to bring the board
level to the top of the window
and door frames.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the
door frame.
33
34
34
33
32
32
35
30
Rubber Mallet
may be required
to t parts.

P 10
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 21
Parts needed - No. 37 QTY 74
Place the rst two roof board’s
(No. 37) onto the log cabin on
each side, making sure the boards
are ush to the end of the roof
purlin. Once in position x to each
purlin using 3x40mm screws.
*Ensure the roof boards meet
at the top of the apex and leave
an overhang at the bottom.
Ensure the roof boards are not laid too
close together, use the spacers (No. 48)
provided to create a 2mm gap. Adjusting
the spacing between the boards allows
the wood to swell in damp weather.
*Please note that you have been
issued with 74 roof boards.
However, in reality you may only
need to use 72.
Continue adding the roof boards
aong the roof, xing each one into
position using 3x40mm screws,
making sure that each board is
interlocked, ush at the bottom &
meet at the top of the apex.
The last board on each
side will overhang, using a
straight edge and a pencil mark
out a line as a guide.
Cut along the pencil mark and
remove the excess. Place the
cut down board’s back onto the
roof and secure into place
using 3x40mm screws per
board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof boards is the same.
222x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
a
b
b
23b 37
37
a
7
Pre drill
hole
Step 20
Parts needed - No. 41 QTY 3
Align the Purlin(s) (No. 41)
into the cut out slots on each gable
top ensuring each purlin
interlocks the boards.
Secure the Purlins at each
end by screwing through the bars
into the boards (ensure to pre-drill
to avoid the boards splitting)
using 4x70mm screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier
in width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins
is the same.
12x70mm Screws
70mm
screw
a
b
a
41
b
IMPORTANT: Pre-drill before xing screws.
41
Rubber Mallet
may be required
to t parts.

P 11
Please retain product label and instructions for future reference

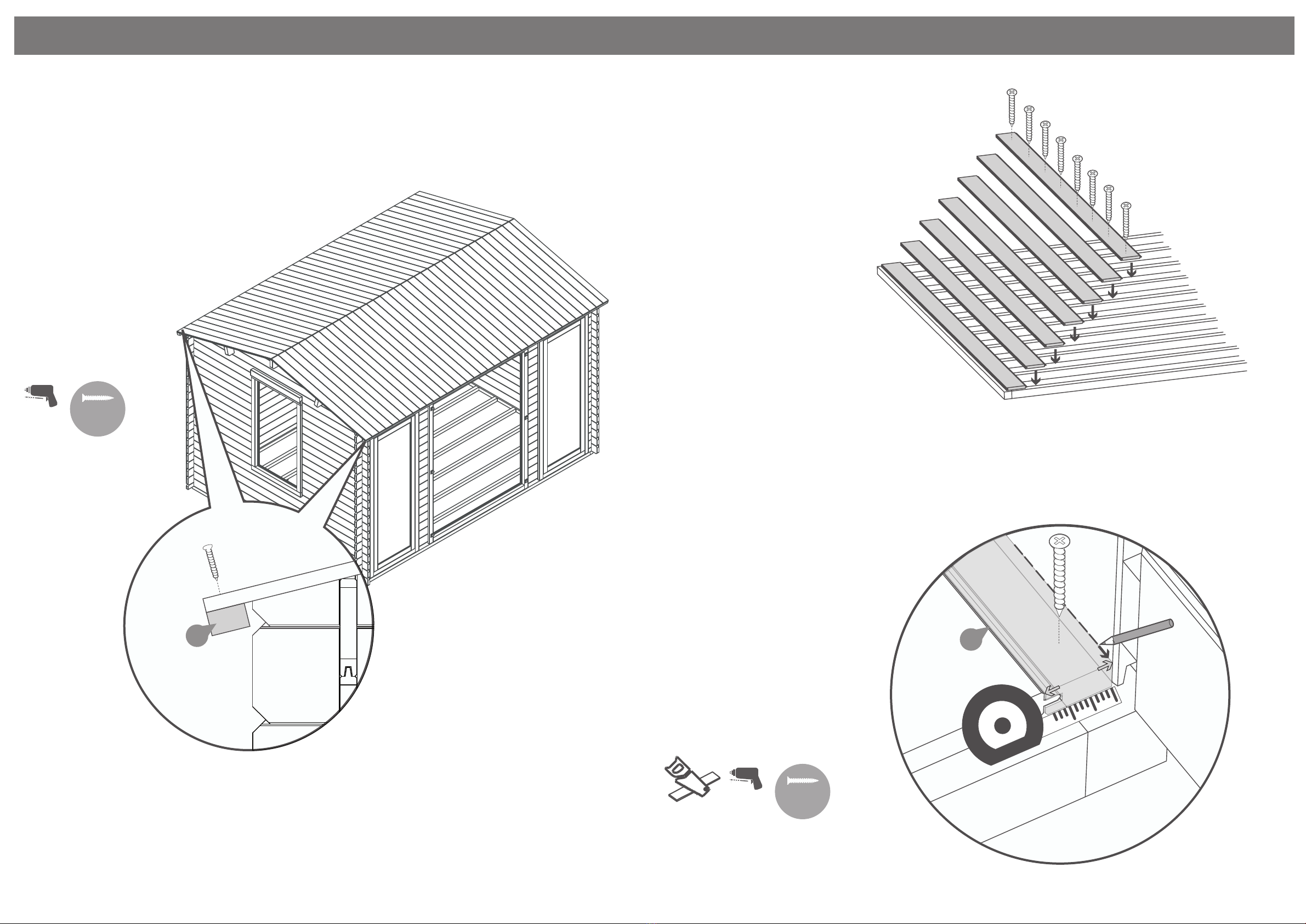

Step 23
Parts needed - No. 38 QTY 35
Place the rst Floor Board (No. 38)
inside the building ush to the log
board on one side. Continue adding
the oor boards (internally) making
sure to interlock each individual
board.
*Do NOT secure the boards until
the last board has been measured
and cut.
*Please note that you have been
issued with 35 oor boards. However,
in reality you may only need to use
34.
Following the same method outlined
previously measure the gap between
the bottom of the tongue (on the last
board placed) and the log board.
Using a straight edge mark out the
measurement onto the last oor
board (No. 38) and cut along the
length removing the excess.
**Please note: Mark the nal board
2mm under the measurement; This
will allow the timber to expand and
contract correctly.
Once all the oor boards are in
position secure each board into
position using 8x40mm screws.
***Please Note: Ensure to screw
through each of the oor boards
into the oor bearers.
280x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
38
IMPORTANT: Pre-drill before xing screws.
Step 22
Parts needed - No. 44 QTY 4
Ensuring the roof boards are
ush at the overhanging side
and meet at the apex, x the
Eaves Frames (No. 44) to the
underside of the roof boards
using 10x40mm screws as
shown in the illustration.
*Please Note: This image is for
illustrative purposes and may
dier from your choice in
product. Nevertheless the process
of xing the eaves frames is the
same.
20x40mm Screws
40mm
screw
Pre drill
hole
44
IMPORTANT: Pre-drill before xing screws.

P 12
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 27
Parts Needed - No. 8 QTY 1
Fix the casement stay (No. 13) onto the
window (No. 1) and the casement stay pins
to the window framing using 6x30mm
screws.
*Ensure the casement stay is centralised on
the window.
Use this method to t the casement stays to
both the windows.
6x30mm Screws 1
13
13
23
23
46
46
30mm
screw
Pre drill
hole
*Cut to t
Step 25
Parts needed - No. 46 QTY 8
Once the oor has been laid arrange the
closure trim (No. 46) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
48x30mm Screws
IMPORTANT: Pre-drill before xing screws.
Step 26
Lift each window onto the already existing
hooks on the window frame, ensuring the
hook and bands connect.
*Some adjustment may be required to
align properly.
Roof
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Roof
Closure Trim
Internal
46
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 24
Parts needed - No. 46 QTY 8
Inside the building place the closure
trim (No. 46) against the boarding
and align with the roof as shown in
the illustration.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
48x30mm Screws
IMPORTANT: Pre-drill before xing screws.

P 13
Please retain product label and instructions for future reference
Step 28
Lift each door onto the already existing
hooks on the door frame, ensuring the hook
and bands connect.
*Some adjustment may be required to
align properly.
Pre drill
hole
Step 29
Parts Needed - No. 23 QTY 1
No. 24 QTY 1
No. 25 QTY 1
Fit the Mortice lock (No. 24 into the
recess in the master door (No. 15) and
secure using the screws provided. Attach
the Key plate (No. 25) to the secondary door
(No. 14) with 4x30mm screws.
Fit the door handles (No. 23) and
connect with the metalbar to the mortice
lock using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove
the lock and turn the catch around by
pulling the spring loaded latch and turning
it 180 degrees.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery). Neverthe-
less the process of xing the frames is the
same.
Once components have been tted, try closing
doors to ensure the doors can be closed and
the lock works.
If your doors do need adjusting please look at
step 10.
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
25 24
14 15
23
IMPORTANT: Pre-drill before xing screws.

P 14
Please retain product label and instructions for future reference
Felt
tacks
Step 31
Parts needed - No. 47
Cut the felt (No. 47) into four strips
& lay onto the roof in the order
shown in the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 4140mm
210x Felt Tacks
HANDLE
WITH CARE
12
3
4
1. 2.
3.
4.
47
47
a
b
c
Step 30
Parts Needed - No. 20 QTY 1
No. 26 QTY 2
Attach the Door Strip (No. 20) to the
back of the secondary door using
4x40mm screws as shown.
Once xed, place the Tower
Bolts (No. 26) roughly into
position and with a pencil
mark the around the bolt.
After marking the bolt onto
the frame, drill a hole for the
barrel bolt to locate into.
Following the hole being
drilled, place the tower bolts
into position and secure using
the screws provided.
12x40mm Screws
Pre drill
hole
40mm
screw
IMPORTANT : Pre-drill before xing screws.
c
26
b
a20

P 15
Please retain product label and instructions for future reference
Pre drill
hole
70mm
bolt
45
45
Step 32
Parts needed - No. 45 QTY 8
Arrange the storm braces (No. 45) around
the building (internally). Place 2x storm
braces per side xing into place using 2x
70mm bolts per brace making sure the
washer & nut are tightened from the
outside of the building.
*Ensure the storm braces are secured at
the highest point possible on each side.
The storm braces will need to be altered
during the buildings life as the moisture
content within the log boards changes.
The boards will expand during periods of
high moisture (Winter) and shrink during
periods of low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***It is important that each bolt is
tightened using a washer so as not to
damage the log boards.
16x70mm Bolt Sets
Step 33
Parts Needed: No. 11 QTY 3
No. 21 QTY 1
Attach the Rain Guards (No. 11) to the
Window frame, xing in place onto
the framing above the window using
3x70mm screws per guard.
Attach the Rain Guard (No. 21) to the
Door frame, xing in place onto the
framing above the Door using
3x70mm screws.
12x70mm Screws.
70mm
screw
Pre drill
hole
11
11
11
11 21

P 16
Please retain product label and instructions for future reference
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Step 34
Parts needed - No. 42 QTY 4
No. 43 QTY 4
Align the shorter Fascia’s
(No. 42) with the sides of the
roof and x using 3x40mm
screws per fascia. Do the
same with the longer Fascia’s
(No. 43) to the front and back
of the roof. Ensure to screw
through the fascia into the
roof purlins and eaves frame.
*Ensure the angled cuts
meet at the top of the apex.
24x40mm Screws
Pre drill
hole
40mm
screw
42
42
43
43
42
43
43
42
