Mercia Garden Products 01DTOVAX08DDNWGP-V1 User manual







 

 
















  



2mm Drill bit
x2 





























































 
















































¡





 
2
134
568
9
10
11
7
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

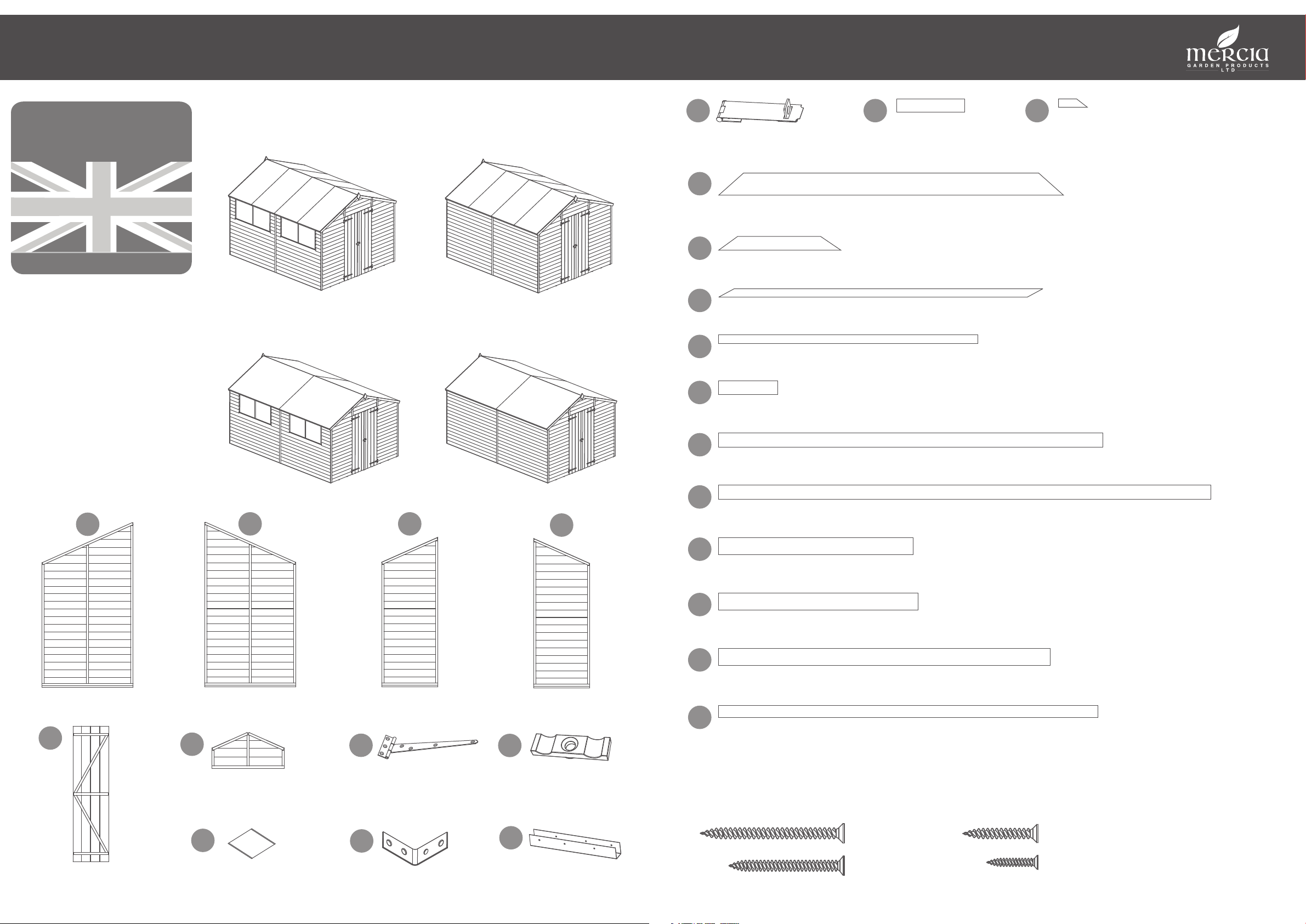

Building Content- Gable Pack
01DTOVAX08DDNWGP-V1
Back Gable Right QTY 1
AI-01R11OVPGR1155X2089-V1
Back Gable Left QTY 1
AI-01R11OVPGL1155X2089-V1
Front Gable Right QTY 1
AI-01R11OVPGR713X1897-V1
Front Gable Left QTY 1
AI-01R11OVPGL713X1897-V1
Door QTY 2
AI-R11FBMBZBD437X1660-V1
Gable Top QTY 1
AI-R11OVAGT884X439-V1
T Hinge QTY 4
PI-07-0021
Corner Brace QTY 2
PI-07-0012
Turn Button QTY 2
PI-07-0034
U Channel QTY 1
PI-07-0013
Diamond Finial QTY 2
SHED DIAMOND FINIAL
10x8 Fixed Window
Pack Requirements:
01DTOVAX08DDNWGP-V1 QTY 1
01DTOVAX0508FWPB-V1 QTY 2
Overall Dimensions:
Width = 1470mm
Depth = 3595mm
Height = 2180mm
12x8ft
Base Dimensions:
Width = 2350mm
Depth =3506mm
10x8 No Window
Pack Requirements:
01DTOVAX08DDNWGP-V1 QTY 1
01DTOVAX0508NWPB-V1 QTY 2
12x8 Fixed Window
Pack Requirements:
01DTOVAX08DDNWGP-V1 QTY 1
01DTOVAX0608FWPB-V1 QTY 2
12x8 No Window
Pack Requirements:
01DTOVAX08DDNWGP-V1 QTY 1
01DTOVAX0608NWPB-V1 QTY 2
Overall Dimensions:
Width = 1470mm
Depth = 2990mm
Height = 2180mm
10x8ft
Base Dimensions:
Width = 2350mm
Depth = 2912mm
15
16
17
18
19
20
21
22
23
24
12
Hasp and Staple QTY 1
PI-07-0207
13
Door Block
28x28x150mm QTY 4
F2828-150mm
Gable Cover Strip 7x125x1943mm QTY 1
OVLP7125-P-1943mm
14 Truss Block
27x44x140mm QTY 2
F2744-G-160mm
Truss Support 27x44x450mm QTY 1
F2744-G-490mm
Truss Framing 27x44x1262mm QTY 2
F2744-G-1302mm
Door Framing 28x28x884mm QTY 1
F2828-884mm
Front Panel Cover Strip 12x45x237mm QTY 2
S1245-237mm
Door Cover Strips 12x56x780mm QTY 1
S1256-780mm
Panel Cover Trim 12x45x1542mm QTY 6
S1245-1542mm
Back Panel Cover Strip 12x45x2030mm QTY 1
S1245-2030mm
Fascias 12x56x1333mm QTY 4
S1256-1333mm
Door Cover Strips 12x56x800mm QTY 1
S1256-800mm
25
Door Beading Strip 12x28x1558mm QTY 2
S1228-1558mm
50mm Screw x 33
40mm Screw x 24
20mm Screw x 6
30mm Screw x 78
Nail Bag
There may be extra screws present in the nail bag

¡
 
26 27 28 29
Felt Tacks x 65
50mm Screw x 48
40mm Screw x 18
30mm Screw x 79
Felt Tacks x 65
50mm Screw x 48
40mm Screw x 18
30mm Screw x 61

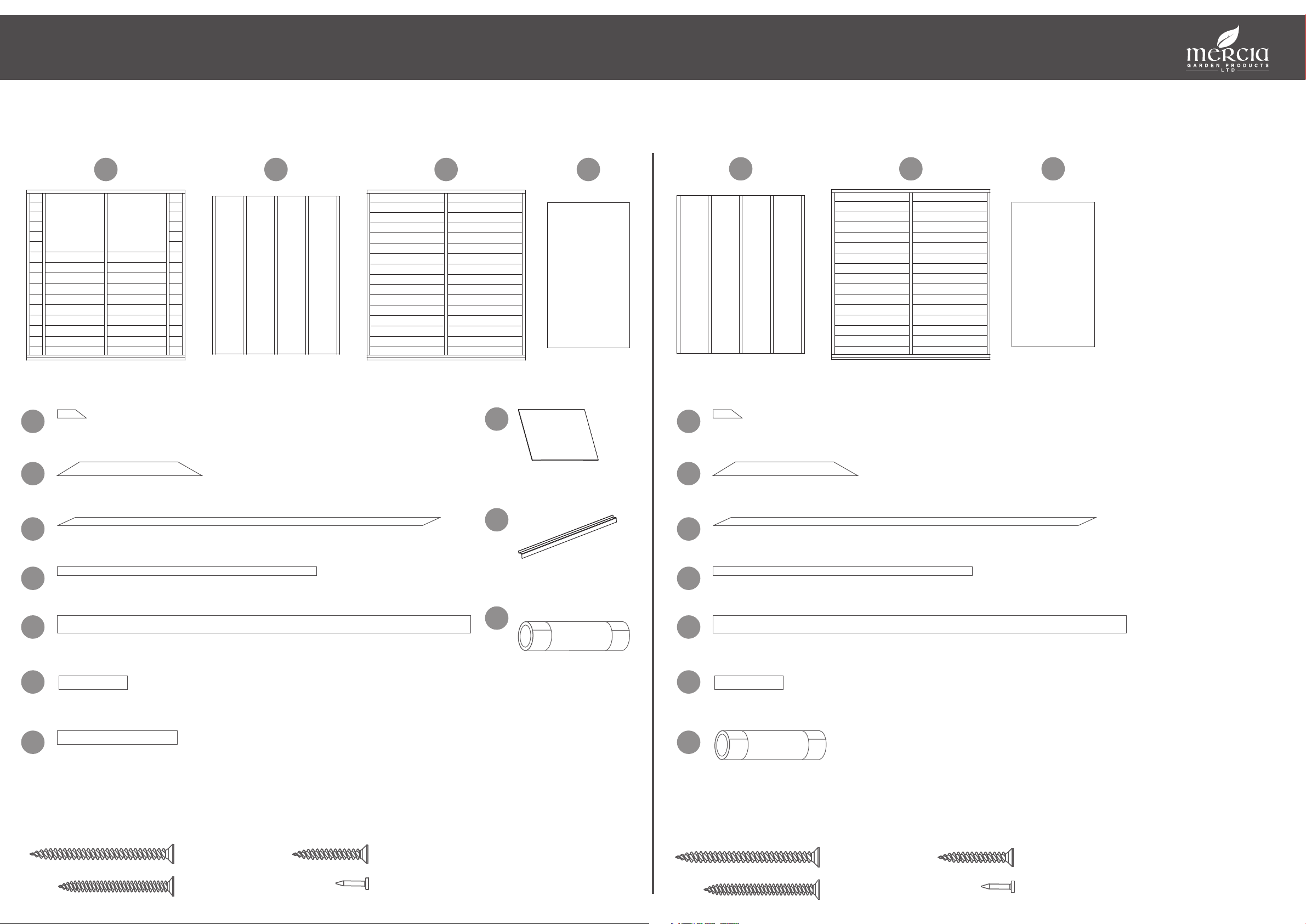

Building Content- 10X8 Pack B With Window
With Window Pack- 01DTOVAX0508FWPB-V1
Building Content- 10X8 Pack C No Window
No Window Pack- 01DTOVAX0508NWPB-V1
Nail Bag
There may be extra screws present in the nail bag
Contents for packs to create a 10x8 shed
Window Panel QTY 1
AI-01R11OV2CW1461X1567-V1
Floor QTY 2
AI-R11OSBF1175X1456-V1
Plain Panel QTY 1
AI-R11OVPP1461X1567-V1
Roof Sheet QTY 4
PI-03-0388
27 28 29
Floor QTY 2
AI-R11OSBF1175X1456-V1
Plain Panel QTY 2
AI-R11OVPP1461X1567-V1
Roof Sheet QTY 4
PI-03-0388
14
16
17
Truss Block 27x44x140mm QTY 2
F2744-G-160mm
Truss Support 27x44x450mm QTY 1
F2744-G-490mm
Truss Framing 27x44x1262mm QTY 2
F2744-G-1302mm
14
16
17
Truss Block 27x44x140mm QTY 2
F2744-G-160mm
Truss Support 27x44x450mm QTY 1
F2744-G-490mm
Truss Framing 27x44x1262mm QTY 2
F2744-G-1302mm
30 Roof Eaves 28x28x735mm QTY 4
F2828-735mm
30 Roof Eaves 28x28x735mm QTY 4
F2828-735mm
33 Window Strip 12x27x546mm QTY 5
S1227-546mm
31
Ridge Bar 27x70x1433mm QTY 1
F2770-1433mm
32
Floor Block 28x28x400mm QTY 4
F2828-400mm
34
Styrene QTY 2
PI-05-0114
35
Window Cill QTY 1
PI-08-0013
31
Ridge Bar 27x70x1433mm QTY 1
F2770-1433mm
32
Floor Block 28x28x400mm QTY 4
F2828-400mm
36
Felt QTY 1
36
Felt QTY 1
Nail Bag
There may be extra screws present in the nail bag


 
Felt Tacks x 75
50mm Screw x 46
40mm Screw x 14
30mm Screw x 67
Felt Tacks x 75
50mm Screw x 46
40mm Screw x 14
30mm Screw x 49
14
16
17
Truss Block 27x44x140mm QTY 2
F2744-G-160mm
Truss Support 27x44x450mm QTY 1
F2744-G-490mm
Truss Framing 27x44x1262mm QTY 2
F2744-G-1302mm
14
16
17
Truss Block 27x44x140mm QTY 2
F2744-G-160mm
Truss Support 27x44x450mm QTY 1
F2744-G-490mm
Truss Framing 27x44x1262mm QTY 2
F2744-G-1302mm
42 Roof Eaves 28x28x1775mm QTY 2
F2828-1775mm
42 Roof Eaves 28x28x1775mm QTY 2
F2828-1775mm
33 Window Strip 12x27x546mm QTY 5
S1227-546mm
41
Ridge Bar 27x70x1735mm QTY 1
F2770-1735mm
32
Floor Block 28x28x400mm QTY 4
F2828-400mm
34
Styrene QTY 2
PI-05-0114
35
Window Cill QTY 1
PI-08-0013
41
Ridge Bar 27x70x1735mm QTY 1
F2770-1735mm
32
Floor Block 28x28x400mm QTY 4
F2828-400mm
36
Felt QTY 1
36
Felt QTY 1
37 38 39 40
Window Panel QTY 1
AI-01R11OV2CW1763X1567-V1
Floor QTY 2
AI-R11OSBF1175X1753-V1
Plain Panel QTY 1
AI-R11OVPP1763X1567-V1
Roof Sheet QTY 2
PI-03-0229
38 39 40
Floor QTY 2
AI-R11OSBF1175X1753-V1
Plain Panel QTY 2
AI-R11OVPP1763X1567-V1
Roof Sheet QTY 2
PI-03-0229
Nail Bag
There may be extra screws present in the nail bag
Nail Bag
There may be extra screws present in the nail bag

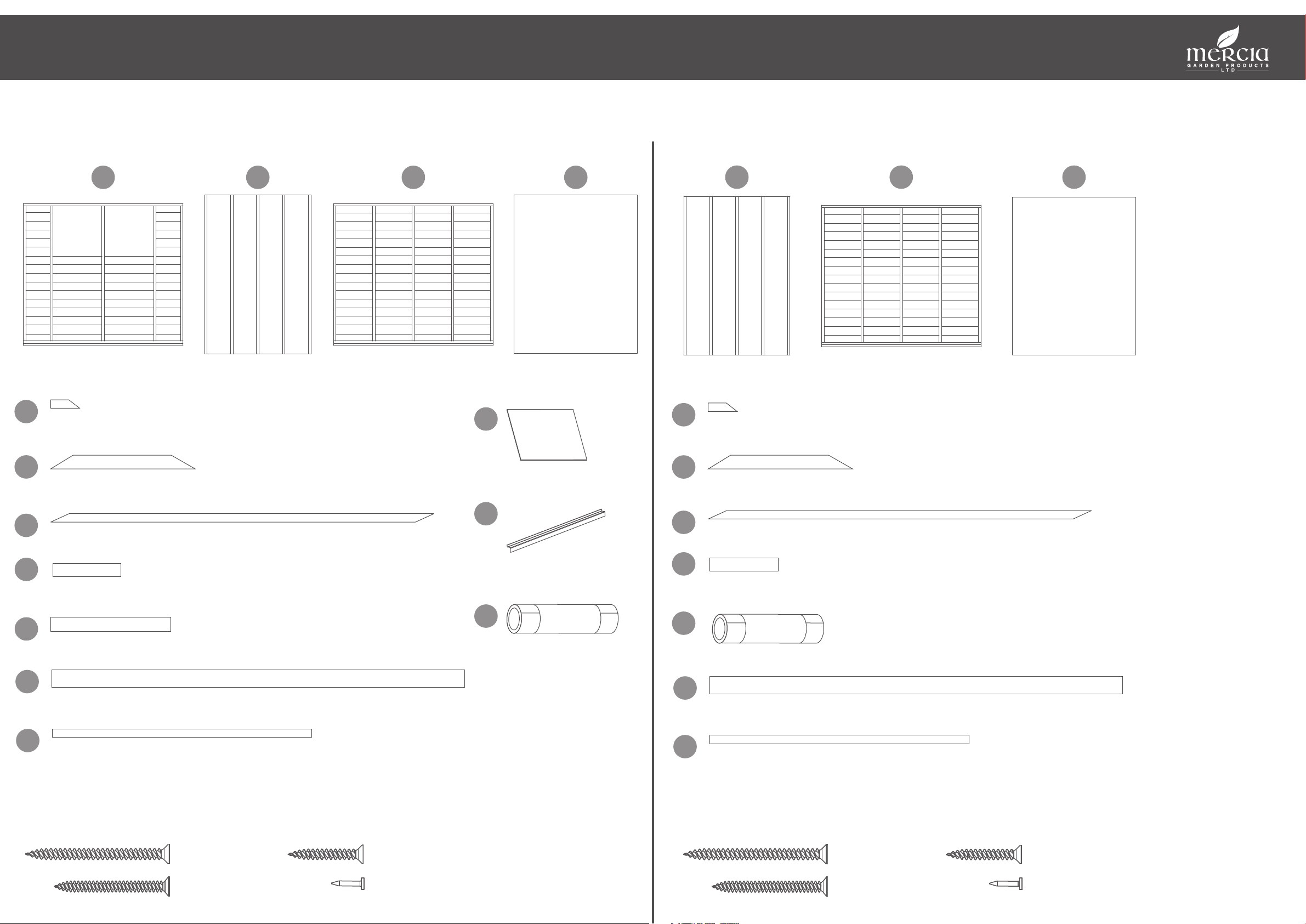

Building Content- 12X8 Pack B With Window
With Window Pack- 01DTOVAX0608FWPB-V1
Building Content- 12X8 Pack C No Window
No Window Pack- 01DTOVAX0608NWPB-V1
Contents for packs to create a 12x8 shed


 
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver and
hammer.
Dispose of the blocks once removed.
Step 1
Parts Needed- No.3 QTY 1
- No.4 QTY 1
- No.6 QTY 1
Lay the Front Gable Right and Left (No.3
and No.4) and the Gable top (No.6) onto a
level oor.
Place them along side each other and
ensure they are ush along the top of the
panels. Secure the panels using 2x50mm
screws along each join in an alternating
pattern.
4x50mm screws
Pre drill
hole
50mm
screw
3
4
6
IMPORTANT : Pre-drill before xing screws.
Step 2
Parts Needed- No.15 QTY 1
Lay the Gable Cover Strip (No.15) onto the
assembled front gable, align the edges of
the strip with the top of the gable and
secure using 6x40mm screws, ensuring to
go through the strip and into the framing
6x40mm screws
Pre drill
hole
40mm
screw
15
IMPORTANT : Pre-drill before xing screws.
Step 3
Parts Needed- No.1 QTY 1
- No.2 QTY 2
Lay the Back Gable Right and Left (No.1 and
No.2) onto a level oor.
Place them along side each other and
ensure they are ush along the bottom of
the panels. Secure the panels using 8x50mm
screws along each join in an alternating
pattern.
8x50mm screws
Pre drill
hole
50mm
screw
1
2
IMPORTANT : Pre-drill before xing screws.


 

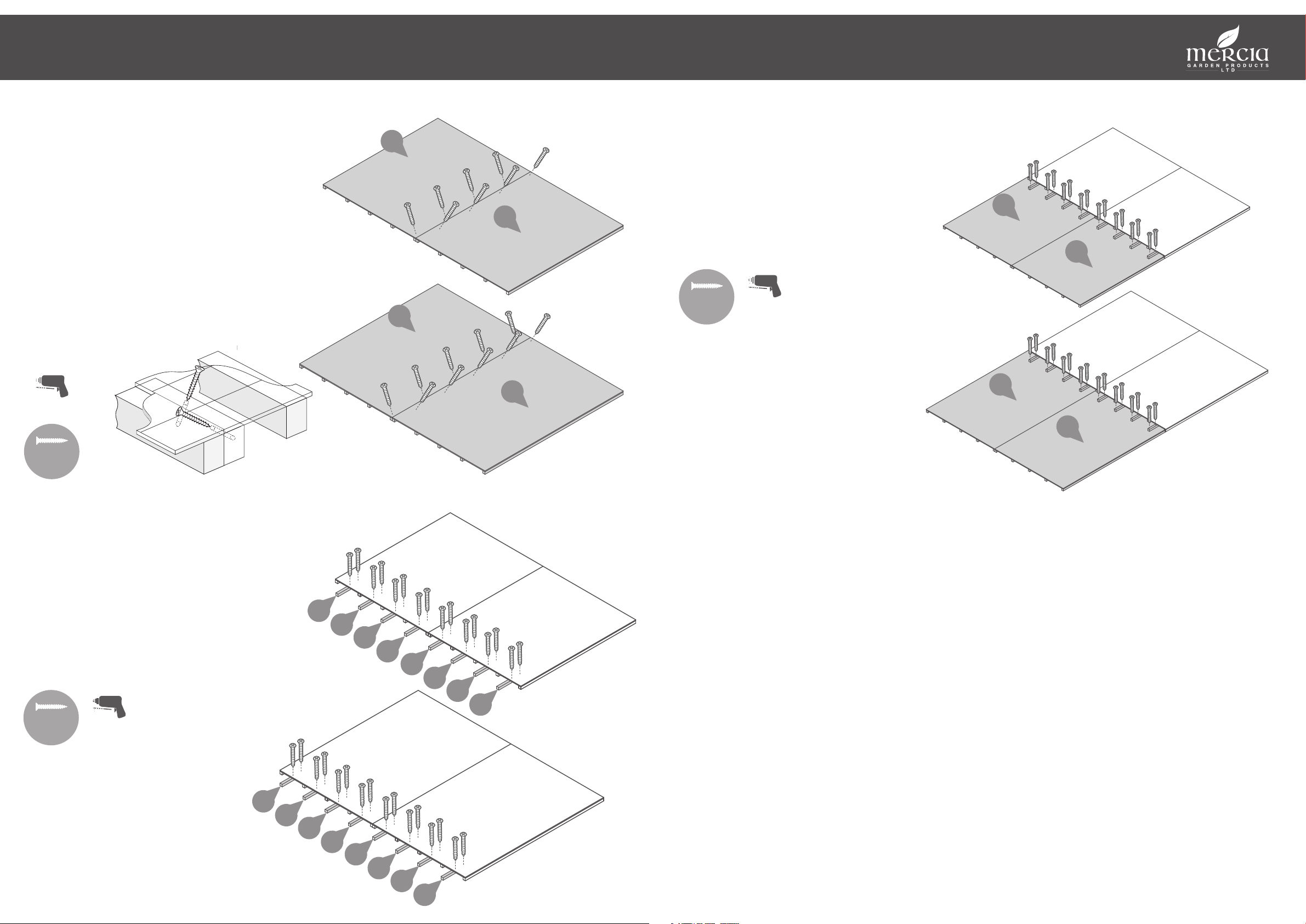

Step 4
Parts Needed 10x8-No.27 QTY 4
Parts Needed 12x8-No.38 QTY 4
Place the two Floors (No.27 or No.38) on
rm and level base, ensure the base has
suitable drainage free from areas where
water can collect.
Attach the oors together using 8x40mm
screws (10x8) or 10x40mm screws (12x8).
Repeat the step to create two oor
assemblies.
10x8- 16x40mm screws
12x8- 20x40mm screws
10x8
12x8
27
27
38
38
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
40mm
screw
Step 5
Parts Needed- No.32 QTY 8 10x8
12x8
Locate the Floor Blocks (No.32) between the
oor framing, ensuring they are spaced
equally.
Secure to the oor using 2x30mm screws
per block, going through the oor OSB and
into the oor blocks below.
16x30mm screws
32 32 32 32 32 32 32 32
32 32 32 32 32 32 32 32
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 6
10x8
12x8
Locate the second oor assembly along side
the rst oor assembly.
Secure to the oor using 2x30mm screws
per block, going through the oor OSB and
into the oor blocks below.
16x30mm screws
27
27
38
38
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
30mm
screw


 

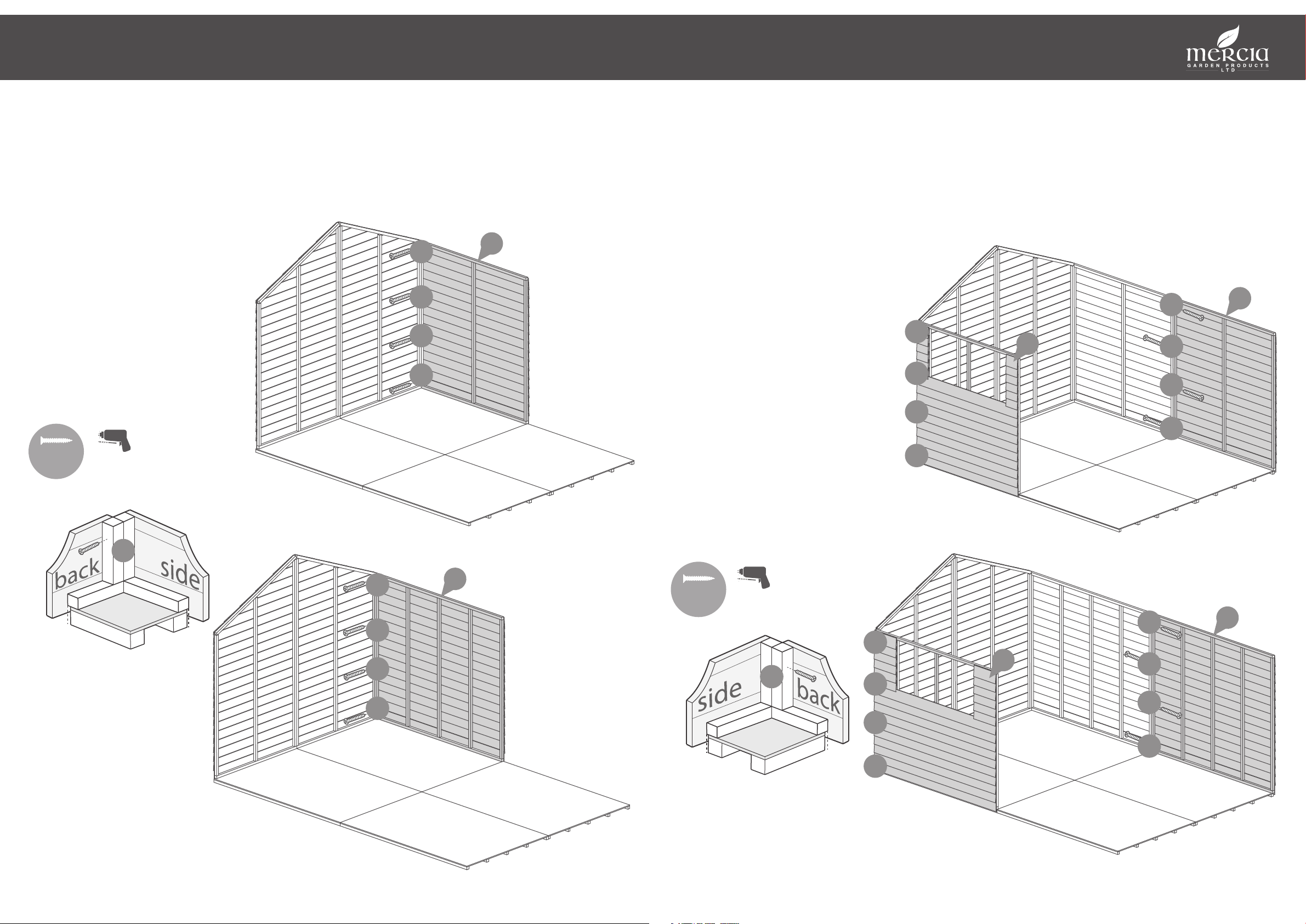

Step 7
Parts Needed 10x8- No.28 QTY 1
Parts Needed 12x8- No.39 QTY 1
Place the assembled Back Gable Panel and
the Plain Panel (No.28 or No.39) (or
window panel) onto the Floor. Secure the
panels together using 4x50mm screws
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides
4x50mm screws
**Please note: the Window Panels and Plain Panels are
interchangable and can be positioned on either side of
the building. Decide which works best before assembly**
28
39
a
a
a
a
a
a
a
a
Pre drill
hole
50mm
screw
a
10x8
12x8
IMPORTANT : Pre-drill before xing screws. Step 8
Parts Needed 10x8- No.26 QTY 1 (Fixed Window Only)
- No.28 QTY 1 (No Window QTY 2)
Parts Needed 12x8- No.37 QTY 1 (Fixed Window Only)
- No.39 QTY 1(No Window QTY 2)
Place another Plain Panel (No.28 or
No.39) next to the previously placed
Plain Panel and x in place at the join
using 4x50mm screws in an alternating
pattern.
Place either a Window Panel (No.26 or
No.37) or another Plain Panel (No.28 or
No.39) onto the oor on the opposite
side of the building and x in place at the
corners using 4x50mm screws.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides
8x50mm screws
**Please note: the Window Panels and Plain Panels are
interchangable and can be positioned on either side of
the building. Decide which works best before assembly**
Pre drill
hole
50mm
screw
28
39
26
37
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
10x8
12x8
IMPORTANT : Pre-drill before xing screws.

¢
 

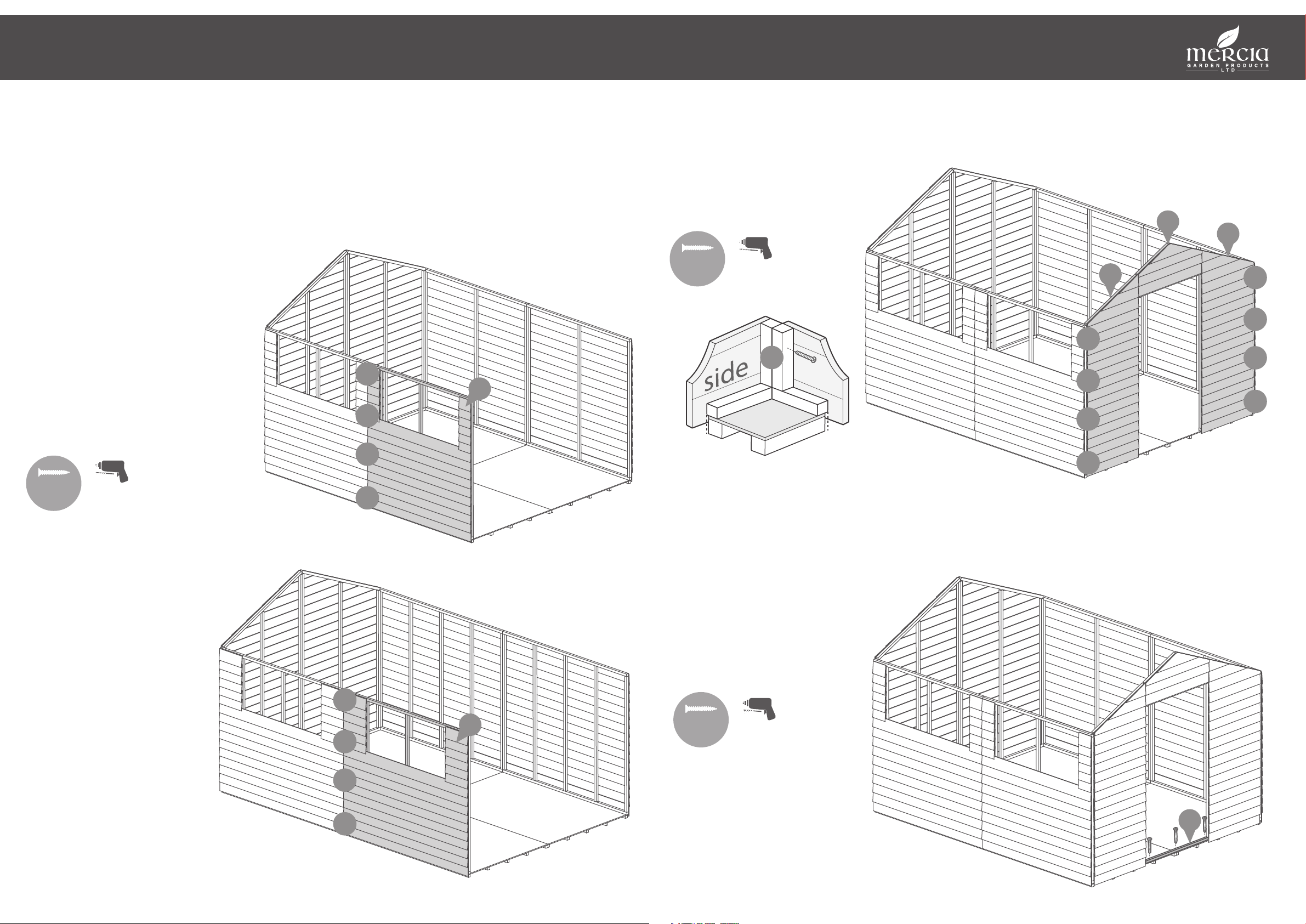

Step 9
Parts Needed 10x8- No.26 QTY 1 (Fixed Window)
- No.28 QTY 1 (No Window)
Parts Needed 12x8- No.37 QTY 1 (Fixed Window)
- No.39 QTY 1(No Window)
26
37
Place the remaining Plain/Window Panel
(No.26/No.28/No.37/No.39) onto the
oor and x in place at the join using
4x50mm screws.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides
4x50mm screws
a
a
a
a
a
a
a
a
**Please note: the Window Panels and Plain Panels are
interchangable and can be positioned on either side of
the building. Decide which works best before assembly**
Pre drill
hole
50mm
screw
IMPORTANT : Pre-drill before xing screws.
10x8
12x8
Step 10
63
4
Place the assembled Front Gable onto the
building oor, secure the front gable to the
side panels using 4x50mm screws at each
corner
8x50mm screws
Pre drill
hole
50mm
screw
a
a
a
a
a
a
a
a
IMPORTANT : Pre-drill before xing screws.
front
a
18
Step 11
Parts Needed-No.18 QTY 1
Fit the Door Framing (No. 18) between
the Front Gable Left and Right.
Fix to the oor using 3x50mm screws,
making sure the screws go through to
the oor framing.
3x50mm screws
Pre drill
hole
50mm
screw
IMPORTANT : Pre-drill before xing screws.


 

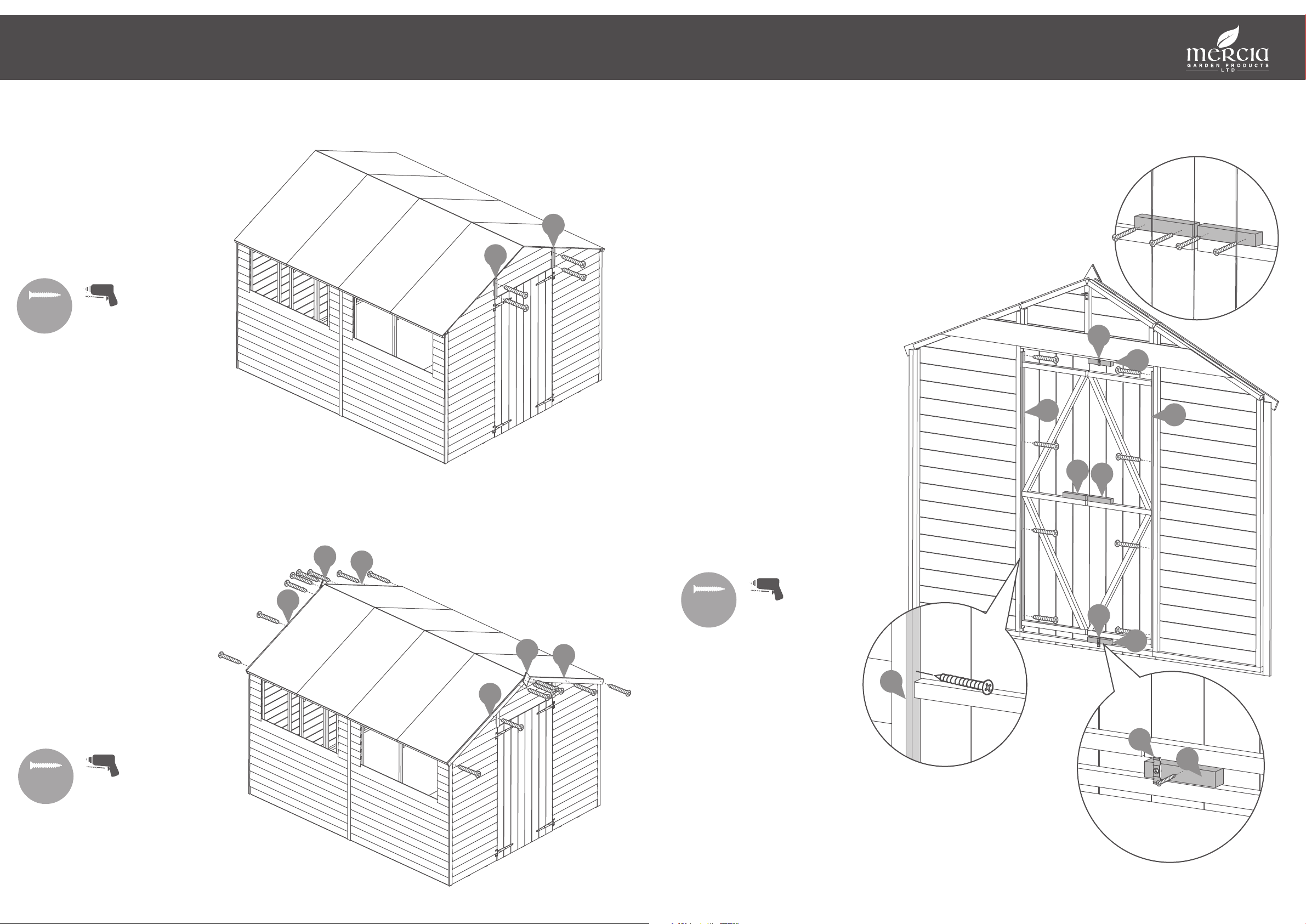

Step 12
Parts Needed- No.5 QTY 2
- No.8 QTY 4
8
Fix the T Hinges (No.8) onto the
doors (No.5) and door gable using
7x30mm screws per hinge as
shown.
Ensure that the screws go through
the cladding and into the framing
behind.
28x30mm screws
5
5
8
8
8
8
Pre drill
hole
30mm
screw
IMPORTANT : Pre-drill before xing screws.
*Door Framing Position*

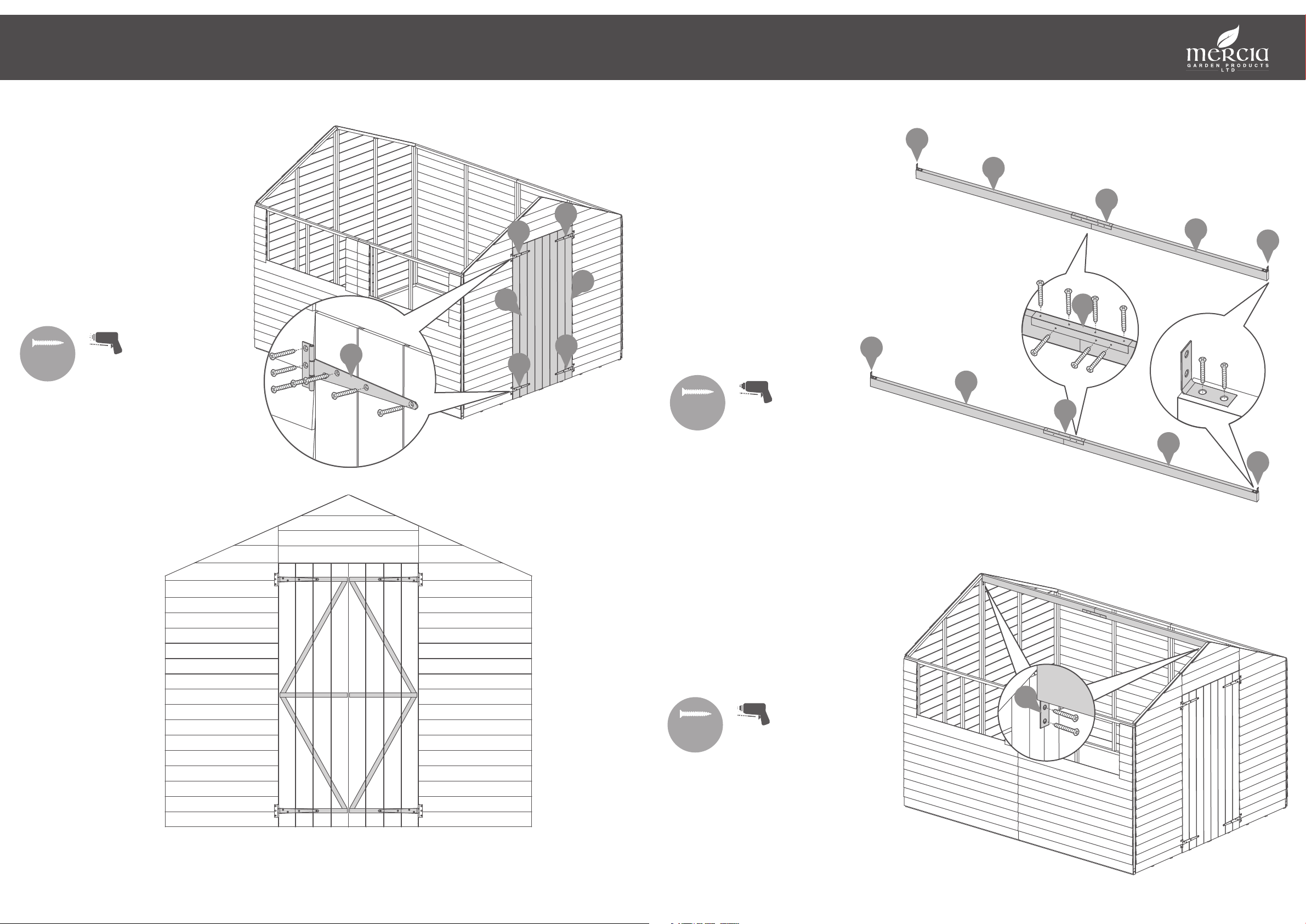

Step 13
Parts Needed 10x8- No.9 QTY 2
- No.11 QTY 1
- No.31 QTY 2
Parts Needed 12x8- No.9 QTY 2
- No.11 QTY 1
- No.41 QTY 2
Position the two Ridge Bars (No.31 or 41)
within the U channel (No.11) Secure using
10x30mm screws.
Secure a corner brace (No.9) to either end
of the ridge bar using 2x30mm screws per
brace.
14x30mm screws
10x8
9
9
11
31
31
11
Pre drill
hole
30mm
screw 12x8 11
9
9
41
41
IMPORTANT : Pre-drill before xing screws.
Step 14
Place the assembled ridge bar in between
the front and back Gables. Ensure the top
corners of the support bar are ush with
each top point of the Gable.
Secure the corner brace (No. 9) onto both
the Gables framing using
4x30mm screws 9
Pre drill
hole
30mm
screw
IMPORTANT : Pre-drill before xing screws.
