Mercia Garden Products 0628AXNE0403HGDD1SW-V1 User manual

P 1
0628AXNE0403HGDD1SW-V1
28MM LOG CABIN, APEX, NO EXTRAS, 4M X 3M, HALF GLAZED DOUBLE DOORS, ONE SHORT WINDOW.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUSTpilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
0628AXNE0403HGDD1SW-V1
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk

P 2
Please retain product label and instructions for future reference
0628AXNE0403HGDD1SW-V1
Overall Dimensions:
Width = 4110mm
Depth = 3430mm
Height = 2741mm
Base Dimensions:
Width = 3808mm
Depth = 2804mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Please retain product label and instructions for future reference
Window Contents
6
Rain Guard QTY 1
RG2844-710 (28x44x710mm)
2
1
3
4
Window QTY 1
AI-06LOGDGW684X1244-V3
5
Window Frame Left Upright - 71x70x1412mm QTY 1
AI-0628LOGWUFL-V3
Window Frame Right Upright - 71x70x1412mm QTY 1
AI-0628LOGWUFR-V3
Window Frame Top - 84x125x805mm QTY 1
AI-0628LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 1
AI-0628LOGWBF-V3
78
Casement Stay QTY 1
PI-07-0187
Flag Hinge QTY 2
PI-07-0211
Double Door Contents
10
9
11
12
Mortice Lock
QTY 1
PI-07-0017
Key Plate
QTY 1
PI-07-0017
Handles (Pair)
QTY 1
PI-07-0188
Adjustable Hinge QTY 6 PI-07-0209
Tower Bolt
QTY 2
PI-07-0114
Master Door QTY 1
(Morticed for lock)
AI-06LOGDGMD750X1900-V3
13
14
15
17
17a 17c
18 19 20 21
Secondary DoorQTY 1
AI-06LOGDGSD750X1900-V3
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFR-V3
Door Frame Top - 84x125x1632mm QTY 1
AI-0628LOGDDTF-V3
Door Frame Bottom - 71x70x1508mm QTY 1
AI-0628LOGDDBF-V3
Door Strip - 16x60x1880mm QTY 1
S1660-1880mm
16
Rain Guard QTY 1
RG2844-1520 (28x44x1520mm)
17b

P 3
Please retain product label and instructions for future reference
22
23
24
25
26
27
28
29
Gable
AI-0628AXNE0403HGDD1SW-G-V1
QTY 2
Starter Board - 28x66x4000mm QTY 2
LB28RT66-A-4000
Log Board - 28x120x560mm QTY 30
LB28-B-560
Log Board - 28x120x560mm QTY 12
LB28-C-560
Log Board - 28x120x1871mm QTY 6
LB28-B-1871
Log Board - 28x120x2996mm QTY 32
LB28-A-2996
Log Board - 28x120x4000mm QTY 19
LB28-A-4000
Log Board - 28x120x3396mm QTY 2
LB28-AE-3396
30
Log Board- 28x120x3296mm QTY 2
LB28-AE-3296
31
Log Board - 28x120x3196mm QTY 2
LB28-AE-3196
33 Bearer - 44x44x2804mm QTY 2
F4444-2804-PT
34 Bearer - 44x44x3720mm QTY 9
F4444-3720-PT
35
Roof Purlin - 45x120x3396mm QTY 3
F45120-AE-3396
36 Fascia - 16x120x2118mm QTY 4
S16120-G-2118 (Angled)
38 Eaves Frame - 27x44x3396mm QTY 2
F2744-3396
39 Roof Board - 16x121x2114mm QTY 64
MB16-2114
40 Floor Board - 16x121x2743mm QTY 35
MB16-2743
Log Board - 28x120x4000mm QTY 1
LB28-AD-4000
Storm Brace - 27x44x2000mm QTY 8
F2744-2000
41
42
43
Closure Trim - 16x28x2400mm (approx length) QTY 12
S1628-2400
32
Log Board - 28x120x3096mm QTY 2
LB28-AE-3096
37
Fascia - 16x120x3428mm QTY 2
SR16120-3428
44
Felt Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
45
Felt Tacks x 250
70mm Screw x 66
Nail Bag
40mm Screw x 485
30mm Screw x 166
70mm Bolt Set x 16
There may be extra screws present in the nail bag
80mm Screw x 16

P 4
Please retain product label and instructions for future reference
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly in their respective
tongues and grooves.
Step 1
Parts Needed - No. 33 QTY 2
No. 34 QTY 2

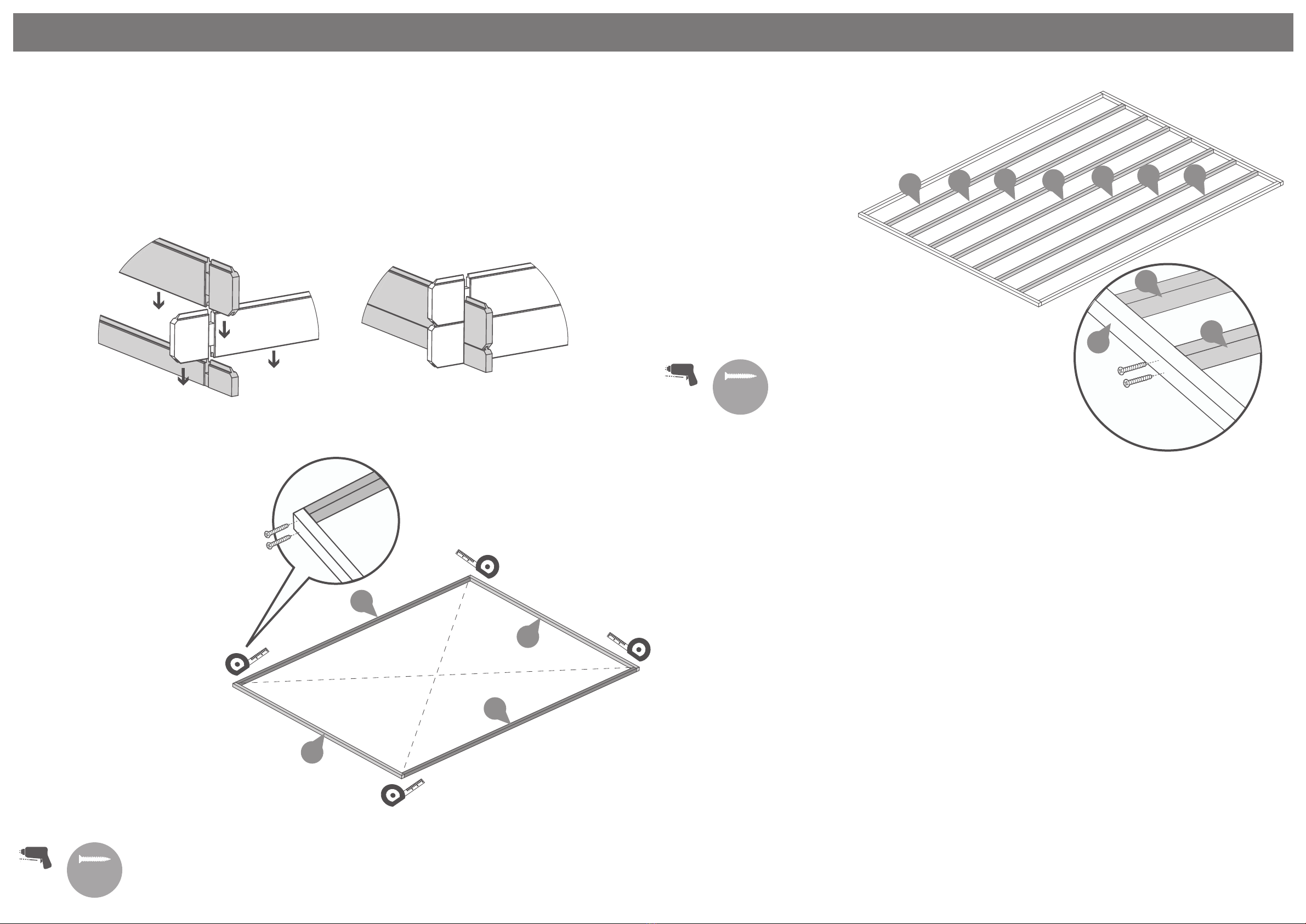

Lay the bearers (No’s. 33 & 34) onto a
rm and level surface
(free from areas where standing
water can collect) as shown in the
illustration.
Fix the bearers together at each
corner screwing 2 screws per corner
using 8x70mm screws,
ensuring the bearer is ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as illustrated,
making sure the measurements are
equal.
If the bearers are not aligned equally,
unscrew, adjust and re-align
accordingly.
8x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
33
34
34
33
Pre drill
hole
70mm
screw
Step 2
Parts Needed - No. 34 QTY 7
Following the same method
arrange the remaining bearers (No.
34) inside the assembled frame.
*Ensure there is an equal
amount of space between each
bearer.
Secure each of the bearers in place
using 2x70mm screws for each side
of the bearer, ensuring the bearers
remain level.
28x70mm Screws 34
33
34
34 34 34 34 34 34 34
IMPORTANT: Pre-drill before xing screws.

P 5
Please retain product label and instructions for future reference
Step 3
Parts Needed - No. 23 QTY 2
No. 27 QTY 2
Place the starter boards (No’s. 23) on to assembled base frame along the
longest sides and place the rst two log boards (No. 27) in the notch as
shown.
Ensure the boards sit square on the base using the same method used in
Step 1. Measure corner to corner, making sure the measurements are
equal.
Once the boards are square, lift up the log board (No. 27) and x the start-
er boards in place.
Fix each of the starter boards to the frame by screwing through the notch
into the frame as shown in the illustration.
4x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
23
23
27
27
23
24
27
27
28
26
24
Step 4
Parts needed - No. 24 QTY 6
No. 26 QTY 6
No. 27 QTY 12
No. 28 QTY 6
Following the method shown in the
illustration, lay the rst 6 boards
(No’s. 24, 26, 27 & 28)
Start by placing the front and back
boards, interlocking them with the
side boards. Then place the next side
boards, interlocking with the front
and back boards. Continue this
method until you have placed 6
boards o of the starter boards on
each side, as shown in the
illustration.
This will create your rst level.
*Ensure that the boards are level
and ush with each other as you lay
each one.
Please Note: The short boards at the
front of the building (either side of the
door opening) can be placed either
side depending on your needs.

P 6
Please retain product label and instructions for future reference
Step 5
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1

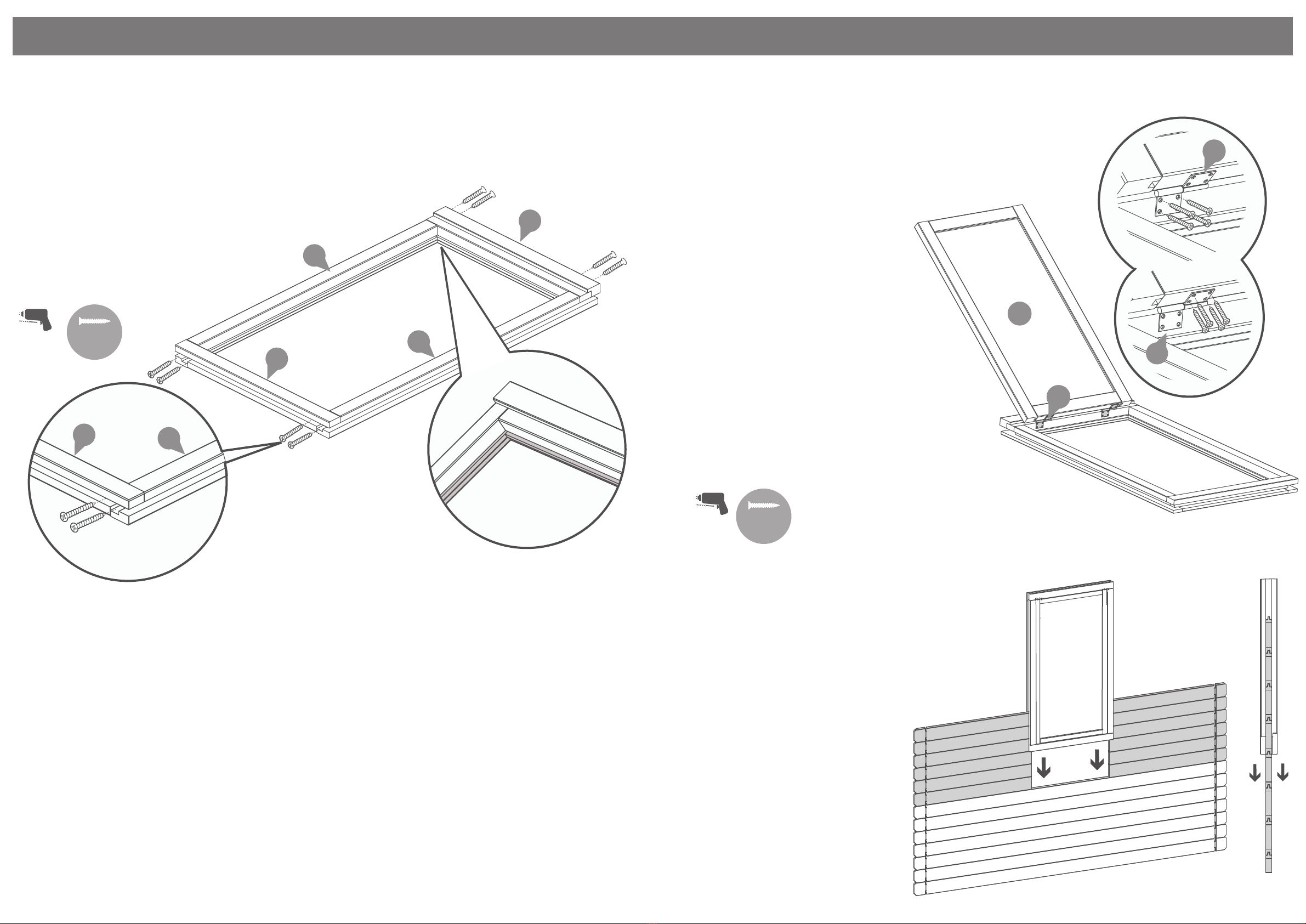

Arrange the left, right, top & bottom door
frames (No’s. 11, 12, 13 & 14) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The internal lip of the door
frame should be postioned on
the inside of the building.
14 12
Step 6
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 6

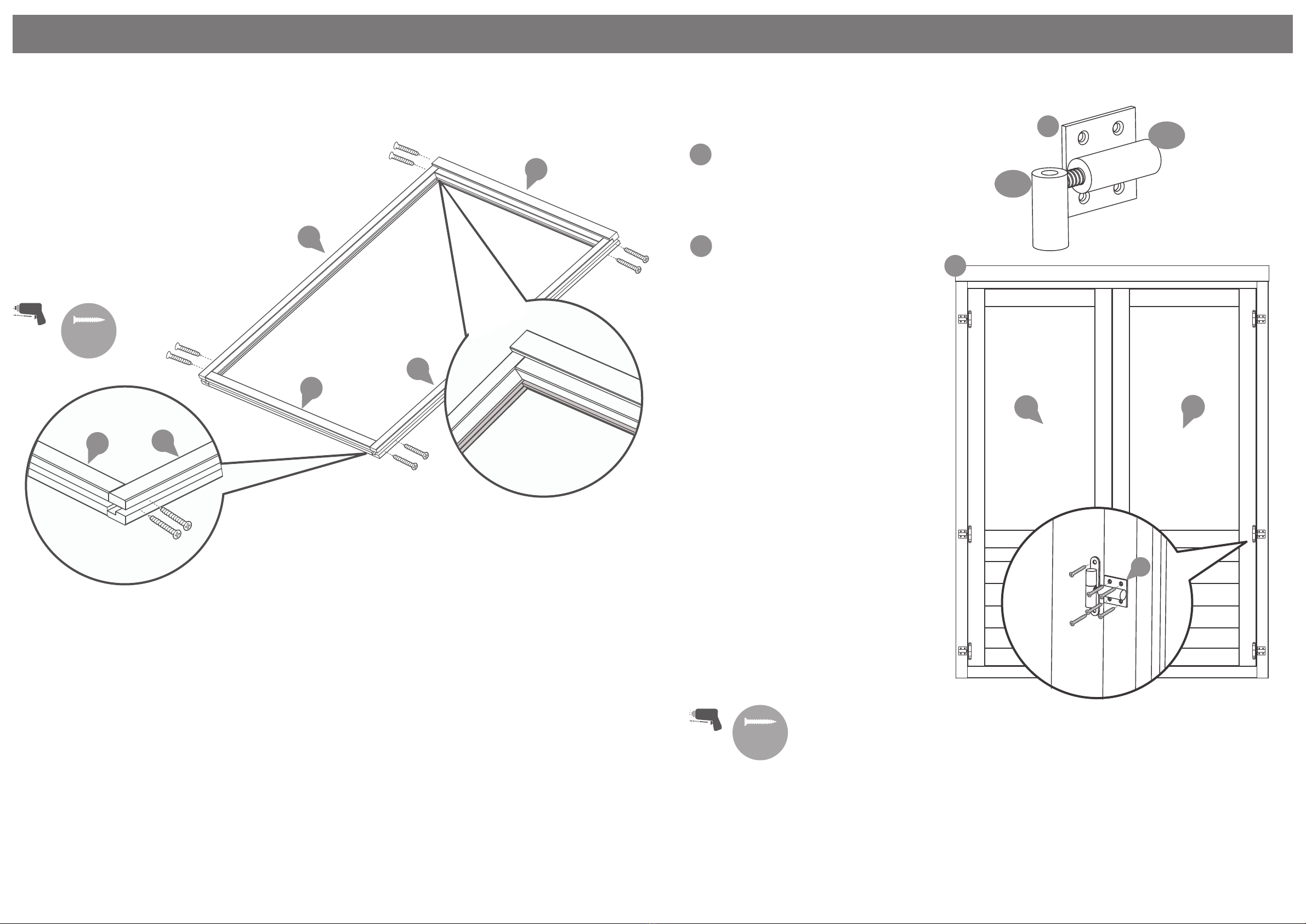

The Adjustable Door Hinge (No.17)
comes in three parts.
Fasten No. 17a into 17b as shown in the
illustration.
Place the master and secondary
doors (No’s 9 & 10) onto a at surface and x
the Adjustable door hinge (No.17c) to the
doors using 3x30mm screws per hinge.
Fix 3 x Adjustable Door Hinges (No. 17a &
b) into position onto the door frame using
4x30mm screws per hinge.
*Ensure the hinges are tted to the exter-
nal of the door frame so the doors open
outwards from the log cabin.
Locate the doors into the hinges ensuring
there is equal spacing on each side between
the doors and door frame, and that the
doors open & close freely without restric-
tion.
It is important to t the doors within the
frames at this stage so that you can establish
the position of the hinges. The hinges come
in three parts. Remove the doors from the
frame after tting.
**Ensure to screw into the framing and not
into the channel.
42x30mm Screws
17a
Pre drill
hole
30mm
screw
9
10
17
a
b
17b
a
b
IMPORTANT : Pre-drill before xing screws.
Secondary Door Master Door
17

P 7
Please retain product label and instructions for future reference
Step 7
To adjust and align your doors:
1. Lift up the door of the hinge.
2. Turn the rotating barrel (No.17a) in / out to
move the postion of the doors either in or away
from each other.
3. You can then place the door(s) back on to the
hinge and check whether they require more /
less adjustments, if further adjustments are
required repeat number 2.
17a
Step 8
Once you have laid 6 log boards (o of the starter)
up the door section, slide the assembled door
frame over the boards resting the frame on top of
the starter board (if you have not yet assembled
the door frame refer to step 5)
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
**Please Note: The short boards at the front of the
building (either side of the door and window
opening’s) can be placed either side depending on
your needs.
Step 9
Parts needed - No. 24 QTY 12
No. 25 QTY 6
No. 27 QTY 12
No. 28 QTY 6
Following the method shown in the
illustration, lay the next 6 boards (No’s.
24, 25, 27 & 28 ) onto the log cabin to
create your second level.
*Ensure that the boards are level and
ush with each other as you lay each
one.
*Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
27
27
24
24
25
28

P 8
Please retain product label and instructions for future reference
2
4
IMPORTANT : Pre-drill before xing screws.
Step 10
Parts Needed - No. 2 QTY 1
No. 3 QTY 1
No. 4 QTY 1
No. 5 QTY 1
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
8x80mm Screws
Pre drill
hole
80mm
screw
5
3
53
The internal lip of the window
frame should be postioned on
the inside of the building.
IMPORTANT : Pre-drill before xing screws.
1
7
7
7
Pre drill
hole
30mm
screw
Step 11
Parts Needed - No. 1 QTY 2
No. 7 QTY 4
Position the window (No. 1) so that it
sits centrally within the window frame.
Fix the female part of the ag hinge
(No. 7) to the window using 4x30mm
screws, attach the male part of the ag
hinge (No. 7) to the window frame
using 4x30mm screws ensuring that
the window can open and close freely.
*Ensure to attach the hinge to the
horizontal frame of the window*
Repeat this method for both windows
**It is important to t the windows
within the frame at this stage so
that you can establish the position
of the hinges. The hinges come in
two parts. Remove the window from
the frame after tting.
32x30mm Screws
Step 12
Once you have laid the second level
of boards onto the log cabin slide the
windows between the smaller
boards and rest on to the longer
board (if you have not yet
assembled the window frames refer
to step 8 & 9)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same

P 9
Please retain product label and instructions for future reference
Step 13
Part needed - No. 24 QTY 12
No. 25 QTY 6
No. 27 QTY 6
No. 28 QTY 6
No. 30 QTY 2
No. 31 QTY 2
No. 32 QTY 2
Following the method shown
in the illustration, lay the next
layer of boards (No’s. 24, 25,
27, 28, 30, 31 & 32) onto the
log cabin, ensuring to create a
staggered overhang at the
front of the log cabin.
*Ensure that the boards are
level and ush with each
other as you lay each one.
25
28
24
24
27
27
30
32
31
30
32
31
Rubber Mallet
may be required
to t parts.
Step 14
Parts needed - No. 28 QTY 1
No. 29 QTY 2
No. 43 QTY 1
Lay the last two boards (No’s.
28 & 43) onto the front and
back of the log cabin.
Once in position place log
board (No. 29) onto the top of
the overhang, xing into
position by screwing through
the notches as shown in the
illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
70mm
screw
29
28
43
29
IMPORTANT : Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
Step 15
Parts needed - No. 22 QTY 2
Place the gable tops (No. 22)
onto the log cabin. Fix into
position by screwing through
the notches as shown in the
illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
70mm
screw
22
IMPORTANT : Pre-drill before xing screws.
22
Pre drill
hole
Rubber Mallet
may be required
to t parts.

P 10
Please retain product label and instructions for future reference
35
IMPORTANT : Pre-drill before xing screws.
35 35
Pre drill
hole
Step 16
Parts needed - No. 35 QTY 3
Align the Roof Purlin(s) (No.
35) into the cut out slots on each
gable top ensuring each purlin
interlocks the boards.
Secure the purlins at each
end by screwing through the purlins
into the boards (ensure to pre-drill
to avoid the boards splitting) using
4x70mm screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier in
width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins is the
same.
12x70mm Screws
70mm
screw
a
b
a
35
b
35
Rubber Mallet
may be required
to t parts.

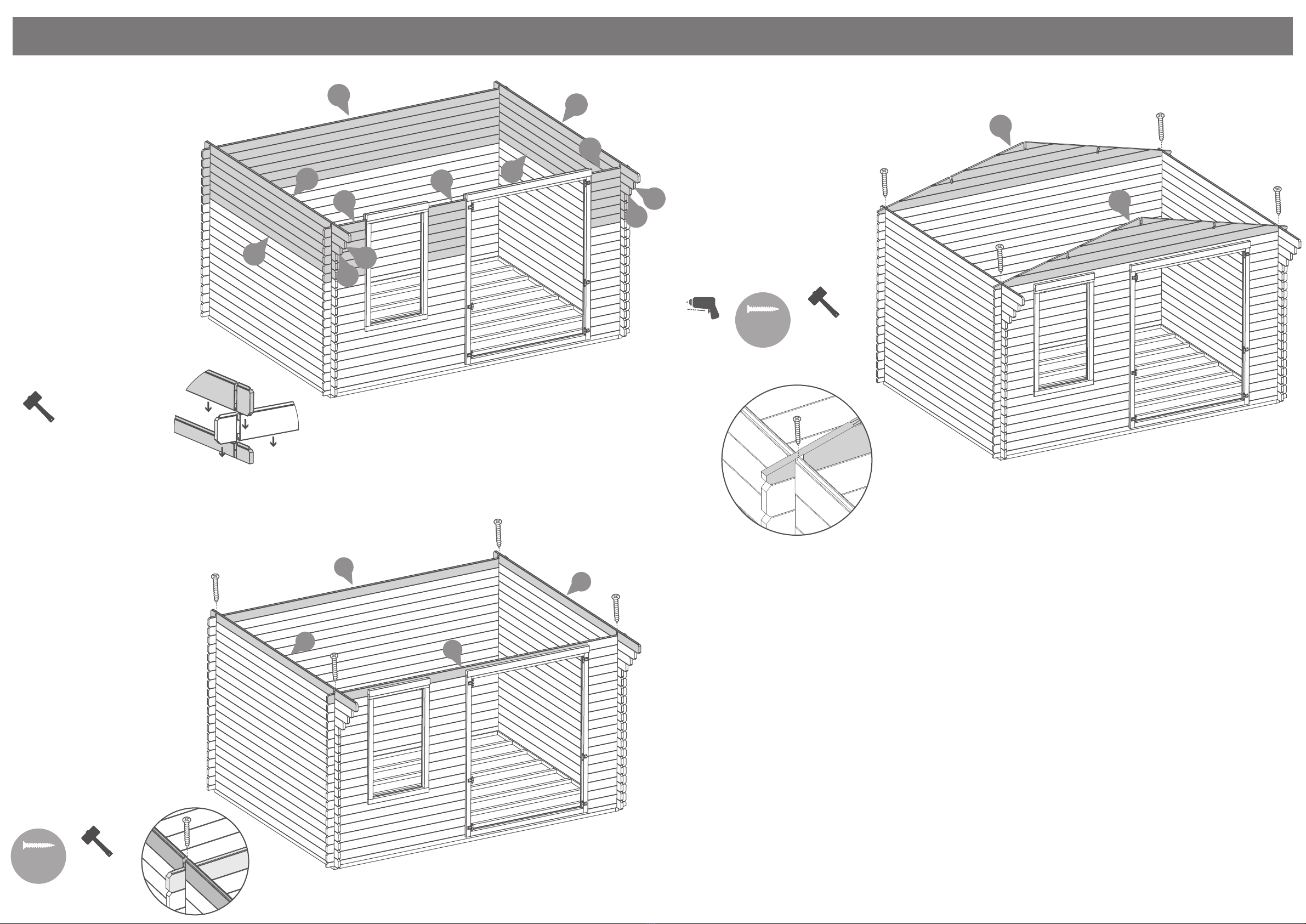

Step 17
Parts needed - No. 39 QTY 64
Place the rst two roof board’s
(No.39) onto the log cabin on each side,
making sure the boards are ush to the
end of the roof purlin. Once in position x
to each purlin using 3x40mm screws.
Ensure the roof boards are not laid too
close together, use the spacers (No.45)
provided to create a 2mm gap. Adjusting
the spacing between the boards allows the
wood to swell in damp weather.
Continue adding the roof boards along the
roof, xing each one into position using
3x40mm screws, making sure that each
board is interlocked, ush at the bottom &
meet at the top of the apex.
You have been issued with 64 roof boards,
however you may only need to use 62.
*Ensure the roof boards meet at the top
of the apex and leave an overhang at the
bottom.
The last board on each side will
overhang past the end of the purlins:
Using a straight edge and a pencil mark
out a line as a guide.
Cut along the pencil mark and remove the
excess. Place the cut down board’s back
onto the roof and secure into place using
3x40mm screws per board.
*Please Note: This image is for
illustrative purposes and may dier from
your choice in product.
Nevertheless the process of cutting and
tting the last roof boards is the same.
192x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
a
b
IMPORTANT : Pre-drill before xing screws.
23b 39
39
39
b
a

P 11
Please retain product label and instructions for future reference
40mm
screw
Pre drill
hole
IMPORTANT : Pre-drill before xing screws.
28
38

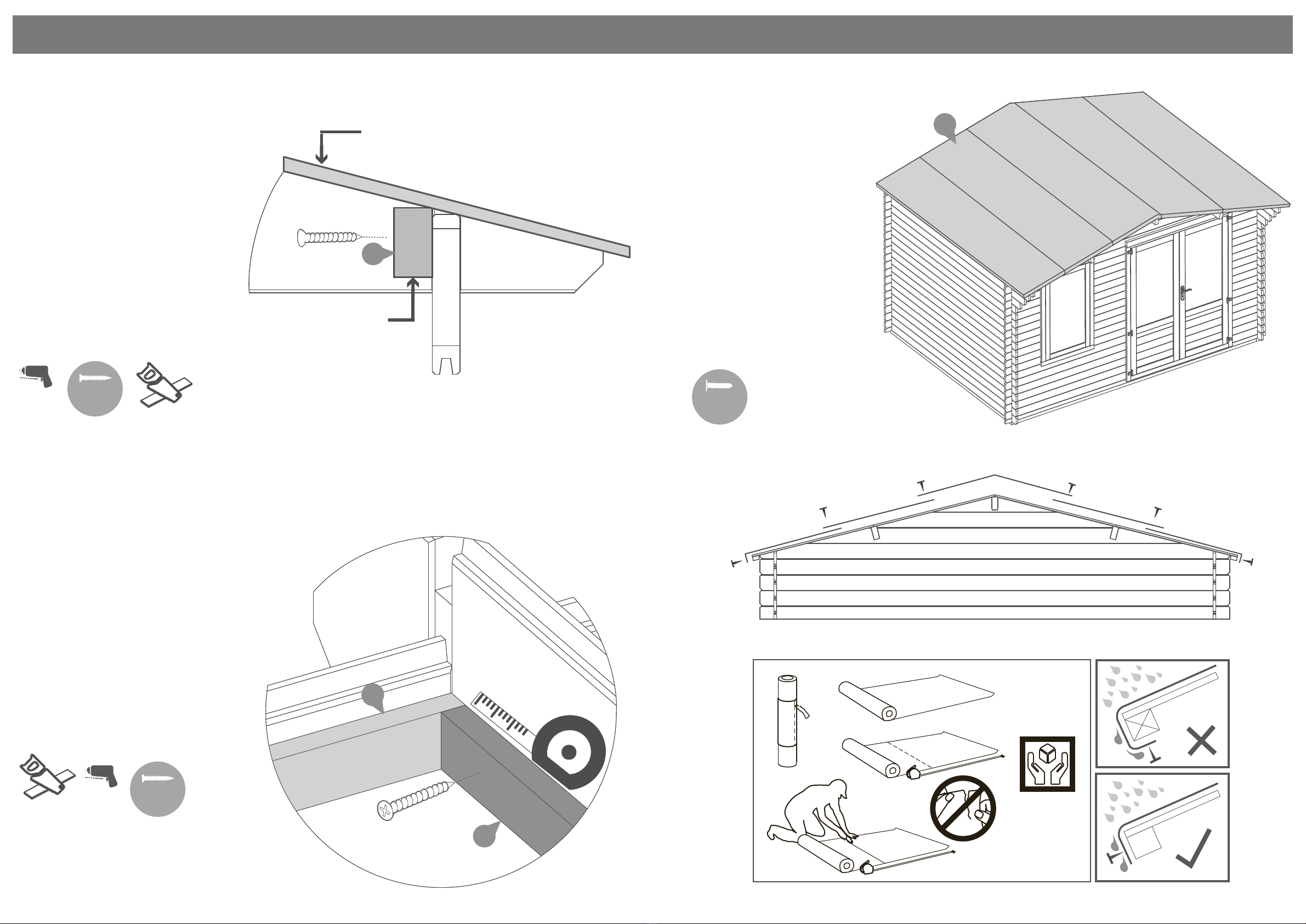

Step 18
Parts needed - No. 38 QTY 2
Ensuring the roof boards are ush at
the overhanging side and meet at
the apex, x the eaves frames
(No.38) to the underside of the roof
boards using 9x40mm screws as
shown in the illustration
*Please Note: This image is for
illustrative purposes and may dier
from your choice in product.
Nevertheless the process of xing the
eaves frames is thesame.
18x40mm Screws

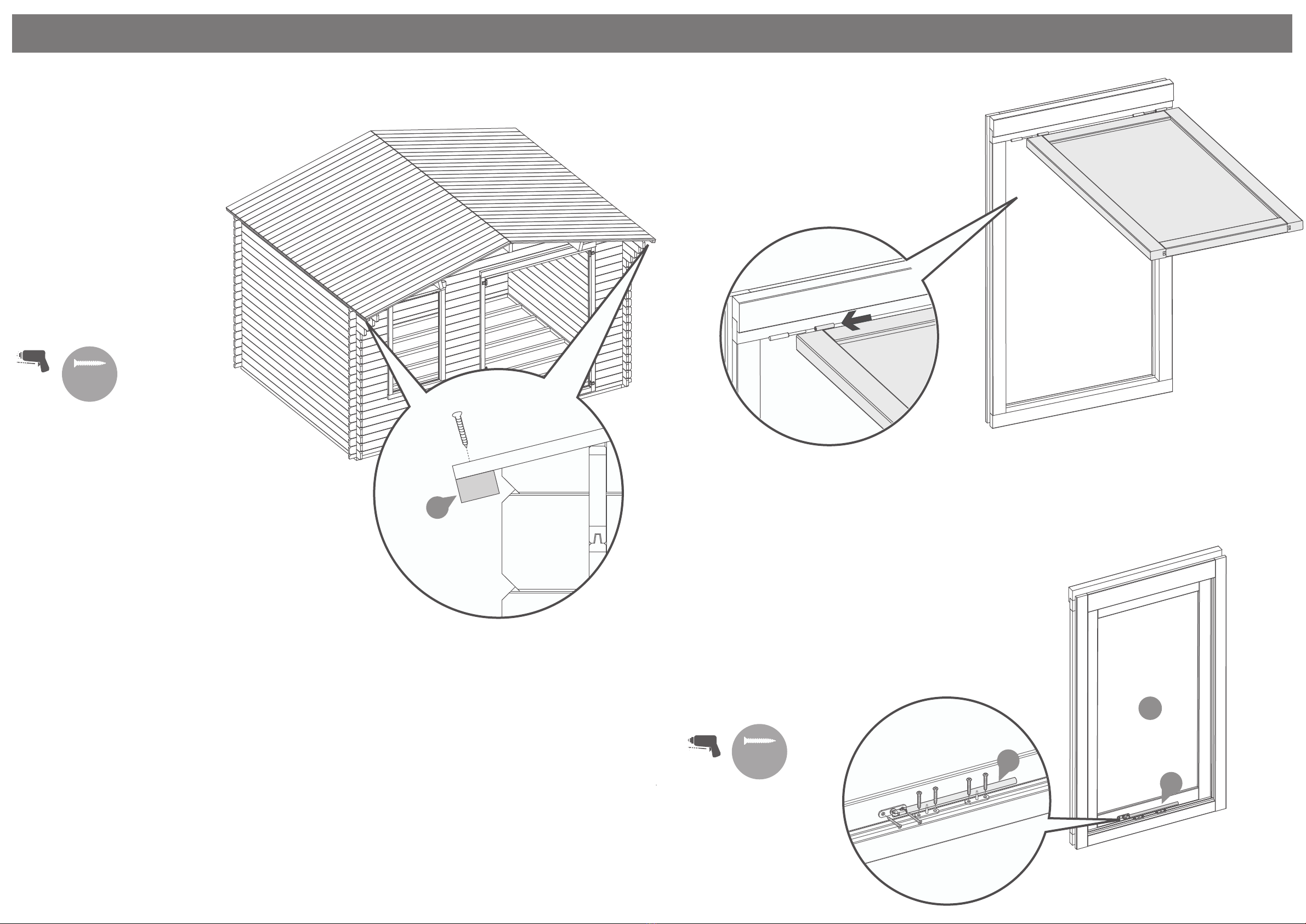

Step 19
Lift each window onto the already existing
hooks on the window frame, ensuring the
hook and bands connect.
*Some adjustment may be required to
align properly.
Pre drill
hole
Step 20
Parts Needed - No. 8 Qty 1
Fix the casement stay (No. 8) onto
the window (No. 1) and the casement
stay pins to the window framing using
6x30mm black screws.
*Ensure the casement stay is centralised
on the window and the pins are in line
with the pin recievers before xing in
place.
6x30mm Screws
IMPORTANT : Pre-drill before xing screws.
30mm
screw
8
1
8

P 12
Please retain product label and instructions for future reference
Step 21
Lift each door onto the already existing
hooks on the door frame, ensuring the hook
and bands connect.
*Some adjustment may be required to
align properly.
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
Step 22
Parts Needed - No. 18 QTY 1
No. 19 QTY 1
No. 20 QTY 1
Fit the Mortice lock (No. 19) into the
recess in the master door (No. 9) and secure
using the screws provided. Attach the Key
plate (No. 20) to the secondary door (No.
10) with 4x30mm screws.
Fit the door handles (No. 18) and
connect with the metalbar to the mortice
lock using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove
the lock and turn the catch around using
the small grub screw.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery). Neverthe-
less the process of xing is the same.
Once components have been tted, try closing
doors to ensure the doors can be closed and
the lock works.
If your doors do need adjusting please look at
step 7.
12x30mm Screws
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
20 19
10 9
18

P 13
Please retain product label and instructions for future reference
Step 23
Parts Needed - No. 15 QTY 1
No. 21 QTY 2
Attach the Door Strip (No. 15) to the
back of the secondary door using
4x40mm screws as shown.
Once xed, place the Tower
Bolts (No. 21) roughly into position
and with a pencil mark around the
bolt.
After marking the bolt onto
the frame, drill a hole for the barrel
bolt to locate into.
Following the hole being
drilled, place the tower bolts into
position and secure using the screws
provided.
12x40mm Screws
a
b
c
c
Pre drill
hole
40mm
screw
21
IMPORTANT : Pre-drill before xing screws.
15
b
a
40
40mm
screw
Pre drill
hole
*Cut to t
IMPORTANT: Pre-drill before xing screws.
Step 24
Parts needed - No. 40 QTY 35
Place the rst oor board (No. 40) inside
the building ush to the log board on the
wall. Continue adding the oor boards
(internally) making sure to interlock
each individual board.
You have been issued with 35 oor boards,
however you may only need to use 34.
*Do NOT secure the boards until the last
board has been measured and cut.
Measure the gap between the bottom of
the tongue (on the last board placed)
and the log board.
Using a straight edge mark out the meas-
urement onto the last oor board (No.
40) and cut along the length removing
the excess.
**Please note: Mark the nal board 2mm
under the measurement; This will allow the
timber to expand and contract correctly.
Once all the oor boards are in position
secure each board into position using
7x40mm screws.
***Please Note: Ensure to screw through
each of the oor boards into the oor
bearers.
245x40mm Screw

P 14
Please retain product label and instructions for future reference
Roof
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Roof
Closure Trim
Internal
42
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 25
Parts needed - No. 42 QTY 6
Inside the building place the closure
trim (No. 42) against the boarding
and align with the roof as shown in
the illustration.
*Measure and cut the closure trims
to t the internal space.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
36x30mm Screws
IMPORTANT: Pre-drill before xing screws.
23
23
42
42
30mm
screw
Pre drill
hole
*Cut to t
Step 26
Parts needed - No. 42 QTY 6
Once the oor has been laid arrange the
closure trim (No. 42) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
36x30mm Screws
IMPORTANT: Pre-drill before xing screws.
HANDLE
WITH CARE
12
3
4
Felt
tacks
Step 27
Parts needed - No. 44
Cut the felt (No. 44) into ve
strips & lay onto the roof in the
order shown in the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 3500mm
250x Felt Tacks
1. 2.
3. 4.
5.
44

P 15
Please retain product label and instructions for future reference
Pre drill
hole
40mm
screw
Step 28
Parts needed - No. 36 QTY 4
No. 37 QTY 2
Align the fascia’s (No. 36 & 37) with
the roof and x into place using
3x40mm screws per fascia, making
sure to screw through the fascia
into the roof purlins and eaves
frame.
*Ensure the angled cuts meet
at the top of the apex.
18x40mm Screws
36
IMPORTANT : Pre-drill before xing screws.
37
37
36
36
36
Pre drill
hole
70mm
bolt
41
41
Step 29
Parts needed - No. 41 QTY 8
Arrange the storm braces (No.41)
around the building (internally),
Placing two storm braces per side,
xing into place using 2x 70mm bolts
per brace ,making sure the washer &
nut are tightened from the outside of
the building.
*Ensure the storm braces are secured
at the highest point possible on each
side.
The storm braces will need to be
altered during the buildings life as the
moisture content within the log boards
changes. The boards will expand
during periods of high moisture
(Winter) and shrink during periods of
low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***Important: Ensure each bolt is
tightened using a washer so as not to
damage the log boards.
16x70mm Bolt Sets

P 16
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
Step 30
Parts Needed: No. 6 QTY 1
No. 16 QTY 1
Attach the Rain Guards (No. 6) to the
Window frame, xing in place onto
the framing above the window using
3x70mm screws per guard.
Attach the Rain Guard (No. 16) to the
Door frame, xing in place onto the
framing above the Door using
3x70mm screws.
6x70mm Screws.
70mm
screw
Pre drill
hole
6
16
6
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
