Merrithew Health & Fitness SPX Max Reformer User manual

Please review this important assembly, safety and warranty information about your new
Merrithew™equipment and keep it handy for future reference.
OWNER’S MANUAL
Reformer
and Vertical Frame
For video assembly
instructions, visit
merrithew.com/
eq-assembly
PROFESSIONAL SERIES

Reformer Owner’s Manual2
User Guidelines
Pilates equipment when used effectively can faciliate many
Pilates exercises safely and effectively. However, care and caution
must be taken as there are some inherent dangers when using
any exercise equipment — especially when spring resistance
isinvolved.
For inexperienced or first-time users, this equipment
should only be used under the supervision of a
trainedprofessional.
Please ensure that you and your clients/patients have
receivedproper instruction regarding the correct and safe
useofthis equipment.
This manual includes general guidelines for setup and usage.
To get the most out of this equipment, Merrithew offers
instructional DVDs and manuals. Personalized training is offered
through our Host, Licensed and Corporate Training Centers.
Visit merrithew.com for more information.
REFORMER OWNER’S MANUAL
IMPORTANT!
This manual contains important assembly, safety and
warranty information. Read the manual carefully
before using your new equipment and keep the
manual on hand for future reference.
UNSAFE OR IMPROPER USE OF THIS EQUIPMENT
BY FAILING TO READ AND COMPLYWITH ALL
REQUIREMENTS ANDWARNINGS COULD RESULT
INSERIOUSINJURY.
It is impossible to predict every situation and
condition that can occur while using this equipment.
Merrithew™makes no representation about the
safe use of any exercise equipment that cannot be
predicted or avoided.
PLEASE DO NOT ATTEMPT TO ASSEMBLE ON YOUR
OWN. SOME OF THESE STEPS REQUIRE TWO PEOPLE.
PLEASEREAD THESE INSTRUCTIONS COMPLETELY
BEFOREBEGINNING ASSEMBLY.
Merrithew recommends cautious assembly and
usage andwishesyou many hours of safe and
effectiveexercise.
CAUTION IMPROPER USE OF EXERCISE EQUIPMENT MAY CAUSE SERIOUS BODILY INJURY. TO REDUCE RISK, PLEASE READ THE FOLLOWING:
wBefore starting any exercise program, consult a physician.
Stopexercising immediately if you experience chest pain,
feel faint, have difficulty breathing or experience discomfort.
wBefore using equipment, read and follow the safety
instructions in this manual and obtain thorough instruction
from a qualified trainer. Use equipment for intended
exercises only.
wNEVER stand with both feet on the wooden standing
platform of an SPX Max Reformer. Step onto secured
carriage first before placing one foot onto wooden standing
platform. Alwayskeep one foot on secured carriage.
wDo not use if equipment appears worn, broken or damaged.
Donot attempt to repair equipment yourself without
contacting Merrithew.
wWhen springs are used on the vertical frame, ensure spring
clips are fully closed at both ends of springs. A spring clip
that is only half closed risks coming undone and detaching
with high force.
wWhen using the push-thru bar with springs attached from
below, a trained professional must keep a hand on the bar
at all times, and the safety chain must be attached.
See Safety & Usage on page 21.
wKeep body, clothing and hair free from all moving parts.
wEnsure the equipment is properly adjusted for your size
andability level.
wFor optimal performance, allow at least two feet of clear
space on either side of a Merrithew Reformer. Before
moving a Reformer, ensure ropes do not drag, springs are
attached and carriage is secure.
wThe SPX Max, V2 Max and RehabV2Max Reformers
should be used by only one personatatime,
notweighingover350 lbs / 159 kgs.
wDo not allow children to use or be around equipment
withoutadult supervision.
wBefore using this Reformer, ensure that the carriage
stopper is fully inserted and at least one spring is
securely attached to thegearbar.
WARNING: As with any athletic activity, the use of
exercise equipment involves risk of injury, damage
and/or death.
By choosing to use Merrithew equipment, you and/or
your clients/patients assume responsibility for that risk,
not the people who sell, distribute and/or manufacture
this equipment.

3
Merrithew Professional Reformers
Favored among Pilates professionals for their superior adaptability, versatility, craftsmanship and smooth carriageride,ourprofessional
Reformers feature easy adjustments to accommodate different sizes and abilities.
Specially priced bundles offer popular accessories to add variety and challenge to your workouts.
Reformer Bundles include:
wReformer Box with Footstrap, regular or tall
wPadded Platform Extender
wMaple Roll-Up Pole
wHigh-Precision Spring Package,
includes five Reformer Springs (3 x 100%, 1 x 50%, 1 x 25%)
wNeoprene Spring Covers for noise reduction
wPatented Retractable Rope System and Soft Reformer Loops
(Straps)
wInstructional DVDs (titlesvary depending on model)
wEasy-Roll Wheels on both ends of the Reformer
wHigh-Traction Reformer Feet
Max Plus Reformer Bundles also include:
wVertical Frame with Traveling Pulley System
wVertical Frame with 2 Push-Thru Springs
2 Roll-Down Springs with Maple Roll-Down Bar
2 Arm Springs with Foam Grip Handles
2 Leg Springs with Padded Long Spine Straps
2Extension Straps
2 Traveling Spring Hooks
2 Traveling Pulleys and Safety Chain
wMat Converter
Reformers are also sold individually.

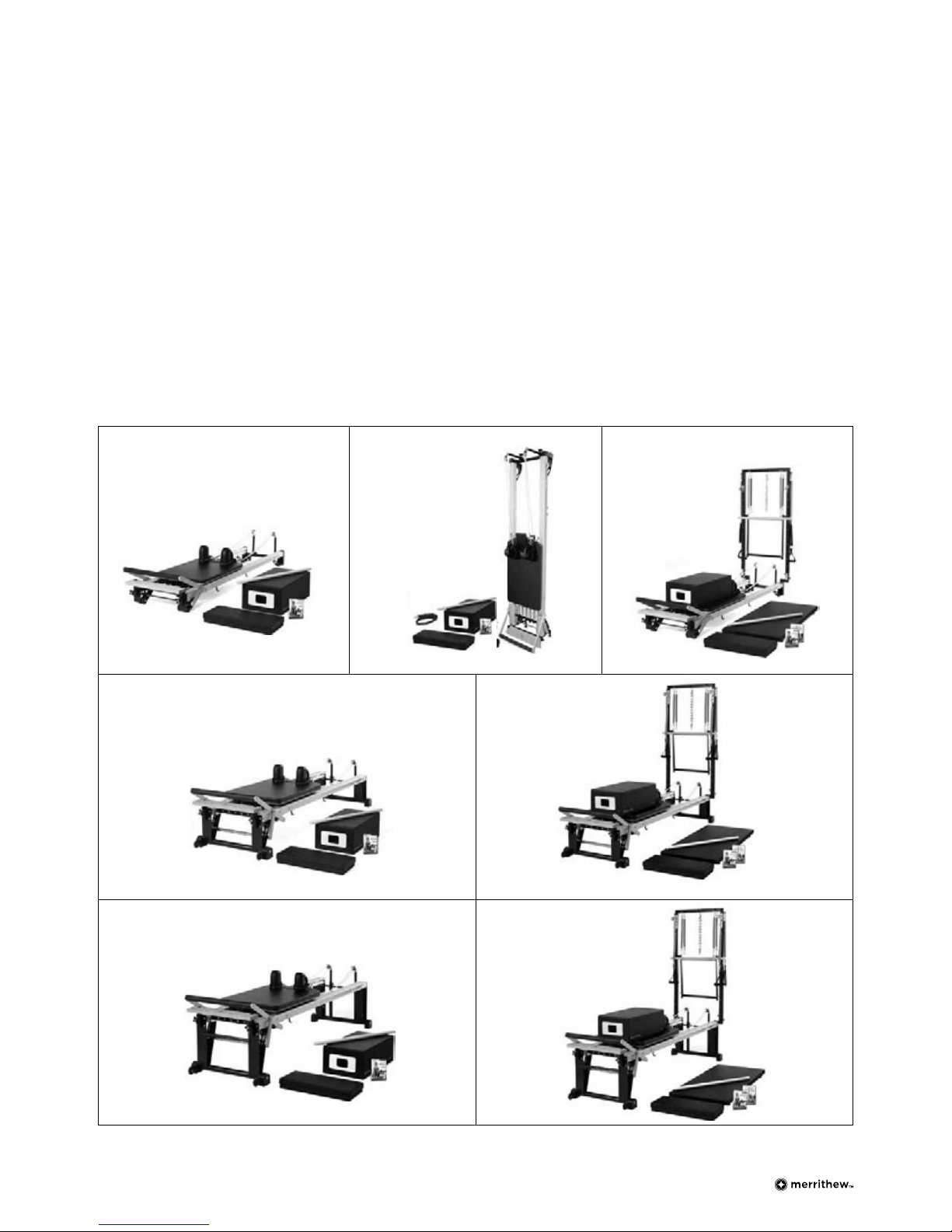

SPX®Max™
V2 Max™
Rehab V2 Max™
SPX®Max™with
Vertical Stand
SPX®Max Plus™
V2 Max Plus™
Rehab V2 Max Plus™

Reformer Owner’s Manual4
Professional Reformers
1Wooden Standing Platform
2High-Traction Reformer Foot
with wheels
NOT AVAILABLE ON SPX MODELS
31/2" Star Knob
4Accessory Board Receptacle
5Footbar Adjustment Cradle
6Chrome Adjuster Bar
7Comfort Footbar
8Gearbar [fig. B]
OPTIONAL: Precision
Gearbar System [fig. B+]
9Gearbar Slot [fig. B]
10 Spring Ball with O-ring [fig. A]
11 Socket Head Cap Screw
12 Small Swing Arm Bar
13 Large Swing Arm Bar
14 Aluminum Rail
15 Carriage [fig. E]
16 Headrest
17 Padded Shoulder Rest
18 Soft Reformer Loop
19 Double-Ended Swivel Spring Clip
20 Serial Number [fig. C]
21 Roll-Up Pole Hooks
22 Horizontal Metal Bar
EXCLUDES SPX MODELS
23 Pulley Post Receptacle [fig. D]
24 Rope [fig. E]
25 Horizontal Metal Frame [fig. D]
26 Pulley [fig. H]
27 Pulley Post [fig. D+]
EXCLUDES SPX MODELS
28 Spring [fig. A & B]
29 Spring Sleeve [fig. A]
30 Fixed Cube Nut [fig. A]
31 Spring Bolt [fig. A]
32 Nylon Locknut [fig. A]
33 Spring Holder [fig. E]
34 Receptacle Cap [fig. D]
35 Eyehook [fig. D]
36 3⁄8" Star Knob [fig. D]
37 Fixed Roller [fig. E]
38 Floating Roller [fig. E]
39 Bronze Bushing [fig. E]
40 Spring Anchoring Bar [fig. E]
41 Carriage Frame [fig. E]
42 Rope Housing Reel [fig. E]
43 Cotter Pin [fig. E]
44 Strap Hooks [fig. E]
45 Self-Locking Cleat [fig. E & F]
46 Carriage Stopper Position [fig. G]
47 Carriage Stopper [fig. G]
48 Rope Retaining Hook [fig. F]
49 Pulley Spring [fig. H]
50 Plunger Button [fig. D+]
51 C-Channel [fig. G]
52 Pulley Eyehook [fig. H]
NOTE: Parts may not be exactly as shown.
Photo shown is a V2 Max Reformer.
PartIDs are the same for all Reformers.
Please see page 3 for Reformers included.
1 32 4 5 6 7 11 15 252114131298 1010

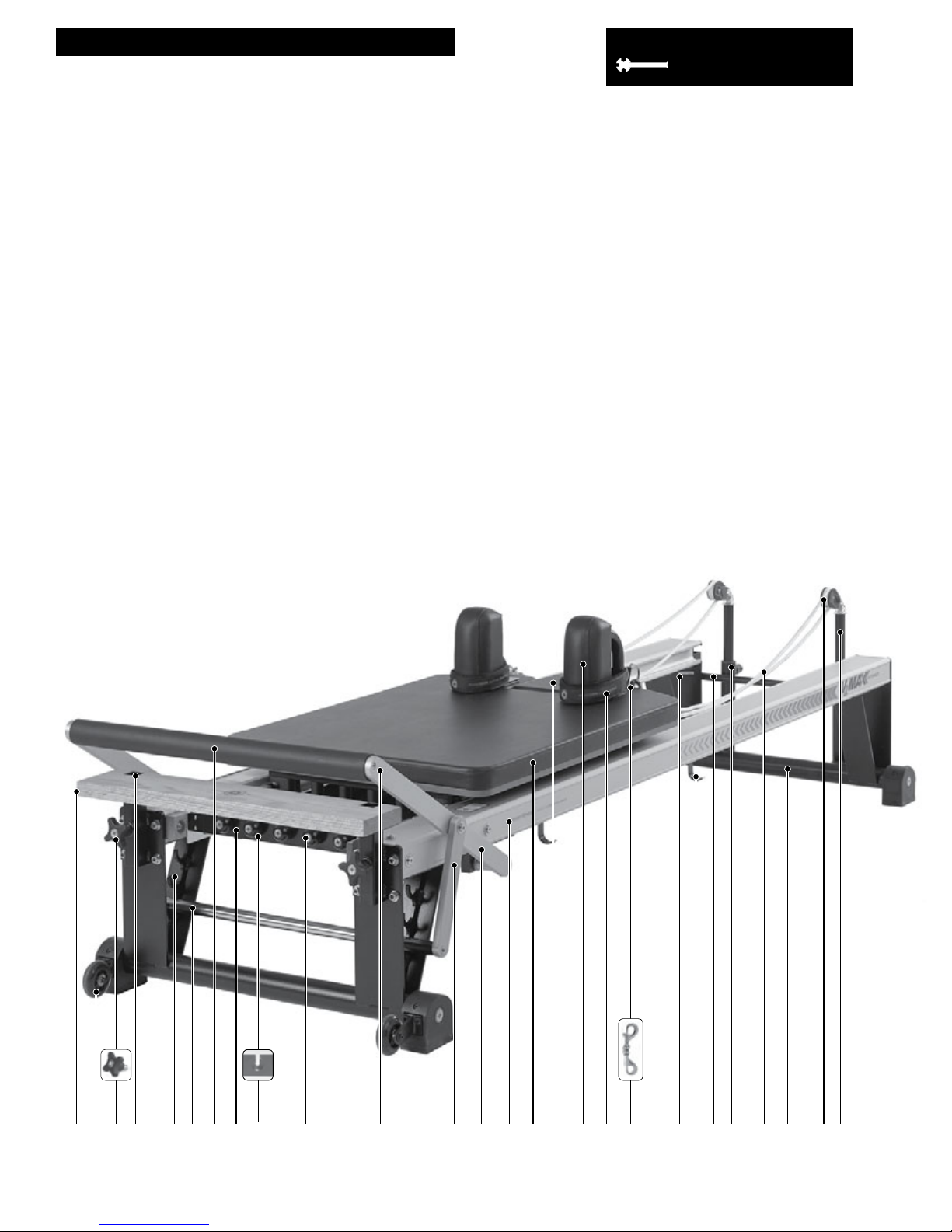

PART IDENTIFICATION
Front End
Back End
16 18 1917 20 22 2423 26 27
Required Tools
Universal Assembly Tool (supplied)

5
D+

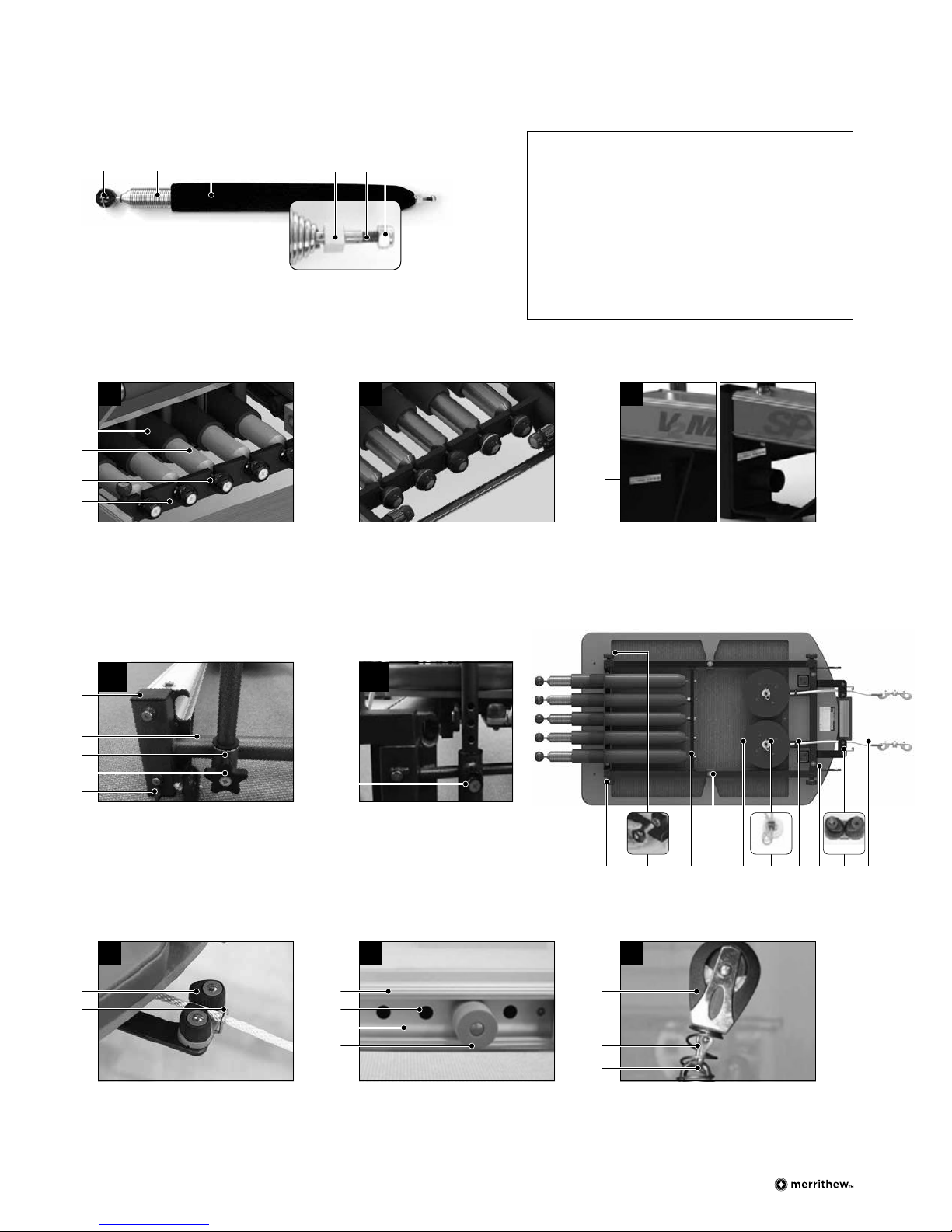

Fig. E – Retractable Rope System Carriage
38+39
V2 MAX AND REHAB V2 MAX
BACK END
SPX MAX BACK END
SPX MAX BACK END
OPTIONAL: HIGH PRECISION
GEARBAR SYSTEM
B
GEARBAR AND SPRINGS SERIAL NUMBER STICKER
D
GH F
PULLEY BLOCKCARRIAGE STOPPING SYSTEMCLEAT SYSTEM
37 40 41 4442 24 1943 45
BOLT END OF SPRING
Fig. A – Spring
28 29
BALL END OF SPRING
3130 32
10
8
9
29
48 46
45 14 26
28
51
47 49
20
C
34
36
23
25
50
35
52
B+
Before Assembly
wPlace all parts from the box in a cleared area and
position on thefloor in front of you.
wRemove all packing materials from the area and
place back into the box. Do not dispose of the
packing materials untilassembly iscompleted.
wTo prevent unsafe or improper use, please read each
step carefully before beginning or consult our online
assembly videoatmerrithew.com/eq-assembly.

Reformer Owner’s Manual6

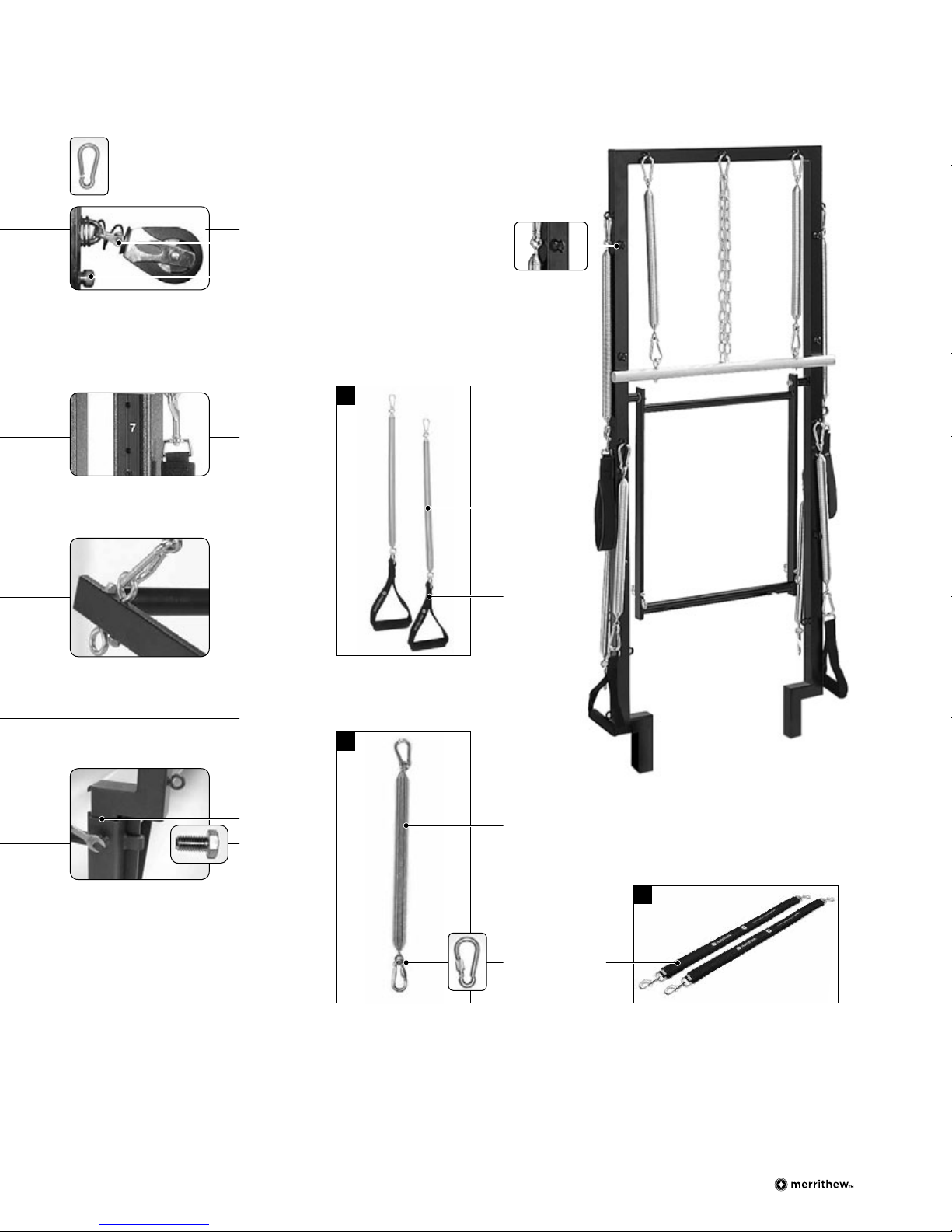

The Vertical Frame
55 Fixed Eyehook
56 Spring Clip
57 Safety Chain
58 Traveling Pulley MAX PLUS
59 Traveling Pulley Eyehook MAX PLUS
see inset on page 19
60 Vertical Sliding Track MAX PLUS
61 Roll-Down Spring, Black
62 Roll-Down Bar
63 Padded Long Spine Strap
64 Push-Thru Bar
65 Traveling Spring Hook
66 Pulley MAX PLUS
67 Swivel Harness MAX PLUS
68 Spring-Loaded Stopper MAX PLUS
69 Leg Spring, Green
70 Stopper Position
71 Vertical Frame Receptacle
72 Hex Bolt
73 Light Arm Spring, Yellow [fig. J]
74 Foam-Grip Handles [fig. J]
75 Push-Thru Spring, Blue [fig. K]
76 Locking Spring Clip [fig. K]
77 Extension Strap [fig. L]
NOTE: Parts may not be exactly as shown.
Photo shown is a Max Plus Vertical Frame
on a V2Max Plus Reformer.

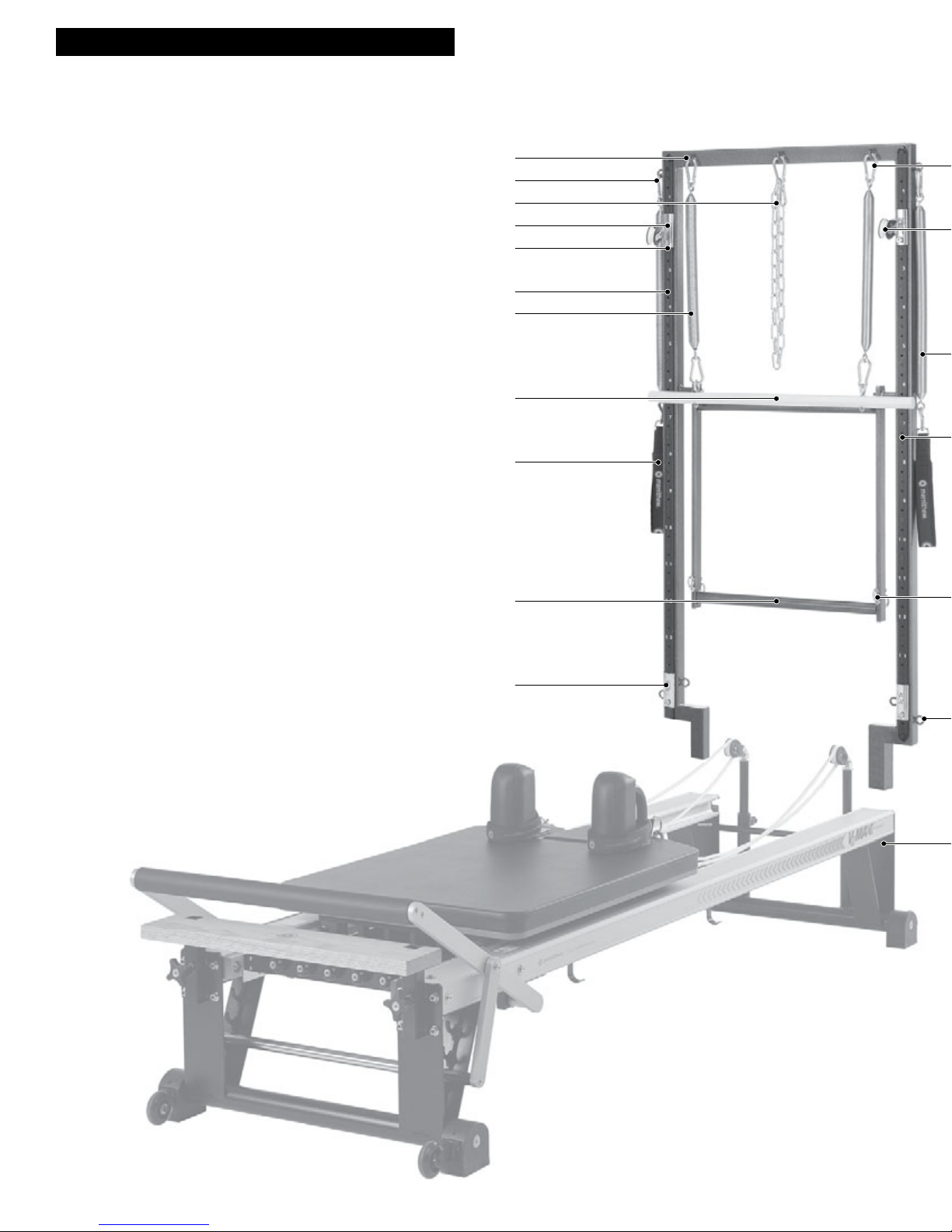

Max Plus Vertical Frame
PART IDENTIFICATION
55
61
56
65
58
59
60
63
57
62
64

7
56
55
72
66
69
70
68
67
J
55
K
73
74
75
76
L
Traditional Vertical Frame
77
TRAVELING PULLEY
STOPPER POSITION
PUSH-THRU BAR AND EYEHOOK LIGHT ARM SPRING
WITH FOAM-GRIP HANDLE
PUSH-THRU SPRING WITH
LOCKING SPRING CLIP
EXTENSION STRAPS
VERTICAL FRAME RECEPTACLE
71

Reformer Owner’s Manual8
Mechanical Safety Check
Proper maintenance and timely replacement of your equipment or component parts is your responsibility.
Conduct a regular inspection of the following:
Daily
wClean rails with a damp cloth using water only.
wEnsure carriage stopper is fully inserted in one of the
sixpositions at all times.
wEnsure shoulder rests are fully inserted on carriage.
wEnsure footbar is securely fastened.
wEnsure chrome adjuster bar is securely seated in cradle.
wInspect retractable rope system to confirm ropes are in position
and threaded bolts of the cleats and pulley blocks are secure.
wClean all upholstery after each use, using a soft cloth and
gentle cleanser.
Weekly
wEnsure all nylon locknuts, spring bolts and spring balls are
securely fastened.
wEnsure feet are securely attached with the flat side facing
towards the floor.
wEnsure footbar and chrome adjuster bar are securely fastened.
wEnsure pulley post star knobs are securely tightened.
wInspect for excessive wear and replace rollers as needed.
Sit on the carriage and test rollers, listening for any thumping
or grinding – the ride should be quiet and whisper smooth.
wInspect all springs for wear and damage and replace
immediately as needed.
wCheck all hex bolts on the Reformer’s two vertical frame
receptacles are tight and the vertical frame is securely anchored
(if applicable).
wInspect Traveling Pulleys to ensure threaded bolts of the
PulleyBlocks are secure. Test to confirm the plunger button
islocking securely into the vertical frame.
Monthly
wCheck ropes and straps for wear and replace as necessary.
wCheck that spring bolts and spring balls are securely fastened.
wCheck all spring clips to ensure proper fastening.
wCheck wear on star knobs threads and replace as necessary.
Yearly
wReplace all spring clips.
Every Two Years
wReplace all springs.
Care and Cleaning
Wipe vinyl surfaces with a mixture of water and tea tree
oil, anatural disinfectant. Add 1 tsp of tea tree oil to a 1L
or 1quart spray bottle of water. A mixture of mild soap
andwater may be used toremove more persistent dirt.
Ensure cleaner does not leave an oilyresidue, or make
surfaces slippery.
CAUTION: Chemical-based cleansers used around
Reformerfeet may cause permanent marking on floors.
Thewarranty does not cover this damage. We highly
recommend avoiding chemical-based products and suggest
placing a non-slip mat under the machine. Clean channels,
rails and rollers daily with a damp cloth. Avoidspraying
liquid directly onto surfaces. Never use oil lubricants as
theymay damage rollers.
SAFETY & USAGE
IMPORTANT
Replace all springs every 24 months and spring clips
every 12 months, or as needed within that period.
FAILURE TO PERFORM RECOMMENDED SAFETY
CHECKS, OR USING EQUIPMENT WITH IMPROPERLY
ADJUSTED, BROKEN OR WORN PARTS, COULD RESULT
IN SERIOUS BODILYINJURY.

Prepare Rails Insert Carriage Stopper
Insert CarriageInsert Gearbar
Insert Pulley Posts
6 5 4 3 2 1
9
Assembling the Reformer
STOP! Read these instructions completely before beginning or refer to our online assembly video at: merrithew.com/eq-assembly
ASSEMBLY & SET-UP

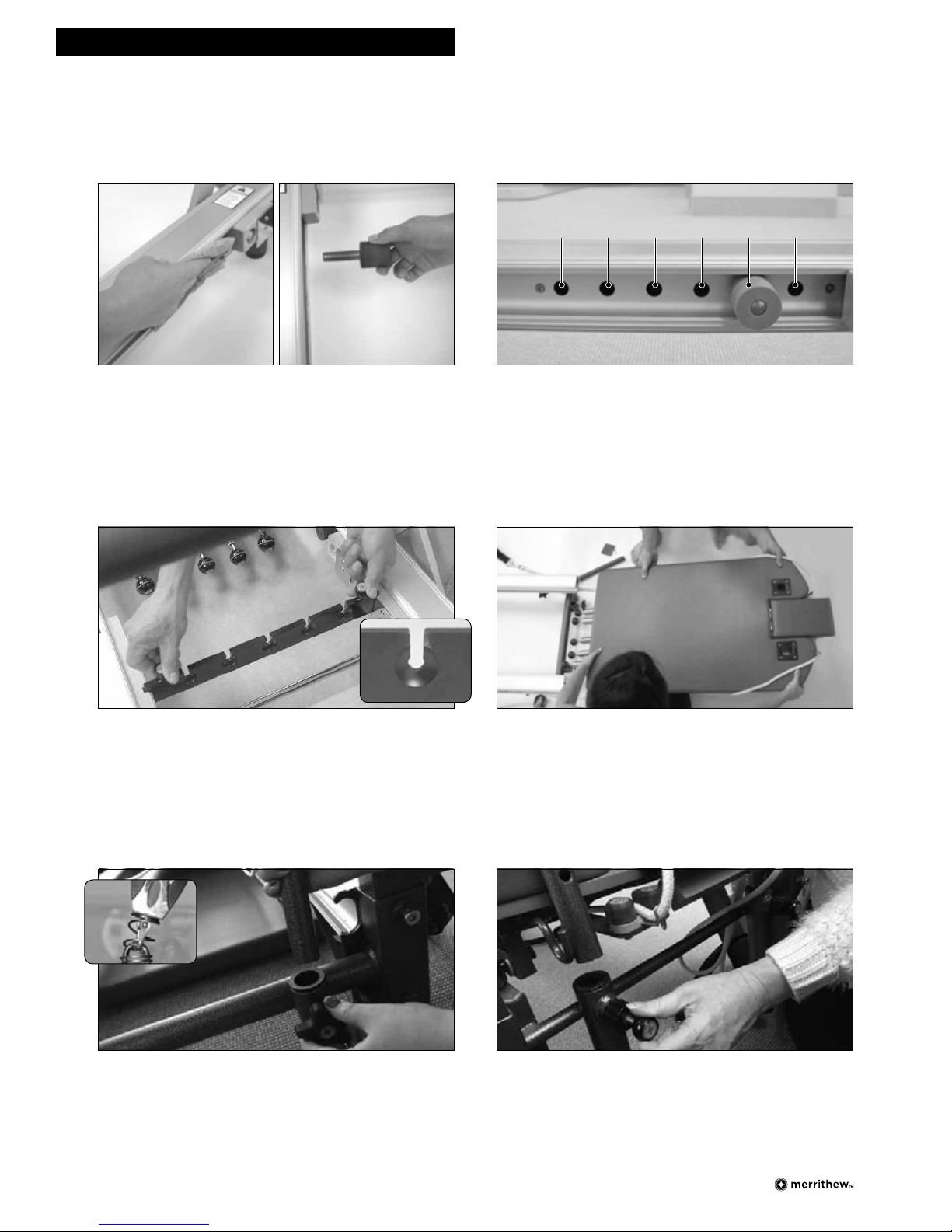

1. Wipe rails [14]and inner c-channels [51], with a damp
clothtoremove dust and dirt. Insert carriage stopper [47]
in one of six positions.
CAUTION: The carriage stopper must be FULLY inserted into
oneof the six positions AT ALL TIMES. Never use oil lubricants
as they may damage rollers.
NOTE: SPX MAX MODELS ARE SHIPPED WITH THE CARRIAGE INSTALLED.
4. V2 MAX & REHAB V2 MAX: Align fixed rollers [37]with
c-channels [51], then adjust floating rollers [38]as necessary
before guiding carriage [15]into rails[14]. Engage at least one
spring into the gearbar [8] after installation.
CAUTION: Westrongly advise that two people perform
the carriage replacement to prevent damaging rollers.
NOTE: SPX MAX models are shipped with the carriage installed.
5A. SPX MAX: Insert pulley posts [27]fully into receptacles
[23]at back of Reformer and tighten star knobs [36]. Ensure
eyehooks[52]on top of pulley posts are parallel to rails [14].
3. TRADITIONAL MODELS: Insert gearbar [8] into the middle
gearbar slots withthe concave indentations [inset above]facing
the WoodenStandingPlatform [1].
5B. V2 MAX & REHAB V2 MAX: Pull the plunger button [50] on
the back of the receptacles [23], slide to the preferred height and
lock into place in one of the pre-drilled holes.
NOTE: V2 Max Reformers have 6 pre-drilled holes.
Rehab V2 Max Reformers have 12 pre-drilled holes.
2. To determine correct length of ropes [24], setcarriage stopper
[47]in the second position. Attach springs to gearbar [8]
to ensure carriage [15]does not move.

Adjust RopesInsert Shoulder Rests
Reformer Owner’s Manual10
6. Insert shoulder rests [17]into receptacles with handles
facing pulley posts and closest to outside edges of carriage.
8. Remove double-ended swivel spring clips [19], pinch end loop
of ropes [24]and insert through the front of pulleys [26].
10. Place Soft Reformer Loops [18]on carriage [15]to
line up fixedD-rings on straps with end of metal plate on
shoulderrests[17].
12. To shorten length slightly, pinch ropes [24]between
carriage [15]and self-locking cleats [45 ]and pull toward carriage.
Grasp ropes at retaining hooks [48]and tug to engage cleats.
7. To extend ropes, push rope down and out of retaining
hook [48]and lift out of self-locking cleats [45]. Pull out rope
length required.
9. Reattach double-ended swivel spring clips [19]and
SoftReformer Loops [18].
11. Once rope length has been determined, reset ropes inself-
locking cleats [45]then set fully into rope retaining hooks [48]. 
ASSEMBLY & SET-UP
Assembling the Reformer cont’d

11
Carriage Stopper
654321
The carriage stopper [46]position determines how close the
carriage slides in toward the wooden standing platform [1] and
dictates the body’s range of motion.
The hole closest to the wooden standing platform is referred
to as position #1; the next is position #2, etc.
Adjusting the Carriage Stopper
wDo not sit on carriage [15]while adjusting.
wRemove all springs [28]from gearbar [8].
wInsert carriage stopper [47]in one of six positions.
wEnsure carriage stopper is completely inserted.
The carriage stopper position should be chosen to give the
optimal range of motion based on the exercise and the individual
performing it. It will also affect the initial tension on the springs
in relation to the gearbar.
NOTE: Carriage stopper must be fully insertedinone
ofthe six positions at all times. Using the Reformer without
thestopper may causedamagetothe gearbar block and rollers.
Footbar
V2 MAX & V2 MAX REHAB
1
2
3
4
SPX MAX
1 432
The footbar [7] can be set at four different heights to facilitate
various Reformer exercises and to accommodate physical
differences and abilities. The cradle [5] closest to the gearbar [8]
isposition 1, the cradle farthest away is position 4.
Adjusting the Footbar
wThe footbar can be adjusted while standing beside the
Reformer or sitting on the carriage [15].
wGently pull footbar up and lift chrome adjuster bar [6]
out of footbar adjustment cradle.
wLift or lower footbar to the desired height and place
chrome adjuster bar securely into nearest cradle.
wThe adjuster bar must be firmly set in both sides of the
adjustment cradle. Ensure the footbar cannot move
“sidetoside”.
Gearbar
1
2
3
TRADITIONAL GEARBAR
HIGH-PRECISION GEARBAR
The gearbar setting determines the amount of initial
tension on the springs. The position closest to the wooden
standing platform[1] is position 1; the next is position 2; etc.
Lowerposition numbers provide higher spring tension.
Adjusting the Gearbar
wDo not sit on carriage [15]while adjusting.
wRemove all springs [28]from gearbar [8].
TRADITIONAL
wLift gearbar and place into desired position.
wEnsure gearbar slides fully into slots.
wEnsure concave indentations face toward the
woodenstandingplatform.
HIGH-PRECISION
wPull out the two spring-loaded pins.
wSlide the entire mechanism forward or back to desiredposition.
wRelease the pins and lock the gearbar in place.
wEnsure the pins have reset fully into the slots.
wStandard high-precision settings for the carriage stopper
togearbar are: 1:1, 2:2, 3:3, 4:4, 5:5, 6:6.
NOTE: The High-Precision Gearbar must be ordered when you
place your Reformer order for factory installation and cannot be
ordered as a separate item.
Setting Up the Reformer
Full instructions on proper set-up and execution of each exercise is provided in the STOTT PILATES®
Essential,Intermediate and Advanced Reformer manuals. This safety manual includes general guidelines only.
spring-loaded pin

Reformer Owner’s Manual12
Retractable Rope System
Prior to use, confirm that the retractable rope system is in good
order and rope [24]is secured through self-locking cleats [45]and
rope retaining hook [48]. (See Assembly Instructions on page 9.)
Springs
The number of springs [28]attached to the gearbar [8]
determinesthe total amount of resistance. Reformers are
shippedwith High-Precision Springs (one 25%, one 50%,
andthree 100%-tension springs). See page 24 for more
detailsand availablespring packages.
Adjusting Springs
wTake care when attaching and detaching springs.
wFor safety, place one hand on gearbar.
wFirmly grasp spring, (not spring ball), and stretch
it to hook to or unhook from gearbar.
wEnsure ball rests securely in concave indentations of gearbar.
Headrest
adjustment block
The headrest [16]adjusts to three positions: flat, half-raised
or fullyraised. It should be adjusted on an individual basis to
ensureneck and shoulders are comfortable and tension-free
whenlyingsupine.
In exercises where the hips are lifted higher than the shoulders,
the headrest should be flat – even when beginning from a supine
position. In some exercises it is raised to provide a brace for the feet.
Adjusting the Headrest
wWith no weight on headrest, lift it and hinge adjustment block
to rest securely onto wooden edge of carriage.
Shoulder Rests
Shoulder rests [17]are removable for specific exercises or
forstacking of the Reformer (SPX Max only).
Attaching the Shoulder Rests
wSlide square posts into receptacles in the carriage [15].
Paddedsides face footbar [7] and handles are positioned
closest to edges of carriage.
wTo remove, pull directly up on handles.
NOTE: To avoid injury, do not pull shoulder rests upwards
whilestanding on or over the Reformer. These are made to fit
snuggly. Toremove them may take force. Keep body, particularly
face and head positioned to the side and not directly above
theshoulder rests.
Pulley Posts
We recommend a starting height of the pulleys [26]at the same
height as the top of the shoulder rests [17]. You may wish to
adjust based on the size of the client or exercise being performed.
Adjusting the Pulley Posts
TRADITIONAL
wLoosen star knobs [36]to adjust pulley posts [27]to desired
height.
wEnsure eyehooks [52]on top of pulley posts are parallel torails
[14]and the posts are at the same height.
wTighten star knobs securely.
QUICK-SET
wPull out plunger button [50]and adjust pulley posts
todesiredposition.
wRelease the plunger button and lock the pulley post in place.
wEnsure the plunger button has reset fully into the slot.
Removing the Pulley Posts
wLoosen star knobs [36]or pull out plunger buttons [50]
(where applicable) and remove pulley posts from receptacles.
Setting Up the Reformer cont’d
ASSEMBLY & SET-UP

13
2. MAX PLUS FRAMES: To use traveling pulleys [58]
extendropesand detach double-ended swivel spring clips [19]
and Soft Reformer Loops [18]. Pinch end loop of ropes and
insertthrough the bottom of traveling pulleys [58]. Reattach
double-ended spring clips [19]and Soft Reformer Loops [18]
andreset rope to desired length.
1. Remove the receptacle covers and slide vertical frame into
receptacles [71]. For Max Plus models, position pulley system
facing carriage. For traditional models, position highest eyehooks
facing carriage. Tighten all four hex bolts [72]. Attachsprings,
roll-down bar and safety chain as illustrated. See page 7
[fig.Traditional vertical frame].
CAUTION: We strongly advise that two people perform this step
to ensure the frame bars are level and fit evenly and securely into
the receptacle to allow for proper alignment.
3. To alter the height of traveling pulleys [58], pull out spring-
loaded stoppers [68]. Shift the traveling pulleys up or down
vertical sliding tracks [60]and release spring-loaded stoppers
[68]. Shake pulleys to confirm they are fully locked into stopper
positions [70].
Remove all springs from vertical frame, including roll-down bar
[62]and safety chain [57]. Loosen all four hex bolts [72]at the
base of receptacles [71]. Secure push-thru bar [64]in place by
hand while removing vertical frame.
NOTE: Requires two people.
4. For exercises using arm [73]or leg springs [69], attach
springs to traveling spring hooks [65], and adjust height
in the same way as traveling pulleys [58]. After changing
position, shake spring hooks to confirm they are fully
locked into stopper positions [70].
Installing the Vertical Frame
Consult our online assembly video at merrithew.com/eq-assembly
Removing the Vertical Frame

Reformer Owner’s Manual14
Push-Thru Bar, Springs from Below
Safety Chain
CAUTION: THE SAFETY CHAIN MUST BE ATTACHED WHEN
USING THE PUSH-THRU BAR WITH SPRINGS FROM BELOW.
When using the push-thru bar [64]with springs from below,
attach springs to eyehooks on lowest eyehooks on vertical frame
using locking spring clips [76]. Then attach one or two springs
to eyehooks on lower side of bar, ensuring spring clips [56]are
completely closed and secure.
A TRAINED PROFESSIONAL MUST KEEP A HAND ON THE
BARAT ALL TIMES AND SAFETY CHAIN MUST BE USED.
Push-Thru Bar, Springs from Above
CAUTION: To prevent accidental injury, never put yourface (or
another body part) above the push-thru or roll-down bar while
spotting an exercise.
When performing exercises that require the spring resistance to
come from above the bar, attach the push-thru spring [75]to the
eyehook on the upper side of the push-thru bar with the locking
spring clip [76]. Attach the other end of the push-thru spring with
the spring clip to one of the eyehooks [55]on the vertical frame.
A trained professional must keep a hand on the push-thru
bar for any exercises with the springs attached from above.
Locking spring clips must be used to attach push-thru springs
from below to the vertical frame.
Adjustable Pulley System
MAX PLUS ONLY: The spring-loaded track system provides
adjustability for pulleys and spring hooks throughout the range
ofthe vertical frame.
Altering Height of Traveling Pulleys and
Traveling Spring Hooks
wPull out the spring-loaded stopper [68]on traveling pulley [58].
wShift traveling pulley [58]up or down the track [60]andrelease
the spring-loaded stopper [68]. The pulley will spring-lock into
the nearest stopper position [70].
wShake traveling pulley [58]to confirm it is fully locked into
stopper position [70].
wThe same method applies to adjusting traveling spring
hooks[65].
wAdjust rope length as necessary
CAUTION: Prior to use, confirm that the traveling pulley system is
in good order and that the threaded bolts or the traveling pulleys
are securely fastened.
Roll-Down Bar
Attach roll-down springs [61]to roll-down bar [62], then to the
fixed eyehooks [55]at the top of the vertical frame (see page 7).
Both springs must be attached. To decrease or increase, spring
tension, substitute light arm springs [73]or leg springs [69]
respectively. Make sure spring clips [56]are completely closed
andsecure.
CAUTION: Roll-down bar can release at high velocity due to
spring tension. Ensure a secure grip at ALL times. Gripper mats
are recommended.
Setting Up the Vertical Frame cont’d
ASSEMBLY & SET-UP

15
Leg Springs
Attach leg springs [69]to traveling spring hooks [65]or
fixedeyehooks [55]at desired height. Ensure spring clips [56]
are completely closed and secure. Shown with padded long
spinestraps [63]attached.
Light Arm Springs
Attach light arm springs [73]to traveling spring hooks [65]
or fixed eyehooks [55]at desired height. Ensure spring clips
[56]arecompletely closed and secure. Shown with foam-grip
handles[74]attached.
Extension Straps
Leg Springs
Extension Straps
Long Spine Straps
The extension straps are valuable in supporting the
kneesor legs in various exercises.
Attaching Extension Straps
wMove traveling spring hook [65]to desired height along
verticalframe and release spring-loaded stopper [68]or
selectdesired fixed eyehook [55].
wAttach leg springs [69], then attach extension straps [77]
tosprings and attach padded long spine straps [63]or
Reformer loops [18]to straps. Ensure all spring clips [56]
arecompletely closed and secure.
wEnsure spring tension on Reformer is sufficient to return
carriage completely.
Spring Clips
Whenever springs are used, ensure the spring clips [56]at both
ends are closed completely. If a spring clip is only half closed
andcatches on the eyehook, it may come undone and detach
with high force.
CAUTION: Locking spring clips [76]must be used to attach
push-thru springs [75]from below to the vertical frame.
DO NOT use non-locking spring clips.

Reformer Owner’s Manual16
Accessory Boards
Accessory boards can be added to further increase
exerciseoptions. Merrithew™offers a range of choices.
See page 32 foroptions.
Installing Accessory Boards
wLower footbar [7] to lowest position.
wLoosen the star knob [3] and insert accessory board
intoreceptacles [4] in wooden standing platform [1],
ensuring it slides down fully.
wBefore using, tighten star knobs on receptacles,
located under wooden standing platform.
Reformer Box
Used to facilitate or vary exercises, there are a range of exercises
inthe Reformer repertoire that require the use of a box.
Positioning the Reformer Box
wPlace Reformer Box on top of carriage [15]with either long
orshort side pressed against shoulder rests [17].
wIn the “short box” position, the Box is placed over the
shoulderrests with the headrest fully lowered.
Footstrap
Included with Reformer Box purchase, the footstrap is used to
secure the feet during most “short box” exercises.
Attaching the Footstrap
wLoop footstrap around wooden standing platform [1]. Adjust
the length by attaching spring clip to one of three D-rings.
wAdjust footstrap to provide tension with knees
slightly flexed. Itis important to keep feet hooked securely
under footstrap.
wGripper mat may be used.
Padded Platform Extender
This accessory extends the wooden standing platform [1] and can
accommodate a variety of exercises, providing added comfort and
safety. It can also be used on the carriage for seated exercises.
Installing the Padded Platform Extender
wRemove footstrap (if applicable) and lower footbar [7] completely.
wPlace desired springs [28]in gearbar [8].
wPlace padded platform extender on aluminum rails [14].
Press it firmly against wooden standing platform to ensure
itdoes not move.
wGripper mats may be placed on carriage [15]and padded
platform extender to prevent slipping. See page 17 for
Safety & Usage: Getting on the Reformer.
wAlways remove padded platform extender to change
springsettings.
Mat Converter
The addition of a Mat Converter creates a safe, stable
surfaceforMatwork or vertical frame work.
Installing the Mat Converter
wRemove footstrap (if applicable), lower footbar [7]
completely and detach springs [28].
wSlide carriage [15]back against pulley posts [27],
ensuring ropes [24]are out of the way.
wPlace mat converter on aluminum rails [14], placing the fron.
end near the wooden standing platform [1] in first and then
press completely into place.
wRemove shoulder rests [17]to create a clear mat surface.
NOTE: This should be a snug fit. If needed, loosen or remove
the pulley posts before inserting the mat converter and retighten
them after installed.
Reformer Accessories
SAFETY & USAGE

17
1
3
2
4
Getting on theReformer
STOP! Before getting on, ensure the carriage stopper is inserted and at least one spring is securely attached to the gearbar.
Standing or Kneeling Positions
The carriage is a moving platform. Special attention must
alwaysbe paid to maintaining your balance andstability,
especially when performing kneeling orstanding exercises.
When standing on the carriage with two feet, it is
advisable to have a spotter to steady the carriage.
1. Before you begin, ensure the carriage stopper is inserted
andthat one or more springs are engaged in the gearbar
tosecure thecarriage.
2. Step carefully with one foot onto wooden standing platform.
3. Place other foot carefully onto the carriage. Agripper mat
maybe used to prevent slipping. (Gripper mat not supplied,
seeoptional accessories, page 33).
For SPX Reformers Place one foot on secured carriage.
Carefully place other foot onto the wooden standing platform.
A Gripper Mat may be used to prevent slipping.
Never attempt to get on the SPX Reformer by stepping
on the wooden standing platform. Never stand with both
feeton wooden standing platform.
Secure Hands and Feet
Whenever placing hands or feet on the footbar, shoulder rests or
headrest, ensure they will not slip during exercise. Gripper mats
may be used.
Sitting or Lying on a Box
Always place Reformer Box in a stable position onthe Reformer
and sit directly in the middle to avoidtipping. When using
footstrap, ensure it isunderneath the wooden standing
platform and securely clippedtogether.
Supine Position (lying on back)
As pictured below.
1. Sit on Reformer carriage, legs off to one side.
2. Reach hand nearest the footbar across your body and
place it onto the shoulder rest.
3. Tuck opposite shoulder under arm and roll
onto back lowering head onto headrest.
4. Bring legs up, place feet on footbar, lower arms by sides.

Reformer Owner’s Manual18
Storing Shoulder Rests
SPX MAX REFORMERS ONLY: When stacking, shoulder rests
[17]slide conveniently into brackets affixed to the underside of
the rail [14]. Toavoid damage, remove shoulder rests before
releasing carriagesprings [28]from gearbar [8].
Storing Pulley Posts
SPX MAX REFORMERS ONLY: When stacking, pulley posts [27]
can be removed without disengaging ropes [24]and stored in
receptaclesunder Reformer.
Moving Reformers
The front and back ends of all Reformers feature easy-roll wheels
to make repositioning simple.
Preparing to Reposition
wRemove vertical frame or any Accessory Board if necessary.
wEnsure ropes [24]do not drag and springs [28]are attached to
gearbar [8] to secure carriage [15].
wStand at the back of Reformer, grasp the horizontal metal bar
[22]or frame [25]and gently lift. Lift Reformer high enough to
engage easy-roll wheels.
wIf moving from the front, hold steel plate beneath the wooden
standing platform [1]. Do not lift by wooden platform alone.
Stacking Reformers
SPX MAX REFORMERS ONLY: Up to five SPXMax™Reformers
canbe stacked on the optional rolling base or on a level floor
without the rollingbase. See page 33 for option.
CAUTION: Do not stack Reformers higher than your height
comfortably allows lifting them.
Stacking SPX Max Reformers
wRemove vertical frame or any Accessory Board ifapplicable.
wLower footbar [7], insert carriage stopper [47]into third
position and engage two springs [28]to secure carriage [15].
wRemove shoulder rests [17]and insert onto brackets under the
rail. Remove pulley posts [27]without disengaging ropes [24]
and insert into receptacles under the frame.
wStacking requires two people. The stronger person should
takethe front (footbar) end.
wTo lift front end, hold the steel plate beneath standing wooden
platform [1]. Donot lift by wooden platform alone.
wLift the back end by gripping horizontal metal frame [25].
wEnsure the Reformer feet are lined up vertically and the
swing arms [12, 13]are free and clear when stacking the
SPXReformers.
Storage and Stacking spx®max™and spx®max plus™
SAFETY & USAGE

19
SPX REFORMER WITH VERTICAL STAND
SPX®Max Reformer with Vertical Stand
This SPX Max Reformer model is equipped with a
VerticalStand, allowing it to be stored in an upright position.
These instructions cover safe handling and storage of your
equipment with the Vertical Stand.
This Reformer is also stackable. See page 18 for instructions.
Safety and Usage
Please note the following precautions.
wStanding or lowering the Reformer requires two people.
Werecommend having someone to assist and spot when
standing the Reformer upright.
wWhen standing and storing this Reformer, choose a low traffic
area, away from children, pets, windows and mirrors.
wSelect a level area of the room to store the Reformer, making
sure the floor in the storage area is a solid flat surface and is
completely clear.
wSofter surfaces suchas carpet, sponge or other soft flooring
are not recommended.
wPlease ensure that you and your clients/patients receive proper
instruction regarding the correct and safe use ofthisequipment.
Part Identification

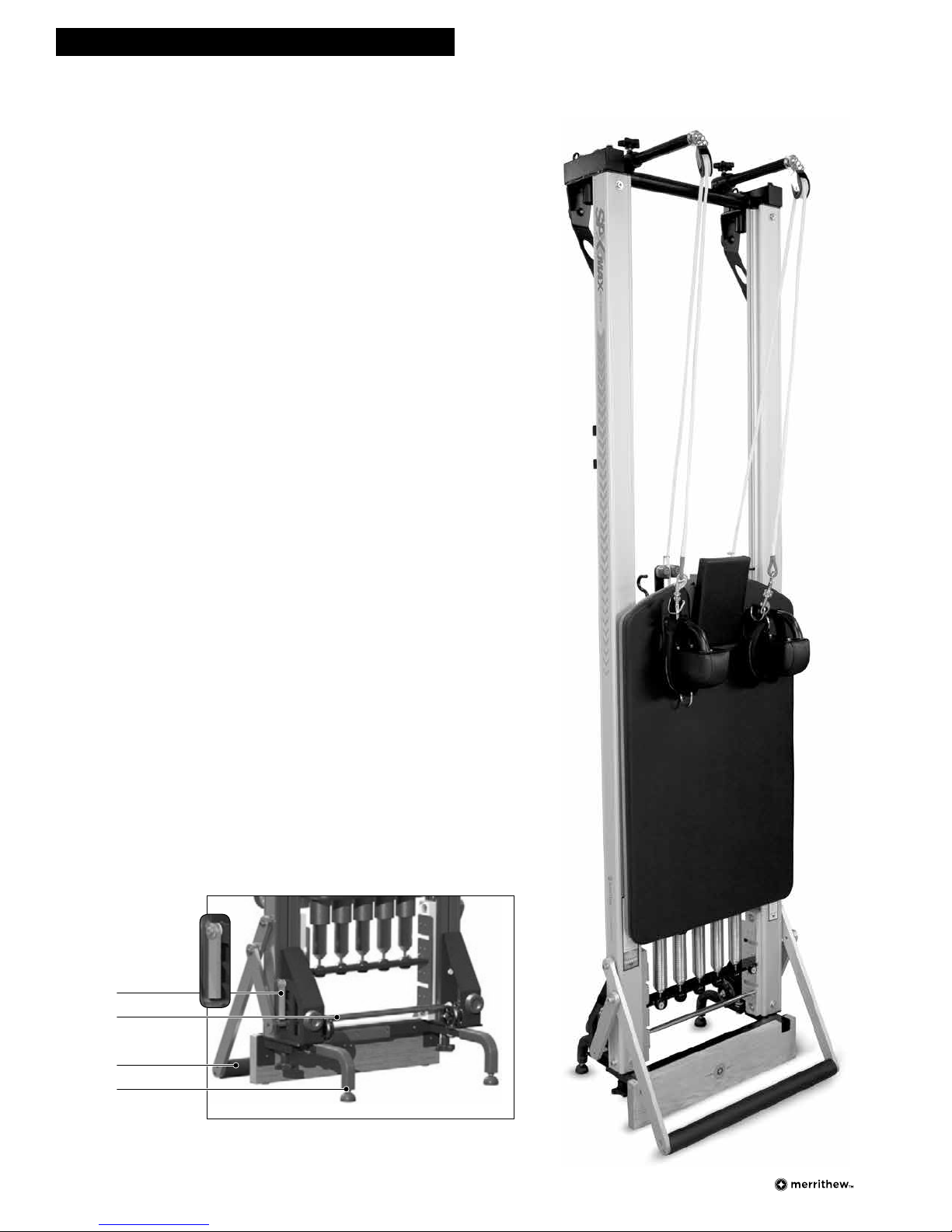

6Chrome Adjuster Bar
7Footbar
53 Floating Safety Tab (2)
54 Stand
53
7
54
6

Reformer Owner’s Manual20
SPX REFORMER WITH VERTICAL STAND
Standing the Reformer Upright
Please read these instructions completely before beginning or refer to our online assembly video at merrithew.com/eq-assembly
2. Move the chrome adjuster bar [6] to set
the footbar [7] into the lowest position.
5. Position all five springs [28]in the
gearbar[8].
8. Using your foot, pull out one leg of the
Stand [54], until it is fully folded out and in
line with the Reformer rails [14]. Repeat for
the Stand on the other side.
It is strongly recommended that
footwear is worn during this step.
9. Ensure that the Floating Safety Tabs
[53] on bothsides are hanging vertically
just above the chrome adjuster bar [6].
Wiggle the Reformer slightly to ensurethe
Reformer is solidly set inplace.
Besure toselect a level area when
storing yourReformer upright.
1. If attached, first remove the vertical
frame or Accessory Boards such as a
Jumpboard, Cardio-Tramp, Rotational
Diskboard, etc.
Refer to page 13 for instructions
onremoving the vertical frame.
4. Place the carriage stopper [47]in the
secondposition.
7. To stand the Reformer, lift itupwards,
while carefully moving one hand and then
the other, to the side rails [14]. Continue
lifting the Reformer until it is fully upright
and resting on the footbar [7] [fig. A].
Two people are required for this
step. When standing and storing this
Reformer, choose a low traffic area,
away from children, pets, windows
andmirrors.
3. Place the gearbar [8] in the
secondposition.
6. Grasp the front end crossbar with
both hands and lift the Reformer.
Keep the Reformer below 48"/122 cm
(approximately waist-height) to prevent the
frame from making contact with the floor.
Roll the Reformer to the storage area.
Take care when lifting the Reformer
toavoid injury.
A
