Tipo A:
cod. 10799

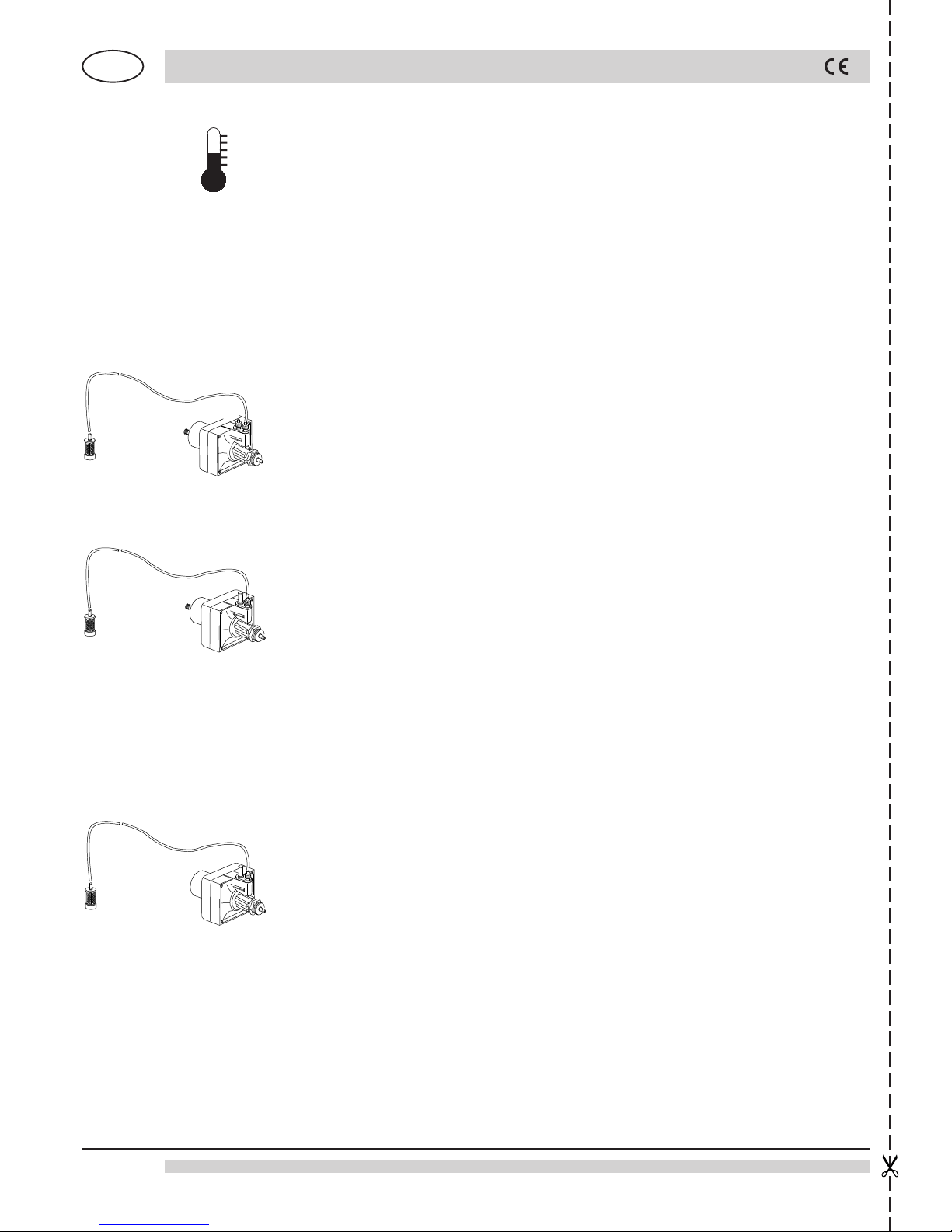

1.4 Temperature adjustment
If necessary, the water temperature of the wash and rinse cycles can be adjusted by means
of the ne-adjustment screws on the respective thermostats.
The recommended temperatures are 55° C for the wash cycle (tub) and 85 - 90° C for the
rinse cycle (boiler). Machines with boiler inside the washing tub have only one thermostat
which should be set at 75-80°C.

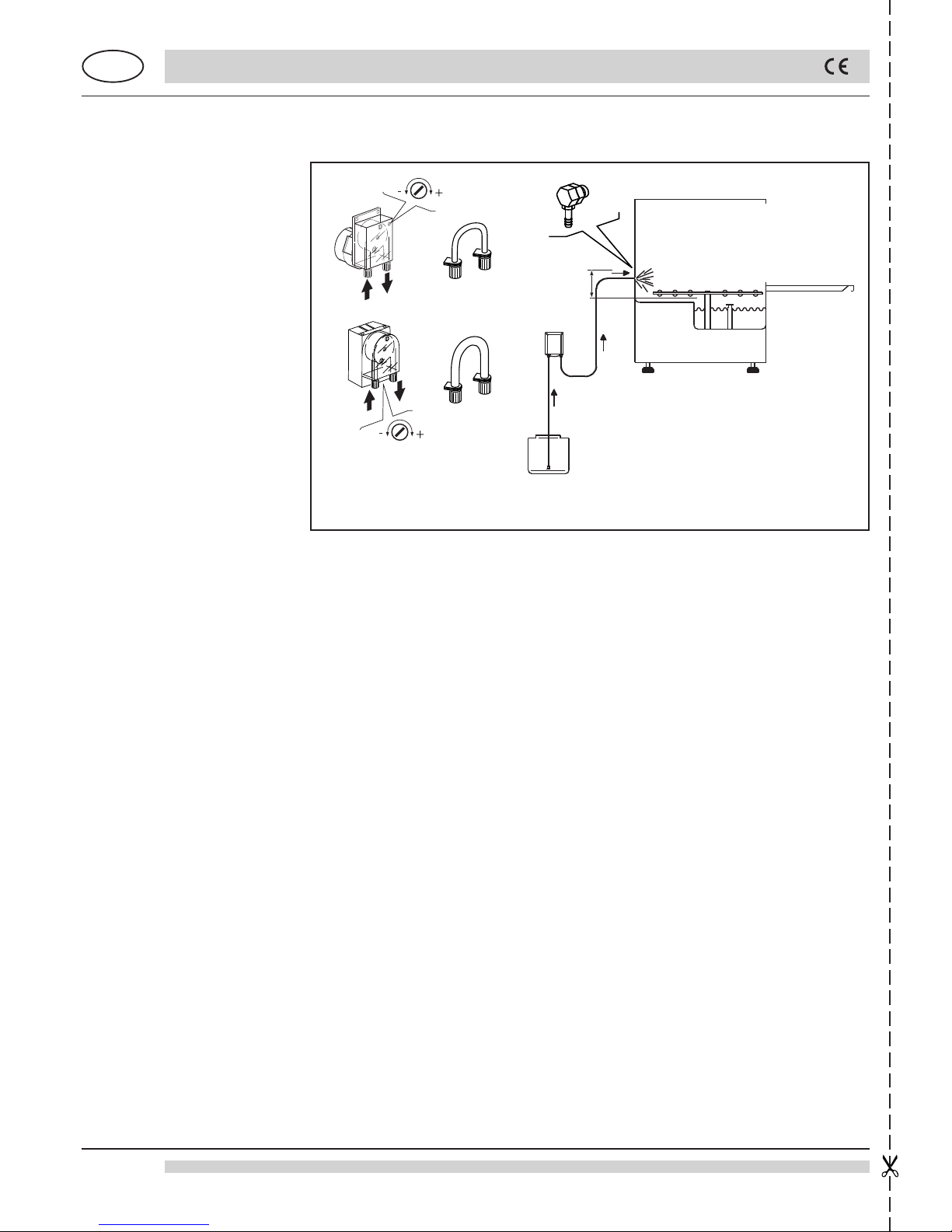

1.5 Rinse aid dispenser operation
Technical characteristics (type A)
Operation: it utilizes the difference in combined pressure caused by turning the washing
pump on and off, and the rinse pressure.
Water connection:
1) connect the dispenser tube tting (A) to the pump, by means of the rubber tube installed
in the appliance (pump pressure).
2) Connect the small black rubber tube by the brass delivery tting (B) to the connection
near the boiler (injector).
3) Make sure that the green product suction tube is inserted on the special tting (C) and
that the small lter and the ballast are inserted in the rinse aid tank.
Priming: to prime the dispenser, turn on the appliance and carry out several complete wash
cycles or press the adjustment screw D during the wash cycle and open and close the door
combined with pressing the pin D. This method speeds up the rell process.
Adjustment: with each rinse cycle, the dispenser draws an amount of rinse aid, adjustable
from 0 to 4 cc, equivalent to a length of 0 to 30 cm drawn into the suction tube.
In order to regulate the dispenser to the minimum amount, turn the adjustment screw D
completely clockwise. For the maximum amount, turn the screw anticlockwise about 20
complete turns.
For the correct amount of rinse aid, see the paragraph “Use of rinse aid”.(chap. 5.2).
N.B.: for each turn of the screw the amount of the product drawn into the tube varies by 1.6
cm, equivalent to 0.2 cm³/turn (about 0.21g/turn with a concentration of 1.05 g/cm³ of rinse
aid). The rinse aid cannot function properly if the difference in level between the bottom of
the machine and the container exceeds 80 cm.
Technical characteristics (type B)
Operation: it utilizes the water supply pressure.
Water connection:
1) use the rubber tube installed in the appliance to connect the dispenser tting (B) to the
special tting located near the boiler (injector).
2) Insert the green tube on suction tting (C), with the small lter and relative ballast, in the
rinse aid tank.
Priming: To primethe dispenser, turnon the applianceand carryouta washand rinse cycle
or press the adjustment screw D repeatedly.
Adjustment: with each rinse cycle, the dispenser draws an amount of rinse aid, adjustable
from 0 to 4 cc, equivalent to a length of 0 to 30 cm drawn into the suction tube.
In order to regulate the dispenser to the minimum amount, turn the adjustment screw D
completely clockwise. For the maximum amount, turn the screw anticlockwise about 20
complete turns.
For the correct amount of rinse aid, see the paragraph “Use of rinse aid”. (chap.5.2).
N.B.: for each turn of the screw the amount of the product drawn into the tube varies by 1.6
cm, equivalent to 0.2 cm³/turn (about 0.21g/turn with a concentration of 1.05 g/cm³ of rinse
aid). The rinse aid cannot function properly if the difference in level between the bottom of
the machine and the container exceeds 80 cm.
