Metra Electronics 99-8163 User manual

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/30/18 INST99-8163
INSTALLATION INSTRUCTIONS
99-8163
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted two-tone gray and black
• Touchscreen display for the climate control
• Passenger seatbelt and airbag indicator
Note: The kit will not retain the factory amplifier
KIT COMPONENTS

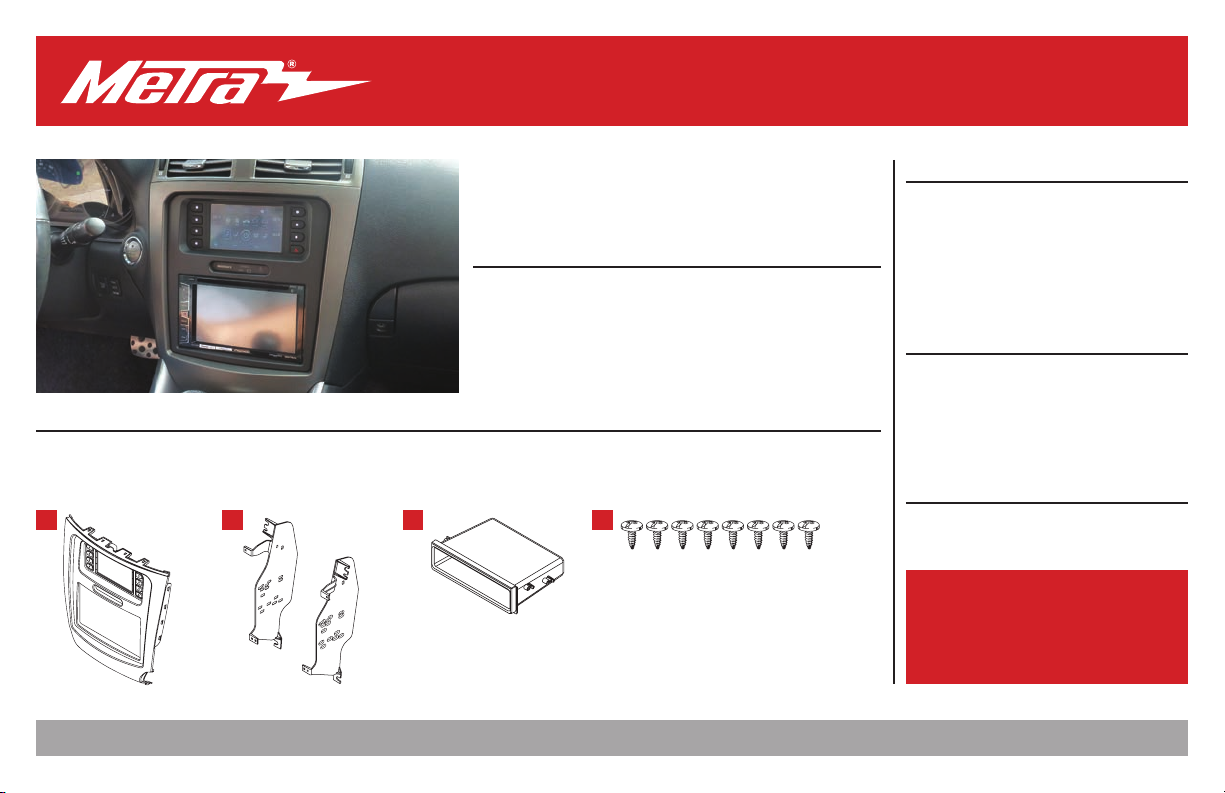

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8” Phillips screws
• E) Axxess interface and harnesses (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................4
Axxess Interface Installation .................................5
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess touch screen interface
and wiring harnesses included
Antenna Adapter: Included with kit
Amp Bypass Harness: Included with kit
A B C D
Lexus IS 250/350* - 2006-2013
Lexus IS 250C/350C* - 2006-2015
* U.S. models only

1.800.221.0932
|
MetraOnline.com
2
1. Unclip and remove the (2) small trim
panels from the top of the center
console next to the cigarette lighter
pocket. (Figure A)
2. Rotate the a/c vents down so they are
facing the floor, release the (4) tabs
inside the top edge of the panel, then
unclip and remove the a/c vents from
the dash. (Figure B, C)
3. Remove (4) 10mm bolts securing the
factory radio/climate control assembly,
then unplug all harnesses and remove
the assembly. (Figure D)
4. Behind the radio/climate control panel
is a module. This module will need
to be relocated to allow room for the
aftermarket radio.
Continue to Kit Preparation
(Figure B) (Figure D)
(Figure A) (Figure C)
DASH DISASSEMBLY

REV. 11/30/2018 INST99-8163 3
KIT ASSEMBLY
ISO DIN radio provision with pocket

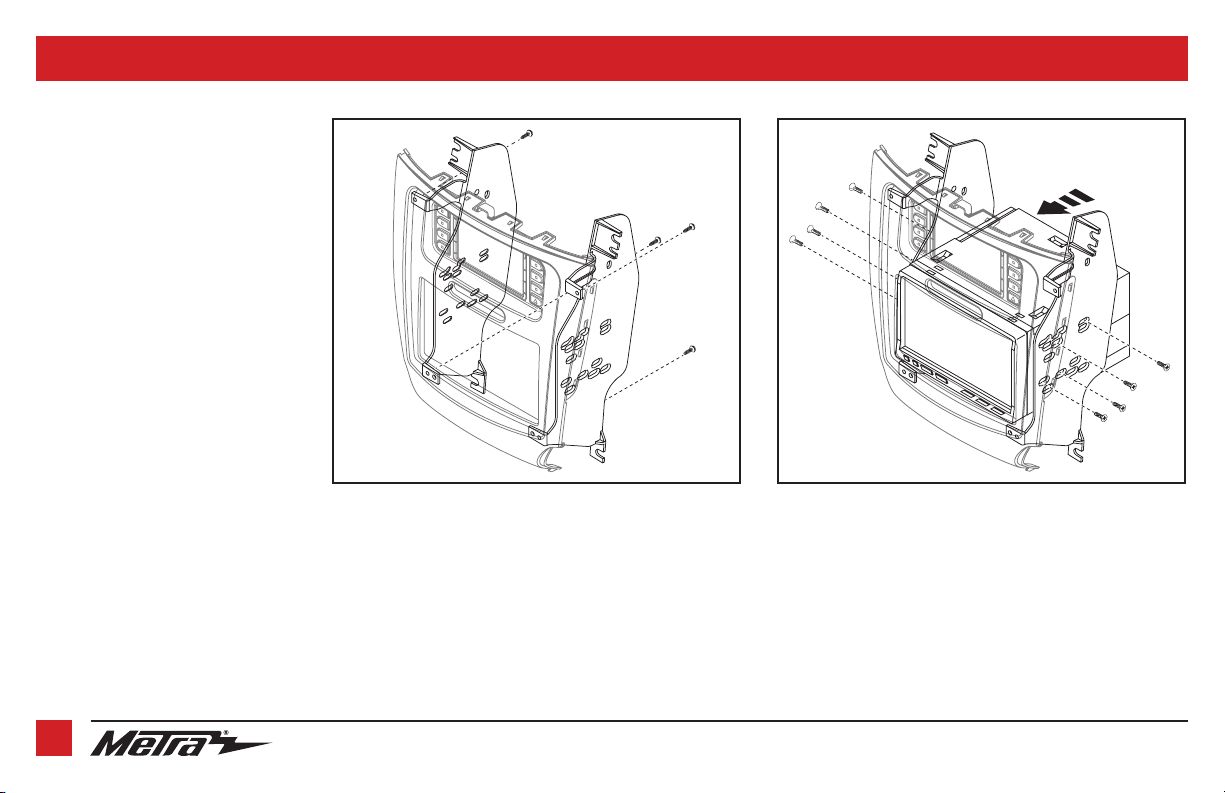

1. Attach the radio brackets to the radio
trim panel with touchscreen using the
(4) #8 x 3/8” Phillips screws supplied.
(Figure A)
2. Attach the pocket to the radio brackets
using the (4) #8 x 3/8” Phillips screws
supplied. (Figure B)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
4. Slide the radio into the radio bracket
assembly and secure with screws
supplied with the radio. (Figure C)
Continue to Axxess Interface
Installation
(Figure A) (Figure B) (Figure C)

1.800.221.0932
|
MetraOnline.com
4
(Figure A) (Figure B)
KIT ASSEMBLY
ISO DDIN radio provision
1. Attach the radio brackets to the radio
trim panel with touchscreen using the
(4) #8 x 3/8” Phillips screws supplied.
(Figure A)
2. Attach the radio brackets to the radio
using the screws supplied with the
radio. (Figure B)
Continue to Axxess Interface
Installation

REV. 11/30/2018 INST99-8163 5
AXXESS INTERFACE INSTALLATION
INTERFACE FEATURES
INTERFACE COMPONENTS
• Axxess interface (built into the touchscreen display)
• 8163 harness
• 16-pin harness with stripped leads
• 4-pin harness with yellow RCA jacks
• Airbag-indicator/hazard/passenger-seatbelt harness
• Female 3.5mm connector with stripped leads
• AX-AB-LX1, AX-AB-LX2 and AX-AB-LX3 amplifier bypass harness (1 of each)
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections ................................................................................................................................6-7
Installation .................................................................................................................................... 8
Programming ................................................................................................................................ 9
Final assembly .............................................................................................................................. 9
Touchscreen display operation ...............................................................................................10-11
Steering wheel control settings .............................................................................................12-13
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains the passenger airbag and seatbelt indicator
• Allows an aftermarket backup camera to be viewed on the 99-8163 display screen
• Retains the factory AUX-IN jack
• Micro-B USB updatable

1.800.221.0932
|
MetraOnline.com
6
CONNECTIONS
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
Note: There will also be an accessory wire from the 8163 harness to connect as well.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.
• Tape off and disregard the following (11) wires, they will not be used in this application:
Blue/White, Brown, Gray, Gray/Black, Green, Green/Black, Orange/White, Purple,
Purple/Black, White, White/Black
From the 8163 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Blue wire to the power antenna wire.
• Connect the Blue/White wire to the accessory wire.
• Connect the Red and White RCA jacks to the audio AUX-IN jacks from the aftermarket radio.
• Tape off and disregard the following (4) wires, they will not be used in this application:
White, White/Black, Gray, Gray/Black
• Use the appropriate amplifier bypass included with the kit to connect to the speakers,
following the instructions included with the amplifier bypass. Take note that there are
multiple speakers in the vehicle with varying impedance. An external amplifier(s) and either
active or passive crossovers will be required (not provided).
Continued on the next page

REV. 11/30/2018 INST99-8163 7
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as
Key-A or SWC-1, to the Brown wire from the connector. Then connect the remaining
steering wheel control wire, referred to as Key-B or SWC-2, to the Brown/White wire
from the connector. If the radio comes with a third wire for ground, disregard this wire.
Note: After the interface has been programmed to the vehicle, refer to the manual
provided with the radio for assigning the SWC buttons. Contact the radio Manufacturer
for more information.
• For all other radios: Connect the 3.5mm jack into the port on the radio designated for
an external steering wheel control interface. Refer to the manual provided with the
radio if in doubt as to where the 3.5mm jack goes to.
4-pin harness with yellow RCA jacks:
• If an aftermarket backup camera is desired to be displayed onto the touchscreen display,
connect the Yellow RCA jack labeled “Rearview camera”, to the Yellow RCA jack.
• Disregard the Yellow RCA jack labeled “AUX video”, it will not be used in this application.
3.5mm jack steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel control.
• For the radios listed below: Connect the female 3.5mm connector with stripped leads to the
male 3.5mm SWC jack from the 8163 harness . Any remaining wires tape off and disregard:
• Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White
wire of the connector. Then connect the remaining steering wheel control wire, normally
Brown/White, to the Brown wire of the connector.
• Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown wire.
• Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow wire
to the Brown wire.
Note: If the Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood.
Refer to the Select Radio screen.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the Brown wire.
• Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AX-SWC-PARROT
(sold separately), and then connect the 4-pin connector from the AX-SWC-PARROT into
the radio.
Note: The radio must be updated to rev. 2.1.4 or higher software.
CONNECTIONS (CONT.)

1.800.221.0932
|
MetraOnline.com
8
It is highly advisable to read the following steps beforehand, to ensure a clear understanding of
what is to be expected. The following steps must be done in the order that they are numbered.
With the vehicle completely off:
1. Connect the 16-pin harness with stripped leads into port “B” in the touchscreen display.
2. Connect the 8163 harness to the wiring harnesses in the vehicle. Then insert the 8163
harness into port “A” in the touchscreen display. But do not install this harness until exactly
before step 1 from the Programming section. This is a timed process.
3. Connect the 4-pin harness with yellow RCA jacks into port “C” in the touchscreen display.
4. Connect the airbag-indicator/hazard/passenger-seatbelt harness:
a. Connect the harness to the 12-pin and 14-pin harnesses in the vehicle.
b. Connect the harness into the
airbag/seatbelt indicator.
c. Connect the harness into port “D” in the touchscreen display.
5. Disregard port “E”, it will not be used in this application.
6. Port “F” is an update port for future firmware upgrades.
7. Locate the factory antenna connector in the dash and complete all necessary connections
to the radio. Use the
antenna adapter provided to adapt the factory antenna connector to
the aftermarket radio.
AB
C
E
FD
I N S TAL L ATI O N
Note: DO NOT CONNECT!

REV. 11/30/2018 INST99-8163 9
1. Secure the completed assembly into the dash using the factory hardware.
2. Reassemble the dash in reverse order of disassembly to complete the installation.
FINAL ASSEMBLYPROGRAMMING
Attention! If the interface loses power for any reason, the following steps will need to be
performed again.
1. Refer to step 2 from the “Installation” section.
2. Start the vehicle.
3. Program the kit:
a. Once the touchscreen display loads up, select the vehicle type; “Lexus IS”.
b. Wait until the radio comes on, and the touchscreen display shows “SWC Configured*”.
This process may take up to 3 minutes.
Note: If the touchscreen display does not load up, or the radio doesn’t come on within 3
minutes, and/or the touchscreen display does not show “SWC Configured*”, turn the vehicle
off and disconnect the 8163 harnesses from port “A” in the touchscreen display. Check all the
connections, reconnect the harness into the touchscreen display, and then try again.
4. Cycle the key off, then back on. If the driver’s door is closed, open and close the door.
5. Test all functions of the installation for proper operation, before reassembling the dash.

1.800.221.0932
|
MetraOnline.com
10
TOUCHSCREEN DISPLAY OPERATION

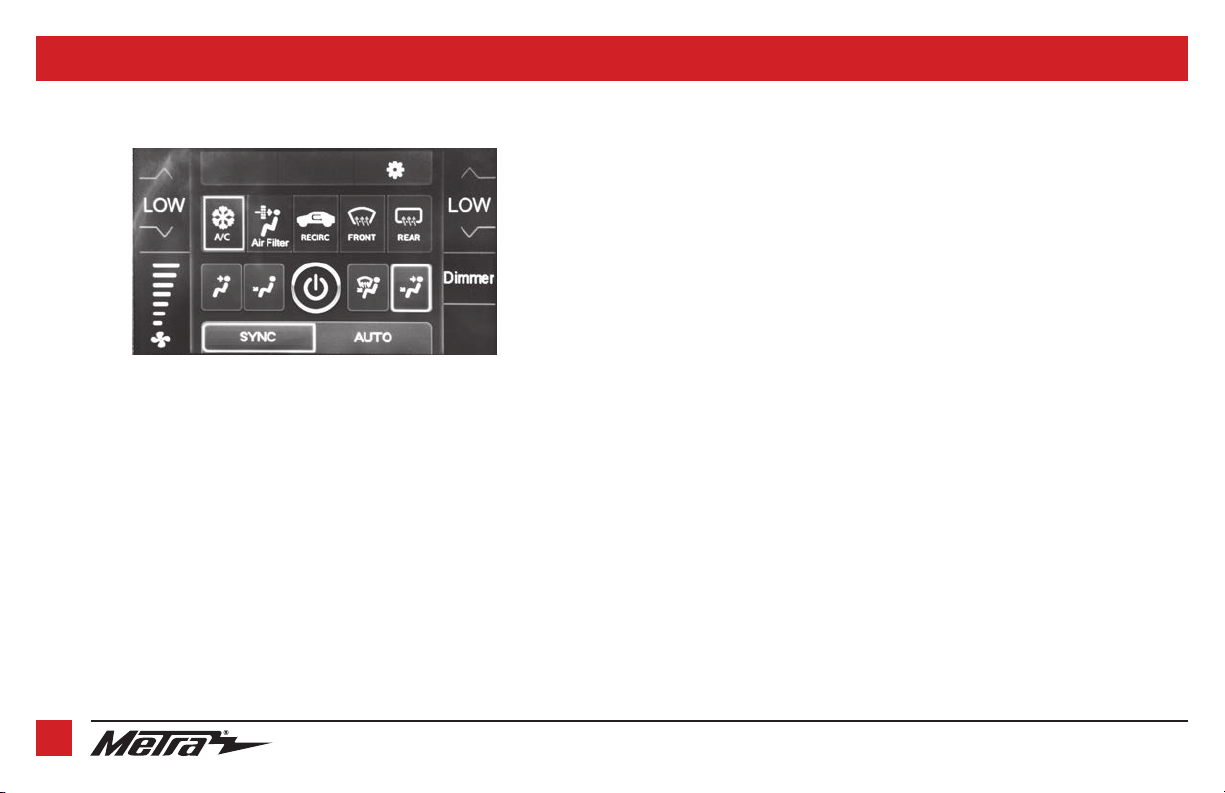

• This is the climate control screen which will be displayed on the touchscreen display.
This is considered the main screen.
• The upper right tab with the gear icon will take you to the Configuration Settings screen.
• The Dimmer button will control the illumination intensity: LOW/HIGH
• The climate controls will function in the same manner that they did with the factory
climate controls.
Continued on the next page
Climate Control Screen

REV. 11/30/2018 INST99-8163 11

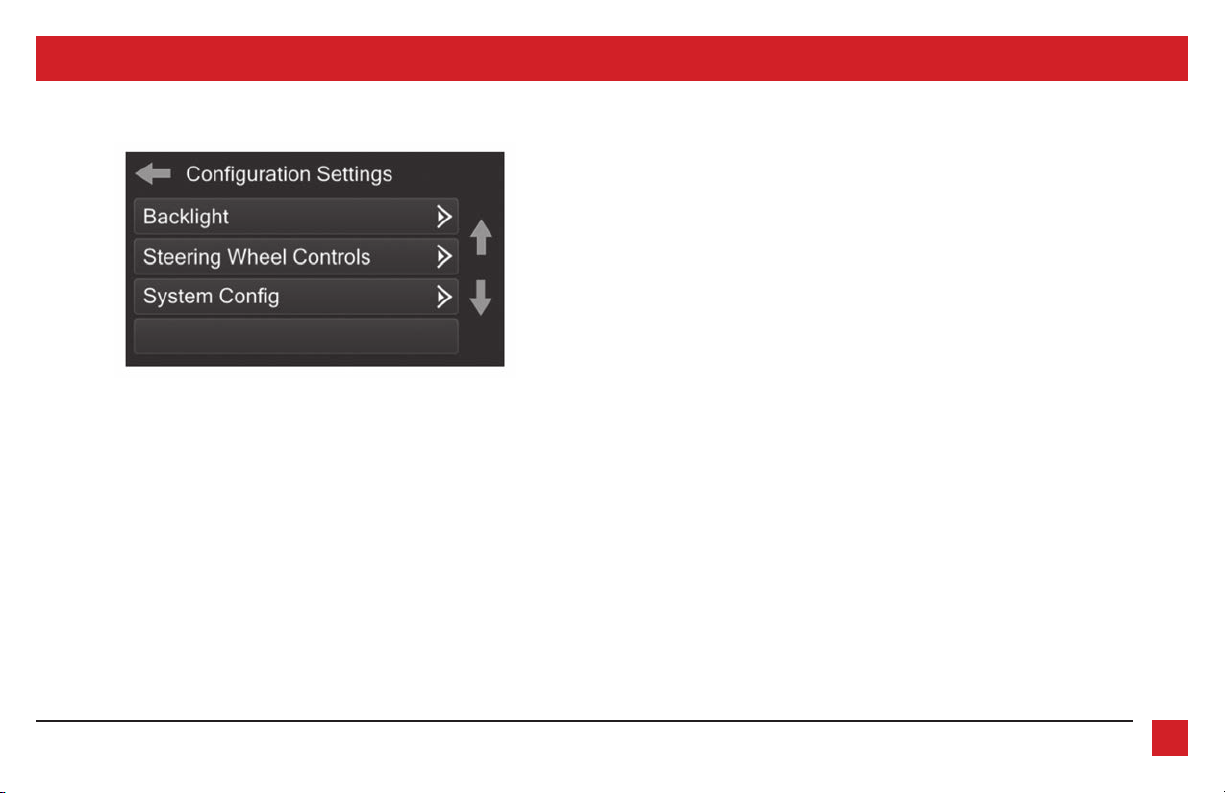

• Backlight
• Four slide bars control the color of the buttons and the back-light intensity:
Red / Green / Blue / Backlight
• Steering Wheel Controls
• Remap Buttons – For remapping the steering wheel control buttons
• Dual Assign – For dual assigning the steering wheel control buttons (long button press)

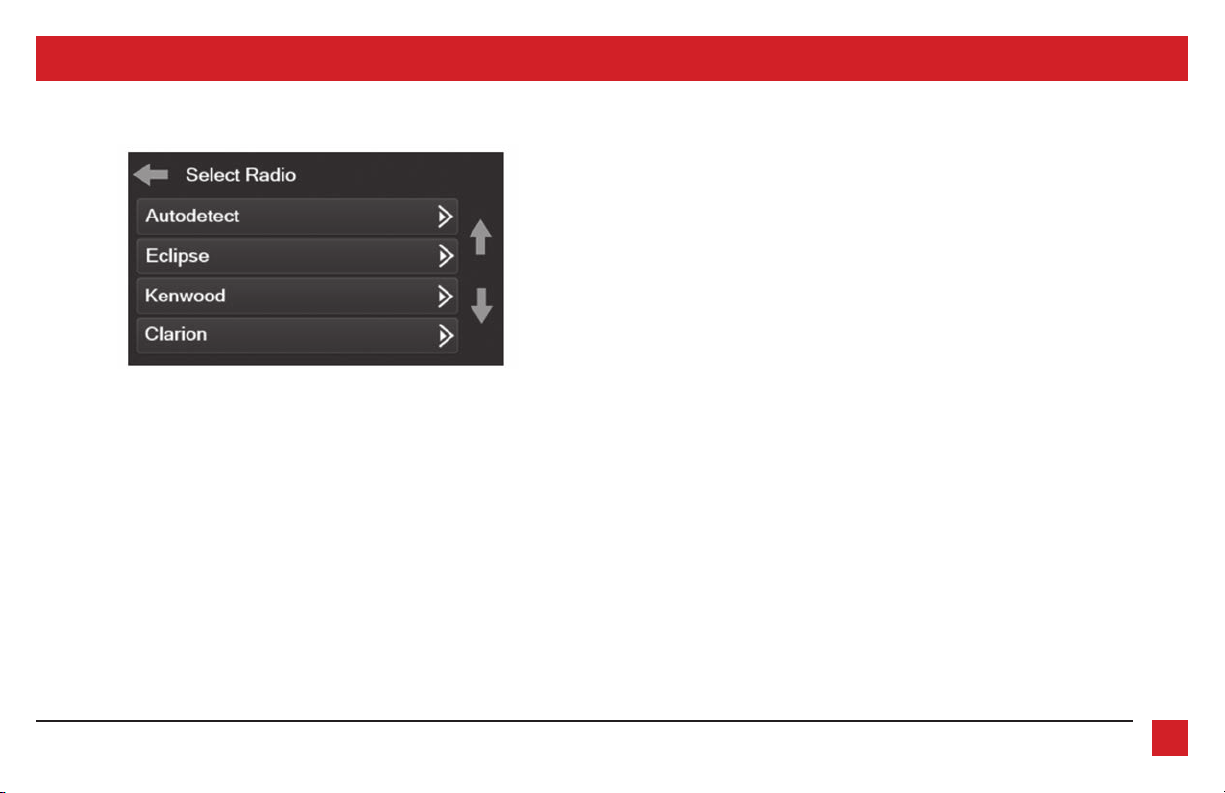

• Select Radio – For auto detecting the radio, or changing the radio type
• System Configuration
• About - Information regarding the software in the kit
• Digital Amp Gain - For adjusting the output gain to the amplifier
Configuration Settings screen
TOUCHSCREEN DISPLAY OPERATION (CONT.)

1.800.221.0932
|
MetraOnline.com
12
Remap Buttons Dual Assign

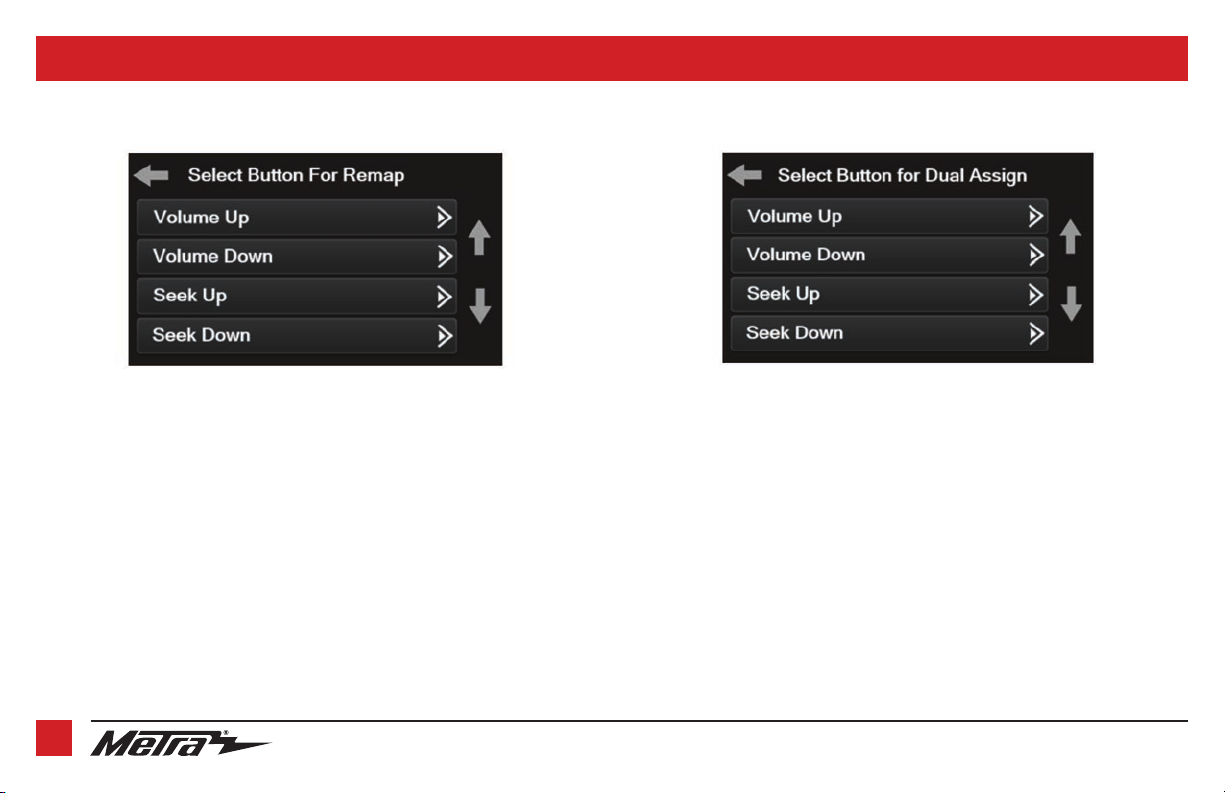

• The interface has the ability to change the button assignment for the steering wheel
control audio buttons, except Volume-Up and Volume-Down. Follow the prompts on the
touchscreen display to remap the steering wheel control audio button(s) to your liking.
Note: The aftermarket radio may not have all of these commands. Please refer to the
manual provided with the radio, or contact the radio manufacturer, for specific commands
recognized by that particular radio.
• The interface has the capability to assign two functions to a single button, except
Volume-Up and Volume-Down. Follow the prompts on the touchscreen display to
program the button(s) to your liking.
Note: Seek-Up and Seek-Down come programmed as Preset-Up and Preset-Down
for a long button press.
STEERING WHEEL CONTROL SETTINGS

REV. 11/30/2018 INST99-8163 13
STEERING WHEEL CONTROL SETTINGS (CONT.)
Select Radio
* Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means
the interface does not detect a radio connected it, i.e., an open connection. Verify that the 3.5mm
jack is connected to the correct steering wheel jack/wire in the radio.
** Note: The AX-SWC-PARROT is required (sold separately). Also, the Parrot radio must be
updated to rev. 2.1.4 or higher through www.parrot.com.
† Note: If you have a Clarion radio and the steering wheel controls do not work, change the radio
type to the other Clarion radio type; same for Eclipse.
‡ Note: If you have a Kenwood radio and the touchscreen display shows a JVC radio, change the
radio type to Kenwood.
Eclipse (Type 1) †
Kenwood ‡
Clarion (Type 1) †
Sony / Dual
JVC
Pioneer/Jensen
Alpine *
Visteon
Valor
Clarion (Type 2) †
Metra OE
Eclipse (Type 2) †
LG
• To show which brand radio is “auto detected” to the interface, press the Autodetect button.
The radio detected will have a filled in circle. If the incorrect radio is shown, select the
proper radio.
• Following is a list of radio manufacturers that the interface presently acknowledges. Others
may be added at a later date. Universal “2 or 3 wire” radios can show up as any of these
radio manufacturers.
Parrot **
XITE
Philips
JBL

1.800.221.0932
|
MetraOnline.com
14

REV. 11/30/2018 INST99-8163 15

KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/30/18 INST99-8163
INSTALLATION INSTRUCTIONS
99-8163
If you are having difficulties with the installation
of this product, contact our Tech Support line
either by phone at 1-800-253-TECH, or email at
[e-mail]. Before
doing so, look over the instruction booklet a
second time and ensure that the installation was
performed exactly as the instruction booklet
is stated. Have the vehicle apart and ready to
perform troubleshooting steps before contacting
Metra/Axxess Tech Support.
