Metra Electronics MTLTB02 User manual

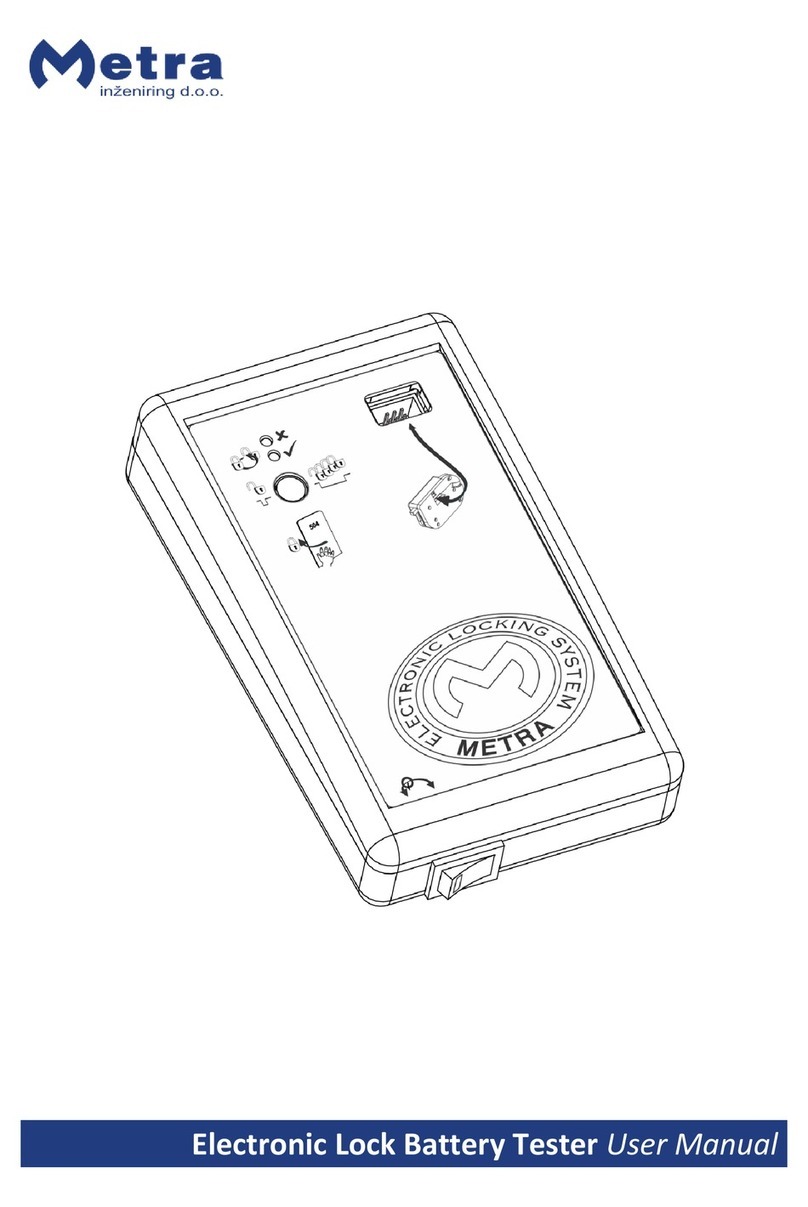

Electronic Lock RFID Battery Tester User Manual

Page 2
Electronic Lock RFID Battery Tester User Manual
Table of contents
Electronic Lock RFID Battery Tester User Manual................................................................................... 3
Product description............................................................................................................................. 3
Basic Parts ........................................................................................................................................... 4
User Interface...................................................................................................................................... 4
Operating indicator............................................................................................................................. 5
Electronic Lock Testing........................................................................................................................ 5
Replacing Batteries ............................................................................................................................. 6
Technical data ..................................................................................................................................... 6

Page 3
Electronic Lock RFID Battery Tester User Manual
Electronic Lock RFID Battery Tester User Manual
Manufacturer:
Metra inženiring d.o.o.
IOC Trzin
Špruha 19
SI-1236 Trzin, Slovenia
phone:
fax:
web:
[phone]
[phone]
www.metra.si
System:
Metra ELS –Electronic Locking System
Product Group:
Electronic Lock Tester
Types:
MTLTB02
Year of Construction:
2014
Declaration of Conformity:
The Metra ELS products have been developed, designed and
manufactured in accordance with the EU directive for Electromagnetic
Compatibility (2004/108/EC).
Electronic Lock RFID Battery Tester User Manual [rev.0-051015]
2015 Metra inženiring d.o.o.
All Rights reserved.
No part of this manual may be reproduced in any form or by any means without prior written permission of Metra inženiring d.o.o.
The contents of this manual are subject to change without notice.
All efforts have been made to ensure the accuracy of the contents of this manual, however, should any errors be detected, Metra inženiring would greatly appreciate being informed of
them. Metra inženiring d.o.o. can assume no responsibility for any errors in this manual.

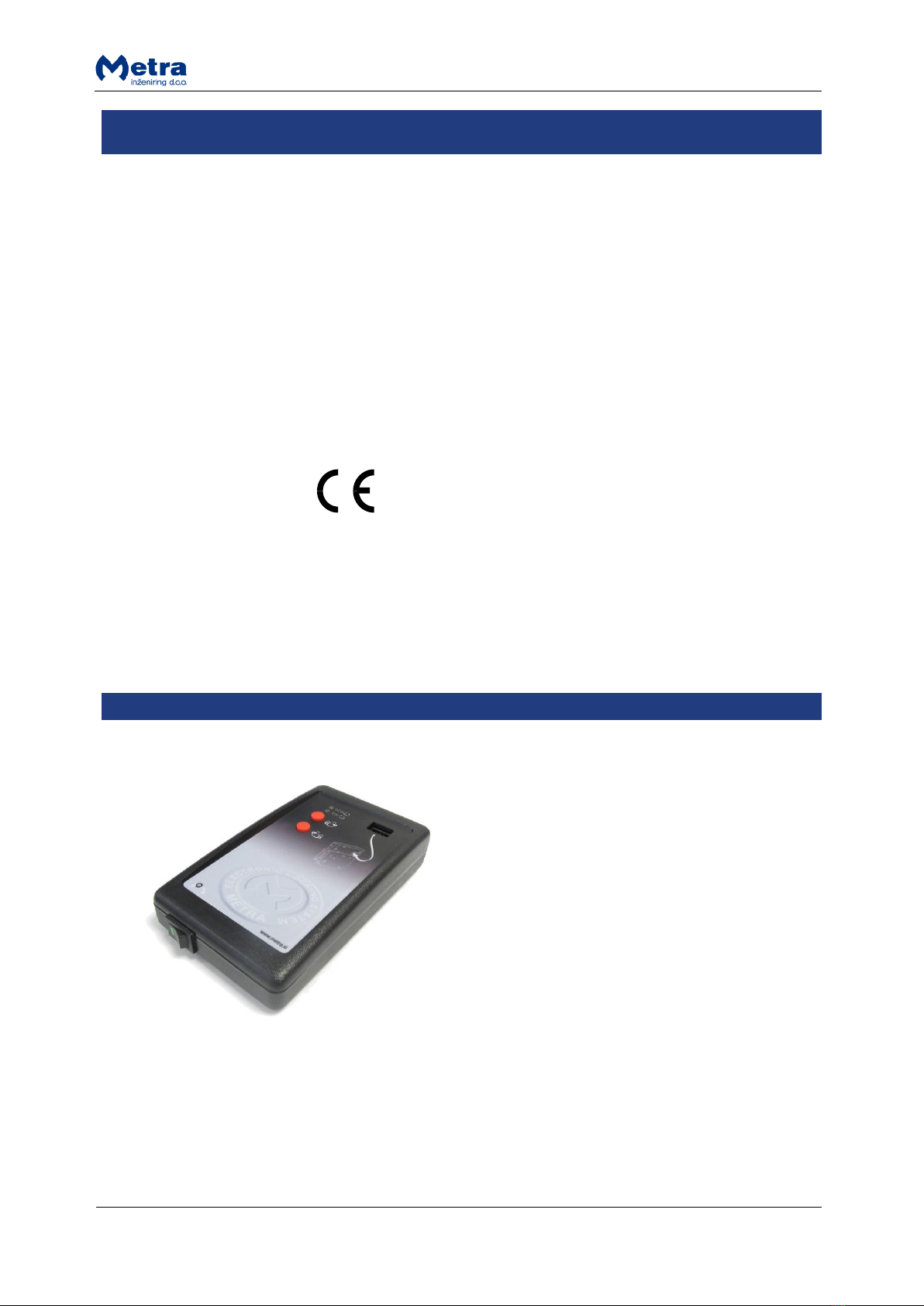

Product description
Metra Electronic Lock Battery Tester is
intended for locker manufacturers as a
reliable testing tool used during
manufacturing process and personnel making
locker installations on the field. It is powered
by four 1.5 volt AA Alkaline batteries. One
Metra Electronic Lock RFID can be connected
to tester at a time. Tester rotates the lock so
locking/unlocking can be tested as well as
checking proper cable connection. It is most
commonly used during the installation
procedure when all the Electronic Locks are
mounted and cable connectors crimped. Test
procedure is done before connecting cables to
central MEW Controller.
In addition user can also lock or unlock all the
lockers. This feature is useful for
transportation of assembled lockers.

Page 4
Electronic Lock RFID Battery Tester User Manual
Basic Parts
#
description
#
description
1
Counter clockwise signal
4
Counter clockwise button
2
Clockwise signal
5
ON / OFF switch with OPERATE signal
3
Counter clockwise button
6
6 pole Electronic Lock connector
User Interface
Electronic Lock Battery Tester user interface uses optical signals (#1, #2 and #5) to inform the user
about operation progress. Signals are explained in the tables below.
COUNTER CLOCKWISE (CCW) signal (yellow)
state
description
on
Lock build-it motor is rotating counter clockwise

Page 5
Electronic Lock RFID Battery Tester User Manual
CLOCKWISE (CW) signal (green)
state
description
on
Lock build-it motor is rotating counter clockwise
OPERATE signal (green)
state
description
on
Device is turned ON
Operating indicator
When the device is running a green OPERATE signal light is ON.
Electronic Lock Testing
Turn ON the device
Connect the 6 pole flat cable from the Electronic Locker
RFID to the device.

Page 6
Electronic Lock RFID Battery Tester User Manual
Rotating motor left/right
Close the locker door and hold them closed. Press one of the
buttons to rotate motor left or right. To lock the locker you
have to hold the button just the right amount of time. With
some practice, you should master it.
If the locker is already locked and you are unlocking it the
ejector force should open the door when the motor is in the
right position.
NOTE 
If the motor does not rotate, check the cable connections and
Electronic Lock RFID installation.
Replacing Batteries
Open the battery compartment door.
Replace all 1,5V AA batteries. Pay attention on battery
orientation.
CAUTION 
Use only 1,5V Alkaline or Ni-Mh batteries to avoid battery
leaks.
Technical data
Operating voltage
6 V DC –four 1.5V AA batteries
Current consumption
0.05 A standby / 1.2 A max
Operating temperature range
+5 to +40 °C
Dimensions in mm (w/h/l)
96/36/160
