Metro DataVac C5 6 series User manual
InterMetro Industries Corporation
Wilkes-Barre, PA 18705
1-800-992-1776 www.metro.com
6 Series
Controlled
Temperature
Heated Holding
Cabinets
INSTRUCTIONS
FOR USE
TM
Metro Heated Cabinets are for
Hot Food Holding applications only
This manual covers cabinets with electrical ratings
of: 120V 2000W, 120V 1440W & 220-240V 1681-2000W.
When ordering
electrical parts,
always conrm the
rating listed on rear
cabinet data plate.
Dierences on voltage,
amps or wattage are
listed with bold text
in replacement part
descriptions.
L01-427 Rev.G
10/11/17
1. WiththePOWERswitchOFF,plugthesupplypowercordintoanappropriate,
grounded,receptacle.(Refertothecabinetdataplateforvoltageand
ampererating).
2. Ensurethatthecabinet’soorductandwaterpanareinstalled.(referto
thecabinetoperatinginstructions).Thishelpstodistributetheheatevenly
throughoutthecabinet.
3. Ifextrahumidityisdesired,llthewaterpanintheoorductofthecabinet
withcleanwarmwater.Thecapacityofthepanisaboutonequart(oneliter).
4. SetthePOWERswitchtotheONposition.Theredpowerlightnexttothe
switchwillglowwhenthepowerisswitchedONandwillcontinuetoglowuntil
switchedOFF.
5. SettheTEMPERATUREcontrolto6or7.Thisshouldprovideatemperature
of150°to170°F(66°to77°C)afterallowingthecabinettopreheatfor45to
60minutes.
6. Theredindicatorlightbetweenthethermostatandthermometerwillturnon
andoffasthethermostatandheatelementscycle.
7. Tochangetemperaturesetpoint,turntheTEMPERATUREcontrolknob.
About30minutesafteraknobisturned,thethermometershouldaccurately
displaythechangeincabinettemperature.
8. Tocleancabinet,turnpoweroff,unplugfromwalloutlet,allowthecabinetto
cool,removetheoorductandpan,wipethecabinetwithadampclothand
drywithatowel.
9. Consulttheinstructionsforuseforadditionaloperationandmaintenance
information.
1
TABLE OF CONTENTS
SECTION PAGE
I. Basic Operating Guidelines................ Inside Front Cover
II. Safety Instructions................................................................. 1
III. Identifying Your Cabinet..................................................... 2
IV. Installation & Set-up ............................................................. 3
V. Product Features ................................................................... 7
VI. Operating Instructions ....................................................... 8
VII. Care & Maintenance ............................................................. 9
VIII. Basic Troubleshooting.........................................................10
IX. Service & Replacement Parts.............................................11

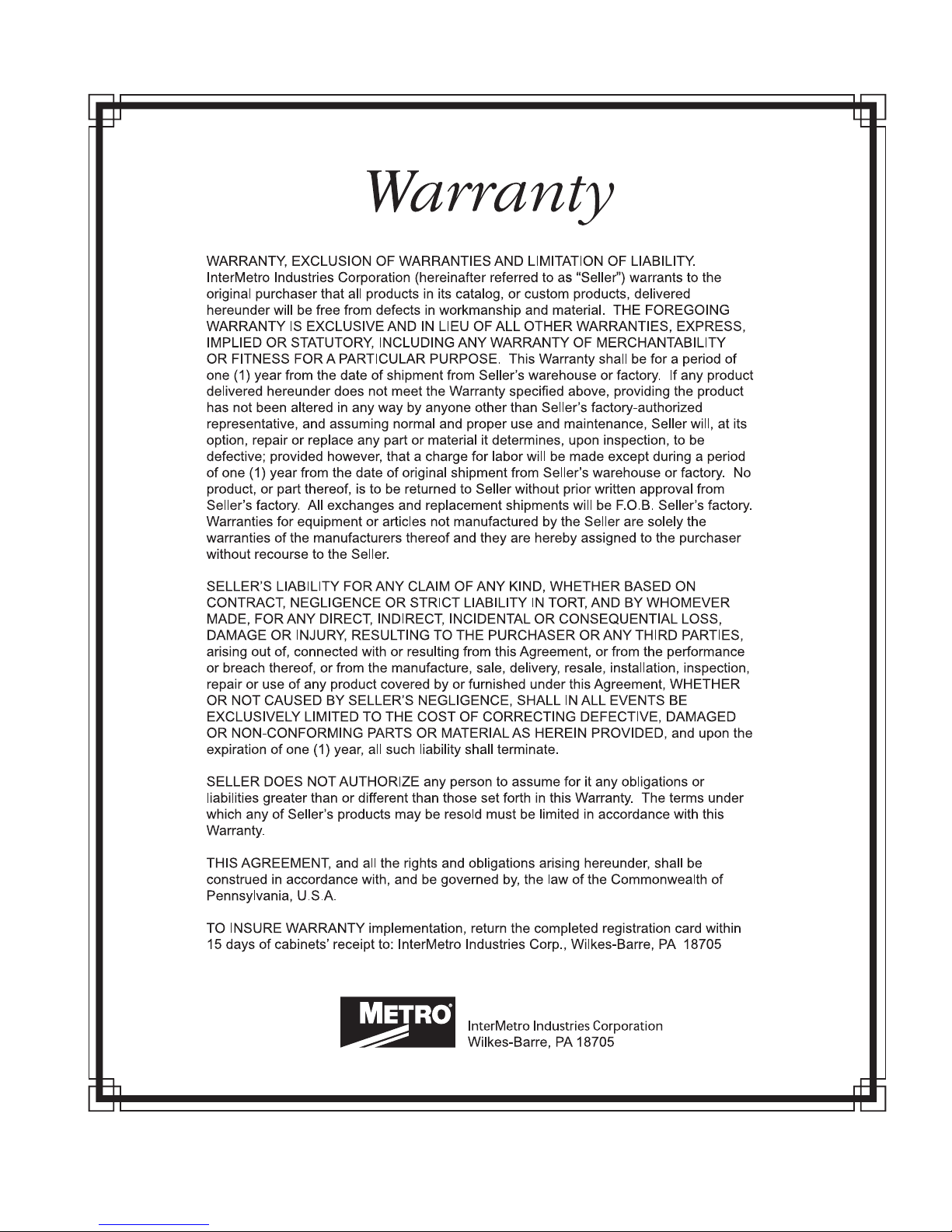

X. Warranty ...................................................................................15
XI. Warranty Information Page...............................................16
SAFETY INFORMATION
WARNING: Follow all food safety guidelines. Pre-heat the cabinet to the desired temperature before placing cooked, hot
food into the cabinet. This is not a re-thermalizing cabinet. Food must be at the appropriate temperature
before being placed into this cabinet. Use a food probe to check internal food temperature — the cabinet
temperature is not necessarily the internal food temperature.
WARNING: Only factory approved service agents should attempt to service, repair or replace electrical components,
wiring or power cord.
WARNING: Unplug the cabinet before cleaning or servicing. Do not wash the cabinet with a water jet or high pressure
water.
WARNING: This cabinet is for hot food holding applications only.
CAUTION: Do not spray or pour water into the top of the cabinet (control enclosure). To clean the cabinet, wipe with
a damp cloth and dry with a towel. Use only cleaning agents approved for stainless steel or aluminum
(depending on your cabinet construction).
CAUTION: Water dripping onto the oor from open doors can be a slip hazard.
2
ELECTRICAL CABINET RATING
BLANK = 120V 2000W
L = 120V 1440W
X = 220-240V, 50/60HZ, 1681-2000W

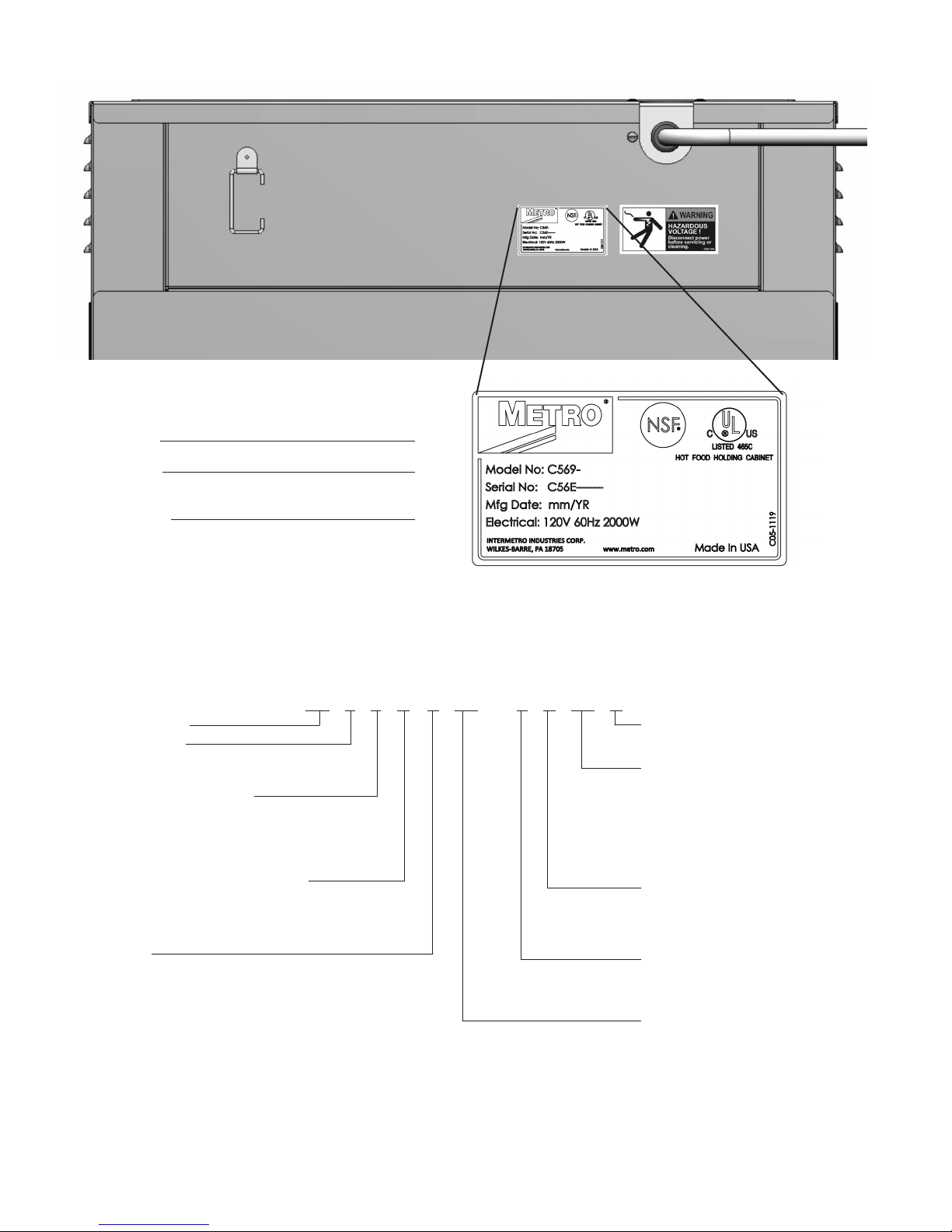

IDENTIFYING YOUR CABINET
For future reference, note the serial and model
number, found on the data plate of the cabinet, here.
Model number
Serial number
Date the cabinet was
put into service
Fill out and return the warranty card located at
the back of this manual.
PART NUMBERING
C5 6 9 X - S FS - L P FS A
CABINET NAME
CABINET TYPE
6 = 6 SERIES
(HEATED)
CABINET SIZE (HEIGHT)
9 = FULL
7 = 3/4
5 = 1/2
3 = UNDER COUNTER
MATERIAL
S = STAINLESS
N = ALUMINUM
A = ACCESSORIES
(IF APPLICABLE)
REAR DOOR(S)
(PASS THRU)
BLANK = NON-PASS THRU
FS = FULL SOLID
DS = DUTCH SOLID
FC = FULL CLEAR
DC = DUTCH CLEAR
CABINET CONSTRUCTION
BLANK = NON-PASS THRU
P = PASS-THRU, DOORS
(FRONT & REAR)
SLIDES
L = LIP LOAD (FIXED)
U = UNIVERSAL (ADJUSTABLE)
FRONT DOOR(S)
FS = FULL SOLID
DS = DUTCH SOLID
FC = FULL CLEAR
DC = DUTCH CLEAR
3
INSTALLATION AND SET-UP
1. Check for Shipping Damage: Check the packaging and cabinet for shipping damage after unloading the unit,
and after removing all the packaging.
2. The receiver of this product is responsible for ling freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must
be noted on freight bill at the time of delivery.
3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days
after receipt of the cabinet. If there is damage, retain the original packaging for inspectors.
4. After unpacking the cabinet, remove all tape and packing material from the inside as well as outside of the unit.
5. Any protective covers (plastic or paper sheet) on the sheet metal or clear door, if applicable, must also be
removed before turning the cabinet on.
WARNING: Only factory approved service agents should attempt to service, repair or replace electrical components,
wiring or the power cord.

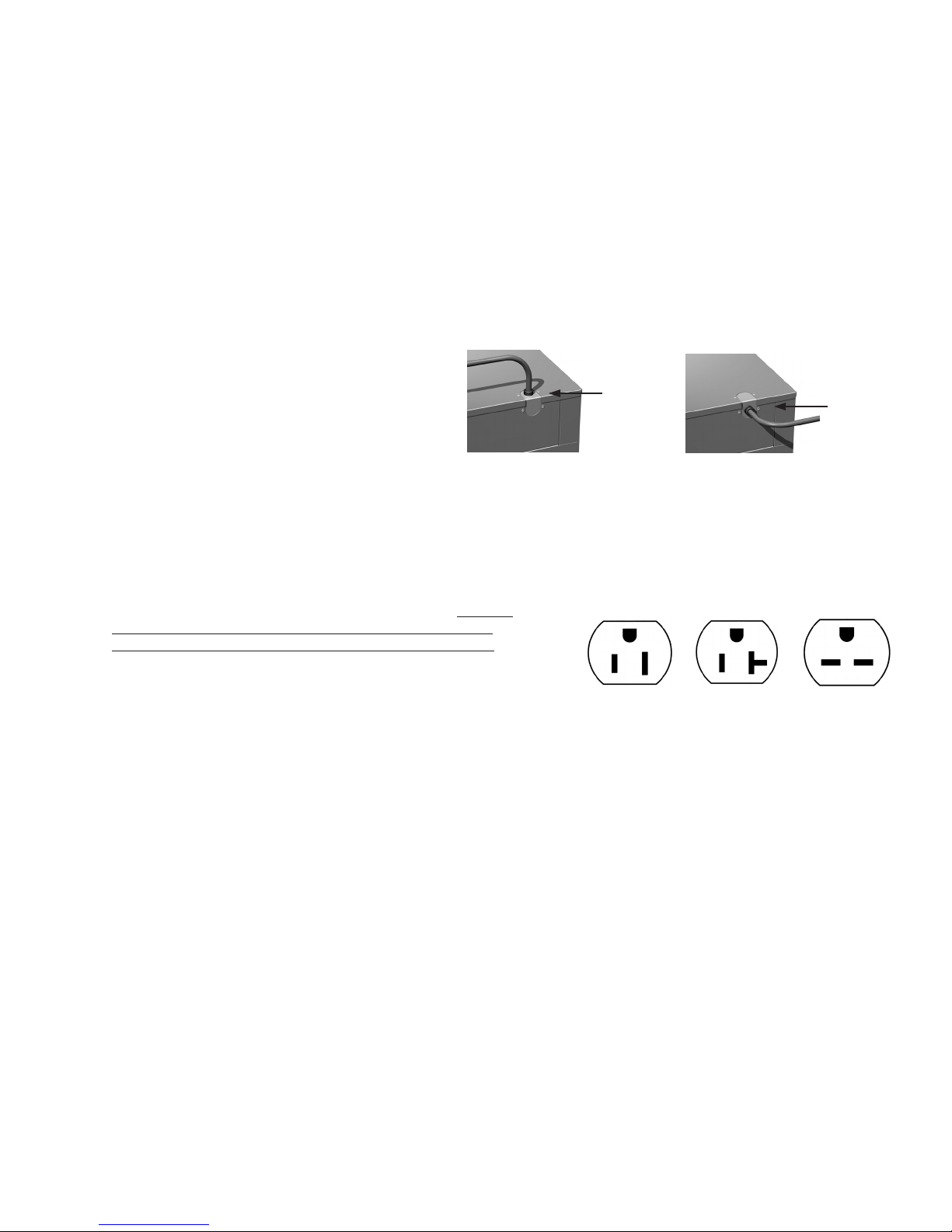

6. The power cord can be installed to exit the back
of the cabinet for wall outlets or out the top of the
cabinet for ceiling power drops. To change the
position of the power cord, rst make sure the
cabinet power switch is o and the power cord is
unplugged from any electrical outlet. Remove the
(7) screws holding the cabinet top in place. Lift
the rear portion of the cabinet top and slide it
away from under the front control bezel, removing it from the cabinet. Remove the (2) screws on the rear of the
cabinet that hold the cord bracket in place. Rotate the power cord bracket 90° to the desired position and reattach
it with the (2) screws to the back of the cabinet. Make sure the green ground wire connection and the wire nuts on the
black and white wires have not loosened. Do not alter the wiring of the power cord to the cabinet. Replace
the cabinet top and the (7) screws holding it in place.
7. Refer to the data plate located near the power cord for the electrical
specications of cabinet. With the POWER switch OFF, plug the
cord into the appropriate rated, grounded receptacle. Cabinets
rated at 120V 2000W must be plugged into 125VAC 20 amp
receptacle and must be used on an individual branch circuit.
Cabinets rated at 120V 1440W may be plugged into either a
15 amp or 20 amp receptacle. Cabinets rated at 220-240V
1681-2000W must be plugged into a 250VAC, 15 amp receptacle.
8. Your C5 cabinet is designed to operate next to walls and other kitchen equipment. However, the greater the
clearance around the sides and the top of the cabinet, the cooler the electrical components will operate.
This may result in a longer life expectancy for the electrical components.
Cord out
of the top
WARNING: Do not allow combustible materials to be stored or accumulate on, under or next to the cabinet.
Do not block any ventilation louvers or slots.
Cord out
of the
back
120V 120V 220/240V
15AMP 20AMP 15AMP
Outlet Outlet Outlet
4
SLIDE POSITION to MAXIMIZE
3" PAN CAPACITY OF UNIVERSAL SLIDES
Full Height Full Height 3/4Height 1/2Height Under Counter
Single Door Dutch Doors Cabinet Cabinet Cabinet
18 Levels 17 Levels 14 Levels 8 Levels 5 Levels
(Position 2nd
(Position 2nd (Position 3rd
from Bottom) (Position Bottom) from Bottom) from Bottom) (Position Bottom)
Part No. RPC5-U9 Part No. RPC5-U9 Part No. RPC5-U7 Part No. RPC5-U5 Part No. RPC5-U3
(includes slides and uprights) (includes slides and uprights) (includes slides and uprights) (includes slides and uprights) (includes slides and uprights)
SLIDE INSTALLATION
The rack uprights
have been installed
at the factory. If
removed for cleaning,
reinstall by hanging
them on the shoulder
rivets on the side
walls of the cabinet.
INSTALLATION AND SET-UP (continued)
SiteSelect™
features
make slide
installation
easier.
Slides sold in pairs. For additional pair of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item #’s 32A, 32B, 32C.
TOP VIEW
32A RPC5-9-URT5
8 Required per
cabinet
32B
RPC5-9-URT7
4 Required per
cabinet
32A
RPC5-9-URT5
4 Required per
cabinet
32C
RPC5-9-URT3
4 Required per
cabinet
*
*
*
*
5
CORRECT ORIENTATION OF
LIP LOADED SLIDE RACKS
Full Height Full Height 3/4Height 1/2Height Under Counter
Single Door Dutch Doors Cabinet Cabinet Cabinet
2-piece Construction 2-piece Construction 1-piece Construction 1-piece Construction 1-piece Construction
Part No. RPC5-L9 Part No. RPC5-L9 Part No. RPC5-L7 Part No. RPC5-L5 Part No. RPC5-L3
INSTALLATION AND SET-UP (continued)
Slides sold in pairs.
6
REVERSING THE DOORS
C5 doors are normally hinged on the right hand side at the factory. If the cabinet has been in operation, allow the
door to cool before reversing the door hinging direction. Note: When nished, all holes must have screws in them and
there will be no exposed holes left in the cabinet.
1. If the cabinet has Dutch Doors, note which is the top and which is the bottom door. Open the door, lift it o the
cabinet hinges and set it aside noting which is the top and bottom of the door.
2. On the cabinet, remove the latch strike plate and hinges and install them on the other side of the cabinet. On the
door, remove the hinge covers to access the mounting screws. Remove the hinges.
3. Rotate the door so the previous bottom is now the top and install the hinges. On Dutch Doors, do not remove the
handles, the top door becomes the bottom and the bottom door the top. On single door units, rotate the handles
180° and reinstall.
4. On the cabinet mounted hinges, lift the white bushing and rotate it 180° and push it down to reseat it on the
hinge pin.
5. Install the door onto the cabinet hinges and check to make sure the door latches properly and the gaskets
are in compression.
6. Fill hinge holes with loose screws.
Tip Hazard: On Pass-Thru cabinets that include any clear doors, when eld reversing, the front and back doors
must be hinged from opposite sides of the cabinet. See illustration below.
After reversing the door hinging direction, labels are now
upside down. You may contact InterMetro for a new set
of labels, part number RPC5-DRLBL, at no charge, to be
placed in the proper orientation.
Clear Doors
Hinged on
opposite
sides of
the cabinet
Clear Doors
Hinged on
same side
of the
cabinet
WARNING •TIP HAZARD
!
7

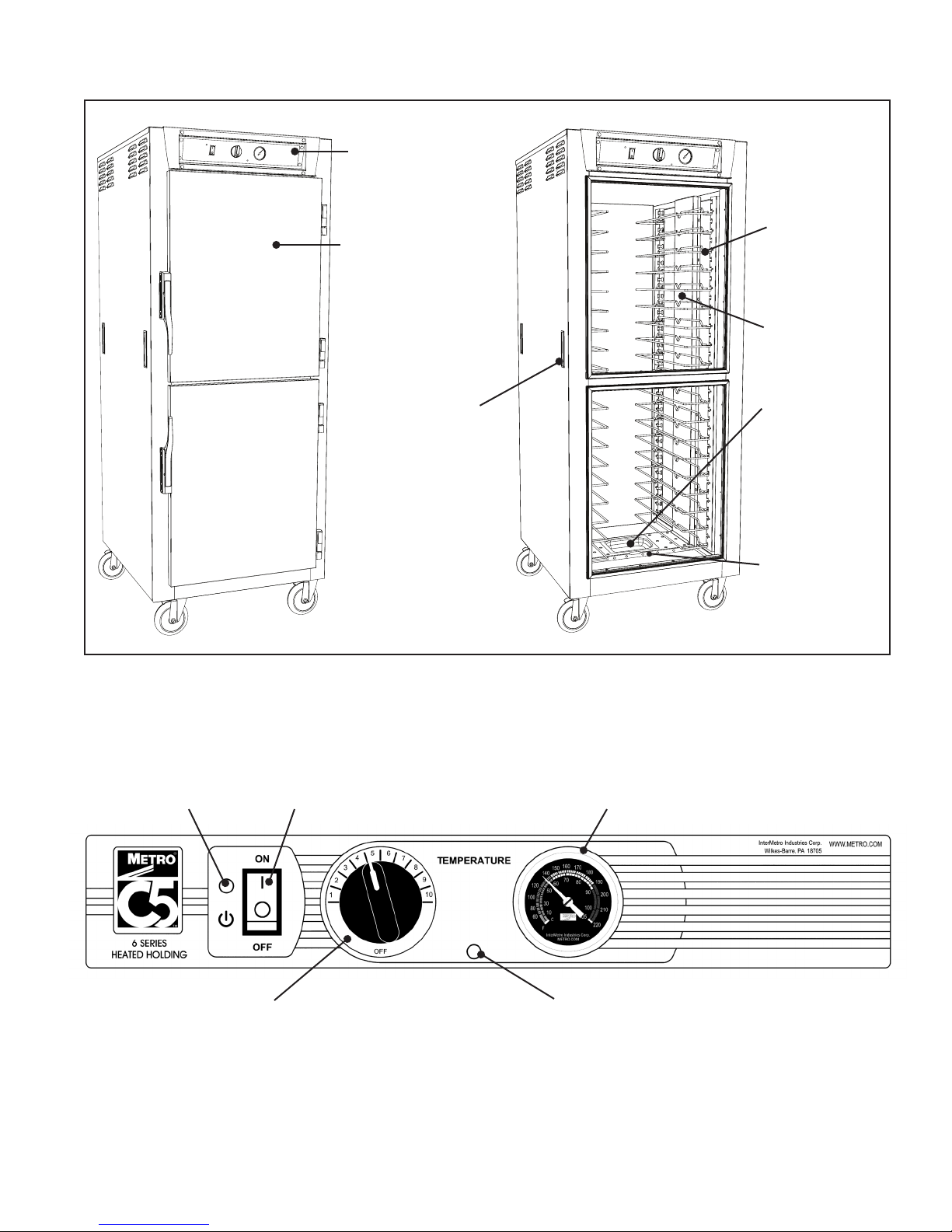

PRODUCT FEATURES
Field Reversible
Doors
Be careful when
opening the
doors as hot, humid
air will escape
from cabinet.
Tray Slides
Floor Duct
Holds water
pan and evenly
distributes air ow.
Water Pan
Fill with water.
Capacity is
(1) quart (1 liter).
Air Duct
Flush
Pull
Handles
Control Panel
Power Switch
Red Light
Heat Element On
Dial Thermometer
Thermostat Control Knob
Red Power
Indicator Light
8
OPERATING INSTRUCTIONS
Power-Up & Pre-Heat
• A red indicator next to the on/o switch indicates when the power switch is on and the cabinet has power. It will
stay lit until the cabinet is turned o. Turn the cabinet on and adjust the thermostat to the desired setting. The
thermometer indicates the internal cabinet temperature. A second red indicator light is located between the
thermostat and the thermometer and indicates when the thermostat cycles on to energize the air element (to
increase the cabinet temperature). When this light is not illuminated, it means the cabinet has reached the preset
temperature level. It is normal for the thermostat to cycle on and o as the cabinet is operating.
1. Set the temperature control to a 6 or 7 setting. This should produce a cabinet temperature of 150° F (66° C) to
170° F (77° C) after allowing the cabinet to preheat for 45-60 minutes. Allow the cabinet to pre-heat without food.
The time required to reach the desired temperature is dependent on the set point, the size of the cabinet, the
door type (solid or clear) and the temperature of the room the cabinet is in. To change the temperature, turn the
temperature control knob. About a half hour after adjusting the temperature control knob, the thermometer should
indicate the new cabinet temperature.
• At the end of the operating day, it is not necessary to disrupt the temperature setting to turn the cabinet o. By
switching the power switch o, the cabinet is no longer operating. When resuming operations, switch the power
on and the cabinet will attain the preset temperature level.
Warning: Follow all food safety guidelines. Pre-heat the cabinet to the desired temperature before putting cooked, hot
food into the cabinet. This is not a re-thermalization cabinet. Food must be at the appropriate temperature
before being placed into this cabinet.
2. Your C5 6 Series cabinet is capable of creating some humid air. As you operate the cabinet and open and close
the door(s), condensation may form on the inside surfaces of the cabinet. Some dripping of water may occur to
the outside of the cabinet particularly at the door seals. Water may also drip o opened doors onto the oor.
Caution: Water dripping onto the oor from open doors can be a slip hazard.
Warning: Some surfaces, water and escaping vapor can be hot enough to burn. Use caution when opening doors and
working in and around this cabinet.
3. The cabinet control will “remember” its setting when the cabinet is turned o. Therefore, when the unit is turned
on the setting will be the same as it was during the previous use.
4. A red indicator light next to the temperature control indicates when the temperature heater element is
energized. As the control setting is adjusted, it may take a few moments for the status of the indicator light to
reect the new control setting and cabinet condition depending on when in the control cycle the setting
is changed.
Red Light
Indicates when heat element is on.
9
5. If humidity is required, ll the water pan in the bottom of the cabinet. Potable (suitable for drinking) water should
be used.
6. To remove the water from the water pan, allow the cabinet and water to cool and remove the water pan.
Note: When turning the cabinet off at the end of the work day, it is recommended to leave the door(s) open to
prevent heat and condensation build up within the cabinet.
Water Pan
Fill with water. Capacity is about
1 quart (1 liter).
CARE & MAINTENANCE
Cleaning The Cabinet
Warning: Unplug the cabinet before cleaning or servicing. Do not wash the cabinet with a water jet or high pressure
water.
Caution: Do not spray or pour water into the control enclosure. To clean the cabinet, wipe with a damp cloth and dry
with a towel. Use only cleaning agents approved for stainless steel or aluminum (depending on your cabinet
construction).
Caution: Do not use cleaners with chlorides or phosphates as they may cause damage to stainless steel. Do not use
strong alkalis on aluminum as they may discolor it.
1. Use cleaners in the proper concentrations. Follow the manufacturer’s directions for the cleaning product used.
After using any cleaning products, thoroughly rinse all surfaces to remove all residue.
2. Use a damp cloth or sponge. Mild soap suitable for stainless steel and aluminum is acceptable. Dry with a
clean towel. Wipe up spills as soon as possible and regularly clean the cabinet to avoid staining and dicult to
clean conditions.
If the control knob needs to be removed for cleaning, use a 1/16" Allen key to loosen the set screw on the control
knob. Remove the knob, clean the control face and/or knob and replace the knob and tighten the set screw.
10
BASIC TROUBLESHOOTING
Warning: Only factory approved service agents should attempt
to service, repair or replace electrical components,
wiring or power cord.
1. Controls do not work (indicator lights):
a. Check that the cabinet is plugged in.
b. Check that the outlet has power.
c. Check that the power switch is in the “On” position.
d. Check the cabinet wiring from the power cord to the power switch and to the terminal block.
2. Temperature too hot:
a. Temperature set point is too high. Turn control knob down to a lower setting.
b. If displayed temperature exceeds 220°F (104°C):
i. Blower wiring is faulty or disconnected.
ii. Blower needs replacing.
iii. The thermostat may have failed and the thermal overload device is controlling the temperature. Stop using
the cabinet immediately and contact a factory approved service agent.
3. Temperature too low:
a. The cabinet may still be in pre-heat or recovering from a door being opened.
b. Temperature set point is too low. Turn temperature control knob to a higher setting.
c. A door is not closed or sealing properly.
d. Blower is not circulating air:
i. Blower wiring is faulty or disconnected.
ii. Blower needs replacing.
4. No heat generated
a. If the heat indicator light is on but the cabinet does not draw approximately 16 amps for 120V 2000W units;
12 amps for 120V 1440W units; or 8 or 9 amps for 220-240V units:
i. Air heater element may be faulty.
ii. The wiring to the air heater element may be faulty or disconnected.
iii. The thermostat may be faulty.
5. Cabinet trips GFCI (ground fault circuit interrupter):
A GFCI receptacle protects against “ground faults” whenever an electrical product is plugged into the GFCI
outlet by constantly monitoring the electricity for any loss of current. If the current owing out of the receptacle
diers by a small amount from that returning, the GFCI quickly switches o power to that circuit. The GFCI
interrupts power extremely fast to minimize the possibility of an electric shock.
a. The heater element may absorb some moisture into its casing and insulation during shipment or during long
periods of not being used (such as during the summer in a closed school kitchen). Plug the cabinet (without
water in the water pan) into a non-GFCI outlet, set the temperature to “10” and let it run for 30-60 minutes
to dry out any moisture the element may have absorbed. (If it trips the standard circuit breaker call factory
approved service agent.) After drying the element, plug the cabinet into the GFCI outlet; the cabinet shoul d
run without tripping the GFCI.
b. If the cabinet still trips the GFCI, call a factory approved service agent.
11
SERVICE and REPLACEMENT PARTS
C5 6 SERIES REPLACEMENT PARTS — ELECTRICAL
Conrm the cabinet electrical rating before ordering components.
Warning: Only factory approved service agents should attempt to service, repair or replace electrical components,
wiring or power cord.
To access the controller area, remove the (7) screws holding the cabinet top in place. Lift the rear portion of the
cabinet top and slide it away from under the front control bezel, removing it from the cabinet. After servicing, replace
the cabinet top and the (7) screws holding it in place.
120V 1440W OR 2000W
ITEM # Replacement Part No. Description
1 RPC13-129 THERMOSTAT
2 RPC06-476 KNOB
3 RPC13-375 MASTER SWITCH
4 RPC13-218 THERMOMETER
5 RPC13-245 RED INDICATOR LIGHT
6 RPC11-191 INTAKE COLLAR
7 RPHM20-2103 BLOWER, 120V
8 RPC13-093 ELEMENT, 120V 1950W
8A RPC13-114 ELEMENT, 120V 1360W
9 RPC13-198 THERMAL CUT OUT
10 RPC13-359 POWER CORD, 20A RT
ANGLE PLUG
RPC13-099 POWER CORD, 20A STR PLUG
RPC5-RTWSTPLG POWER CORD, 20A TWIST
LK PLUG
10A RPC13-348 POWER CORD, 15A RT
ANGLE PLUG
RPC13-289 POWER CORD, 15A STR PLUG
RPC13-337 POWER CORD, 15A TWIST
LK PLUG
11 RPC13-098 STRAIN RELIEF, 20A CORD
11A RPC13-083 STRAIN RELIEF, 15A CORD
12 RPC13-096 TERMINAL BLOCK
13 RPC07-055 SENSOR CABLE GROMMET
14 RPC5-SCLP SENSOR CLAMP & SCREW
220-240V 1681W OR 2000W
ITEM # Replacement Part No. Description
1 RPC13-129 THERMOSTAT
2 RPC06-746 KNOB
3 RPC13-375 MASTER SWITCH
4 RPC13-218 THERMOMETER
5 RPC13-245 RED INDICATOR LIGHT
6 RPC11-191 INTAKE COLLAR
7 RPHX20-2103 BLOWER, 220-240V
8 RPC13-117 ELEMENT, 240V 1950W
9 RPC13-198 THERMAL CUT OUT
10A RPC13-247 POWER CORD, 250V 15A
11A RPC13-083 STRAIN RELIEF, 15A CORD
12 RPC13-096 TERMINAL BLOCK
13 RPC07-055 SENSOR CABLE GROMMET
14 RPC5-SCLP SENSOR CLAMP & SCREW

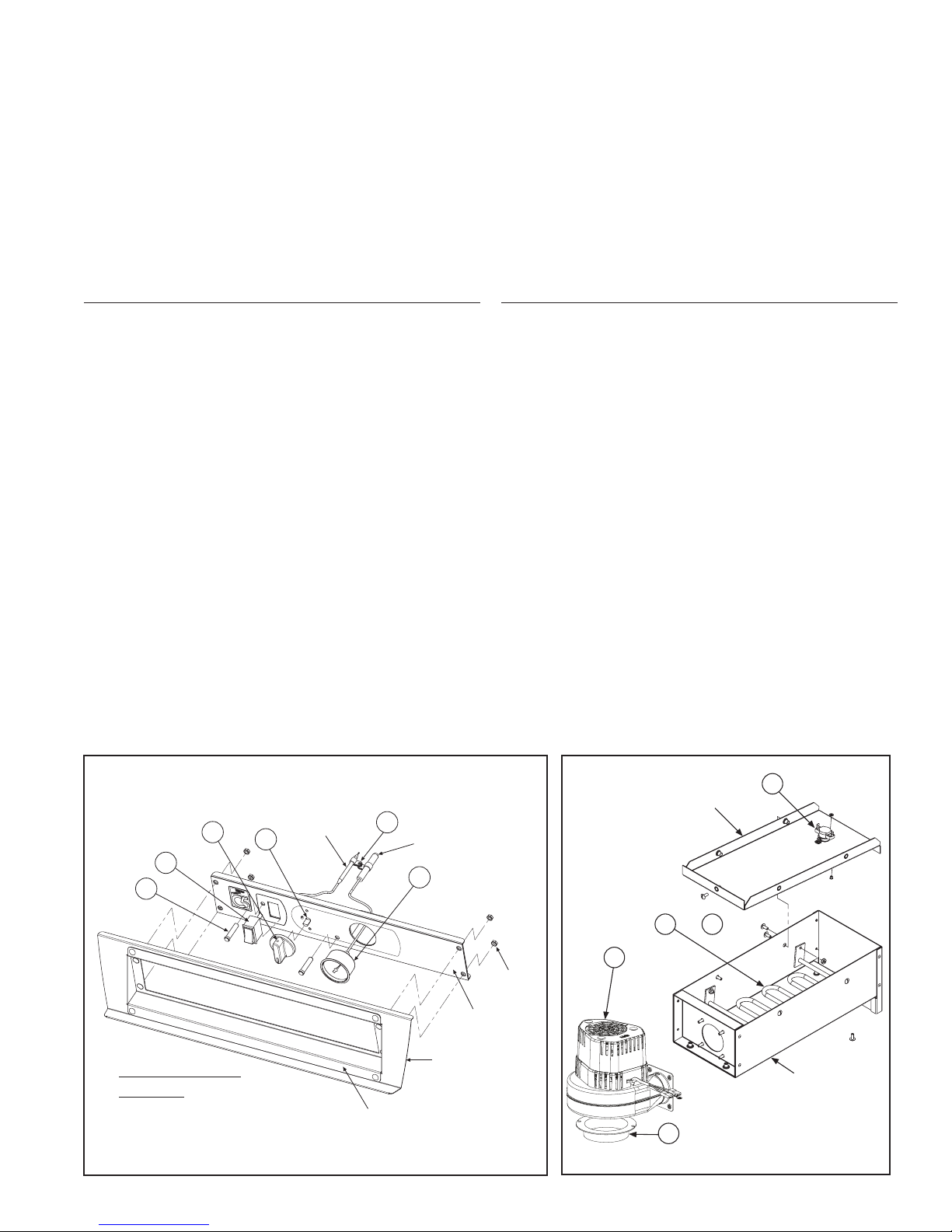

AIR DUCT
COVER
AIR DUCT
AIR DUCT
7
8OR 8
A
9
6
SET SCREW ATTACHMENT
CONTROL PANELCONTROL PANEL
BEZEL
FACE PLATE
CONTROL
PANEL PLATE
REMOVE
(4) NUTS
THERMOMETER BULB
THERMOSTAT
x2
6 SERIES
BULB
14
4
1
3
5
2
12
ITEM # Replacement Part No. Description
CABINET BODY
15 RPC06-873B FULL HEIGHT DOOR GASKET
RPC06-873C 3/4HEIGHT DOOR GASKET
RPC06-873A 1/2HEIGHT & DUTCH DOOR
GASKET
RPC06-873D UNDER COUNTER DOOR
GASKET
16 RPC5-S9DR STAINLESS STEEL FULL
HEIGHT SOLID DOOR
RPC5-S7DR STAINLESS STEEL 3/4HEIGHT
SOLID DOOR
RPC5-S5DR STAINLESS STEEL 1/2HEIGHT &
BOT D SOLID DOOR
RPC5-S9TDDR STAINLESS STEEL TOP DUTCH
SOLID DOOR
RPC5-S3DR STAINLESS STEEL UNDER
COUNTER SOLID DOOR
RPC5-N9DR ALUMINUM FULL HEIGHT
SOLID DOOR
RPC5-N7DR ALUMINUM
3/4HEIGHT SOLID
DOOR
RPC5-N5DR ALUMINUM 1/2HEIGHT &
BOT D SOLID DOOR
RPC5-N9TDDR ALUMINUM TOP DUTCH SOLID
DOOR
RPC5-N3DR ALUMINUM UNDER COUNTER
SOLID DOOR
RPC5-S9CDR STAINLESS STEEL FULL
HEIGHT CLEAR DOOR
RPC5-S7CDR STAINLESS STEEL 3/4HEIGHT
CLEAR DOOR
RPC5-S5CDR STAINLESS STEEL 1/2HEIGHT &
BOTTOM D CLEAR DOOR
RPC5-S9CTDDR STAINLESS STEEL TOP DUTCH
CLEAR DOOR
RPC5-S3CDR STAINLESS STEEL UNDER COUNTER
CLEAR DOOR
RPC5-N9CDR ALUMINUM FULL HEIGHT
CLEAR DOOR
RPC5-N7CDR ALUMINUM
3/4HEIGHT
CLEAR DOOR
RPC5-N5CDR ALUMINUM
1/2HEIGHT &
BOT D CLEAR DOOR
RPC5-N9CTDDR ALUMINUM TOP DUTCH
CLEAR DOOR
RPC5-N3CDR ALUMINUM UNDER COUNTER
CLEAR DOOR
17 RPC11-274 DOOR LATCH — 1 PIECE
RPC14-253 FLUSH HANDLE DOOR LATCH — 1
PIECE
RPC5-LTHTWST DOOR LATCH WITH TWIST LOCK —
1 PIECE
RPC14-129 DOOR LATCH WITH KEY LOCK — 1
PIECE
18 RPC14-042 DOOR HINGE — 1 PIECE
19 B5DNB 5" BRAKE CASTER
RPQC02-248 6" BRAKE CASTER
B3B 3" BRAKE CASTER
20 B5DN 5" SWIVEL CASTER
RPQC02-247 6" SWIVEL CASTER
B3 3" SWIVEL CASTER
B5DRN 5" RIGID CASTER
21 RPC06-872 POCKET HANDLE
22 RPC11-481 WATER PAN
*23
RPC5-L9
TALL CABINET LIP LOADED SLIDE
ASSEMBLY
RPC5-L7
3/4HEIGHT CABINET LIP LOADED
SLIDE ASSEMBLY
RPC5-L5
1/2HEIGHT CABINET LIP LOADED
SLIDE ASSEMBLY
RPC5-L3
UNDER COUNTER CABINET LIP
LOADED SLIDE ASSEMBLY
*24
RPC5-U9
TALL CABINET UNIVERSAL SLIDE
ASSEMBLY (INCLUDES WIRE
SLIDES & UPRIGHTS)
RPC5-U7
3/4HEIGHT CABINET UNIVERSAL
SLIDE ASSEMBLY (INCLUDES WIRE
SLIDES & UPRIGHTS)
RPC5-U5
1/2HEIGHT CABINET UNIVERSAL
SLIDE ASSEMBLY (INCLUDES WIRE
SLIDES & UPRIGHTS)
RPC5-U3
UNDER COUNTER CABINET
UNIVERSAL SLIDE ASSEMBLY
(INCLUDES WIRE SLIDES &
UPRIGHTS)
*25
C5-USLIDEPR-C
CHROME UNIVERSAL WIRE SLIDES
— 1 PAIR
C5-USLIDEPR-S
STAINESS STEEL UNIVERSAL WIRE
SLIDES — 1 PAIR
26 RPC5-SSLEG-1 EQUIPMENT LEG — QTY 1
27 RPC5-DRLBL DOOR LABELS 1 DOOR
(USED WHEN REVERSING
DOORS)
28 C5-SHELF-S ACCESSORY SHELF (USED WITH
UNIVERSAL UPRIGHTS)
29 RPC5-9-BMPR BUMPER — 1 PAIR
30 RPC59-HRGKT BACK HANGER REPAIR KIT
(4 PCS)
31 RPC5-9-HANDLE CABINET HANDLE
32A RPC5-9-URT5 INDIVIDUAL UNIVERSAL UPRIGHT,
FULL & 1/2HEIGHT
32B RPC5-9-URT7 INDIVIDUAL UNIVERSAL UPRIGHT,
3/4HEIGHT
32C RPC5-9-URT3 INDIVIDUAL UNIVERSAL UPRIGHT,
UC CABINET
ITEM # Replacement Part No. Description
CABINET BODY (continued)
SERVICE and REPLACEMENT PARTS (continued)
C5 6 SERIES REPLACEMENT PARTS — CABINET BODY
*See pages 4 and 5 for slide identication.
All slides sold as pairs.
13
SERVICE and REPLACEMENT PARTS (continued)
Replacement Parts Diagram
6 SERIES
(Tall Unit Shown)
*For slide identication, see pages 4 and 5.
STRAIGHT PLUG CORD SHOWN
26
16
20
17
25 *
21
24
CABINET BODY
11
12
13
23 *
15
22
CONTROL PANEL
See page 11.
FLOOR DUCT
19
18
AIR DUCT
See page 11.
27
28
10 OR 10A
11A
29
(not shown)
30
OR
31
14
SERVICE and REPLACEMENT PARTS (continued)
Warning: Only factory approved service agents should attempt
to service, repair or replace electrical components,
wiring or power cord.

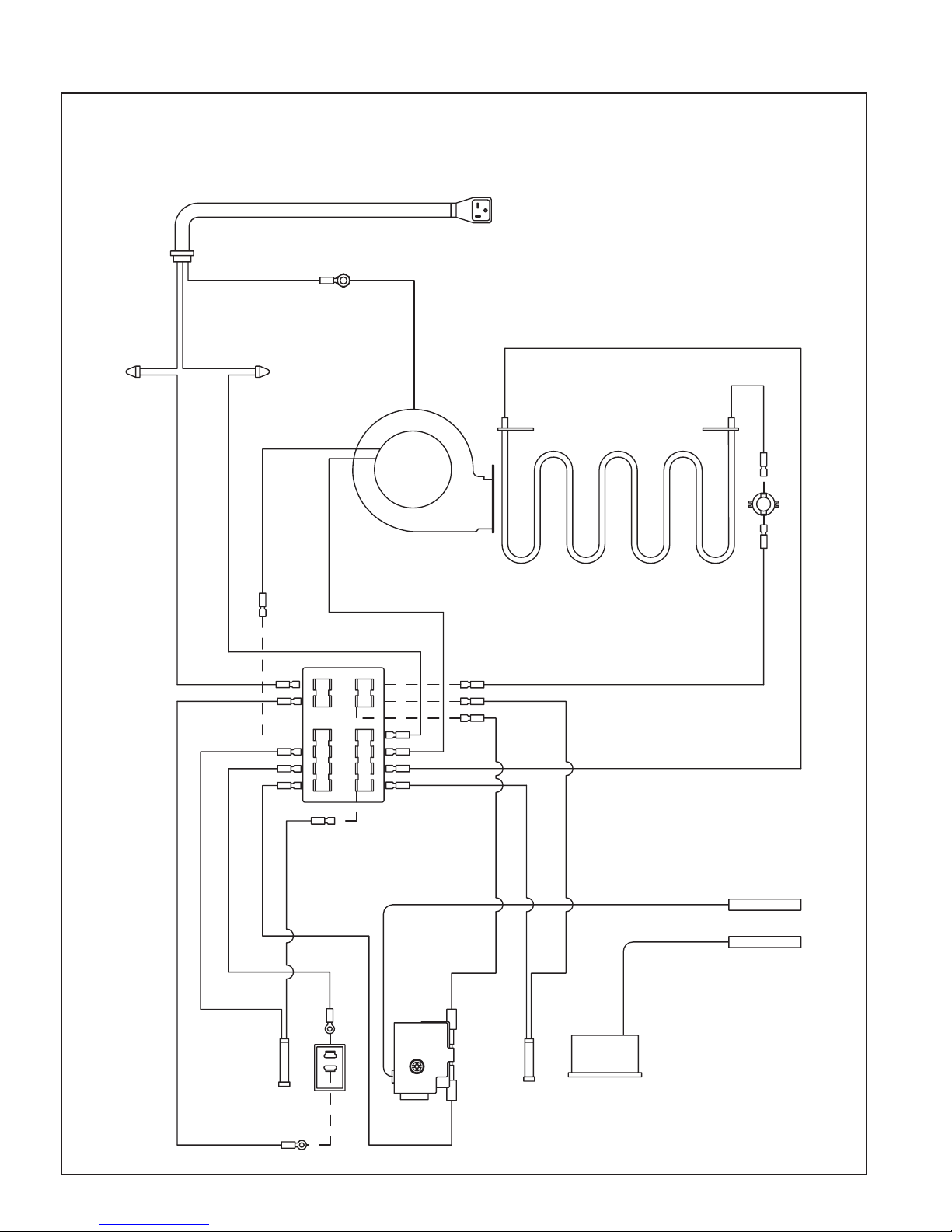

Wiring Diagram
12
RED LIGHT
22
BLACK X 23"
BLACK X 15"- SPADE TO RING
BLACK X 15" -SPADE TO RING
MASTER SWITCH
23
BLACK X 30"
WHITE X 30"
BLACK X 30"
BLACK X 30"
7
WIRE NUT
WIRE NUT
WHITE X 18"
BLACK X 15"
WHITE
BLACK
BLOWER
THERMAL CUT OUT
AIR HEAT ELEMENT
19
9
22
10
11
20
21
9
611
24 22 19
10
23
17
22
16
21
15
24
18
20
14
19
13
11 10 912 87
543621
A
A
7
8
2
24 8
2
6
RED LIGHT
THERMOMETER
THERMOMETER BULB THERMOSTAT BULB
HEAT
THERMOSTAT
BLACK X 15"
STRAIN RELIEF
GROUND
GREEN
20A RIGHT ANGLE
PLUG POWER CORD
SHOWN
BLACK X 15"
23
20
ON
OFF
GREEN WIRE
InterMetro Industries Corporation
(
hereinafter referr
ed
t
o
as
“
S
eller
”
)
warrants to th
e
10/17
15
15
CUT ALONG DOTTED LINE
CUT ALONG DOTTED LINE
Thank you for purchasing a Metro C5 Controlled Temperature Cabinet.
We are certain you will be more than satised with its quality and
performance. Please ll in the warranty information space below
so we may register your warranty. Also, so that we may learn
more about our customers and hopefully be of continued
service in the future, please take a moment to
ll in the customer information space below.
Thank You
WARRANTY INFORMATION:
Cabinet Model No.
Cabinet Serial No.
Date Purchased
Customer Name
Address
Phone No.
For warranty coverage please ll out this card
and return it to Metro, or go to www.metro.com/
heatedcabinetsupport and select Online Warranty
Registration to register electronically.
FOLD HERE — DO NOT DETACH
16
CUSTOMER INFORMATION
1. Which one of the following best describes
your establishment?
a. ❑Full-Service Restaurant
b. ❑ Banquet Hall
c. ❑Hotel/Motel
d. ❑Hospital/Nursing Home
e. ❑College/University
f. ❑School
g. ❑Employee Feeding
h. ❑Other
2. Please indicate the two product benets that
were of major interest to you.
a. ❑Easy-to-use controls
b. ❑Door selection
c. ❑Size Selection
d. ❑Cabinet capacity
e. ❑Slide selection
f. ❑Easy-to-clean design
g. ❑Other
3. Main factor that led to your decision to
purchase this product?
a. ❑Product operating and functional features
b. ❑ Overall quality
c. ❑Price
d. ❑Availability
e. ❑Other
4. Three sources that led to the purchase of
his product — in the order of their impact
(1 — being most impact; 3 — being least impact).
a. ❑Trade Journal Ad
b. ❑Trade Show
c. ❑Sales Call
d. ❑Direct Mail
e. ❑Previous Purchase
f. ❑Other
16
FOLD HERE — DO NOT DETACH
STAPLE HERE
STAPLE HERE
POSTAGE WILL BE PAID BY
INTERMETRO
INDUSTRIES
CORPORATION
ATTN:
CUSTOMER
SERVICE
P
O
BOX
A
WILKES-BARRE PA 18705-9968
STAPLE HERE
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST-CLASTAINLESS STEEL PERMIT NO. 121 WILKES-BARRE, PA
THIS PAGE IS KEPT
INTENTIONALLY BLANK
Table of contents
Other Metro DataVac Food Warmer manuals
