Metro DataVac C5 U-SERIES User manual

InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
For Product Information Call: 1-800-992-1776
Visit Our Web Site: www.metro.com Commercial & Residential Solutions
Metro Cabinets are for Hot and Cold
Food Holding applications only
INSTRUCTIONS
FOR USE
U-SERIES
hOT AND COLD
FOOD hOLDINg
CAbINETS

2
TAbLE OF CONTENTS
SAFETY INFORMATION .................................................................................................................................................................................................... 2
IDENTIFY YOUR CABINET ................................................................................................................................................................................................ 2
PRODUCT FEATURES ...................................................................................................................................................................................................... 2
INSTALLATION AND SETUP ............................................................................................................................................................................................. 3
CARE AND MAINTENANCE .............................................................................................................................................................................................. 4
REPLACEMENT PARTS ..................................................................................................................................................................................................... 5

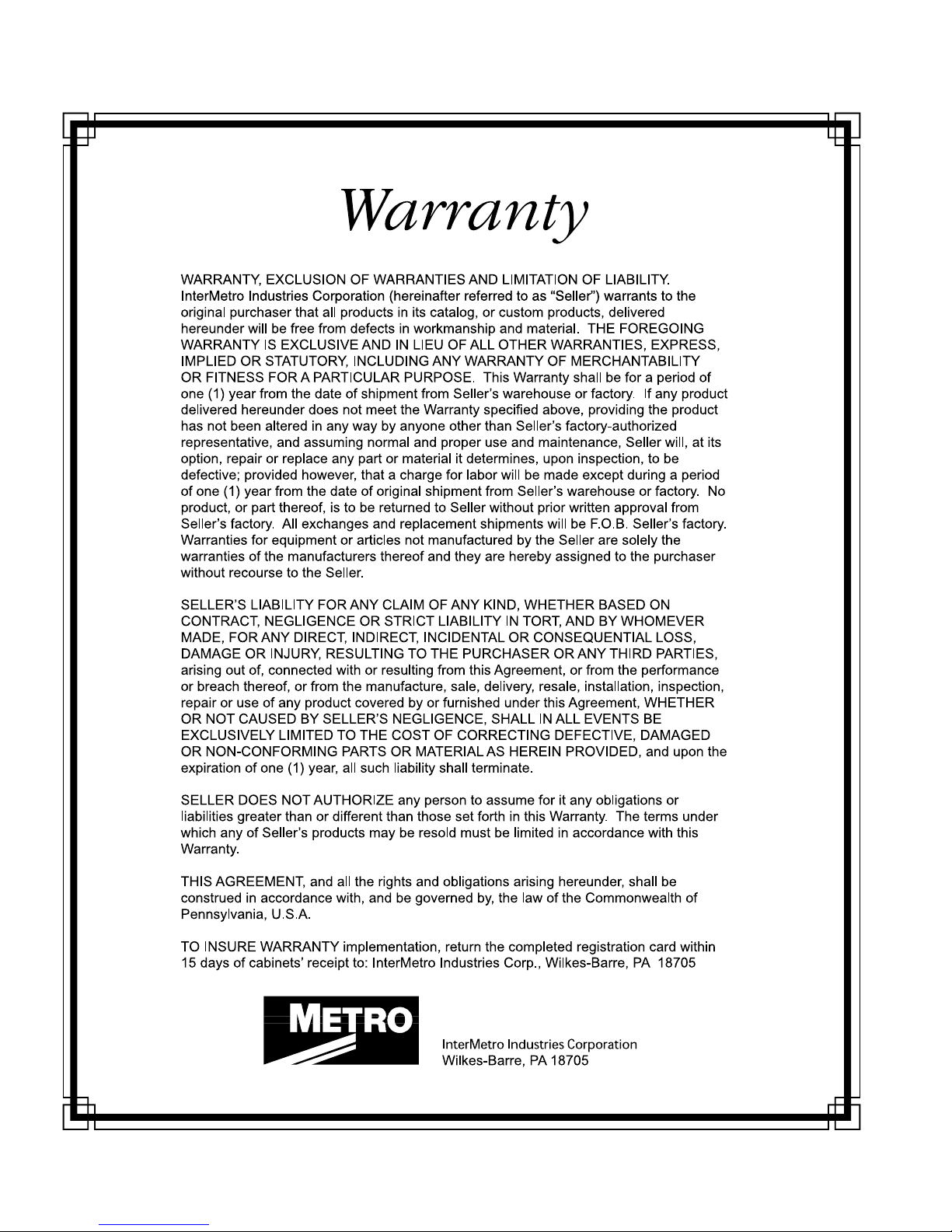

WARRANTY ....................................................................................................................................................................................................................... 6
SAFETY INFORMATION
This cabinet is only for hot and cold food holding applications.
Follow all food safety guidelines. Food must be at the appropriate temperature before
being placed into cabinet. Use a food probe to check internal food temperature - the
cabinet temperature is not necessarily the internal food temperature.
IDENTIFYINg YOUR CAbINET
®
MODEL NO.
®
INTERMETRO INDUSTRIES CORP., WILKES-BARRE, PA 18705
WWW.METRO.COM
C5UX-XXX
PRODUCTION DATE. XXXX
Made in USA
For future reference, note the serial and model number found on the data plate of the cabinet here:
Model number ________________________________
Date the cabinet was put into service _______________________________
Fill out and return the warranty card located at the back of this manual.
PART NUMbERINg
C5 U 9 - S U
__ ____
A
_
PRODUCT FEATURES
HEIGHT
9 = FULL
5 = HALF
CABINET NAME
SERIES
U = INSULATED NON POWERED
MATERIAL
S = STAINLESS STEEL
N = ALUMINIUM
SLIDES
U = UNIVERSAL WIRE SHELF
F = FIXED LIP LOAD
ACCESSORIES
Pocket
Handle
Slides
Door
Door
Latch
Info Panel
(Optional)
Rear Push Handle
(Optional, Not on
1/2 Height Cabinets)
Perimeter Bumper
(Optional)
(2) Brake Caster
— Front
(2) Swivel Caster
— Rear HALF HEIGHT
CABINET

3
INSTALLATION AND SETUP
NOTE: The First 4 steps below are common to all cabinets.
1. Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the
unit, and after removing all packaging materials.
2. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must be
noted on freight bill at the time of delivery.
3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days after
receipt of the cabinet. If there is damage, retain the original packaging for inspectors.
4. After unpacking the cabinet, remove all packing material from the inside as well as outside of the unit.

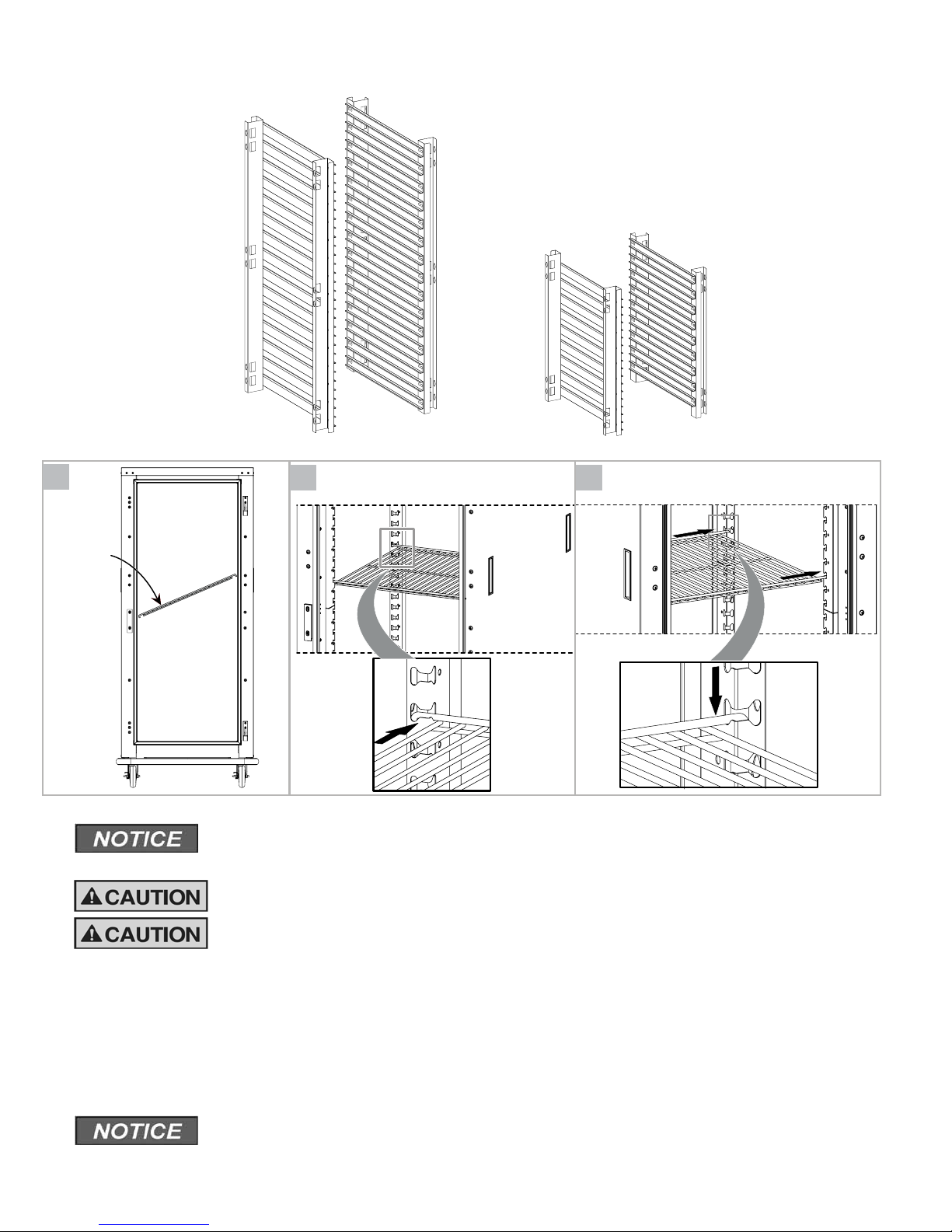

Installation of Universal Slide
Slide Position to Maximize 3" Pan Capacity of Universal Slides
17
17
The rack uprights have
been installed at the
factory. If removed for
cleaning, reinstall by
hanging them on the
shoulder rivets on the
side walls of the cabinet.
FULL HEIGHT CABINET
18 Levels
Position 2nd from Bottom
Part No. RPC5-U9
(includes slides and uprights)
1/2 HEIGHT CABINET
9 Levels
Position 2nd from Bottom
Part No. RPC5-U5
(includes slides and uprights)
SiteSelect™ features
make slide installation
easier.
Slides sold in pairs. For additional pair of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item 17.

4
Fixed Lip Load Slide Configurations
Wire Shelf Installation
CARE AND MAINTENANCE
Before proceeding with any maintenance activity strictly follow “Safety Information” on page 2 of this
manual.
Cleaning The Cabinet
To clean the cabinet, wipe with a damp cloth and dry with a towel. Use only cleaning agents
approved for stainless steel.
Do not use cleaners with chlorides or phosphates as they may cause damage to stainless steel.
1. Use cleaners in the proper concentrations. Follow the manufacturer’s directions for the cleaning product used. After
using any cleaning products, thoroughly rinse all surfaces to remove residue.
2. Use a damp cloth or sponge. Mild soap suitable for stainless steel is acceptable. Dry with a clean towel. Wipe up
spills as soon as possible and regularly clean the cabinet to avoid staining and difficult to clean conditions.
Cabinet Maintenance-All Models
C5 U-Series cabinets have been designed to require very little maintenance. With normal use, cleaning is the only form
of maintenance that need to be done on a regular basis. Keeping the casters free of dirt build-up will go a long way in
prolonging their life.
Regularly inspect the casters. Tighten loose fasteners and replace worn or damaged parts with new
InterMetro approved parts. Replace worn or damaged casters immediately; lubricate casters regularly
(if applicable).
FULL HEIGHT CABINET
Part No. RPC5-L9
HALF HEIGHT CABINET
Part No. RPC5-L5
Insert left side of wire shelf into upright at
an angle and then lower right side to level
and shift shelf to fit into right side upright.
Wire
Shelf
123NOTE: Wire shelf must be used with cabinet
uprights

5
REPLACEMENT PARTS
WARNING: Only factory approved service agents should attempt to service, repair or replace components.
Cabinet and Door Parts
ITEM #
Replacement
Part No. Description ITEM #
Replacement
Part No. Description
1 RPC06-873B FULL HEIGHT DOOR GASKET 10 B5DN 5" SWIVEL CASTER
RPC06-873A 1/2 HEIGHT DOOR GASKET B5RNR 5" RIGID CASTER
2 RPC5U-S9DR COMPLETE STAINLESS STEEL FULL HEIGHT
DOOR ASSEMBLY WITH FLUSH HANDLE
RPQC02-247 6" SWIVEL CASTER
RPC5U-S5DR COMPLETE STAINLESS STEEL 1/2 HEIGHT
DOOR ASSEMBLY WITH FLUSH HANDLE
B3 3" SWIVEL CASTER
RPC5U-N9DR COMPLETE ALUMINUM FULL HEIGHT DOOR
ASSEMBLY WITH FLUSH HANDLE
11 RPC5-SSLEG-1 STATIONARY EQUIPMENT LEG (Qty. 1)
RPC5U-N5DR COMPLETE ALUMINUM 1/2 HEIGHT DOOR
ASSEMBLY WITH FLUSH HANDLE
12 RPC06-872 POCKET HANDLE
3 RPC11-274 DOOR LATCH, OFFSET HANDLE 13 RPC5-L9 FULL HEIGHT LIP LOADED SLIDE ASSEMBLY
RPC14-253 DOOR LATCH, FLUSH HANDLE RPC5-L5 1/2 HEIGHT LIP LOADED SLIDE ASSEMBLY
RPC5-LTHTWST DOOR LATCH, TWIST LOCK FLUSH HANDLE 14 RPC5-U9 FULL HEIGHT UNIVERSAL SLIDE
ASSEMBLY (SLIDES & UPRIGHTS)
RPC14-129 DOOR LATCH , KEY LOCK RPC5-U5 1/2 HEIGHT UNIVERSAL SLIDE ASSEMBLY
(SLIDES & UPRIGHTS)
4 RPC14-042 DOOR HINGE (Qty. 1) 15 C5-USLIDEPR-C CHROME UNIVERSAL WIRE SLIDE — 1 PAIR
5 RPC5-INFOPNL COMPLETE INFO PANEL ASSEMBLY
(OPTIONAL)
C5-USLIDEPR-S STAINLESS STEEL UNIVERSAL WIRE SLIDE
— 1 PAIR
6 RP-WHITEBRD WHITE BOARD WITH CLIPS 16 C5-SHELF-S ACCESSORY STAINLESS STEEL SHELF
(USED WITH UPRIGHTS)
7 RPC06-1032 INFO PANEL EXTRUSION 17 RPC5-9-URT5 INDIVIDUAL UNIVERSAL UPRIGHT
(FULL & 1/2 HEIGHT) (Qty. 1)
8 C5TINFOLBL-10 INFO PANEL LABELS (10 PACK) 18 C5-PERMBUMP PERIMETER BUMPER ASSEMBLY (OPTIONAL)
9 B5DNB 5" BRAKE CASTER 19 RPC59-HRGKT RACK HANGER REPAIR KIT (4 PIECES) —
FOR REPAIR OF HANGER
RPQC02-248 6" BRAKE CASTER 20 RPC5-9-HANDLE REAR HANDLE (OPTIONAL)
B3B 3" BRAKE CASTER
1
2
4
7
8
6
5
10
3
9x2
x2
12
14
13
15
18
16
20
OPTIONAL
OPTIONAL
OPTIONAL

6
®
07/13

7
CUSTOMER INFORMATION
1. Which one of the following best describes
your establishment?
a. Full-Service Restaurant
b. Banquet Hall
c. Hotel/Motel
d. Hospital/Nursing Home
e. College/University
f. School
g. Employee Feeding
h. Other
Thank you for purchasing a Metro C5 Cabinet.
We are certain you will be more than satisfied with its quality and
performance. Please fill in the warranty information space below
so we may register your warranty. Also, so that we may learn
more about our customers and hopefully be of continued
service in the future, please take a moment to
fill in the customer information space below.
Thank You
WARRANTY INFORMATION:
Cabinet Model No.
Date Purchased
Customer Name
Address
Phone No.
2. Please indicate the two product benefits that
were of major interest to you.
a.
b.
c.
d.
e.
Size Selection
f.
Cabinet capacity
g.
Slide selection
Easy-to-clean design
Other
FOLD HERE — DO NOT DETACH
3. Main factor that led to your decision to
pur chase this product?
a. Product operating and functional features
b. Overall quality
c. Price
d. Availability
e. Other
4. Three sources that led to the purchase of
his product — in the order of their impact
(1 — being most impact; 3 — being least impact).
a. Trade Journal Ad
b Trade Show
c. Sales Call
d. Direct Mail
e. Previous Purchase
f. Other
U-Series
Heavy Duty Construction
Transport Features (Handles, Bumpers)
For warranty coverage please fill out this card and
return it to Metro, or go to www.metro.com/cabinetsupport
and select Online Warranty Registration to register electronically.

20
FOLD HERE — DO NOT DETACH
STAPLE HERE
STAPLE HERE
POSTAGE WILL BE PAID BY
INTERMETRO INDUSTRIES CORPORATION
ATTN: CUSTOMER SERVICE
P O BOX A
WILKES-BARRE PA 18705-9968
STAPLE HERE
BUSINESS REPLY MAIL
FIRST-CLASS PERMIT NO. 121 WILKES-BARRE, PA
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
North Washington Street, Wilkes-Barre, PA USA 18705
1-800-992-1776
www.metro.com
L01-507
07/13
Information and specifications are subject to change
without notice. Please confirm at time of order.
