Meyer Lot Pro E73 User manual

Form No. 1-1195R2
July 2021
Assembly Instructions
Standard Operating System with Hands Free Plowing
E73 12V Hydraulic Unit
Includes: 41610
© 2021 Printed in the U.S.A.
18513 Euclid Ave. • Cleveland, Ohio 44112-1084
Phone [phone] www.meyerproducts.com

Table of Contents
General Information.........................................................................................................................................................................................................................1
Black Iron Parts Lists.....................................................................................................................................................................................................................2-3
Moldboard Parts List ........................................................................................................................................................................................................................4
Standard Operating System Wiring............................................................................................................................................................................................5
Plow Assembly & Adjustments.................................................................................................................................................................................................6-7
Hydraulics.........................................................................................................................................................................................................................................8-9

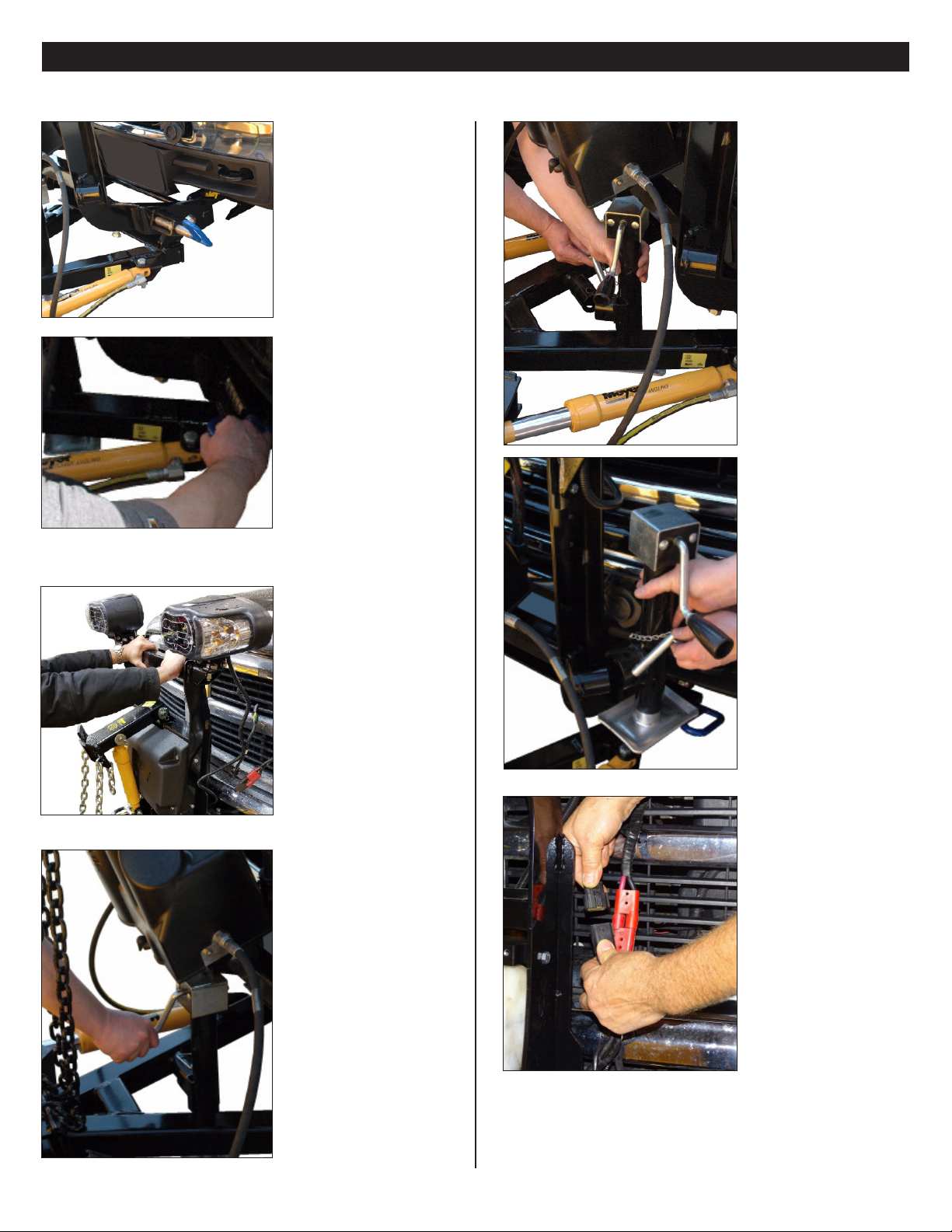

Mounting Plow................................................................................................................................................................................................................................ 10
Dismounting Plow ......................................................................................................................................................................................................................... 11
Pre-Delivery Inspection................................................................................................................................................................................................................ 12
Registration ...................................................................................................................................................................................................................................... 12
(1)
GENERAL INFORMATION
Always disconnect battery prior to installation.
SAFETY PRECAUTIONS should be used when Quik Lift® is in a RAISED position.
LOWER plow to the ground when vehicle is PARKED.
OVERHAUL and SERVICE information is covered on separate instructions.
Lift arm should be removed from vehicle if / when snowplow is removed.
Note:
1. Connect ground cable to negative side of battery for a solid connection to ground.
2. Route all cables away from moving engine parts, Manifolds, and sharp sheet metal.
3. For weather protection, coat all connections with Meyer Dielectric Grease Part No. 15632
4. The vehicle must be equipped with a “Heavy Duty Battery” (70 Amp, Hr. Min.), 550 C.C.A. and“Alternator” (60 Amp. Min.)............ to
obtain maximum performance.
5. Follow these instructions explicitly. Warranty does not apply to a Meyer product which has been negligently or improperly
assembled or installed.
TORQUE CHART FOOT
Please visit our website to nd our most updated technical information; including installation instructions, user manuals, parts
diagrams, EZ Troubleshooter, and more.
Please see your owner’s manual for Pre-Season, Post-Season, and General Maintenance.
www.meyerproducts.com
Pliers
1/2" socket
1/2" box wrench
9/16" box wrench
9/16" socket
3/4" box wrench
15/16" box wrench
15/16" deep well socket
Bolt Nut Size Gr. 2 Gr. 5 Gr. 8
1/4-20 4-5
5/16-18 9-11
3/8-16 17-20 26-29
7/16-14 42-46 60-66
1/2-13 64-72 99-100
5/8-11 127-141 179-198
Tool List for Plow Assembly
NOTICE:NOTICE: Meyer Products LLC reserves thje right, under its continuing product imporvement program, to change construction, design, details,
specications, and prices without notice or without incurring any obligation. Meyer Products LLC assumes no responsibility for installations not
made in accordance with these instructions.

(2)

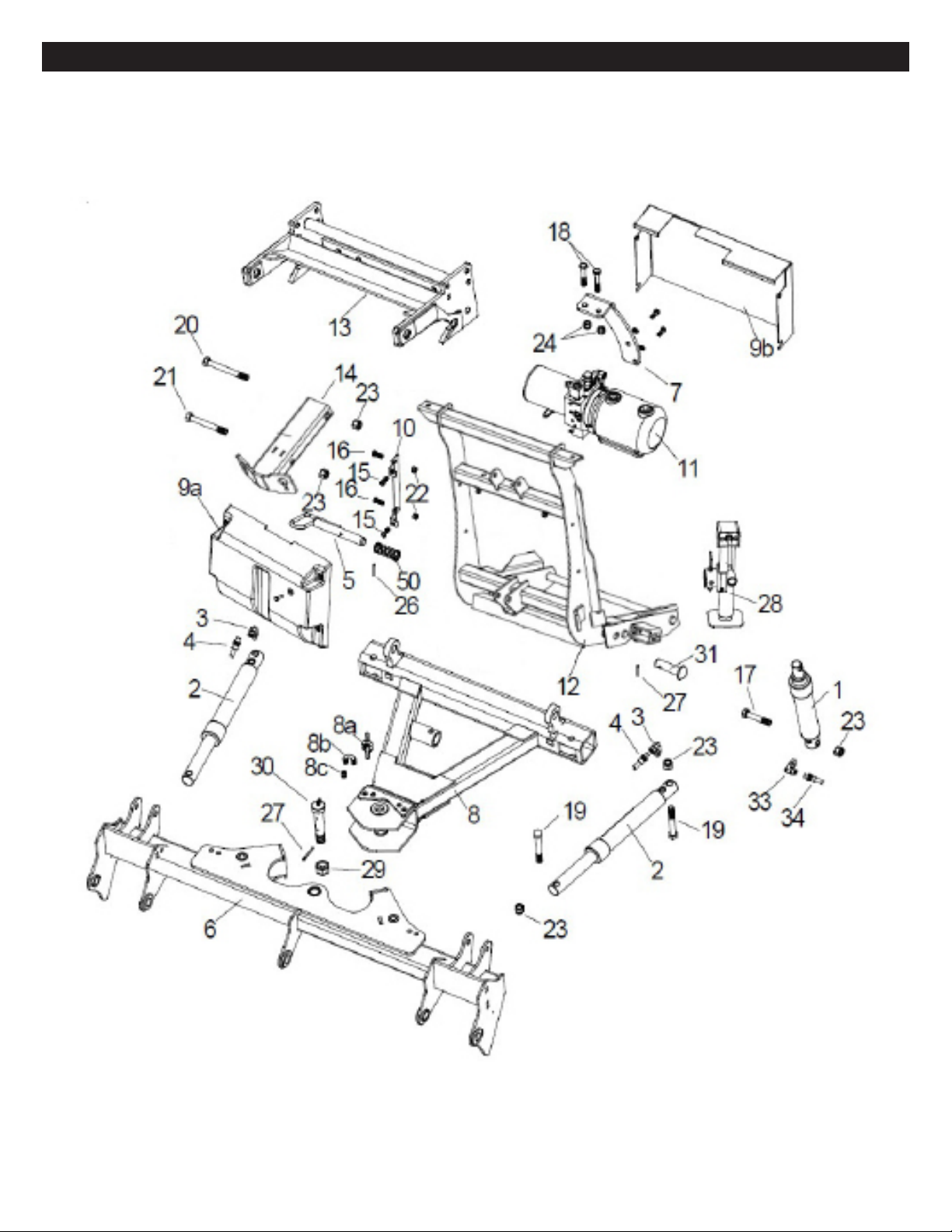

Black Iron Parts List

Black Iron Parts List
(3)
* Note that the Truck Side Wiring Harness (45) has changed from a 7 pin to 4 pin
as of October 2017. Please use the applicable part number as needed.
** Note that the Trailer Adapter Harness (54) comes in two versions:
• 23057 is used for most vehicles and is included with the black iron kit.
• 23058 is ONLY used for 1995-09 Dodge 1500, 2500, and 3500s.
See Service Bulletin SB 259 for more information.
*** 16025 may be used in place of 16027. In order to do so, two of the ports will
be capped o while the left and right angling hoses will need to be removed
and swapped. Move 22921 to the left angling ram and 22885 to the right an-
gling ram. See page 9 for further information.
Parts indented are included in the carton, bag or assembly under which they are indented.
Item Part # QTY Description
41610 1 LP 7.5-9.0 E73 Plus Mount Assy.
1 05818 1 • Lift Ram 1.75 x 8”
07772 1 • L.H. Ram with Hose & Fittings
2 05887 1 •• Ram (1-1/2” x 10”)
3 22866 1 •• SAE Mx3/8 90 Degree Elbow
4 22885 1 •• Hose 1/4 x 54”
07783 1 • R.H. Ram with Hose & Fittings
2 05887 1 •• Ram (1-1/2” x 10”)
3 22866 1 •• SAE Mx3/8 90 Degree Elbow
4 22921 1 •• Hose 1/4 x 38”
5 11859 2 • Blue Handle Pin
6 14214 1 • Pivot Bar Lot Pro
7 14185 1 • E-73 Mounting Bracket
8 14222 1 • A-Frame Lot Pro Plus
8a 21541 2 • Chain 5/16 x 38” Gr. 43
8b 8518001026 2 • U-Bolt 7/16-14
8c 20306 4 • Locknut 7/16-14
9a 14596 1 • Lift Unit Cover Front
9b 14288 1 • Lift Unit Cover Rear
10 14290 2 • Lift Unit Cover Bracket
11 16027 1 • Lift Assembly (Unit only)***
12 18955 1 • Lift Frame
13 19370 1 • Clevis
14 14439 1 • Lift Arm
15 20027 4 • Bolt H 5/16-18 x 1” Gr. 2
16 20049 4 • Bolt H 3/8-16 x 1” Gr. 2
17 20146 1 • Bolt H 5/8 - 11 x 3-1/4” Gr. 5
18 20101 2 • Bolt H 1/2 - 13 x 3 Gr. 5
19 20150 4 • Bolt H 5/8 - 11 x 4-1/2” Gr. 5
20 22989 1 • Pin 5/8 x 5-3/4”
21 20153 1 • Bolt H 5/8 - 11 x 5-1/2” Gr. 5
22 20305 4 • Locknut 3/8-16
23 20309 6 • Locknut 5/8-11
23a 22845 1 • Hair Pin
24 20307 2 • Locknut 1/2-13
25 22153 1 • Lockbolt 5/16 x 5/8
26 20406 3 • Cotter Pin 3/16 x 1-1/2”
27 20420 2 • Cotter Pin 1/4 x 2”
28 22022 1 • Crank Stand
29 22274 1 • Slotted Nut 1-8
30 22398 1 • King Bolt 1-8 x 5-1/2”
31 22436 2 • Pin 1 x 3”
32 23039 1 • Plow Side Harness
33 22866 1 • SAE Mx3/8 90 Degree Elbow
34 22884 1 • Hose 1/4 x 33”
Item Part # QTY Description
41362 1 • Accessory Box
35 23025 1 •• Power Cable
36 07017 4 •• Trip Spring
23067 1 •• Nite Saber LED
09917 1 •• Plow Marker Kit
37 08214 2 ••• Plow Marker
38 20027 4 ••• Bolt H 5/16-18 x 1 Gr. 2
39 20304 4 ••• Locknut 5/16-18
40 20352 8 ••• Flatwasher 5/16”
41 11844 1 •• Receiver Tube Cap
42 15372 1 •• Starter Solenoid - 12 volt
43 21832 1 ••• Split Bushing
44 23047 1 •• Controller
45 23059 1 •• Truck Side Harness (4 Pin)*
23038 1 •• Truck Side Harness (7 Pin)*
41302 1 •• Hardware Bag
46 09124 4 ••• Eye Bolt
47 20406 3 ••• Cotter Pin 3/16 x 1-1/2”
48 22331 1 ••• Hex Head Pin 1 x 3-5/16”
49 22375 2 ••• Pivot Pin 1 x 8-3/4”
50 814000005 2 • Spring
51 23057 1 • Trailer Adapter Harness
54 23056 1 • Logic Module, Trailer Lights
54 23058 1 • Trailer Adapter Harness for Specific Dodge
vehicles

Lot Pro Poly Parts List
Lot Pro Steel Parts List
Lot Pro Steel Lot Pro Poly & Stainless
(4)
66
67
68
69
70
71
72
73
7
49
50-53
59
61
62
68
60
60
74
75
76
77
78
79
80
81
82
83
84
85
86
87
7
49
50-53
59
61
62
50

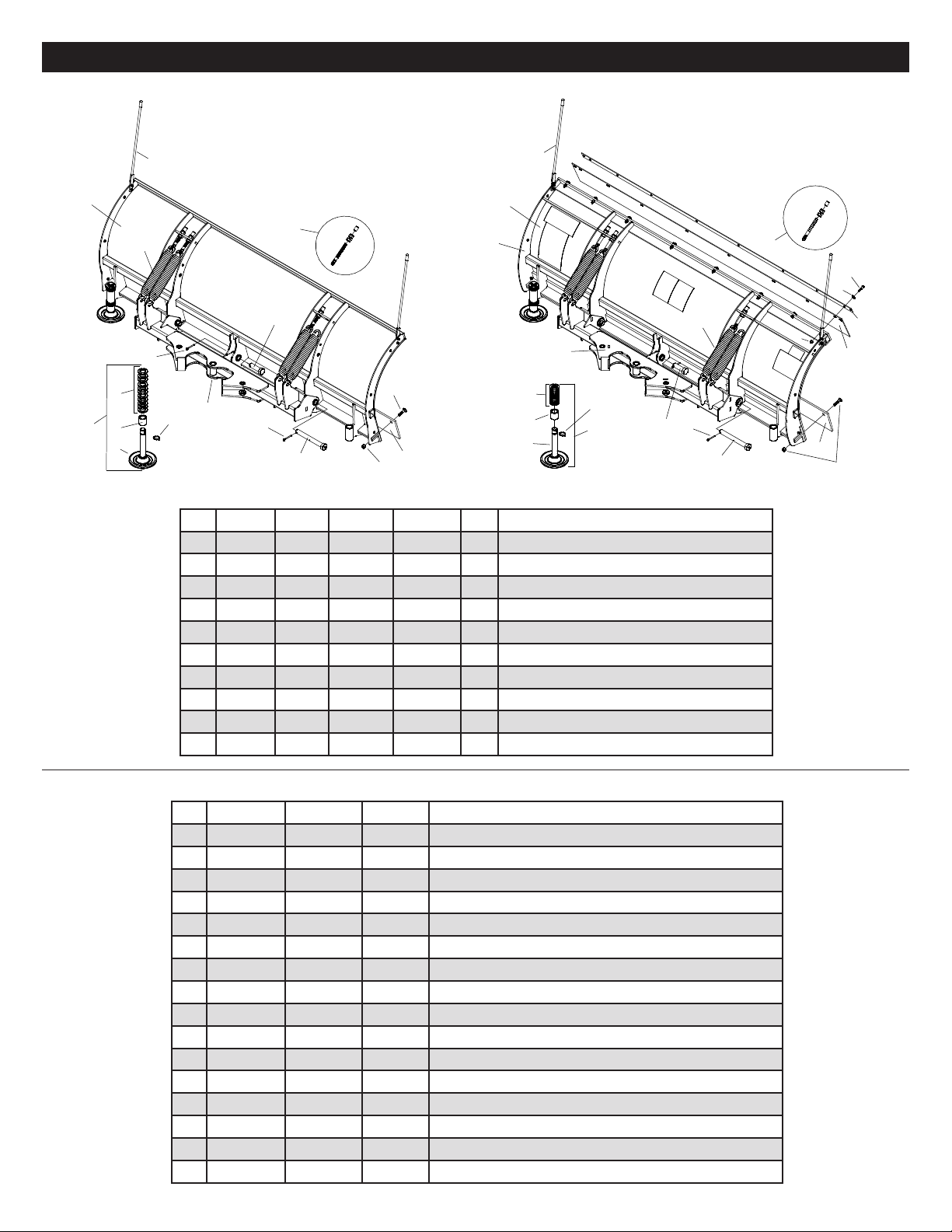

Item 7’ 6” 8’ 8’ 6” 9’ Qty Description
66 09400 09401 09402 09403 1 Moldboard Assembly
67 09797 09133 09134 07259 1 • Cutting Edge
68 08486 N/A N/A N/A 1 • Bolt C 1/2-13 x 1-3/4 & Locknut (Kit of 9 each)
68 N/A 08692 08692 N/A 1 • Bolt C 1/2-13 x 2 & Locknut (Kit of 10 each)
68 N/A N/A N/A 08318 1 • Bolt C 5/8-11 x 2-1/4 & Locknut (Kit of 12 each)
69 9362 09362 09362 09362 2 • Mushroom Shoe Casting Assy.
70 12394 12394 12394 12394 1 •• Runner Shoe Casting
71 12449 12449 12449 12449 1 •• Runner Spacer
72 20363 20363 20363 20363 11 •• Flatwasher 1-1/4
73 22083 22083 22083 22083 1 •• Linch Pin
Moldboard Parts List
Item 8’ 9’ Qty Description
09405 09407 1 Moldboard Assembly
74 09133 07259 1 • Cutting Edge
75 08692 N/A 1 • Bolt C 1/2-13 x 2 & Locknut (Kit of 10 each)
75 N/A 08318 1 • Bolt C 5/8-11 x 2-1/4 & Locknut (Kit of 12 each)
76 12811 12812 1 • Moldboard Frame Weldment
77 12814 12818 1 • Plastic Sheet
78 09362 09362 2 • Mushroom Shoe Casting Assy.
79 12394 12394 1 •• Runner Shoe Casting
80 12449 12449 1 •• Runner Spacer
81 20363 20363 11 •• Flatwasher 1-1/4
82 22083 22083 1 •• Linch Pin
83 12009 12118 1 • Deflector
84 12497 12031 1 • Re-Inforcement Bar
85 20051 20051 10 • Bolt H 3/8-16x1-1/2”
86 20305 20305 10 • Locknut 3/8-16
87 20353 20353 10 • Flatwasher 3/8”

(5)

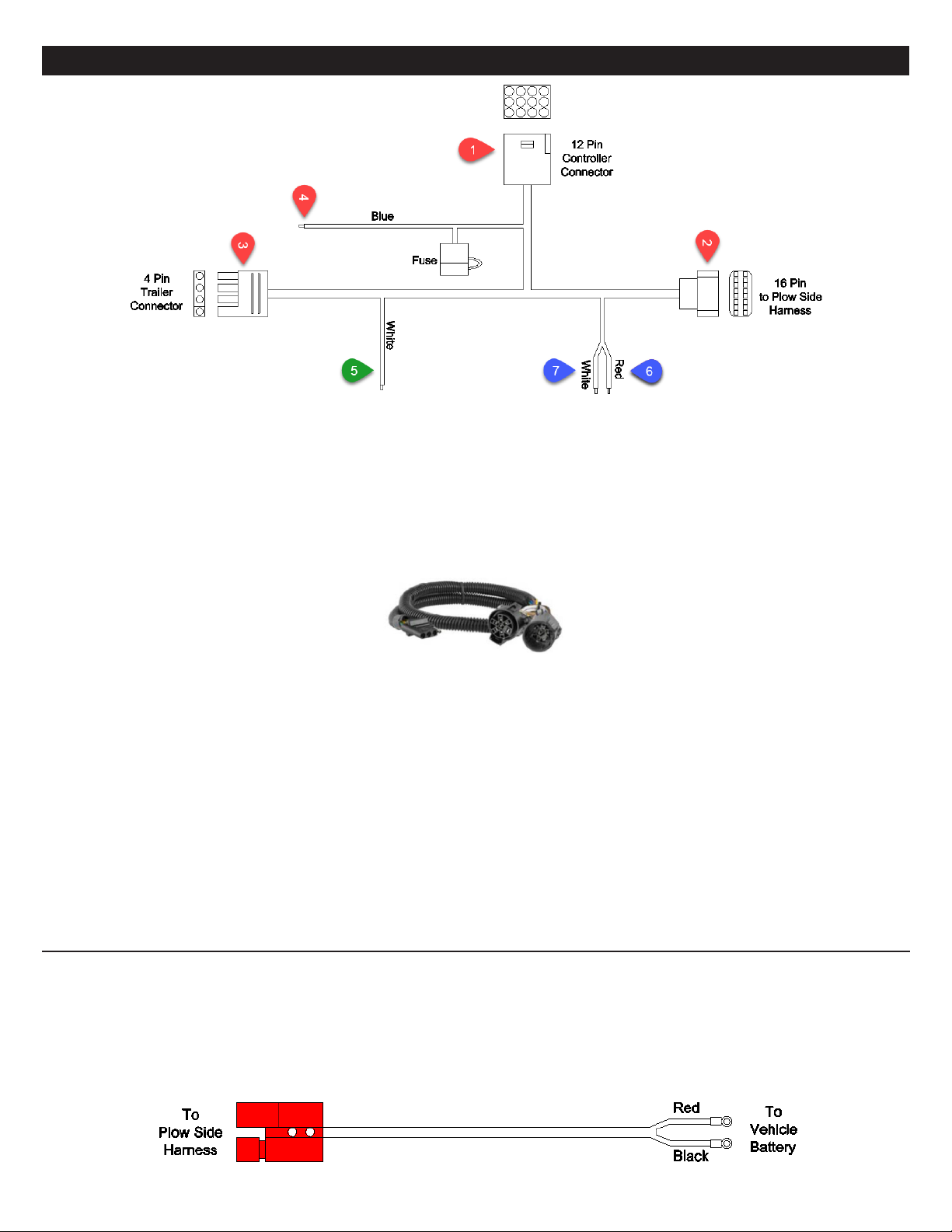

Wiring Harnesses & Controller
Vehicle Side HarnessVehicle Side Harness
1) Route the 12 pin connector into vehicle’s cab and plug into controller.
2) Route the 16 pin connector to the front of the vehicle and plug into the plow side harness.
3) Route the 4 pin connector to rear of vehicle and plug into vehicle’s trailer harness using the trailer adapter harness (50).
Use cable ties to ensure the harness is secured to the vehicle’s frame.
4) The BLUE wire will connect to the vehicle’s keyed accessory circuit. This is to ensure the plow turns on and o with the ve-
hicle’s ignition.
The following step is for 2015 & later GM vehicles with an alternator relay...The following step is for 2015 & later GM vehicles with an alternator relay...
5) The WHITE wire will connect to 2015 & Later GM vehicles with alternator relay. See Meyer Products Service Bulletin SB252.
The following two steps are optional and may be enforced by local law which requires your vehicle lights to be o while your plowThe following two steps are optional and may be enforced by local law which requires your vehicle lights to be o while your plow
lights are on and vice versa...lights are on and vice versa...
6) Connect the RED to the HIGH beam function.
7) Connect the WHITE to the LOW beam function.
Power HarnessPower Harness
1) Route through the vehicle’s grille.
2) Connect the terminals to the vehicle’s battery. Red to Positive and Black to Negative.
Trailer Adapter Harness

(6)
Plow Assembly & Adjustments
Plow MarkersPlow Markers
Attach Plow Markers (21) to moldboard using 5/16-18 x 1”Bolt (22), 5/16”
Flatwasher (24) and 5/16-18 Locknut (23).
Nite Saber LED LightsNite Saber LED Lights
See seperate Nite Saber LED instructions for further information.
Mount the lights as shown below.
Connect both male ends from the snow plow light to the female ends on
the Plow Side Harness. Ensure all wiring harnesses are secured against the
lift frame.
Check snow plow lights and blinkers to ensure proper operation. If operat-
ing in reverse (i.e. driver side blinking instead of passenger side), reverse the
harness connections.
Note: All electrical connections should have both ends coated with a dielec-
tric grease (Meyer Part # 15632) prior to nal installation. This will ensure a
good connection and help in preventing corrosion.

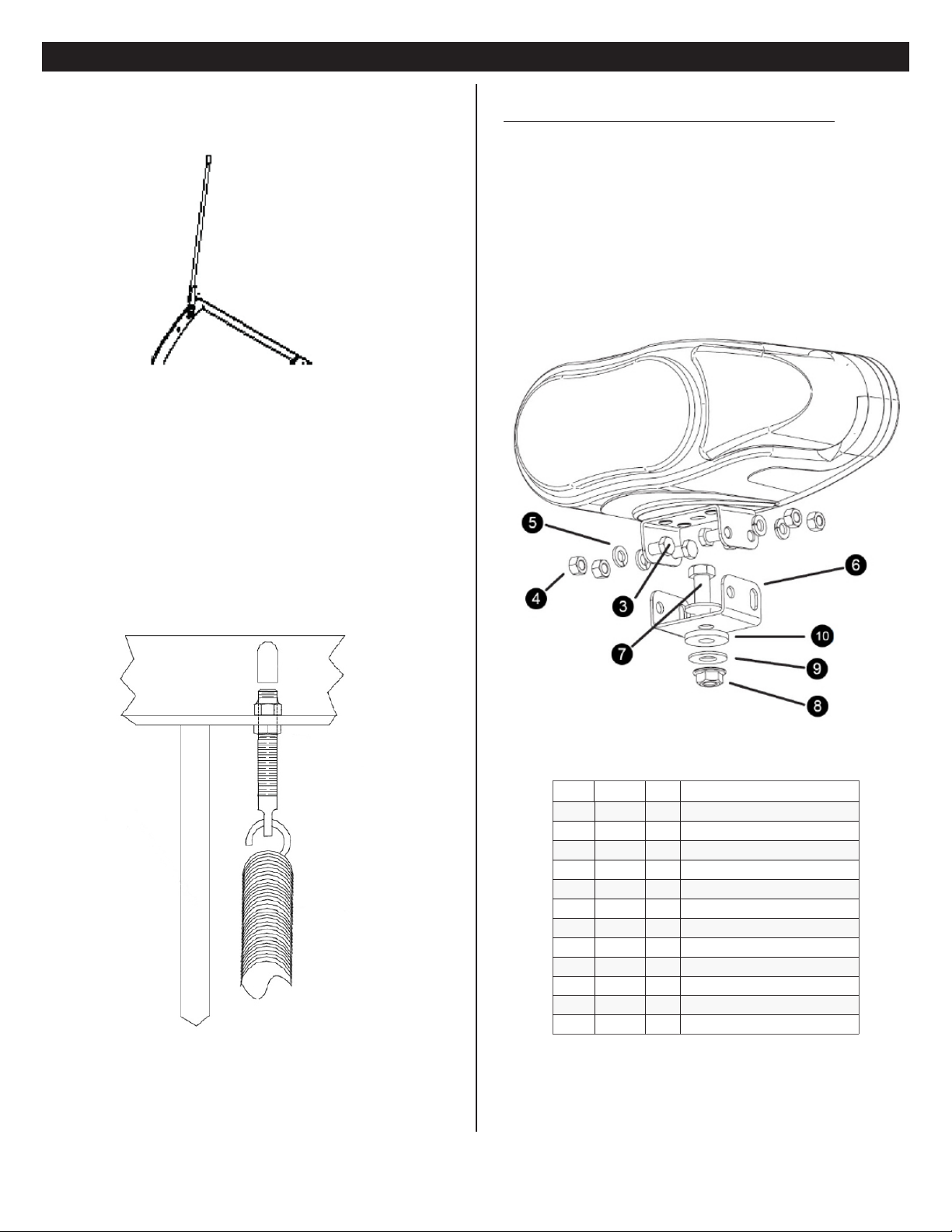

Nite Saber LED Parts List
Item Part QTY Description
1 23067 1 Nite Saber LED Kit
- 23066 1 • Passenger Side LED
- 23065 1 • Driver Side LED
2 08126 1 • Hardware Bag
3 ----- 8 • • Hex Bolt 3/8” x 3/4”, SS
4 ----- 8 • • Hex Nut 3/8”, SS
5 ----- 8 • • Lock Washer 3/8”, SS
6 ----- 2 • • Metal Bracket, Bottom
7 ----- 2 • • Bolt 1/2”- 13 x 1 1/12”, SS
8 ----- 2 • • Hex Lock Nut 1/2”- 13, SS
9 ----- 4 • • Flat Washer 1/2”, SS
10 ----- 2 •• Neoprene Grommet 1/2”
Trip Spring AdjustmentTrip Spring Adjustment
Attach Eye Bolts to Moldboard and Trip Springs to Pivot Bar, making
certain locknuts are positioned as shown below.
Make certain each Eye Bolt is in a vertical position as shown below so that
the Eye Bolt and Trip Spring hinge properly when the Moldboard trips.
Note: Proper tension is attained when the Trip Spring coils just begin to
seperate and then tightening top locknut four additional turns. Tighten
bottom locknut to secure Eye Boilt in positiion.
Install Eye Bolt Caps over exposed threads.
Parts indented are included in the carton, bag, or assembly
under which they are indented.

(7)
Plow Assembly & Adjustments

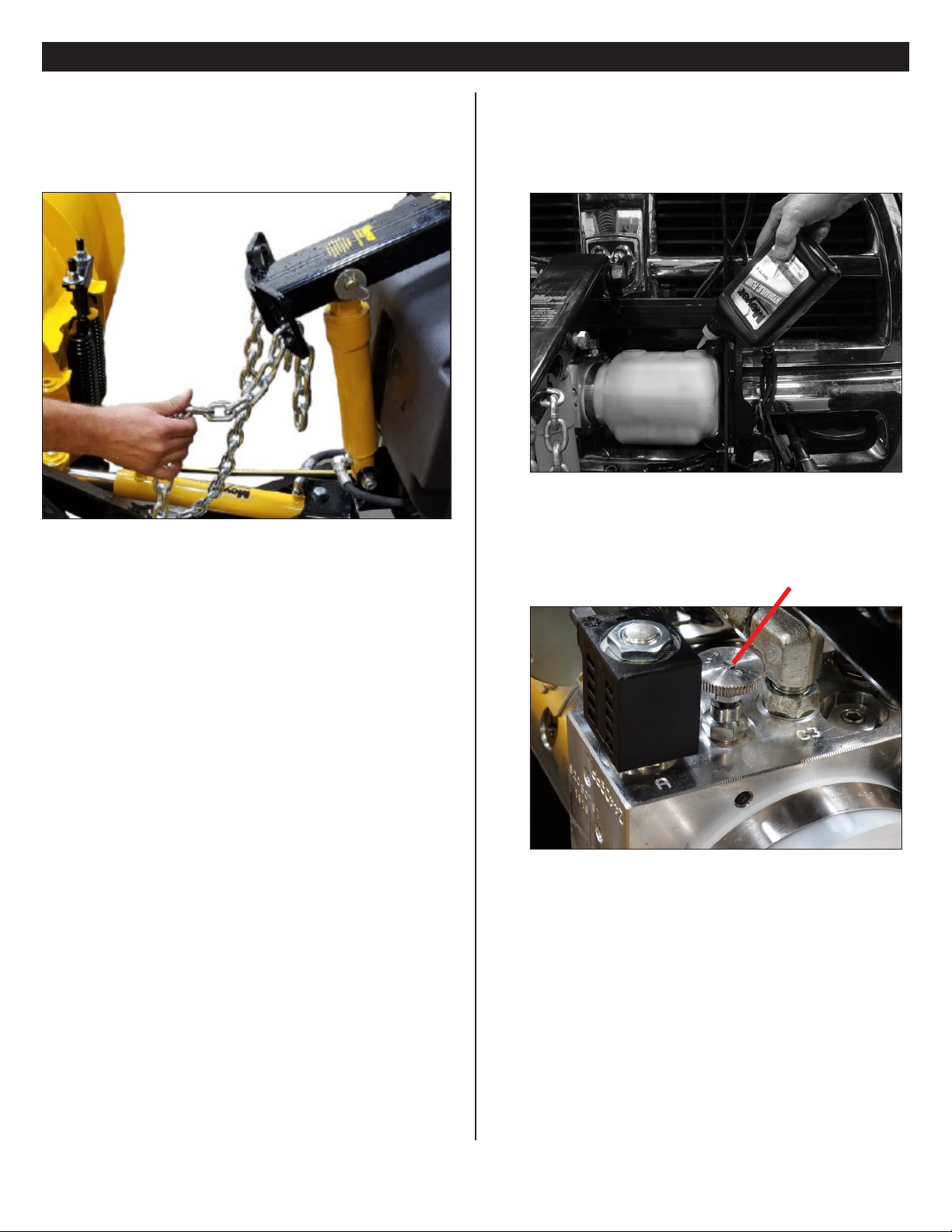

Lift ChainsLift Chains
Attach the Lift Chain to the Lift Arm through the two hooks on the lift
arm. Adjust the lift chain at the lift arm so that there are 2-3 links of slack.
This ensures that the plow blade will lift fully and be able to follow the
ground contour while plowing.
Drop Speed AdjustmentDrop Speed Adjustment
Drop Speed Adjustment: Loosen jam nut and turn knob clockwise to slow
the drop of the plow and counter clockwise to speed the drop of the plow.
Tighten jam nut.
Drop Speed Adjustment
Hydraulic Fluid LevelHydraulic Fluid Level
Top o the unit to the ll line on the reservoir with Meyer M-1 Hydraulic
Fluid.
NOTE: Proper uid level is to the ll line on the reservoir. It must be checked
with the lift cylinder fully retracted.

(8)

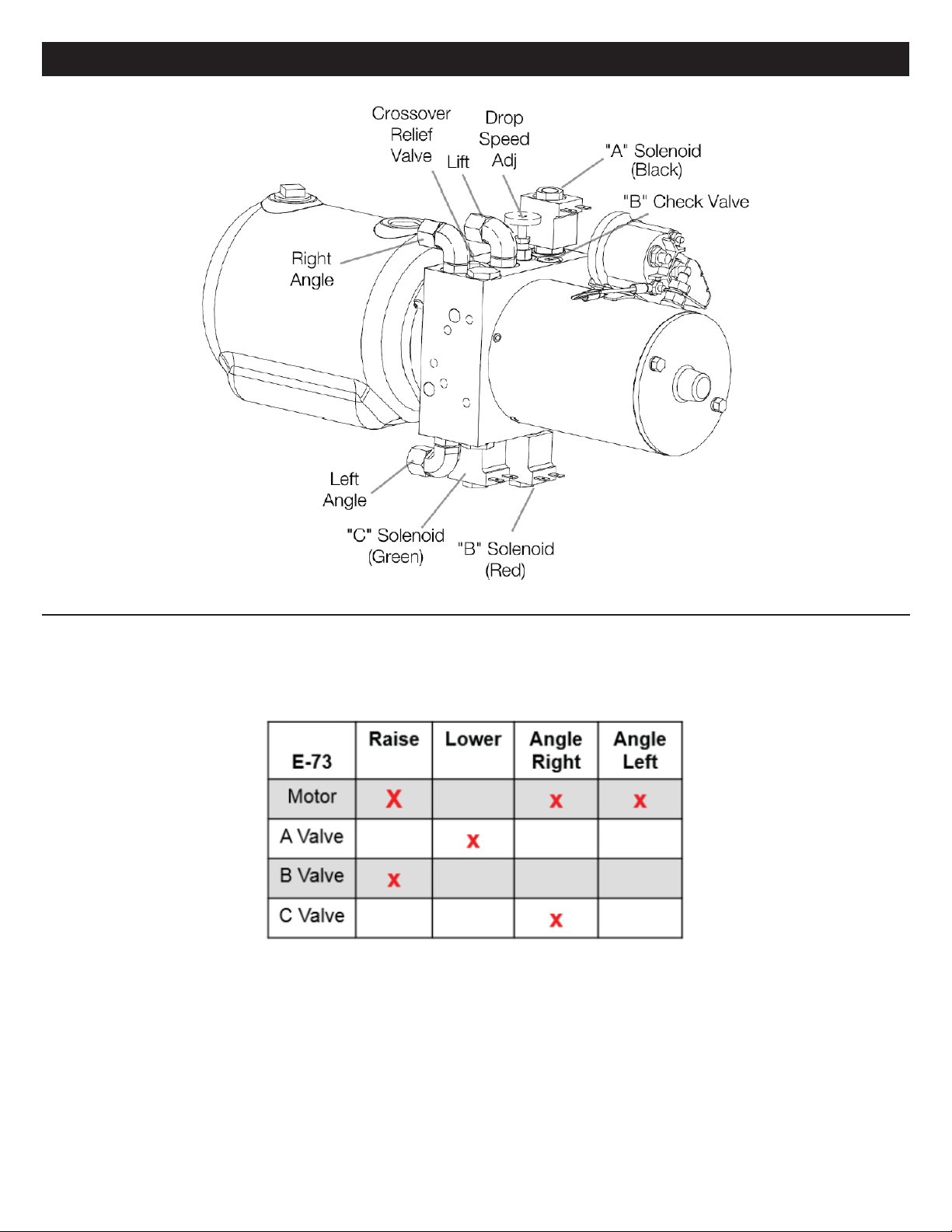

16027 E73 Hydraulics

(9)
16025 V73 Hydraulics
NOTE: 16025 may be used in place of 16027. In order to do so, two of the ports will be capped o while the left and right angling hoses will need to be removed and
swapped. Move 22921 to the left angling ram and 22885 to the right angling ram. See the image above for further information.
