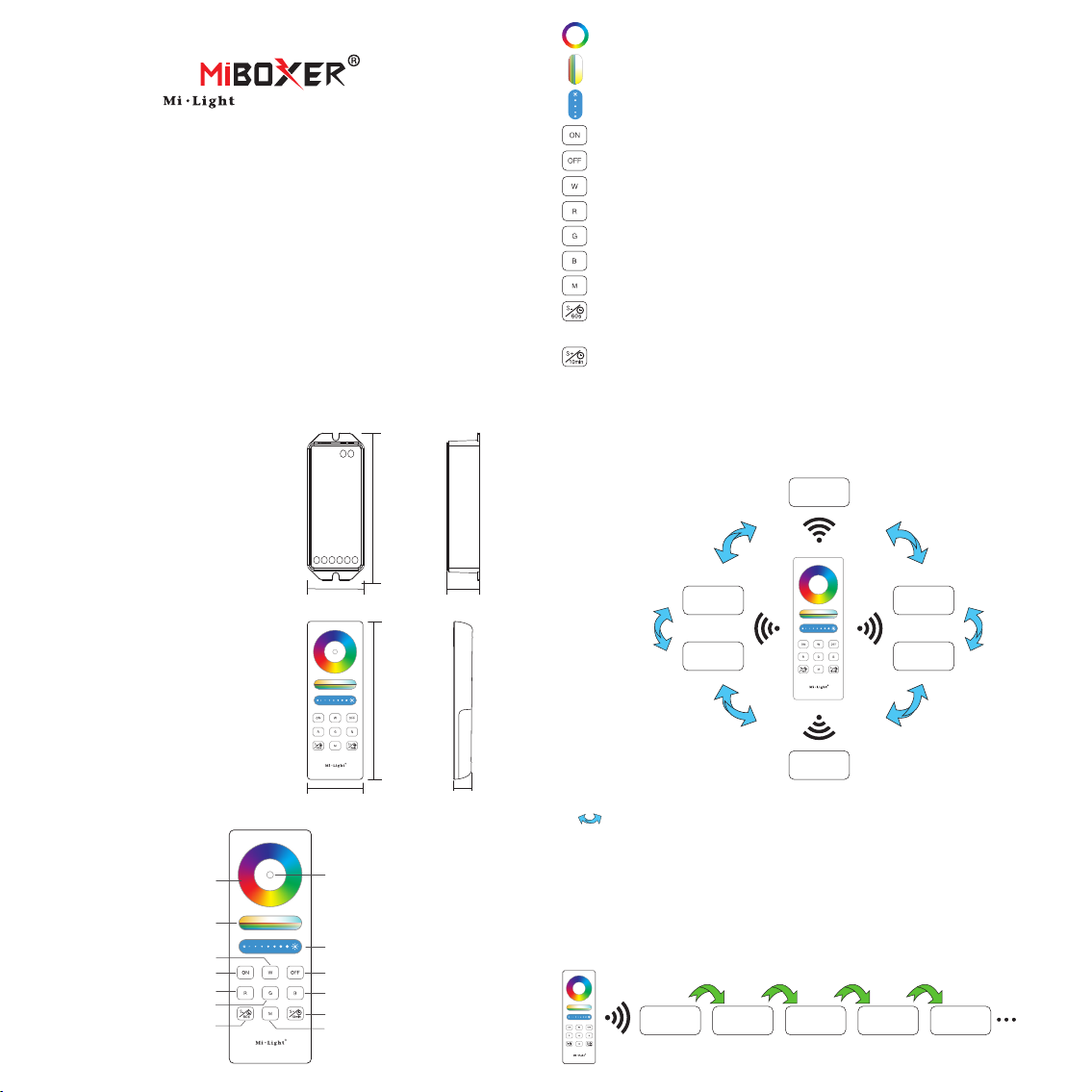

Mi-Light MIBOXER FUT043A User manual

5. Auto-transmitting function
Auto-transmitting Diagram
One strip controller can transmit the signals from the remote control to another controller within
30m, as long as there is a strip
controller within 30m, the remote control distance can be
limitless.
Controller Controller Controller Controller
Auto-transmitting Auto-transmitting Auto-transmitting
Controller
Auto-transmitting
Different controllers can work synchronously when they are started at different times, controlled
by the same remote, under same dynamic mode and with same speed.
Auto-synchronization Diagram
Controller
Controller
ControllerController
Controller
Controller
4. Auto-synchronization function
Remark:
1. Indicating Auto-transmitting.
2. Controller will be auto-synchronizing in the same dynamic modes and within 30m controlling
distance.
Static Blue Light
Speed+ /10min Delay OFF
Mode
Dimming Slider
OFF
Indicator light
Color Ring
Static Green Light
Speed- / 60S Delay OFF
ON / Link(Unlink)
Static Red Light
Saturation / CCT Control
White
Smart(set) LED strip control system is our newly developed high-end LED controller controlled by
wireless remote controller, also with smart phone control and 4G long distance control(2.4GHz
gateway is needed). The controller has auto-transmitting and auto-synchronizing function and
with RGB,RGBW and RGB+CCT output mode.
This controller adopt the widely used 2.4GHz wireless technology with the features of low power
consumption, long signal transmitting and strong anti-interference, etc. One compatible remote
control many controllers at the same time. Widely used on the controlling of hotel lighting and
home lighting.
1. Introduction
Model No.: FUT043 / FUT044 / FUT045
Working Voltage: DC12V~24V
Output Max: 6A/Channel
Total Output Max: 15A
Working Temperature: -20~60°C
RF: 2.4GHz
Max Controlling Distance: 30m
Output Connection: Common anode
Size: 37*28*97mm
2. Technical Data
Controller
Model No.: FUT088
Working Voltage: 3V(2*AAA Battery)
Transmitting Power: 6dBm
Standby Power: 20uA
Working Temperature: -20~60°C
Radio Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Control Distance: 30m
Size: 47*16.5*134mm
Remote control
Model No.: FUT043A / FUT044A / FUT045A
Smart LED Control System
Slide the brightness slider to adjust the brightness.
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Touch OFF button, turn off the linked device.
Static Green Light.
Static Blue Light.
Dynamic mode switching button.
Static Red Light.
Press the button to get white light.
Touch ON button, turn on the linked device.
Accelerate the speed under present dynamic mode.
Under static mode, Long press for 2 seconds, the light shine once,
the light will be off after 10 minutes.
Slow the speed under present dynamic mode.
Under static mode, Long press for 2 seconds, the light shine once,
the light will be off after 60 seconds.
3. Products Key Diagram
28mm37mm
97mm
47mm
134mm
16.5mm
Subordinate New Brand
0288

Controller connect to RGB LED strip diagram
AC DC12V/24V
AC TO DC
+R G B
V+
INPUT
V+RGB
OUTPUT
RGB LED Strip Controller
Model No.: FUT043
Input voltage: DC12V~24V
Output: 6A/Channel
Total output Max: 15A
Working temp.: -20~60°C
RF: 2.4GHz
Subordinate New Brand
Transmitting power: 6dBm
Controlling distance: 30m
www.futlight.com
Made in China
Controller connect to RGBW LED strip diagram
AC DC12V/24V
AC TO DC
+R G B W
V+
INPUT
V+RGBW
OUTPUT
RGBW LED Strip Controller
Model No.: FUT044
Input voltage: DC12V~24V
Output: 6A/Channel
Total output Max: 15A
Working temp.: -20~60°C
RF: 2.4GHz
Subordinate New Brand
Transmitting power: 6dBm
Controlling distance: 30m
www.futlight.com
Made in China
Controller connect to RGB+CCT LED strip diagram
AC DC12V/24V
AC TO DC
+
R G B CW WW
V+
INPUT
V+RGBCW
OUTPUT
WW
RGB+CCT LED Strip Controller
Model No.: FUT045
Input voltage: DC12V~24V
Output: 6A/Channel
Total output Max: 15A
Working temp.: -20~60°C
RF: 2.4GHz
Subordinate New Brand
Transmitting power: 6dBm
Controlling distance: 30m
www.futlight.com
Made in China
Dynamic Mode Saturation
Brightness
&Speed
Adjustable
Unadjustable
Unadjustable
Seven color gradual change
White light Gradual change
RGB gradual change
Seven color jump to change
Jump to change randomly
Red light gradual change+Flash 3times
Green light gradual change+Flash 3times
Blue light gradual change+Flash 3times
White light gradual change+Flash 3times
1
2
3
4
5
6
7
8
9
Adjustable
Adjustable
Number
6. Dynamic Mode Sheet
9. Attention
1. Please check whether the input voltage of the constant voltage power supply is in accordance
with the controller, and please check the connection of both the cathode and anode, otherwise
the controller will be broken.
2. Please don’t connect wires with power on. Please turn on again only when it is in right
connection and no short circuit.
3. Please do not use the controller in the place with widely range metal area or strong
electromagnetic wave nearby, otherwise, the remote distance will be seriously affected .
8. Controller connect to LED strip diagram
Unlinking Instructions
The light blink 3 times
slowly means the linking is
done successfully.
3
If the light not blink slowly, the linking failed, Pls switch off the light again,
and follow the above steps again.
7. Linking&Unlinking
Linking Instructions
Switch off the light,
after 10 seconds
switch on again.
1When the light on, short
press " ON " 3 times
within 3 seconds.
2
The light blinking 10 times
quickly, means the unlinking
successfully.
3
If the light not blink quickly, the unlink failed, pls switch off the light again, and
follow the above steps to unlink again.
Switch off the light,
after 10 seconds
switch on again.
1When the light on, short
press " ON " 5 times
within 3 seconds.
2
Remark: The light can be working after linking with the remote controller.
B
+
G
R
Power
Supply
controller
B
+
G
R
Power
Supply
controller
B
+
G
R
Power
Supply
controller
B
+
G
R
Power
Supply
controller
Link/Unlink
button
Link/Unlink
button
