MICODUS MV710G User manual

4G MV710G User Manual V1.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2023 MiCODUS | All Rights Reserved
R

2.Specifications
4G LTE+
2G GSM
1. Main Features
Historical Route
Playback
Remotely Cut Off
/Resume Fuel
Realtime
Tracking
9-95V Wide
Working Voltage
Vibration
Alarm
ACC Status
Detection
ACC
Tow Alarm Geo-fence Lifetime Free
Tracking Platform
iOS & Android
Power failure
alarm
Engine On/
OFF Alarm
ON / OFF
GPS+BDS
APP
Overspeed
Alarm
Battery low
voltage alarm
Model
Weight
Dimensions
MV710G
40g
79mm(L)*33mm(W)*16mm(H)
Device Information
Working Voltage
Working Current
Sleep Current
Working Temperature
Working Humidity
Working Frequency
SIM Card
GNSS
GPS Frequency
BDS Frequency
Satellite Channels
Hot/Cold Start
Positioning Antenna
<10m（1σ）Accuracy
ACC Detection
Cut Off Fuel/Power
SOS（optional）
Microphone
Open door Alarm (optional)
GSM/2G : 850/900/1800/1900MHz
LTE/4G: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
Micro SIM
Celluar Antenna Built-in, FPC
GPS+BDS
L1: 1575.42±1.023MHz
B1:1561.098±2.046MHz
32
Sensitivity -162 dBm
<1s，<32s @ Open Sky
Built in ceramic dielectric antenna, 18*18*4mm
1
Standard
1
1
1
9-95V DC
12V/average 35mA
12V/average 10mA
-20℃- 75℃
10%-85% RH non-condensing
Working Parameters
Celluar Specifications
GNSS Specifications
External Interface
Battery Built-in 60 mAh 3.7V polymer battery

3.How to manage the tracker to get online?
Normal SIM
1MB Free
PrepaidData
www.spionlink.com
AddCredit
Data Only
NoSMS & Call
Roaming
Unavailable
TopUp
Step 1
Step 2

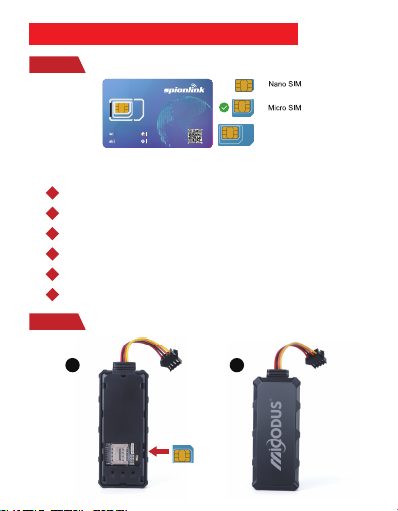

Please get a suitable SIM card from your local place. The
SIM card requirements
SIM card must meet below points:
It must be compatible with the 4G LTE or 2G GSM network
Please enable SMS, call, internet data traffic of the SIM card
Remove the PIN code
Enable the caller ID display feature
Use Nano size SIM card for the tracker
Please inquire the SIM card provider for the exact correct APN
information
SIM card installation
1MB Free
PrepaidData
www.spionlink.com
AddCredit
Data Only
NoSMS & Call
Roaming
Unavailable
TopUp
12

Step 3 Wiring
Step 4 Configure APN
NOTE
: After installed SIM card correctly , it is very important to
connect the tracker with external power no less than 12V for power supply
before operation!
APN,ApnName,User,
Password# SET APN OK APN,orange, orange,orange#
APN,internet#SET APN OKAPN,ApnName#
SMS Command
Format Reply Example Note
If the SIM card has APN user and APN
password, then use this command.
If the SIM card operator doesn't have APN
user and APN password, then please use this
command.
Please get the exact correct APN name from local SIM card provider.Take the tracker
to a good signal place for operation and configure the APN for it as below:
+
-
+
-
Battery
9V 95V
START
ON
ACC
OFF
Ignition
key
Pump
Relay

4. Package Content
GPS Main Unit
Function Cable
User Guide
Genuine Packing Box
x 1
x 1
x 1
x 1
5. Functions Explanation
Step 5 Indicator status description
* Set center number by this sms command:
CENTER,A,center number#
* Send this sms command from the center number:
RELAY,A#
a. Cut Off Fuel/Resume Fuel
A=0/1/2; (0: Resume Fuel; 1: Cut Off Fuel Immediately;
2: Cut Off Fuel Safely)
For example:
CENTER,A,center12345678910#
SET CENTER NUMBER OK
RELAY,1#
MV710G
Note: The APN information is very important, it must 100% correct to match with the sim card of
the tracker, if you configured wrong APN, the tracker also will reply "SET APN ok" but it will
can't get online!
LED Event State
Searching for network
CELL LED
(YELLOW) Network has been registered
Flash every 1 second
Solid
GPS has fixed
GPS is in fixing Flash every 1 second
Device is working but stopped more than 5min
Device has not been turn on
Device ran out of battery
GPS LED (BLUE)
ALL LED
Solid
ALL LED TURN OFF
FUEL WILL BE CUT OFF
IMMEDIATELY

b. Vibration Alert:
This vibration alert function just work under stationary
status. How to use this function:
c. External Battery Low Voltage Alarm
* Enable the device to enter into arm mode by this
sms command: ARM#
* Conifgure the alarm ways by this sms command:
SENALM,[A][,M]#
A=ON/OFF, default: OFF;
M=0/1/2, way of alarming,
0 :GPRS only, 1: SMS+GPRS, 2: GPRS+SMS+phone call, default:1
* Configure SOS numbers for the tracker by this sms command:
SOS,A,1st number,2nd number,3rd number#
* Command format: LVALM,A,B,M#
d. Engine Start and Flameout Alarm
* Command format: ACCALM,A,B,M#
A=ON/OFF, default：ON;
A=ON/OFF, Default: ON;
B: 0/1/2; 0: ACC ON Alarm; 1: ACC OFF Alarm; 2: ACC
ON&OFF Alarm; Default:2
M: 0/1/2 (way of alarm): 0 : Server only,
1: SMS+Server, 2: SMS+Server+Call, Default:1;
For example: ACCALM,ON,2,1#
This means once the device detects engine start and engine flameout it will send alarm
message via server and sms.
M=0/1/2, way of alarming, 0: Server only,
1: SMS+Server, 2: SMS+Server+Call, default:1；
For example: LVA LM,ON,11.5,1#
This means once the external battery voltage is less than 11.5v the device will send alarm
message via server and sms.
B=9-95V (voltage alarm threshold) , default: 11.1v
3 SOS numbers supports at the most
* Keep the device under stationary status more than 5min to let it enter into sleep arm mode;
* Vibrate the device then the tracker will send the vibration alarm messages
For example:
SOS,A,12345678910#
SET SOS NUMBER OK
ARM#
SET ARM MODE OK
SENALM,ON,1#
SET VIBRATE ALARM OK
MV710G
For example:
LVALM,ON,11.5,1#
SET LOW VOLTAGE ALARM OK
MV710G
For example:
ACCALM,ON,2,1#
SET ACC ALARM OK
MV710G

Unable to connect to
tracking platform
Check the APN and settings.
Check whether the data service of SIM card is enabled.
Check the balance of SIM card.
Tracker shows offline
Check whether external power is still connected.
Check if the vehicle entered network blind area.
Check the balance of SIM card.
7. Troubleshooting
Type Use
Location drift
In area with poor GNSS signal (tall building around or
basement), drifting may happen.
Check whether vibration happens around to trigger the
accelerator.
Unable to locate
Make sure the top side facing upward without metallic things
shielded.
Make sure it’s not in area with no satellite coverage.
No command reply
Make sure command format is correct.
Vehicle may be in network blind area.
Make sure SIM card is well inserted and has SMS service.

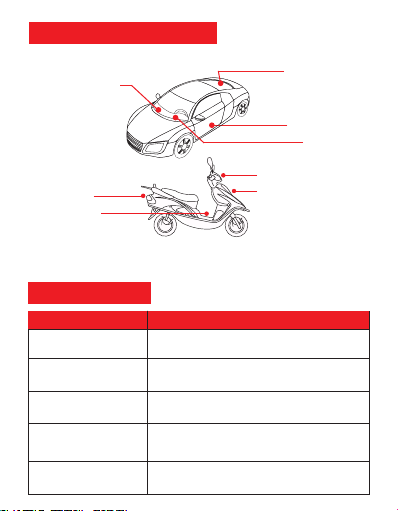

6. Installation Recomendation
1) The decice should face up to the sky.
2) Metal therma barrier of heating layer of the windshield affects the signal.
1
3
4
2
Inside the head light
Under the pedal
Inside the front cover
Inside the taillight
component
or plastic
Inside Door Pedal
Under front windshield
Around dashboard
Under rear windshield
1
2
3
4

8. Full SMS Commands List
APN,CMNET# (if no name & Password)
APN,internet,internet,internet# (if with name &
Password)
SERVER,1,d.micodus.net,7700#
SERVER,0,47.254.77.28,7700#
DEVICE IMEI No. : 0123456789
NEW IMEI No. : 354188046912460
RESTORE FACTORY SETTINGS OK
RESTARTING...1 MINUTE WILL BE OK
OPEN TRAFFIC OK
CLOSE TRAFFIC OK
APN Setting
Server Setting
Check IMEI
Change IMEI
Restore factory settings
Restart device
Internet Traffic Switch
Time Zone Setting
Set the angle upload
Mileage Statistics
ANGLEREP,X,A,B#
ANGLEREP,OFF#
MILEAGE,A,B#
MIELEAGE#
CANCEL UPLOAD ANGLE OK
Query current mileage
GMT,A,B,C#
Example:GMT,E,8# (Means East +8 zone, no half
time zone)
GMT,W,9,30# (Means West -9.5 zone, has half
time zone)
A: E / W, E: East time zone, W: West time zone
B: 0 ~ 12; whole time zone
C: 0/15/30/45, half time zone
TRAFFIC,ON#
TRAFFIC,OFF#
RESTART#
FACTORY#
APN,Network name[,name,
password]#
If set with Domain Name:
SERVER,1,Domain,Port#
If set with IP: SERVER,0,
IP,Port#
IMEI#
IMEICHG,354188046912460#
Functions Command Format Explanation
Setting Commands
Example: ANGLEREP,ON,30,3# ( Means the
tracker will send a data supplement when the
angle change exceeds 30 degrees and lasts for
3 seconds)
X=ON/OFF, default：ON;
A=5～180 degrees, diversion angle degree,
default: 30 degrees；
B=2～5 seconds, detecting time, default: 3
seconds,
Example: MILEAGE,ON,5000# (Means enable the
mileage statistics feature, the mileage initial value is
5000km)
A=ON/OFF, On/Off mileage calculation, default: Off
B=0～999999，Mileage initial value , unit：km ;
default: 0, mileage return to zero

Add SOS
Administrator Number
SOS,A,1st number,2nd number,
3rd number#
Example:
Set 3 numbers at a time:
SOS,A,13800138000,13800138001,13800138002#
Set the first numberseparately:
SOS,A,13800138000#
Set the second number separately:
SOS,A,,13800138001#
Means to set 3rd number separately:
SOS,A,,,13800138002#
Delete SOS
Administrator Number
Add Center Number
Delete Center Number
Data Upload
Time Interval
Heartbeat Packet
Upload
Sensor Sensitivity
Arm manually ARM#
SOS,D,1st number,2nd number,
3rd number# or SOS,D,1,2,3#
CENTER,A,center number#
CENTER,D#
TIMER,T1,T2#
HBT,time#
LEVEL,A#
Example:
Directly delete the number:
SOS,D,13800138000#
Delete 1st number:
SOS,D,1#
Delete 2nd number:
SOS,D,2#
Delete the 2nd and 3rd number:
SOS,D,2,3#
DEL CENTER OK
Set the device into arm mode
Disarm manually DISARM# Set the device out of arm mode
Example: CENTER,A,008613800138000# (Means
the tracker will just can be controlled by this number
008613800138000, 0086 is country code)
NOTE:
1. Please set up the center number with the country
code as prefix!
2. After set up center number, the tracker will just can
be controlled by center number, it will not reply
commands from other numbers!
Example: HBT,3# (Means the tracker will send
heartbeat data package to server every 3 min for
connection maintenance)
NOTE: Range :1-60min, default 3min.
Example: LEVEL,2# (Means set up the shake
sensor level to 2)
NOTE: A：Sensitivity Level 1-9 (1-9 is from week
to strong vibration)
Example: TIMER,5,180# (Means the tracker will
upload data every 5s when ACC is on and 180s
when ACC is off)
T1 ranges 0/5~18000 or 0(seconds), upload interval
when ACC ON, 0 means no upload, default is 10;
T2 ranges 0/5~18000 (seconds), upload interval
when ACC OFF, default is 10;

Version Inquiry
Parameter Inquiry PARAM#
Latitude&Longitude
Inquiry
Map URL Inquiry
Address Inquiry
WHERE#
URL#
POSITION#
VERSION#
Functions Command Format Explanation
Inquiry Commands
Example: CENTER,A,008613800138000# (Means
the tracker will just can be controlled by this number
008613800138000, 0086 is country code)
NOTE:
1. Please set up the center number with the country
code as prefix!
2. After set up center number, the tracker will just can
be controlled by center number, it will not reply
commands from other numbers!
A=1/2;
1: Enable relay immediately
2: Enable relay safely
For Example:
1. RELAY,1#
A is set to 1, the relay command will be executed
immediately.
2. RELAY,2#
A is set to 2, the relay command will be executed
safely. The vehicle is safe only when the speed is
lower than 20km/h if GPS is fixed, or the vehicle
is stationary if GPS is not fixed.
Device Reply Example:
ID:9301074948
IMEI:354188046912460
ICCID:898602A51314F1298017
VERSION:MV930G_V2.0.2 BUILD:OCT 19
2016 16:31:00
Device Reply Example：
ID:9301074948
IMEI:861157040411486
APN:CMNET
IP:47.254.77.28:7700
TIMER:10,180
SPEEDLIMIT: 120km/h
ANGLERPT: 30'
CENTER: 13428768257
SOS:13267052361,13488888888,13599999999
GMT:E8.00
LAT:N23.02930,LON:E114.32180,COURSE:0.00,S
PEED:0.00KM/H,DATETIME:2015-05-23 14:39:11
http://map.google.com/?q=22.557868,113.935090
<0.0km/h 0.0> <2014-12-12 07:32:13>
IMEI:354188047752402
NOTE: Reply message’s language is determined
by device’s language setting, if get position content
failed, device will reply Google Map location link.
Example: HBT,3# (Means the tracker will send
heartbeat data package to server every 3 min for
connection maintenance)
NOTE: Range :1-60min, default 3min.
Example: LEVEL,2# (Means set up the shake
sensor level to 2)
NOTE: A：Sensitivity Level 1-9 (1-9 is from week
to strong vibration)
Example: TIMER,5,180# (Means the tracker will
upload data every 5s when ACC is on and 180s
when ACC is off)
T1 ranges 0/5~18000 or 0(seconds), upload interval
when ACC ON, 0 means no upload, default is 10;
T2 ranges 0/5~18000 (seconds), upload interval
when ACC OFF, default is 10;
Cut Off / Resume Fuel RELAY,A#
RELAY,0# RESUME FUEL OK

Overspeed Alarm
Setting
SPEED,A,B,M#
SPEED,OFF# CANCEL OVERSPEED ALARM OK
BATTERY: XX% (Built-in Battery Power Percent)
INTERNET: CLOSED (No Network)
FAILED (Connecting Network or Failure)
SUCCESS (Connected to Network）
NET: NONE (No celluar Signal), HIGH / MED /
LOW (Signal Strength) , 18(Signal value)
GPS: CLOSED (GPS Module Closed);
FIXED,N (Positioned and satellite number);
UNFIX,0 (Not Positioned yet)
SPEED: 30KM/H
ACC: ON / OFF (ACC on or off)
RELAY: ON / OFF (Relay on or off)
POWER: CONNECTED / DISCONNECTED
(Power Connected or Disconnected),
12.5V (Vehicle battery voltage)
SENSOR: ON/OFF (Sensor on or off),
LEVEL: 3 (Sensitivity level 1-9)
STATE: ARM (Arm or Disarm)
Functions Command Format Explanation
Alarm Commands
A=1/2;
1: Enable relay immediately
2: Enable relay safely
For Example:
1. RELAY,1#
A is set to 1, the relay command will be executed
immediately.
2. RELAY,2#
A is set to 2, the relay command will be executed
safely. The vehicle is safe only when the speed is
lower than 20km/h if GPS is fixed, or the vehicle
is stationary if GPS is not fixed.
ID: 19172012644 (ID number of device)
STATE: ARM(DISARM)(Defense status of device)
SPEED: ON/OFF(alarm status); 30km/h(alarm
value);alarm way
SHIFT: ON/OFF(alarm status); 300m(alarm
value);alarm way
VIBRATE: ON/OFF(alarm status);3(sensitivity
level);alarm way
ACC: ON/OFF(alarm status); 0/1/2(0: ACC ON, 1:
ACC OFF; 2: ACC ON&OFF) (alarm situation); alarm
way ; ;
POWER DOWN: ON/OFF(alarm status);alarm way
LOW VOLTAGE: ON/OFF(alarm status);alarm way
NOTE: Alarm Ways: 0/1/2 ( 0 : SERVER only, 1:
SMS+GPRS, 2 : GPRS+SMS+CALL )
Example: SPEED,ON,100,1# (When the speed of the
tracker exceeds 100km/h it will send alarm message
via SMS and server)
A=ON/OFF, enable or cancel over speed alarm,
default: OFF
B=1～255(km/h), speed limit, default：100(km/h);
M=0/1/2, way of alarm, 0 : Server only, 1:
SMS+Server, 2: SMS+Server+Call default：1.
Status Inquiry
Alarms Parameters
STATUS#
ALARM#

Vibration Alarm
Setting
Shift Alarm Setting
Auto Arm By ACC
SENALM,A,M#
SENALM,OFF# CANEL VIBRATE ALARM OK
SHIFT,A,B,M#
SHIFT,OFF# CANCEL SHIFT ALARM OK
ACCARM,ON,M#
ACCARM,OFF# Close auto arm function
ACC Status
Change Alarm
Power Disconnect
Alarm
Low Voltage Alarm
Setting
ACCALM,A,B,M#
ACCALM,OFF#
PWRALM,A,M#
PWRALM,OFF#
LVALM,A,B,M#
LVALM,OFF#
CANCEL LOW VOLTAGE ALARM OK
Cancel ACC alarm function
Close power disconnect alarm
ID: 19172012644 (ID number of device)
STATE: ARM(DISARM)(Defense status of device)
SPEED: ON/OFF(alarm status); 30km/h(alarm
value);alarm way
SHIFT: ON/OFF(alarm status); 300m(alarm
value);alarm way
VIBRATE: ON/OFF(alarm status);3(sensitivity
level);alarm way
ACC: ON/OFF(alarm status); 0/1/2(0: ACC ON, 1:
ACC OFF; 2: ACC ON&OFF) (alarm situation); alarm
way ; ;
POWER DOWN: ON/OFF(alarm status);alarm way
LOW VOLTAGE: ON/OFF(alarm status);alarm way
NOTE: Alarm Ways: 0/1/2 ( 0 : SERVER only, 1:
SMS+GPRS, 2 : GPRS+SMS+CALL )
Example: SENALM,ON,2# (Means enable the vibration alarm,
and the alarm message will be sent via SMS, server and call
once it is triggered)
A=ON/OFF, default: OFF;
M=0/1/2, way of alarming, 0 : Serveronly, 1: SMS+Server, 2 :
SMS+Server+Call, default:2
Example: SHIFT,ON,300,1# ( Means Setting 300 meters shift
alarm range, when the ignition turned off, vehicle’s 300 meters’
shift will trigger the alarm, the alarm message will be sent via
SMS and server )
A=ON/OFF; default:ON
B=Shift Distance (Range: 100-9999m)
M=0/1/2; way of alarm, 0 : Server only, 1: SMS+Server, 2:
Server+SMS+CALL, default:1
Example: ACCARM,ON,60# (Means when the engine turned
to off status, the tracker will enter into arm status automatically
after 60s)
Arm Time: M=5-1800s, default: 60s
Example: ACCALM,ON,2,2# (Means enable this alarm type,
tracker will send alarm message via SMS, server and call
when engine start and flameout)
A=ON/OFF, Default: ON;
B: 0/1/2; 0: ACC ON Alarm; 1: ACC OFF Alarm; 2: ACC
ON&OFF Alarm; Default:2
M: 0/1/2 (way of alarm): 0 : Server only, 1: SMS+Server, 2:
SMS+Server+Call, Default:1;
Example: PWRALM,ON,1# (Means when the external power
disconnect the tracker will send alarm message via SMS and
server)
A=ON/OFF, default ON;
M=0/1/2, ways of alarming, 0: Serveronly, 1: SMS+Server, 2 :
SMS+Server+Call, default:2；
Example: LVALM,ON,11.2V,1# (Means once the external power
voltage is less than 11.5v the tracker will send alarm message
out via SMS and server)
A=ON/OFF, default：ON;
B=9-95 V, Low voltage threshold, can be a decimal, such as
12.5 V
M=0/1/2, way of alarming, 0: GPRS only, 1: SMS+GPRS, 2:
SMS+GPRS+Call,default:1

E-mail: [email protected]
Skype: MiCODUS
9. Any Questions?
10. Download the APP
Download on the
APP Store
Download for
Android
Search "MiCODUS" in iOS APP store or Google Play Store, or
just scan the QR code as below to download MiCODUS APP:
Example: SHIFT,ON,300,1# ( Means Setting 300 meters shift
alarm range, when the ignition turned off, vehicle’s 300 meters’
shift will trigger the alarm, the alarm message will be sent via
SMS and server )
A=ON/OFF; default:ON
B=Shift Distance (Range: 100-9999m)
M=0/1/2; way of alarm, 0 : Server only, 1: SMS+Server, 2:
Server+SMS+CALL, default:1
Example: ACCALM,ON,2,2# (Means enable this alarm type,
tracker will send alarm message via SMS, server and call
when engine start and flameout)
A=ON/OFF, Default: ON;
B: 0/1/2; 0: ACC ON Alarm; 1: ACC OFF Alarm; 2: ACC
ON&OFF Alarm; Default:2
M: 0/1/2 (way of alarm): 0 : Server only, 1: SMS+Server, 2:
SMS+Server+Call, Default:1;
Example: LVALM,ON,11.2V,1# (Means once the external power
voltage is less than 11.5v the tracker will send alarm message
out via SMS and server)
A=ON/OFF, default：ON;
B=9-95 V, Low voltage threshold, can be a decimal, such as
12.5 V
M=0/1/2, way of alarming, 0: GPRS only, 1: SMS+GPRS, 2:
SMS+GPRS+Call,default:1
