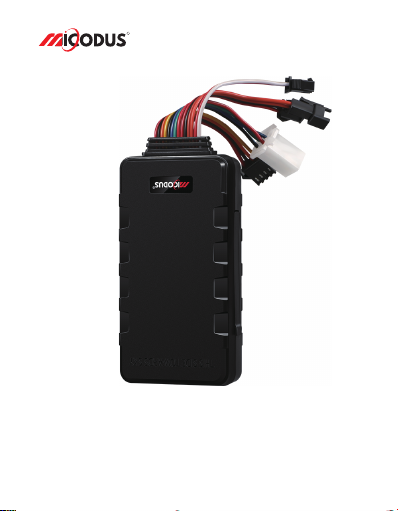

MICODUS MV501G User manual

MV501G User Manual V1.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2022 MiCODUS | All Rights Reserved
R

2.Specifications
Model
Weight
Dimensions
Charging Time
Battery Working Time
MV501G
150g
107mm(L) * 51mm(W) * 20mm(H)
Around 7 hours
Tracking Mode:1- 2 Days
Device Information
Working Voltage
Working Current
Sleep Current
Battery Capacity
Working Temperature
Working Humidity
Working Frequency
SIM Card
Cellular Antenna
Positioning Type
GPS Antenna
Cold Start
Hot Start
Tracking sensitivity
GPS Channels
Position Accuracy
GPS+BEIDOU+LBS
Built-in
≤32 Seconds
≤1 Second
-162 dBm
64
5-10m
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
2G GSM/GPRS/EDGE: 850/900/1800/1900MHz
Micro SIM Card
Built-in
DC 9-95V
4V/Average 45mA
4V/less than 5mA
3.7V 1000mAh Lion Polymer battery
-20℃- 75℃
10%-85%RH non-condensing
Working Parameters
Cellular Specifications
GNSS Specifications
4G+2G Historical Route
Playback
Real-time
Tracking 1000mAh Cut Off Fuel/ Resume Fuel
SOS
SOS
Voice Monitor
Engine On/
OFF Alarm
ON / OFF
Overspeed
Alarm
Vibration
Alarm
Movement
Alarm
Geo-fence Cut Wire
Alarm
Temperature Sensor
Fuel Sensor
Camera
GPIO
1. Main Features

3.Wiring diagram
GNSS Signal
Power
Celluar Signal
Normal SIM CardOFF/ONUSB

4. Activate Device
LED Event State
Charging
Charger inserted and battery has been fully charged
Charger has not been inserted
Searching for network
POWER LED (RED)
CELL LED
(YELLOW) Network has been registered
Solid
Dark
Dark
Flash every 1 second
Solid
GPS has fixed
GPS is in fixing Flash every 1 second
Device is working but stopped more than 5min
Device has not been turn on
Device ran out of battery
GPS LED (BLUE)
ALL LED
Solid
ALL LED TURN OFF
Install the SIM card via the correct direction as below:
APN,ApnName,User,
Password# SET APN OK APN,orange, orange,orange#
APN,internet#SET APN OKAPN,ApnName#
SMS Command
Format Reply Example Note
If the SIM card has APN user and APN
password, then use this command.
If the SIM card operator doesn't have APN
user and APN password, then please use this
command.
Normal SIM
Note: The APN information is very important, it must 100% correct to match with the sim card of
the tracker, if you configured wrong APN, the tracker also will reply "SET APN ok" but it will
can't get online!
Please get the exact correct APN name from local SIM card provider.Take the tracker
to a good signal place for operation and configure the APN for it as below:

5. Package Content
GPS Main Unit MV501G
Function Cable
Microphone Cable
SOS Button Cable
Relay
User Guide
Temperature Sensor (Optional)
Fuel Sensor (Optional)
Camera (Optional)
Genuine Packing Box
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1

6. Functions Explanation
a. Voice Monitor:
* Set center number by this sms command:
CENTER,A,center number#
* Set center number by this sms command:
CENTER,A,center number#
* Send this sms command from the center number:
RELAY,A#
* Switch the tracker to voice monitor mode
by this sms command:MONITOR#
b. Vibration Alert:
This vibration alert function just work under stationary
status. How to use this function:
c. Cut Off Fuel/Resume Fuel
*Enable the device to enter into arm mode by this
sms command: ARM#
*Conifgure the alarm ways by this sms command:
SENALM,[A][,M]#
A=ON/OFF, default: OFF;
M=0/1/2, way of alarming,
0 :GPRS only, 1: SMS+GPRS, 2: GPRS+SMS+phone call, default:1
A=0/1/2; (0: Resume Fuel; 1: Cut Off Fuel Immediately;
2: Cut Off Fuel Safely)
* Configure SOS numbers for the tracker by this sms command:
SOS,A,1st number,2nd number,3rd number#
3 SOS numbers supports at the most
* Keep the device under stationary status more than 5min to let it enter into sleep arm mode;
* Vibrate the device then the tracker will send the vibration alarm messages
* Dial the sim number of the tracker from the center
number, then the tracker will pick up the call automatically
and you will can remote monitor the voice around it.
For example:
CENTER,A,12345678910#
SET CENTER NUMBER OK
SET MONITOR MODE OK
MV501G
For example:
SOS,A,12345678910#
SET SOS NUMBER OK
ARM#
SET ARM MODE OK
SENALM,ON,1#
SET VIBRATE ALARM OK
MV501G
For example:
MONITOR#
CENTER,A,center12345678910#
SET CENTER NUMBER OK
RELAY,1#
CUT OFF FUEL OK
MV501G
Please follow with the quick user guide carefully!

* Set sos alarm numbers via this sms command:
SOS,A,1st number,2nd number,3rd number#
* Long press the SOS panic button 3 seconds then
the emergency call will be made to the sos numbers,
it will dial the numbers by turn till it is picked up
d. Enable SOS Emergency Call For example:
SOS,A,12345678910#
SET SOS NUMBER OK
MV501G

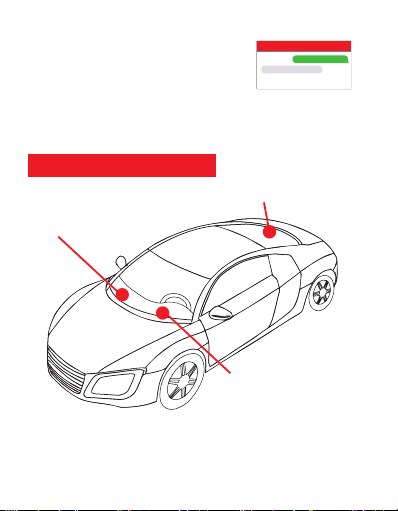

7. Installation Recomendation
Under front windshield
Around dashboard
Under rear windshield
1
2
3
1) The decice should face up to the sky.
2) Metal therma barrier of heating layer of the windshield
affects the signal.

Unable to connect to
tracking platform
Check the APN and settings.
Check whrther the data service of SIM card is enabled.
Check the balance of SIM card.
Tracker shows offline
Check whether external power is still connected.
Check if the vehicle entered netword blind area.
Check the balance of SIM card.
8. Troubleshooting
Type Use
9. Full SMS Commands List
Location drift
In area with poor GNSS signal (tall building around or
basement), drifting may happen.
Check whether vibration happens around to trigger the
accelerator.
Unable to locate
Make sure the top side facing upward without metallic things
shielded.
Make sure it’s not in area with no satellite coverage.
No command reply
Make sure command format is correct.
Vehicle may be in network blind area.
Make sure SIM card is well inserted and has SMS servi.
APN Setting
Server Setting
If set with IP: SERVER,0,IP,Port#
APN,Network name[,name,password]#
If set with Domain Name: SERVER,1,
Domain,Port# SERVER,1,d.micodus.net,7700#
SERVER,0,47.254.77.28,7700#
A=old password, six digitals, digital range: 0-9,
default：000000;
B=new password, six digitals, digital range: 0-9
APN,CMNET# (if no name & Password)
APN,internet,internet,internet# (if with name
& Password)
Check IMEI IMEI#
Restore factory
settings
Restart device
FACTORY#
RESET#
Revise the instruction
password PASSWORD,[A],[B]#
Functions Command Format Explanation

Functions Command Format Explanation
Internet Traffic Switch
Version Inquiry
Parameter Inquiry
Check All Alarms Status
TRAFFIC,ON#
TRAFFIC,OFF#
VERSION#
PARAM#
ALARM#
Status Inquiry STATUS#
BATTERY: XX% (Built-in Battery Power Percent)
NET: CLOSED (No Network) FAILED (Connecting
Network or Failure) SUCCESS(Connected
to Network),
NONE (No GSM Signal)
HIGH / MED / LOW (Signal Strength)
GPS: CLOSED (GPS Module Closed) FIXED,
N(Positioned and satellite number) UNFIX,
0 (Not Positioned yet)
ANGLE: 20 (the data upload angle)
SENSOR: ON/OFF (the status of the shake
sensor)
LEVEL: 3 (the sensitivity of the shake sensor)
STATE: ARM/DISARM (the defense status of
the device)
Alarms Parameters ALARM#
ID: 19172012644 (ID number of device)
STATE: ARM(DISARM)(Defense status of device)
SPEED: ON/OFF(alarm status); 30km/h(alarm value);
0/1/2(alarm way)
SHIFT: ON/OFF(alarm status); 300m(alarm value);
0/1/2(alarm way)
VIBRATE: ON/OFF(alarm status);3(sensitivity level);
0/1/2(alarm way)
ACC: ON/OFF(alarm status); 0/1/2(alarm way) ;
0/1/2(0: ACC ON&OFF, 1: ACC ON; 2: ACC OFF)
(alarm situation) ;
POWER DOWN: ON/OFF(alarm status);2 (alarm way)
LOW BATTERY: ON/OFF(alarm status);1/2/3
(alarm way)
NOTE: Alarm Ways: 0/1/2 ( 0 :GPRS only, 1: SMS+
GPRS, 2 : GPRS+SMS+phone call )
Map URL Inquiry
Address Inquiry
Time Zone Setting
URL#
POSITION#
GMT,Time zone orientation,Whole
Time Zone[,Half Time Zone]#
GMT,E,8# (if no half time zone)
GMT,W,9,30# (if has half time zone)
NOTE: Parameter : E / W；0 ~ 12; 0/15/30/45
NOTE: Reply message’s language is determined by
device’s language setting, if get position content
failed, device will reply Google Map location link.
Latitude&Longitude
Inquiry WHERE#

Set The Angle Upload
ANGLEREP,[X][,A][,B]#
ANGLEREP,OFF#
X=ON/OFF, default：ON; A=5～180 degrees,
diversion angle
degree, default：30 degrees；B=2～5 seconds,
detecting time, default：3 seconds,
Functions Command Format Explanation
Mileage Statistics
MILEAGE,[A],[B]# A=ON/OFF, On/Off mileage calculation, default: Off
B=0～999999，Mileage initial value , unit：km ;
default: 0, mileage return to zero
MIELEAGE# Query current mileage
Add SOS Administrator
Number
Delete SOS
Administrator Number
Add Center Number
Delete Center Number
Data Upload Time
Interval
SOS,D,1st number,2nd
number,3rd number#
or SOS,D,1,2,3#
CENTER,A,center number#
CENTER,A,13800138000#
NOTE: Center number is only used for cutting off power &
oil, it can only be set by SOS Administrator when using
this command by SMS.
CENTER,D#
TIMER,T1,T2#
T1 ranges 0/5~18000 or 0(seconds), upload interval
when ACC ON, 0 means no upload, default is 10;
T2 ranges 0/5~18000 (seconds), upload interval
when ACC OFF, default is 10;
SOS,A,1st number,2
nd number,
3rd number#
Directly delete the number:
SOS,D,13800138000#
Delete 1st number:
SOS,D,1#
Delete 2nd number:
SOS,D,2#
Delete the 2nd and 3rd number:
SOS,D,2,3#
Set 3 numbers at a time:
SOS,A,13800138000,1380013800 1,13800138002#
Set the first numberseparately:
SOS,A,13800138000#
Set the second number separately:
SOS,A,,13800138001#
Means to set 3rd number separately:
SOS,A,,,13800138002#
Heartbeat Packet
Upload
Sensor Sensitivity
Arm Manually
HBT,time# HBT,3#
NOTE: Range :1-60min, default 3min.
LEVEL,A#
LEVEL,2#
NOTE: A：Sensitivity Level 1-9
(1-9 is from week to strong vibration)
ARM# Set the device into arm mode

Disarm manually
Cut Off / Resume Fuel
Overspeed Alarm
Setting
Vibration Alarm
Setting
DISARM#
RELAY,A#
A=1/2;
1: Enable relay immediately
2: Enable relay safely [STATE] ON/OFF
1. RELAY,1#
A is set to 1, the relay command will be executed
immediately;
2. RELAY,2#
A is set to 2, the relay command will be executed safely.
The vehicle is safe only when the speed is lower than
20km/h if GPS is fixed, or the vehicle is stationary if GPS
is not fixed.
A=ON/OFF, open or close over speed alarm, default：OFF
B=1～255(km/h), speed limit, default：100(km/h);
C=0/1, way of alarm, 0 : GPRS only,
1: SMS+GPRS, default:1.
RELAY,0#
SPEED,[A][,B][,C]#
SPEED,OFF#
SENALM,[A][,M]#
A=ON/OFF, default: OFF;
M=0/1/2, way of alarming,
0 :GPRS only, 1: SMS+GPRS,
2 : GPRS+SMS+phone call, default:2
SENALM,OFF#
Set the device out of arm mode
Functions Command Format Explanation
SHIFT,[A][,B][,M]#
SHIFT,OFF#
Shift Alarm Setting
Example: SHIFT,ON,100,1# ( Means Setting 100 meters shift
alarm range, when the ignition turned off, vehicle’s 100
meters’ shift will trigger the alarm. )
A=ON/OFF; default:ON
B=Shift Distance (Range: 100-9999m)
M=0/1/2; way of alarm, 0 : GPRS only,
1: SMS+GPRS,
2: GPRS+SMS+CALL, default:1
ACCARM,ON,M#
ACCARM,OFF#
Auto Arm By ACC
Arm Time: M=5-1800s, default: 60s
Close auto arm function
ACCALM,ON,A#
ACCALM,OFF#
ACC Status Change
Alarm
Alarm Ways：A=0/1/2; way of alarm, 0 : GPRS only,
1: SMS+GPRS, 2: GPRS+SMS+CALL, default:1
Cancel ACC alarm function

E-mail: [email protected]
Skype: MiCODUS
10. Any Questions?
Power Disconnect
Alarm
PWRALM,A,B#
A=ON/OFF, default ON;
B=0/1/2/3, ways of alarming, 0: GPRS only, 1: SMS+GPRS,
2 : GPRS+SMS+phone call,
3：GPRS+ call, default:2；
Close power disconnect alarmPWRALM,OFF#
SOS Alarm
SOSALM,A,B#
A=ON/OFF, default ON;
B=0/1/2/3, ways of alarming, 0: GPRS only, 1: SMS+GPRS,
2 : GPRS+SMS+phone call,
3：GPRS+ call, default:2；
Close SOS alarm functionSOSALM,OFF#
Voice Monitor/Track
Modes Switch
MONITOR# NOTE: Before monitoring the voice around the device, the
user must change the device to this monitor mode firstly.
NOTE: After used the voice monitor mode, user can switch
the device back to track mode by this command.
TRACK#
Functions Command Format Explanation
11. Download the APP
Download on the
APP Store
Download for
Android
Search "MiCODUS" in iOS APP store or Google Play
Store, or just scan the QR code as below to download
MiCODUS APP:
