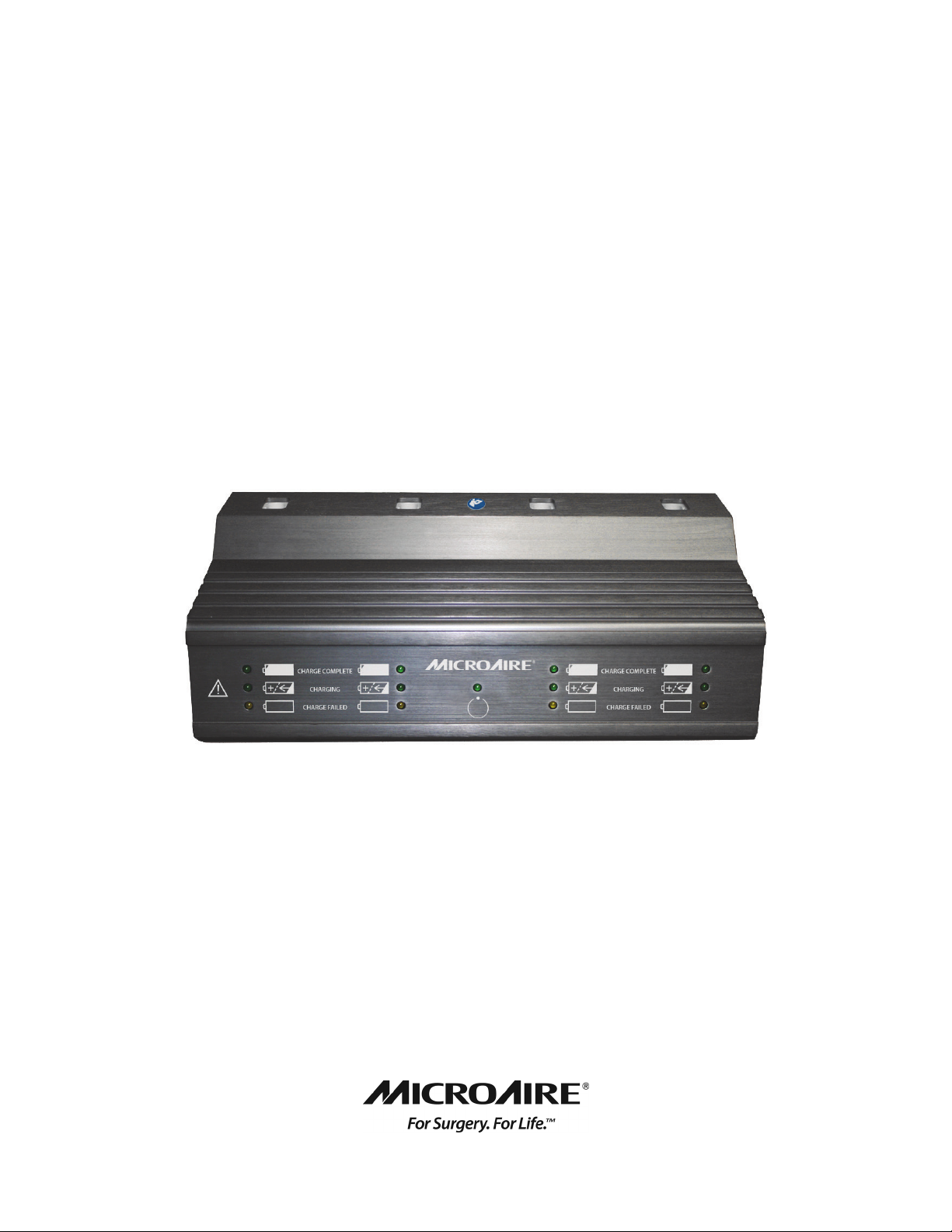

MicroAire 7500-700 User manual
7500-700 Battery Charger
Instructions for Use
IM-7500-700 Rev K 2021-05 2 of 12
Technical Description ........................................................................ 2
Intended Use and Introduction............................................................... 2
General Warnings.......................................................................... 3-4
Symbol Definitions......................................................................... 4-5
Compatible Instruments ..................................................................... 6
Setup and Operation......................................................................... 6
Cleaning/Decontamination .................................................................. 7
Shipping and Environmental Parameters ..................................................... 7
Troubleshooting ............................................................................. 7
Disposal/Recycle............................................................................. 8
Services and Repair .......................................................................... 8
Warranty .................................................................................... 8
Electromagnetic Compatibility ............................................................9-10
Table of Contents
REF 7500-700 Battery Charger Instruction Manual
Technical Description
REF 7500-700
Ratings:
• Class 1 Equipment
• Input Rating: 100-240 V~, 50-60 Hz, 0.30 Kw
Output Rating: 24 V DC, 150 W
Intended Use
The MicroAire REF 7500-700 Battery Charger is intended to charge all MicroAire 14.4 volt NiMH battery packs.
Introduction
This manual was written to help describe the procedures required to keep the MicroAire Battery Charger system
operating properly. Please read this manual and follow its instructions carefully. The words WARNING, CAUTION and
NOTE carry special meanings and should be carefully reviewed.
IM-7500-700 Rev K 2021-05
3 of 12
WARNING: Used to indicate that the safety of the patient and hospital personnel could be involved.
CAUTION: Used to indicate special procedures or precautions that must be followed to avoid damaging the
system and instruments.
NOTE: Used to indicate the easiest means of carrying out techniques.
General Warnings:
WARNING: Risk of re. Replace fuse with T5A/250V.
WARNING: Risk of re. Replace battery pack only with a MicroAire REF 6640-710 Battery Pack, REF 7505-710 or
REF 7500-620 Aseptic Battery Pack. Always use the REF 7500-625 Charger Adapter for the Aseptic Pack.
WARNING: Explosion hazard. Not suitable for use in the presence of ammable anesthetics or oxygen.
WARNING: Electric shock. Do not remove cover. Refer servicing to authorized MicroAire personnel only.
WARNING: Main disconnect must be achieved by removing cord from wall outlet.
WARNING: Use of the REF 7500-700 Battery Charger adjacent to or stacked with other equipment should
be avoided because it could result in improper operation. If such use is necessary, the REF 7500-700
Battery Charger and the adjacent equipment should be observed to verify that they are operating
normally.
WARNING: Use only with a medically approved Type SJT or equivalent three-wire grounded power cord rated for
125V or 250V AC, 10A, constructed with 18/3 AWG wires and an IEC 320 appliance connector and a
Hospital Grade outlet plug. The cord length shall not exceed 10ft (3.05m).
WARNING: Grounding reliability can only be achieved when the equipment is connected to an equipment
receptacle marked“Hospital Only”or “Hospital Grade”.
WARNING: No modication of this equipment is allowed.
WARNING: Prior to use system components should be inspected and operated to detect any damage or
malfunction. Do not use if damage is apparent.
WARNING: Medical electrical equipment may be aected by electromagnetic interference. It should be installed
and used in accordance with the electromagnetic compatibility information provided herein.
WARNING: Portable RF communications equipment should be used no closer than 30 cm (12 inches) away from
any part of the REF 7500-700 Battery Charger, the batteries being charged, or its power cable. Other
wise degradation of the performance of battery charger could result.
WARNING: Use with Battery Packs other than the REF 6640-710, REF 7505-710, or REF 7500-620 used with a
REF 7500-625 Charger Adapter could result in increased electromagnetic emissions or decreased
electromagnetic immunity, resulting in improper operation of the REF 7500-700 Battery Charger.
WARNING: The following items should be periodically inspected for signs of damage and repaired or replaced as
needed to ensure continued safety with regard to electromagnetic disturbances over the life of the
REF 7500-700 Battery Charger:
• Verify that all enclosure panels are securely fastened in place.
• Test that the Protective Earth Connection meets ES60601-1 Requirements.
WARNING: The REF 7500-700 Battery Charger is suitable for use in hospitals and surgery centers. The Battery
Charger should not be used near High Frequency Surgical equipment or Magnetic Resonance
Imaging equipment.
IM-7500-700 Rev K 2021-05 4 of 12
CAUTION: Federal Law (USA) restricts this device to sale by or on the order of a physician (or properly
licensed practitioner).
CAUTION: Do not autoclave.
CAUTION: Do not immerse in liquids to cool.
CAUTION: Do not ash sterilize.
CAUTION: Do not use Ethylene Oxide Sterilization.
CAUTION: Do not use a washer sterilizer.
CAUTION: Do not process in equipment using peracetic acid.
NOTE: The emissions characteristics of this product make it suitable for use in industrial areas and hospitals
(CISPR 11 Class A). If it is used in a residential environment (for which CISPR 11 Class Bis normally
required) this equipment might not offer adequate protection to radio frequency communication
services. The user might be required to take mitigation measures, such as relocating or re-orienting
the equipment.
NOTE: The Battery Charger is designed for use only with MicroAire Batteries REF 6640-710, REF 7505-710
and REF 7500-620 Aseptic Battery using a REF 7500-625 charger adapter.
NOTE: All personnel should become familiar with the power equipment before it is set-up for use in any
procedure. Personnel in-serviced should include, but not limited to, central processing personnel,
members of the surgical team, and the bioengineering department.
NOTE: DO NOT return equipment without an RMA number. Doing so could cause delays in service, and/or
problems tracking your equipment.outside the U.S. unless specied otherwise.

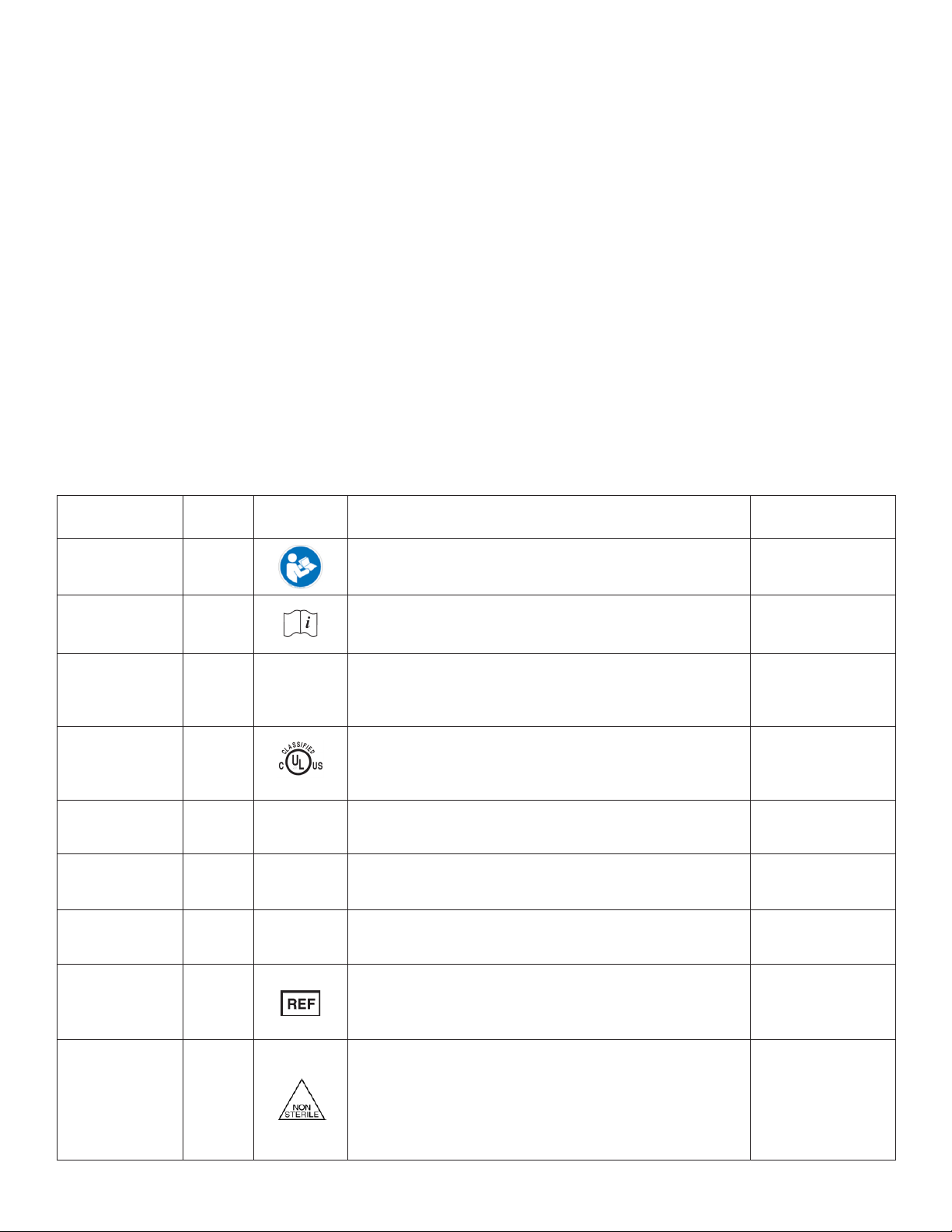

Name Ref#
(ISO 7000)2Symbol Description Use Standard
Refer to Instruction
Manual / Booklet
ISO-7010
M002
• Indicates a MANDATORY action for the user to consult the
Instructions For Use (IFU).
• Symbol must be blue, as shown.
IEC 60601-1:20051
Consult
Instructions For
Use (IFU)
1641
Indicates the need for the user to consult the Instructions For Use
(IFU). Not required in conjunction with the Caution
symbol, if applicable.
ISO 15223-1:20121
Caution
0434A /
0434B CIndicates the need for the user to consult the Instructions For Use
(IFU) for important cautionary information such as warnings and
precautions that cannot, for a variety of reasons, be presented on
the device itself.
ISO 15223-1:20121
UL symbol N/A
E494242
MEDICAL-GENERAL MEDICAL EQUIPMENT AS TO ELECTRIC SHOCK,
FIRE, AND MECHANICAL HAZARDS ONLY. IN ACCORDANCE WITH
ANSI/AAMI ES 60601-1 (2005) + A1 (2012) + CAN/CSA C22.2 No.
60601-1 (2014) | Control Number: E494242
UL
Charge Complete
(Battery) N/A Indicates that charging of battery has completed. N/A
Charge Failed
(Battery) N/A Indicates that charging of battery has failed. N/A
Charging (Battery) N/A Indicates that charging of battery is in progress. N/A
REF (Catalog #) 2493
• Indicates the manufacturer’s catalog number so that the medical
device can be identied.
• Per EN980:2008, the REF symbol may be used without
surrounding box.
ISO 15223-1:20121
Non-Sterile 2609
• Indicates a medical device that has not been subjected to a
sterilization process. This symbol should only be used to
distinguish between identical or similar medical devices sold in
both sterile and non-sterile conditions.
• Also indicates a medical device that is provided non-sterile but
must be sterilized prior to use.
IEC 60601-1:20051
IM-7500-700 Rev K 2021-05
5 of 12

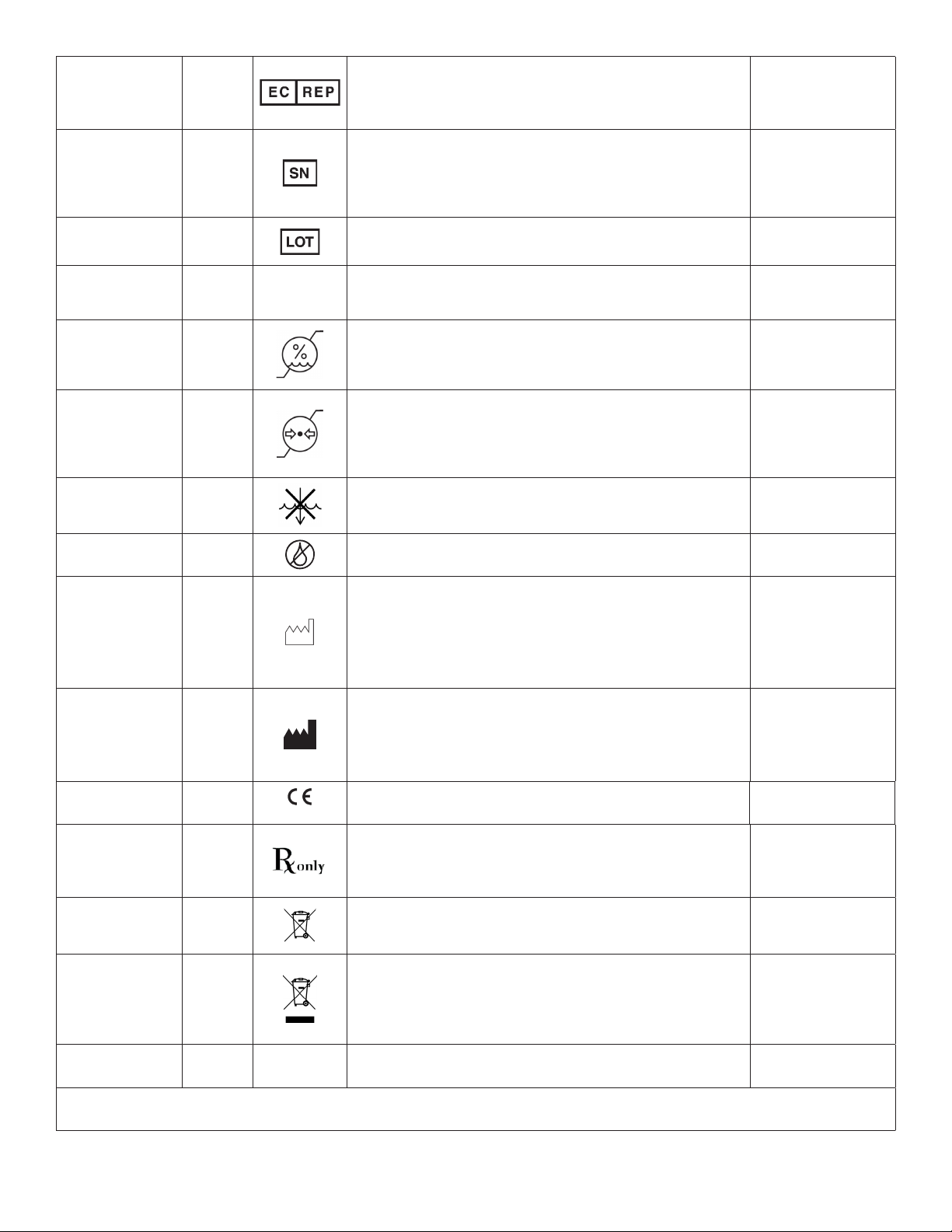

Authorized
Representative
in the European
Community
N/A
Indicates the authorized representative in the European
Community. This symbol shall be accompanied by the name and
address of the authorized representative, adjacent to the symbol.
ISO 15223-1:20121
Serial # 2498
• Indicates the manufacturer’s serial number so that a specic
medical device can be identied.
• Per EN980:2008, the SN symbol may be used without
surrounding box.
ISO 15223-1:20121
Lot / Batch Code 2492 Indicates the manufacturer’s batch code so that the batch or lot
can be identied. ISO 15223-1:20121
Standby 5266 Indicates stand-by or preparatory state for a part of a piece of
equipment. IEC 60878:2015
Humidity Limita-
tion 2620
Indicates the range of humidity to which the medical device can be
safely exposed. The humidity limitations shall be indicated
adjacent to the upper and lower horizontal lines.
ISO 15223-1:20121
Atmospheric
Pressure
Limitation
2621
Indicates the range of atmospheric pressure to which the medical
device can be safely exposed. The atmospheric pressure
limitations shall be indicated adjacent to the upper and lower
horizontal lines.
ISO 15223-1:20121
Do Not Immerse in
any Liquid 5995 Indicates a medical device that is not to be immersed in any liquid. IEC 60335-2-15
Do Not Lubricate N/A Indicates a medical device that is not to be lubricated. N/A
Date of
Manufacture 2497
• Indicates the date when the medical device was
manufactured. The date is expressed as YYYY-MM (e.g. 2015-11)
or YYYY-MM-DD (e.g. 2015-11-29).
• If the symbol is lled (see Manufacturer symbol), both
the date of manufacture and the name/address of the
manufacturer may be combined in one symbol.
ISO 15223-1:20121
Manufacturer 3082
• Indicates the medical device manufacturer. This symbol shall be
accompanied by the name and address of the manufacturer. The
date of manufacture may be combined with this symbol.
• When using MicroAire as the manufacturer, use the MicroAire
LLC symbol.
ISO 15223-1:20121
CE Mark with NB N/A
2797
Indicates the European Conformity Mark with Notied Body
Number. 2797 is the BSI-NL-registered Notied Body.
Council Directive
93/42/EEC
Prescription N/A Caution: Federal Law (U.S.A.) restricts this device to sale by or on
the order of a physician (or properly licensed practitioner).
FDA Title 21,
Chapter 1,
Subchapter H,
Part 801.15(F)
Dispose of per
WEEE Directive
2012/19/EU
N/A
Indicates a medical device that is not to be disposed of as
unsorted municipal waste. Medical device is to be disposed of per
WEEE Directive 2012/19/EU.
Council Directive
2012/19/EU
Dispose of per
WEEE Directive
2012/19/EU
N/A
Indicates a medical device that is not to be disposed of as
unsorted municipal waste. Medical device is to be disposed of per
WEEE Directive 2012/19/EU. This symbol is used in place of the
above symbol if the product entered the market after 13 August,
2005.
Council Directive
2012/19/EU
(Symbol: European
Standard EN 50419)
Packaging is
Recyclable 1135 Indicates that the marked item or its material is part of a recovery
or recycling process. IEC 60878:2015
1 ISO 15223-1:2012 – “Medical devices – Symbols to be used with medical device labels, labelling and information to be supplied – Part 1: General requirements”
2 ISO 7000/IEC 60417 – “Graphical symbols for use on equipment – Registered symbols”
IM-7500-700 Rev K 2021-05 6 of 12

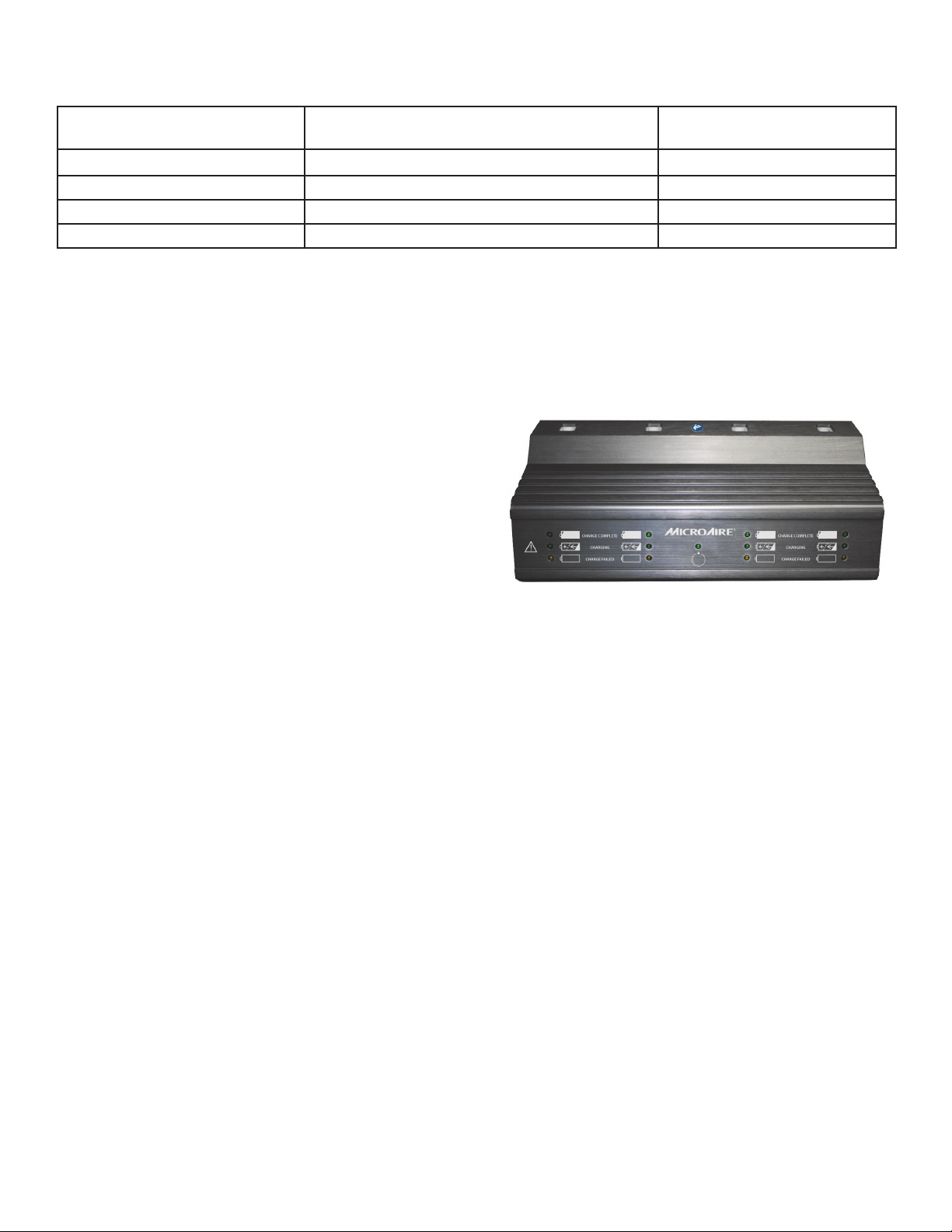

BATTERY CHARGER SETUP AND OPERATION
1. Plug in the Charger to a standard wall power supply.
All LED lights will turn on for 10 seconds, o ten seconds,
and on for ten seconds again, except for the Standby LED
in the center.
2. At the end of the LED test sequence, the single Green
Standby LED in the center will turn on to indicate that
the charger is ready. This light will remain on until the
charger is unplugged from the power source.
OPERATION
1. Verify that the“Standby” LED is on.
2. Insert a MicroAire REF 6640-710 or REF 7505-710 Battery into any slot. The battery can only be inserted into the
charger in one position.
3. If charging the REF 7500-620 Aseptic Battery, rst place the REF 7500-625 Charger Adapter into the charger. Then
place the REF 7500-620 into the REF 7500-625.
4. The“Charging” LED corresponding to that slot will blink until the battery is ready for fast charge. If the battery is
hot, or has a very low charge, the“Charging”LED may blink for some time. When fast charge begins the“
Charging” LED will be on continuously.
5. When the charging sequence is complete, the “Charge Complete”LED will illuminate.
6. The“Charge Failed” LED will illuminate if the battery takes too long to begin or complete fast charge. Remove and
re-insert the battery in a dierent slot to attempt charging again. If three consecutive“Charge Failed”
indications are received, the battery should be replaced.
WARNING: Prior to use, system components should be inspected and operated to detect any damage or
malfunction. Do not use if damage is apparent.
NOTE: The Battery Charger is designed for use only with MicroAire Batteries REF 6640-710, REF 7505-710
and REF 7500-620 Aseptic Battery using a REF 7500-625 charger adapter.
NOTE: All personnel should become familiar with the power equipment before it is set-up for use in any
procedure. Personnel in-serviced should include, but not limited to, central processing personnel,
members of the surgical team, and the bioengineering department.
Compatible Instruments
PRODUCT CATALOG NUMBER (REF) DESCRIPTION INSTRUCTIONS FOR USE WITH
COMPLETE LIST OF ACCESSORIES
REF 6640-710 Small NiMH Battery Pack IM-PWRBATT
REF 7505-710 Large NiMH Battery Pack IM-PWRBATT
REF 7500-620 Aseptic Battery Pack IM-ASEPBATT
REF 7500-625 Aseptic Battery Charger Adapter IM-ASEPBATT
Instruments and their accessories are sold separately. Contact your MicroAire® Sales representative or MicroAire® Customer Service
at 1-800-722-0822 for a complete list of accessories and instruments available. Outside the USA, contact your nearest MicroAire
authorized distributor.
IM-7500-700 Rev K 2021-05
7 of 12
ENVIRONMENTAL PARAMETERS
OPERATING CONDITIONS
Devices have been tested and proven to operate within the following conditions:
Temperature Humidity Atmospheric
106kPa
50° F/10° C
86° F/30° C
15%
60%
70kPa
STORAGE CONDITIONS
Devices have been tested and proven to operate within the following conditions:
Temperature Humidity
0° F/-17° C
120° F/49° C
15%
90%
SHIPPING CONDITIONS
The REF 7500-700 may be shipped by any standard commercial method without special handling conditions.
CLEANING / DECONTAMINATION
1. Unplug charger from wall outlet prior to cleaning. External surfaces of the unit should be periodically wiped down
with a mild pH enzyme disinfectant. Charger should not be kept in patient vicinity.
CAUTION: Do not autoclave.
CAUTION: Do not immerse in liquids to cool.
CAUTION: Do not ash sterilize.
CAUTION: Do not use Ethylene Oxide Sterilization.
CAUTION: Do not use a washer sterilizer.
CAUTION: Do not process in equipment using peracetic acid.
TROUBLESHOOTING
If the unit fails to operate properly, check the following:
1. The unit is connected to a functional power outlet.
2. The Standby LED is on.
3. The unit is connected to an operational battery pack.
4. Check that ventilation holes at top and bottom of the unit are not obstructed.
If the Standby LED is o, it indicates that the charger is not ready for service. Unplug the charger, and plug it into a
functional power outlet. The test sequence described in the SETUP section should occur. The fans should run while
all the LED’s are on. If the charger feels warm to the touch, allow it to cool, then repeat SETUP test. If the Standby LED
does not illuminate at this time, contact MicroAire Customer Service for repair service.
>
>
IM-7500-700 Rev K 2021-05 8 of 12
IN HOSPITAL INSPECTION
All MicroAire equipment should be inspected and tested periodically in accordance with the facility’s Bio-Engineering
policy. Such service should be documented within the Bio-Engineering Department.
MICROAIRE REPAIR SERVICE
Responsive service comes with every MicroAire® product. If a problem with your equipment should arise,
contact our Customer Service Department at:
Telephone: Fax: E-Mail:
USA 800-722-0822 800-648-4309 inquiry@microaire.com
Outside USA 434-975-8000 434-975-4134 intlsvc@microaire.com
MicroAire® may be able to solve the problem quickly without requiring return of the item for service. Do not
disassemble or attempt to service the equipment. It can only be serviced by MicroAire® or an Authorized MicroAire®
Repair Facility. Unauthorized service will void the warranty. MicroAire recommends that all equipment be
returned to the factory for routine inspection and service at least once a year. There is no charge for service during
the warranty period.
To return an item for service, contact MicroAire® Customer Service for a Return Material Authorization (RMA) number.
NOTE: DO NOT return equipment without an RMA number. Doing so could cause delays in service, and/or
problems tracking your equipment.outside the U.S. unless specied otherwise.
DISPOSAL/RECYCLE
Always follow the current local reccomendations and/or regulations governing environmental protection and the risks
associated with recycling or disposing of the equipment at the end of its useful life.
WARRANTY
MicroAire Surgical Instruments warrants its REF 7500-700 Battery Charger to be free from defects in material and
workmanship in their manufacture for a period of one year from the original purchase date by the end customer.
The warranty is limited to the repair or replacement of the product without charge.
This warranty is void in the event of abuse, misuse, or use in other than normal surgical environment, or in the event of
disassembly, alteration, or repair of the product not authorized by the manufacturer, or in the event that the product
has not been used in a reasonable manner and in compliance with the written instructions furnished by Manufacturer.
All other expressed or implied warranties of tness and merchantability are excluded here from, and manufacturer
shall have no liability of any kind for incidental or consequential damages.
Extended Warranty
An extended warranty is available on all MicroAire instruments. If the instrument is out of warranty, it must rst be
restored, if necessary, to full serviceable condition before being eligible for the extended warranty.
IM-7500-700 Rev K 2021-05
9 of 12
WARNING:The REF 7500-700 Battery Charger is suitable for use in hospitals and surgery centers. The Battery
Charger should not be used near High Frequency Surgical Equipment or Magnetic Resonance
Imaging equipment.
NOTE: The emissions characteristics of this product make it suitable for use in industrial areas and hospitals
(CISPR 11 Class A). If it is used in a residential environment (for which CISPR 11 Class Bis normally
required) this equipment might not offer adequate protection to radio frequency communication
services. The user might be required to take mitigation measures, such as relocating or re-orienting
the equipment.
ELECTROMAGNETIC COMPATIBILITY
Guidance and manufacturer’s declaration –
power output, vibration exposure, noise emission value and mass weight information
Power Output
kW - KiloWatts
Vibration Exposure
ahv(m/s2) Uncertainty K (m/s2)
Noise Emission Value
LPA (dB(A)) LC,peak (dB(C)) LWA (dB(A)) Mass Weight (kg)
0.15 - - - - - 8.2
EMC Test and Standard Test Levels / Limits Compliance
Mains terminal disturbance voltage
(conducted emissions): CISPR 11 CISPR 11 Class A Complies with Class A Limits
Electromagnetic radiation disturbance
(radiated emissions): CISPR 11 CISPR 11 Class A Complies with Class A Limits
Harmonic distortion: IEC 61000-3-2 IEC 61000-3-2 Class A Complies with Class A Limits
Voltage uctuations and icker: IEC 61000-3-3 IEC 61000-3-3 Class A Complies with Class A Limits
Electrostatic discharge immunity:
IEC 61000-4-2
Discharge Level (kV)
Contact - Direct: +/- 6
Contact - Indirect: +/- 6
Air +/- 2, 4, 8
Complies Per Note *
Complies Per Note *
Complies Per Note *
Radiated RF electromagnetic eld immunity:
IEC 61000-4-3
3V/m
80MHz to 2700 MHz
80% AM at 1 KHz
Complies Per Note*
Immunity to proximity elds from RF wireless
communications equipment: IEC 61000-4-3 IEC 60601-1-2 Table 9 Complies Per Note*
Electrical fast transient/burst immunity -
IEC 61000-4-4
AC mains: +/- 2KV l00KHz Repetition Frequency Complies Per Note*
Surge Immunity: IEC 61000-4-5
Input Power Ports (Line to Line)
0.5kV and 1.0kV Combination Wave (2µs x
50µs Voltage, 8µs x 20µs Current) Complies Per Note*
(Line to Earth)
0.SkV, 1.0kV and 2.0kV
Combination Wave
(2µs x S0µs Voltage, 8µs x 20µs Current)
Complies Per Note*
IM-7500-700 Rev K 2021-05 10 of 12
EMC Test and Standard Test Levels / Limits Compliance
Immunity to conducted disturbances induced
by RF elds (conducted RF disturbance
immunity)- a.c. mains: IEC 61000-4-6
Input AC Power Cord
Frequency range: lS0kHz to 80MHz
Level: 3 V outside the ISM band, 6 Vin the ISM
bands between 0.15 MHz and 80 MHz
Frequency step: 1%
Modulation: 80% Am at lkHz
Dwell Time: Minimum 1 s
Complies Per Note*
Power Frequency Magnetic Field Immunity:
IEC 61000-4-8 Frequency: 50 Hz or 60 Hz Test Level: 30 A/m Complies Per Note*
Voltage Dips: IEC 61000-4-11
Dip to 0V for 1 Cycle with 0 Degree Sync Angle.
Dip to 0V for 0.5 Cycles with Sync Angles of
0,45,90,135,180,225,270,315 degrees
Dip to 70% of 240V for 25 Cycles at 50Hz
Dip to 70% of 100V for 30 Cycles at 60Hz
Complies Per Note*
Complies Per Note*
Complies Per Note*
Complies Per Note*
Voltage Interruptions Immunity:
IEC 61000-4-11
Dip to 0V for Sms. (250 Cycles at (S0Hz) or 300
Cycles at 60 Hz) Complies Per Note*
*NOTE: The 7500-700 Battery Charger has no Essential Performance as dened by ANSI/AAMI/ES60601-1. Compliance
with Immunity Testing is dened as: at least one charger output will remain functional after the test.
IM-7500-700 Rev K 2021-05
11 of 12
©2021 MicroAire Surgical Instruments LLC | IM-7500-700, Rev. K, Printed in USA 05/2021
MicroAire Surgical Instruments, LLC
3590 Grand Forks Boulevard
Charlottesville, Virginia 22911 USA
Phone: (800) 722-0822 (434) 975-8000
Order Fax: (800) 648-4309 or (434) 975-4131
www.microaire.com
MediMark Europe
11, rue Emile Zola - BP 2332
F-38033 Grenoble Cedex 2 2797
France
Other manuals for 7500-700
1
Table of contents
Other MicroAire Batteries Charger manuals
