Microh LEDPRO64RGBW User manual

1

TABLE OF CONTENTS
1. INTRODUCTION AND UNPACKING 1
2. SAFTEY INSTRUCTIONS 1-2
3. OPERATION INSTRUCTIONS 2-3
4. MOUNTING AND INSTALLATION 4
5. DMX-512 CONTROL CONNECTIONS 5
6. PHOTOMETRIC DATA 6
7 DMX CHANNELS 6
8. KEY FEATURES 7
9. TECHNICAL SPECIFICATIONS 7
10. MAINTENANCE AND CLEANING 8
1. INTRODUCTION AND UNPACKING
Thank you for purchasing the MICROH LEDPRO64RGBW wash fixture. For your own safety and knowledge, please read this
manual before installing or operating the device. This manual covers the important information on installation and applications.
Please install and operate the fixture according to instructions. Meanwhile, please keep this manual for future reference.
The MICROH LEDPRO64RGBW wash fixture is made of a new type of high temperature cast aluminum casing. The fixture is
designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is
applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos.
The MICROH LEDPRO64RGBW wash fixture uses 36 powerful 3W (9 Red, 9 Green, 9 Blue, 9 White) LED’s which feature high
brightness and stability. Please carefully unpack it when you receive the fixture and check if it was damaged during the
transportation. And please check whether the following items are included inside the box:
Fixture – One User Manual – One
2. SAFTEY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely
necessary for the user to follow the safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes, do not switch it on immediately. The arising condensation could damage
the device. Leave the device switched off until it has reached room temperature, and is dry.

2

This device falls under protection-class I, therefore it is essential that the device be grounded. The electrical connection must be
carried out by a qualified technician.
The device should only be used with rate voltage and frequency. Make sure that the available voltage is not higher than 120V as
stated at the end of this manual.
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is
damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is
not in use or before cleaning it. Never pull out the plug by tugging the power cord.
During initial start-up, some smoke or smell may arise. This is a normal process, and does not necessarily mean that the device is
defective. It should decrease gradually. Please do not project the beam onto combustible substances.
Fixtures cannot be installed on or near combustible substances. Keep more than 50cm distance from wall for proper ventilation and
air flow. If your fixture is or has become damaged in any way, it shall be exclusively replaced or repaired by the manufacturer to
avoid any hazard.




3. OPERATION INSTRUCTIONS
- Do not turn on the fixture if it has been through severe temperature differences. Damage may occur to the fixture. Wait
until unit is at room temperature to operate.
- The unit should be protected from any tremor or agitation during transport.
- Do not expose the fixture in any excessive heat, moisture or any environment with too much dust when installing. Do not
lay any power cables on the floor. It may cause electronic shock or damage to persons or equipment.
- Make sure to attach the safety chain and ensure the screws are properly screwed in when installing the fixture.
- Make sure the lens is in good condition. It is recommended to replace the unit if there are any damages or severe
scratches.
- Make sure the fixture is operated and installed by qualified personnel.
- Keep the original packaging in case of defective product.
- Any non-manufacturer additions, modifications or changes in any way will void all warranty.
- Please do not attempt to open unit. It is only to be serviced by an authorized technician. If this occurs, or is apparent, the
warranty will be voided.

3

- The fixture’s warranty will be voided if there are any malfunctions from not following the user manual or any illegal
operation (shock short circuit, electronic shock, lamp broke, etc.)
- This unit has a total of 9 operating modes: Static Colour Select, 4 Colour Change, 15 Colour Change, 4 Colour
Fade, 15 Colour Fade, Auto, Sound Active, Slave & DMX
- To initialize extra factory setting press MODE & UP buttons at the same time while program is on Auto mode.
- To keep the display on at all times, press MODE & UP buttons simultaneously. To have the display turn off after 20
seconds press MODE & DOWN buttons simultaneously.
STATIC COLOUR SELECT MODE
- Press MODE button, select “C.××”, Press UP or DOWN to select static colours 0-15.
4 COLOUR CHANGE
- Press MODE button, select “J ××”. Press UP or DOWN to select the colour changing speed from 1-99. (From slow to
quick)
15 COLOUR CHANGE
- Press MODE button, select “J .××”. Press UP or DOWN to select the colour change speed from 1-99. (From slow to
quick)
4 COLOUR FADE
- Press MODE button, select “F ××”. Press UP or DOWN to select the colour fade speed from 1-99. (From slow to quick)
15 COLOUR FADE
- Press MODE button, select “F .××” .Press UP or DOWN to select the colour fade speed from 1-99.(From slow to quick)
AUTO
- Press MODE button, select "A.- -". The 15 colour change program and 15 colour fade program run alternatively. UP or
DOWN buttons do not function in this mode.
SOUND ACTIVE
- Press MODE button, select "S.××". Press UP or DOWN to select sound-active sensitivity grade 0-31.0 is off ,1 is the
lowest sensitivity,31 is the highest sensitivity.
SLAVE
- Press MODE button, select "S.L.A." UP or DOWN buttons do not function in this mode.
DMX
- Press MODE button, select slave mode. DMX address"×××" Press UP or DOWN to select DMX address. You can set
512pcs address from 001 to 512.It will flicker when there is no controller signal.

4

4. MOUNTING AND INSTALLATION
Caution: For added protection, mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might
be reached by unauthorized personnel. Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight. Fixture installation must always be secured with a secondary safety attachment,
such as an appropriate safety cable. Never stand directly below the device when mounting, removing, or servicing the fixture.
Whether installing inverted on a truss or ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5 ft) away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety
measure to prevent accidental damage and/or injury in the event the clamp fails.
Mounting Points: Overhead mounting requires extensive experience, including calculating working load limits. A knowledge of the
installation material being used, and periodic safety inspection of all installation material and the fixture are all imperative and should
only be performed by a qualified technician. Improper installation can result in bodily injury and damage.
Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

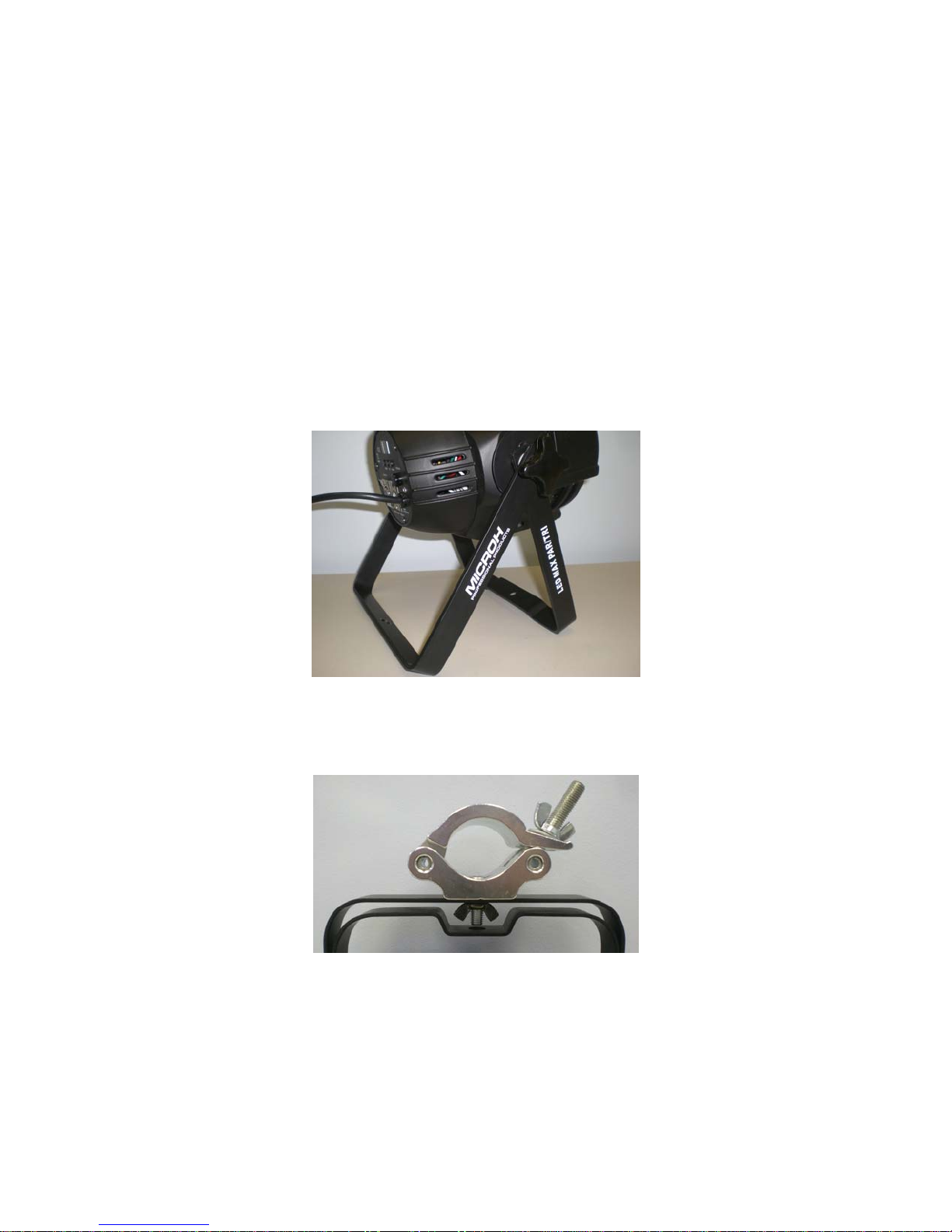

Floor Mounting: Set the 2 brackets at your desired angle and aim your fixture accordingly. Please see diagram below.
Clamp Mounting: The MICROH LEDPRO64RGBW provides a unique mounting bracket assembly that integrates 2 brackets to be
used to mount on a truss or the floor. When mounting this fixture to truss, be sure to secure an appropriately rated clamp to the
included bracket fitted through the center hole. As an added safety measure, be sure to attach at least one properly rated safety
cable to the fixture.
Regardless of the rigging option you choose for your MICROH LEDPRO64RGBW wash fixture, always be sure to secure your
fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle.

5

5. DMX-512 CONTROL CONNECTIONS
This fixture complies with international USITT DMX standards and can be used with either a 3 pin or 5 pin DMX connector. Plug in
the provided 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the
LEDPRO64RGBW. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below.
Always end your DMX-512 connection with a DMX terminator. 


For installations where the DMX cable has to run a long distance, or is in an electrically noisy environment, it is recommended to
use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ωresistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the
last fixture in the chain. Please see illustrations below.
1
23
PIN 3
PIN 2
120
Ω


6


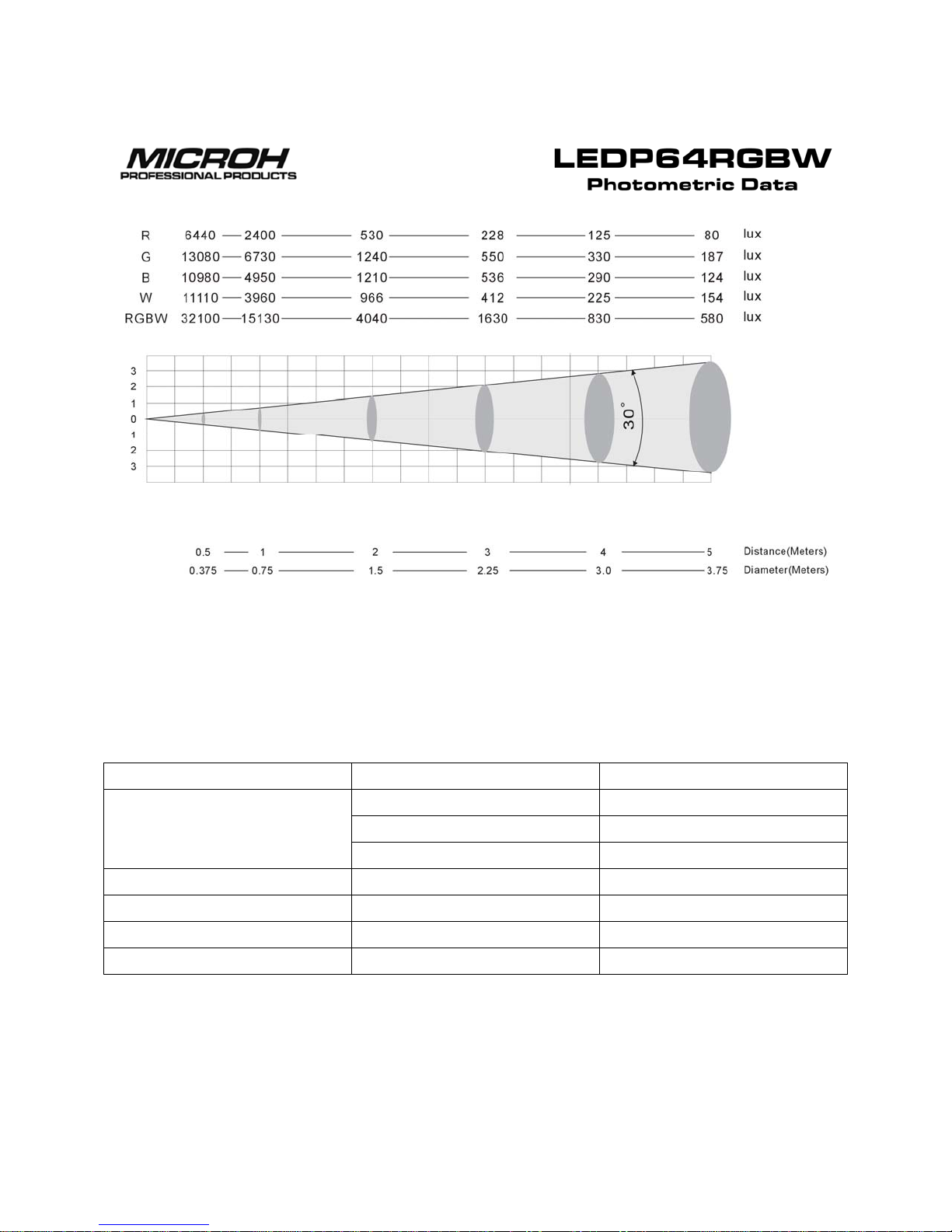

6. PHOTOMETRIC DATA
7. DMX CHANNELS
CH NO. VALUE FUNCTION
CH1 000~189 Brightness Adjust (dim→bright)
190~250 Strobe (slow→fast)
251~255 No function
CH2 000~255 Red (dim→bright)
CH3 000~255 Green (dim→bright)
CH4 000~255 Blue (dim→bright)
CH5 000~255 Cool white (dim→bright)

7

8. KEY FEATURES
- 36 x 3W LEDs (9 Red, 9 Green, 9 Blue, 9 White)
- 9 Operation Modes
- 3 Pin XLR Input & Output
- DMX Control
- Double Bracket for Truss and Floor Mounting
- Built-in microphone
- 3-Button LED Digital Display (MODE, UP, DOWN)
9. TECHNICAL SPECIFICATIONS
MODEL: LEDPRO64RGBW
LAMP: 36 x 3W LEDs (9 Red, 9 Green, 9 Blue, 9 White)
OPERATING TEMPERATURE: -25°C to 45°C
VOLTAGE: 120VAC 60Hz 1.1A 132W
FUSE: 120VAC 2A
DIMENSIONS: 12" x 11" x 9" / 305 x 279 x 229 mm
PACKING DIMENSIONS: 16” x 12.6” x 10.75” / 406 x 320 x 273 mm
NET WEIGHT: 11.5 lbs / 5.22 kg
GROSS WEIGHT: 13.1 lbs / 5.94 kg
WARRANTY: 2 Year Limited Warranty

8

10. MAINTENANCE AND CLEANING
The following points have to be considered during the inspection:
1) All screws for installing the device or parts of the device must be tightly connected, and must not be corroded.
2) There must not be any deformations on the housing, colour lenses, fixations or installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
4）The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage must be handled by a skilled installer or technician. Any safety
issues must be resolved.
In order to keep the fixture in good condition and extend the life, we suggest regular cleaning to the fixture.
1) Clean the inside and outside lens each week to avoid the light output from darkening due to accumulation of dust, dirt, etc.
2) Clean the fan each week.
3) A detailed electrical check by approved technician every three months is advised. Ensure the circuit contacts are in good
condition, and prevent from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine MICROH parts from your local dealer.
IF YOU SHOULD EXPERIENCE ANY PROBLEMS OR ISSUES PLEASE CONTACT MICROH PROFESSIONAL PRODUCTS BY
EMAIL AT [email protected]m
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service
repair.
DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is
not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this
manual can be improved please contact [e-mail]. Thank you.
