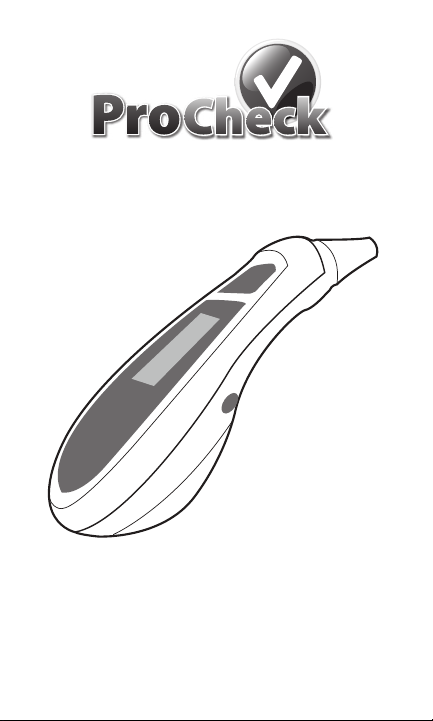

Microlife ProCheck FEVERGLOW IR1DY1-1-PRO User manual

FEVERGLOW™
INSTANT EAR
THERMOMETER
Instruction Manual
for Model # IR1DY1-1-PRO
PLEASE NOTE: THIS MEDICAL INSTRUMENT MUST BE USED ACCORDING TO
INSTRUCTIONS TO ENSURE ACCURATE READINGS.
QUESTIONS? PREGUNTAS? CALL 1-800-568-4147
Instrucciones en Español incluidas.

1
Ear Thermometer
Instruction Manual
Follow instructions of use to avoid hazards. This accompanying
document provides important information and warnings
regarding this thermometer.
This Ear Thermometer is a high quality product incorporating the latest
technology and tested in accordance with international standards. With
its unique technology, this thermometer can provide a stable, heat-inter-
ference- free reading with each measurement.
This thermometer has been clinically tested and proven to be safe and
accurate when used in accordance with its operating instruction
manual.
Please read through these instructions carefully so that you understand
all functions and safety information.
Type BF applied part

This digital infrared ear thermometer is an electronic clinical thermometer
using an infrared sensor to detect body temperature from the auditory
canal in the neonatal, pediatric and adult population used in the home
setting. This device is to be used without a probe cover.
This thermometer IS intended to be used:
•For self-measurement/monitoring of human body temperature
whereas the person being measured may be the user/operator of the
device.
•Within a home health care environment.
•Neonatal, Pediatric, and Adults
•With the sensor inside the ear canal
This thermometer IS NOT intended for use with:
•A probe cover
General Warnings
•Contact your physician in case of prolonged fever as this requires
medical attention, especially for young children.
•Self-measuring means monitoring, not diagnosis or treatment. Under
no circumstances should you independently alter the dosages of any
drugs prescribed by your physician.
•Do not use this device if you think it is damaged or anything appears
unusual (e.g. sporadic operation, open packaging upon purchase).
•To avoid possible injury, do not run or walk while using this device.
•Ensure that children are supervised around this medical device; some
parts are small enough to be swallowed.
•Keep batteries away from children; harmful if swallowed.
•Do not dispose of the battery or device in fire; the battery may explode.
•Do not use a metal tool to replace the battery; doing so may short cir-
cuit the terminals.
•Do not attempt to recharge the battery as it is not rechargeable.
2

• Only open the thermometer battery cover to replace the battery.
• Do not open/modify this device; inaccuracy and/or harmful injury may
result.
• Performance of this thermometer may be degraded if used outside of
its specified operation temperature and humidity rating, or if stored
outside of its specified storage temperature and humidity rating. Avoid
storage in direct sunlight.
• Performance of this thermometer may be degraded if the device is
exposed to mechanical shock.
• Performance of this thermometer may be degraded if the patient’s
temperature is outside the specified accuracy range.
• Performance of this thermometer may be degraded if the tip is dirty or
damaged; ensure the tip is clean before using.
• This device contains sensitive electronics components. Avoid strong
electrical or electromagnetic fields in the direct vicinity of the device
(e.g., mobile telephones, microwave ovens). These can lead to tempo-
rary impairment of the measuring accuracy. Move the device to an-
other location if interference is determined.
• Never immerse this instrument in water or other liquids. For cleaning
please follow the instructions in the «Cleaning» section.
3

Table of Contents
1. The Advantages of this Ear Thermometer
2. Product Description
3. How this Thermometer Measures Ear Temperature
4. Control Displays and Symbols
5. Directions for Use
6. Changing from Fahrenheit to Celsius and vice-versa
7. How to Recall 20 Readings in Memory Mode
8. Error Messages
9. Cleaning
10. Replacing the Battery
11. Limited Warranty
12. Certifications
13. Technical Specifications
14. How to Contact Us
4

1. The Advantages of this Ear Thermometer
Body Temperature
This thermometer offers a measurement range from 0 °C to 100.0 °C
(32.0 °F to 212.0 °F), and can be used to measure body temperature.
Probe Cover Free
This thermometer is more user-friendly and cost effective since a
probe cover is not required.
Measurement in One second
The innovative infrared technology allows measurement of ear tem-
perature in only one second.
Accurate and Reliable
The unique probe assembly construction, incorporating an advanced
infrared sensor, ensures that each measurement is accurate and reliable.
Gentle and Easy to Use
• The ergonomic design enables simple and easy use of the
thermometer.
• This thermometer can even be used on a sleeping child, causing
no disruption.
Auto-Display Memory
The last reading is automatically displayed for 2 seconds when the
unit is switched ON.
Multiple Reading Recall
Users will be able to recall the last 20 readings when entering the re-
call mode, enabling efficient tracking of temperature variations.
5

6
Safe and Hygienic
• No risk of broken glass or mercury ingestion.
• Completely safe for use on children.
• Cleaning of the probe can be done with an alcohol-moistened cot-
ton tissue, making this thermometer completely hygienic for use
by the whole family.
High temperature Alarm
10 short beeps and a red LCD back light alert the patient that he/she
may have a temperature above 99.5 °F. (37.5°C)

2. Product Description
(1) Measuring Sensor
(2) START Button
(3) LCD Display
(4) On/Off Button
(5) Battery Cover
7
(1)
(2)
(3) (4)
(5)

3. How this Thermometer Measures Ear Temperature
This thermometer measures infrared energy radiated from the
eardrum and the surrounding tissue. This energy is collected
through the lens and converted to a temperature value. The meas-
ured reading obtained directly from the eardrum (Tympanic Mem-
brane) ensures the most accurate ear temperature. Measurements
taken from the surrounding tissue of the ear canal generate lower
readings and may result in misdiagnoses of fever.
To avoid an inaccurate measurement:
1. Switch on the thermometer by pressing the On/Off button.
2. After one beep is heard (and the temperature scale icon is flash-
ing), straighten the ear canal by gently pulling the middle of the
ear back and up.
3. Place the probe firmly into the ear canal, press the START button
and keep the probe in the ear until the thermometer beeps to sig-
nal the completion of the measurement.
8

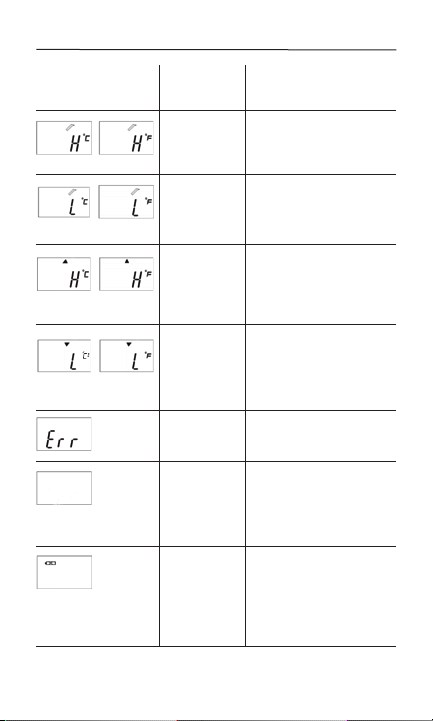

4. Control Displays and Symbols

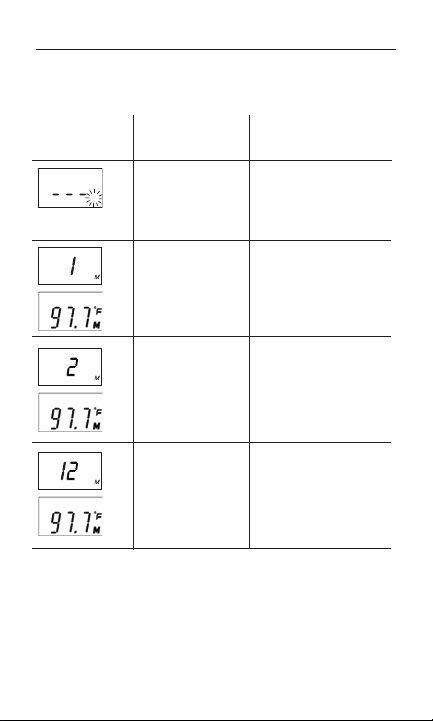

LCD Display Display Description
Meaning
9
All segments
displayed
Memory
Ready
Measurement
complete
Out-of-ear
temperature
indication
Low battery
indication
Press the On/Off button
to turn on the unit, all
segments will be shown
for 2 seconds.
The last reading will be
shown on the display au-
tomatically for 2 seconds.
The unit is ready for
measurement, the °C or
°F icon will keep flashing.
The reading will be shown
on the display with the °C
or °F icon; the unit is
ready for the next meas-
urement when the °C or
°F icon is flashing again.
A crossed-ear icon is
shown on the LCD if the
reading falls outside of
the range 32.0°C - 42.2°C
(89.6°F - 108.0°F).
When the unit is turned
on, the battery icon will
keep flashing to remind
the user to replace the
battery.

5. Directions for Use

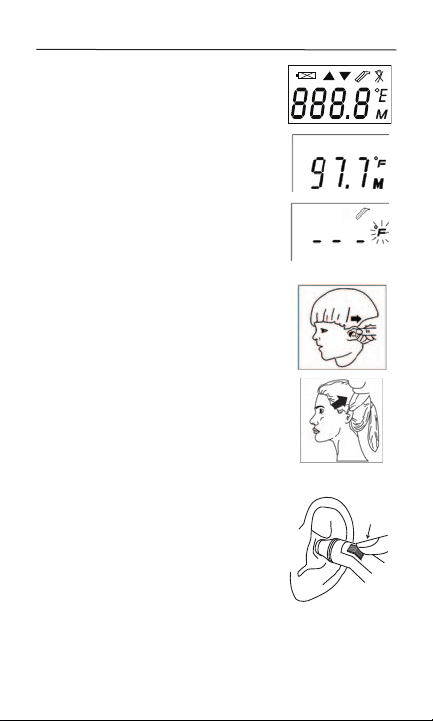

1. Press the On/Off button. The display is
activated to show all segments for 2
seconds.
2. The last measurement reading will au-
tomatically be shown on the display for
2 seconds with the «M» icon.
3. When the «°C» or «°F» icon is flashing,
a beep sound is heard and the ther-
mometer is ready for measurement.
4. Straighten the ear canal by pulling the
ear up and back to give a clear view of
the eardrum.
• For children under 1 year; pull the
ear straight back.
• For children 1 year to adult; pull the
ear up and back.
5. While gently pulling the ear, insert the
probe snugly into the ear canal and
immediately press the START button.
Release the button and wait for the
beep sound. This confirms the end of
the measurement.
6. Remove the thermometer from the ear
canal. The display shows the measured
temperature.
NOTE: Multiple readings ensure accuracy, wait
at least 30 sec between measurements.
10

11
Notes:
• Accumulation of ear wax on the probe can result in less accurate
temperature readings or cross infection between users. Therefore, it
is essential that the probe is clean before each measurement. For
cleaning, follow the instructions in the Cleaning section.
• After cleaning the measuring sensor with alcohol, wait 5 minutes be-
fore taking the next measurement in order to allow the thermometer
to reach its operating reference temperature.
• Ten short beeps and a red LCD back light alert the patient that
he/she may have a temperature above 99.5 °F (37.5 °C)
• For accurate measurement with an infant, it is best to have the child
lying flat with his/her head sideways so the ear is facing upwards.
For an older child or adult, it is best to stand behind and slightly to the
side of the patient.
• Always take the temperature in the same ear, since the temperature
readings may be different from ear to ear.
• Wait for a few minutes to take the ear temperature after sleeping.
• In the following situations it is recommended that three readings in
the same ear be taken and the highest used:
1. New born infants in the first 100 days.
2. Children under three years of age with a compromised im-
mune system and for whom the presence or absence of fever
is critical.
3. When the user is learning how to use the thermometer for the
first time until he/she has familiarized himself/herself with the
instrument and obtains consistent readings.
4. If the measurement is surprisingly low.

6. Changing from Fahrenheit to Celsius
The thermometer can display temperature measurements in either
Fahrenheit or Celsius. To switch the display between °C and °F
•Turn OFF the unit, press and hold the START button for 5 seconds
until «---» and the flashing «°C» or «°F» icon is shown on the LCD.
•Toggle between options by pressing the START button again.
•When the selection has been made, wait 5 seconds and the unit will
enter the ready for measuring mode automatically.
12

7. How to Recall 20 Readings in Memory Mode
This thermometer can recall the last 20 readings. To recall follow this
sequence:
LCD Display Display Description
Meaning
Pressing and releasing the START button after the last 20 readings have
been recalled will resume the above sequence from reading 1.
13
Recall Mode
Reading 1
(the last reading)
Reading 2
(the second latest
reading)
Reading 12
(out of 20 readings
stored)
Press the START button to
enter Recall Mode when
power is off. The memory
icon <M> flashes.
Press and release the
START button to recall the
last reading. Display 1 along
with memory icon.
Press and release the
START button to recall the
second latest reading.
Press and release the
S TART button consecutively
to recall readings in
succession, up to the last
20 readings.
M

Displays «H» when meas-
ured temperature higher
than 100.0 °C or 212.0 °F.
Displays «L» when measured
temperature lower than 0 °C
or 32.0 °F.
Displays «H» in conjunction
with the «▲» when ambient
temperature is higher than
40.0 °C or 104.0 °F.
Displays «L» in conjunction
with the «▼» when ambient
temperature is lower than 10
°C or 50 °F.
Thermometer malfunction.
Please check if the battery
has been loaded correctly.
Also check polarity (<+> and
<->) of batteries.
If an unblinking battery
icon is the only symbol
shown on the display,
the batteries should be
replaced immediately.
8. Error Messages
LCD Display Display Description
Meaning
14
Measured
temperature
too high
Measured
temperature
too low
Ambient
temperature
too high
Ambient
temperature
too low
Error function
display
Blank display
Dead battery
indicator

9. Cleaning
Use an alcohol swab or cotton tissue
moistened with alcohol (70%
Isopropyl) to clean the thermometer
casing and the measuring probe.
Ensure that no liquid enters the
interior of the thermometer. Never
use abrasive cleaning agents, thin-
ners or benzene for cleaning and
never immerse the instrument in water or other cleaning liquids.
Take care not to scratch the surface of the probe lens and the
display.
10. Replacing the Battery
This instrument is supplied with one lithium battery, type CR2032. The
flashing battery symbol will appear on the display when it is low. To re-
place it, remove the battery cover by loosening the screw on the
back of the thermometer. Remove the battery and replace with a new
one.
15

11. Limited Warranty
Your Digital Thermometer is warrantied for 2 years by Microlife USA
Inc, against manufacturer defects for the original purchaser only,
from date of purchase.
The 2 year warranty applies to the thermometer. Batteries and case
are not covered by this warranty. There are no user serviceable
parts inside.
The warranty does not apply to consequential and incidental dam-
ages, or damage caused by batteries, improper handling, and acci-
dents. Professional use, not following the operating instructions, and
alterations made to the device or accessory by third par-ties, are
also not included in this warranty. Some states do not allow the ex-
clusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
Microlife USA Inc will investigate your concern. A product as de-
fined by this warranty, determined to be out of specification, will be
replaced and shipped to you at no cost. A product or accessory as
defined by this warranty, determined to be within specification, will
be returned to you with a report of findings, at no cost.
Please call customer service: 1-800-568-4147 regarding any war-
ranty concerns. We ask that you please con-tact us before sending
any product back in order to better identify, and more quickly
process, your concern.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
16

12. Certifications:
Device Standards: This medical device is compliant with medical
device and digital infrared ear thermometer
standards IEC 60601-1, IEC 60601-1-2, IEC 60601-
1-11, ASTM E-1965-98, EN 12470-5, ISO 10993-
10:2010, ISO 10993-5:2009, and ISO 10993-12:2012
Electromagnetic
Compatibility: Device fulfills the stipulations of the standard
IEC 60601-1-2 along with FCC Part 15
IP21 Classification: Protected against solid foreign objects of 12.5
mm diameter and greater. Protected against the
ingress of vertically falling water drops with the
device positioned on a turntable.
Keep Dry.
Test Protocol:
(for laboratory use):
1. Press and hold the START button for 10 seconds until the green
backlight appears, then release.
2. After the screen turns gray and flashes information, the ready for
reading symbol will be displayed.
3. At that time place the thermometer into the blackbody and press the
start button to take the measurement.
Clinical accuracy characteristics and procedures are available from the
manufacturer on request.
It is recommended that this digital thermometer be checked for accuracy
every 2 years.
17

FCC Compliance:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or
modifications to the product are not approved by Microlife USA and
could void the user's authority to operate the equipment under FCC ju-
risdiction.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harm-
ful interference to radio or television reception, which can be deter-
mined by turning the equipment on and off, the user is encouraged to try
to correct the interference by one or more of the following measures: 1)
Reorient or relocate the receiving antenna, 2) Increase the separation
between the equipment and receiver, 3) Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected,
4) Consult the dealer or an experienced radio/TV technician for help.
Service:
When the device is not in use, battery/access (if applicable) may be re-
placed by the user. No other parts/components are accessible.
Batteries and electronic instruments must be disposed of in accor-
dance with the locally applicable regulations, not with domestic waste.
Expected Service Life: Thermometer: 5 years
18
