MicroNet SP5573HDC User manual

User Manual
Outdoor Box IP Camera
Model No.: SP5571HDC, SP5572HDC, SP5573HDC
World Wide Web: www.micronet.com.tw ; www.micronet.info

About This Guide
Model
zIR OUTDOOR CAMERA: SP5571HDC, SP5572HDC, SP5573HDC
Before Using the IR OUTDOOR CAMERA & IR OUTDOOR
CAMERAP Fixed Dome IP Camera
9Check PC requirement
9Check OS platform requirement
9Read special and important precautionary information.
9Basic knowledge of network setup and configuration will be helpful.
Icon Descriptions
Notes: This icon represents a tip for operation.
Caution: This icon stands for an action that probably impairs the
operation.
Warning: This icon stands for an action that can cause damage to the
operation.

TABLE OF CONTENTS
1. PRODUCT OVERVIEW ...........................................................................4
2. SETTING AND INSTALLATION ..............................................................5
3. USING IR OUTDOOR CAMERA FOR THE FIRST TIME .............................7
4. ACCESS IP CAMERA ............................................................................10
WEB INTERFACE SETTINGS – BASIC ......................................................14
6. WEB INTERFACE SETTINGS - EXPERT.................................................31
7. FACTORY DEFAULT .............................................................................44
8. REBOOT..............................................................................................44
9. LOGOUT..............................................................................................44
10. USB CONFIG PORT – FIRST TIME EXPERIENCE.................................45
SPECIFICATIONS....................................................................................47
APPENDIX ..............................................................................................53

1. PRODUCT OVERVIEW
IR OUTDOOR CAMERA support dual streams simultaneously.
Combination options include:
Stream 1 Stream 2
H.264 H.264
M-JPEG M-JPEG
MPEG-4 MPEG-4
Note: If users assign MPEG-4 for both Stream1 and 2, the image will be unable
to reach real-time performance. M-JPEG for both Stream 1 and 2 leads to the same
result. This is system limitation.
zPackage Checklist
¾IR OUTDOOR CAMERA IP Dome Camera x 1
¾USB Cable x 1
¾Product CD x 1
¾Tool Kit (Screws & L-Key)

zConnectors
1 Connect Power Adapter
2 Digital Input & Digital Output
3 RJ-45 Ethernet Connector
4 Audio Input
5 Audio Output
6 Video Output
2. SETTING AND INSTALLATION
Note:
zConnect IR OUTDOOR CAMERA to your network by using a standard Cat-5
cable.
zConnect the video output of your camera with video in of video server, using
standard 75Ωcoaxial cable with BNC type connector.

zConnect speaker and active microphone to Audio In / Out.
zProduct CD
Product CD in the package contains:
9NVR management software
o36CH Live View / Recording / 4CH Playback
9IP Scan software
9User’s Manual
zPower on IP Camera
Use the power adapter, provided in the package, to power on the IP
camera. The adapter should be connected to 110v~22Ov AC socket.
zConnect to Network
Connect IR OUTDOOR CAMERA and network hub/switch via a standard
CAT5 Ethernet cable and RJ-45 socket. Please pay attention that the PC
must be on the same network domain with the IP camera.
zConnect I/O
Users have to make pin-to-pin correctly to enable this function.
zEnable Audio Function
The video flicker may occur when enabling or disenabling audio
in and audio out. The situation normally lasts for a second.

3. USING IR OUTDOOR CAMERA
FOR THE FIRST TIME
zBrowser for Live Viewing and Video Settings
Microsoft IE browser version 6 or higher is recommended. Currently
Mozilla Firefox and others are not compatible.
zFactory Setting – Initial IP Address
Default IP Address: 192.168.1.2
Gateway: 192.168.1.1
Subnet Mask: 255.255.255.0
zNetwork Domain
Alter the IP address of the PC to the same domain of default value
(192.168.1.2). Users may alter the IP address of the IP camera to the
same of PC via IP Scan. Please refer to page 45 to check detailed
information.
zUse IP Scan

The software allows users easily and quickly find the specific IP camera on
the network.
Select IP Scan from the start menu. User can see the following image:
Press Scan button to check the IP and MAC address list. Press Clear
Table button and press Scan again to refresh.
You will find the list of IP and MAC address listed. To indentify your IP
camera you can flip over the IP camera and check the label for MAC
address on the bottom side.
Press Scan to automatically find online Video Server or Full
Function of Video Server on the network domain

Note: Please pay attention that a completed RMA form must contain the serial
number of the product. For more information, please refer to our website.

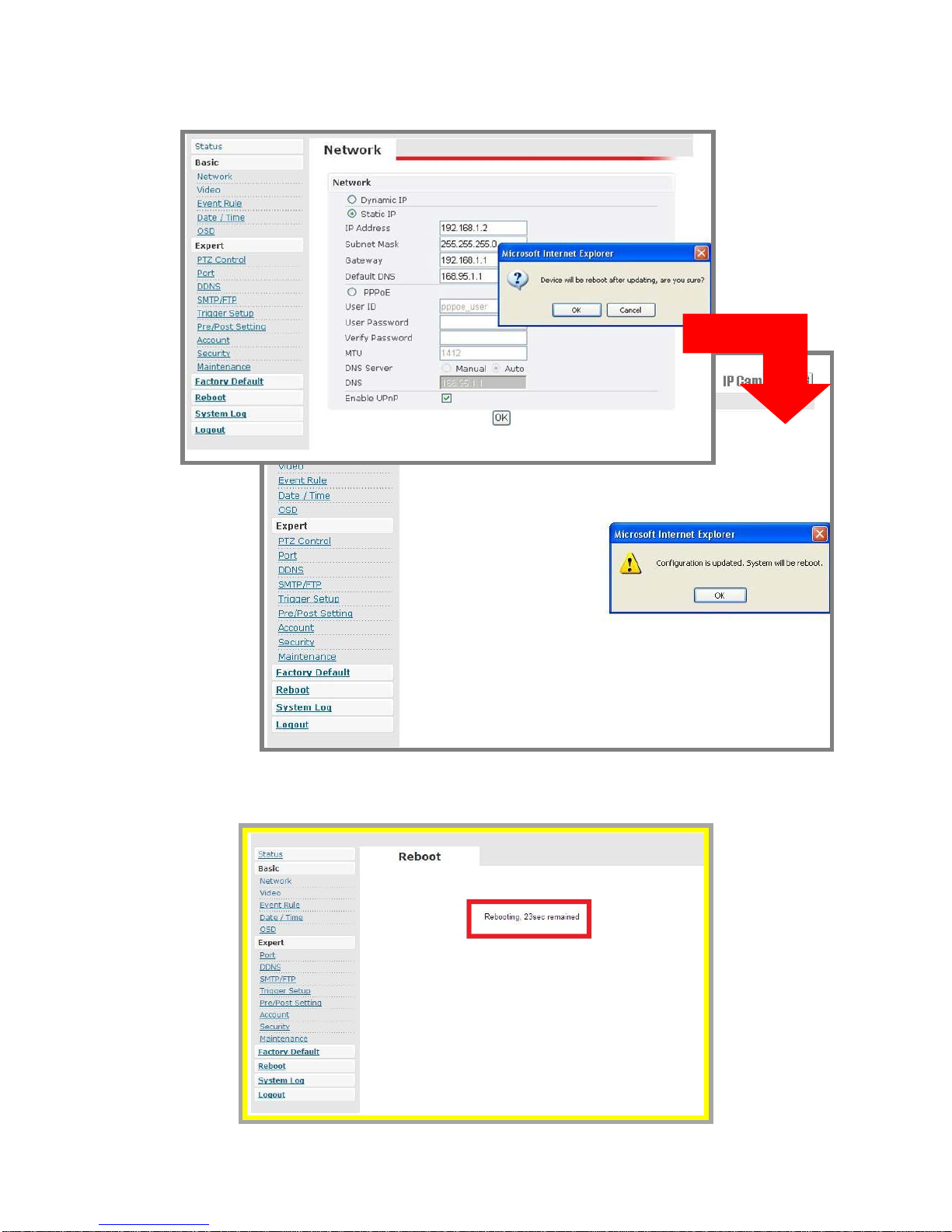

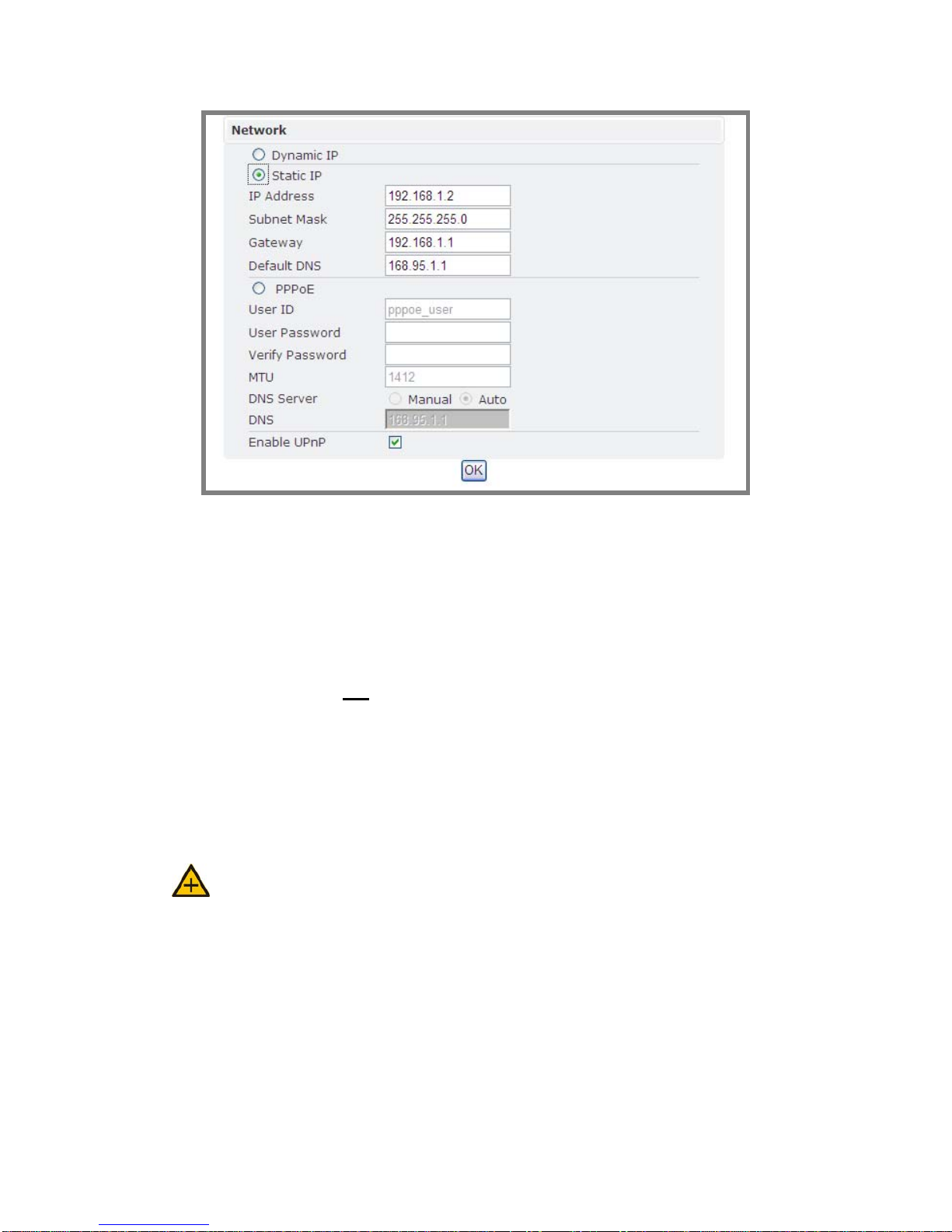

zChange Network Setting via IP Scan
Double click on a specific IP address; the setting page will pop up. Users
may alter some basic network parameters in this page.
Be sure to press APPLY to enable the new setting
Within 10 seconds, the dialog box would disappear. This indicates that the
new settings are deployed. After typing in the new IP address, user may
close the setting page and wait for 45 seconds. It takes 45 seconds to
restart the system. After rebooting, user may press Scan to check the
new IP address.
Note: “DOUBLE Right Click Function” Æ Double right click on a specific IP
address on the list; user can quickly open the live viewing browser page.
Press Exit to quit.
Double click

4. ACCESS IP CAMERA
zBrowser
¾Open an IE browser
¾Type in the IP address of video server that you found via IP Scan. For
example: 192.168.1.2 (default IP address)

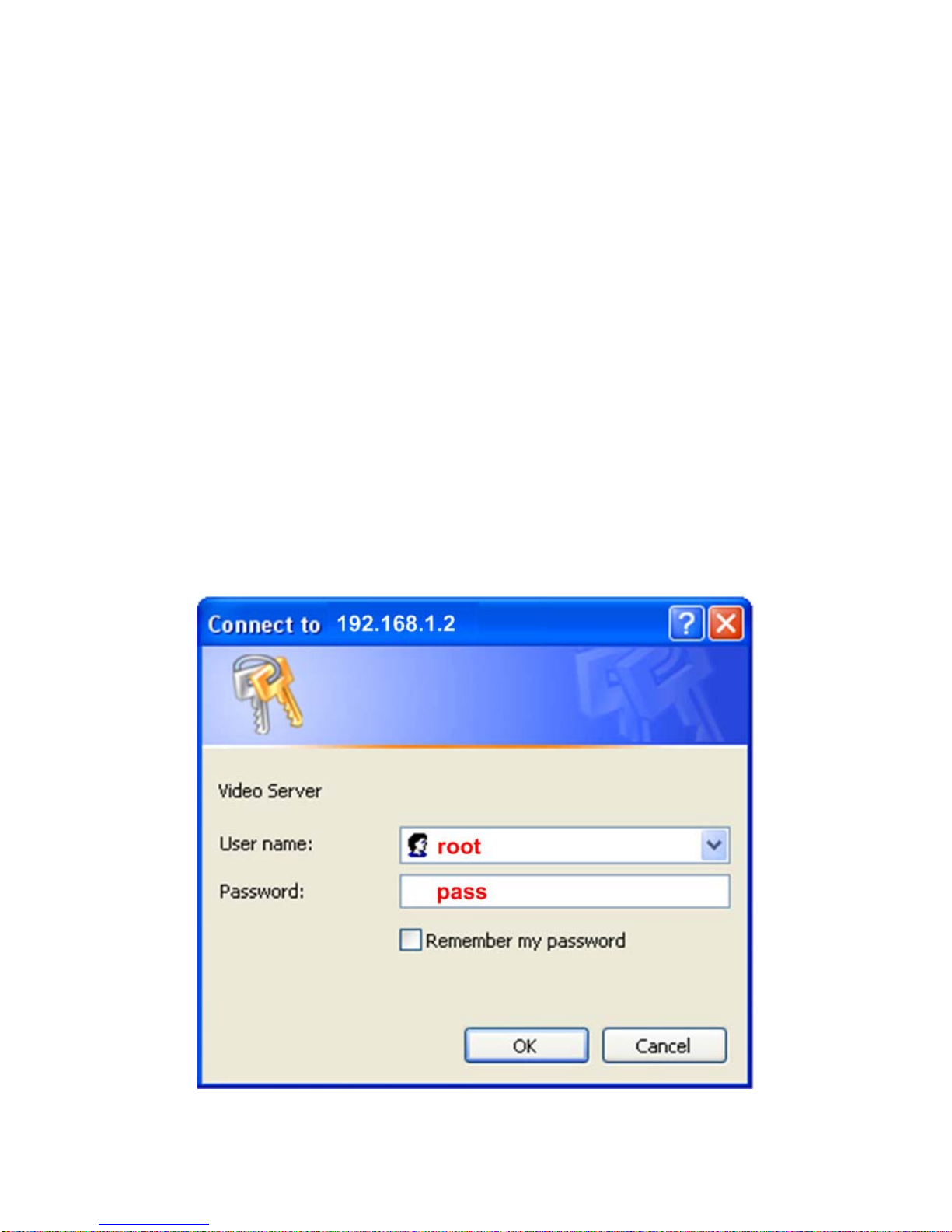

¾A popup login dialog box will automatically display.
¾Initial username and password (case-sensitive):
Login: root
Password: pass
Press OK button to access to the live viewing web page.
