Midea 6000 Series User manual

MODEL 373019
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
AIR COOLER
6000 SERIES

THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
0
02
1
21
21
06
07
08
08
09
1 1
31
41
41
1 8
1 7
1 6
1 5
1 8
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
PRODUCT INSTALLATION
Installation procedures
Guidance on feeding water and disassemble & washing of the water tank
Usage of the ice crystal box
OPERATION INSTRUCTIONS
Operating instructions of the machine body

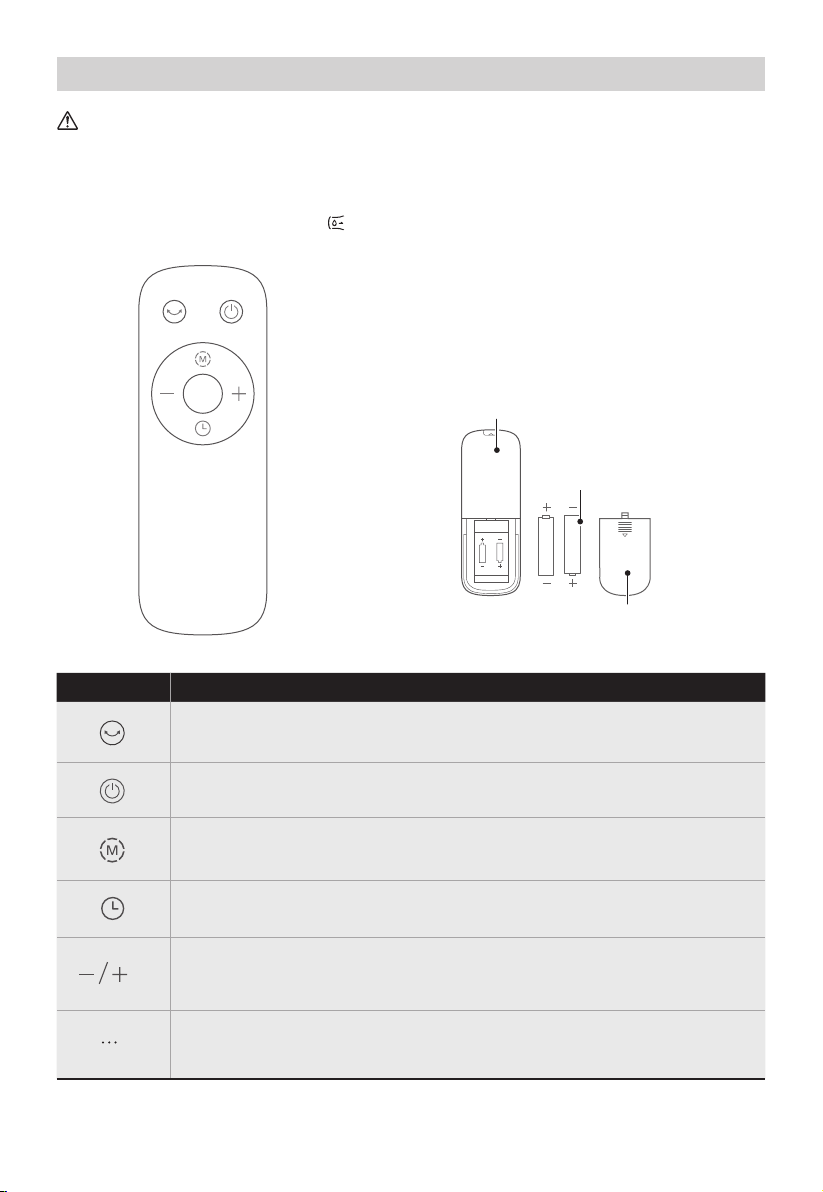

Remote control button description
Batteries installation
Batteries warning as below
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DATA PROTECTION NOTICE
MANUFACTURER DECLARATION
01

Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
02

Caution
If the supply cord is damaged, it must be replaced by
manufacturer, its service agent or a similarly qualified
person in order to avoid a hazard.
Household and indoor use only.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety. Children should be super-
vised to ensure that they do not play with the appliance.
Unplug the appliance during filling and cleaning.
Prior to cleaning or other maintenance, the appliance
must be disconnected from the supply mains.
Non-specialized personnel or unauthorized repair per-
sonnel shall not to repair or modify the machine.
It is forbidden to operate with wet hands to avoid elec-
tric shock.
If the unit is not in use for a long time, unplug the
power cord.
●
●
●
●
●
●
●
●
Warning
●
●
●
●
●
●
Read rules for safe operation and instructions carefully.
Never insert fingers, pencils, or any other object through
the grille when fan is running.
Disconnect fan when moving from one location to another.
Be sure fan is on a stable surface when operating to
avoid overturning.
DO NOT use fan in window, rain may create electrical
hazard.
Household use only.
03

●
●
●
●
●
●
●
●
●
●
To prevent accidental injury or damage to the unit,
please do not insert any foreign matter into the air inlet
and outlet, because the unit incorporates a high-speed
wind rotor.
It is prohibited to use this unit in environments with
flammable and explosive gases and direct sunlight for a
long period shall be avoided.
Do not place this unit in an inclined or other uneven
place to prevent the unit from falling and causing
damage to the unit or internal parts.
At any time the water level in the tank shall not exceed
“max” (maximum) scale, and during humidification, the
total water level in the tank shall be controlled, and
shall not be below “min” (minimum) scale.
After the water tank is filled with water, do not tilt or
collide with the unit when placing or moving it. To
move the unit body, please drive it slowly from the side
to prevent water overflow.
In using the unit, prohibit overturning to avoid any
accident. If the unit topples over accidentally, and it
contains water, unplug the power cord immediately
and take it to repair store.
Do not place items on the unit, and covering the outlet
is strictly prohibited.
When wash the unit appearance, apply a damp cloth
(or add a little cleaning agent) to wipe, and never use
corrosive cleaning agent or solvent for cleaning. Never
rinse the unit with water.
Do not have the air inlet and outlet of the unit close to
walls, curtains and other objects, or they may block the
airflow and affect air supply.
When the unit is running, do not knock at or shock the
unit body forcibly or it may lead to automatic shut-
down, in which case simply restart the unit.
04

●
●
●
●
●
●
●
●
In summer, the water in the tank may easily deteriorate
and generate odor, please pay attention to regular
change of water; if the indoor temperature is below
zero in winter humidification, it is best to use warm
water for humidification.
Do not place the unit directly below the power outlet.
Do not use the unit around the tub, sprinkler or swim-
ming pool.
Product repair must be carried out in a designated
agency.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Use a soft cloth moisten with mild soap, and then use a
dry cloth to wipe it again.
Be aware that high humidity levels may encourage the
growth of biological organisms in the environment. Do
not permit the area around the appliance to become
damp or wet. If dampness occurs, turn the output of the
appliance down. If the appliance output volume cannot
be turned down, use the appliance intermittently. Do
not allow absorbent materials, such as carpeting, cur-
tains, drapes, or tablecloths, to become damp. Unplug
the appliance during filling and cleaning. Never leave
water in the reservoir when the appliance is not in use
Empty and clean the appliance before storage. Clean
the appliance before next use.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
05

SPECIFICATIONS
373019Product Model
Voltage
Frequency
Power
220-240V~
50Hz
45W
06

PRODUCT OVERVIEW
NOTE
Pictures in the manual are for reference only, and real objects within the packaging box
will prevail in the end.

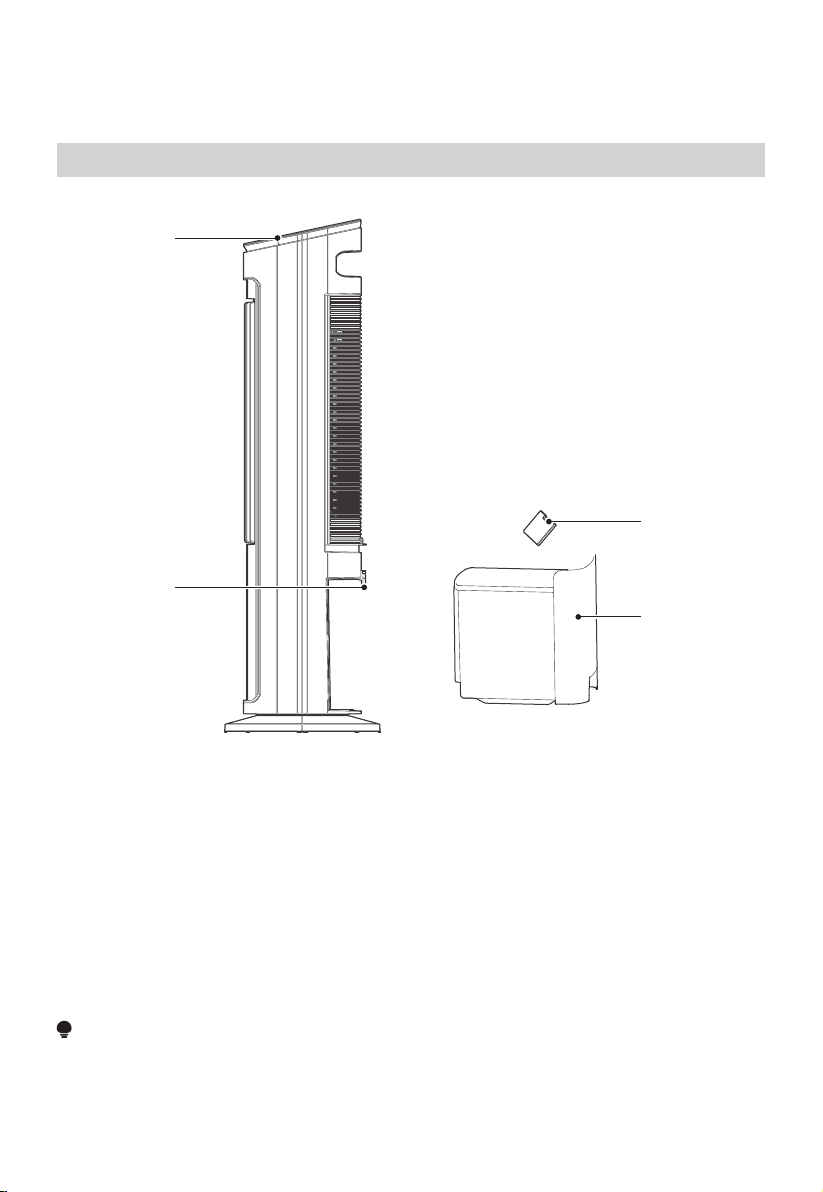

Component name
Control part
Ice crystal
box
Water tank
buckles Water tank
07

PRODUCT INSTALLATION
1
Installation procedures
Take the two parts of the base out of the box, align the centers of the two bases and
place them crosswise, then rotate one of the bases to align the holes and snap them
together.
2
Align the fuselage clip line with the base clip line, and press the fuselage into the base,
you can fix it with screws at the mark of the base.
08

Guidance on feeding water and disassemble & washing of the water tank
1
Pull the water tank buckle to the
horizontal state.
2 Pull out the water tank completely,
place it on a stable place, add water
and push the water tank into the
fuselage.
3
Unscrew the rotary knob in “—”
shape manually (90° anticlock-
wise) to separate the water tank
from the water pump module
(including the water pipe).
5
Position of clean water pump shown (It is recommended to clean every 3 months to
extend the service life.)
4
Pull out the water tank completely,
place it on a stable place, add water
and push the water tank into the
fuselage.
Water pump
module
Rotary knob
in “—” shape
Remove the
filter
09

NOTE
6
After feeding water or cleaning the
water tank, install the water pump
module in the water tank. Insert front
hook into the slot of the water tank,
and then rotate rotary knob in “—”
shape clockwise for 90°, and close it
as shown in the figure.
7 Push the water tank inside slowly,
and stir the water tank buckle to lock
it up.
Rotary knob
in “—” shape
Insert front hook
into the slot
• Please clean up water accumulated at the bottom of the water tank in a timely manner
when the product is left unused.
• Please remove the power plug when feeding water and cleaning.
• Please make sure that the water pump module is fixed in position before startup.
Random displacement of the water pump module can cause the abnormalities of the
product in cool wind function.
• Feeding water:
Separate water pump module, and fully pull out the water tank, to feed water or clean
the water tank.
10

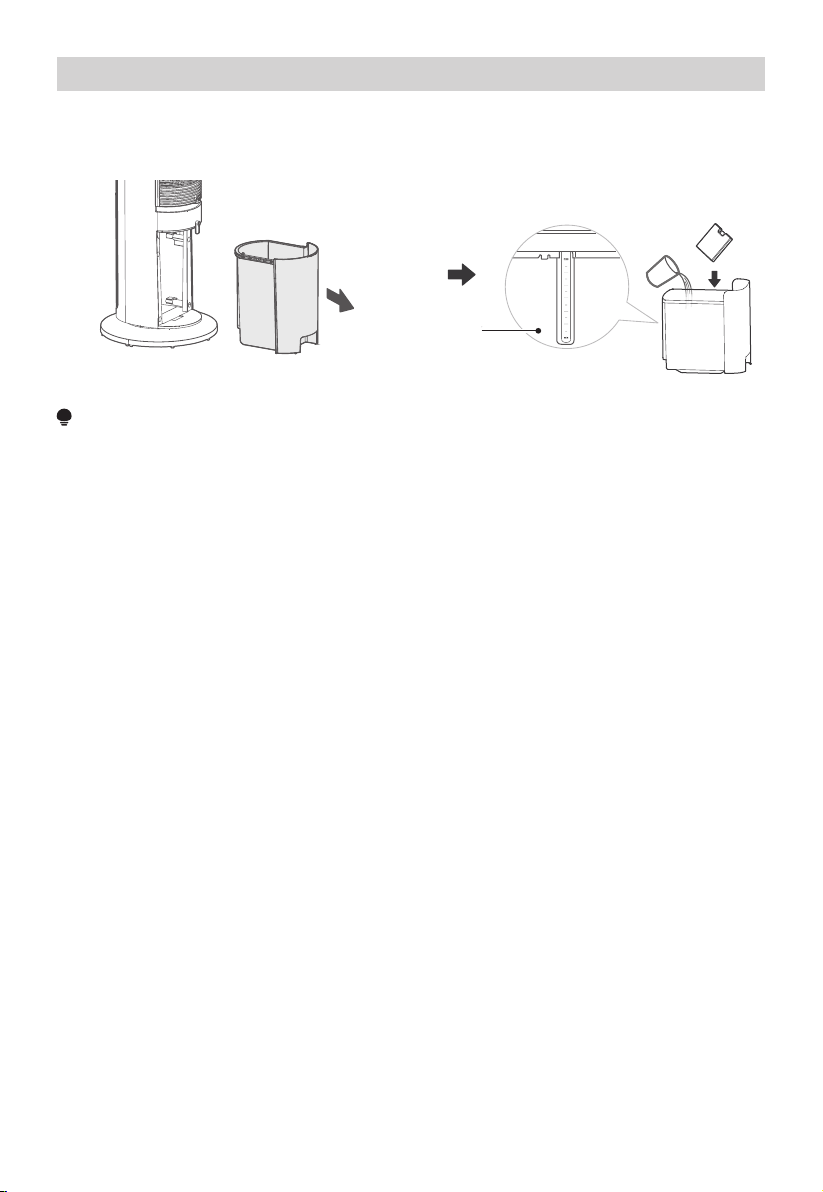

Usage of the ice crystal box
1
Pull out the water tank completely
and place it on a stable place.
2 Pull out the water tank completely,
place it on a stable place, add water
and push the water tank into the
fuselage.
Scale of
the water tank
NOTE
• The ice crystal box can be frozen repeatedly and recycled; You can also choose not to
use it based on the temperature.
• Please keep the ice crystal box closed to prevent from damage and liquid leakage.
• The ice crystal box is made of eco-friendly and toxic-free materials, and can be
refrigerated in fridge safely.
• When using the frozen ice crystal box in the water tank, the temperature at the air
outlet will drop after operating cool wind function.
• Ice blocks can be used to replace the frozen ice crystal box, to exert the same cooling
effect.
• Control the water level of the water tank to be lower than the "max" (maximum)
indicating scale when feeding water, and if the water level is lower than "min" (mini-
mum) indicating scale, please feed water in time.
11

OPERATION INSTRUCTIONS

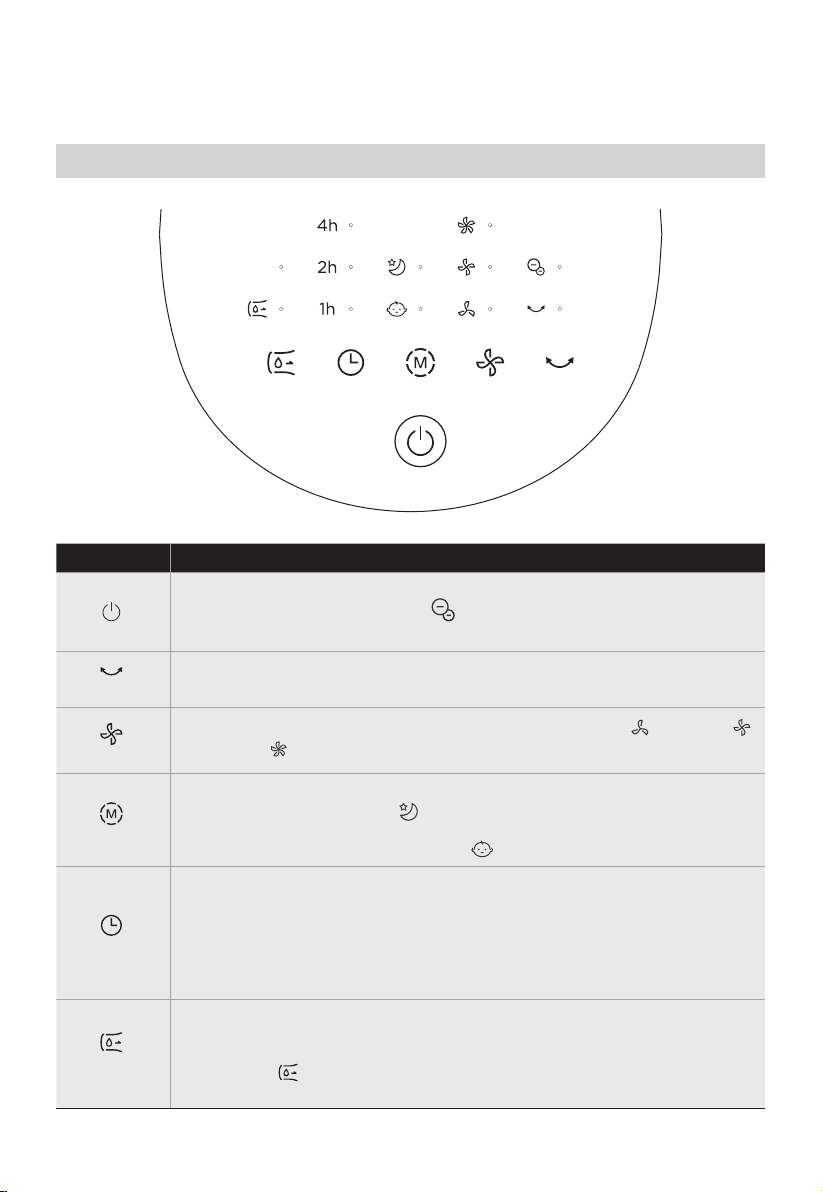

Function descriptionButton
●
●
Operating instructions of the machine body
COOLER TIMER MODE SPEED OSC
OSC
SPEED
MODE
TIMER
COOLER
Product starts or stops.
The anion indicator light is on when the product is on, and the
light is off when the product is turned off .
●
●
Short press this key to choose from three wind types:Normal
wind (3 gears, wind speed indicator light on),Sleep wind (2
gears, sleep wind indicator light on),
Baby wind (1 gear, baby wind indicator light on).
●
●
In the startup state, press this key, the indicator light will be on,
and briefly press this key to set the timed shutdown time (press
1-2-3 ·· - 7-0-1 ··· cycle)
In standby mode, press this key, the indicator light will be on ,
and briefly press this key to set the reserved startup time (press
1-2-3 ·· - 7-0-1 ··· cycle)
●
●
Press briefly in the power on state to turn on or turn off the cool
air. In dry or hot weather, turn on the cool wind function for
better experience.
If the indicator light flashes, please add water in time and
briefly press again to turn on this function.
●Touch this button to start/stop the swing.
●Short press this button to switch wind speed, low , medium ,
high .
12

Remote control button description
• The remote control should be normally used within 5 meters of the front of the product
and 30 degrees of the deviation angle.
• The battery contains many heavy metals, acids and bases, etc., which may threaten
human's health; Waste batteries should be recycled separately.
• Both machine body operation “ ” and remote control “ ... ” are buttons of cool wind.
Function descriptionButton
●Open/stop air swing
●Set the timed shutdown/reserved startup
●
●
“+” indicates accelerating wind speed
“-” indicates decreasing wind speed
●Open/close cool wind
●Startup/Standby
●Set wind type
...
Considerate Hint:
Use manganese or alkaline batteries of
type "AAA". DO not use rechargeable
batteries..
Remote controller
AAA Battery, 1.5v
Battery
COOLER
Notice
13

NOTE
Use size “AAA” manganese or alkaline batteries. Do not use rechargeable batteries.
Batteries installation
Batteries warning as below
Fig 2
Fig 1
Fig 3
Battery not included in the packaging
1Slide the battery compartment cover.
2 Insert the batteries, and make sure that the batteries are placed as shown in the Fig 2.
3Slide back the battery cover.
Do not dispose of batteries in fire, batteries may explode or leak.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries.
Non-rechargeable batteries are not to be recharged.
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the product.
The batteries must be removed from the remote controller before it is scrapped and
that they are disposed of safely.
●
●
●
●
●
●
●
14

CLEANING AND MAINTENANCE
The fan requires minimal maintenance. Do not try to fix it by yourself. Refer it to
qualified service personnel if service is needed.
Before cleaning and assembling, unplug the fan power.
To ensure adequate air circulation to the motor, keep vents at the rear of the motor free
of dust. Do not disassemble the fan to remove dust.
Please wipe the exterior parts with a soft cloth soaking a mild detergent.
Do not use any abrasive detergent or solvents to avoid scratching the surface.
Do not use any of the following as a cleaner: gasoline, thinner.
Do not allow water or any other liquid entering into the motor housing or interior parts.
Be sure to unplug from the electrical supply source before cleaning.
Plastic parts should be cleaned with a soft cloth moisten with mild soap Thoroughly
remove soapsuds with dry cloth.
1.
2.
3.
4.
5.
6.
7.
Replace water
After stopping the cool wind function for 2 minutes, it's applicable to pull out the water
tank to replace water, as water in the pipeline and wet curtain flows back to the water
tank.
• Disconnect the power before cleaning the product. Clean after the product is shut
down for two minutes.
• Prevent from using any abrasive tools and solvents that may damage the surface to
clean up the product. Detergent can be used in the cleaning, and then wiped clean with
dried cloth in time.
• Prevent from washing the machine body with water directly, and wash disassemble
parts (wet curtain parts) with a soft brush and then install them after they are cleaned
and dried.
• It is not allowed to take the product apart for any modification. It is recommended that
this product should be checked and cleaned regularly in order to extend its service life.
Stop the cool wind
function for 2 minutes.
Notice
15

TROUBLESHOOTING
Please check the following points before asking others for inspection or maintenance.
Fault descriptionFaults
●
●
The product cannot
be normally operated
after being installed.
Abnormalities of cool
wind function.
The power cord fails to be plugged in or has bad
contacts.
●Check whether the water tank lacks water.
The machine switch fails to be opened.
16

logo, word marks, trade name, trade dress and all versions thereof are
valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns
trademarks, copyrights and other intellectual property rights, and all goodwill derived
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
17

DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Officer via [email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected].
MANUFACTURER DECLARATION
The manufacturer declines all responsibility for any printing errors in the booklet
included with this product. Moreover, it also reserves the right to make any changes
deemed useful to its products without changing their essential characteristics.
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details. Any updates to
the manual will be uploaded to the service website, please check for the latest version.
18
