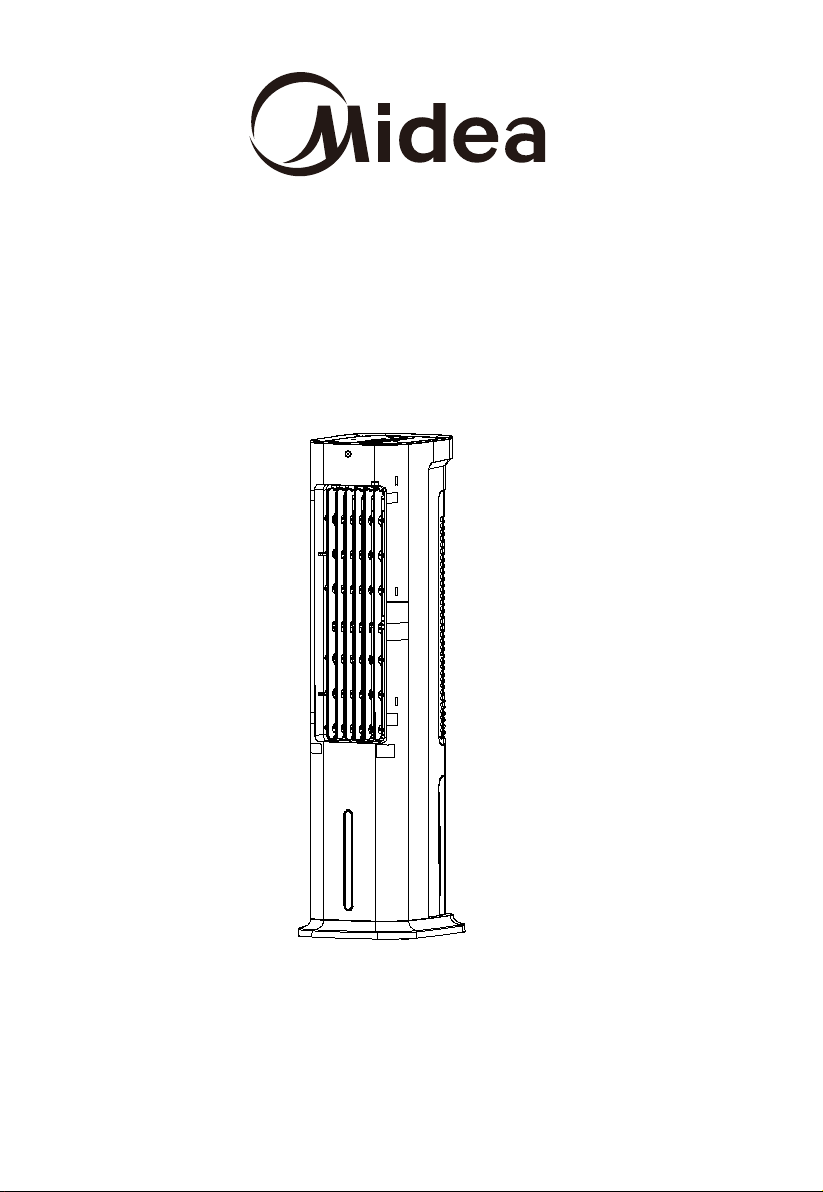

OWNER’S MANUAL
AIR COOLER
Model: AC100-20AR
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.

IMPORTANT SAFETY INSTRUCTIONS
Read Rules for Safe Operation and Instructions Carefully.
Caution
WARNING
1
1. If the supply cord is damaged, it must be replaced by
manufacturer, its service agent or a similarly qualified person
in order to avoid a hazard.
2. Household and indoor use only.
3. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance.
4. Unplug the appliance during filling and cleaning.
5. Prior to cleaning or other maintenance, the appliance must be
disconnected from the supply mains.
6. Non-specialized personnel or unauthorized repair personnel
shall not to repair or modify the machine.
7. It is forbidden to operate with wet hands to avoid electric
shock.
8. If the unit is not in use for a long time, unplug the power cord.
9. To prevent accidental injury or damage to the unit, please do
not insert any foreign matter into the air inlet and outlet,
because the unit incorporates a high-speed wind rotor.
10. It is prohibited to use this unit in environments with flammable
and explosive gases and direct sunlight for a long period shall
be avoided.

2
12. This machine has a safety switch. If the honeycomb filter
support has not been installed well, the unit will not work as
usual; when the machine is working, do not remove the
honeycomb filter frame.
13. At any time the water level in the tank shall not exceed
"MAX" (maximum) scale, and during humidification, the total
water level in the tank shall be controlled, and shall not be
below "MIN" (minimum) scale.
14. After the water tank is filled with water, do not tilt or collide
with the unit when placing or moving it. To move the unit
body, please drive it slowly from the side to prevent water
overflow.
15. In using the unit, prohibit overturning to avoid any accident.
If the unit topples over accidentally, and it contains water,
unplug the power cord immediately and take it to repair store.
16. Do not place items on the unit, and covering the outlet is
strictly prohibited.
17. When wash the unit appearance, apply a damp cloth (or add
a little cleaning agent) to wipe, and never use corrosive
cleaning agent or solvent for cleaning. Never rinse the unit
with water.
18. Do not have the air inlet and outlet of the unit close to walls,
curtains and other objects, or they may block the airflow and
affect air supply.
19. When the unit is running, do not knock at or shock the unit
body forcibly or it may lead to automatic shutdown, in which
case simply restart the unit.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
11. Do not place this unit in an inclined or other uneven place to
prevent the unit from falling and causing damage to the unit
or internal parts.

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
20. In summer, the water in the tank may easily deteriorate and
generate odor, please pay attention to regular change of
water; if the indoor temperature is below zero in winter
humidification, it is best to use warm water for humidification.
21. Do not place the unit directly below the power outlet.
22. Do not use the unit around the tub, sprinkler or swimming
pool.
23. Product repair must be carried out in a designated agency.
24. To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
25. Use a soft cloth moisten with mild soap, and then use a dry
cloth to wipe it again.
26.Be aware that high humidity levels may encourage the growth
of biological organisms in the Environment.
27.Do not permit the area around the humidifier to become damp
or wet. If dampness occurs, turn the output of the humidifier
down. If the humidifier output volume cannot be turned down,
use the humidifier intermittently. Do not allow absorbent
materials, such as carpeting, curtains, drapes, or tablecloths,
to become damp.

PRODUCT INTRODUCTION
Notice
Pictures in the manual are for reference only, and real objects within the packaging box will
prevail in the end.
Notice
Parts name
Guidance on feeding water and disassemble & washing of the
water tank
INSTRUCTIONS
Please clean up water accumulated at the bottom of the water tank in a timely manner when the product
is left unused.
Please remove the power plug when feeding water and cleaning.
Please make sure that the water pump module is fixed in position before startup. Random displacement
of the water pump module can cause the abnormalities of the product in cool wind function.
Two ways for feeding water:
①Pull out half of the water tank, and feed water directly without disassembling the water pump module.
②Separate water pump module, and fully pull out the water tank, to feed water or clean the water tank.
4
Control part
Water tank
buckles
Wet curtain
Ice crystal box
(The ice crystal box
is a random gift)
Water tank

Pull out the water tank to the position
as shown in the figure (push the water
tank inside after feeding water)
2
Pull the water tank buckle to
the horizontal state.
1
Guidance on feeding water and disassemble & washing of the
water tank
INSTRUCTIONS
Unscrew the rotary knob in "—" shape
manually (90° anticlockwise) to separate
the water tank from the water pump
module (including the water pipe).
3Pull out the water tank slowly to
clean it up or feed water.
4
After feeding water or cleaning the water
tank, install the water pump module in the
water tank. Insert front hook into the slot
of the water tank, and then rotate rotary
knob in "—" shape clockwise for 90°, and
close it as shown in the figure.
5Push the water tank inside slowly, and
stir the water tank buckle to lock it up.
6
Water pump module
Rotary knob in "—" shape
5

1Pull out half of the water tank below
the machine.
①The ice crystal box can be frozen repeatedly and recycled; You can also choose not to use it
based on the temperature.
②Please keep the ice crystal box closed to prevent from damage and liquid leakage.
③The ice crystal box is made of eco-friendly and toxic-free materials, and can be refrigerated in
fridge safely.
④When using the frozen ice crystal box in the water tank, the temperature at the air outlet will drop
after operating cool wind function.
⑤Ice blocks can be used to replace the frozen ice crystal box, to exert the same cooling effect.
⑥Control the water level of the water tank to be lower than the "max" (maximum) indicating scale
when feeding water, and if the water level is lower than "min" (minimum) indicating scale, please
feed water in time.
Take the ice crystal box out of the
package and place it inside a refrigerator
to freeze for more than 3 hours. Put the
frozen ice crystal box in the water tank,
and feed water below "max" (maximum)
indicating scale.
Usage of the ice crystal box
INSTRUCTIONS
Notice
2
6
Scale of the water tank

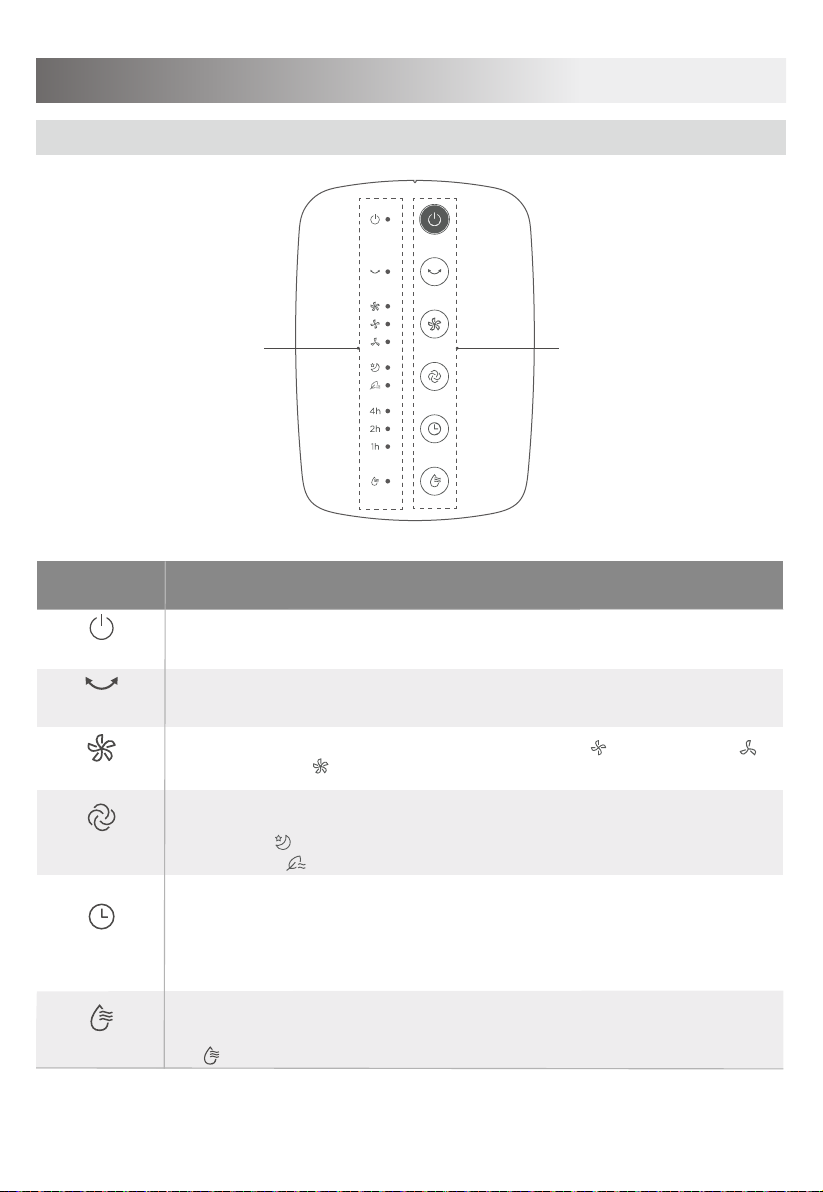

The product is activated or shut down.
Touch the air swing button, to activate or shut down air swing.
Buttons Function description
Startup/Standby
Timing/
Reservation
Wind type
Air swing
Wind speed
Cool wind
Press the button to switch wind speed to low-grade , medium-grade ,
and high-grade .
Press the button to select among these three types of wind: Normal wind
(grade 3, the wind speed indicator light is on), sleep wind (grade 1,
sleep wind the indicator light is on), natural wind (grade 1,
natural wind the indicator light is on).
The indicator light will be on when pressing the button under startup
state, and the timed shutdown time can be set by shortly pressing the
button (the cyclic is based on 1-2-3···-7-0-1···).
The indicator light will be on when pressing the button under standby
state, and the reserved startup time can be set by shortly pressing the
button (the cyclic is based on 1-2-3···-7-0-1···).
Shortly press to open or close cool wind under startup state. The
experience effect is better, when opening the cool wind function in dried
or hot weather.
If indicator light flashes, please feed water in time, and repress.
Operating instructions of the machine body
INSTRUCTIONS
7
Control areaDisplay area

Notice
Notice

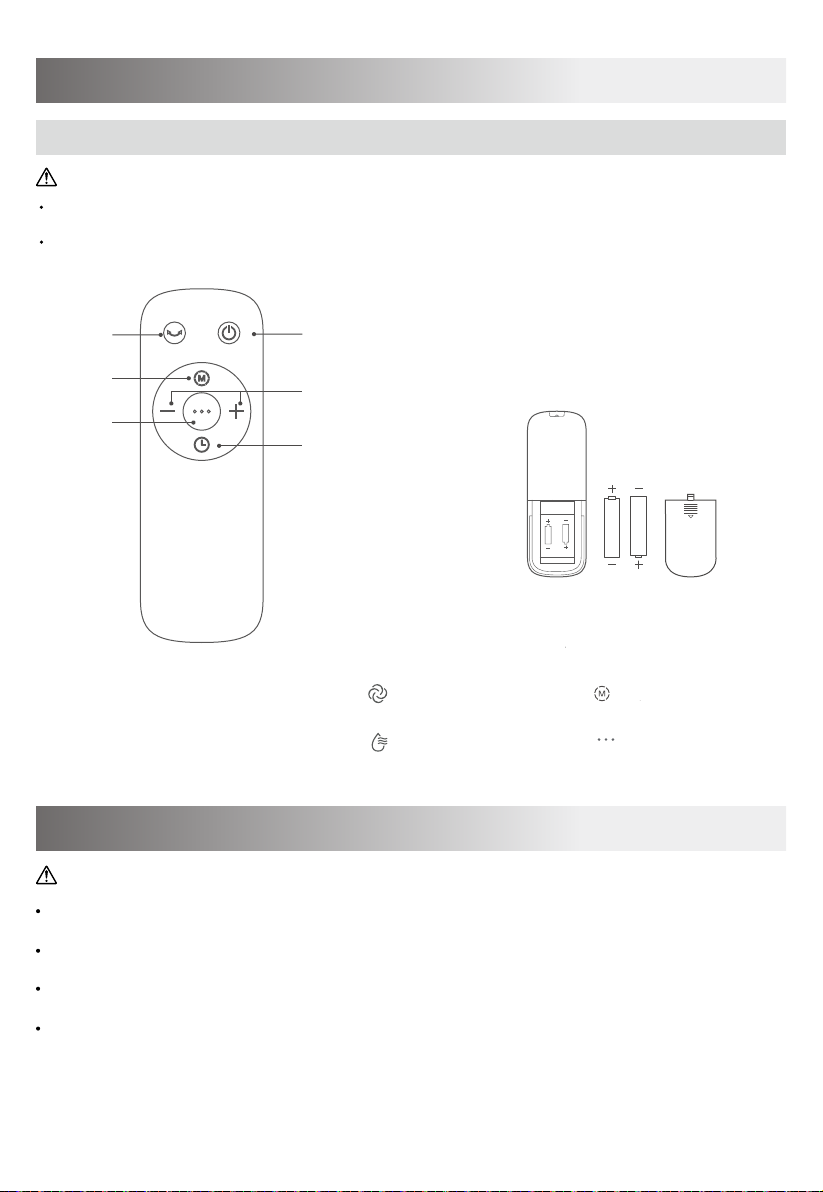

The remote control should be normally used within 5 meters of the front of the product and 30 degrees
of the deviation angle.
The battery contains many heavy metals, acids and bases, etc., which may threaten human's health;
Waste batteries should be recycled separately.
Note: Both machine body operation " " and remote control " "
are buttons of wind type;
Both machine body operation " " and remote control " "
are buttons of cool wind;
Open/stop
air swing
Startup/Standby
Set the timed shutdown/
reserved startup
"+" indicates accelerating
wind speed
"-" indicates decreasing
wind speed
Set wind
type
Open/close
cool wind
Remote control button description
INSTRUCTIONS
CLEANING AND MAINTENANCE
AAA Battery, 1.5 V
Battery
Use manganese or alkaline batteries of type
"AAA". DO not use rechargeable batteries.
Disconnect the power before cleaning the product. Clean after the product is shut down for two
minutes.
Prevent from using any abrasive tools and solvents that may damage the surface to clean up the
product. Detergent can be used in the cleaning, and then wiped clean with dried cloth in time.
Prevent from washing the machine body with water directly, and wash disassemble parts (wet
curtain parts) with a soft brush and then install them after they are cleaned and dried.
It is not allowed to take the product apart for any modification. It is recommended that this product
should be checked and cleaned regularly in order to extend its service life.
8

1Remove the wet curtain support. 2Rotate the bottom buckle at first, and
then remove the wet curtain.
4Install wet curtain support.
Guidance on the disassembly and installation of wet curtain parts
Replace water
CLEANING AND MAINTENANCE
After stopping the cool wind function for 2 minutes,
it's applicable to pull out the water tank to replace
water, as water in the pipeline and wet curtain flows
back to the water tank. Stop the cool wind
function for 2 minutes.
9
3Take out the wet curtain for cleaning.

Please check the following points before asking others for inspection or maintenance.
Faults Fault description
The product cannot be
normally operated after
being installed.
The air volume is
getting smaller.
Abnormalities of cool
wind function.
The power cord fails to be plugged in or has bad
contacts.
The machine switch fails to be opened.
The wet curtain is dirty, and should be cleaned on a
regular basis.
Check whether the water tank lacks water.
Troubleshooting
SERVICE GUIDE
MAINTENANCE INSTRUCTION
CLEANING
The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service
personnel if service is needed.
1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of
dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface.
Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.
1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove
soap film with dry cloth.
10
