Midea 330173 User manual

Warning notices: Before using this product,please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram aboveis just for reference. Please take the appearance of the actual product as the standard.
330173
330174
USER MANUAL
Cooker Hood

THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
CONTENTS
0
02
1
06
09
10
12
13
13
14
THANK YOU LETTER
SAFETY INSTRUCTIONS
04
SPECIFICATIONS
05
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
TRADEMARKS,COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE

Danger
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them intheimmediate vicinity of theinstallation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
02

WARNING
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. （EN 60335-1 & EN 60335-2-31）
Children shall not play with the appliance. （EN 60335-1 & EN 60335-2-31）
Cleaning and user maintenance shall not be made by children without supervision.
（EN 60335-1 & EN 60335-2-31）
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
This appliance incorporates an earth connection for functional purposes only.
There shall be adequate ventilation of the room when the range hood is used at the
same time as appliances burning gas or other fuels (not applicable to appliances that
only discharge the air back into the room).
There is a fire risk if cleaning is not carried out in accordance with the instructions;
Do not flambé under the range hood.
CAUTION: Accessible parts may become hot when used with cooking appliances.
The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels (not applicable to appliances that only
discharge the air back into the room).
The minimum distance between the supporting surface for the cooking vessels on the
hob and the lowest part of the range hood. This distance shall be at least 65 cm. If the
instructions for installation specify a smaller distance, this has to be taken into
account. The distance of 65 cm can be reduced for：non-combustible parts of range
hoods, except grease filters,and parts operating at safety extra low voltage, provided
these parts do not give access to live parts if deformed.
Regulations concerning the discharge of air have to be fulfilled.
The appliance uses 4 hob elements at most.
Plug the power cord to socket outlet with earthing continuity terminal.
The cooker hood is for home use only, not suitable for barbecue, roast shop and other
commercial purposes.
Do not use open flame, or allow oil to go beneath the appliance.
If there is any fault occurred with the appliance, please call after-sale service depart-
ment.
Prior to any maintenance, cleaning operation, ensure the power is cut o.
In case of damaged connecting wire, please refer to the manufacturer, after-sale
service personnel or other qualified technicians.
Use the unit according to the instructions to avoid any fire hazard.
03
●
●

CAUTION
●
●
●Please do not use corrosive detergent for cleaning. The proper function of the unit is
conditioned by the regularity of the maintenance.
To protect the main body from corrosive of the long time accumulation of dirt, the
cooker hood should be cleaned with hot water with non-corrosive detergent every
two months.
The cooker hood and its filter should be cleaned regularly according to the instruction.
SPECIFICATIONS
The air flow parameter is tested under conditions of 230V~50Hz when the
voltage is 220V-240V~ 50/60Hz and without carbon filters.
Product Model
Voltage
Rated Power
Lighting Power
Motor Power
Diameter of air tube
Air flow
Noise
Electrical Diagram
Electrical diagram see label on main body of the actual product.
220V-240V~/50Hz
293 W
1.5 W × 2
290 W
150 mm
1150m3/h
≤72 dB(A)
330173/330174
04
●Range hoods and other cooking fume extractors may adversely aect the safe
operation of appliances burning gas or other fuels (including those in other rooms)
due to back flow of combustion gases. These gases can potentially result in carbon
monoxide poisoning. After installation of a range hood or other cooking fume
extractor, the operation of flued gas appliances should be tested by a competent
person to ensure that back flow of combustion gases does not occur.

PRODUCT OVERVIEW
Measurement
unit：mm
259
Electric Hob
Min.500mm
Gas Hob
Min.650mm
284
Φ150
248
256
672
700
677
259
13
05

Installation
Here two venting modes, extraction-air mode and recirculation mode,
before installing select one mode.
PRODUCT INSTALLATION
Extraction-air mode Recirculation mode
06

1. Press the lock catch of metal
Filter, remove the Filter.
3. Unfastening the screws
(ST4*10), remove the lid of
terminal box, disconnect the
wires to the Commands at the
connectors.
5. Fasten the Hood in the cabinet
by using the 12 screws (ST4*18).
6. Screw the stainless steel frame
back into place using the 4 screws
removed as described above.
4. Disconnect the wires to the
Light at the connectors.
2. Remove the stainless steel frame
by unfastening the 4 screws (M4*10).
07

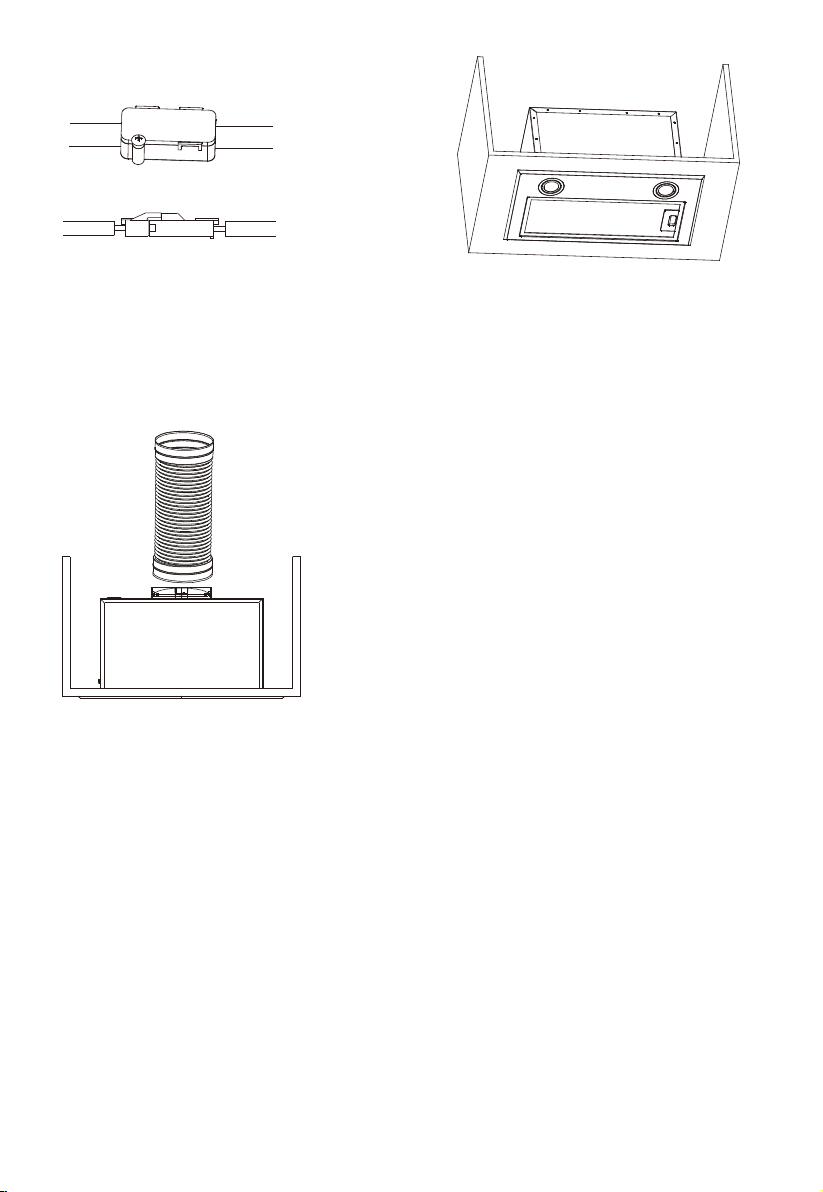

7. Reconnect the wires to
the Commands and Light.
9. Install the air outlet pipe(optional).
8. Replace the metal Filter.
08

OPERATION INSTRUCTIONS

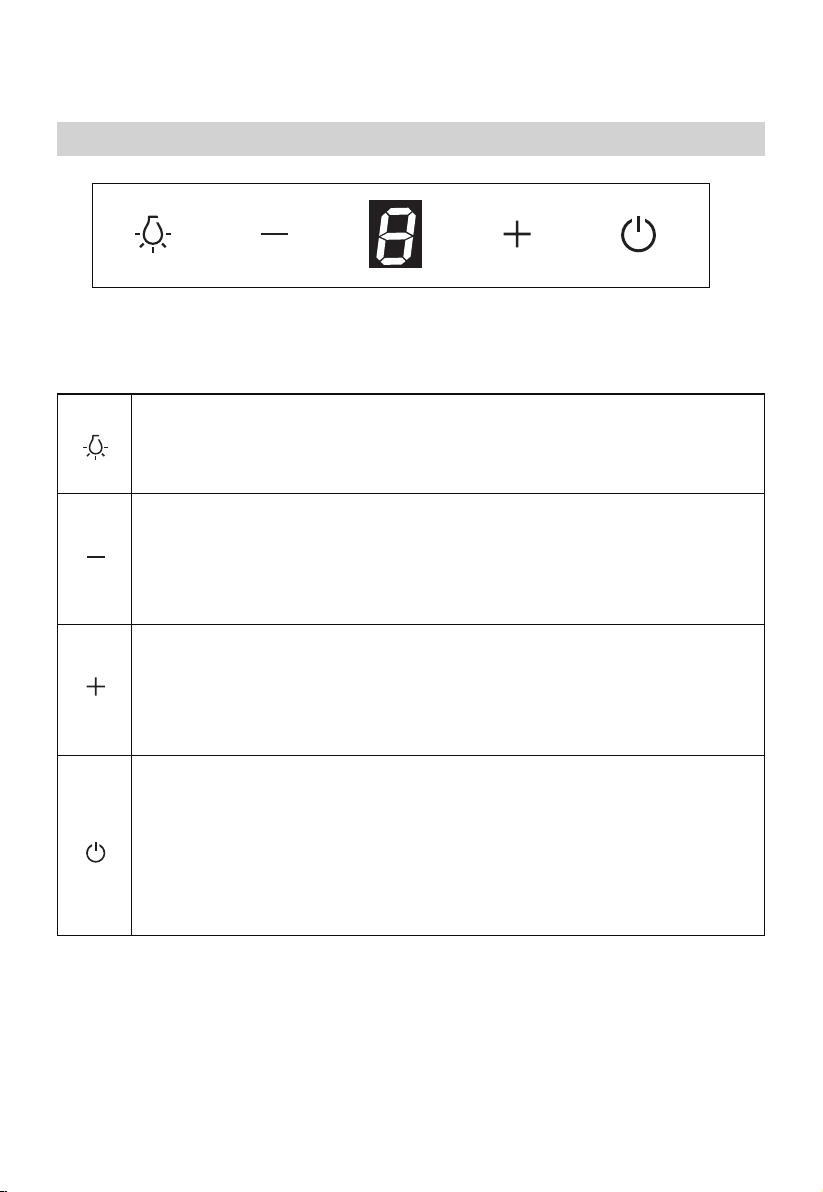

Speed Adjustment. See Below Fig
Light Minus Digital screen Plus Power
After the hood is switched on, a beep sound heard and all key lights are lightened for 1 s,
indicating the hood has been powered on. Under the condition the hood power-on:
control the motor power, under standby state, press the “power” button,
“power” key light is on, the motor starts up at low speed, digital screen
displays setting 1; under power-on state, press the “power” button, enter
3-min-delay-shutdown state, setting switched to low speed, the power
key flashes at one second interval, which means entering delay-shutdown
state; under delay-shutdown state, press the “power” button, it’s shut
down immediately (motor stops running).
independently control the light on and o free from the eect of other
keys. Press it once, the light is on, meanwhile the light key light is on;
press again, the light is o and light key light is o too.
valid under power-on state, press plus (+) key once, motor speed
increased one setting, digital tube displays corresponding setting. When
the plus (+) key is pressed down, plus (+) key light is on. When at the
highest setting, only give out key touch sound, the setting no longer
changes.
valid under power-on state, press “minus (-)” key once,motor speed
decreased one setting, digital tube displays corresponding setting. When
the “minus (-)”key is pressed down, “minus (-)”key light is on. When at the
lowest setting, only give out key touch sound, the setting no longer
changes.
09

●
●
●
●

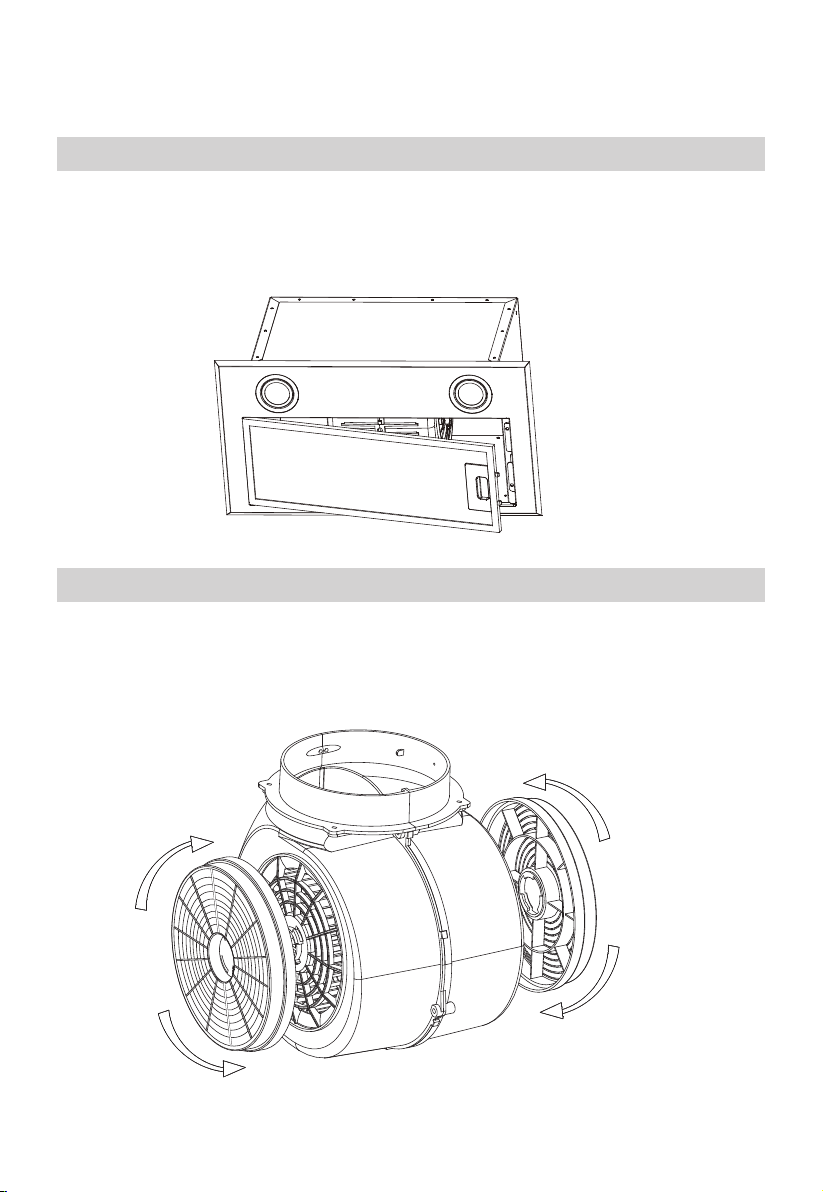

Cleaning Of The Filter
Removing the metal filter according to Installation (page 7).
Put it into a dishwasher with detergent, set the temperature below 60 degrees.
Please do not use abrasive detergent for it will damage the hood.
Make sure that the hood is shut o before cleaning.
●
●
●
●
Changing The Filter
Remove the metal filter according to Installation (page 7).
Remove the saturated Activated Charcoal Filters(optional), as indicated.
Fit the new Charcoal Filters, as indicated.
Replace the Metal grease Filter according to Installtion (page 8).
CLEANING AND MAINTENANCE
ON
REMOVE
ON
REMOVE
10

Replacing The Lamp
Press the lock catch of metal Filter,
remove the Filter.
Disconnect the wires to the Lamp.
Connect the wires of the new Lamp.
Push the new lamp and fix it to the hole.
Push the lamp from inside, to remove
the Lamp.
Max Power Voltage Picture Lamp Cap ILCOS D code
1.5W DC 12 V —— DSR-1.5-S-70
Round/ Diameter:
70mm
11

TROUBLESHOOTING
Possible reason SolutionProblem
Light on, but motor
does not work
Both light andmotor
do notwork
●
●
●
●
●
●
●
The internal wiring of motor
is cut o/disconnected. An
unpleasant smell may be
produced.
The blades are blocked.
The capacitor is damaged.
The motor is damaged.
Replace capacitor.
Replace motor.
Replace motor.
Check the blades
Apart from the above mentioned, check the following:
Light damaged. Replace lights.
Power cord loose. Connect the wires as the
electric diagram.
Oil leakage
Outlet and the air ventilation
entrance are not tightly
sealed.
Take down the outlet and seal
with glue.
●
●
●
●
●
●
●
Vibration
The blade, if damaged, can
cause vibrating.
Replace the blade.
Fasten the motor tightly.
Fixed the cooker hood tightly.
The motor is not tightly
fastened.
The cooker hood is not tightly
fixed.
Insucient suction
The distance between the
cooker hood and the cooker top
is too large.
Readjust the distance.
Too much ventilation from
open doors or windows.
Choose a new place to install
the appliance or close some
doors / windows.
The machine inclines
The fixing screws are not tight
enough.
Tighten the fixing screw and
make it horizontal.
The hanging screws are not
tight enough
Tighten the hanging screw
and make it horizontal.
12

logo, word marks, trade name, trade dress and all versions thereof are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
Important instructions for environment
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life. Used
recycling of electrical electronic devices. To find these
collection systems please contact to your local authorities or
retailer where the product was purchased. Each household
performs important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance helps
prevent potential negative consequences for the environment
and human health.
device must be returned to ocial collection point for
13

Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
Package information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National Environ-
ment Regulations. Do not dispose of the packaging materials
together with the domestic or other wastes. Take them to the
packaging material collection points designated by the local
authorities.
DATA PROTECTIONNOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
[email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
14

2023
16173000A?
V1.0
