Midea MHAA90BL User manual

Cooker Hood
Midea
Instruction
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your cooker hood,and keep it
carefully. If you follow the instructions, your cooker hood will provide you with many years
of good service.
MODEL:MHAA90BL

Contents
Warnings................................................................ 3
01
02
03
04
05
07
08
09
Installation instruction ............................................ 6
Safety Warning.......................................................
Maintenance......................................................... 11
Main Parameters.................................................. 1
2
1
10 War notice......................................................
Trouble shooting..................................................
1
Contents.................................................................
06
First using..............................................................
11 Disposal................................................................ 1
After service......................................................... 14
ranty
2
5
10
3
4
5
5

This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
There shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels.
Please do not use corrosive detergent for cleaning. The
proper function of the unit is conditioned by the
regularity of the maintenance.
To protect the main body from corrosive of the long time
accumulation of dirt, the cooker hood should be
cleaned with hot water with non-corrosive detergent
every two months.
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
Warnings
Do not flame under the range hood.
The minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part of
the range hood. (When the range hood is located above a
gas appliance, this distance shall be at least 65 cm. If the
instructions for installation for the gas hob specify a
greater distance, this has to be taken into account. The
distance of 65 cm can be reduced for:
3

Warnings
Regulations concerning the discharge of air have to be
fulfilled.
The appliance uses 4 hob elements at most.
CAUTION :
used with cooking appliances.
Accessible parts may become hot when
non-combustible parts of range hoods, and
parts operating at safety extra low voltage,
Provided these parts do not give access to live parts if
deformed;)
4
The first time connecting the supply power or re-up
electricity , the hood have self-inspection function, the top
glass plate will open and close one time, so minds your
hand to be pinched, not to handle your hand near the
panel!"

The appliance is not intended for use by young children or infirm
persons without supervisions.
Young children should be supervised to ensure they do not play with
the appliance.
Plug the power cord to socket outlet with earthing continuity terminal.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purposes.

according to the instruction.
Do not use open flame, or allow oil to go beneath the appliance.
If there is any fault occurred with the appliance, please call after-sale
service department.
Please keep the kitchen room ventilated.
Prior to any maintenance, cleaning operation, ensure the power is cut
off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
If the plug or cord is damaged, please call after-sale service center.
There is a fire risk if cleaning is not carried out in accordance with the
instruction.
In case of damaged connecting wire, please refer to the manufacturer,
after-sale service personnel or other qualified technicians.
Use the unit according to the instructions to avoid any fire hazard.
The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
Follow the local laws applicable for external air evacuation.
Safety Warning

The cooker hood and its filter should be cleaned regularly

As the upper panel is closing, don’t put your hands between the upper
panel and the body in case of clamp your hand.

As steam generator is working, be careful of hot steam out of the body.
5

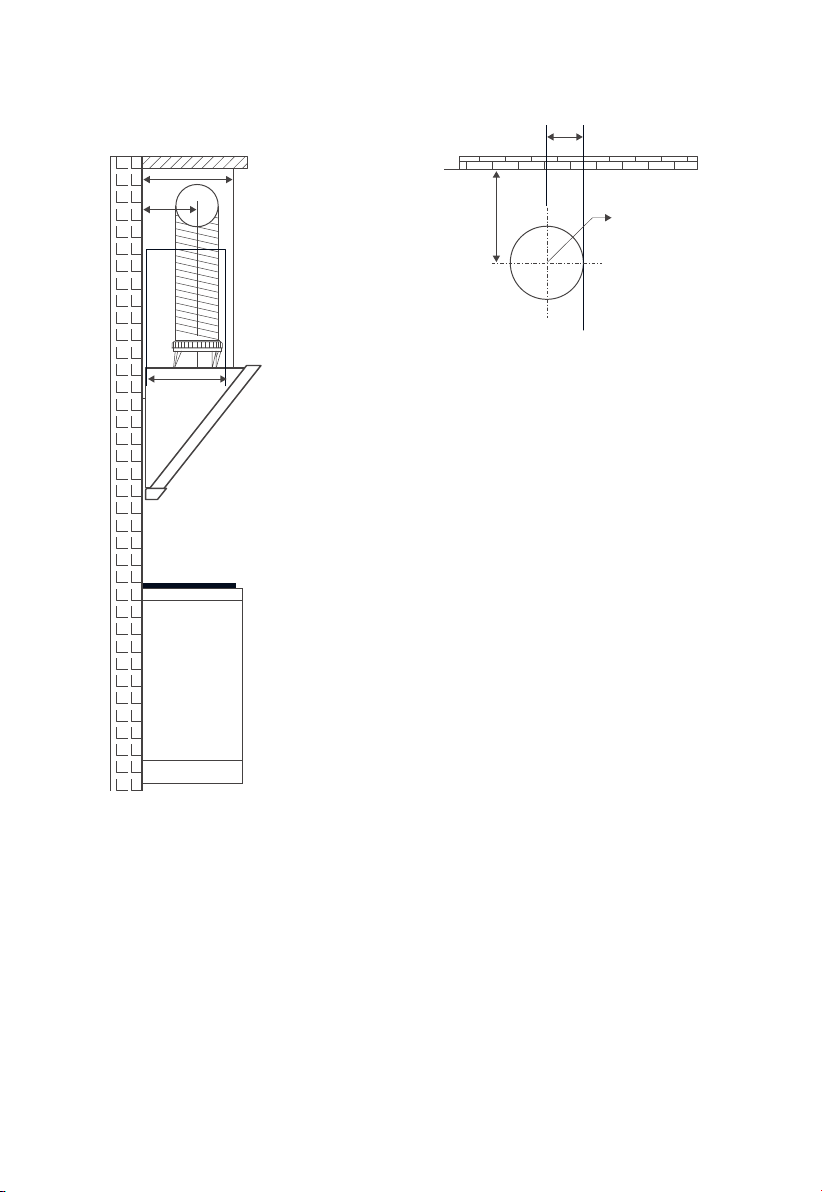

Installation instruction
Determine location
Range hood should be installed horizontaly on the top of the stove,
the installation diagram is as follows:
905~915
482
800~850
Cupboard Chimney
Suspended
ceiling
Exhaust pipe
430
Line for Installation
840~940
6

220
405
105
Schematic diagram of the hole size
of the exhaust pipe at the ceiling
Ф200248
320
Note: This installation height is only applicable to
electric stove, if installed above the gas stove,
the installation height should be in accordance
with the installation height requirements of gas
stove.
7

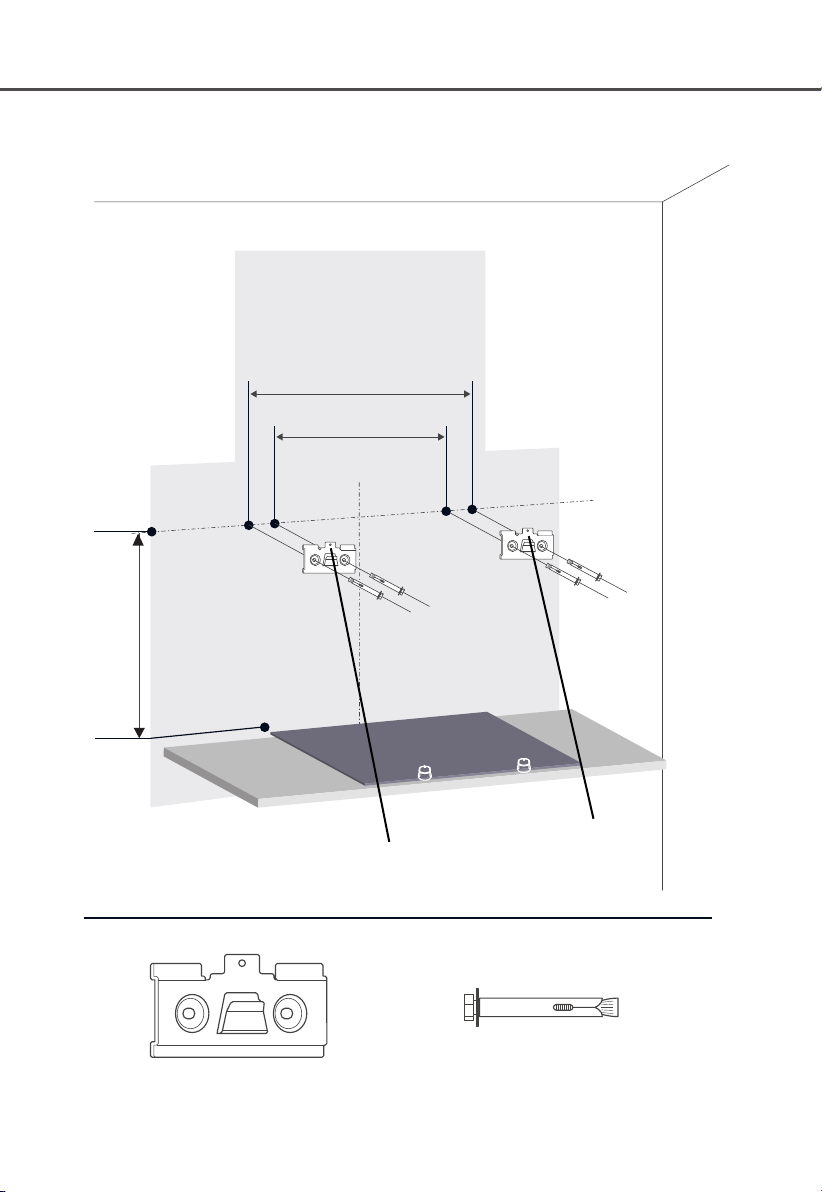

Installation plate
Expansion bolt
840~940
Installation instruction
lnstallation plate
570
430
8
After hang the hood on the installation plate, fasten two
screws M5X16, avoid the hood slide off accidently.

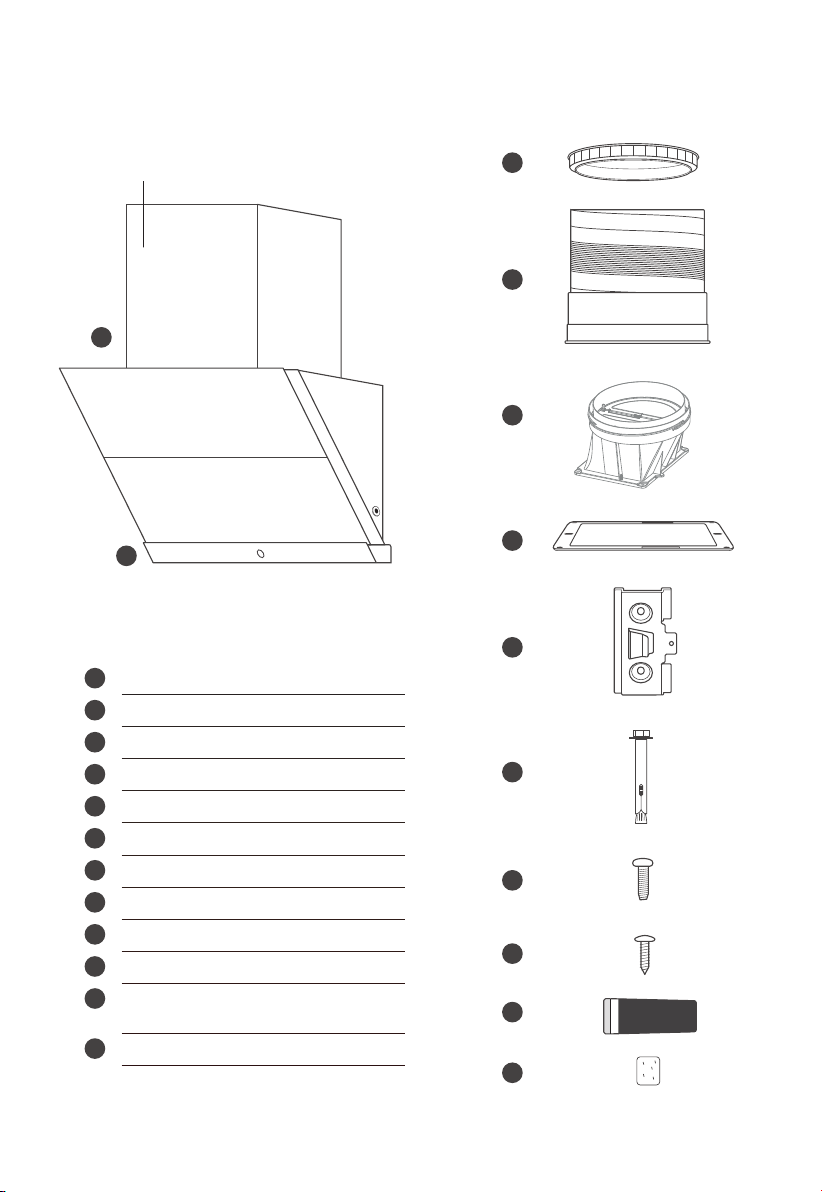

Accessories
Note: If you need to install the decorative
cover, please buy it in advance.
1
5
4
3
2
6
7
8
10
11
9
12
Range hood body
Exhaust pipe fixed ring
Exhaust pipe
Check valve
Check valve Sealing gasket
Installation plate
Expansion bolt (8 x 60)
Screws (M5x16)
Screws (ST4.2x16)
Water cup
Filter cotton for water cup
(replaced every 2 years)
Oil cup
1
1
1
1
1
2
4
2
4
1
5
1
1
2
3
4
5
6
7
8
9
10
11
12
9

7 X Screws(M5*50)

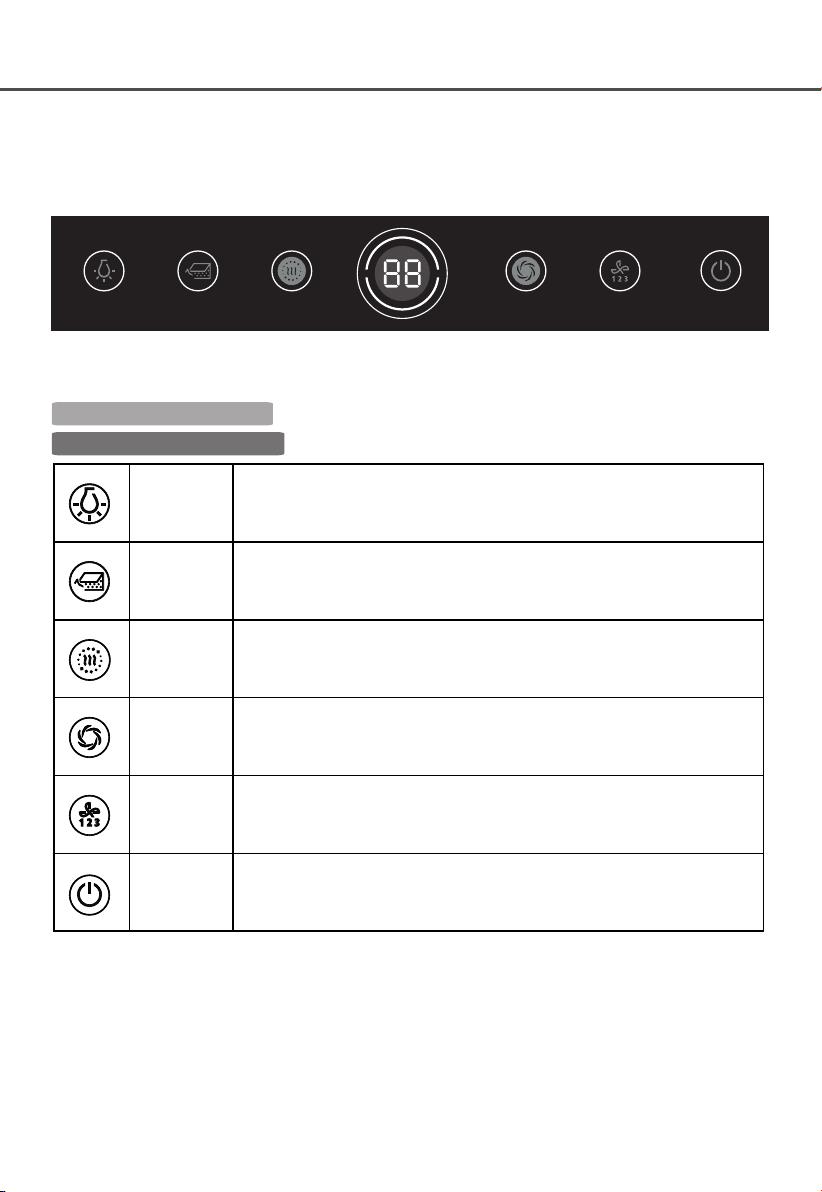

First Using
Range hood can be used after power.
Light Short press: Turn on the light;
Long press: Adjust the light.
Washing Long press: Open the panel;
Long press: Close the panel.
Steam
washing
Long press: Start;
Long press and twice short press: Cancel the indicator
light reminder.
Boost Short press: Startup (09 speed), return to 03 speed after 5 min,
please select manually if needs it to continue.
Speed Short press: Adjust speed (As clock flash, adjust clock).
Power
1st Short press: Startup (3 speed);
2nd Short press: Delay 3 min;
3rd Short press: OFF immediately.
Short press: 0.5 second
Long press: 2~3 seconds
10

222
Maintenance
Cleaning on the surface
1. The surface of the range hood and filter should be clean regularly, do not use clean
balls, brushes, coarse cloth, so as not to scratch the surface of the machine.
2. As the oil is seen from the Oil Cup Window, please dumping in time, avoid the oil
dripping to the stove. Oil Cup Window

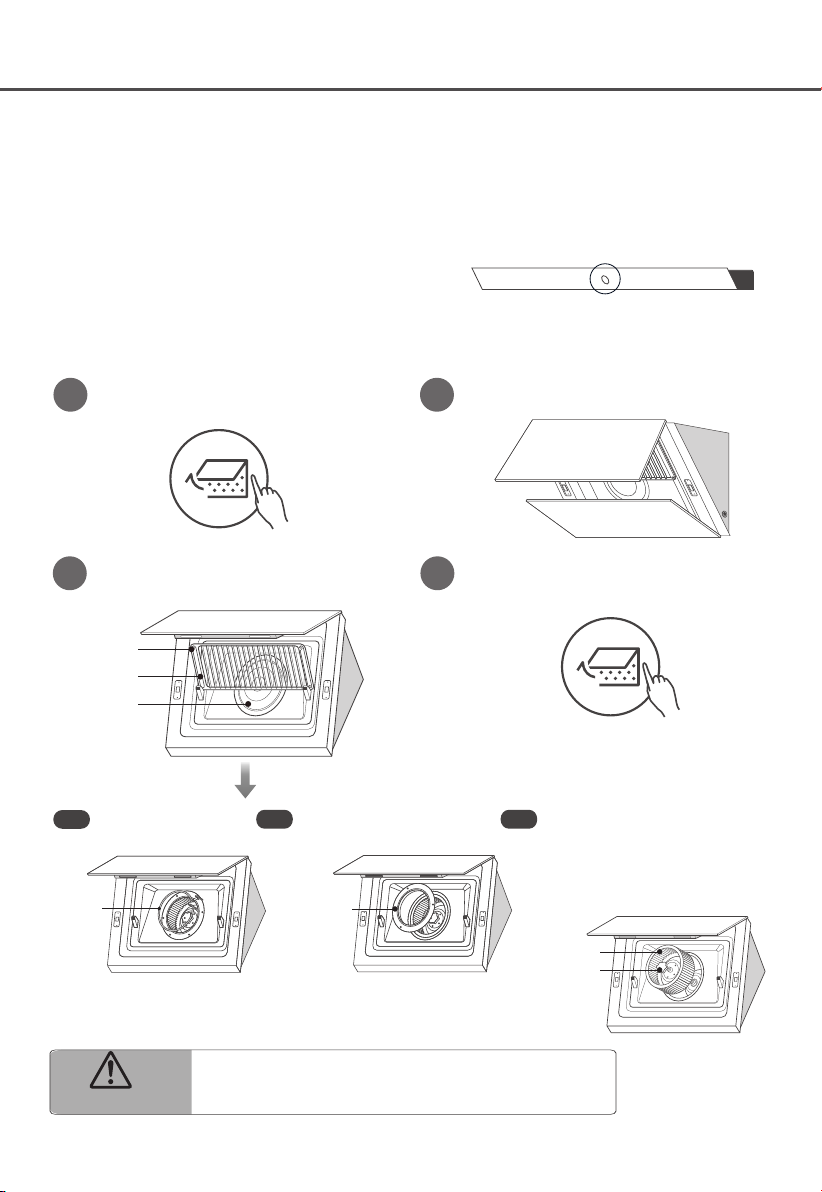

Cleaning mode (Cleaning the surface manually )
Long press to open the panel Dismantle the glass panel to cleaning.
1 2
.
Reset after cleaning, long press
for 3 seconds to close the panel.
Dismantle the net to clean; clean the
filter net surface (don't dismantle).
）
net
handle
filter
34
3.1 Dismantle nozzle.
nozzle
Dismantle air inlet ring.
air inlet
ring
3.2
impeller
impeller
lock nut
Safety Caution
Dismantle the filter to clean the impeller,
need to be completed by professionals.
Turn out the impeller lock
nut in the direction indicated
and remove the impeller in
the horizontal direction of
the motor shaft.
3.3
11

Steam Washing (Cleaning inner of the hood)
1
2
3
4
5
6
7
water inlet
washing drying
As the indicator light turns red and flashes,
it is indicated that steam washing is required.
a) Remove oil cup
b) Dump accumulated oil
c) Install oil cup
Cup filled with purified water or distilled water.
Plug the tube into the water inlet.
Press "Steam Washing" for 2 seconds to start
the steam washing.
Steam washing: 12 min
Drying: 3 min
a) Remove oil cup
b) Dump accumulated water
c) Install oil cup
Steam washing process
During steam washing, do not touch the surface
of glass panels or deflector to avoid scalding.
CAUTION
start washing drying over
1. Cancel the steam washsing reminder (not washing):
Long press 2 seconds + short press twice to fast forward to the end.
2. Fast forward or end in advance（during washing）:
Short press again to fast forward to the next step.
12

222
Main Parameters
Voltage
Rated Power
Lighting Power
Motor Power
Diameter of air tube
Air flow
Noise
The air flow parameter is tested under conditions of 230V
~
/50Hz when the voltage is
220-240V
~/
50Hz
220-240V~/50Hz
1600W
2 X 1.5W
260W
180mm
18m³ /min
≤
13
.
LED light imformation
Max Power Voltage Picture Lamp Cap ILCOS D code
Square / Diameter:
25mm x 138mm
1.5W DC 12 V —— DSS-1.5-S-25/138
55dB/ 69dB(A)
(SPL/APL)
*Sound Pressure Level/Acoustic Power Level
(Boost:2
m³ /min)
0

222
Trouble Shooting
Solution
Unplug power plug and reconnect the power supply.
Oil cup tilt, please reinstall.
Oil leakage
Oil cup full filled with oil, please dump the oil.
Oil-way blockage caused by long time uncleaned internal oil-way,
needs professionals to wash the hood.
Insufficient suction
Adjust to max. speed.
Avoid opening window or door frequently.
Steam washing fault
Screen displays "E4"
Both light and motor
do not work
Fault
Filter cotton blockage, please change the filter cotton.
Water cup lack of water, please fill with water.
The abnormity above may be solved by yourself;
If still cannot be solved or displays E1-E6, please contact customer service
for a professional maintenance.
After service
Product non-artificial breakdown within warranty period from purchase date
will be offered free repair service based on invoice. Damage due to improper
use, out of warranty and poor maintenance will be repaired by our company
but charging certain maintenance cost. Please don t tear off the product bar
code so that the repairman can verify the record. Please read the warranty
notice concerning other matters.
14
1300 793 216

Warranty notice
First, to safeguard your interests, please fill out the installation service
card carefully and retain the receipt for warranty.
Second, the product purchased in our company that has breakdown due
to quality problem can be repaired at designated special service
department based on valid purchase proof. Free repair is offered within
warranty period (from the date of purchase proof issued).
Third, the following situations, we are not responsible for product "Three
Guarantees" repair service but still provide charging service:
1) The product damaged due to improper use or poor safekeeping.
2) The product damaged not caused by installation or maintenance of
special service department staff.
3) The product without valid purchase proof.
4) The product's purchase proof has been altered.
5) The product model and body code registered on installation service
card is inconsistent with the model and body code of the product to
be repaired.
6) The product damaged due to the instability of power voltage or
exceeding normal voltage scope (198-242) V.a.c, or power circuit
installation not meeting the national electrical installation
requirement.
7) The product sold at discounted price or with "OFF-Grade" and
"Substandard Goods" printed on installation service card or the body.
8) Product damaged due to irresistible natural disaster.
9) Product warranty period is expired.
10) The product damaged by the unsuitable and improper method
specified in instruction book.
Fourth, if your reasonable service demand can't be solved by special
service department or dissatisfaction with their service, please make an
immediate call or write a letter to our customer service center, we will
provide you with our service.
Please dispose of it at your local community waste collection /
recycling center and ensure it presents no danger to children
while being stored for disposal. The plug must be rendered
useless and the cable cut off to prevent misuse.
Disposal
15

P/N:16173000A12194
