Midea MHS60S User manual

Midea
Cooker Hood
Instructions
MODEL: MHS60S
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your cooker hood,and keep it
carefully. If you follow the instructions, your cooker hood will provide you with many
years of good service.
60cm Slideout Rangehood
Service Call: 1800 886 010

2
RECOMMENDATIONS AND SUGGESTIONS
The instructions apply to several versions of this appliance. Accordingly, you may nd descriptions of individual
features that do not apply to your appliance.
INSTALLATION
●The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
●The minimum safety distance between the cooker top and the extractor hood is 650
mm (some models can be installed at a lower height, please refer to the paragraphs on
working dimensions and installation).
●Check that the mains voltage corresponds to that indicated on the rating plate xed to
the inside of the hood.
●For Class I appliances, check that the domestic power supply guarantees adequate
earthing.
●Connect the extractor to the exhaust ue through a pipe of minimum diameter 120mm.
The route of the ue must be as short as possible.
●Do not connect the extractor hood to exhaust ducts carrying combustion umes (boilers, replaces, etc.).
●If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances),a sufcient
degree of aeration must be guaranteed in the room in order to prevent the backow of exhaust gas. The kitchen
must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the
negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by
the cooker hood.
●In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service
department, in order to prevent any risks.
●If the installation instructions for the gas hob specify a greater distance than that specied above, it has to be
taken into account. Regulations concerning the discharge of air have to be fullled.
USE
●The extractor hood has been designed exclusively for domestic use to eliminate
kitchen smells.
●Never use the hood for purposes other than those intended.
●Never leave high naked ames under the hood when it is in operation.
●Adjust the ame intensity to direct the the ame upto the bottom of a pan only,
making sure that it does not engulf the sides.
●Deep fat fryers must be continuously monitored during use: overheated oil can
burst into ames.
●Do not ame under the cooker hood, with a risk of re.
●This appliance can be used by children aged 8 and above and persons with
reduced physical, sensory or mental capabilities or lacking experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understood the hazards involved.
●Children should be supervised to ensure that they do not play with the appliance.
●Cleaning and maintenance shall not be made by children without supervision.
●“CAUTION: Accessible parts may become hot when used with cooking
appliances”.
MAINTENANCE
●Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
●Clean and/or replace the lters after the specied period (re hazard).
●Clean the hood using a damp cloth and a neutral liquid detergent.
●The appliance uses 4 hob elements at most.
The symbol is a packaging indication that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste disposing of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your household waste disposal
service or the shop where you purchased your product.

3
Ref. Qty. Product Components
1 1 Hood Body, complete with Controls, Light,
Blower, Filter.
21Check Valve
31Activated Charcoal Filter
41Screws 5x50
51Wall Plug
COMPONENTS

4
DIMENSION

5
INSTALLATION
METHOD 1
METHOD 2
● Refer to the drawings (Method 1)
●Position the hood into the cabinet location and line of the 4 round key holes on top Cooker
Hood. In the cabinet identify the relative position of 4 round key holes.
●Take cane to consider the overall dimensions of the hood including fascia panel using 4 ×screws
supplied install hood securely to cabinet.
Information
When cutting or drilling into wall or ceiling, you should not damage electrical wiring or other
hidden utilities.

6
METHOD 2
●If the installation surface of the cabinet is not suitable for installing the cooker hood, then as per
gures, x the cooker hood on the correct position of the wall.
●On the wall, install 2 screws (supplied) according to the relative position of 2 key holes at the back
of hood.
●Also install screws in the security holes to provide a safer use in case the hood moves back and
forth.
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a exible or a rigid pipe of ɸ 150 or ɸ 120 mm, the choice
of which is left to the installer.
● To install a ɸ 120 mm air exhaust connection, insert the reducer
ange 3on the hood body outlet.
●Fix the pipe 4 in position using sufcient pipe clamps (not supplied).
● Remove possible charcoal lters.
Information
Congratulations on your purchasing our cooker hood. Before installing and/or using the
cooker hood, carefully read all the instructions.
6
 In the installation surface in cabinet don’t adapt to install the cooker hood, then as per fig, fix
the position of cooker hood on the wall.
 On the wall, install 2 screws ( supplied ) according to the relative position of 2 key holes on
the back of hood.
 The extent of screwing should be convenience to the next installation.
 Also install screws in the security holes, in case of front and back moving of hood, so that the
using is safer.
Installation of hoods built in combi cabinets is the same as previous method.
Information
The cooker hood must not be installed and connected to flues where other appliances are
installed and which run off other energy supplied different to electricity(water heater boiled
cookers(range/agas)etc.).

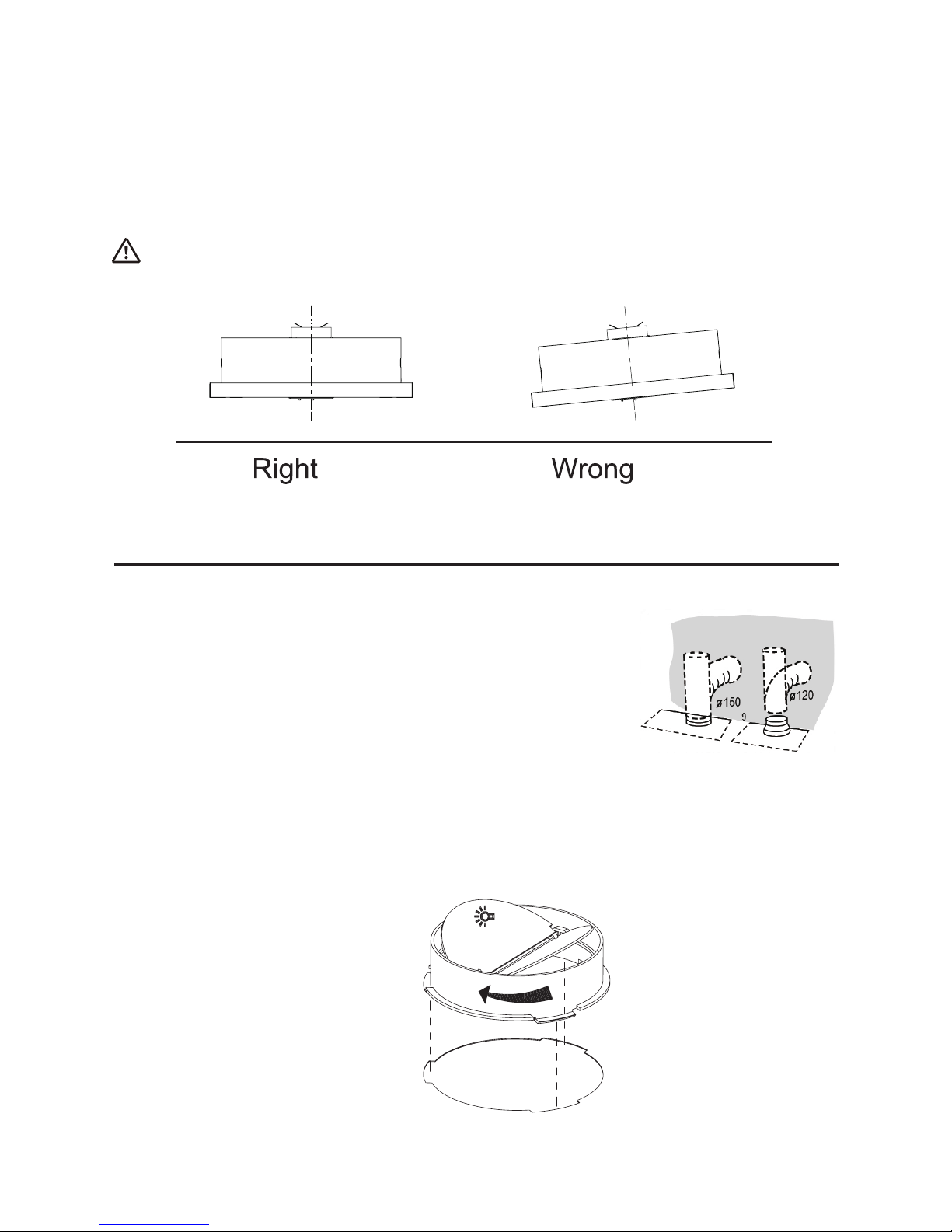

Right Wrong
Information
Congratulations on the purchase our cooker hood which is designed to include many superior
features that permit you the fullest expression of your living. Before installing and/or using the
cooker hood carefully read all the instruction.
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
Remove possible charcoal filters.
Hold check valve (black) in your hands and align with the cut out on the top of the Rangehood. Turn
slightly to position check valve in to cut .out.
CHECK VALVE INSTALLATION

7
USE
Operation
Check before using
Check the safe condition of the appliance:
●Check whether there are visible defects.
● Check that all parts of the appliance have been securely tted.
Switching on/off
●Control on the right side of cooker hood are the control switches.
●There are 2 speed switches of the motor and on/off switch of the light.
●Locker switch for operation.
Motor Operation
●[ ] = Off
●[ ] = Low Power Setting
●[ ] = High Power Setting
Motor Operation
●[ ] = Off
●[ ] = On
GREASE FILTER
ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)
METAL SELF-SUPPORTING GREASE FILTER CLEANING
ACTIVATED CHARCOAL FILTER REPLACEMENT
● The lters must be cleaned every 2 months of operation or more
frequently for particularly heavy usage, and can be washed in a
dishwasher.
● Slide the panel clip to release the aluminum lter.
● Remove the lters one by one by pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
● Any kind of bending of the lters has to be avoided when washing
them. Before tting them again into the hood, make sure that they
are completely dry. (The color of the lter surface may change over
time, but this has no inuence to the lter efciency).
● When tting the lters into the hood, pay attention that they should be mounted in correct
position with the handle facing outwards.
●Close the clip panel.
These lters are not washable and cannot be regenerated, and must be replaced approximately
every 4 months of operation or more frequently for heavy usage.
● Remove the metal grease lters
● Remove the saturated activated charcoal lter.
● Fit the new lters.
● Replace the metal grease lters.

8
LIGHT
LIGHT REPLACEMENT
●When changing the light bulb, the contacts are live.
●Before changing the light bulb, unplug the appliance from the mains or switch off the circuit
breaker in the fuse box.
1. Remove the grease lter.
Extraction-air mode: Turning
the venting knob here means
venting outside.
Circulating-air mode: Turning
the venting knob here means
recirculation.
Information
When activated charcoal lter is attached, the suction power will be lowered.
Venting knob position
2. You can remove the light by rotating it. For the specications of light replacement, refer to the
table below.
Max Power Voltage Picture Light Cap ILCOS D Code
LED Module 3W 220-240V E14 DBL-3-H-E14-35

9
OLD ELECTRICAL APPLIANCE DISPOSAL
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE), requires that old household electrical appliances must not be disposed of
in the normal unsorted municipal waste stream. Old appliances must be collected
separately in order to optimize the recovery and recycling of the materials they
contain and reduce the impact on human health and the environment.
The crossed out “Wheeled Bin” symbol on the product reminds you of your
obligation, that when disposing the appliance, you need separately collect them.
Consumers should contact their local authority or retailer for information concerning
the correct disposal of their old appliance.
TROUBLE SHOOTING
Fault Cause Solution
Light is on, but
motor does not
work
The blade is blocked.
The capacitor is damaged. Replace the capacitor.
The motor is damaged. Replace the motor.
The internal wiring of motor is cut off/
disconnected. An unpleasant smell may
be produced.
Replace the motor.
Both light and
motor do not work
Apart from the above mentioned, check the following:
Light is damaged. Replace the light.
Power cord is loose. Connect the cord as per the elec-
tric diagram.
Oil leakage
Outlet and the air ventilation entrance
are not tightly sealed.
Take down the outlet and seal with
glue.
Leakage from the connection of
U-shaped section and cover.
Take down U-shaped section and
seal with soap or paint.
Vibration
The blade, if damaged, can cause
vibration. Replace the blade.
The motor is not tightly fastened. Fasten the motor tightly.
The cooker hood is not tightly xed. Fix the cooker hood tightly.
Insufcient suction
The distance between the cooker hood
and the cooker top is too large. Readjust the distance.
Too much ventilation from open doors
or windows.
Choose a new place to install the
appliance or close some doors /
windows.
Machine incline
The xing screw is not tight enough. Tighten the xing screw and make
it horizontal.
The hanging screw is not tight enough Tighten the hanging screw and
make it horizontal.

Maintenance schedule:
To ensure the appliance continues to operate at peak performance, we recommend a routine
service call every 3 years for the life of the appliance.
FOR SPARE PARTS OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA
MIDEA HOME APPLIANCES AUSTRALIA PTY LTD
11/75 Lorimer Street, Docklands, Melbourne, 3008
After-sales service No.: 1800 88 60 10
