Midea MCHC90B68 User manual

COOKER HOOD
INSTRUCTION MANUAL
Read this manual carefully before use
Pictures in this manual are for reference only, the actual product shall prevail.
KKKKKKKKKKKKKK
MCHC90B68

Contents
01 Contents.................................................................. 2
02 Warnings................................................................. 3
03 Safety Warnings......................................................5
04 Installation Instruction ............................................. 6
05 First Time Usage....................................................10
06 Maintenance...........................................................11
07 Main Parameters....................................................13
08 Trouble shooting ....................................................
14
09 Disposal..................................................................14
2

Warnings
This appliance is not intended for use by person
(including children) with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge unless they have been given supervision or
instruction concerning the use of the appliance by a
person responsible for their safety. Children shall
not play with the appliance. Cleaning and maintenance
shall not be made by children without supervision. If the
supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
person in order to avoid hazard.
There shall be adequate ventilation in the room when
the range hood is used together with appliances in
burning gas or other fuels.
Please do not use corrosive detergent for cleaning.
Please check the appliance regularly to ensure normal
operation.
To protect the main body from corroding by dirt that
accumulated for long, the cookerhood should be
cleaned by hot water with non-corrosive detergent
every two months.
There is a risk of fire if cleaning is not carried out in
accordance with the instructions.
Do not flame under the range hood.
The air must not be discharged into a flue that is used
for exhausting fumes from other appliances, for
example burning gas or gas that generated by other
fuel-driven appliances.
A minimum distance should be kept between the
supporting surface for the cooking vessels on the hob
and the lowest part of the range hood. When the range
hood is located above a gas appliance, at least 65 cm of
distance shall be kept. User should take into
consideration if the instruction has specified a greater
distance for the gas hob installation. The distance of 65
3

Warnings
non-combustible parts of range hoods and / or parts
operating at safety extra low voltage,will not touch the
electrical parts if deformed.
Regulations concerning the discharge of air have to be
fulfilled.
The appliance could apply to the use of 6 hob elements
at most. Accessible parts may become hot when
using with cooking appliances.
During the power connection or the re-connection of
power, the self-inspection function of the hood shall
operate.The top glass plate will open and close for one
Please keep your hand away from the panel.
Range hoods and other cooking fume extractors may
adversely affect the safe operation of appliances that
use burning gas or other fuels (including those in other
rooms)
cm can be reduced if:
CAUTION :
4
time.
due to the back flow of combustion gases. These
gases may potentially result in carbon monoxide poisoning.
After installation of a range hood or other cooking fume
extractors, the operation of open-type and flued-type gas
appliances should be tested by certified technician to
ensure that the back flow of combustion gases does
not occur.

Safety Warning
The appliance is not intended for the usage by young children or
infirmed person without supervision.
Young children should be supervised to ensure that they do not play
with the appliance.
Plug the power cord to socket outlet with earthing continuity terminal.
The cooker hood is for home use only. It is not suitable for barbecue or
other commercial purposes.
The cooker hood and its filter should be cleaned regularly
according to the instruction.
Do not use open flame or allow oil to go beneath the appliance.
If there is any malfunction occurred with the appliance, please call our
customer service center.
Please keep the kitchen ventilated.
Prior to any maintenance and cleaning operation, please ensure the
power is cut off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or
retailer.
If the plug or cord is damaged, please call our customer service center.
Use this appliance according to the instructions to avoid any fire hazard.
Follow the local laws that applicable for external air evacuation.
When the upper panel is closing, don’t put your hands between the
upper panel and the body in case of potential accident.
As steam generator is working, be careful of hot steam releasing out from
the cookerhood body.
5

Installation Instruction
Determine the location
Range hood should be installed horizontally parallel on the top of
the stove. Installation diagram as follow:
Exhaust pipe Suspended
ceiling Chimney Cupboard
905~915
430
482
800~850 780~850 Line for Installation
6

Schematic diagram of the exhaust
pipe hole size at the ceiling
Note: This installation height is only applicable to
electric stove. For gas stove, the installation
height should be in accordance with the
installation height requirements of it.
220
405
105
Ф200220
320
7

Installation Instruction
Installation plate
After hanging the hood on the installation plate, fasten
two pieces of M5X50 screws to avoid the slide off of
the hood accidentally.
780~830
8
The hood should be screwed to a stable wall.
It is not recommended to secure the hood to the bottom
of the cabinet with screws, which may invalidate the
maintenance terms.

Accessories
Range hood body 1
Exhaust pipe 1
Check valve 1
Check valve sealing gasket 1
Installation plate 1
Expansion bolt (8 x 60)
Screws (ST2.9x2)
2
Screws (ST4.2x16)
8
Screws (M5x50)
Screws (M5x16) 1
Water cup
1
Oil collector
1
Chimney Cover
1
Decorative Cover Hanging Plate
1
Water Pipe 1
Screw package
1
1
5
4
3
2
6
7
8
10
11
9
12
13
14
15
16
5
5
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
16
9

Short press: 0.5 second
Long press: 2~3 seconds

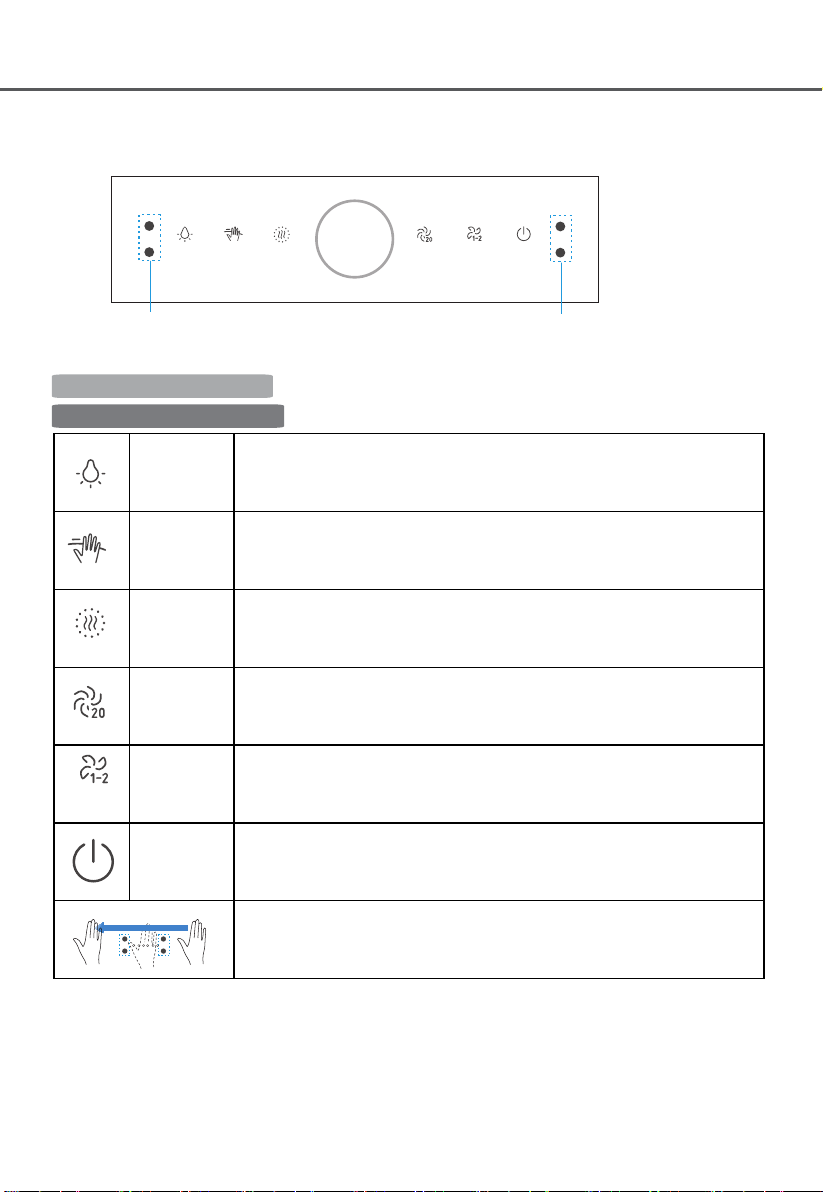

First Time Usage
Range hood can be used immediately after power connection.
Gesture control left
Gesture control right
Light
Short press: Turn on the light;
Long press: Adjust the light.
Gesture
Short press: Open the gesture;
Short press: Close the gesture.
Steam
Wash
Long press: Start;
Twice short press: Cancel the indicator
Turbo
Short press: Startup (09 speed), return to 02 speed after 3 mins,
please select manually if needs it to continue opertating.
Speed
Short press: Adjust speed.
On/Off
1st Short press: Startup (2 speed);
2nd Short press: Delay 3 mins;
3rd Short press: OFF immediately.
Palm waving from left to right or right to left to turn on
the range hood.
Gesture Steam wash Turbo Speed
light On/Off
10

Maintenance
Cleaning the surface
1. The surface of the range hood and filter should be cleaned regularly. Do not use
cleaning balls, brushes, coarse cloth to clean the surface in order to avoid
scratching the surface of the cookerhood.
2. As the oil level could be seen from the oil collector window, please pour out in
time to avoid the oil dripping to the stove.
Oil Collector Window
Cleaning mode (Cleaning the surface manually)
Draw out the oil collector
with both hands
horizontally and pour the
oil away
oil collector
Clean the oil collector and
wipe it.
Return the oil collector
horizontally with both hands.
oil collector
Filter cleaning
Long press toopen
the panel
Unplug the Remove the oil
collector and
the glass fixing screw. Then
lift up the lower glass panel
Clean the filter surface
(do not remove)
Fix all the parts back to the cookerhood. After cleaning, connect the power plug again
3
2
1
cookerhood
11

During steam wash, do not touch the surface
CAUTION of the glass panels or deflector to avoid scald.
Steam Wash (Cleaning the inner part of the hood)
As the indicator turns red and flashes,
it means that steam wash is required.
a) Remove oil collector
b) Pour out accumulated oil
c) Install oil collector
Cup filled with purified water or distilled water.
Plug the tube into the water inlet.
Press "Steam Wash" for 3 seconds to start
the steam wash.
washing drying
Steam Wash: 12 min
Drying: 3 min
a) Remove oil collector
b) Pour out accumulated water
c) Install oil collector
Steam Wash process
1. Cancel the steam wash reminder (not washing):
Long press 2 seconds + short press twice to fast forward to theend.
2. Fast forward or early end （washing in progress）:
Short press again to fast forward to the next step.
start washing drying complete
water inlet
1
2
3
4
5
6
7
12

Main Parameters
Voltage
220-240V~/50Hz
Rated Power
1600W
Lighting Power
2 X 1.5W
Motor Power
240W
Diameter of air tube
180mm
Noise
≤70dB(A)
The air flow parameter is tested under the conditions of 230V
~
/50Hz when the
voltage is 220-240V~/50Hz.
LED Light Information
Max Power
Voltage
Lamp Cap
Square / Diameter:
120mm x 33.2mm
1.5W
DC 12 V
——
13

Trouble Shooting
Malfunction
Solution
Both light and motor
do not work
Unplug the power and reconnect the power supply agian.
Oil leakage
Oil collector tilted, please reinstall.
Oil collector fully filled with oil, please pour out the oil.
Oil-way blockage caused by uncleaned internal oil-way.
Professional is needed to wash the hood.
Insufficient suction
Avoid frequent window or door opening.
Adjust to the max. speed.
Steam wash error
Lack of water in the water cup, please fill with water.
Filter cotton blockage, please change the filter cotton.
Disposal
Please dispose it at your local community waste collection /
recycling center and ensure that there is no potential danger to
children while being stored for disposal. The plug must be
rendered useless and cut off the cable to prevent misuse.
14

The manufacturer shall decline all responsibility if the foregoing
recommendations and instruction regarding installation, maintenance and usage are not
abide and follow when using the cooker hood.

抽油煙機
使用說明書
本手冊圖片僅供參考，產品以實物為准。
KKKKKKKKKKKKKK
MCHC90B68
操作前請先仔細閱讀本手冊

目錄
01 目錄 .............................................................................. 2
02 警告.............................................................................. 3
03 安全警告 ...................................................................... 5
04 安裝說明 .......................................................................6
05 次使用 10
06 .................................................................11
07 主要參數 .....................................................................13
08 故障 .....................................................................14
09 廢棄處置......................................................................14
2
首.....................................................................
維修及保養
處理

警告








3
該器具不適用於體力、感官或心智缺乏經驗和知識的人士
使用（包括兒童），除非他們得到對其安全負責的人員監督
或指導，能確保安全使用該電器。兒童不得觸摸設備。清潔
和維修不得由兒童在缺少成人監督的情況下進行。如果電源
線損壞，必須由製造商、其經銷商或相關的合資格專業人士
進行更換，以避免危險。
當抽油煙機與燃燒氣體或其他燃料的器具同時使用時，室內
應保持足夠通風。
請勿使用腐蝕性清潔劑進行清洗。
請定期維修及保養設備，以保證其正常運行。
為確保抽油煙機主體不會受長時間累積的污垢腐蝕，抽油
煙機應每兩個月用熱水加無腐蝕性的清潔劑進行清洗。
如不按說明書指示清潔抽油煙機，將有機會帶來火災風險。
切勿在抽油煙機下方點火。
油煙不得排放至用於排放其他廢氣的煙道，例如燃氣或其他
燃料設備所產生的廢氣。
爐灶上烹飪容器的支撐面和抽油煙機最低部分之間應保持適
當的最小距離。當抽油煙機位於燃氣器具上方時，應至少間
距65釐米。如氣體爐的安裝說明規定更大的距離，則必須跟
隨指引。65釐米的距離在下列情況下可縮短：


警告


小心：


4
抽油煙機的不可燃部件及在安全超低電壓下運行的部件
必須遵守排氣相關的規定。
本電器最多可支持6個爐灶元件使用。
使用烹飪設備時可接觸部件溫
第一次接通電源或重新通電時，抽油煙機有自我檢測功
能，頂部玻璃板會開合一次，請小心夾手，切勿將手靠
近面板。
由於燃燒氣體的回流，抽油煙機和其他烹飪油煙機可能
會對燃燒氣體或其他燃料的器具（包括其他房間的電器
具）的安全運行產生不利影響。這些氣體可能導致一氧
化碳中毒。安裝抽油煙機或其他烹飪油煙機後，應由合
資格人員對開放式、煙道式燃氣器具的操作進行測試，
以確保不會發生燃燒氣體回流事故。
如變形，這些部件不會接觸到帶電部件。
度將升高。
