Miele CVA 5065 User manual

Operating and installation instructions
Built-in coffee machine
for connection to mains water supply
CVA 5065
To avoid the risk of accidents or
damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 818 590
en - AU, NZ

Caring for the environment..........................................5
Guide to the machine ..............................................6
Accessories supplied ..............................................8
Optional accessories...............................................9
Warning and Safety instructions ....................................10
Using the coffee machine - first steps ................................15
Controls .........................................................15
Display ..........................................................15
Before using for the first time.........................................15
Switching on ...................................................15
Switching off ...................................................16
Filling the water and coffee bean containers ..........................17
Filling the water container ...........................................17
Filling the coffee bean container ......................................18
Making drinks....................................................19
Switching on .....................................................19
Pre-warming cups .................................................19
Adjusting the height of the central spout................................20
Preparing espresso and coffee from freshly ground beans .................20
Double portion .................................................21
Cancelling preparation ...........................................21
Making espresso and coffee using ready ground coffee ...................21
Adding ground coffee............................................21
To make a drink ................................................22
To cancel preparation............................................22
Drinks with milk ...................................................22
Stainless steel milk flask ..........................................22
Cappuccino, latte macchiato, hot milk, milk froth.......................23
User profile drinks .................................................24
After use.........................................................24
Setting the coffee grinder ..........................................25
Contents

Settings: Customising your machine ................................26
Settings menu ....................................................26
Selecting a language...............................................27
Setting the time of day ..............................................28
Setting the timer...................................................29
Coffee jug (making several cups one after the other) ......................31
Setting the amount of coffee .........................................31
Setting Pre-brewing ................................................32
Setting the temperature .............................................32
Setting Automatic rinsing............................................33
Setting the Steam system ...........................................33
Lighting: Setting the brightness.......................................34
Lighting: Setting the switch-off time....................................34
Info (showing the number of drinks) ...................................35
Safety (Activating the System lock) ....................................35
To activate or deactivate the System lock ............................35
To override the System lock .......................................36
Setting the water hardness ..........................................36
Setting the display .................................................37
Setting the volume (keypad tone, buzzer)...............................37
Setting the plumbed in water supply ...................................38
Showroom programme .............................................38
Resetting the factory default settings ..................................38
Miele|home......................................................39
Programming the amount: setting the portion sizes ....................40
Programming the amount of espresso, coffee, hot milk and milk froth
via the OK sensor ..................................................40
Programming the proportions for cappuccino or latte macchiato
via the OK sensor .................................................41
Programming the amount for hot water via the Hot water sensor .............42
Programming the amount via "Settings".................................42
Setting up User profiles ...........................................43
Selecting a User profile .............................................43
Creating a User profile..............................................44
Changing a User profile.............................................44
Deleting a User profile ..............................................45
Revert...........................................................45
Contents

Cleaning and care ................................................46
Overview ........................................................46
Rinse the system ..................................................47
Milk pipework.....................................................48
Rinse milk pipework .............................................48
Clean milk pipework .............................................48
Clean milk pipework of any blockages...............................49
Stainless steel milk flask ............................................51
Central spout .....................................................52
Water container ...................................................53
Waste container ...................................................53
Drip tray ........................................................54
Drip tray cover ....................................................54
Coffee bean container ..............................................55
Central spout connector ............................................55
Interior and machine door ...........................................55
Brew unit ........................................................56
Degreasing the brew unit .........................................57
Machine front .....................................................58
Descaling the machine ............................................60
To run the descaling programme .....................................61
Problem solving guide ............................................63
After sales service ................................................71
Plumbed in water supply...........................................72
Notes on connecting to the mains water supply ..........................72
Connecting the water inlet hose to the coffee machine ....................72
Connection to the water inlet .........................................73
Electrical connection..............................................74
Installation ......................................................75
Building-in and combination options ...................................75
Installation.....................................................76
Adjusting the door hinges.........................................77
Contents

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
5

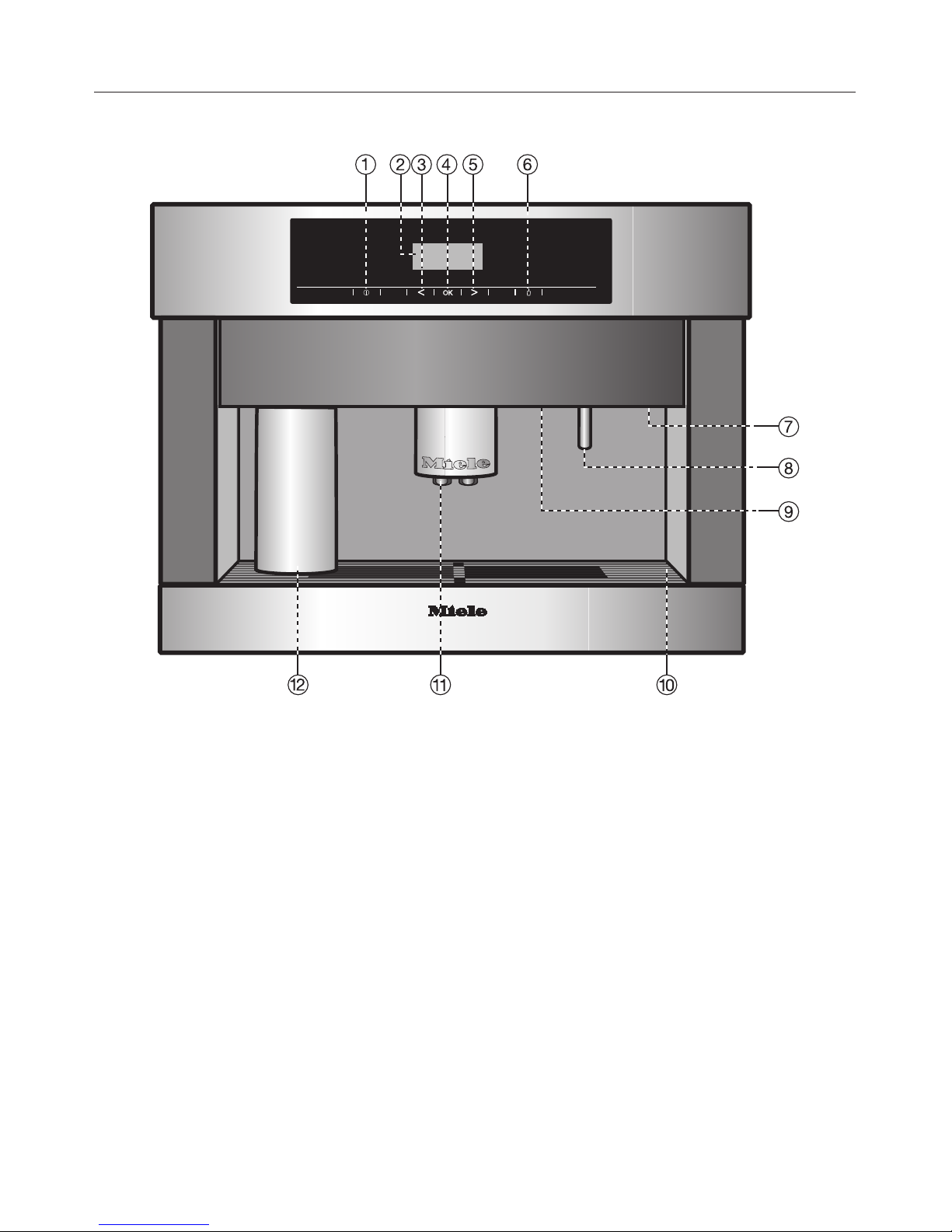

Exterior view
aOn/Off sensor for switching the coffee machine on and off
bDisplay
cLeft arrow, for scrolling through the various programme options
dOK sensor, for confirming the selection of a programme option and for saving a
setting
eRight arrow, for scrolling through the various programme options
fSensor for selecting hot water
gDoor grip
hHot water spout
iLighting
jDrip tray cover
kCentral spout, height-adjustable
lStainless steel milk flask
Guide to the machine
6

Interior view
aMaster switch
bGround coffee chute cover
cGround coffee chute
dSlide control to select fineness of ground coffee
eCoffee bean container
fDrip tray with grid for easier carrying
gWater container with inlet device
hBrew unit
iWaste container
jCentral spout connector (connecting the brew unit and the central coffee spout)
kStainless steel milk flask
lCentral spout connector cap
Guide to the machine
7

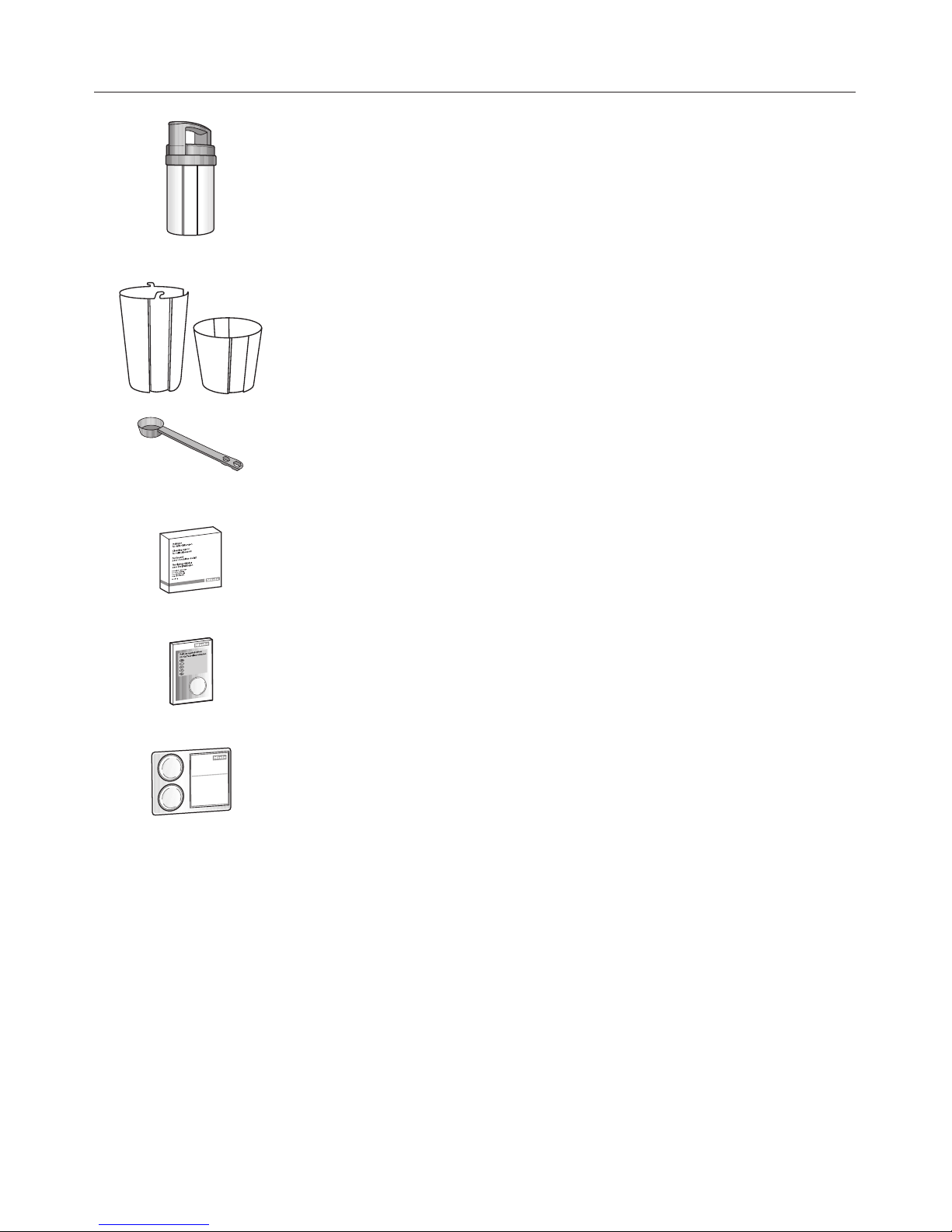

Stainless steel milk flask
For storing and keeping milk cold, with lid (with handle) and
additional cap
(not suitable for cleaning in a dishwasher)
Containers
Large and small containers for cleaning and rinsing the milk
pipework
Coffee spoon
For adding the correct amount of ground coffee
Cleaning powder
For daily cleaning of the milk pipework
Cleaning tablets
For cleaning the brew unit
Descaling tablets
For descaling the water pipework
Other accessories and spare parts
–Test strips for determining the water hardness level
–Bypass tube on the central spout
–Silicone grease for lubricating the cap on the central spout
connector
–Brush for cleaning the milk pipework
–Mains connection cable
–Central spout connector cap
Accessories supplied
8

Miele accessories and cleaning and conditioning products
are available for your coffee machine.
These can be ordered via the internet at
www.miele-shop.com (depending on country), from Miele or
from your Miele Chartered Agent.
Stainless steel milk flask with cap
For storing and keeping milk cold
(not suitable for cleaning in a dishwasher)
Cleaning powder
For daily cleaning of the milk pipework
Cleaning tablets
For cleaning the brew unit
Descaling tablets
For descaling the water pipework
Silicone grease
For lubricating the cap on the central spout connector
Miele|home (available in selected countries)
With Miele|home, the coffee machine becomes a
communication-enabled appliance which can be monitored
or operated via a PC or mobile phone.
Optional accessories
9
<

This machine conforms with all
relevant legal safety requirements.
Improper use can, however, lead to
personal injury and damage to
property.
To avoid the risk of accidents and
damage to the machine, please
read these instructions carefully
before using it for the first time.
They contain important notes on the
installation, safety, operation and
care of the machine.
Keep these instructions in a safe
place and pass them on to any
future owner.
Correct application
~This machine is designed for
domestic use and for use in similar
environments by guests in hotel or
motel rooms, bed & breakfasts and
other typical living quarters.
This does not include common/shared
facilities orcommercial facilities within
hotels, motels or bed & breakfasts.
The coffee machine is not intended for
outdoor use.
The machine is intended for domestic
use only (max. 20 cups per day) for the
preparation of espresso, cappuccino,
latte macchiato etc.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.Any other usage is not
supported by the manufacturer and
could be dangerous. The manufacturer
cannot be held liable for damage
resulting from incorrect or improper use
or operation of the appliance.
~This coffee machine is not intended
for use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been shown how to use it correctly by a
person responsible for their safety.
Safety with children
~The coffee machine is not a toy! To
avoid the risk of injury, do not allow
children to play with it or use the
controls. They will not understand the
potential dangers posed by it. They
should be supervised whenever you
are working in the kitchen and should
be kept away from the appliance at all
times to avoid the risk of injury.
Please note that children's skin is much
more sensitive to high temperatures.
Danger of burning!
~Install the coffee machine out of
reach of children.
~Children should be supervised to
ensure that they do not play with the
appliance.
~Never let children play with the
coffee machine.
Warning and Safety instructions
10

Technical safety
~Before setting up the machine,
check it for any externally visible
damage. Never install or attempt to use
a damaged machine. Danger of injury.
~To avoid the risk of damage to the
machine, make sure that the rating on
the data plate corresponds to the
voltage and frequency of the household
supply, before connecting the machine
to the mains supply. Consult a qualified
electrician if in any doubt.
~The electrical safety of this machine
can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
tested regularly, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~The machine must only be operated
when built in, to ensure that all
electrical components are shielded.
Ensure power is not supplied to the
machine until after installation, repair
work or maintenance work has been
carried out.
~Do not connect the machine to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the machine (e.g. danger of
overheating).
~If the coffee machine is installed
behind a furniture door, it must not be
used with the door closed.
Never close the furniture door when the
machine is in use.
~This appliance must not be installed
and operated in mobile installations
(e.g. on a ship).
~The machine must only be
connected to a cold water supply.
Connecting it to a hot water supply
would cause damage.
~The tap must be accessible for
servicing work after the coffee machine
has been built-in.
~The protective sleeve of the water
inlet hose must not be damaged or
become kinked. This will cause it to
leak.
~The integrated Waterproof System
offers protection from water damage,
provided the following conditions are
met:
–The machine is correctly installed
and plumbed in.
–The machine is properly maintained
and parts are replaced where it can
be seen that this is necessary.
–The tap is turned off when the
machine is not used for a longer
period of time (e.g. during holidays).
Warning and Safety instructions
11

~Installation work and repairs may
only be carried out by suitably qualified
and competent persons in strict
accordance with current local and
national safety regulations. Repairs and
other work by unqualified persons
could be dangerous and the
manufacturer will not be held liable.
~While the machine is under
warranty, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the warranty will be
invalidated.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~The machine is only completely
isolated from the electricity supply
when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it has been switched off at the wall
socket and the plug has been
withdrawn.
~Never open the outer casing of the
machine. Tampering with electrical
connections or components and
mechanical parts is highly dangerous
to the user and can cause operational
faults or electric shock.
~If the coffee machine is to be built in
above another appliance, there must
be a full-width, closed shelf between
them.
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage caused by
cockroaches or other vermin will not be
covered by the warranty.
Correct use
Caution. Danger of burning. The
liquids dispensed are very hot.
Never look directly at the lighting or
use optical instruments to look at it.
~The water pipework and milk
pipework must be rinsed through and
the machine and stainless steel milk
flask cleaned thoroughly before the first
drink is prepared.
~If using the water container and not
the plumbed in water supply, fill the
water container with cold, fresh tap
water only. Warm or hot water or other
liquids could damage the machine.
Change the water every day to prevent
a build-up of bacteria.
~Change the water every day to
prevent a build-up of bacteria.
~If using the water container, do not
on any account use mineral water.
Mineral water will cause serious
limescale deposits to build up in your
machine and damage it.
~On no account must water from a
reverse osmosis system be used in this
machine. This would damage it.
Warning and Safety instructions
12

~Never put anything other than
roasted espresso/coffee beans in the
coffee bean container. It must never be
filled with ground coffee as this could
damage the grinder.
~The ground coffee chute must never
be filled with anything other than
ground coffee or brew unit cleaning
tablets. Otherwise the machine will be
damaged.
~Do not use milk with additives.
Sugar additives will adhere to the milk
pipework and damage the machine.
~Sugar can damage the coffee
machine. Only use pure coffee beans.
Do not use coffee beans which have
been treated with anything containing
caramel, any kind of sugar or any other
substances. Do not put drinks
containing sugar, or instant coffee in
the machine.
~Never place a drink with ignited
alcohol under the central spout of the
coffee machine. The flames could ignite
plastic components and cause fire
damage.
~Hot water and steam could cause
scalding. Be very careful when using
these functions. Make sure you do not
come into contact with steam or hot
water. The machine must not be used
for cleaning objects.
~Do not use a steam cleaner to clean
this machine. Steam could reach the
electrical components and cause a
short circuit.
~Clean the machine every day to
prevent a build-up of bacteria. All parts,
except the brew unit, the coffee bean
container, the stainless steel milk flask
and lid, and the cover of the central
spout are dishwasher safe.
~The machine should be descaled
regularly with the descaling tablets
supplied. The harder the water, the
more often the machine must be
descaled. The manufacturer cannot be
held liable for damage arising from
insufficient descaling.
~Only use the descaling tablets
supplied by Miele and follow the
instructions on the packet carefully.
Use the exact proportions
recommended. Otherwise the machine
will be damaged.
~Depending on the natural oil content
of the coffee used, the brew unit could
become blocked. It is important
therefore to clean the brew unit with a
cleaning tablet after approx. 200
coffees (A reminder will appear in the
display).
~Used coffee grounds should be put
with the organic rubbish or on the
compost heap, but not emptied down
the sink, as they could block it.
~Never swing from or hang anything
on the front when it is open as this
could damage the machine.
~The machine is designed to be used
in areas with an ambient temperature of
+15 °C to +60 °C. Please do not use it
anywhere with an ambient temperature
outside this range.
Warning and Safety instructions
13

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and safety instructions.
Warning and Safety instructions
14

The following notes should help you get
to know your coffee machine before
starting to use it.
Controls
This machine has sensor controls which
react to touch. To operate the machine,
you only need to touch the relevant
sensor. There are five sensors:
sOn/Off sensor: For switching the
machine on or off
< > Left/right arrows:
For scrolling through the various
programme options
OK sensor: For confirming the
selection of a programme option
and for saving a setting
-Hot water sensor
Display
Espresso
qrHI J LnmC
The following symbols come up in the
display in the main menu:
qEspresso
rCoffee
HCappuccino
ILatte Macchiato
JHot milk
LMilk froth
nUser profile for up to 9 different
users
GMaintenance programme for milk
pipework, brew unit, descaling,
rinsing
CSettings: Customising your
machine
^The arrow sensors are used to select
a programme option in the display.
Touch the OK sensor when the option
you want appears highlighted in the
display.
Before using for the first time
The machine must be correctly
installed and connected (see
"Electrical connection", "Plumbing"
and "Installation") before it is used
for the first time. It must then be
cleaned (see "Cleaning and care").
Remove any protective foil from the
front of the machine.
Switching on
^Touch the On/Off sensor sto switch
on the machine.
When the machine is switched on for
the first few times with the master
switch, a welcome screen and some
other messages will appear briefly. The
welcome screen will be displayed each
time the machine is switched on until 5
drinks have been prepared.
Míele
Willkommen
Using the coffee machine - first steps
15

When you use the machine for the very
first time, you will be prompted to
select a language.
^Use the right or left arrow until the
language you want appears in the
display.
^Touch the OK sensor.
The language you have chosen is
now set.
The request to set the clock format will
then appear.
^Use the arrows to select the clock
format you want (12 h or 24 h), and
then touch the OK sensor.
^Enter the time of day: First set the
hour with the arrow sensors and then
touch the OK sensor. Then set the
minutes in the same way.
^Now decide when you want the time
of day to be displayed, and press the
OK sensor.
–"On": The display will always show
the time of day (even when the
machine is switched off).
–"On for 60 seconds": If the machine
is switched off, the display will show
the time for 60 seconds, and then go
dark.
–"Do not display": The display will
only show the time of day when the
machine is switched on, and will go
dark as soon as it is switched off.
^Press the OK sensor to confirm that
your machine is communication
enabled.
If everything has been entered
correctly, Set up successful will
appear in the display.
^Confirm this message by touching
the OK sensor.
To get the best out of your
coffee machine, and to set it
up for your specific
requirements please continue to work
through these operating instructions.
Switching off
^Touch the On/Off sensor sto switch
off the machine.
If automatic rinsing is switched on,
providing that coffee or a milk drink
has actually been dispensed from
machine, the rinsing process will
begin. After this the machine will
switch off automatically.
Using the coffee machine - first steps
16

The coffee machine must be
cleaned thoroughly (see "Cleaning
and care") before you fill it with water
and coffee beans.
It is vital that you programme in
the water hardness level of your
water (see "Settings: Customising
your machine - Setting the water
hardness").
Filling the water container
The quality of the water plays
an important part in the
overall quality of the coffee.
If the machine is plumbed into the
mains drinking water supply, the water
container will fill automatically . Empty
out the water container every day.
If filling the water container manually
(instead of using the plumbed in
water supply), do not use hot water
or other liquids as these could
damage the machine. Only use
cold, clean tap water and fill the
machine every day. Do not on any
account use mineral water. Mineral
water will cause serious limescale
deposits to build up in your machine
and damage it.
^Open the front of the machine.
^Pull the water container forwards to
remove it.
^Remove the lid, and fill the water
container with cold, clean tap water
up to the "Max." mark.
A valve at the front of the water
container will ensure that water
cannot escape.
^Put the lid back on and replace the
container in the machine, pushing it
right in until it clicks into position.
The water container must click into
position and sit in the machine
correctly to ensure the valve is
sealed. If you do not hear it click into
position or the water container
protrudes slightly or does not sit flat
on the floor, check whether the
surface that the water container sits
on is dirty and clean it if necessary.
Filling the water and coffee bean containers
17

Filling the coffee bean
container
Only put roasted espresso or coffee
beans in the container. Anything
else, including ground coffee, will
damage the grinder.
Do not use coffee beans which have
been treated with caramel, sugar or
other substances. Do not put drinks
containing sugar, or instant coffee in
the machine. Sugar will damage the
machine.
^Pull out the coffee bean container.
^Push back the lid and fill the
container with roasted coffee beans.
^Slide the lid back into place,
^push the coffee bean container back
into the machine and close the
machine door.
Filling the water and coffee bean containers
18

Important: the water piping must be
rinsed through every day and the
machine cleaned thoroughly before
the first drink of the day is prepared.
This will take place automatically if
the Rinsing programme option has
been set to "On" and the machine is
cold. Hot water will run out of the
central spout into the drip tray once
the machine has heated up.
If the Rinsing programme option has
been set to "Off", select "Rinsing" in
the display to rinse out the system
(see "Cleaning and care").
Switching on
^Touch the On/Off sensor s.
The following message will then
appear:
Heating phase
If the automatic Rinsing programme
option has been set to "On" (factory
default setting), the following will
appear after the machine has heated
up:
Rinsing
Water will run out of the central spout.
The main menu will then appear in the
display:
Espresso
qrHI J LnmC
Pre-warming cups
The cups should always be
pre-warmed to allow the flavour to
develop and be retained. The aroma of
espresso does not react well to cold.
The smaller the volume of
coffee/espresso and the thicker the
cup, the more important it is to
pre-warm the cup.
^Place the cup to be warmed under
the hot water spout.
^Touch the Hot water sensor.
^Run a little hot water into the cup to
warm it.
^Touch the OK sensor to stop the flow
of water.
^Leave the cup for about a minute
until it is warm, then pour the water
out.
Please note, hot water function is
designed for pre-heating cups only and
not for preparing hot drinks, such as
tea.
Making drinks
19

Adjusting the height of the
central spout
The height of the central spout can be
adjusted to suit the height of the cup so
that the drink will not cool down as
quickly as it would if the spout were
further away from the cup. The crema
will also be a better quality if the coffee
does not have so far to go!
^Slowly pull the central spout
downwards.
Preparing espresso and coffee
from freshly ground beans
You can programme the size
of portion dispensed for
espresso and coffee
according to taste (see "Programming
the amount: setting the portion sizes").
Espresso, coffee, double espresso and
double coffee are all dispensed in the
same way:
^Place a cup under the central spout.
The coffee is always dispensed
simultaneously from both spouts.
Espresso
qrHI J LnmC
^Select the drink you want using the
arrow sensors and touch the OK
sensor once.
The machine will now grind the coffee
beans, pre-brew the ground coffee (if
the "Pre-brewing" option has been set
to "On") and the coffee will then be
dispensed from the coffee spouts.
Do not open the machine door
during the brewing process. This will
damage the machine.
To ensure that any coffee residues
from the factory testing process are
removed from the brewing system,
please throw away the first two
cups of coffee.
Making drinks
20
