Miele CVA 6805 User manual

Operating and Installation Instructions
Coffee System
To prevent accidents and appliance damage
read these instructions before installation or use.
M.-Nr. 09 741 681en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................5
Preparing your appliance for an extended vacation ........................9
Guide to the coffee system .........................................10
Accessories .....................................................12
Operation .......................................................13
First steps to use .................................................17
Turning on .......................................................17
Water hardness ...................................................18
Filling the water tank ..............................................20
Filling the coffee bean container ....................................21
Turning the coffee machine on and off ...............................22
Dispenser adjustment .............................................23
Preparing beverages ..............................................24
Espresso, Coffee or Lungo coffee .....................................24
Preparing two portions..............................................24
Canceling preparation ..............................................25
Preparing multiple cups of coffee, one directly after another (Coffee pot ²)....25
Preparing coffee drinks from ground coffee .............................25
Beverages with milk................................................27
Instructions for the milk container...................................27
Preparing hot water ................................................28
Preparing drinks using a profile.......................................28
After preparing drinks ..............................................28
Customizing your coffee ...........................................29
Grinder setting ....................................................29
Changing the drink parameters.......................................30
Amount of ground coffee ............................................30
Brewing temperature ...............................................30
Pre-brewing ground coffee ..........................................31
Setting the serving size............................................32
Resetting drinks..................................................34
Contents
2

Profiles .........................................................35
Accessing profiles .................................................35
Creating a user profile ..............................................35
Selecting a user profile .............................................35
Changing the name ................................................35
Deleting a user profile ..............................................35
Changing a profile .................................................36
Editing drinks for a profile .........................................37
Creating a drink ...................................................37
Changing a drink: Changing the portion size, drink parameters and name ......37
Deleting a drink ...................................................37
MyMiele .........................................................38
Settings.........................................................39
Accessing the "Settings" menu .......................................39
Changing and saving settings........................................39
Overview of the Setting options .......................................40
Language........................................................42
Time ............................................................42
Date ............................................................42
Timers ..........................................................43
Eco mode........................................................44
Lighting .........................................................45
Starting screen....................................................45
Info (displaying information) .........................................45
Locking the coffee system (System lock 0) .............................45
Water hardness ...................................................46
Brightness .......................................................46
Volume ..........................................................46
Activating and deactivating the plumbed water supply ....................46
Adjusting the dispensers ............................................46
Factory default settings .............................................46
Showroom program (demo mode) ....................................46
Contents
3

Cleaning and care ................................................47
Overview ........................................................47
Rinsing the system.................................................49
Milk pipework.....................................................49
Rinsing the milk pipework manually .................................49
Cleaning the milk pipework using the milk line cleaner ..................50
Milk container with lid ..............................................51
Main dispenser ...................................................52
Cleaning the milk valve .............................................54
Sensor cover .....................................................54
Water tank .......................................................55
Waste unit .......................................................55
Drip tray .........................................................56
Drip tray cover ....................................................57
Bean container....................................................57
Main dispenser connector ...........................................57
Interior and front door ..............................................58
Brew unit ........................................................58
Removing the brew unit and rinse it by hand ..........................58
Degreasing the brew unit .........................................60
Exterior..........................................................61
Descaling .......................................................62
Frequently asked questions ........................................64
Cleaning clogged milk pipework ....................................74
After sales service ................................................77
Installation instructions ...........................................78
Caring for the environment.........................................79
Plumbing........................................................80
Lead free certificate ...............................................82
Electrical connection..............................................83
Installation ......................................................84
Ventilation .......................................................86
Installation .......................................................86
Adjusting the door hinges.........................................88
RemoteVision (optional accessory) ..................................89
Copyright and licenses ............................................90
Contact details ..................................................95
Contents
4

When using electrical appliances basic safety precautions should always be
followed, including the following:
Read all instructions before installation or use of the coffee system.
Please read these instructions
carefully to prevent accidents and
machine damage.
This appliance complies with current
safety requirements. Improper use
of the appliance can cause personal
injury and material damage.
This appliance is for household use
only, to prepare espresso,
cappuccino and coffee.
Do not use this appliance other than
for its intended use. Any other use
could be dangerous.
The manufacturer cannot be held
responsible for damage caused by
improper use of the appliance.
Proper use
~This coffee system is for household
use and similar indoor environments
only. This coffee system is not suitable
for outdoor use.
~Use this coffee system only in stan-
dard household environments for
making coffee beverages such as
espresso, cappuccino, latte macchiato,
etc. Any other type of use is not
permitted.
~Persons which lack physical,
sensory or mental abilities or
experience with the machine should not
use it without supervision or instruction
by a responsible person.
Children in the household
,The coffee and hot water
dispensers present a danger of
burning or scalding!
Children's skin is more sensitive to
high temperatures than that of
adults.
Keep children from touching the hot
parts of the coffee machine or
exposing parts of their bodies to the
dispensers.
~Keep the coffee system out of reach
of children.
~Always supervise children in the
vicinity of the coffee machine. Do not
allow children to play with the unit.
~Danger of suffocation! Children
could become entangled in packaging
(e.g. cling film) while playing or pull it
over their heads and suffocate. Keep
the packaging away from children.
IMPORTANT SAFETY INSTRUCTIONS
5

Technical safety
~Installation work and repairs must
only be performed by a trained
technician in accordance with national
and local safety regulations. Repairs
and other work by unauthorized
persons could be dangerous and may
void the warranty.
~A damaged coffee system can be
dangerous. Before installing the coffee
machine, check for externally visible
damage. Do not operate a damaged
unit.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~To prevent damage to the coffee
machine, make sure that the
connection data on the data plate (fuse
rating, voltage and frequency) matches
the electrical power supply. Check this
before connecting the machine.
If in doubt, contact a qualified
electrician.
~Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance
(danger of overheating).
~For safety reasons, this coffee
machine may only be used once it has
been safely installed.
~If the machine is installed in
combination with other appliances, a
protective base should be installed
between the appliance and the unit.
~The coffee machine must not be
used in mobile installations such as
boats.
~Only use the coffee machine in
ambient temperatures between +50°F/
10°C and +100°F/38 °C.
~Ensure that there is sufficient
ventilation around the coffee machine.
The ventilation openings in the
surrounding cabinets and the space
below the ceiling must be at least
78 3/4"2(200 cm2). Otherwise
condensation can form, causing
damage to the coffee machine or the
surrounding cabinets.
~Do not place on or near a hot gas or
electric burner, or in a heated oven.
~If the coffee system is installed in a
closed kitchen cabinet, use it only with
the cabinet door open. Do not close the
cabinet door when the coffee system is
in operation.
~The water supply must be
accessible after installation.
~Only use Miele original spare parts.
Only then can the manufacturer
guarantee the safety of this machine.
~Do not damage or kink the cover of
the water intake hose.
IMPORTANT SAFETY INSTRUCTIONS
6

~The integrated waterproof system
will effectively protect the machine from
water damage if the following
conditions are met:
–The coffee machine is installed
correctly (electricity and water
supply).
–The coffee machine is immediately
repaired if any damage is detected.
–The water supply is shut off during
extended periods of non-use (e.g.
vacation).
~Before service or maintenance
disconnect the power supply by either
removing the fuse, “tripping” the circuit
breaker or unplugging the unit.
~Never open the outer casing of the
appliance. Tampering with electrical
connections or components and
mechanical parts is dangerous and
may cause machine damage.
~Do not let cord hang over edge of
table or counter, or touch hot surfaces.
~To reduce the risk of injury, do not
drape cord over the counter top or
table top where it can be pulled on by
children or tripped over unintentionally.
~To protect against fire, electric
shock and injury to persons do not
immerse cord, plugs, or coffee machine
in water or other liquid.
Proper use
,The coffee and hot water
dispensers present a danger of
burning or scalding!
The dispensed liquids and steam
are extremely hot.
The water in the drip tray may be
very hot as well. Be careful when
emptying it.
Please note:
–Keep away from the areas under the
coffee and hot water dispensers
when beverages or steam are being
dispensed.
– Do not touch hot surfaces. Use
handles or knobs.
– The spouts can spray hot liquid or
steam. Be sure the main dispenser is
fitted correctly and only use it if it is
clean.
,Never look into the lighting
directly or with an optical
instrument.
~Do not use the coffee machine to
clean objects.
~Before the first use, clean the coffee
system and milk container thoroughly
(see "Cleaning and care").
IMPORTANT SAFETY INSTRUCTIONS
7

~Please note the following regarding
water:
–Without a plumbed water supply:
Only fill the water tank with cold,
fresh tap water. Hot water or other
liquids can damage the coffee
system.
–Change the water every day to
prevent a build-up of bacteria.
When using a plumbed water supply:
Empty the water tank once a day.
–Do not use mineral water. Mineral
water will cause a lot of limescale to
build up in your coffee system and
damage it.
– Do not use water from reverse
osmosis units. This could damage
the appliance.
~Fill the bean container with roasted
whole coffee beans only. Do not fill the
bean container with coffee beans which
have been treated or with ground
coffee.
~Do not use raw coffee beans (green,
unroasted coffee beans) or coffee
blends that include raw coffee. Raw
coffee beans are very hard and contain
mositure that will damage the grinder.
~Sugar will destroy the system! Do
not use coffee beans which have been
treated with caramel, sugar, etc. or fill
the coffee system with other liquids that
contain sugar.
~Do not fill anything into the ground
coffee chute except ground coffee or a
Miele cleaning tablet for degreasing the
brew unit.
~Do not use flavored ground coffee in
the machine. The sugar content on
these grounds clogs the brew unit of
the machine. The cleaning tablet is not
enough to remove the residue.
~Only use plain milk. Most additives
contain sugar, which will clog the milk
pipework and damage the coffee
system.
~If you use dairy milk, use only
pasteurized milk.
~Never place a cup with a burning
alcohol-coffee mixture underneath the
main dispenser. This could cause the
plastic parts of the coffee system to
catch fire and melt.
~Do not lean on the open coffee
machine door, or apply any pressure to
it. Otherwise, the coffee machine could
be damaged.
~The use of accessory attachments
not recommended by the appliance
manufacturer may result in fire, electric
shock or injury to persons.
IMPORTANT SAFETY INSTRUCTIONS
8

~Please note the following with
regard to cleaning the coffee machine:
–Before cleaning and maintenance
switch off the appliance and
disconnect circuit breaker.
–Clean the coffee system and milk
container daily (see "Cleaning and
care").
–The steam dispensed by a steam
cleaner can reach the electrical
components and cause a short
circuit.
Never use a steam cleaner to clean
the coffee machine.
– Descale the coffee machine regularly
with the appropriate number of Miele
descaling tablets for the water
hardness level in your area. Descale
the machine more frequently in areas
with very hard water.
– Degrease the brew unit regularly with
the supplied Miele cleaning tablets.
Depending on the natural oil content
of the coffee used, the brew unit can
become blocked quite quickly.
~The main dispenser connector cap
is lubricated with silicone grease. Be
careful of your clothing when removing
or inserting containers or other inside
components .
For machines with stainless
steel trim:
~Do not use sticky notes, transparent
adhesive tape, masking tape or other
types of adhesive on the surface of the
trim. These damage the surface,
causing it to lose its dirt repellent
protective coating.
~The surface of the stainless steel
trim is susceptible to scratching. Even
magnets can cause scratches to
appear.
Preparing your appliance for
an extended vacation
~If you elect to turn off the water to
your home for an extended period of
time, please note that this may not be
enough to reduce the risk of a leak.
To be completely safe, you must turn
off the water supply to each individual
appliance. This means under the sink
for a dishwasher, at the laundry bib for
your washer, etc.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
9

Front view
aOn/Off touch control K
bTouch display
c"Back" sensor
dDoor handle
eHot water dispenser
fDrip tray
gMain dispenser, with automatic height-adjustment and lighting
hMilk container with lid
Guide to the coffee system
10

Interior view
iGround coffee chute cover
jBrew unit
kGround coffee chute
lGrind control lever
mCoffee bean container
nWater container with inlet
oDrip tray with no-spill grid
pWaste unit
qDrip catcher
rMain dispenser connector cap
sService cover
Guide to the coffee system
11

Included accessories
–Coffee scoop
for measuring ground coffee
–Milk container with lid
for storing and preparing milk
–Compact seal
Milk container lid for storage in the
fridge
–Milk pipework cleaning agent
for cleaning the milk system
(starter kit)
–2 cleaning containers (large, small)
for cleaning and care
–Descaling tablets
for descaling the water pipes
(starter kit)
–Cleaning tablets
for degreasing the brew unit
(starter kit)
–Test strips
for determining the water hardness
–Cleaning brush
for cleaning the milk pipework
–Silicone grease
for lubricating the main dispenser
cap connector
–Main dispenser cap connector
spare part
–Milk pipework angle section
spare part
Additional accessories are
available. Contact Miele or visit the
Miele website for more information.
Optional accessories
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your coffee
machine.
–All-purpose micro fiber cloth
for removing fingerprints and minor
contamination
–Milk container with lid
for storing and preparing milk
–Milk pipework cleaning agent
for cleaning the milk system
–Descaling tablets
for descaling the water pipes
–Cleaning tablets
for degreasing the brew unit
–Silicone grease
for lubricating the main dispenser
cap connector
Accessories
12

Touch display
The coffee system is operated by a finger touch.
If your fingers are cold, the touch display may not react to your finger contact .
Do not use pointed or sharp objects, e.g. pens, to operate the touch display.
This can damage the surface! The touch display will not react if you tap it with
such objects.
Do not let water get behind the display.
Display
The screen is divided into three areas:
The top line shows you where you are in a menu. Touching the name of the
desired menu will open the menu. Touching "..." will return you to the previous
menu. The time of day is displayed on the right hand side.
The control field is in the middle: The current menu and options are displayed
there. The Vand Warrows are used to scroll to the right or left and select various
actions.
On the bottom line you can go to the displayed menus by touching the desired
gray field.
The number of boxes in the middle indicates the number of available pages in the
current menu.
Operation
13

Using the touch display
Each finger touch of an available option changes the respective field to orange.
Selecting or calling up a menu
^Touch the respective field once.
Scrolling
^Swipe the screen, i.e. place your finger on the touch display and swipe it in the
desired direction.
You can scroll to the right or the left. Some menu options allow you to scroll up
and down too.
^Touch the Vand Warrows to scroll to the left or right.
Exiting a menu ("Back" sensor)
Touch the "Back" sensor to go back to the previous screen. Entries made before
this which have not been confirmed with "OK" will not be saved.
Touch the "Back" sensor three times to go to the drinks menu. Touch the "Back"
sensor in the "Profiles" menu to go back step by step to the beginning.
Entering numbers using the numerical keypad z
You can enter numbers by swiping and touching the digit rollers or via the
numerical keypad.
Wait until the roller is gray. The entered setting will not be saved until it is gray.
^Touch z.
Operation
14

The numerical keypad appears.
^Touch the desired numbers.
When you enter a valid number, the "OK" field will go green.
^Touch "OK".
Entering letters
Profile names or the names for your own drinks are entered using a keyboard.
^Touch the desired letters or characters.
^Touch "Save".
Operation
15

The following symbols may appear in addition to the text and drinks symbols:
P P P P G G GM Settings such as the brightness of the display or the volume
of the audio signals are selected via a bar chart.
:Indicates information and instructions about operating the
coffee system.
Confirm the messages with "OK".
0The system lock is active (see "Settings - Locking the coffee
system (System lock 0)"): The coffee system cannot be
operated.
+The timer is activated for "Turn on at" (see "Settings –
Timer").
The symbol and the desired turning-on time appear in the
display 23:59 hours before the coffee system is due to turn
on, as long as "On" or "Night dimming" is selected for the
time display.
8This symbol appears when the milk pipework is being
cleaned.
(The symbol is also on the water tank: Fill the water tank up
to this mark).
FThis symbol appears when descaling is being carried out.
(The symbol is also on the water tank: Fill the water tank up
to this mark).
Operation
16

Before the first use
^The appliance must be correctly
installed and connected before the
first use. See the "Installation
instructions".
^Remove any protective coverings.
Clean the coffee machine
thoroughly (see "Cleaning and care")
before filling it with water and coffee
beans.
Turning on
When you turn the coffee machine on
for the first time, you will be prompted
to set the following after the welcome
screen has appeared:
– Language
– Date
– Time of day
– Display (time of day)
^Touch the On/Off button K.
The display briefly shows the "Miele -
Welcome" message.
Setting the language
^Touch the desired language and then
"OK".
^Touch the desired country and then
"OK".
The setting is now saved.
Setting the date
^Swipe the "Day" field in the display
until the current day appears.
^Repeat this for "Month" and "Year"
until the current date is set.
^Touch "OK".
The setting is now saved.
Setting the time (of day)
^Swipe the "Hours" field in the display
until the number for the current hour
appears.
^Repeat this for "Minutes" until the
current time of day is set.
^Touch "OK".
The setting is now saved.
First steps to use
17

Display
You can choose from the following
options:
–On: The display will always show the
date and time even when the system
is turned off.
–Off: The display is dark when the
system is turned off.
–Night dimming: The date and time
are only displayed between the
hours of 5 a.m. and 11 p.m.
^Touch the option you want and then
"OK".
Depending on which option you
select, the coffee machine may
consume more energy. This is
indicated by a message on the
display.
"Set-up successful" appears in the
display.
"Fill and replace the water container"
appears in the display.
^Fill the water container with cold,
fresh tap water.
Water hardness
Water hardness is an indication of the
amount of minerals dissolved in water.
The higher the mineral content, the
harder the water. And the harder the
water, the more often the coffee
machine will need to be descaled.
The coffee machine monitors the
quantity of water and steam used. The
number of beverages that can be
dispensed before the machine needs to
be descaled will depend on the water
hardness level set.
Set the water hardness level on the
coffee machine to the water hardness
level for the local area to ensure that
the machine functions correctly and is
not damaged. This will ensure that the
reminder to descale the machine will
appear in the display at the correct
time. If unsure of your water hardness
contact your local water authority.
You can program four hardness levels
on the machine:
Water hardness Hardness
range
Setting
(hardness
level)
0 - 8.7 gr/gal
(0 - 8.4°dH)
soft soft 1
8.7 - 14.6 gr/gal
(8.4 - 14°dH)
medium medium 2
14.6 - 21.9 gr/gal
(14 - 21°dH)
hard hard 3
21.9 gr/gal
(21°dH)
hard very hard 4
First steps to use
18

Checking water hardness level
You can check the water hardness level
using the supplied test strips.
^Dip the test strip into your tap water
for about one second. Then shake off
any excess water. The result will be
visible after about one minute.
You can now set the water hardness
level for the coffee system.
Setting the water hardness
^Touch "Settings" %.
^Swipe the display until "Water
hardness" appears, and then touch it.
^Touch the hardness level you want
and then "OK".
The setting is now saved.
First steps to use
19

If the coffee machine is connected to a
plumbed water supply, the water is
filled up automatically as soon as the
machine is turned on.
The inlet guide at the water tank lid
ensures that the water is flows in
quietly.
Of course, you can also fill the water
tank manually when using the coffee
machine without a plumbed water
supply (water tank operation).
,Change the water daily to
prevent bacteria growth.
Before using the coffee system for
the first time, clean the appliance.
See "Cleaning and Care".
Only fill the water tank with cold,
fresh tap water.
Hot or warm water or other liquids
can damage the coffee machine.
Do not use mineral water to fill the
water tank. Mineral water will cause
serious lime scale deposits to build
up in your coffee machine and
damage it.

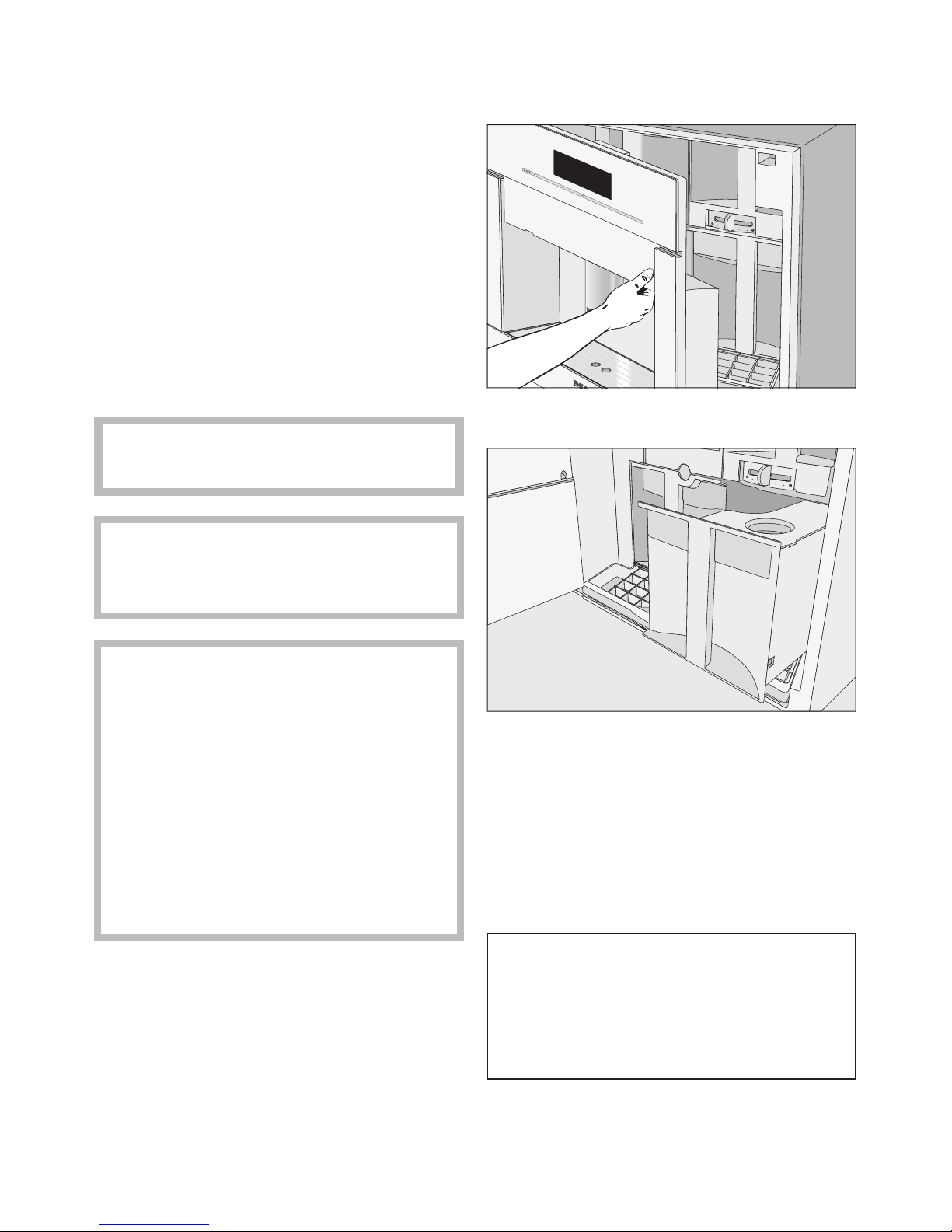

^Open the unit door.
^Slowly pull the water tank forward
and out.
^Remove the lid and fill the container
with fresh, cold tap water to the
"Max." mark.
^Push the water tank into the unit until
it clicks into place.
If the water tank has not clicked into
place, pull the tank out, check and
clean the niche. The valve might leak.
If necessary, clean the niche and
surface.
Filling the water tank
20
