Miele KM 403 User manual

Installation Instructions
KM 400 Electric Cooktop
KM 402 / KM 403 Fryer
KM 408-1 Contact Grill
KM 410 / KM 411 Electric Bar ecue
To prevent accidents and
machine damage,
read these instructions
before installation or use.
UV
05 060 863
M.-Nr.

2

Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety distance above the appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety distance between the KM 410 / KM 411 and a venting hood . . . . . . . . . 6
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
KM 400 / KM 408-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
KM 402 / KM 403 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
KM 410 / KM 411 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cutting out the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Laying out the support bars and clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Securing the support bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wood or Corian countertops. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Securing the spring clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wood or Corian countertops. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Locking the appliance into place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contents
3

Note to the installer
Please leave this instruction book
with the consumer for the local
electrical inspector’s use.
Installation
The minimum distances given in
these Installation Instructions must
be observed in order to ensure safe
operation. Failure to do so increases
the risk of fire.
To prevent appliance damage, the
cabinetry and venting hood should
be installed first.
The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion.

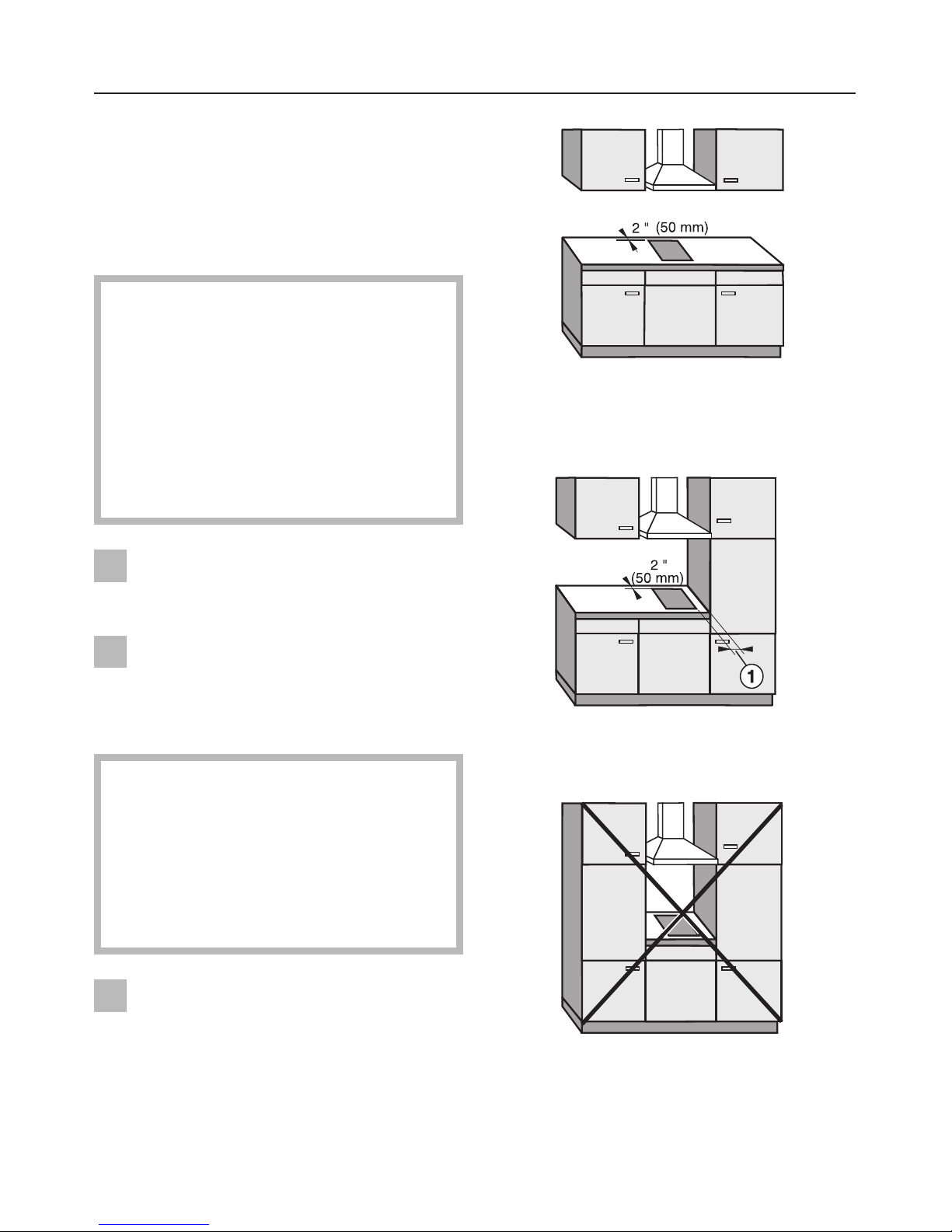

The cooktops should only be
installed with the required safety
distances shown. Do not install the
cooktop between 2 tall cabinets as this
is a fire hazard.
a= Minimum safety distances:
KM 400 = 2" (50 mm)
KM 402 / 403= 2" (50 mm)
KM 408-1 = 2" (50 mm)
KM 410 / 411 =10" (250 mm)
Deep fryers must not be installed
next to gas cooktops. Gas flames
can ignite splattering oil. A distance of
at least 12" (305 mm) should be main-
tained between these two appliances.
recommended
not recommended
not allowed
IMPORTANT SAFETY INSTRUCTIONS
4

Cooktops should not be installed
above a dishwasher, washer, dryer,
freezer or refrigerator. Heat generated
by cooktops could damage these
aplliances.
This equipment has not been
designed for maritime use or for
use in mobile installations such as
aircraft or recreational vehicles.
However, under certain circumstances
it may be possible for an installation in
these applications. Please contact the
nearest Miele Dealer or the Miele Tech-
nical Service Department with specific
requirements.
Safety distance above the appliances
There must be a minimum safety
distance of at least 30 inches (760 mm)
between the top of the appliance and
any cabinet above it, b. If the cabinet
manufacturer recommends a different
distance, follow that manufacturer’s
recommendation.
When installing the cooktops under
an exhaust hood, always observe
the minimum safety distances
recommended by the hood manu-
facturer.
IMPORTANT SAFETY INSTRUCTIONS
5

Safety distance between the KM 410 /
KM 411 and a venting hood
The minimum safety distance
between the KM 410 / KM 411 and
the bottom of a venting hood should
be no less than 26" (650 mm).
The filters of the venting hood should
be cleaned regularly.
Never leave the grill unattended when
in use.
If more than one appliance is
installed beneath a hood and they
have different mimimum safety
distances, the greater distance
should be followed.
Keep this instruction book in a
safe place and pass it on to
any future owner.
IMPORTANT SAFETY INSTRUCTIONS
6

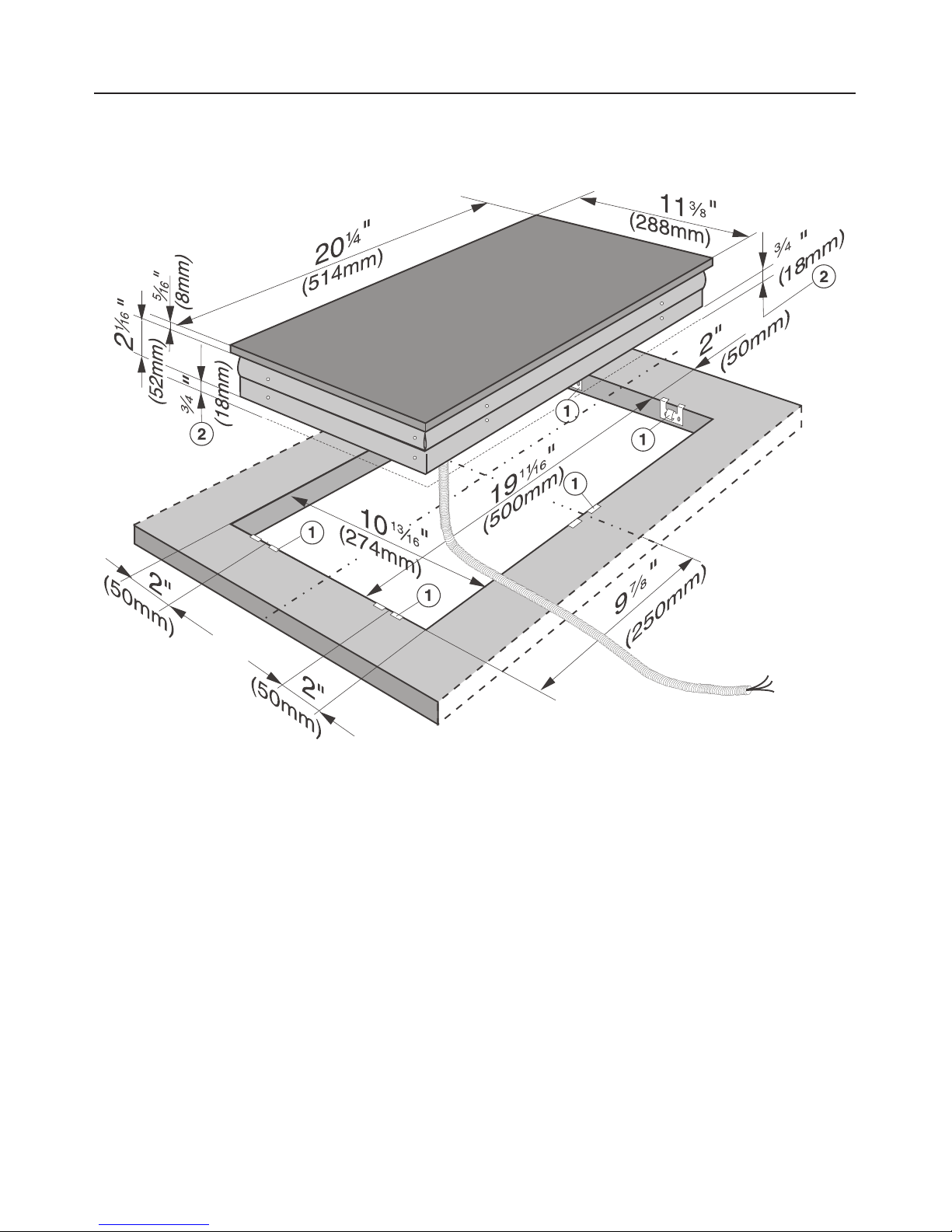

KM 400 / KM 408-1
aClamps
bPlease allow an additional 3/4"
(18 mm) depth below the cooktop for
clearance of the power cord.
Appliance dimensions
7

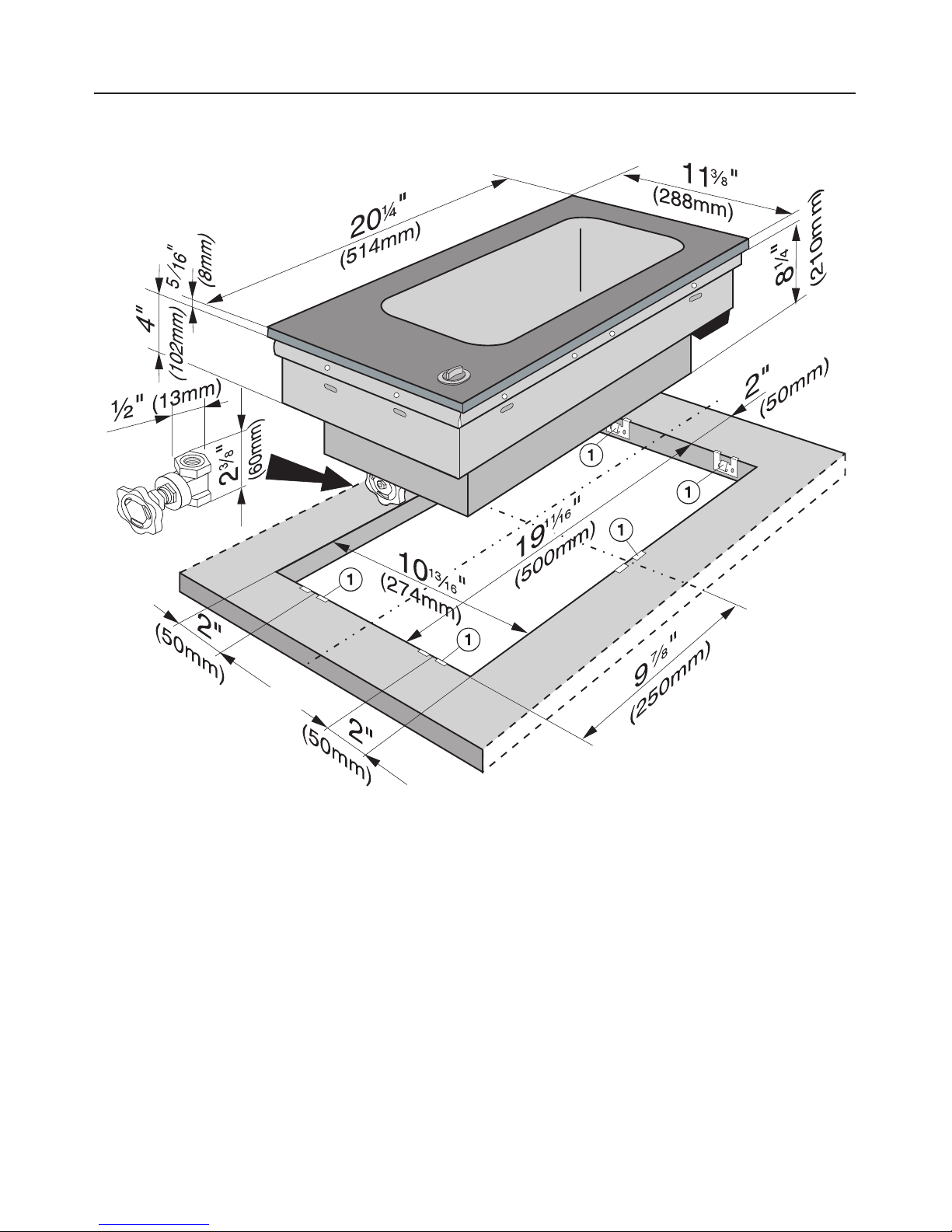

KM 402 / KM 403
aClamps
Appliance dimensions
8

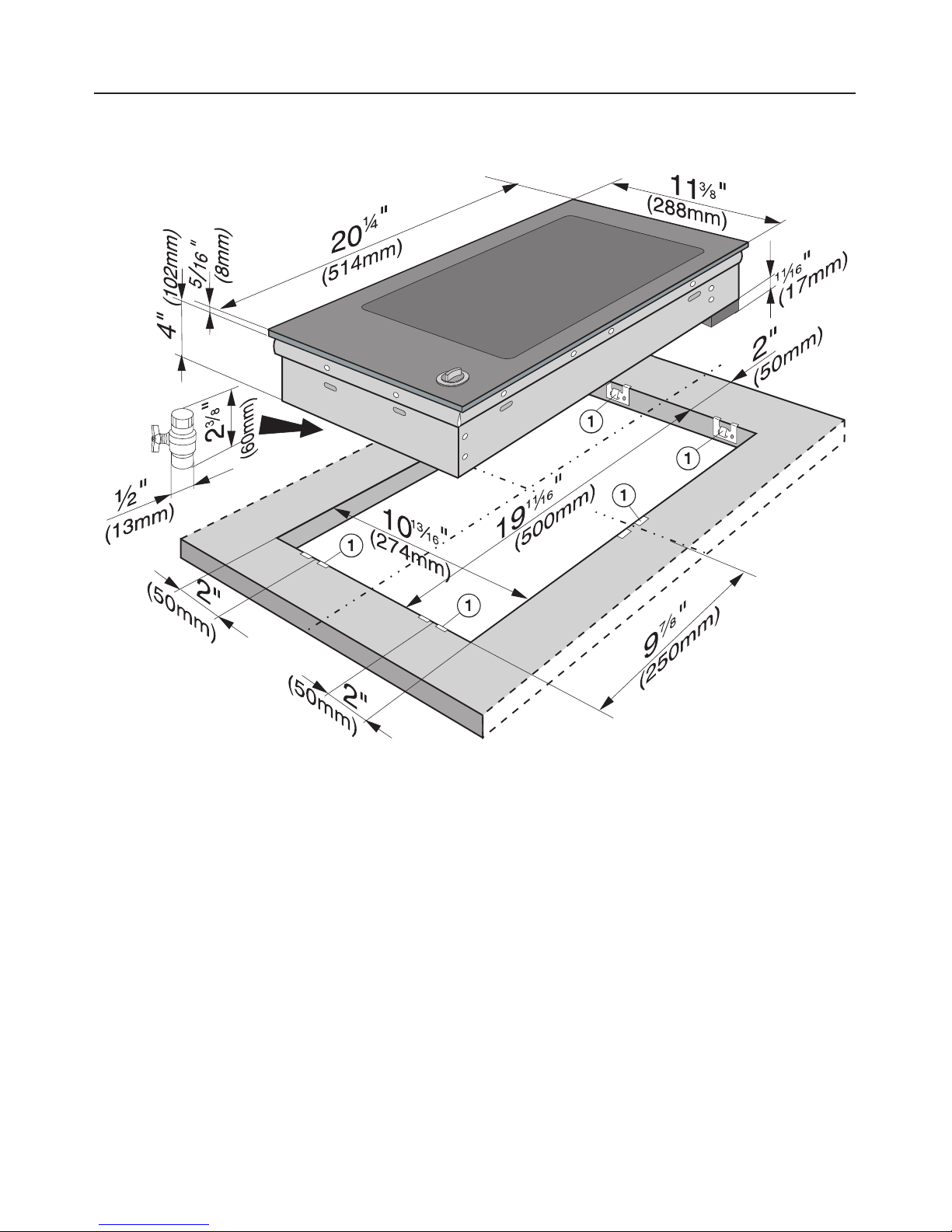

KM 410 / KM 411
aClamps
Appliance dimensions
9

Cutting out the countertop
All Miele combisets have the same
length and width. Make sure that there
is enough room beneath the countertop
to allow for the depth of the various
appliances. When installing a KM 402 /
KM 403 or KM 410 / KM 411 remember
to allow clearance for the drain valve
that will be located in the cabinet
beneath the appliances.
The following safety distances must be
maintained:
–Between the cooktop and rear wall:
2" (50 mm).
–Between the cooktop and side wall
or cabinet:
KM 400 = 2" (50 mm)
KM 402 / 403= 2" (50 mm)
KM 408-1 = 2" (50 mm)
KM 410 / 411 =10" (250 mm
Refer to section "Important Safety
Instructions" for further information.

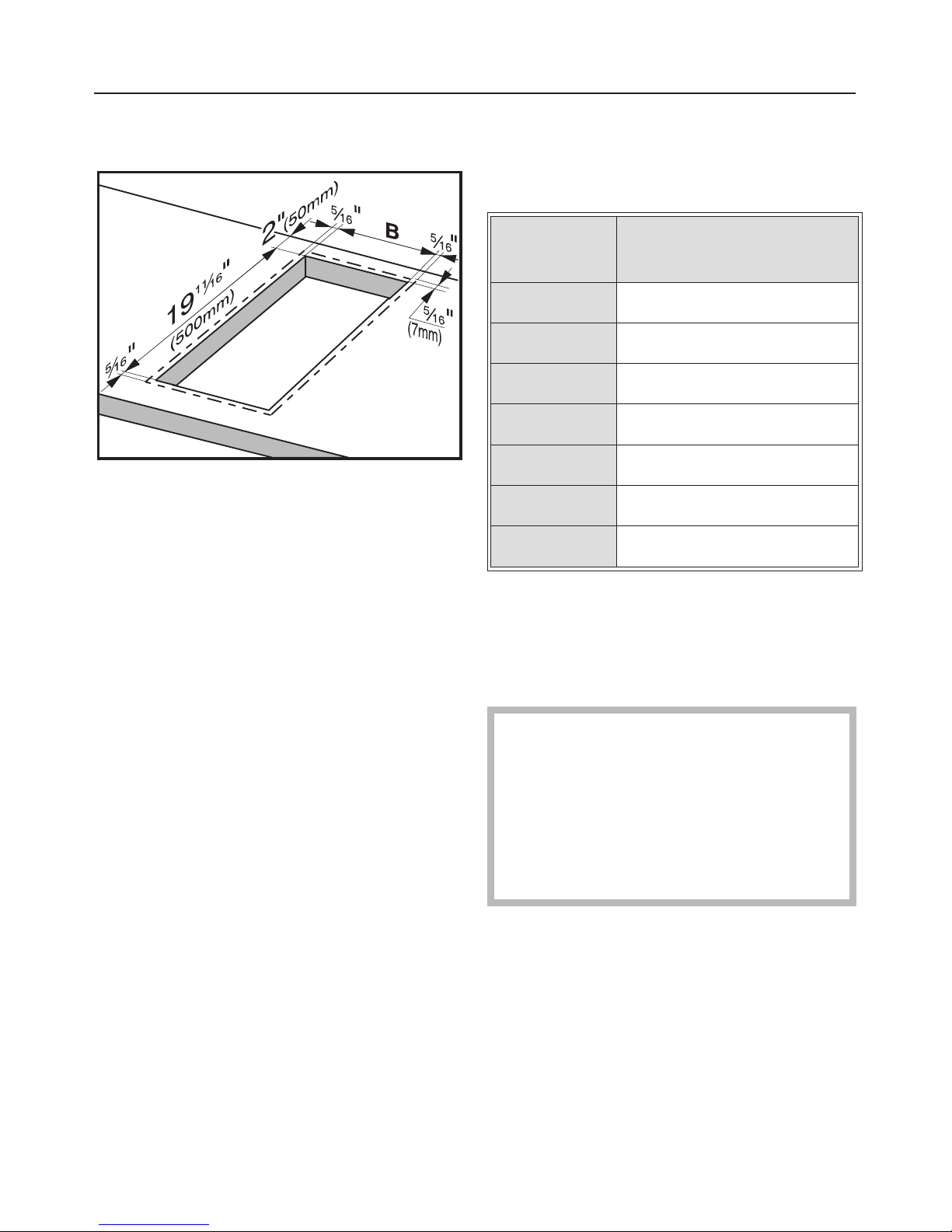

Installing one or multiple appliances
Cut out the countertop using the
dimensions listed in the following table.
Number of
cooktops
Cut out width
Dimension "B"
110 13/16" (274 mm)
222 1/8" (562 mm)
333 1/2" (850 mm)
444 13/16 (1138 mm)
556 1/8" (1426 mm)
667 1/2" (1714 mm)
778 13/16" (2002 mm)
The tolerance for each dimension is
1/16" (1 mm).
When installing more than one
combiset cooktop, a support bar
must be installed between the
appliances. Install the support bars
as shown on the following page
before setting the appliances into
the countertop.
Installation
10

Laying out the support bars
and clamps
aClamps
bSupport bars
This illustration shows the layout for 3
combisets, their respective support
bars, b, and the 14 spring clamps, a,
required for correct installation.
If more than 3 combisets are being
installed, add an additional 11 3/8" (288
mm) to the overall width of the cut out
for each extra combiset, or use the
table on the preceeding page.
cSlight gap between support bar and
countertop.
Installation
11

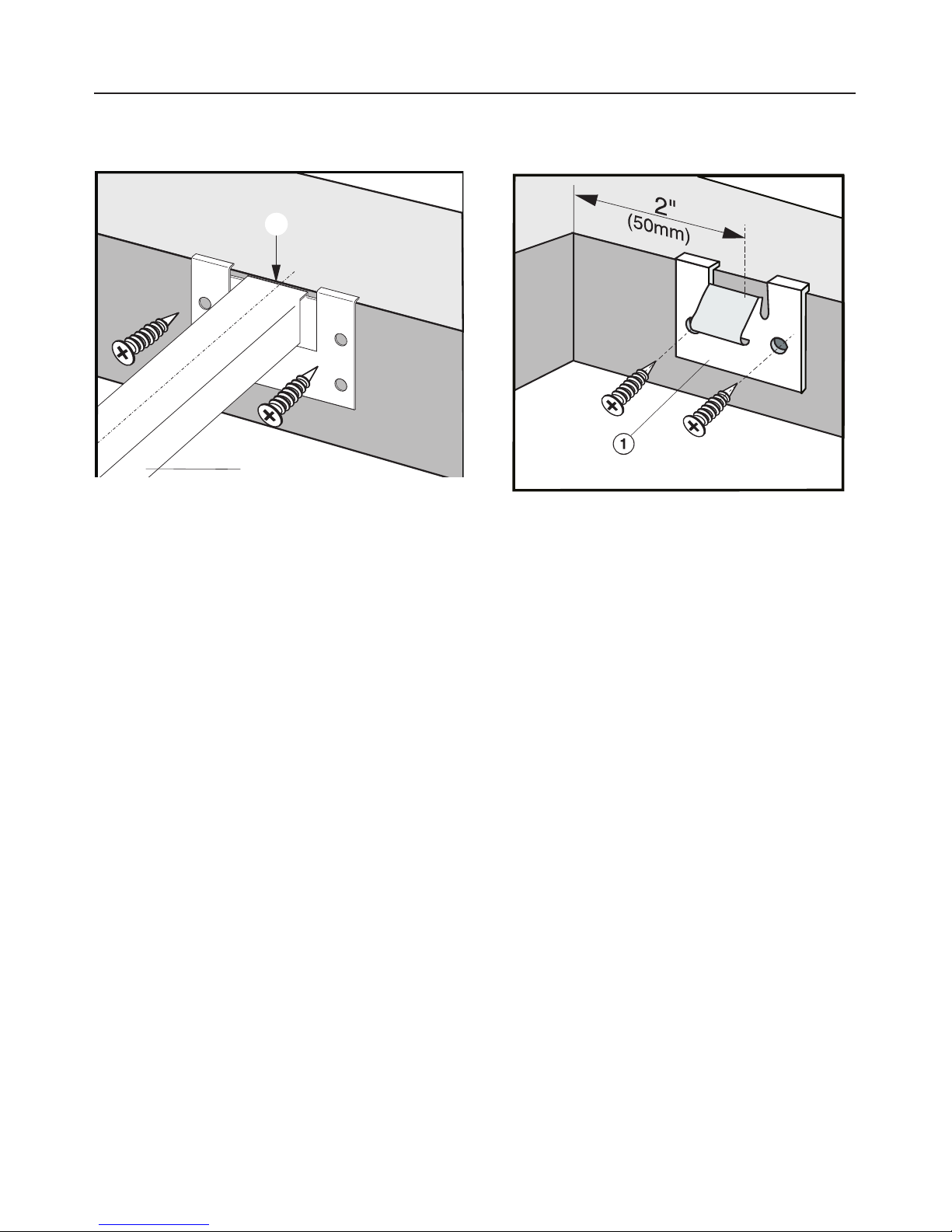

Securing the support bars
Wood or Corian countertops
^Arrange the bars, b, as shown in the
illustration
^Drill 1/16" ( 1.5 mm) pilot holes through
the brackets and secure them using
the supplied screws.
^Fill the gap, c, between the bars and
the countertop using the supplied
silicon sealant.
Granite countertops
For granite countertops, the support
bars, b, can be secured using double-
sided construction tape. Do not allow
the bars to "float", they must be secure-
ly fastened. Fill the gap, c, between
the bars and the countertop using the
supplied silicon sealant.
The screws are not necessary for
granite countertops.
Securing the spring clamps
Wood or Corian countertops
^Place the spring clamps, a, as
shown in the illustration.
^Drill two 1/16" (1.5 mm) pilot holes for
each clamp and secure using the
supplied screws.
Granite countertops
For granite countertops, the spring
clamps can be secured using
doublesided construction adhesive. Do
not allow the spring clamps to "float",
they must be securely fastened.
The screws are not necessary for
granite countertops.
Installation
12
c
d

Locking the appliance into
place
Make sure the cooktops are aligned
correctly before setting them into the
countertop. Once the spring clamps
are engaged, a special tool is
required to release the cooktop from
the clamps.
^Guide the power cord through the cut
out and connect the appliance to the
electrical supply.
^Position the cooktop over the cut out.
With a hand on each side, above the
clamps, a, press the cooktop down,
locking it into the spring clamps.
Make sure that the cooktop rim lies
flat against the countertop on all
sides.
Installation
13

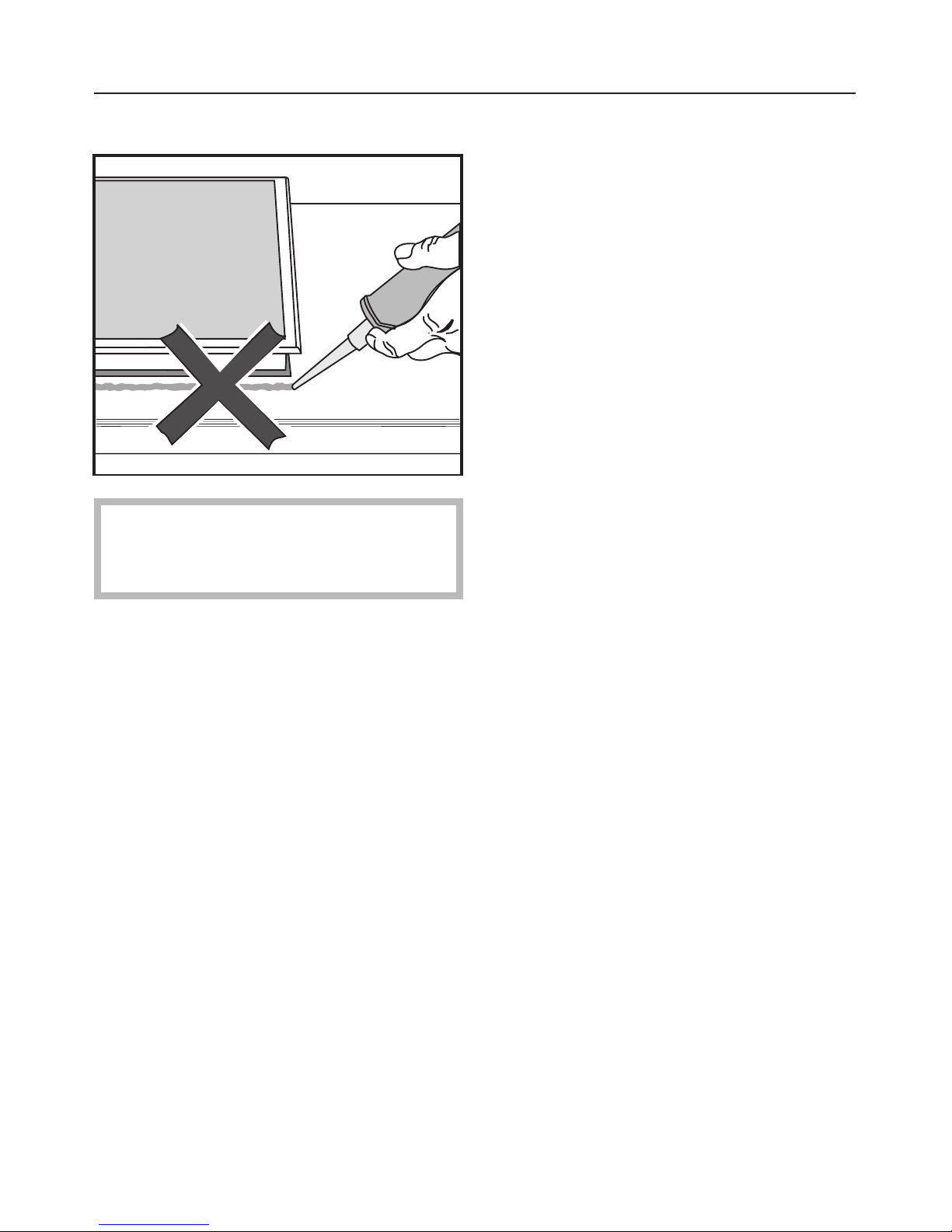

Important
The cooktop must not be
permanently sealed into the
countertop when installed.
If the cooktop is sealed into position,
the countertop or appliance may be
damaged if the cooktop needs to be
removed for maintenance or service.
The sealing strip under the edge of the
cooktop provides a sufficient seal for
the countertop.
Installation
14

,WARNING
Disconnect the appliance from the
main power supply before servicing.
To reduce the risk of electric shock,
make sure that the appliance is
properly grounded after installation.
To guarantee the electrical safety of
this appliance; continuity must exist
between the appliance and an effec-
tive grounding system. It is impera-
tive that this basic safety require-
ment be met. If there is any doubt,
have the electrical system of the
house checked by a qualified elec-
trician. The manufacturer cannot be
held responsible for damages
caused by the lack, or inadequacy
of, an effective grounding system.
All electrical work should be
performed by a qualified electrician
in accordance with local codes and
with the
- National Electrical code
ANSI / NFPA No. 70-1481
for USA
or
- Canadian Electrical Code Part I
(CSA Standard C 22.1)
for Canada
Note to the installer
Please leave these instructions with the
consumer.
Power supply
–240 V, 60 Hz, 15 A fuse rating
or
–208 V, 60 Hz, 15 A fuse rating
The oven is equipped with a power
cord consisting of 3 leads. They must
be connected to a dedicated line
through the use of an approved
junction box
Black : connect to L1 (hot)
Red: connect to L2 (hot)
Green: connect to GND (ground):
For further information, see the wir-
ing diagram provided with the appli-
ance.
WARNING
THIS APPLIANCE MUST BE
GROUNDED
Electrical connection
15

M.-Nr. 05 060 863 / V
Alteration rights reserved / 4202
