Miele ESW 7010 User manual

Operating and installation
instructions
Gourmet warming drawer
To avoid the risk of accidents or damage to the appliance it is
essential to read these instructions before it is installed and used for
the first time.
en-AE, SA M.-Nr. 11 260 610

Contents
2
Warning and Safety instructions...................................................................... 4
Caring for the environment .............................................................................. 11
Guide to the appliance...................................................................................... 12
ESW 7010, ESW 7110......................................................................................... 12
ESW 7020, ESW 7030, ESW 7120...................................................................... 13
Controls and indicators ....................................................................................... 14
Accessories supplied .......................................................................................... 15
Before using for the first time .......................................................................... 16
Cleaning the drawer for the first time.................................................................. 16
Heating up the drawer for the first time .............................................................. 16
Miele@home ........................................................................................................ 17
Operation............................................................................................................ 20
Using the appliance............................................................................................. 20
Using MobileStart................................................................................................ 21
Operating modes................................................................................................. 21
Duration ............................................................................................................... 21
Temperature settings........................................................................................... 22
Keeping food warm........................................................................................... 23
Warming crockery ............................................................................................. 26
Heating up times ................................................................................................. 26
Capacity .............................................................................................................. 26
ESW 7010, ESW 7110.................................................................................... 27
ESW 7020, ESW 7030, ESW 7120................................................................. 28
Low temperature cooking ................................................................................ 29
Other uses.......................................................................................................... 34
Networking with Miele built-in appliances...................................................... 35
Cleaning and care ............................................................................................. 36
Problem solving guide ...................................................................................... 38
Optional accessories ........................................................................................ 40
After sales service............................................................................................. 41
Contact in case of malfunction ........................................................................... 41
Data plate ............................................................................................................ 41
Guarantee............................................................................................................ 41

Contents
3
Installation.......................................................................................................... 42
Safety instructions for installation ....................................................................... 42
Installation notes ................................................................................................. 43
Installation dimensionsESW 7010, ESW 7110 ................................................... 44
Combination appliance for niches with a height of 450mm.......................... 44
Combination appliance for niches with a height of 590mm.......................... 45
Side view ........................................................................................................ 46
Connections and ventilation........................................................................... 47
Installation dimensionsESW 7020, ESW 7120 ................................................... 48
Combination appliance for niches with a height of 450mm.......................... 48
Combination appliance for niches with a height of 590mm.......................... 49
Side view ........................................................................................................ 50
Connections and ventilation........................................................................... 51
Installation dimensionsESW 7030 ...................................................................... 52
Combination appliance for niches with a height of 450mm.......................... 52
Combination appliance for niches with a height of 590mm.......................... 53
Side view ........................................................................................................ 54
Connections and ventilation........................................................................... 55
Installation ........................................................................................................... 56
Electrical connection ........................................................................................... 57

Warning and Safety instructions
4
Please note that the Gourmet drawer is referred to in these operating instructions
as the drawer.
This drawer complies with all current local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and material damage.
Read the operating and installation instructions carefully before
using the drawer. They contain important information on safety,
installation, use and maintenance. This prevents both personal
injury and damage to the drawer.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the drawer as well as the safety notes and
warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating and installation instructions in a safe place
and pass them on to any future owner.

Warning and Safety instructions
5
Correct application
 The drawer is intended for domestic use and use in other similar
environments.
 The drawer is not intended for outdoor use.
 It is intended for domestic use only as described in these
operating instructions. Any other usage is not supported by the
manufacturer and could be dangerous.
 People with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge who are not able to use the
drawer safely on their own must be supervised whilst using it. They
may only use it unsupervised if they have been shown how to use it
safely and recognise and understand the consequences of incorrect
operation.

Warning and Safety instructions
6
Safety with children
 Children under the age of 8years must be kept away from the
drawer unless they are constantly supervised.
 Children aged 8and older may only use the drawer without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
 Children must not be allowed to clean the drawer unsupervised.
 Please supervise children in the vicinity of the drawer, and do not
let them play with it.
 The drawer gets hot when in use and remains hot for quite a
while after being switched off. Keep children away from the drawer
until it has cooled down and there is no danger of burning.
 Danger of suffocation. Packaging, e.g. plastic wrappings, must be
kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.

Warning and Safety instructions
7
Technical safety
 Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
 A damaged drawer can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
 Reliable and safe operation of the drawer can only be assured if it
has been connected to the mains electrical supply.
 The electrical safety of this drawer can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
 The connection data (voltage and frequency) on the data plate of
the drawer must match the mains electricity supply in order to avoid
the risk of damage to the drawer.
Compare this data before connecting the appliance. If in any doubt,
consult a qualified electrician.
 Do not connect the drawer to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
 For safety reasons, this drawer may only be used when it has
been built in.
 This drawer must not be used in a non-stationary location (e.g. on
a ship).
 Never open the casing of the drawer.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.

Warning and Safety instructions
8
 While the appliance is under warranty, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the
warranty is invalidated.
 Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
 If the plug is removed from the connection cable or if the cable is
supplied without a plug, the drawer must be connected to the
electrical supply by a suitably qualified electrician.
 If the mains connection cable is damaged, it must be replaced
with a special mains connection cable (see “Electrical connection” in
the “Installation” chapter).
 During installation, maintenance and repair work, the drawer must
be disconnected from the mains electricity supply.
 If the drawer is installed behind a furniture panel (e.g. a door),
ensure that the door is never closed whilst the drawer is in use. Heat
and moisture can build up behind a closed furniture panel and cause
subsequent damage to the drawer, the housing unit and the floor. Do
not close the door until the drawer has cooled down completely.

Warning and Safety instructions
9
Correct use
 You could burn yourself on the hot drawer or hot dishes. Protect
your hands with heat-resistant pot holders or gloves when handling
hot appliances. Do not let them get wet or damp. Heat transfers
through damp and wet material more quickly with the risk of scalding
or burning yourself.
 Fire hazard. Do not store any plastic containers or combustible
objects in the warming drawer. They can melt or catch fire when the
appliance is switched on.
 Due to the high temperatures, objects left near the warming
drawer when it is switched on could catch fire. Do not use the
warming drawer to heat up the room.
 Never replace the anti-slip mat supplied with the appliance with
paper kitchen towel or similar.
 The telescopic runners can support a maximum load of 25kg.
Overloading or leaning or sitting on the drawer will damage the
telescopic runners.
 The underside of the warming drawer gets hot when switched on.
Be careful not to touch it when the drawer is open.
 The anti-slip mat is heat-resistant up to 200°C.
It is possible for the bottom of pots and pans to exceed this
temperature, especially after they have been used to sear food.
Allow pots and pans to cool down for a minute or two before placing
them in the drawer.
 Cookware made of plastic or aluminium foil will melt at high
temperatures. When keeping food warm, use only heat-resistant
cookware made of porcelain, glass, etc.
 Liquids that get inside the drawer can cause the appliance to
short-circuit. Open and close a loaded drawer carefully to prevent
liquids from spilling.

Warning and Safety instructions
10
 The Keeping food warm function is designed to keep hot food
warm and not to warm up cold food. Ensure food is really hot when
placed inside the drawer.
 Bacteria can develop on the food if the temperature is too low.
Make sure that you set a high enough temperature to keep food
warm.
Cleaning and care
 Danger of electric shock. The steam from a steam cleaning
appliance could reach live electrical components and cause a short
circuit. Do not use a steam cleaner to clean the warming drawer.

Caring for the environment
11
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposal of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Miele dealer for
advice.
Ensure that it presents no danger to
children while being stored for disposal.

Guide to the appliance
12

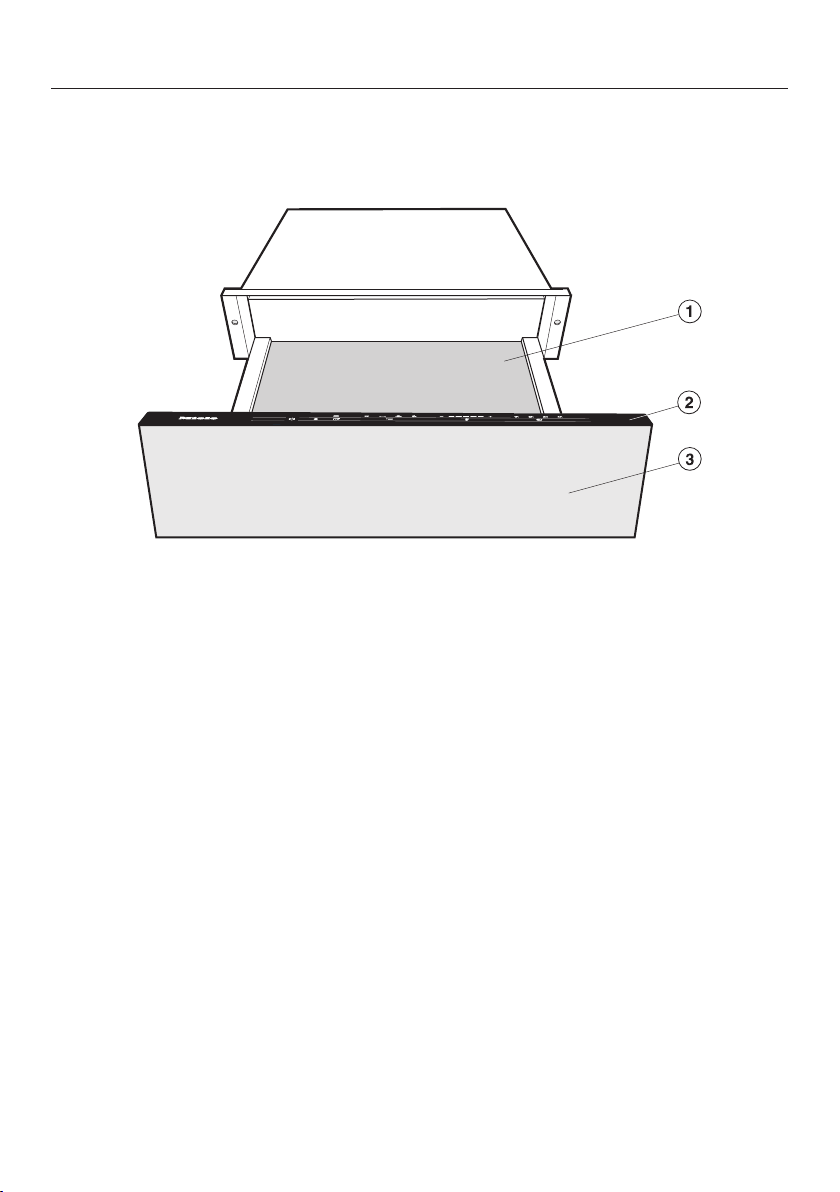

ESW 7010, ESW 7110
aAnti-slip mat
bControls and indicators
cDrawer front with Push2open mechanism
The drawer can be opened and closed by lightly pressing the drawer front.

Guide to the appliance
13

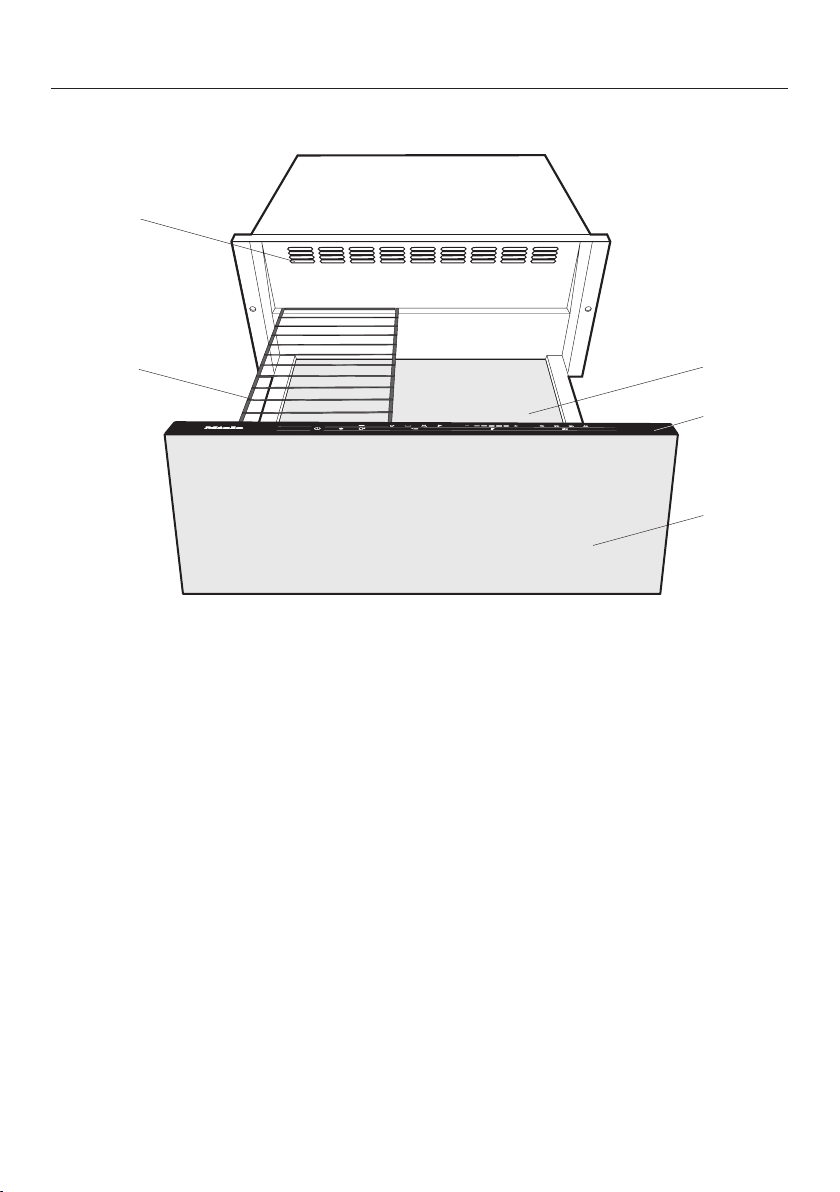

ESW 7020, ESW 7030, ESW 7120
d
e
c
a
b
aAnti-slip mat
bControls and indicators
cDrawer front with Push2open mechanism
The drawer can be opened and closed by lightly pressing the drawer front.
dWire rack
eAir vents

Guide to the appliance
14

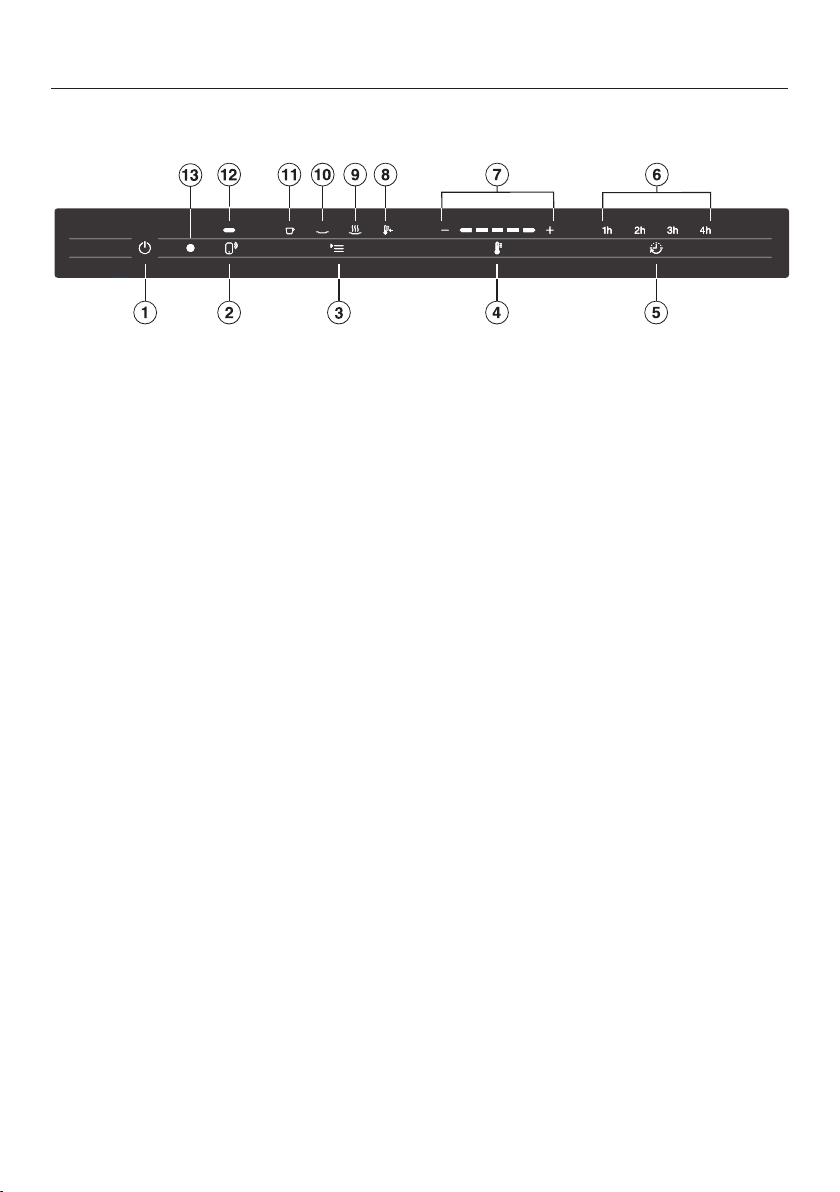

Controls and indicators
Sensor controls
aOn/Off sensor control
For switching the drawer on/off
bSensor control
For controlling the drawer via your
mobile device
cSensor control
For selecting the operating mode
dSensor control
For setting the temperature
eSensor control
For setting a limited duration or
resetting continuous operation.
Indicator lights
fIndicators for the selected duration
1h=1hour
2h=2hours
3h=3hours
4h=4hours
No lights=Continuous operation
gSegment bar indicator lights
For displaying the temperature
hIndicator light
Indicates that the
low temperature cooking operating
mode is set.
iIndicator light
Indicates that the
keeping food warm operating mode
is set.
jIndicator light
Indicates that the
plates/dishes operating mode is set.
kIndicator light
Indicates that the
cups/glasses operating mode is set.
lIndicator light
Indicates that the function for
controlling the drawer via your
mobile device is activated.
mOptical interface
(For your Miele dealer only)

Guide to the appliance
15

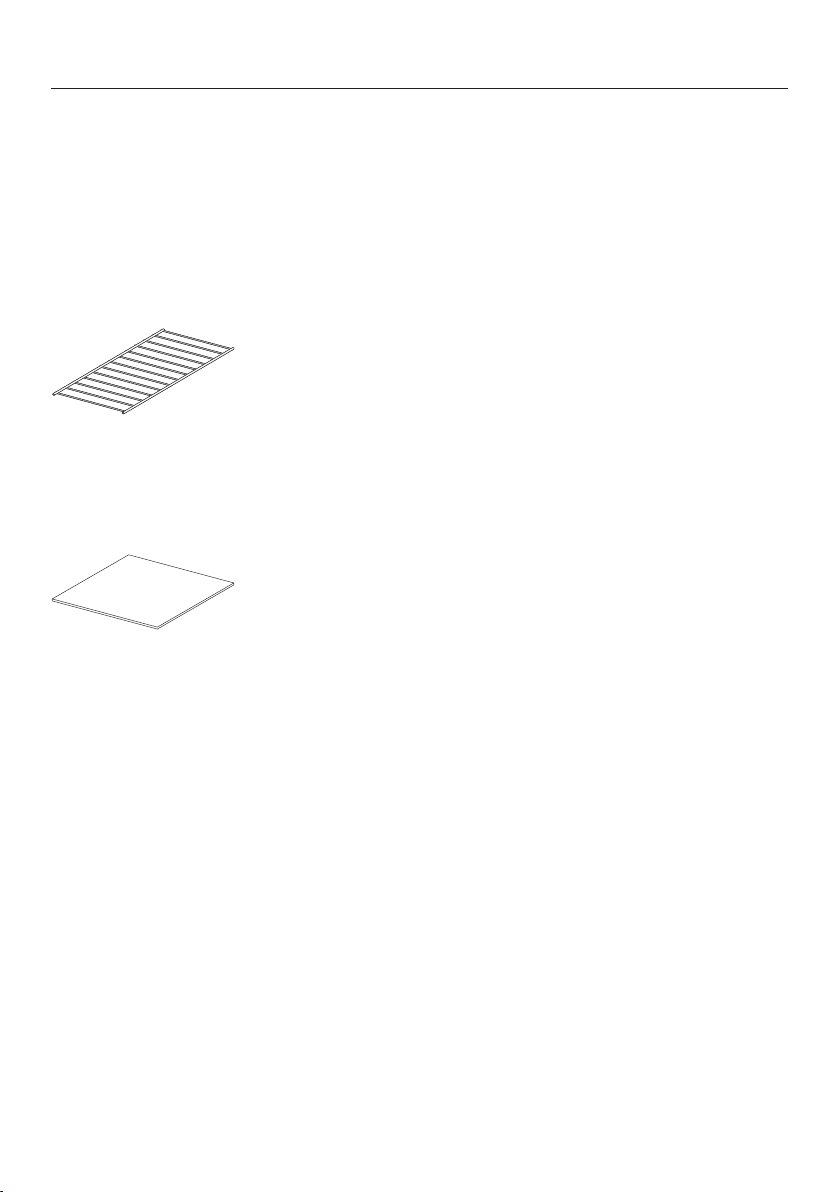

Accessories supplied
The accessories supplied with your
appliance as well as a range of optional
ones are available to order from your
Miele dealer (see „Optional
accessories“).
Wire rack
For increasing the loading area (ESW
7020, ESW 7030, ESW 7120).
Anti-slip mat
For keeping dishes secure.
Cookery book for low temperature
cooking
A selection of the best recipes from the
Miele test kitchen.

Before using for the first time
16
Remove any protective wrapping and
stickers.
Do not remove stickers carrying
safety or installation information or
the data plate.
This makes it easier to perform
servicing and repair work.
Cleaning the drawer for the
first time
Remove the anti-slip mat and (if
present) the wire rack from the
drawer. Clean both with a clean
sponge and a solution of hot water
and washing-up liquid or a damp
microfibre cloth.
Dry the anti-slip mat and the rack
with a soft cloth.
Wipe the drawer inside and out with a
damp cloth to remove any dust or
left-over packaging.
Dry all surfaces with a soft cloth.
Replace the anti-slip mat and the
rack (if applicable) in the drawer.
Heating up the drawer for the
first time
Heat the empty drawer for at least
2hours.
Touch the sensor to switch the
drawer on.
Touch the sensor repeatedly until
the symbol lights up.
Touch the sensor repeatedly until
the segment on the far right-hand
side of the temperature display lights
up.
Touch the sensor repeatedly until
2h lights up.
Close the drawer.
The drawer is fitted with a contact
switch. This ensures that the heating
element and fan in the appliance only
work when the drawer is closed.
The drawer will switch itself off
automatically after 2hours.
The metal components have a
protective coating. For that reason they
will give off a slight smell temporarily
when the drawer is heated for the first
time. The smell and any vapours given
off will dissipate after a short time, and
do not indicate a faulty connection or
appliance.
It is important to ensure that the kitchen
is well ventilated when heating the
drawer for the first time.

Before using for the first time
17
Miele@home
Your drawer is equipped with an
integrated WiFi module.
To use this feature, you will need:
- A WiFi network
- The Miele app
- A Miele user account The user
account can be created via the Miele
app.
The Miele app will guide you as you
connect your drawer to your home WiFi
network.
Once your drawer is connected to your
WiFi network, you can use the app, for
example, to carry the following
activities:
- Access information about the
operating status of your drawer
- Retrieve information on cooking
processes that are in progress
- Stop cooking processes that are in
progress
The drawer requires max. 2W in
networked standby.
Before installing the drawer in its
installation site, ensure that the
signal of your WiFi network is strong
enough.
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can give rise to sporadic or
even complete connection failures.
Therefore, the availability of featured
functions cannot be guaranteed.
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store® or from the Google Play Store™.

Before using for the first time
18
Connecting via the app
The Miele@mobile app can be used to
connect to your network.
Install the Miele@mobile app on your
mobile device.
To log in you will need:
1. your WiFi network password
2. your drawer password
Made in Germany
Typ: ESW /XXXX XX XXX
Fabr.- Nr. : 00 / X /XXX XXXXXXXX XXX
M.- Nr. : XX XXX XXX
The password for your drawer consists
of the last nine digits of the serial
number. This can be found on the
appliance's data plate.
Data plate
The data plate is located here:
Start signing the appliance on in the
app. Follow the signing-on
instructions.
If requested to activate the WiFi on the
drawer, proceed as follows:
Switch the drawer off.
Press and hold the sensor control.
At the same time, touch the
sensor control.
2h will light up constantly, 3h will flash
on and off.
The drawer will be ready for connection
in the next 10minutes.
Follow the instructions in the app.
When successfully connected, 2h and
3h will light up constantly.
Quit the connection mode on the
drawer by touching the sensor
control.
The drawer can now be operated via
the app.

Before using for the first time
19
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Switch the drawer off.
Press and hold the sensor control.
At the same time, touch the
sensor control.
2h will light up constantly, 3h will flash
on and off.
The WPS connection must be started
on the drawer at the same time as on
the WiFi router.
Touch the sensor control on the
drawer after a few seconds.
After a short while, 2h will light up
constantly, and 3h and 4h will flash on
and off.
The drawer will be ready for connection
in the next 10minutes.
Start the WPS connection on your
WiFi router.
When successfully connected, 2h and
3h will light up constantly.
Quit the connection mode on the
drawer by touching the sensor
control.
The drawer can now be operated via
the app.
If the connection fails, you have
probably not activated WPS on your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the
Miele@mobile app.
Signing out of WiFi (resetting factory
defaults)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the drawer off.
Press and hold the sensor control.
At the same time, touch the
sensor control.
With an existing WiFi connection, 2h
and 3h will light up constantly.
The drawer will be ready for
disconnection in the next 10minutes.
Touch the sensor control.
2h will light up constantly, 3h will flash
on and off.
After a few seconds, 2h and 3h will
start flashing on and off. The
connection has now been
disconnected.
Quit the signing off mode on the
drawer by touching the sensor
control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Log off the WiFi if you are disposing of
your drawer, selling it or putting a used
drawer into operation. This is the only
way to ensure that all personal data has
been removed and the previous owner
will no longer be able to access the
drawer.

Operation
20
Using the appliance
Malfunction due to dirty and/or
covered sensor controls.
The sensor controls do not react or
unintentional switching procedures
result, perhaps even the automatic
deactivation of the drawer.
Keep the sensor controls and
indicators clean.
Do not place anything over the
sensor controls or indicators.
Damage caused by liquids.
Liquids that get inside the drawer
can cause a short circuit.
Open and close a loaded drawer
carefully to prevent liquids from
spilling.
Open the drawer.
Touch the sensor control to switch
the drawer on.
Touch the sensor control
repeatedly until the required
operating mode lights up.
Touch the sensor control
repeatedly until the segment for the
required temperature lights up in the
temperature display.
Touch the sensor control
repeatedly until the required number
of hours for the operating duration
lights up.
Close the drawer.
