Miele S 4000 User manual

Operating instructions
Vacuum cleaner
S 4000
To prevent accidents
and machine damage,
read these instructions
before installation and use. M.-Nr. 07 126 390
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the included accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power cord.......................................................16
Turning the vacuum on and off .......................................16
Adjusting the suction ...............................................18
Opening the air inlet valve ...........................................20
Transport and storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Purchasing new dustbags and filters ..................................22
When to change the dustbag ........................................23
Replacing the dustbag .............................................24
Replacing the exhaust filter ..........................................25
Exhaust filter change indicator .......................................26
Replacing the "SUPER air clean" filter ..................................27
Replacing the "ActiveAirClean" filter and the "Active HEPA" filter .............28
Exchanging exhaust filters...........................................29
When to change the dust compartment filter (motor protection)..............30
Replacing the dust compartment filter (motor protection)...................30
When to change the radio handpiece battery ............................30
How to change the radio handpiece battery .............................30
When to change the thread catcher pads of the SBD 450-3 floor tool and
upholstery tool ....................................................31
Replacing the thread catchers .......................................31
Servicing the floor roller of the SBD 450-3 floor tool .......................31
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Contents
2

When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
The manufacturer cannot be held responsible for any damage caused by
non-compliance of these Important Safety Instructions.
WARNING-
To reduce the risk of fire, electric
shock or injury:
Before using
~Check the voltage rating of the
vacuum cleaner before connecting the
power cord to an electrical outlet. Your
power source should correspond with
the voltage rating plate located on the
underside of the vacuum. Use only
household AC outlets. Never use DC
power sources. If you are not sure of
your home’s voltage supply, consult a
qualified electrician. Connecting the
vacuum cleaner to a higher voltage
than indicated in these instructions may
result in damage to the vacuum cleaner
or injury.
~To reduce the risk of electric shock,
this appliance has a polarized plug
(one blade is wider than the other.) This
plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to
install the proper outlet. Do not alter the
plug in any way.
~A damaged vacuum cleaner can be
dangerous. Check the packaging,
vacuum cleaner and accessories for
any signs of damage. Do not use a
damaged appliance.
~Do not use with a damaged cord or
plug. If the appliance is not working as
it should, has been dropped, damaged,
left outdoors or submerged in water,
bring it to a service center.
~The electrical outlet must be fitted
with a 15 A fuse.
IMPORTANT SAFETY INSTRUCTIONS
3

Use
~Do not use on people or animals.
~Do not use outdoors or on wet
surfaces. Only dry surfaces should be
vacuumed.
~Use only as described in this
manual with Miele recommended
accessories.
~The manufacturer cannot be held
responsible for damage caused by
non-compliance with these Important
Safety Instructions. This appliance is
intended strictly for household use only.
~Do not allow the vacuum cleaner to
be used as a toy. Close attention is
necessary when used near children.
~Never use the vacuum cleaner
without the dustbag or filters in place.
Otherwise it could be damaged.
~If a dustbag is not inserted, the dust
compartment lid will not close. Do not
force it shut.
~Do not leave the vacuum plugged
in. Unplug it from the outlet when not in
use and before servicing.
~On the underside of the vacuum
handpiece is a metal insert designed to
absorb static electricity. Please make
certain that your hand remains around
this metal insert when vacuuming.
~Persons which lack physical,
sensory or mental abilities or
experience with the machine should not
use it without supervision or instruction
by a responsible person.
~Unwind the cord completely to aid
the vacuum in dissipating heat.
~This vacuum should not be used to
entrap or retain any hazardous
materials.
~Do not use the vacuum cleaner to
pick up liquids or damp dirt. This could
impair the electrical safety of the
vacuum cleaner. Wait for freshly
shampooed carpets to dry.
~Do not vacuum anything that is
burning or smoking, such as cigarettes,
matches, or hot ashes. The vacuum
cleaner could catch fire.
~Do not vacuum toner dust. Toner,
such as that used in printers and
photocopiers can conduct electricity.
~Do not use to pick up flammable or
combustible liquids, such as gasoline,
or use in areas where they may be
present. The vacuum cleaner could
explode.
~Do not vacuum items which are
heavy, hard or have sharp edges. They
could cause a blockage and damage
the appliance.
~Do not pull or carry by the cord, use
the cord as a handle, close a door on
the cord, or pull the cord around sharp
edges or corners. Do not run the
appliance over the cord. Keep the cord
away from heated surfaces.
IMPORTANT SAFETY INSTRUCTIONS
4

~Do not unplug by pulling on the
cord. To unplug, grasp the plug, not the
cord.
~Do not handle the plug or vacuum
with wet hands.
~Keep the power cord, hair, loose
clothing, fingers and all parts of the
body away from openings and moving
parts.
~Do not place anything into the
openings of the vacuum cleaner. Do
not use if any openings are blocked;
keep them free of dust, lint, hair, or
anything that may reduce air flow.
~This appliance is equipped with a
power cord reel. Hold the plug when
rewinding onto cord reel. Do not allow
the plug to whip when rewinding.
~Turn off all controls before
unplugging.
~Use extra care when cleaning on
stairs.
~Floor attachments, accessories and
wands must not be used at head level
to avoid injury to eyes and ears.
~Monitor the dustbag change
indicator and inspect all filters regularly.
For best performance, the dustbag
and filters should be replaced when
necessary. A full bag or blocked filter
will reduce the vacuum cleaner’s
suction power. A temperature limiter
automatically switches the vacuum
cleaner off if it gets too hot, see
"Frequently asked questions".
Using accessories
~The hose and the telescopic wand
contain electrical wires. Do not use the
vacuum cleaner if these parts are
damaged, cut or punctured. Avoid
picking up sharp objects. Danger of
electric shock!
~Unplug the vacuum when changing
accessories, especially the Turbobrush,
and Powerbrush.
~To avoid the risk of injury when
vacuuming with a Miele Power or
Turbobrush do not touch the rotating
roller brush. Danger of injury.
IMPORTANT SAFETY INSTRUCTIONS
5

~The socket on the vacuum cleaner
(depending on model) must only be
used for the Miele Powerbrush
specified for use with this appliance.
~Danger of injury. The Miele
Powerbrush is a motor driven
accessory for use only with Miele
vacuum cleaners. The vacuum cleaner
must not be used with another
manufacturer’s powerbrush.
~Do not use the vacuum without an
accessory attached. The rim could be
damaged and injuries could result from
sharp edges.
~Miele dust bags are disposable and
intended to be used only once. Do not
attempt to reuse. An over stuffed
dustbag will reduce the efficiency of the
vacuum cleaner.
~Only use genuine Miele dustbags
with the Miele quality signet and
original Miele filters and accessories.
Only then will the manufacturer
guarantee its safety.
Cleaning, maintenance and
repairs
~Turn the vacuum cleaner off after
each use and before every cleaning /
maintenance. Pull the plug from the
outlet.
~Never submerge the vacuum
cleaner in water. Clean only with a dry
cloth or slightly damp cloth when
disconnected from the mains supply. If
moisture gets into the appliance there
is a risk of electric shock.
~Monitor the dustbag change
indicator and inspect all filters regularly.
For best performance, the dustbag
and filters should be replaced when
necessary. A full bag or blocked filter
will reduce the vacuum cleaner’s
suction power. A temperature limiter
automatically switches the vacuum
cleaner off if it gets too hot, see
"Frequently asked questions".
~Repairs must only be performed by
an authorized service agent in
accordance with national and local
safety regulations. Unauthorized repairs
could cause injury or machine damage.
The manufacturer cannot be held
responsible for unauthorized work.
~If the power cord is damaged it
should be replaced along with a new
cable reel by Miele Technical Service.
Disposal
~Remove the battery from the radio
handpiece and recycle it.
~Before discarding an old vacuum
cleaner, please cut off the power cord
and render the plug useless. Ensure
the appliance presents no danger to
children while being stored for
disposal.
IMPORTANT SAFETY INSTRUCTIONS
6

FCC and Industry Canada
information:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
,Warning: Changes or
modifications to this unit not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
Note:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
when the equipment is operated in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy, and if not installed
and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However there is no guarantee that
interference will not occur in a
particular installation. If this equipment
does cause harmful interference to
radio or television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
–Reorient or relocate the receiving
antenna
–Increase the separation between the
equipment and receiver.
–Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
–Consult the dealer or an experienced
radio/TV technician for help.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7

Some models come standard with a Turbobrush, which is not shown in this figure.
A separate Operating manual is supplied with the vacuum.
Guide to the machine
8

aHandpiece (some models may include an air inlet valve) *
bSuction power buttons +/–*
cStandby switch *
dLED *
eLocking button
fAccessory clip *
gTelescopic wand release button *
hDust compartment lid release
iTelescopic wand *
jDust bag
kCarrying handle
lFloor tool *
mTransport/storage holder
nDust compartment filter (motor protection)
oExhaust filter *
pSuction power selector *
qStandby indicator *
rThermo indicator ,*
sExhaust filter change indicator (Reset button) *
tPower cord with plug
uCord rewind switch
vPark-System
wOn / Off switch
xAirflow indicator
yElbow
zSuction hose
The features marked *may vary or not be available depending on your model.
Guide to the machine
9

Attaching the suction hose
^Insert the elbow into the suction
socket until it clicks. Use the inlet
guides to direct insertion.
Removing the suction hose
^Press the release buttons at the sides
of the elbow and lift the hose from the
socket.
Connecting the handpiece and
telescopic wand
^Insert the handpiece into the
telescopic wand until it clicks. Use
the inlet guides to direct insertion.
^To release the handpiece from the
telescopic wand press the locking
button (see arrow) and pull the
handpiece away from the telescopic
wand.
Before using the vacuum cleaner
10

Depending on your model, the vacuum
will include one of the following
telescopic wands:
–Fitted wand
(CDN only)
–Telescopic wand
–XXL telescopic wand
Inserting the fitted wand
Both sections of the telescopic wand
have locating arrows to guide insertion.
Adjusting the telescopic wand
One section of the telescopic wand is
inside the other and can be adjusted
for comfortable vacuuming.
^Press the telescopic wand release
button (see arrow) to release the
tubes and adjust to the desired
height.
Adjusting the XXL telescopic
wand
This telescopic wand consists of three
sections which are height-adjustable.
^Pull and extend the lower section of
the wand, a, until it clicks. Press the
release button if you want to retract
the lower section again.
^Press the adjustment button, b,to
release the tubes and adjust to the
desired height.
Before using the vacuum cleaner
11

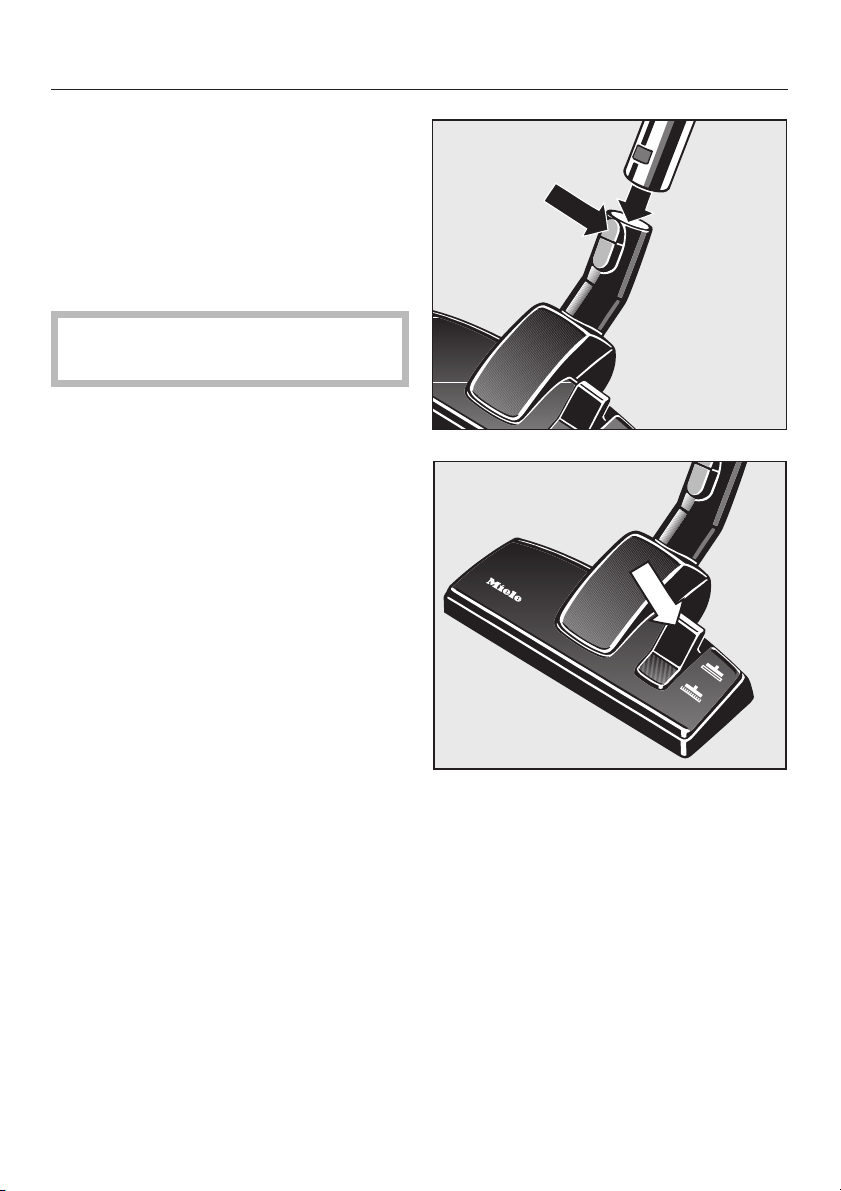

Attaching the floor tool/brush
^Insert the wand into the floor brush
and twist until it locks with a click.
^To release the floor brush from the
telescopic wand, press the locking
button (see arrow) and pull the wand
out of the floor brush.
Observe the cleaning instructions of
the floor manufacturer.
SBB 300-3 Floor brush
The floor brush is suitable for cleaning
all hard flooring.
SBD 450-3 Floor tool
The floor tool is suitable for cleaning
carpets, rugs, and hard surfaces. For
flooring susceptible to scratches, use
one of the special Miele floor brushes
(see "Optional accessories").
To clean carpets and area rugs
^Press the foot switch marked ö.
To clean hard flooring
^Press the foot switch marked ä.
Turbobrush
Some models come with a Turbobrush
as an accessory. Please refer to the
separate operating instructions for
instruction on use and maintenance.
Before using the vacuum cleaner
12

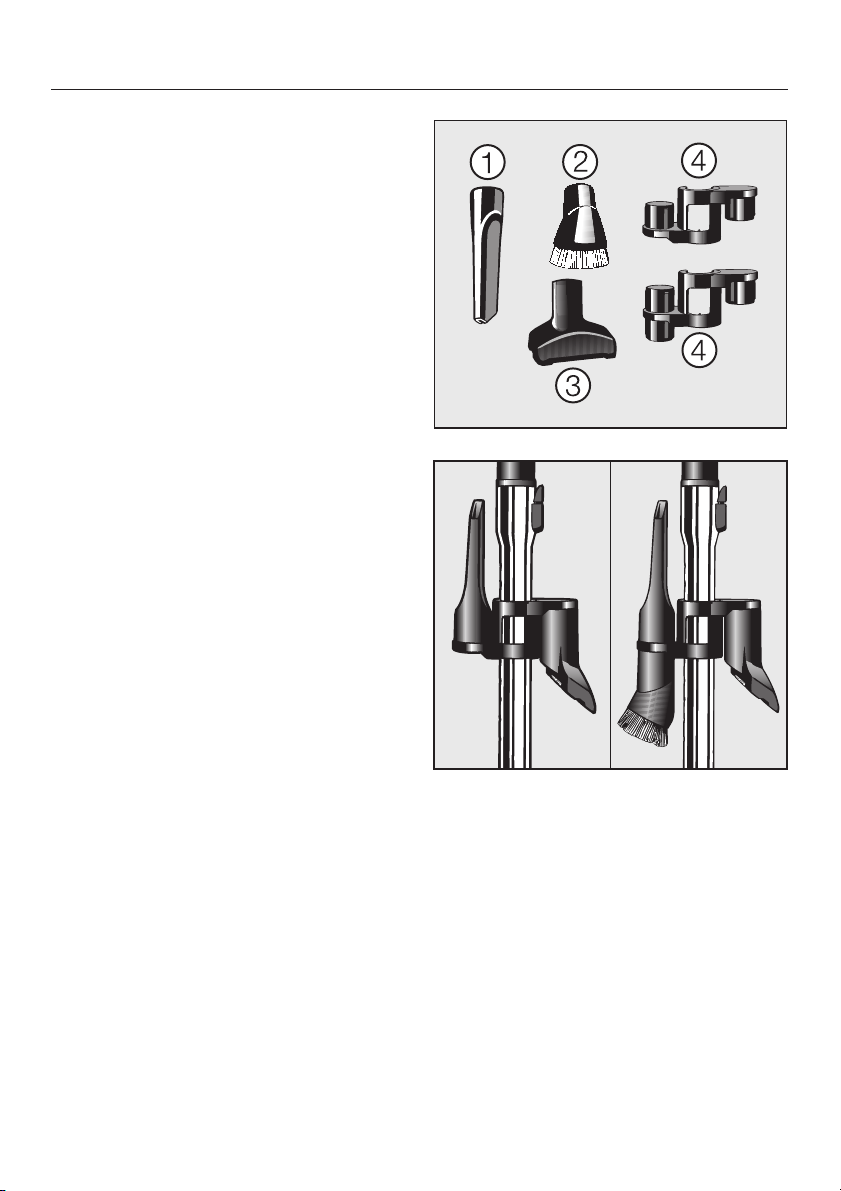

The following accessories are included
aCrevice nozzle
bDusting brush
cUpholstery tool
dAccessory clip for the respective
included accessories
Accessory clip
^The accessory clip can be attached
to the handpiece.
Using the included accessories
13

Floor brush SBB 300-3
(depending on model)
For cleaning all hard flooring.
Especially suitable for vacuuming
niches and tight spaces.
Floor tool SBD 450-3
(depending on model)
The standard floor brush can be used
for normal cleaning of carpets, rugs,
hard surfaces, carpeted stairs, etc.
Using the included accessories
14

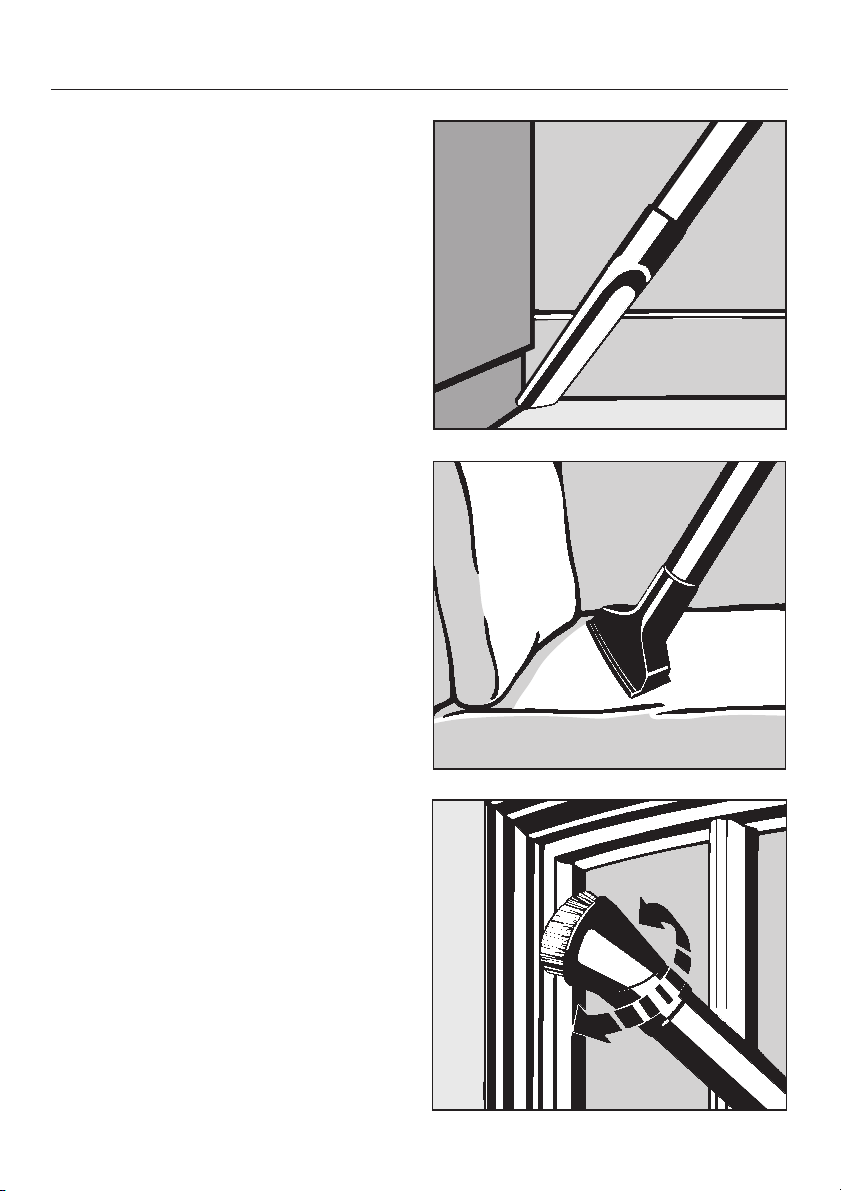

Crevice nozzle
For cleaning in folds, crevices and
corners.
Upholstery nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers, etc.
Dust brush with natural
bristles
For cleaning moldings, decorative or
carved items, etc.
The head of the dusting brush can be
swivelled to attain the best cleaning
position.
For dusting particularly delicate
objects.
Using the included accessories
15

Power cord
,Unwind the cable completely to
aid the vacuum in dissipating heat.
Unwinding
^Hold the plug and pull the power
cord out to the required length
(maximum 18 ft / 5.5 m).
,To reduce the risk of electric
shock, the vacuum has a polarized
plug (one blade is wider than the
other). This plug will fit in a polarized
outlet only one way. If the plug does
not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a
qualified electrician. Do not alter the
plug in any way.
Danger of overheating and damage.
Rewinding
^Unplug the vacuum from the outlet.
^Press the rewind switch briefly and
the power cord will rewind
automatically.
^Press the rewind switch again to stop
the rewinding.
^Hold the plug so that it does not whip
around when rewinding.
Turning the vacuum on and off
^Press the On/Off switch.
Operation
16

,Turn off the vacuum and unplug
it before performing any
maintenance work.
Vacuum cleaner and accessories
External surfaces of the vacuum
cleaner and accessories can be
cleaned with a slightly damp cloth or
with a cleaner suitable for plastics.
,Do not use abrasive, glass or all
purpose cleaners! They will damage
the surface.
Dust compartment
The dust compartment can, if
necessary, be cleaned using a dry
cloth, dusting brush or a second
vacuum to suck out any
Monitor the change dustbag indicator
and inspect all filters regularly. Clean or
replace them when necessary
according to these Operating
Instructions.
,Do not submerge the vacuum in
water! If moisture gets into the
appliance there is the risk of an
electric shock.
Cleaning and care
32

Some models have a warning light
,which comes on to indicate
overheating.
If the vacuum has overheated the
temperature limiter automatically turns
the vacuum off. Some models also have
a warning light ,to indicate that the
vacuum has overheated.
This can occur if, for instance, large
articles block the suction tube or when
the filter bag is full or contains particles
of fine dust. A heavily soiled exhaust or
dust compartment filter can also be the
cause of overheating. Turn off the
vacuum cleaner using the On/Off
switch.
Unwind the full length of the power
cord. Allow the vacuum to cool down
for 30 minutes.
After sales service
In the event of a problem that you can
not fix yourself, please contact the
Miele Service Department.
Frequently asked questions
33

Each model may be accessorized with
one or several of the following tools.
Turbobrush
STB 205-3
The Turbobrush is intended for
cleaning short to medium pile
carpeting. It is mechanically driven by
the suction power of the vacuum. In
addition to dust particles it also
removes stubbornly adhered threads,
hairs, fluff, etc.
Observe the cleaning instructions of
the floor manufacturer.
Hand Turbobrush
STB 101
The Hand Turbobrush is intended for
vacuuming upholstery, mattresses, car
seats, carpeted stairs and other areas
inaccessible with the standard
Turbobrush.
Optional accessories
34

Hard floor brush
SBB 235-3
To vacuum sturdy hard floors, e.g. tiles
and stone floors.
Parquet floor brush
SBB Parquet-3
Special brush with natural bristles
intended for cleaning parquet and
laminate floors, especially those
susceptible to scratching.
The parquet floor brush can be cleaned
with the vacuum cleaner using the
crevice nozzle if necessary.
Optional accessories
35
