Miele PW 5065 OS User manual

Operating and installation instructions
for washer-extractor
PW 5065 OS
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 757 900
en - EXP

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old machine
Electrical and electronic machines
often contain materials which if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your machine. Please do
not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Energy saving tips
Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine load the maximum dry load
for the programme you are using.
–If smaller loads are washed using the
Cottons programmes, the automatic
load recognition system will reduce
the amount of water, time and energy
used.
– Use the Quick wash programme for
small loads.
Detergent
– Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
– Reduce the amount of detergent for
smaller loads.
When drying with a tumble dryer
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Caring for the environment
2

Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the washer-extractor .....................................14
Control panel .....................................................14
Display ..........................................................15
Before using for the first time.......................................16
Notes and tips on laundry care .....................................17
1. Sort the laundry .................................................17
2. Load the drum ..................................................18
3. Select a programme .............................................18
Garment care label symbols .........................................19
Short instructions ................................................20
Spinning ........................................................24
Maximum final spin speed...........................................24
Rinse and interim spin ...........................................24
To omit the final spin (Rinse hold) ..................................24
To omit the spin between rinses and the final spin .....................24
Delay start.......................................................25
Programme chart .................................................26
Basic programmes ................................................26
Special programmes ...............................................28
Programme sequence .............................................32
Changing the programme sequence .................................34
To cancel a programme ............................................34
To interrupt a programme ...........................................34
To alter a programme ..............................................34
Adding or removing laundry after a programme has started ................35
Detergent .......................................................36
Water softeners ...................................................37
Washing with several components ....................................37
Fabric conditioner or liquid starch.....................................38
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme ........................................38
Adding fabric conditioner or liquid starch separately ...................38
Adding starch separately .........................................38
Colour run and dye removers/dyes ....................................38
Contents
3

External dispensing system..........................................39
Cleaning and care ................................................41
Cleaning the machine ..............................................41
Cleaning the water inlet filters ........................................43
Problem solving guide ............................................44
The programme does not start .......................................44
Fault messages in the display ........................................45
General problems .................................................46
An unsatisfactory wash result ........................................47
The drum door cannot be opened by pressing the Door button..............48
To continue a programme after an interruption to the power supply ..........48
Opening the drum door in the event of a blocked drain outlet and/or
power failure .....................................................49
After sales service ................................................52
PC / Optical interface...............................................52
Optional accessories ...............................................52
Installation and connection ........................................53
Front view........................................................53
Rear view ........................................................54
Installing the machine ..............................................55
Installation surface.................................................56
Removing the transit bars ...........................................56
Re-fitting the transit bars ............................................58
Levelling the machine ..............................................58
Screwing out and adjusting the feet .................................58
Securing the machine to prevent it slipping ...........................59
Washer-dryer stack ................................................60
Installation on a raised plinth .........................................60
Payment system...................................................60
Plumbing ........................................................61
Connection to the cold water supply ................................61
Connection to the hot water supply .................................62
Water drainage ...................................................63
Dump valve version .............................................63
Machines with a drain pump ......................................63
Electrical connection ...............................................64
Single phase AC 230 V - country variant .............................65
Contents
4

Technical data ...................................................66
Changing default settings..........................................67
Settings menu J..................................................68
Language J......................................................68
Settings/Supervisor level menu .....................................69
Suds cooling .....................................................70
Time of day ......................................................70
Supervisor level ..................................................71
Display contrast ...................................................71
Display brightness .................................................71
Standby (Display) .................................................71
Memory .........................................................72
Auto load control ..................................................72
Pre-wash water ...................................................72
Main wash water ..................................................72
Rinse water ......................................................72
Minimum iron duration ..............................................74
Pre-wash Cottons/
Minimum iron .....................................................74
List special progs. .................................................74
Hygiene .........................................................74
No. rinses Cottons .................................................75
No. rinses Minimum iron ............................................75
No. rinses Disinfection ..............................................75
Pre-rinse Cottons ..................................................75
Pre-rinse Minimum iron .............................................75
Spin free of charge ................................................75
Contents
5

This machine complies with current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the machine,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, use and
maintenance.
Keep these instructions in a safe place and ensure that they are
made available to new users. They must be made aware of these
warning and safety instructions.
Pass them on to any future users/owners of the machine.
Correct application
~Only use the machine to wash items which are specified by the
manufacturer to be machine-washable on the wash-care label, and
textiles composed of hand-washable wool or wool blend fabrics as
well as satin, lace, silk and other hand-washable garments. Any
other applications may be dangerous. The manufacturer cannot be
held liable for damage resulting from incorrect or improper use of
the machine.
~This machine must be used as described in these operating
instructions and must be checked on a regular basis to make sure it
is functioning correctly. Maintenance must be carried out when
necessary.
~This machine is not intended for outdoor use.
Warning and Safety instructions
6

~This machine can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, if
they are supervised whilst using it or have been shown how to use it
in a safe way and recognise and understand the consequences of
incorrect operation.
~Children 8 years and older may use the machine unsupervised
only if they have been shown how to do so in a safe way and recog-
nise and understand the consequences of incorrect operation.
~Children must not be allowed to clean or maintain the machine
unsupervised.
~Please supervise children in the vicinity of the machine and do
not let them play with it.
~It is the operator's responsiblity to ensure that the standard of
disinfection in thermal as well as chemo thermal procedures is
maintained (in accordance with local authority regulations) by
carrying out suitable validation tests. Disinfection programmes must
not be interrupted, as this can have a limiting effect on the
disinfection result.
Warning and Safety instructions
7

Technical safety
~Before setting up the machine, check it for any externally visible
damage.
Do not install or use a damaged machine.
~The electrical safety of this machine can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
regularly tested, and where there is any doubt the on-site wiring
system should be inspected by a qualified electrician. The
manufacturer cannot be held liable for the consequences of an
inadequate earthing system (e.g. electric shock).
~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician. If this is not
done, any resultant damage will not be covered by the guarantee.
Ensure current is not supplied to the machine until after
maintenance or repair work has been carried out.
~Do not make any alterations to the machine, unless authorised to
do so by Miele.
~In the event of a fault or for cleaning purposes, the machine is
only completely isolated from the electricity supply when:
–it is switched off at the wall socket and the plug is withdrawn, or
–it is switched off at the isolator switch, or
–it is switched off at the mains, or
–the mains fuse has been withdrawn, or the screw-out fuse is
removed (in countries where this is applicable).
Warning and Safety instructions
8

~This machine must only be connected to the on-site water supply
using a new hose kit. Old hoses must not be re-used. Check the
hose regularly for signs of wear. Change in good time to avoid the
risk of leaks and subsequent damage.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the machine be guaranteed.
~Do not connect the machine to the mains electricity supply by an
extension lead or a multi-socket unit. These do not guarantee the
required safety of the machine (e.g. danger or overheating).
~The appliance may only be operated when the following
conditions are met:
– the ship’s hull is longer than 28 metres.
– the list of the vessel is not more than 2°.
– any external vibration is no more than 150 Hz at an amplitude of
0.35 mm.
The safe operation and correct functioning of the appliance can only
be guaranteed if the above conditions are met.
~The appliance may not be operated on an open deck.
~Appliances without the "CSA C/US"- safety certificate are built to
comply with european safety regulations.
They must not be used in the USA.
Warning and Safety instructions
9

~A risk assessment of the installation must be carried out by a
suitably qualified engineer before this appliance is installed or used.
Installation must only be carried out by a suitably qualified engineer.
~The appliance must be fixed in position when it is installed.
Failure to do this could result in personal injury and damage to
property.
~If this machine is being used in a commercial environment please
ensure that all relevant health and safety regulations are obeyed.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
~Please observe the instructions in "Installation and connection"
and "Technical data".
~The socket must be easily accessible after installation in order to
disconnect the washing machine from the electricity supply.
~For hard-wired machines, the all-pole isolator provided on-site
must be easily accessible after installation in order to disconnect the
washing machine from the electricity supply.
Warning and Safety instructions
10

Correct use
~The maximum load of dry laundry for this machine is 6.5 kg. See
the "Programme chart" for the maximum recommended loads in
individual programmes.
~Do not install your machine in rooms where temperatures below
freezing may occur. Frozen hoses may burst or split. The reliability
of the electronic control unit may be impaired at temperatures below
freezing point.
~Before using the machine for the first time, check that the transit
bars at the rear of the machine have been removed (see section on
"Installation and connection"). During spinning, a transit bar which is
still in place may result in damage to both the machine and adjacent
furniture or appliances.
~Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
~Flooding danger.
If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure the drain hose is secure, so that the force of the water flowing
out of the hose does not dislodge it.
~Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.
Warning and Safety instructions
11

~If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
the machine only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A special
descaling agent is available to order from your Miele Dealer or the
Miele Spare Parts Department.
~Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
~Never use solvent based cleaning agents, e.g. those containing
benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
~Benzine, petrol, paraffin, or any easily flammable liquid must not
be stored or used near the machine. Fire and explosion risk!
~Only use dyes specified by the manufacturer as being suitable for
use in a washing machine. Always observe the manufacturer's
instructions carefully.
~Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
Warning and Safety instructions
12

~Avoid contact of stainless steel surfaces (front, lid, casing) with
liquid cleaning and disinfecting agents which contain chlorine or
sodium hypochlorite. These agents can have a corrosive effect on
stainless steel.
Aggressive vapours containing chlorine bleach can also be
corrosive. Do not store open containers of these agents near the
machine.
~Do not use a high pressure cleaner or hose to clean the machine.
~It is particularly important to observe the manufacturer's
instructions when using a combination of cleaning agents and
special application products. Products must only be used for
applications approved by the manufacturer to avoid any material
damage or the occurrence of strong chemical reactions
Accessories
~Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.
~A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory).
~If installing the machine on a Miele plinth, (available as an
optional accessory), please make sure you order the right one for
this washing machine.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and Safety instructions
13

Control panel

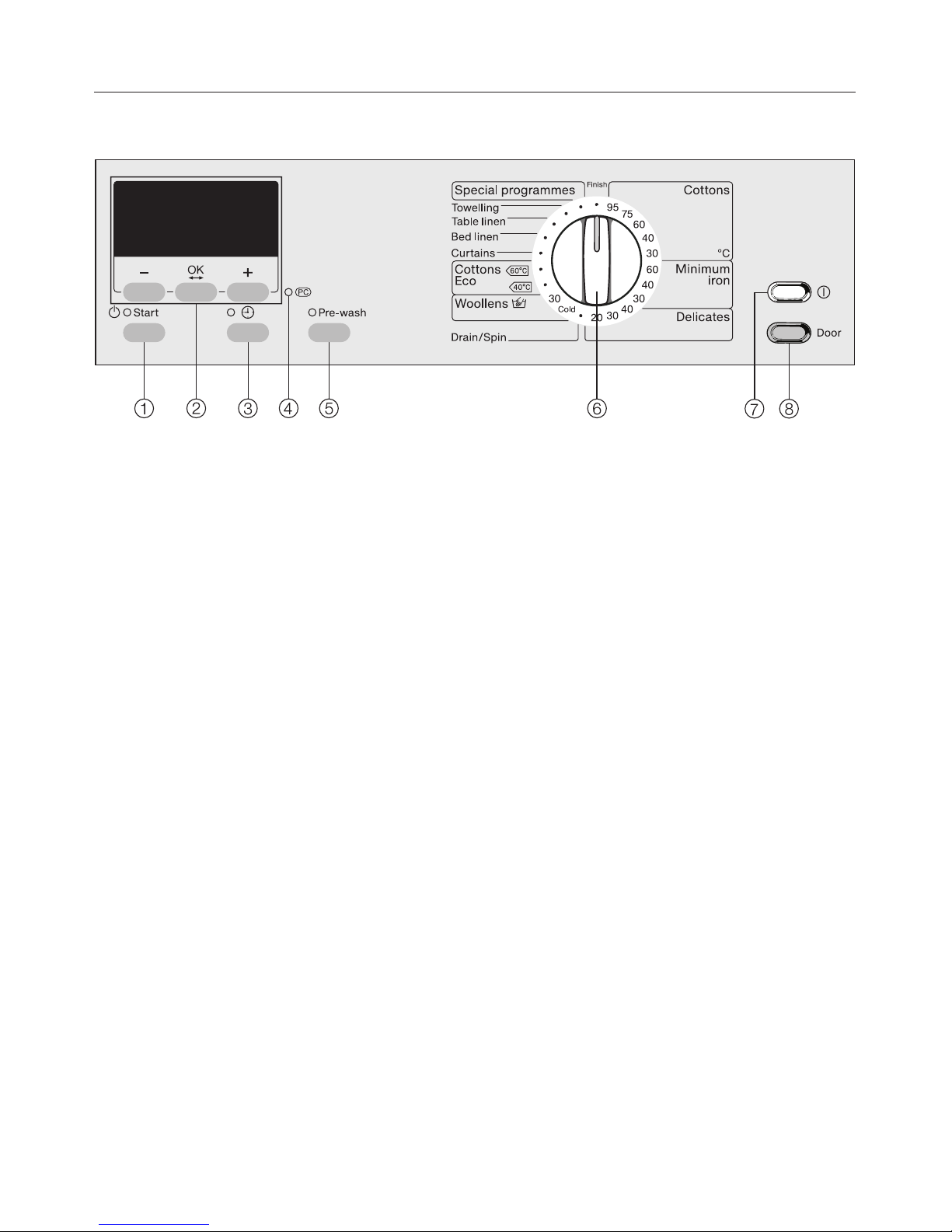

aStart button
Starts the selected programme.
bDisplay with –, OK and + buttons
See the following pages for more
information.
c+button
For selecting delay start.
dPC/Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
ePre-wash button with indicator light
fProgramme selector
For selecting a programme. The
programme selector can be turned
clockwise or anti-clockwise.
gOn-Off button s
To save energy, the machine will
switch itself off automatically 15
minutes after the end of the
programme/anti-crease phase or
after being switched on, if no other
selection is made.
hDoor button
Opens the machine door.
Operating the washer-extractor
14

Display
– / + buttons
For altering the values highlighted in
the display:
–decreases the value or moves the
highlighting upwards
+increases the value or moves the
highlighting downwards.
OK button
For confirming the value selected and
choosing the next value.
The following are selected via the
display:
–special programmes
–final spin speed
–the temperatures for some
programmes
–delay start
The display also shows the duration of
the programmes and the current time of
day.
The Settings Jmenu is also operated
via the display.
Operating the washer-extractor
15

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of water
leaks during use.
For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry.
^Switch the machine on with the K
button.
If the machine is being switched on for
the first time, the welcome screen will
appear.
The welcome screen will not appear
again after the first programme has
been completed.
The display for setting the language will
then appear.
^Use the -and +buttons to select the
language you want and confirm your
selection by pressing the OK button.
Reminder to remove transport bars
To avoid the risk of damage, the
transport bars must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.
^After removing the transport bars (if
this has not already been done by
your fitter) press the OK button.
The display for setting the time will then
appear.
Setting the time of day
12:00
Set the time of day
^Set the hour with the -and +buttons,
and confirm your setting by pressing
the OK button. Then do the same to
set the minutes. After you have
confirmed the minute setting, the
main menu will appear in the display.
Running your first programme
Your machine is now ready for the first
programme to be run.
^Turn the programme selector to the
Cottons 60°C position.
^Open the stopcocks.
^Press the Start button.
When the programme has finished,
your machine is ready to use for the
first time.
Before using for the first time
16

1. Sort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to textiles and to
components in the machine.
Removing marks
^Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft, colourfast cloth. Do not rub.
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,Do not use solvent-based
cleaning agents in this machine.
Sorting laundry
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
Notes and tips on laundry care
17

General tips
–Curtains: Remove lead weights first
or place in a laundry bag.
–Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.
–Close any zips, fasten hooks and
eyes etc before washing.
– Fasten duvet covers, pillow cases
etc. to prevent small items from
being rolled up inside them.
– Further tips can be found under
"Programme chart".
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label (hsymbol).
2. Load the drum
^Switch the machine on with the
On/Off button K.
The interior drum lighting will come
on.
^Press the Door button and open the
drum door.
^Unfold the laundry and load loosely
into the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
^Shut the door with a gentle swing.
,Make sure that no items are
caught between the door and the
drum.
3. Select a programme
^Select the most appropriate
programme for the load being
washed (see "Programme chart").
Payment system
If your machine is connected to a
payment system, the amount of
payment required will appear in the
display.
Credit will be lost if, after the
programme has started, the door is
opened or the programme
cancelled.
Notes and tips on laundry care
18

Garment care label symbols
Washing
The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicates the
level of agitation permitted.
9No bar under the symbol: =
normal agitation
4One bar under the symbol: =
reduced agitation
cTwo bars under the symbol: =
much reduced agitation
/Hand wash (if no temperature
is specified, use the lowest
temperature or cold)
hDo not wash
Drying
The number of dots indicates the
drying temperature
qNormal temperature
rLow temperature
sDo not tumble dry
Ironing
The number of dots indicates the
ironing temperature
Iapprox. 200°C
Happrox. 150°C
Gapprox. 110°C
JDo not iron
Professional cleaning
fDry clean only. The letters
indicate the type of cleaning
agent required.
p
wProfessional Wet Clean only
DDo not dry clean
Bleaching
xAny oxidising bleaching
agent can be used
{Only use an oxygen based
bleach or a non-chlorine
bleach
zDo not bleach
Notes and tips on laundry care
19

,It is very important to read the
"Notes and tips on laundry care"
section before proceeding.
ASort the laundry
BLoad the drum
^Switch on the machine.
The interior drum lighting will come on.
^Open the drum door.
^Unfold the laundry and load loosely
into the drum.
,Make sure that no items are
caught between the drum door and
seal.
^Shut the door with a gentle swing.
Short instructions
20
