MiLAN MIL-S801XX User manual

User’s Manual
for MIL-S801XX

RegulatoryApproval
- FCC Class A
- UL 1950
- CSA C22.2 Number 950
- EN60950
- CE - EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur
du Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltag
Directive (73/23/EEC) issued by the commission of the European Community Compliance with these
directives implies conformity to the following European Norms:
- EN55022 (CISPR 22) - Radio Frequency Interference
- EN61000-X - Electromagnetic Immunity
- EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
MiLAN Technology warrants to the original consumer or purchaser that each of it’s products, and
all components thereof, will be free from defects in material and/or workmanship for a period of
five years from the original factory shipment date. Any warranty hereunder is extended to the
original consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall MiLAN Technology be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the performance
of the product delivered hereunder. MiLAN Technology will in no case cover damages arising
out of the product being used in a negligent fashion or manner.
Trademarks
© 2000 MiLAN, the MiLAN logo and MiLAN Technology are either trademarks or registered
trademarks of Digi International, Inc. in the United States and/or other countries. All other
trademarks are the property of their respective holders.
To Contact MiLAN Technology
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach MiLAN Technology technical support at:
E-mail: [email protected]
Telephone: [phone]
Fax: [phone]
MiLAN Technology
1299 Orleans Drive
Sunnyvale, CA 94089-1138
United States of America
Telephone: [phone]
Fax: [phone]
http://www.milan.com
info @ milan.com
© Copyright 2000 MiLAN Technology P/N: 90000363_A

Contents
1. Introduction 1
Features 2
Package Contents 2
2. Hardware Description 4
Front Panel 4
MIL-S801XX 9 port switch with SC fiber port 4
MIL-S801XX 9 port switch with SC (Single-mode) fiber port 5
MIL-S801XX 9 port switch with ST fiber port 5
MIL-S801XX 9 port switch with MT-RJ fiber port 6
MIL-S801XX 9 port switch with VF-45 fiber port 7
Rear Panel 7
Desktop Installation 8
3. Network Application 10
DesktopApplication 10
SegmentApplication 11
4. Trouble Shooting 10
Diagnosing LED Indicator 13
Power 13
Transmission Mode 14
5. Technical Specifications 15

1. Introduction
MiLAN’s MIL-S801XX switch with a fiber port is a compact desktop size
switch, which is an ideal solution for many network users. It provides
wire-speed, Fast Ethernet switching function that allows high-
performance, low-cost connections.

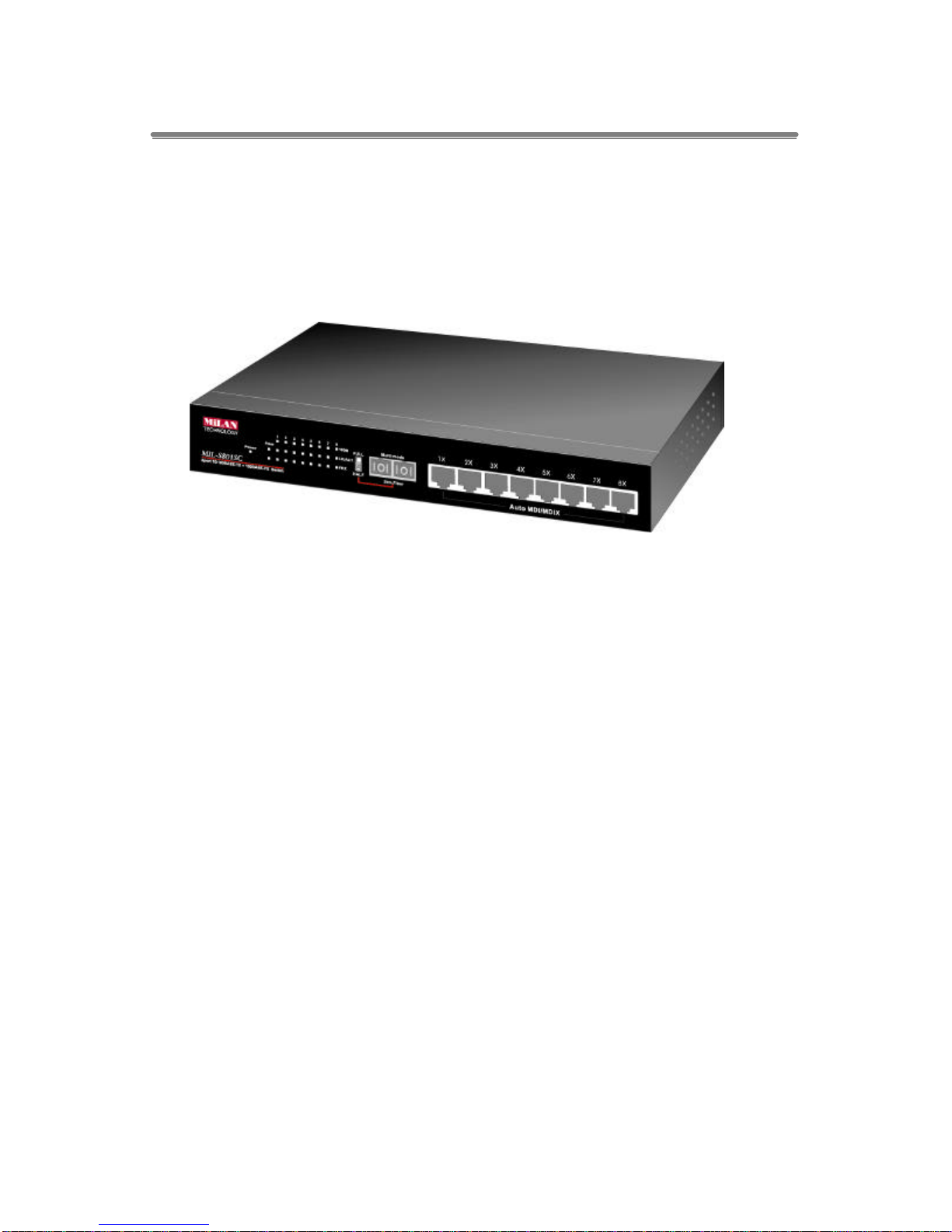

Figure 1. The MIL-S801XX
The MIL-S801XX nine port switch provides 8 switched auto-sensing 10/100
Mbps RJ-45 Ethernet ports and one 100BASE-FX fiber port.
The switch combines both 10BASE-T and high-speed 100BASE-TX support
in one device. The switch automatically senses the speed of the connected
end device (either 10 or 100 Mbps) and transfers the data at the appropriate
speed. The MIL-S801 features store-and-forward switching for data and auto-
learning of addresses which is stored in a 4,000 entry MAC address table.
The fiber connector on the switch has four different possible options: SC, ST,
VF-45 and MT-RJ. These connector options are all available in multi-mode
with a maximum distance of 2 Km. There is one connection option in single-
mode. The SC connector provided by the fiber distance of 15Km, 40Km and
60Km.

Features
•Eight 10/100Mbps Fast Ethernet UTP switch ports
•One 100Mbps multi-mode port (SC, ST, MT-RJ, VF-45) or single-mode SC port
•One DIP-switch to select fiber port full-duplex or half-duplex mode
•Auto-negotiation for full or half duplex
•Store-and-forward switching architecture for packet filtering
•Full wire speed forwarding rate
•4K-entry MAC address table
•256KB memory buffer sharing
•LED-indicators for power, 100M, LK/ACT, FD/COL statuses
•Compact size
•Eight auto-sensing MDI/MDIX ports

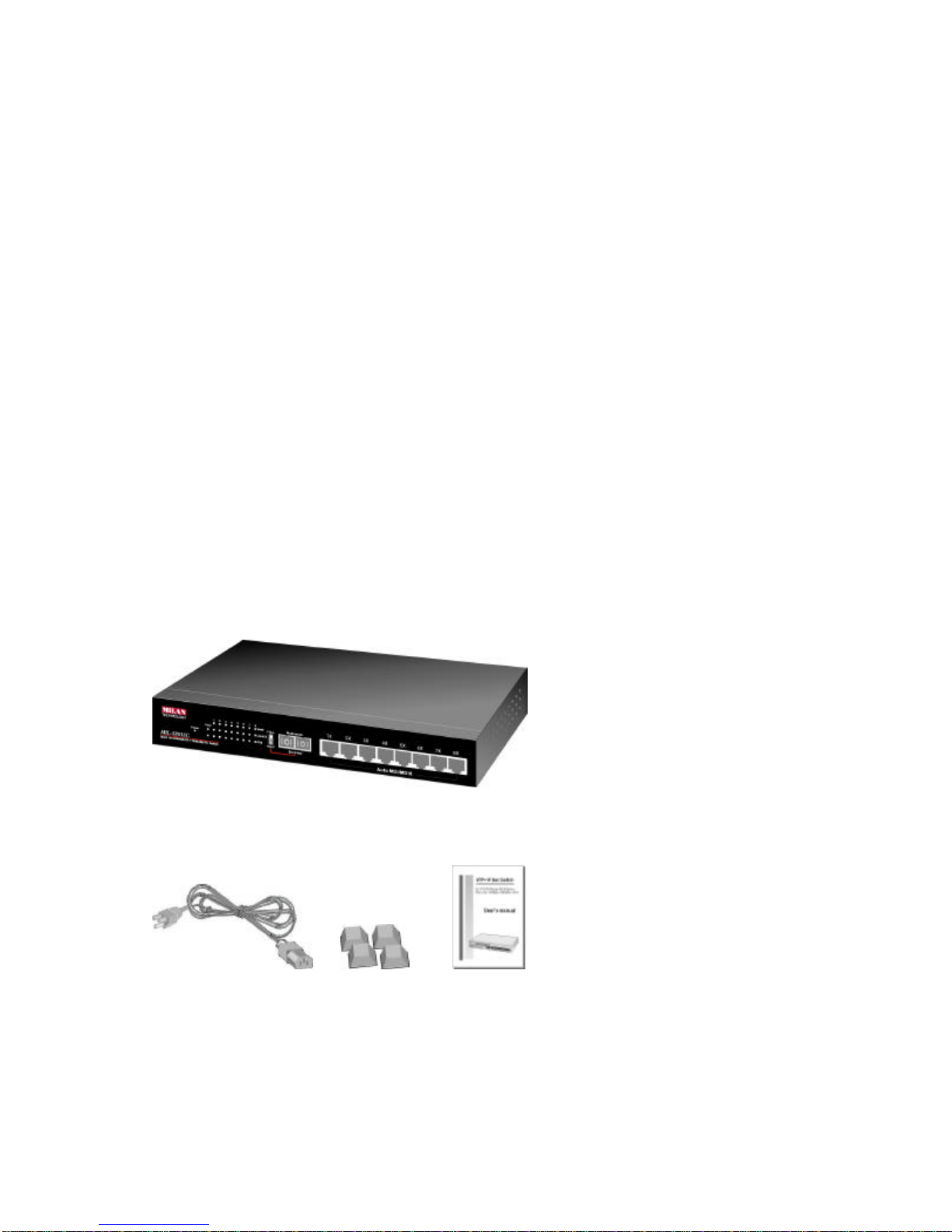

Package Contents
•MIL-S801XX switch
•Power Cord
•Four Rubber Feet with adhesive pads
•User’s Manual
MIL-S801XX switch
Power Cord Rubber Feet User’s Manual
Figure 1-2. Package Contents
Compare the contents of your switch package with the standard checklist
above. If any item is missing or damaged, please contact your sales person.

2. Hardware Description
This Section mainly describes the hardware of theMIL-S801XX switch. The
switch is compact (10 inches) with eight 10/100BASE-TX UTP ports plus one
100BASE-FX fiber port.
The physical dimensions of the MIL-S801XX switch are: 250mmx 132mmx
37mm (L 9.8”x W 5.2”x H 1.5”)
Front Panel
The Front Panel of theMIL-S801XX switch consists of eight 10/100 UTP
switch ports (automatic MDI/MDIX), one 100BASE-FX fiber port and one DIP-
switch to select fiber port for full-duplex or half-duplex mode. The LED
indicators are also located on the front panel of the switch.
MIL-S801XX switch with SC fiber port
Figure 2-1. The Front Panel of theMIL-S801XX switch with SC fiber port
The Front Panel of theMIL-S801XX switch is displayed as above and below.
There are four types of fiber connectors in multi-mode. These fiber connectors
are SC, ST, MT-RJ and VF-45. The single-mode version is only available with
SC connectors.
MIL-S801XX switch with SC (Single-mode) fiber port
Figure 2-2. The Front Panel of theMIL-S801XX switch with SC (single mode) fiber port

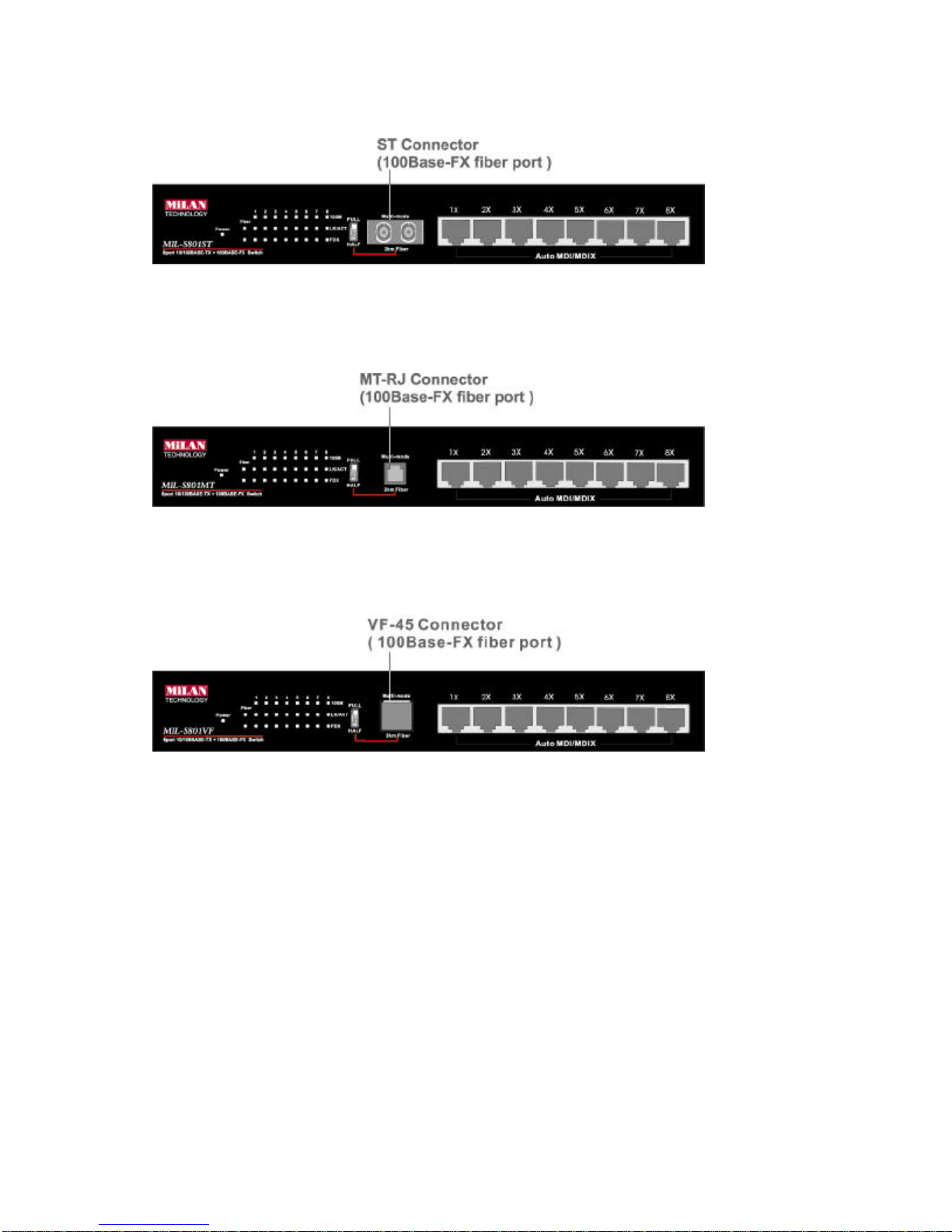

MIL-S801XX switch with ST fiber port
Figure 2-3. The Front Panel of theMIL-S801XX switch with ST fiber port
MIL-S801XX switch with MT-RJ fiber port
Figure 2-4. The Front Panel of theMIL-S801XX switch with MT-RJ fiber port
MIL-S801XX switch with VF-45 fiber port
Figure 2-5. The Front Panel of theMIL-S801XX switch with VF-45 fiber port
RJ-45 Ports (Auto MDI/MDIX): Eight auto-sensing for 10BASE-T or
100BASE-TX connections.
In general, MDI means connecting to another Hub or switch whileMDIX
means connecting to a workstation or PC. Therefore,Auto MDI/MDIX means
that you can connect to another switch or workstation without changing
cabling.
100BASE-FX Port: There are 4 types of fiber connectors available for the
MIL-S801XX switch as shown above. The distance for multi-mode fiber
cabling can be extended up to 2 kilometers. However, the distance for SC
single-mode fiber port is from 15 to 60 kilometers.
DIP-switch: the DIP-switch is to select Full-Duplex or Half-Duplex mode for
fiber port.

LED Indicators
The following table provides descriptions of the LED statuses and meaning.
They provide a real-time indication of systematic operation status.
Power On Green Power On
On Green The port is successfully connecting
with the device.
Blinks The port is receiving or transmitting
data.
LNK / ACT
Off No device attached.
On Yellow The port is operating in full-duplex
mode.
Blinks Collisionof packets is occurring on the
port.
FDX
/
COL
Off Half-duplex mode or no device
attached.
Table 2-1. The description of LED Indicator
LED
Status
Color Description
On Green The port is operating at the speed of
100 Mbps.
100M
Off In 10 Mbps mode or no device
attached

Rear Panel
The 3-pronged power plug is located at the Rear Panel of the 9-Port
switch as shown in Figure 2-6. The switch will work with AC in the range
100-240V AC, 50-60Hz.
Figure 2-6 The Rear Panel of the MIL-S801XX switch
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby. The
surface where you put your switch should be clean, smooth, level, and sturdy.
Make sure there is enough clearance around the switch to allow attachment of
cables, power cord and air circulation.
Attaching Rubber Feet
A. Make sure mounting surface on the bottom of the switch is grease and
dust free.
B. Remove adhesive backing from your Rubber Feet.
C.Apply the Rubber Feet to each corner on the bottom of the switch. These
footpads can prevent the switch from shock/vibration.
Figure 2-3. Attaching Rubber Feet to each corner on the bottom of the switch
Power On
Connect the power cord to the power socket on the rear panel of the switch. The
other side of power cord connect to the power outlet. The internal power supply in the
switch works with AC in the voltage range 100-240VAC, frequency 50~60Hz. Check
the power indicator on the front panel to see if power is properly supplied.

3.Network Application
This section provides two samples of network topology in which the switch is
used. In general, the MIL-S801XX switch is configured for use as a desktop or
segment switch.
The MIL-S801XX switch networks PCs, workstations, and servers to each
other by connecting these devices directly to the switch. It automatically
learns node address, which are subsequently used to filter and forward all
traffic based on the destination address.

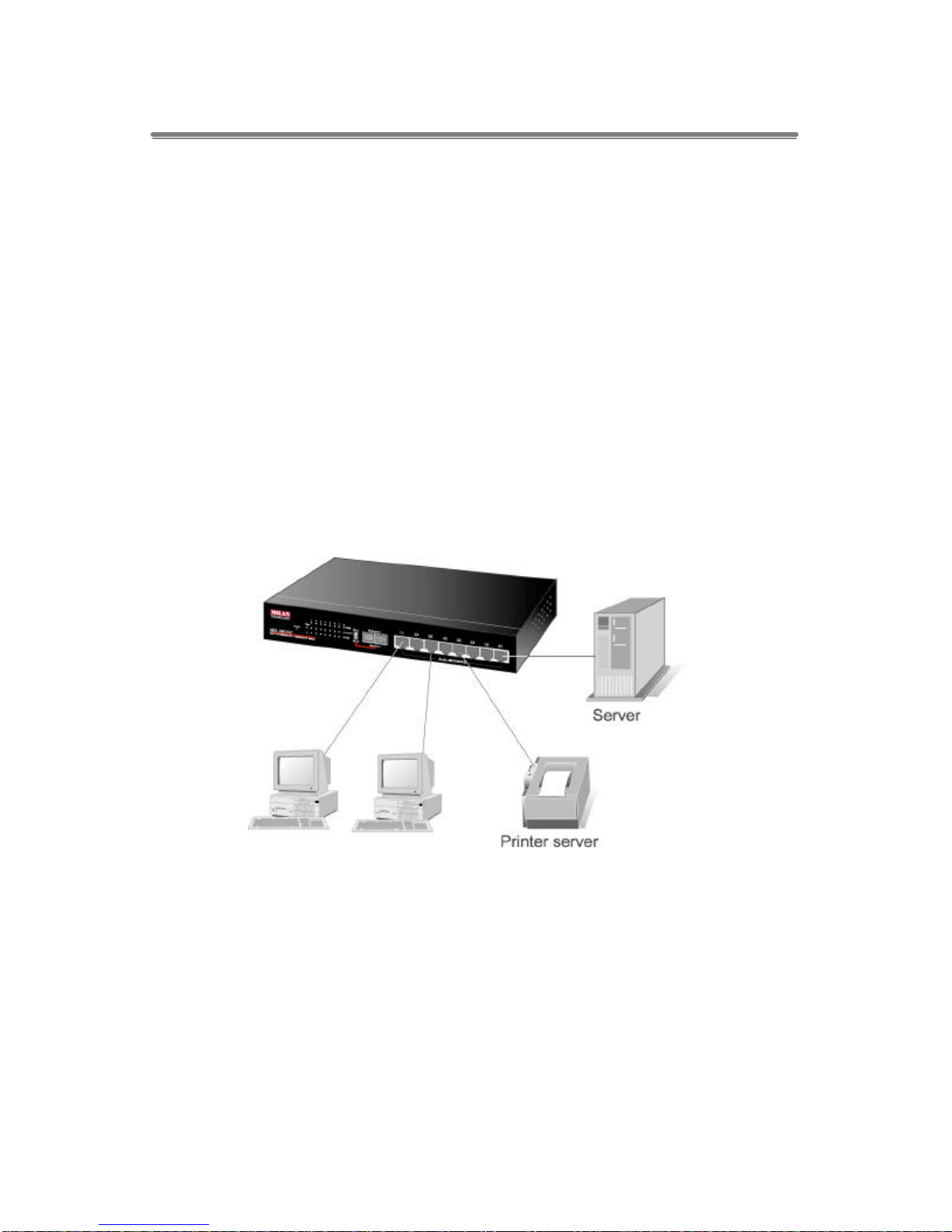

Desktop Application
The MIL-S801XX switchis an ideal solution for small workgroups. The switch
can be used as a standalone switch to which personal computers, servers,
and printer servers are directly connected to form a small workgroup.
Figure 3-1. Desktop Application

Segment Application
Any of the RJ-45 ports on the MIL-S801XX switch can connect with other
switches or Hubs to interconnect small workgroups to form larger switched
networks. You can also use fiber ports to connect switches. The distance
between two switches via fiber cable can be up to 2Km or up to 60Km (SC
single-mode fiber connector).
For enterprise networks where large data broadcast are constantly processed,
this switch is suitable for a department connection to the corporate backbone.

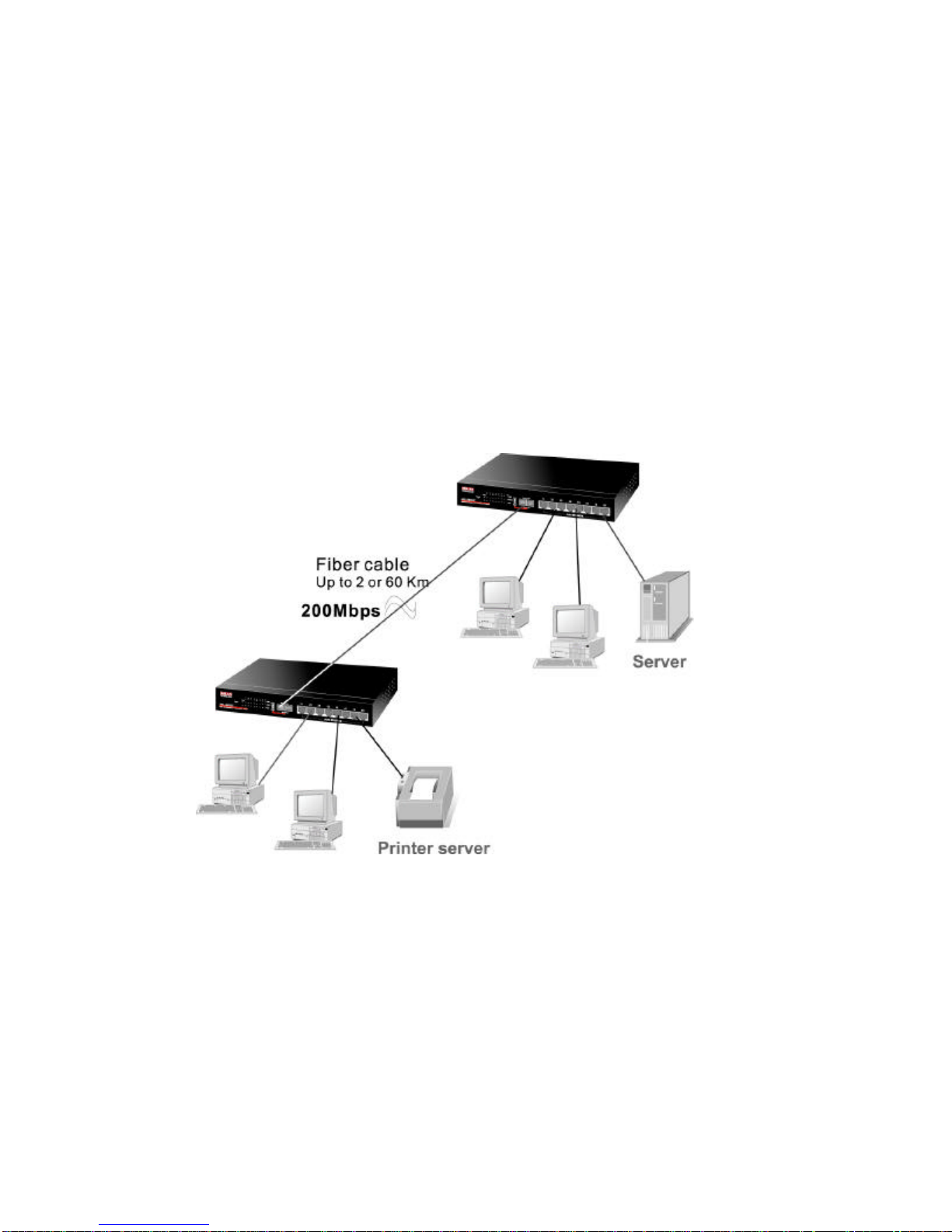

In the following illustration, two MIL-S801XX switches are used to
interconnect two small workgroups. All the devices in this network can
communicate with each other. Connecting servers to the switch allow other
users to access the server’s data.
Figure 3-2 Segment Application

4.Trouble Shooting
This troubleshooting section is intended to help you solve the most
common problems on the MIL-S801XX switch.
The switch can be easily monitored through panel indicators to assist in
identifying problems. This section describes common problems you may
encounter and where you can find possible solutions.
Diagnosing LED Indicator
If the Link indicator does not light up after making a connection, you
should check the network interface (e.g., a network adapter card on
the attached device), device to see if it is powered on or defective.
Be sure the cable is plugged into both the switch and corresponding
device. Verified the proper cable type is used and its length does not
exceed specified limits.
Power
If the power indicator does turn on when the power cord is plugged
in, you may have a problem with power outlet, or power cord.
However, if the switch powers off after running for a while check for
loose power connections, power losses or surges at power outlet. If
you still cannot resolve the problem, contact your local dealer for
assistance.
Transmission Mode
Verify that each port is set to the same transmission mode used by
the attached device (i.e., half or full duplex). The RJ-45 port use
auto-negotiation to set the transmission mode. If the attached device
operates at half duplex, which is the default when auto-negotiation
fails, then it does not have to support auto-negotiation.
Cabling
RJ-45 ports: Use unshielded twisted-pair (UTP) or shield twisted-pair
(STP) cable for RJ-45 connections: 100Ocable for 10Mbps
connections. See cable specifications on next page. Twisted-pair
cabling can not exceed 100 meters (328 feet).
100BASE-FX fiber port: multi-mode must be 62.5/125 um fiber
cable. You can connect two devices over a 2-kilometer distance with
multi-mode fiber. Single-mode must use 9/125 um single- mode fiber
cable. You can connect two devices up to 60- kilometers running full
duplex.

5.Technical Specifications
This section provides the specifications for the MIL-S801XX switch
Specifications
Standards Compliance IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX/FX Fast Ethernet
ANSI/IEEE 802.3 Auto-negotiation
Protocol CSMA/CD
Max Forwarding Rate and
Max Filtering Rate 14,880 pps per Ethernet port, 148,800 pps per Fast Ethernet port
LED Indicators Per Port: 8 port: 100M, LK/ACT, FD/COL (3 LEDs)
Fiber Port : LK/ACT, FD/COL (2 LEDs)
Per Unit: Power
Network Cables 10BASE-T: 2-pair UTP Cat. 3, 4, 5 cable (100m),
EIA/TIA-568 100-ohm STP (100m)
100BASE-TX: 2-pair UTP Cat. 5 cable (100m),
EIA/TIA-568 100-ohm STP (100m)
100BASE-FX: 50, 62.5/125 micron multi-mode fiber-optics (2Km)
8,9/125 micron single-mode fiber-optics (15, 40, 60Km)
Fiber Link Max. Distance ST/SC/MT-RJ/VF-45 Multi-mode: Full-duplex- 2Km,
Half-duplex- 412m
SC Single-mode: Full-duplex- from 15Km to 60Km
Half-duplex- 412m
Dimensions 250mm x 132mm x 37mm (9.8 x 5.2 x 1.5)
Operational Temperature 0ºC to 45ºC (32ºF to 113ºF)
Operational Humidity 10% to 90% (Non-condensing)
Internal Power Supply 3.3V, 3A
EMI FCC Class B, CE Mark
Safety UL, TUV, CSA

A Division of Digi International
