MILL Invisible & Glass Series User guide

Assembly and instruction manual
Series:
Invisible & Glass
panel heater
EN SLO IT
Please read the instructions carefully before use.
Take good care of this manual for lateruse.

Thanks for buying Mill
Our company was founded in Norway in 1992 by Cato Bryn, specializing in distribution
sell to many of the largest retailers in the Nordic countries.
In 2010, Cato’s son, Philip joined the company. Philip looked at the heating industry
with fresh new eyes and wondered why there had been so little change with the
appearance of portable heaters in the last 20 years, especially since interior design in
general had changed dramatically over the years. Philip thought consumers should
have more styles to choose from other than the typical old-fashioned, traditional
heaters.
Since heaters are part of so many homes, Philip and Cato decided to use their
extensive knowledge to re-invent the design of heaters. They wanted to create
beautiful, modern and minimalistic heaters, using the most advanced technology, that
would complement people’s homes. They launched the brand “Mill” in 2012.
to complement our line of products to meet consumers’ demand.
Prospering on our success in the Nordics we decided to promote Mill at some of the
world’s largest electronic fairs and home shows, and the feedback from
retailers and distributors all over the world were amazing. We are proud to say that
consumers in over 25 countries can now keep warm with style!
Follow us on social media:
@millheat
millheat.com

1
millheat.com
EN
Content
Important safety information
First use
Minimum distances
Description of heater
Assembly
Temperature calibration
Resetting the heater
Memory function
“Open window” function
Instructions electronic thermostat
Power indicator for electronic thermostat
Set desired temperature for electronic thermostat
Instructions day/night thermostat
Power indicator day/night thermostat
Set desired temperature for day/night thermostat
Day- and nighttime setback
How to activate daytime setback
How to activate nighttime setback
Change setback temperature – daytime
Change setback temperature – nighttime
Change number of hours – daytime
Change number of hours – nighttime
Cancel (skip) setback period
Delete setback program
Maintenance
Warranty
Waste disposal
P. 2-3
P. 4
P. 4
P. 4
P. 5
P. 5
P. 5
P. 5
P. 6
P. 6
P. 6
P. 6
P. 7
P. 7
P. 7
P. 8
P. 8
P. 8
P. 9
P. 9
P. 10
P. 10
P. 10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P. 10
P. 10
P. 10
P. 11
P. 11
P. 11
|
|
|
|
|
|
STORE THIS INSTRUCTION
MANUAL FOR FUTURE USE!
NEVER TOUCH YOUR HEATER OR ITS
CASING WITH WET HANDS!
IN ORDER TO AVOID OVERHEATING,
DO NOT COVER THE HEATER.
Please read the instructions carefully before use.
Take good care of this manual for later use.

WARNING! The heater must not be used if the glass panels are
damaged (this applies to the products with model names starting
with MB).
3
millheat.com
EN
•The heater must never be used in rooms where gasoline, paint or
•Never touch an electric heater with wet hands. The heater
should be installed so a person showering or taking a bath
cannot come into direct contact with it.
•Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present.
• heater must cool down before it is moved.
•Avoid overloading the mains (the circuit) where the heater is
connected. The heater may overload the electrical circuit if
other electrical devices are plugged into the same socketoutlet.
•Do not use this heater in small rooms when they are occupied
by persons not capable to leaving the room on their own, unless
constant supervisionis provided.
•The product cannot be used by children under 8years of age
and persons with reduced physical or mental abilities orlack
of experience and knowledge unless they have been given
supervision or instruction in the safe use of the product and
understand the hazards involved.
•Children should not play with the product. Cleaning and
maintenance should not be done by unsupervised children.
•Children under the age of 3 should be keptaway from the
product, unless they are under constant supervision.
•Children aged 3 to 8 years are only permitted to turn the
product ON/OFF,assuming the heater is mounted according
to the assembly instructions and the children have received
instruction or supervision in the safe use of the product and
understand the hazards involved.
•Do not use this heater in the immediate surroundings of a bath,
a shower or a swimming pool.

250
600
900
1200
800
1000
250
600
900
1200
800
1000
4
EN
Model Thermostat Color Height Width Amperage
Power
(W)
IP
rating
IB250 Electronic White 30,0 cm 35,0 cm 220-240V~, 50-60Hz IPx4
IB600DN Day/Night White 40,0 cm 85,0 cm 220-240V~, 50-60Hz IPx4
IB900DN Day/Night White 40,0 cm 105,0cm 220-240V~, 50-60Hz IPx4
IB1200DN Day/Night White 40,0 cm 105,0cm 220-240V~, 50-60Hz IPx4
IB800L DN Day/Night White 25,0 cm 121,5cm 220-240V~, 50-60Hz IPx4
IB1000L DN Day/Night White 25,0 cm 66,5 cm 220-240V~, 50-60Hz IPx4
MB250 Electronic White 30,0 cm 86,5 cm 220-240V~, 50-60Hz IPx4
MB600DN Day/Night White 40,0 cm 106,5cm 220-240V~, 50-60Hz IPx4
MB900DN Day/Night White 40,0 cm 106,5cm 220-240V~, 50-60Hz IPx4
MB1200DN Day/Night White 40,0 cm 123,0cm 220-240V~, 50-60Hz IPx4
MB800L DN Day/Night White 40,0 cm 105,0cm 220-240V~, 50-60Hz IPx4
MB1000L DN Day/Night White 25,0 cm 121,5cm 220-240V~, 50-60Hz IPx4
The heater is approved for use in bathrooms zone 2 (IPX4 approved)
First use
transport. Contact the retailerorimporter if you discover any visible damages to the
product.
Keep the outer packaging to transport the heater in the future. If you want to dispose
the packaging, make sure it is done properly. Keep plastic bags away from children.
the heater can produce a burnt odor for a short time. This is normal.
Pleaseread all the instructions carefully before use. Save the instruction manual for future
use.
It is also normal for the heater to make “sounds” when it warms up or cools down.

≥100 mm
≥50 mm≥50 mm
≥100 mm
≥100 mm in front
of heater
Minimum distances
It may occur deviation between the temperature registered by the heater and the
actual temperature in the room. This can be caused by several reasons, however, the
most common is that the heater is placed in a fair distance from where you usually
reside. When you set the temperature to for example 22 degrees, it is only natural that
you expect the same temperature where your sofa is placed for instance. However,
the temperature sensor is placed on the product itself, and therefore a deviation in
temperature may occur. To adjust this, all Mill heaters are equipped with a calibration
function, which enables you to adjust the temperature registered by the heater. N.B!
The room must have achieved a stable temperature before any calibration.
Press 2 times and use + or – to set the actual temperature observed in the room.
Description of heater
2. Wall bracket
3. Temperature sensor
4. Heat emission
5. Thermostat
6. Steel front
2. Wall bracket
3. Temperature sensor
4. Heat emission
5 Thermostat
6. Glass front
Assembly
Drill holes in the wall for holes 1 & 2. Then drill holes in the wall for the topmost holes
(holes 3 & 4 by using 6)
Insert the wall plugs into the drilled holes and attach the bracket with 4 screws
Place the heater on the lower lugs on the bracket, then hang the heater on the
in the locking screws on the top of the bracket (clockwise)
Temperature calibration
Attention! Horizontal placement only
MILL INVISIBLE

Instructions electronic thermostat
“Open window” function
Please see table on page 4 for which models that have electronic thermostats
1. Display (shows the desired room temperature by default)
2. Power indicator — shows whether the heater is using power or not
3. Control button (+) (increase temperature)
4. Control button (–) (reduce temperature)
5. Function button
The heater has an “open window” function that is activated instantly when it registers
a sudden drop in temperature with more than 2 degrees Celsius in 2 minutes. The
heater will automatically stop heating and FO will be visible in the display of the
heater.
from FO to desired room temperature).
temperature
BEFORE THE HEATER IS TURNED ON, IT MUST BE ATTACHED TO A WALL. IF
THE HEATER IS NOT INSTALLED CORRECTLY OR IS INSTALLED ASKEW, THIS MAY CAUSE
THE HEATER TO MALFUNCTION OR IN THE WORST CASE, BE DAMAGED.
Resetting the heater
main switch.
Memory function
The heater remembers all the temperature settings and will automatically returnto the
ATTENTION!

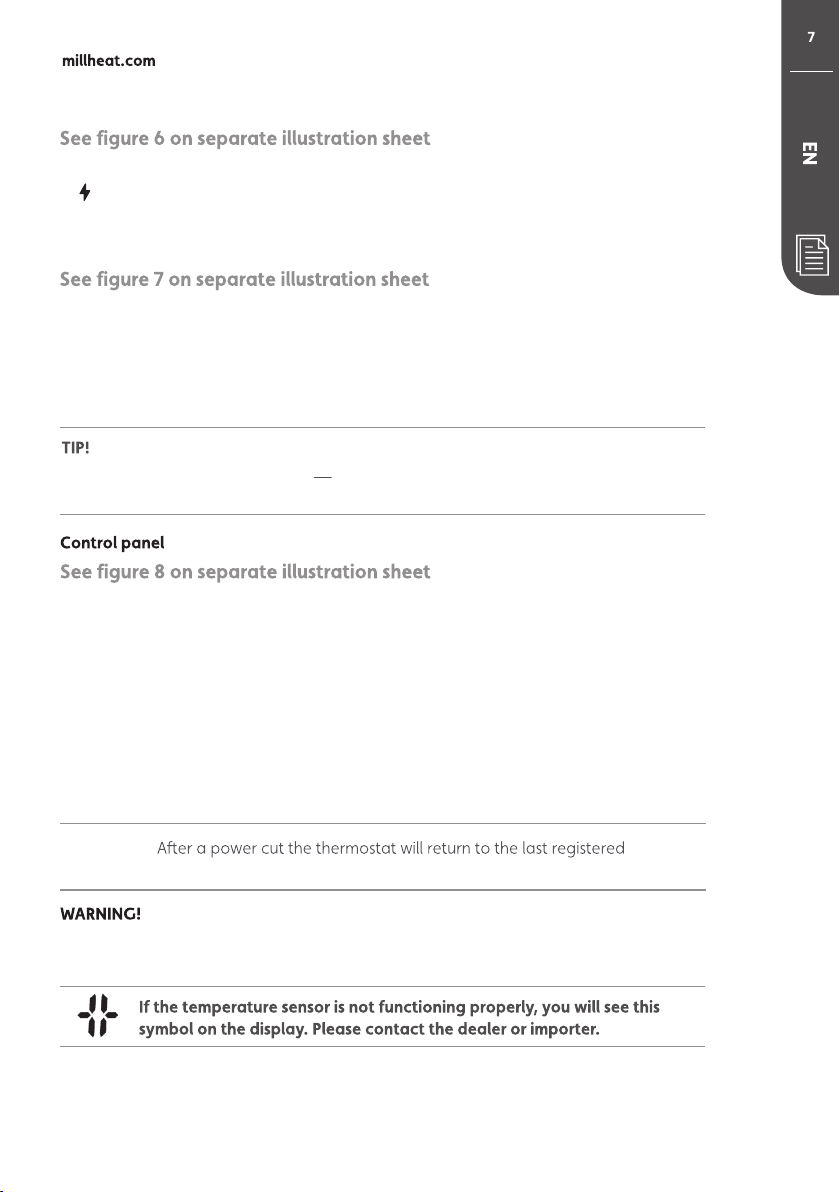

Power indicator for electronic thermostat
When the panel heater is using power (i.e. when it is heating), the power indicator is
lit .
Set desired temperature for electronic thermostat
Press the arrow buttons to set the desired temperature.
Instructions day/night thermostat
1. Display (shows the desired room temperature by default)
2. Control light – night function
3. Control light – day function
4. Power indicator – Shows whether the heater is using power or not
5. Control button (+) (Increase temperature)
6. Control button (–) (Reduce temperature)
7. Night function
8. Day function
9. Function button
The thermostat can be used as a regular electronic thermostat (i.e. the heater will
maintain a constant temperature 24 hours a day). Please see the section instructions
electronic thermostat for further information.
temperature.
BEFORE THE HEATER IS TURNED ON, IT MUST BE ATTACHED TO A WALL. IF
THE HEATER IS NOT INSTALLED CORRECTLY OR IS INSTALLED ASKEW, THIS MAY CAUSE
THE HEATER TO MALFUNCTION OR IN THE WORST CASE, BE DAMAGED.
Please see table on page 4 for which models that have day- and night thermostats.
ATTENTION!

Power indicator for day/night thermostat
When the panel heater is using power (i.e. when it is heating), the power indicator is
lit .
Set desired temperature for day/night thermostat
Press the arrow buttons to set the desired temperature.
Day- and nighttime setback
When programming the heater for either day- or nighttime setback, the setback
period will be active from the time you register the program. Which means; if you
want to start your daytime setback at 7.30 am, you need to register the program at
7.30 am.
You only need to program the heater 1 time for daytime setback and 1 time for
nighttime setback. If you have programmed the heater, the setback programs
will be active on all 7 days (or 7 nights).
Let us say you want to program the heater for both daytime- and nighttime setback
(normally the heater is set to 23 degrees). You want the heater to do the following:
1. Daytime setback activated from 7.30 am to 2.30 pm. Desired temperature: 17
degrees
2. Nighttime setback activated from 10.00 pm to 6.00 am. Desired temperature: 18
degrees
How to activate daytime setback
1. Tuesday 7.30 am you go to the heater and press on the heater’s control panel.
2. “d” will be visible in the display. Use the +and -buttons to set what day it is today when
you are programming the heater (1= Monday, 2 = Tuesday etc.) You are not
programming the heater for the various days. This is simply to tell the heater what
day it is when you are programming the heater.
5. The daytime setback will now be active from 7.30 am to 2:30 pm every day.
Setback temperature is 17 degrees.
* Control light is green when the heater is in an active setback period. The
control light is red when the setback period is inactive but programmed.
+and -buttons to set 17 as the desired temperature
+and -buttons to set 7 hours as desired setback

How to activate nighttime setback
1. Tuesday 10.00 pm you go to the heater and press on the heater’s control panel.
2. "d" will be visible in the display. Use the + and - buttons to set what day it is today when
you are programming the heater (1=Monday), 2 = Tuesday etc.). You are not program-
ming the heater for various days. This is simply to tell the heater what day it is when you
Advanced mode
How to activate advanced mode for daytime setback:
1. Press and hold , then press + one time.
2. “d1” (day one) will be visible in the display, and you may now choose the temperature you want for
5. “SR” will be visible in the display. Now you have the option to set the time of day that you want
the setback time to start. You may choose from -4 hours to +4 from the time your daytime setback
normally starts. Meaning, if your daytime setback normally starts at 10:30, but you want the setback
pressing
6. “d2” (day 2) which is Tuesday, will now be visible in the display and you may do the same
procedure to set the desired temperature for Tuesday. Keep repeating the same procedure for all 7
days.
How to activate advanced mode for nighttime setback:
1. Press and hold , then press + one time.
2. “d1” (day one) will be visible in the display, and you may now choose the temperature you want for
5. The nighttime setback will now be active from 10.00 pm to 6.00 am every day. The
setback temperature is 18 degrees.
* Control light is green when the heater is in an active setback period. The control
light is red when the setback period is inactive but programmed.
N.B! If a power cut occurs/y r, the programming will be lost and
you will have to do this over again.
+and -buttons to set 18 as the desired temperature for
+and -buttons to set 8 hours as desired setback period

5. “SR” will be visible in the display. Now you have the option to set the time of night that you
want the setback time to start. You may choose from -4 hours to +4 hours from the time
your nighttime setback normally starts. Meaning, if your nighttime setback normally starts at
22:00, but you want the setback time to be activated 21:00 every Monday, you may use the -
6. “d2” (day 2) will now be visible in the display and you may do the same procedure to set
the desired temperature for Tuesday. Keep repeating the same procedure for all 7 days.
Change setback temperature – daytime
Press and hold and press 3 times.
Enter the desired temperature for daytime setback. Save by pressing or wait for 15
Change setback temperature – nighttime
Press and hold and press 3 times.
Enter the desired temperature for nighttime setback. Save by pressing or wait for
Change number of hours – daytime
Press and hold and press 2 times.
Enter the desired number of hours for daytime setback. Save by pressing or wait
Change number of hours – nighttime
Press and hold and press 2 times.
Enter the desired number of hours for nighttime setback. Save by pressing or wait
Cancel (skip) setback period
Press and hold and press or once (depending on which setback period
you want to cancel).
Delete a setback program
Press and hold or (depending on which setback period you want to cancel)
for 3 seconds.

Mill International B.V.
De Giesel 5
6081 PG Haelen
The Netherlands
www.millheat.com
Maintenance
Warranty
Waste disposal
1. For cleaning, always unplug the heater and leave it to cool.
2. Wipe the heater regularly with a damp cloth and dry the surface before turning on
the heater again.
3. The heater must be cleaned at least once a month during the he
CAUTION! The heater should never be immersed in water.
Avoid using detergents to clean the heater.
Never let any water get inside the heater; this can be hazardous.
4.
5. The heater can be stored in a dry and clean place.
6. If the heater stops working, do not attempt to repair it yourself because it can
The warranty is valid for 2 years. The heater will be repaired or replaced during
this time should any malfunction occur. The warranty applies if the heater is used
according to these instructions and the customer can present
the heater malfunctions in any way, please contact the store where it was purchased
or the importer.
The symbol indicates that this product is not to be disposed of together with
household waste. This product must be delivered to a recycling service or container
for electrical appliances and electronic equipment. This is do
and prevent harm to the environment. Local businesses (or the environmental station
in your neighborhood) are required by law to accept and recycle such products, as a
means of environmentally sound disposal.
11
EN

P. 2-3
P. 4
P. 4
P. 4
P. 5
P. 5
P. 5
P. 5
P. 6
P. 6
P. 6
P. 6
P. 7
P. 7
P. 7
P. 8
P. 8
P. 8
P. 8
P. 9
P. 10
P. 10
P. 10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P. 10
P. 10
P. 10
P. 11
P. 11
P. 11
|
|
|
|
|
|
millheat.com
Maintenance
Warranty
Waste disposal
Vsebina
Pomembni varnostni podatki
Pred prvo uporabo
Prva uporaba
Minimalne razdalje
Opis grelnika
Umerjanje temperature
Ponastavitev grelnika
Spominska funkcija
Navodila za elektronski termostat
Indikator napajanja za elektronski termostat
Funkcija »odprtega okna«
Kako aktivirati dnevni zamik
Spreminjanje temperature zamika – podnevi
Spreminjanje števila ur – podnevi
Brisanje nastavitev zamika
Garancija
Odlaganje odpadkov
1
SLO
NE POKRIVAJTE GRELNIKA, DA NE
PRIDE DO PREGREVANJA.
proizvoda. Skrbno shranite ta navodila za kasnejšo uporabo.
TA NAVODILA ZA UPORABO
SHRANITE ZA KASNEJŠE
PREVERJANJE!
NIKOLI SE NE DOTIKAJTE
GRELNIKA ALI OHIŠJA Z
MOKRIMI ROKAMI!

2
SLO
millheat.com
Pri uporabi elektronskih aparatov je potrebno upoštevati
splošne varnostne smernice, še posebej v prisotnosti otrok.
OPOZORILO!
SKRBNO PREBERITE NAVODILA

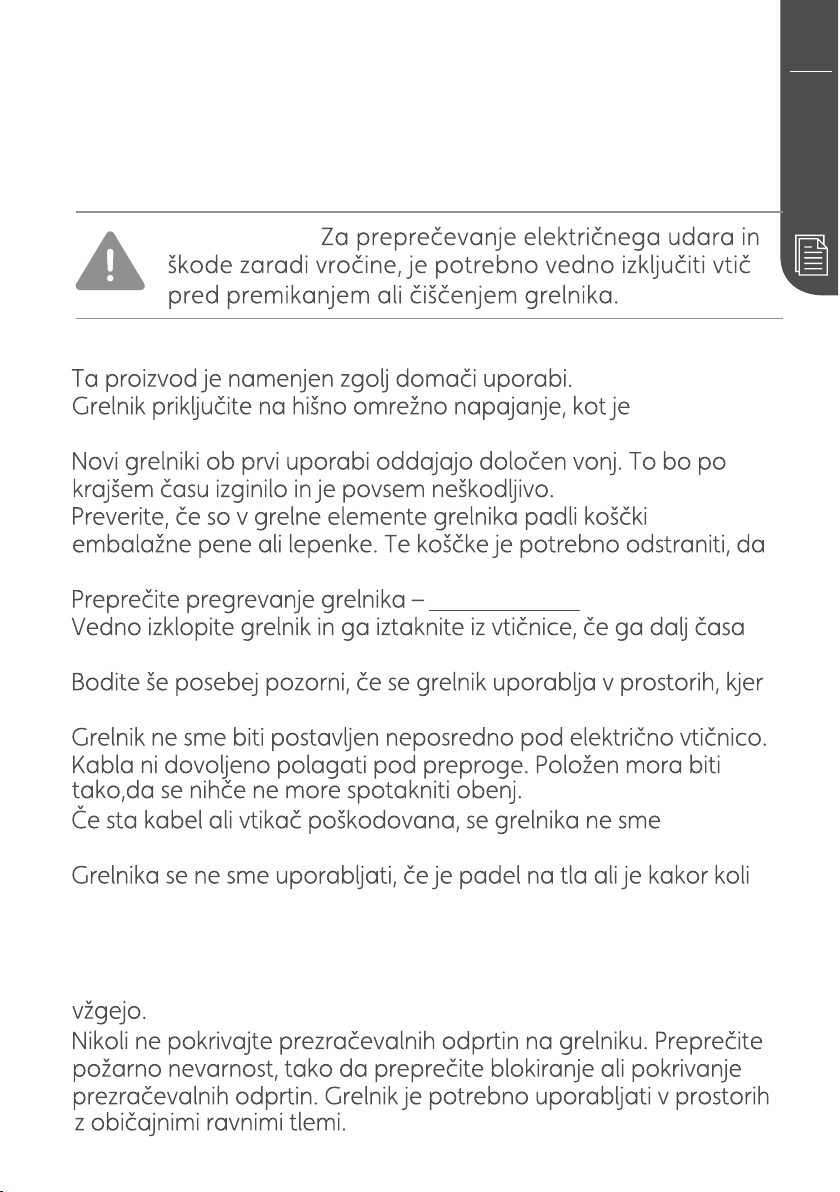

Pomembni varnostni podatki
•
•
navedeno na grelniku.
•
•
ne pride do neprijetnih vonjev.
• ne pokrivajte.
•
ne uporabljate.
•
se nahajajo otroci, invalidi ali starejši.
•
•
•
uporabljati.
•
poškodovan in okvarjen.
• Poškodovani kabel mora popraviti proizvajalec ali strokovnjak, da
ne pride do nevarnih situacij.
• Ne uporabljajte podaljškovkabla, saj se lahko pregrejejo in
•

OPOZORILO! Grelnika ni dovoljeno uporabljati, če so steklene plošče
poškodovane (to velja za proizvode z nazivi modelov, ki se začnejo na MB).
• Grelnika ni dovoljeno uporabljati v prostorih, kjer se hranijo
Namestite ga tako, da se ga ne more dotakniti osebe med
tuširanjem ali v kadi.
opekline. Posebno pozornost je potrebno posvetiti otrokom in
ranljivim osebam.
grelnik pa se mora ohladiti.
•Ne uporabljajte grelnika v majhnih prostorih, kjerse nehajajo
stalnim nadzorom.
•Proizvoda ne smejo uporabljati otroci mlajši od 8let in osebe
povezane nevarnosti.
•Otroci se ne smejo igrati s proizvodom. Otroci brez nadzora
nadzorom ter razumejo s tem povezane nevarnosti.
plavalnega bazena.
3
SLO
3
SLO
Maintenance
Warranty
Waste disposal

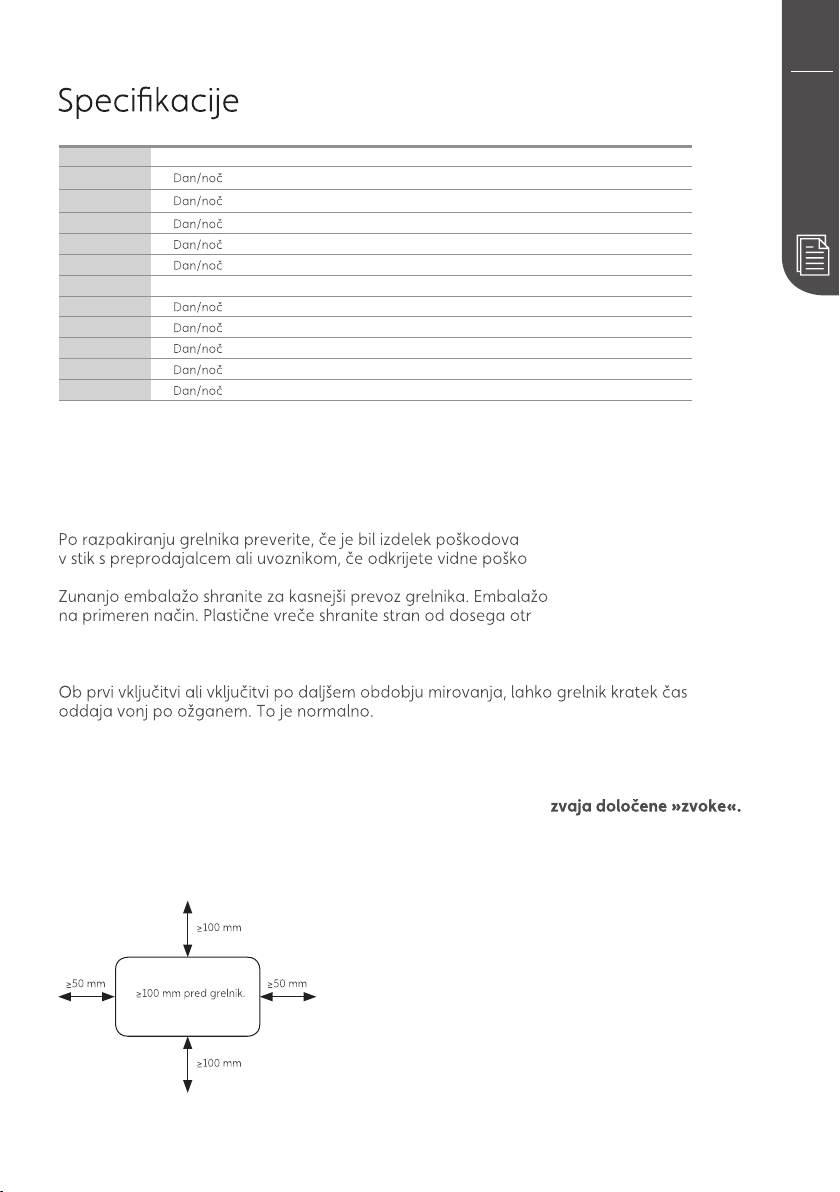

Minimalne razdalje
Model Thermostat Barva Višina Širina Jakost toka
Moč
(W) IP-grad
IB250 Elektronski Bela 30,0 cm 35,0 cm 220-240V~, 50-60Hz IPx4
IB600DN Bela 40,0 cm 85,0 cm 220-240V~, 50-60Hz IPx4
IB900DN Bela 40,0 cm 105,0cm 220-240V~, 50-60Hz IPx4
IB1200DN Bela 40,0 cm 105,0cm 220-240V~, 50-60Hz IPx4
IB800L DN Bela 25,0 cm 121,5cm 220-240V~, 50-60Hz IPx4
IB1000LDN Bela 25,0 cm 66,5 cm 220-240V~, 50-60Hz IPx4
MB250 Elektronski Bela 30,0 cm 86,5 cm 220-240V~, 50-60Hz IPx4
MB600DN Bela 40,0 cm 106,5cm 220-240V~, 50-60Hz IPx4
MB900DN Bela 40,0 cm 106,5cm 220-240V~, 50-60Hz IPx4
MB1200DN Bela 40,0 cm 123,0cm 220-240V~, 50-60Hz IPx4
MB800L DN Bela 40,0 cm 105,0 cm 220-240V~, 50-60Hz IPx4
MB1000L DN Bela 25,0 cm 121,5cm 220-240V~, 50-60Hz IPx4
250
600
900
1200
800
1000
250
600
900
1200
800
1000
Grelniki se lahko uporabljajo v coni 2 v kopalnicah (odobreno za IPx4)
4
SLO
millheat.com
Pred prvo uporabo
Prva uporaba
n med prevozom. Stopite
dbe na izdelku.
je potrebno odlagati
ok.
Pred uporabo pozorno preberite vsa navodila. Shranite navodila za uporabo za
kasnejše preverjanje.
Normalno je tudi, da grelnik med segrevanjem in ohlajanjem proi

Glej sliko 1 na posebnem listu z diagramom
Glej sliko 2 na posebnem listu z diagramom
Opis grelnika
Mont a
A. Izvrtajte luknje v steno za izvrtini 1 in 2. Nato izvrtajte luknje za najvišje lege
(izvrtini 3 in 4 zuporabo 6).
B. Vstavite stenske vt v izvrtane luknje in pritrdite nosilec s 4 vijaki.
C. Postavite grelnik na spodnja dr la na nosilcu, nato obesite grelnik na zgornja
dr la (dvignite grelnik, da ga uravnate z zgornjimi dr li). Privijte blokirne vijake
na vrh nosilca (v smeri urinega kazalca).
Glej sliko 3 na posebnem listu z diagramom
Umerjanje temperature
Pride lahko do odstopanja med temperaturo, ki jo zabel grelnik in dejansko
temperaturo v prostoru. To se lahko zgodi iz v razlogov, najpogostejši pa je, da je
grelnik postavljen v dol ni razdalji od mesta, kjer se nahajate. na primer
temperaturo nastavite na 22 stopinj, lahko pr ujete, da bo temperatura enaka kot
tam, kjer se nahaja kav Vendar pa je temperaturni senzor name n na sam
proizvod, zato lahko pridedo odstopanj v temperaturi. Za odpravo tega so vsi grelniki
Mill opremljeni s funkcijo umerjanja, ki vam nastavitev temperature, ki jo
zaznava grelnik.
Opomba: Temperatura v prostoru se mora ustaliti, preden pr nete z umerjanjem.
MILL INVISIBLE MILL GLASS
A B
1. Vklop/izklop
2. Stenski nosilec
3 Temperaturni senzor
4. Oddajanje toplote
5. Termostat
6. Jekleni sprednji del
1. Vklop/izklop
2. Stenski nosilec
3. Temperaturni senzor
4. Oddajanje toplote
5 Termostat
6. Steklen sprednji del
Pritisnite 2-krat in uporabite + ali – za nastavitev dejanske temperature, ki je
samodejno potrditev.
POZOR! SAMO HORIZONTALNI PLACEMENT.
5
SLO
3
Maintenance
Warranty
Waste disposal

Glej sliko 5 na posebnem listu z diagramom
Glej sliko 4 na posebnem listu z diagramom
Navodila za elektronski termostat
Funkcija »odprtega okna«
Grelnik imafunkcijo »odprtega okna«, ki se vklju takoj, ko zabel nenaden padec
temperature za v kot 2 stopinje Celzija v 2 minutah. Grelnik bo samodejno prenehal
z gretjem, na zaslonskem prikazu pa se bo izpisalo FO.
Grelnik bo samodejno ponovno pr l z gretjem po 10 minutah (prikaz se preklopi iz
FO na leno sobno temperaturo).
Ponastavitev grelnika
Izklopite glavno stikalo grelnika.
Spominska funkcija
Grelnik imav spominu vse nastavitve temperature in se samodejno vrne na leno
temperaturo po ni prekinitvi elektr nega napajanja. Vaše nastavitve dnevnih in
n nih zamikov pa se bodo po prekinitvi elektr nega napajanja izbrisale, zato jih
boste morali ponovno nastaviti.
Preverite tabelo na strani 4 za modele, ki imajo elektronske termostate.
1. Prikaz
li ne
3. Nadzorni gumb (+) (povišanje temperature)
5. Funkcijski gumb (F)
POZOR! Pri začasni prekinitvi el. napajanja se bo termostat vrnil na zadnjo
shranjeno temperaturo.
OPOZORILO!
RANI,
ak.
Stopite v stik s preprodajalcem ali uvoznikom.
6
SLO
millheat.com

POZOR! Pri začasni prekinitvi el. napajanja se bo termostat vrnil na zadnjo
shranjeno temperaturo.
OPOZORILO!
RANI,
ak.
Stopite v stik s preprodajalcem ali uvoznikom.
Glej sliko 8 na posebnem listu z diagramom
li ne
5. Nadzorni gumb (+) (povišanje temperature)
8. Dnevna funkcija
9. Funkcijski gumb
e termostate.
NASVET! Termostat se lahko uporablja kot navaden elektronski termostat (grelnik bo
verite poglavje z
navodili za uporabo elektronskega termostata.
Glej sliko 6 na posebnem listu z diagramom
Indikator napajanja za elektronski termostat
Ko panelni grelnik uporablja napajanje (oz. ko greje), je indikator napajanja
osvetljen.
Glej sliko 7 na posebnem listu z diagramom
7
SLO
