Miller CoolBand II User manual

®
CoolBandtII Integrated
OM-262 902A
2013−09
To help us serve you better, go to MillerWelds.com/CoolerNow
Headgear Cooling System

TABLE OF CONTENTS
SECTION 1 − HELMET COOLER SAFETY
PRECAUTIONS − READ BEFORE USING 1...
1-1. Symbol Usage 1.........................
1-2. Hazards 2..............................
1-3. Proposition 65 Warnings 4................
1-4. Principal Safety Standards 4...............
SECTION 2 − BATTERY SAFETY PRECAUTIONS
− READ BEFORE USING 5..................
2-1. Symbol Usage 5.........................
2-2. Hazards 6..............................
2-3. Proposition 65 Warnings 8................
2-4. Principal Safety Standards 8...............

SECTION 3 − HEADGEAR COOLING SYS 9... .
3-1. Headgear Cooling System Specifications 11..
3-2. Installing Headgear 13.....................
3-3. Installing Head Shroud 14..................
3-4. Charging The Battery 16...................
3-5. Installing The Battery 18...................
3-6. Installing The Filter 19.....................
3-7. Removing Air Deflector To Adjust Air Flow 20..
3-8. Operating The Controls 22.................
3-9. Checking Headgear Cooling Sys Before Use 24
SECTION 4 − MAINTENANCE 26.............
4-1. Adjusting Headgear 26.....................
4-2. Replacing Fabric Headband 28..............
4-3. Maintenance And Storage 29...............
4-4. Headgear Cooling System Troubleshooting 30.
SECTION 5 − PARTS LIST 32................

OM-262 902 Page 2
SECTION 1 − HELMET COOLER SAFETY
PRECAUTIONS − READ BEFORE USING
Protect yourself and others from injury — read, follow, and save
these important safety precautions and operating instructions.
1-1. Symbol Usage Helmet Cooler 2011−1
0
This group of symbols mean
s
Warning! Watch Out! ELECTRIC
SHOCK, MOVING PARTS, an
d
HOT PARTS hazards. Consu
lt
symbols and related instruction
s
below for necessary actions t
o
avoid the hazards.
.Indicates special instructions.
DANGER! − Indicates a hazard-
ous situation which, if not
avoided, will result in death or
serious injury. The possible haz-
ards are shown in the adjoining
symbols or explained in the text.
Indicates a hazardous situation
which, if not avoided, could re-
sult in death or serious injury.
The possible hazards are shown
in the adjoining symbols or ex-
plained in the text.
N
OTICE − Indicates statements not relat-
ed to personal injury.

OM-262 902 Page 3
1-2. Hazards
Only qualified persons should install, operate, maintain, and repair this
unit.
READ INSTRUCTIONS.
DRead and follow all labels and the Owner’s Manual carefully be
-
fore installing, operating, or servicing unit. Read the safety in
-
formation at the beginning of the manual and in each section.
DUse only genuine replacement parts from the manufacturer.
DPerform maintenance and service according to the Owner’s Manuals, industr
y
standards, and national, state, and local codes.
HELMET COOLER MISUSE can be hazardous.
Welding produces fumes and gases. Breathing these fumes and
gases can be hazardous to your health.
DRead and follow these instructions and the safety labels carefully. This product
is intended for use as a cooling device only. It is not a respiratory protective de-
vice and does not protect the user from airborne contaminants. Have an
industrialhygienist test the air in your facility to determine if respiratory protec-
tion is required to provide adequate protection from contaminants in your
environment. With cooling system-equipped helmet on your head and cooling
system operating, also test the air inside the helmet to determine if respiratory
protection is required. If you have questions about the type of respiratory
protection equipment required, consult your safety director and a certified In-
dustrial Hygienist.

OM-262 902 Page 4
DDo not use this product where there is danger of fire or explosion.
DDo not use this product in windy conditions or negative pressure inside the
hood may draw in contaminants from the outside air.
DDo not use this product without a properly installed spark guard unless the unit
is designed and intended to be used without one. Without the spark guard (on
applicable products), welding sparks may ignite the filter or damage the filter.
DThis product does not supply oxygen. Do not use this product where oxygen
levels are 19.5% or lower, where contaminant levels are unknown or are imme-
diately dangerous to life or health (IDLH), or where the contaminant levels
exceed the equipment specifications.
DDo not enter a work area until you are sure the equipment is correctly as-
sembled, working properly, and properly worn.
DBefore each use, inspect the equipment for damage and verify it operates prop-
erly.
DDangerous contaminants may not smell or be visible. Leave the area immedi-
ately if you notice the following:
Breathing becomes difficult.....You experience dizziness, impaired vision, or eye, nose, or mouth irritation.....The equipment is damaged.....
DDo not repair, modify, or disassemble this product or use with parts or accesso-
ries not supplied by the manufacturer.
DDo not operate unit without properly installed filter(s). Replace damaged or
clogged filters. Do not wash or reuse filters. Do not clean filters by tapping or
with compressed air or filter elements may be damaged.
DDo not restrict or alter helmet cooler air flow. Do not block air inlet or outlet. Be
sure safety glasses, hair, weld cap, and other objects do not block air flow.
DThis product contains electrical parts which have not been evaluated as an igni-
tion source in flammable or explosive atmospheres by MSHA/NIOSH.

OM-262 902 Page 5
1-3. Proposition 65 Warnings
Welding or cutting equipment produces fumes or gases which contain
chemicals known to the State of California to cause birth defects and, in
some cases, cancer. (California Health & Safety Code Section 25249.5 et
seq.)
This product contains chemicals, including lead, known to the state of
California to cause cancer, birth defects, or other reproductive harm.
Wash hands after use.
1-4. Principal Safety Standards
Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, is available
as a free download from the American Welding Society at http://www.aws.org or pur-
chased from Global Engineering Documents (phone: [phone], website:
www.global.ihs.com).
Safe Practice For Occupational And Educational Eye And Face Protection, ANSI
Standard Z87.1, from American National Standards Institute, 25 West 43rd Street,
New York, NY 10036 (phone: [phone], website: www.ansi.org).

OM-260 902 Page 6
SECTION 2 − BATTERY SAFETY PRECAUTIONS −
READ BEFORE USING
Protect yourself and others from injury — read, follow, and save
these important safety precautions and operating instructions.
2-1. Symbol Usage Small Batt 2011−10
This group of symbols mean
s
Warning! Watch Out! ELECTRIC
SHOCK, MOVING PARTS, an
d
HOT PARTS hazards. Consu
lt
symbols and related instruction
s
below for necessary actions t
o
avoid the hazards.
.Indicates special instructions.
DANGER! − Indicates a hazard-
ous situation which, if not
avoided, will result in death or
serious injury. The possible haz-
ards are shown in the adjoining
symbols or explained in the text.
Indicates a hazardous situation
which, if not avoided, could re-
sult in death or serious injury.
The possible hazards are shown
in the adjoining symbols or ex-
plained in the text.
N
OTICE − Indicates statements not relat-
ed to personal injury.

OM-262 902 Page 7
2-2. Hazards
Only qualified persons should install, operate, maintain, and repair this
unit.
BATTERY ACID can BURN SKIN and EYES.
DReplace damaged battery.
DDo not touch materials from inside a damaged battery.
DFlush eyes and skin immediately with water.
READ INSTRUCTIONS.
DRead and follow all labels and the Owner’s Manual carefully
before before using the battery or battery charger. Read the
safety information at the beginning of the manual and in each
section.
DDispose of battery according to local, state, and federal requirements. Do
not dispose of battery in fire or water.
DContact the equipment manufacturer if you have any questions about the
battery.

OM-260 902 Page 8
FIRE OR BATTERY EXPLOSION hazard.
DDuring operation keep everyone, especially children, away.
DDo not install or place charger on, over, or near combustible
surfaces.
DDo not charge battery near flammables.
DExaminethe battery before first use. Return battery to the man-
ufacturer if battery is damaged, dirty, or emits an unusual odor.
DUse battery only with equipment with which it was supplied. Replace battery
only with battery specified in Owner’s Manual. Use of another battery may
present a risk of fire or explosion.
DKeep battery dry.
DDo not use or store the battery in extremely hot or humid conditions. See the
Owner’s Manual for specific operating and storage information.
DKeep battery away from fire, out of direct sunlight, and away from other
sources of heat.
DDo not use or charge the battery if it has been dropped or damaged.
DDo not open, puncture, repair, disassemble, or modify the battery.
DCharge battery only with supplied charger in an open, well−ventilated loca-
tion out of direct sunlight and according to supplied instructions.
DDo not overcharge a battery or charge battery longer than specified (if char-
ger is not equipped with automatic shutoff). See the Owner’s Manual for spe-
cific information on battery charging.
DDo not charge battery by connecting directly to AC receptacle. Do not con-
nect battery charger to automobile auxiliary power receptacle.
DDo not connect (short circuit) battery terminals to each other. Do not allow
tools, conductive materials, or other objects to touch both battery terminals at
the same time.

OM-262 902 Page 9
2-3. Proposition 65 Warnings
Welding or cutting equipment produces fumes or gases which contain
chemicals known to the State of California to cause birth defects and, in
some cases, cancer. (California Health & Safety Code Section 25249.5 et
seq.)
This product contains chemicals, including lead, known to the state of
California to cause cancer, birth defects, or other reproductive harm.
Wash hands after use.
2-4. Principal Safety Standards
Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, is available
as a free download from the American Welding Society at http://www.aws.org or pur-
chased from Global Engineering Documents (phone: [phone], website:
www.global.ihs.com).
Safe Practice For Occupational And Educational Eye And Face Protection, ANSI
Standard Z87.1, from American National Standards Institute, 25 West 43rd Street,
New York, NY 10036 (phone: [phone], website: www.ansi.org).

OM-262 902 Page 10
SECTION 3 − HEADGEAR COOLING SYSTEM
Read and follow these instructions and the safety labels carefully. This
productis intended for use as a cooling device only. It is not a respiratory pro-
tective device and does not protect the user from airborne contaminants. Have
an industrial hygienist test the air in your facility to determine if respiratory
protection is required to provide adequate protection from contaminants in
your environment. With cooling system-equipped helmet on your head and
cooling system operating, also test the air inside the helmet to determine if
respiratory protection is required. If you have questions about the type of res-
piratory protection equipment required, consult your safety director and an
Industrial Hygienist.
.Use the cooling system only with compatible Miller welding helmets (MP-10t,
Pro-Hobbyt, Performancet, Elitet, Titaniumtseries helmets). See the welding
helmet Owner’s Manual for information on helmet operation.
The CoolBandtheadgear cooling system draws in air and blows it to the front of the weld-
ing helmet through a flexible tube. The system also generates a positive air pressure to
help prevent contaminants from entering the helmet. The system must include and/or be
used with the equipment listed below:
DHelmet and cowl (head shroud)
DBlower assembly with properly-installed filter
DBattery charger
The headgear cooling system operates at temperatures from 14°⎫↵131°F (−10°to 55°
C). The Battery Level red light flashes and blower assembly pulses on and off when bat-
tery power is low.

OM-262 902 Page 11
.To better show components and fea-
tures, the headgear cooling system
is shown without welding helmet.

OM-262 902 Page 12
3-1. Headgear Cooling System Specifications
Application Fits Most Miller Welding Helmets
Weight Approx. Total Weight With Battery: 455 Grams
Approx. Added Weight To Helmet: 330 Grams
Air Filter Use Miller Filter Only (Miller Part No. 243 932)
.Filter is required for proper operation of equipment, but does not provide
respiratory protection.
NOTICE − Operating cooling system without a filter will damage fan motor and void
warranty.
Operating Temperature 14°to 131°F (−10°to 55°C)
Storage Temperature
(For Up To Six Months Stor-
age With Battery 50%
Charged)
Acceptable: 23°to 95°F (−5°to 35°C)
Preferred: 68°to 86°F (20°to 30°C)
Battery Type Rechargeable Lithium, 1600 mAh, 7.4 V (Rated) 8.4
V (Fully Charged) (Miller Part No. 243 927)
Battery Charging Time About 3.5 hours (Typical); 4.5 hours (max.)
Battery Charging
Temperature 32°to 104°F (0°to 40°C)

OM-262 902 Page 13
Battery Life New Battery: 6 Hours Run Time (Typical); 5.3 hours
(Min.)
.Battery retains about 80% of original battery life
after 300 charges. Battery may be recharged
about 500 times.
Cowl (Head Shroud) Service
Life Replace After 50 Washings
Battery Charger Input: 100-240 VAC 4.5W 50/60 Hz
Output: 5.5-8.6 VDC 500mA (charging ), 0mA (full)
Compliant to FCC Part 15 Class B

OM-262 902 Page 14
3-2. Installing Headgear
1 Tilt
Resistance Knob
2 O−Ring
3 Washer
Remove knobs, o−rings,
and washers from hel-
met headgear. Remove
helmet headgear.
Install cooling system
headgear and secure
with knobs, o−rings, and
washers.
Retain old headgear for
future use.
.See Section 4 for
helmet adjustment
information.
1
3
2

OM-262 902 Page 15

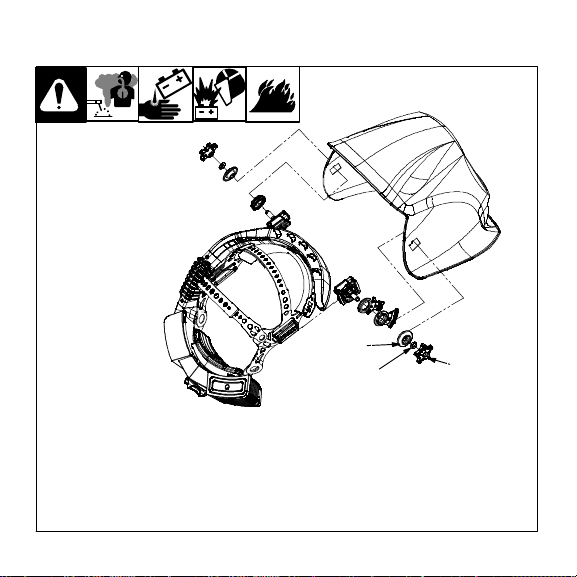

3-3. Installing Cowl (Head Shroud)
After installing shroud,.make sure there are no
gaps between shroud
and helmet edge.
1 Cowl (Head Shroud)
2 Knob
3 Shroud Slots
Slide slots on right and left side
of shroud over knobs.
Stretch shroud over helmet.
.Shroud must be used
when cooling system is
on. Remove shroud from
helmet when using hel-
met with the cooling sys-
tem turned off.
1
2
3

OM-262 902 Page 16
Notes

OM-262 902 Page 17
3-4. Charging The Battery
1
2
3
4
