Notice
The information in this document is subject to change without notice and should not be construed as a
commitment by Millipore Corporation. Millipore Corporation assumes no responsibility for any errors that
might appear in this document. This manual is believed to be complete and accurate at the time of
publication. In no event shall Millipore Corporation be liable for incidental or consequential damages in
connection with or arising from the use of this manual.
We manufacture and sell water purification systems designed to produce pure or ultrapure water with
specific characteristics (μS/cm, T, TOC, CFU/ml, Eu/ml) when it leaves the water purification system
provided that the Synergy Systems are fed with water quality within specifications, and properly
maintained as required by the supplier.
We do not warrant these systems for any specific applications. It is up to the end user to determine if the
quality of the water produced by our systems matches his expectations, fits with norms/legal requirements
and to bear responsibility resulting from the usage of the water.
Copyright
©2005 MILLIPORE CORPORATION. PRINTED IN FRANCE. ALL RIGHTS RESERVED.
THIS BOOK OR PARTS THEREOF MAY NOT BE REPRODUCED IN ANY FORM WITHOUT THE
WRITTEN PERMISSION OF THE PUBLISHERS.
FTPF09574
REV. 0 – 08/05
Trademarks
Millipore, Synergy and Elix are registered trademarks of Millipore Corporation.
Millipak and BioPak are registered trademarks of Millipore Corporation.
SynergyPak 1, SynergyPak 2 and SynergyPak 3 are trademarks of Millipore Corporation.
Tygon is a registered trademark of Norton Co.
Velcro is a registered trademark of Velcro Industries, B.V.
All other trademarks are trademarks of their respective manufacturers.

Millipore’s Standard Warranty
Millipore Corporation (“Millipore”) warrants its products will meet their applicable published
specifications when used in accordance with their applicable instructions for a period of one year from
shipment of the products. MILLIPORE MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED.
THERE IS NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The
warranty provided herein and the data, specifications and descriptions of Millipore products appearing
in Millipore’s published catalogues and product literature may not be altered except by express written
agreement signed by an officer of Millipore. Representations, oral or written, which are inconsistent with
this warranty or such publications are not authorised and if given, should not be relied upon.
In the event of a breach of the foregoing warranty, Millipore’s sole obligation shall be to repair or
replace, at its option, the applicable product or part thereof, provided the customer notifies Millipore
promptly of any such breach. If after exercising reasonable efforts, Millipore is unable to repair or
replace the product or part, then Millipore shall refund to the customer all monies paid for such
applicable product or part. MILLIPORE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL,
SPECIAL OR ANY OTHER INDIRECT DAMAGES RESULTING FROM ECONOMIC LOSS OR PROPERTY
DAMAGE SUSTAINED BY ANY CUSTOMER FROM THE USE OF ITS PRODUCTS.

DECLARATION OF CONFORMITY
EUROPEAN UNION EC DIRECTIVE
Directive 89/336/CEE
Directive 73/23/CEE
Synergy
♦The Synergy System mentioned above is manufactured in Millipore SAS - 67120 Molsheim -
FRANCE - facilities whose quality management system is approved by an accredited registering
body to the ISO9001 Quality System Standards.
♦We certify that these Lab Synergy Systems are designed and manufactured in application of the
following European Council directives:
- 89/336/CEE relating to Electromagnetic compatibility
- 73/23/CEE relating to electrical equipment designed for use within certain voltage
limits
♦Standards to which conformity is declared as applicable are the following :
-EN 61326-1: 1997: Electrical equipment for measurement, control and
laboratory use – EMC requirements.
-EN 61010-1: 2001: Safety requirements for electrical equipment for
measurement, control, and laboratory use.
GuyREYMANN
Quality Assurance Manager

INTRODUCTION
CHAPTER 1INTRODUCTION................................................ 1
1-1 USING THIS MANUAL................................................................................................ 1
1-2 SAFETY INFORMATION............................................................................................... 1
1-3 CONTACTING MILLIPORE ........................................................................................... 2
Internet......................................................................................................................... 2
Manufacturing Site......................................................................................................... 2
CHAPTER 2PRODUCT INFORMATION.................................... 3
2-1 SYNERGY SYSTEM OVERVIEW ...................................................................................... 3
2-2 SYNERGY PRODUCT WATER SPECIFICATIONS ................................................................... 3
Water Flowrate Specification........................................................................................... 3
Product Water Quality.................................................................................................... 3
2-3 SCHEMATIC OF MAIN COMPONENTS ........................................................................... 4
2-4 OPERATING PRINCIPLE ............................................................................................... 4
2-5 TECHNICAL SPECIFICATIONS ....................................................................................... 5

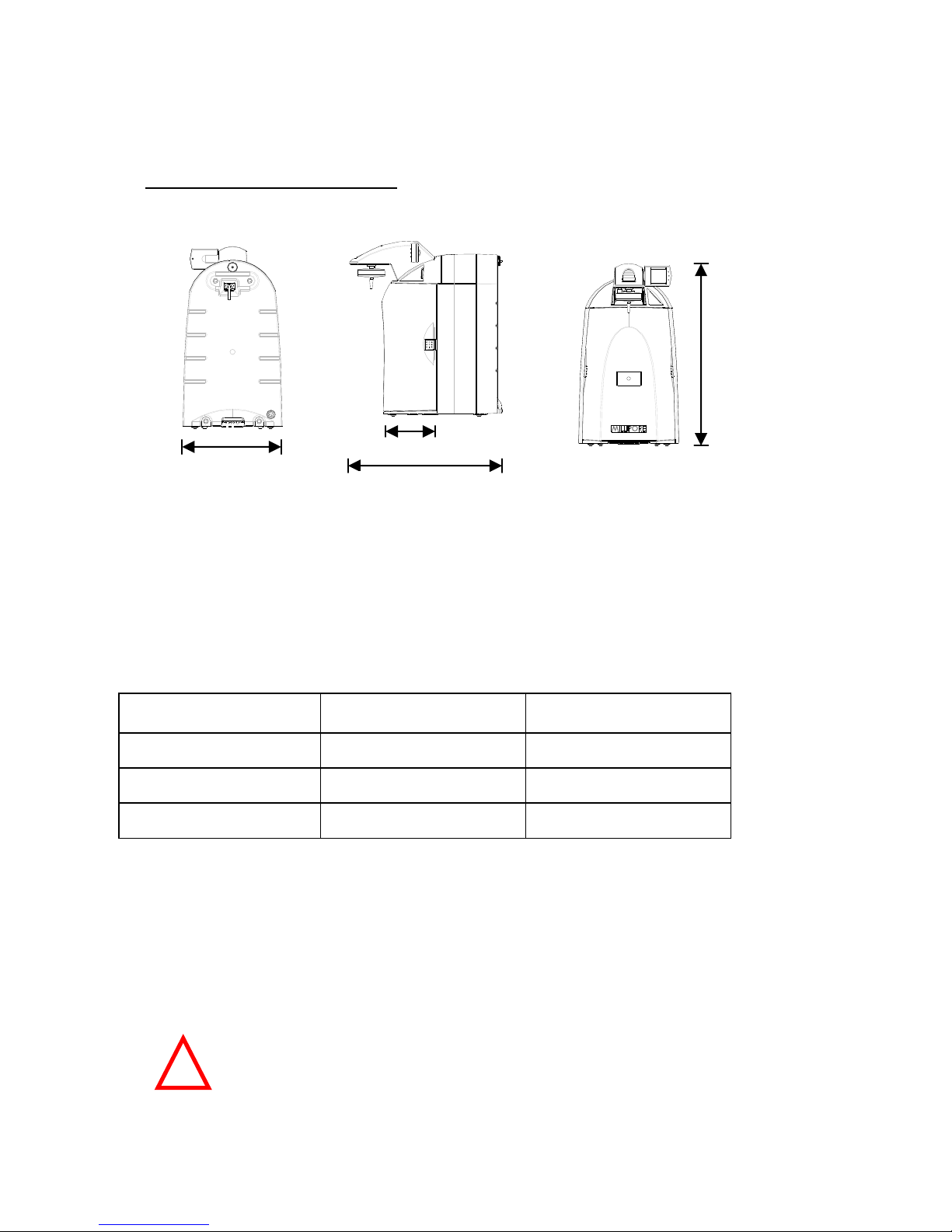

Dimensions ................................................................................................................... 5
Shipping Box ................................................................................................................ 5
Weight ........................................................................................................................ 5
Noise Level .................................................................................................................. 5
Electrical ...................................................................................................................... 5
CHAPTER 3PRE INSTALLATION ............................................ 6
3-1 INSTALLATION REQUIREMENTS...................................................................................... 6
Feedwater Requirements.................................................................................................. 6
Feedwater Connection Needed ....................................................................................... 6
Environmental Requirements ............................................................................................. 6
3-2 OPTIONAL EQUIPMENT YOU MAY NEED ........................................................................ 6
Wall Mounting Bracket................................................................................................... 6
3-3 UNPACKING THE SYNERGY −WHAT’S INSIDE?................................................................ 7
CHAPTER 4INSTALLATION.................................................. 8
4-1 PREPARATION OF THE SYSTEM...................................................................................... 8
4-2 CONNECTION OF TUBING......................................................................................... 9

INTRODUCTION
Feedwater Tubing .......................................................................................................... 9
4-3 CONNECTION OF THE POWER CORD −TURNING ON THE SYSTEM POWER ........................... 10
Start-up Displays.......................................................................................................... 10

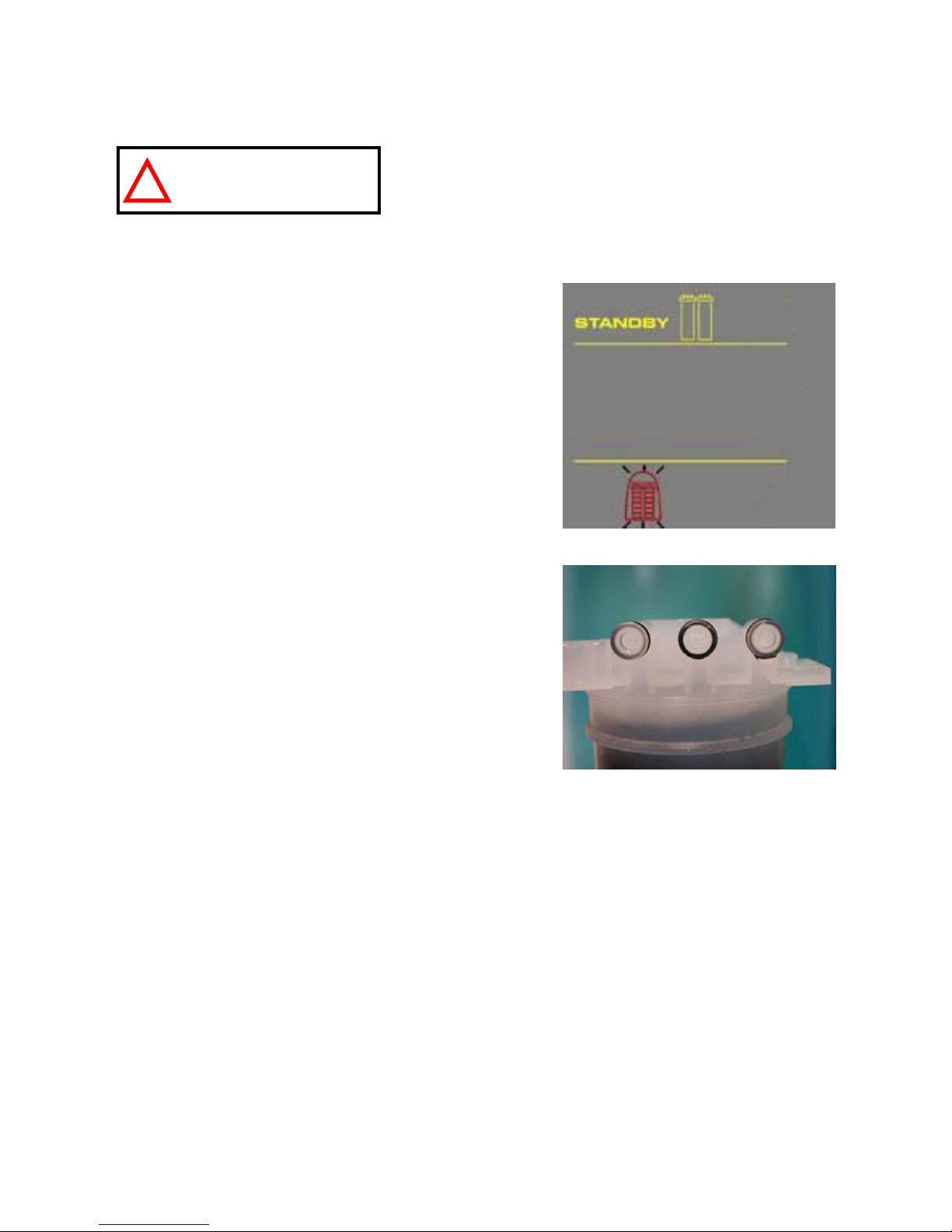

4-4 INSTALLATION OF THE SYNERGYPAK ............................................................................ 11
Installation .................................................................................................................. 11
4-5 INSTALLATION OF THE TYGON TUBING......................................................................... 13
4-6 PURGING AIR FROM THE SYSTEM ................................................................................ 14
4-7 HYDRATING THE SYSTEM.......................................................................................... 14
4-8 INSTALLATION AND RINSING OF THE FINAL FILTER ............................................................ 15
4-9 HOW TO CALIBRATE THE FLOWRATE FROM THE SYNERGY (F02) .......................................... 16
4-10 HOW TO SHOW RESISTIVITY OR CONDUCTIVITY UNITS (C01)............................................ 18
With Temperature Compensated or non Temperature Compensated values............................ 18
4-11 HOW TO SET THE RESISTIVITY SETPOINT (C02)............................................................... 20
CHAPTER 5USING THE SYNERGY....................................... 22
5-1 UNDERSTANDING THE DISPLAY................................................................................... 22
5-2 HOW TO GET WATER FROM THE SYNERGY................................................................... 22
Using the Dispensing Button........................................................................................... 22
How to Dispense an Exact Amount of Product Water (F01) ................................................. 23
5-3 OPERATING MODES ............................................................................................... 25
Standby ..................................................................................................................... 25
Pre Operate................................................................................................................ 25
Dispensing.................................................................................................................. 26
Auto-Dispensing .......................................................................................................... 26
5-4 HOW TO VIEW THE PRODUCT RESISTIVITY AND TEMPERATURE IN PRE OPERATE MODE ................. 27
5-5 HOW TO RECIRCULATE WATER MANUALLY BEFORE DISPENSING............................................ 27
5-6 HOW TO UNDERSTAND SYNERGY MESSAGES ................................................................ 28
Pack Alarm ................................................................................................................. 28
UV Lamp Alarm ........................................................................................................... 28
CHAPTER 6MAINTENANCE .............................................. 29
6-1 MAINTENANCE SCHEDULE ....................................................................................... 29

INTRODUCTION

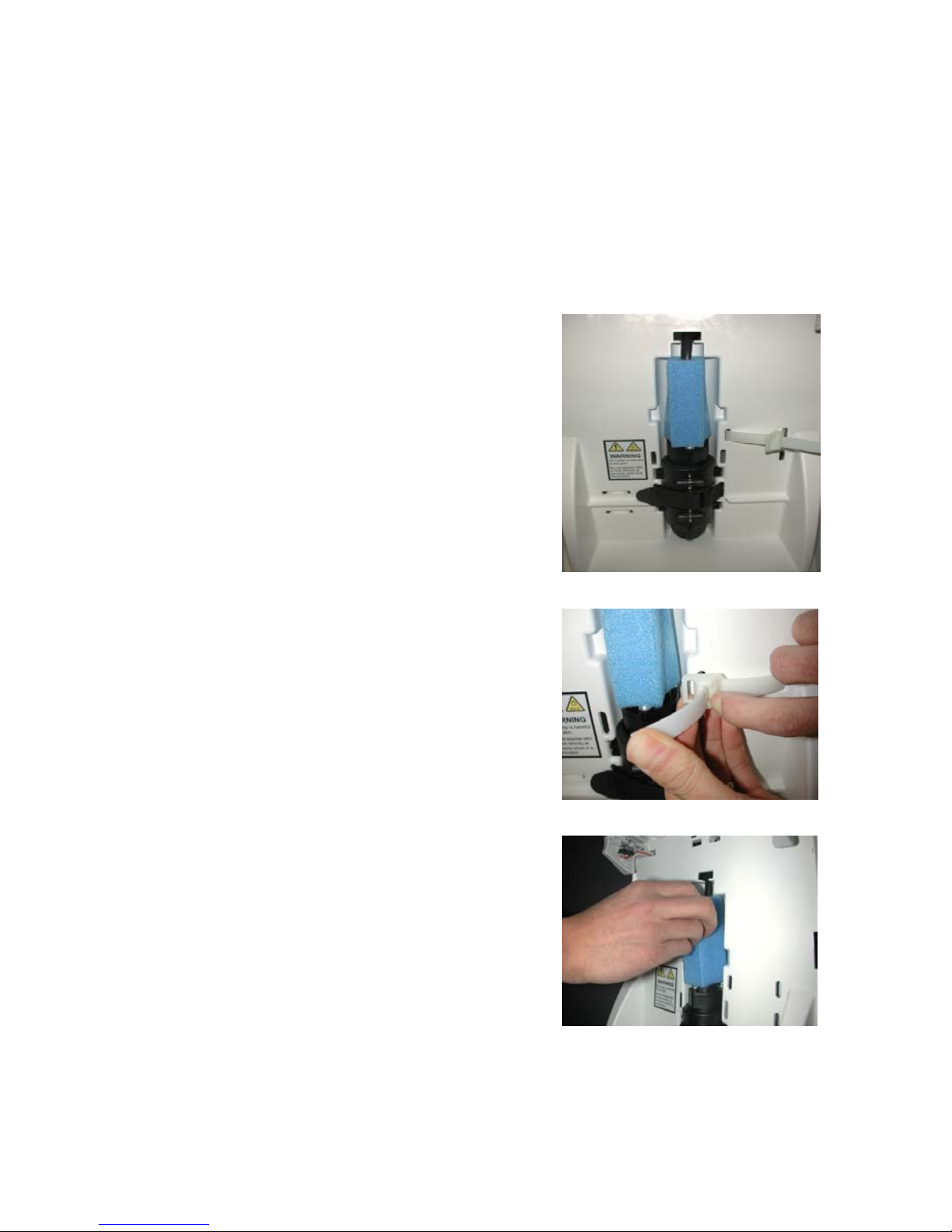

6-2 HOW TO REPLACE THE SYNERGYPAK........................................................................... 30
Removing the SynergyPak.............................................................................................. 30
Installation .................................................................................................................. 31
Installing the Tygon Tubing ............................................................................................ 32
Purging Air from the System ........................................................................................... 32
Hydrating the System.................................................................................................... 32
Replacing the Final Filter ............................................................................................... 32
6-3 HOW TO REPLACE THE FINAL FILTER ............................................................................. 33
6-4 HOW TO CLEAN THE SCREEN FILTER ........................................................................... 34
6-5 HOW TO REPLACE THE UV LAMP (UV SYSTEM ONLY)........................................................ 35
Removing the UV Lamp ................................................................................................. 36
Installing the new UV Lamp ............................................................................................ 37
6-6 HOW TO VIEW OR RESET THE UV LAMP TIMER (C03)....................................................... 38
How to View the Remaining Days on the UV Lamp Timer .................................................... 38
How to Reset the UV Lamp Timer .................................................................................... 39
CHAPTER 7TROUBLESHOOTING ........................................ 40
CHAPTER 8ORDERING INFORMATION ................................ 42
8-1 CATALOGUE NUMBERS FOR SYNERGY SYSTEMS ............................................................. 42
8-2 CATALOGUE NUMBERS FOR CONSUMABLES.................................................................. 42
8-3 CATALOGUE NUMBERS FOR ACCESSORIES .................................................................... 42

INTRODUCTION
Chapter 1 INTRODUCTION
1-1 USING THIS MANUAL
This User Manual is a guide for use during the installation, normal operation and maintenance of a
Synergy or Synergy UV Water Purification System. ‘Synergy’ is used in this manual to refer to either
the Synergy or the Synergy UV unless otherwise noted. It is highly recommended to completely read
this manual and to fully comprehend its contents before attempting normal operation or maintenance
of the Water Purification System.
1-2 SAFETY INFORMATION
Your Synergy System should be operated according to the instructions in this manual. In particular,
the hydraulic and electrical specifications should be followed and met. It is important to use this
equipment as specified in this manual; using this equipment in a different manner may impair the
safety precautions of the Synergy System.
Symbol What it means
This HAZARD symbol is used to refer to instructions in this manual that
need to be done safely and carefully.
This ATTENTION symbol is used to refer to instructions in this manual that
need to be done carefully.
This UV RADIATION sticker is used to refer to a position on the Synergy
System Cabinet or inside of it where exposure to UV light is possible.
This DANGER sticker is used to refer to a position on the Synergy System
Cabinet or inside of it that could be hazardous.
This ELECTRICAL GROUND sticker is used to refer to a position on the
Synergy System Cabinet or inside where an electrical ground connection
is made.
This ELECTRICAL DANGER sticker is used to refer to a position on the
Synergy System Cabinet or inside where an electrical danger could exist.
!
- 1-

INTRODUCTION
- 2-
1-3 CONTACTING MILLIPORE
INTERNET
The Millipore Internet Site can be used to find addresses, telephone/fax numbers and other
information.
Internet Site Address: www.millipore.com
www.millipore.com/techservice
MANUFACTURING SITE
Millipore SAS
67120 Molsheim
FRANCE

PRODUCT INFORMATION
Chapter 2 PRODUCT INFORMATION
2-1 SYNERGY SYSTEM OVERVIEW
DISPLAY
The DISPLAY is used to
monitor the water quality and
system status.
DISPENSING
BUTTON
KEYPAD
The DISPENSING BUTTON
is used to get Product
Water.
The KEYPAD is used to
access operating functions
and system settings.
2-2 SYNERGY PRODUCT WATER SPECIFICATIONS
WATER FLOWRATE SPECIFICATION
PRODUCT WATER QUALITY
Up to 1 LPM (with Final Filter)
Resistivity 18.2 MΩ.cm @ 25 °C
Total Organic Carbon (TOC) < 5 μg/L (ppb) (with UV)
< 10 μg/L (ppb) (without UV)
Micro-Organisms < 1 CFU/ml (with Final Filter)
- 3-

PRODUCT INFORMATION
2-3 SCHEMATIC OF MAIN COMPONENTS
1 Inlet Solenoid Valve 5 Product Resistivity Cell
2 Booster Pump 6 Point-of-Use (POU) Solenoid Valve
3 UV Lamp 185 nm (UV System) 7 Recirculation Loop
4 SynergyPak 1, 2 or 3 8 Final Filter
2-4 OPERATING PRINCIPLE
The Synergy Water Purification System is fed with pretreated water (Elix®, RO, distilled or DI water)
coming from a tank or a loop.
When Product Water is being dispensed, the Inlet Solenoid Valve opens and the Booster Pump turns on.
The pretreated water is then pumped into the UV Lamp (UV System). The UV Lamp emits light at 185 nm
and 254 nm. It is used to reduce levels of organic molecules in the water. The UV Lamp is a consumable
device that needs to be periodically replaced during the maintenance of the system. The water is then
sent to the SynergyPak cartridge to deionize the water. There are three types of SynergyPak. SynergyPak
1 is used for RO, distilled or Elix feedwater. SynergyPak 2 is used for pretreated water from clean DI
(particulate-free). SynergyPak 3 is used for pretreated water from dirty DI (non particulate-free). The
SynergyPak is a consumable device that needs to be periodically replaced during the maintenance of the
system.
The Final Filter is a membrane based filter that removes all particles and bacteria with a size greater than
the filter pore size. The Final Filter is a consumable device.
- 4-

PRODUCT INFORMATION
- 5-
2-5 TECHNICAL SPECIFICATIONS
DIMENSIONS
SYSTEM HEIGHT,WIDTH AND DEPTH
SHIPPING BOX
♦Height: 56 cm
♦Width: 42 cm
♦Depth: 64 cm
WEIGHT
SYSTEM Synergy Synergy UV
Operating Weight 9.7 kg 10.2 kg
Dry Weight 6.7 kg 7.2 kg
Shipping Weight 12 kg 12.5 kg
NOISE LEVEL
A Synergy System has a maximum noise level of 36 dB at a distance of 1 metre away.
ELECTRICAL
♦100 VAC ±10%, 50/60 Hz. 0.68 amp source, 2 amp T (Time Lag) fuse, Power = 100 VA
♦120 VAC ±10%, 50/60 Hz. 0.60 amp source, 2 amp T fuse, Power = 100 VA
♦230 VAC ±10%, 50/60 Hz. 0.37 amp source, 2 amp T fuse, Power = 100 VA
The source of electrical power should be within 2.5 metres of the system. The
source of electrical power must be earth grounded.
14.9 cm
38 cm
54 cm
29.0 cm

PRODUCT INFORMATION
Chapter 3 PRE INSTALLATION
3-1 INSTALLATION REQUIREMENTS
FEEDWATER REQUIREMENTS
Type of Feedwater Elix, RO, distilled or DI water
Flowrate ≥1.5 LPM (Litres per minute)
Minimum Pressure > 0 bar (Feed from a tank)
Maximum Pressure ≤0.5 bar
Temperature 5 to 35 °C
Conductivity < 100 μS/cm
TOC < 50 ppb
NOTE: If the feedwater pressure is greater than 0.5 bar, then the Pressure Regulator
(ZFMQ000PR) is required.
FEEDWATER CONNECTION NEEDED
Feedwater Piping Connection 1/2 inch Male GAZ, NPTM or BSPM
ENVIRONMENTAL REQUIREMENTS
Indoor Use Only
Storage Temperature 5 °C < T < 40 °C
Operating Temperature 5 °C < T < 40 °C
Relative Humidity Should not exceed 80% for temperatures below 31 °C
Should stay within 50% to 80% between 31 °C and 40 °C.
Altitude < 3000 metres
Installation Category II
Pollution Degree 2
3-2 OPTIONAL EQUIPMENT YOU MAY NEED
WALL MOUNTING BRACKET
The Millipore Catalogue Number for the Wall Mounting Bracket is WMBSMT002. The mounting
hardware for attaching the bracket to a wall is not included and must be supplied.
- 6-

PRODUCT INFORMATION
- 7-
3-3 UNPACKING THE SYNERGY −WHAT’S INSIDE?
Open the Synergy System Shipping Box. Use the checklist included in the Accessories Bag to make sure
all items were shipped and are accounted for. It is highly suggested to become familiar with the items
that are shipped since these will be used in the Installation section of this manual.
Contact Millipore if an item is missing.

INSTALLATION
Chapter 4 INSTALLATION
4-1 PREPARATION OF THE SYSTEM
Open the front cover. Locate the tie wrap used to hold the Booster Pump in place during shipping
(A).
Press on the tab of the tie wrap (B). Remove and pull the tie wrap out.
Locate the protective foam found at the UV lamp cable. Remove it (C).
A
B
C
- 8-

INSTALLATION
4-2 CONNECTION OF TUBING
Rotate the Synergy so you can see the back of the system (see photo A).
A
FEEDWATER
TUBING
FEEDWATER TUBING
Locate the Feedwater Tubing exiting from the bottom of the system (B). A 1/2 inch Female GAZ
fitting with a screen filter is attached at the end of this tubing. Unroll it until the fitting reaches the
Feedwater source.
Apply white tape on the thread of the 1/2 inch Male GAZ valve or fitting of the Feedwater source.
Connect the fitting to the valve (C).
B
C
FEEDWATER TUBING
- 9-

INSTALLATION
4-3 CONNECTION OF THE POWER CORD −TURNING ON THE
SYSTEM POWER
Open the front cover of the system (A). This
will allow the system to go into STANDBY
mode once the system is powered.
A
B
C
Plug the Power Cord into the system (B).
Plug the other end of the Power Cord into an
appropriate source of electrical power (i.e.
wall outlet). The system is immediately
powered.
Open the Feedwater Supply Valve.
START-UP DISPLAYS
Once the system is powered, the system will start to
display information about the software before going
into STANDBY mode (C).
- 10 -

INSTALLATION
- 11 -
4-4 INSTALLATION OF THE SYNERGYPAK
Do not touch the UV Lamp when replacing the
SynergyPak.
HAZARD
!
INSTALLATION
Make sure the front cover is opened.
STANDBY should be viewed on the Display
(A).
A
B
Remove the SynergyPak from its shipping box.
Remove the protective caps on the ports of the
SynergyPak and from the system.
Locate the O-rings on the ports (B). Wet them
with water. It is preferable to wet them with
ultrapure water.

INSTALLATION
C
D
E
Install the SynergyPak until it is fully seated into
the system ports as shown (C, D and E).
CLOSE THE FRONT COVER.
- 12 -

INSTALLATION
4-5 INSTALLATION OF THE TYGON TUBING
Locate the clear Tygon Tubing and the Barbed Fitting from the Accessories Bag.
Screw the Barbed Fitting onto the bottom end of the POU Dispenser (A).
Do not use any white tape on the threads of
the Barbed Fitting. An O-ring is located
inside the POU Dispenser to ensure water
tightness between the threads of the POU
Dispenser and the Barbed Fitting.
ATTENTION
Push one end of the Tygon Tubing onto the end of the Barbed Fitting (B). Place the other end of the
Tygon Tubing in a sink.
A
B
- 13 -
